Next Article in Journal
BiCuSeO Thermoelectrics: An Update on Recent Progress and Perspective
Previous Article in Journal
Microstructural Characterization of Melt Extracted High-Nb-Containing TiAl-Based Fiber


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Materials
Volume 10
Issue 2
10.3390/ma10020196
materials-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

The Effect of Matrix Composition on the Deformation and Failure Mechanisms in Metal Matrix Syntactic Foams during Compression

by
Csilla Kádár
1,
Kristián Máthis
2,
Michal Knapek
2,* and
František Chmelík
2
1
Department of Materials Physics, Loránd Eötvös University, Pázmány P. stny. 1/A, Budapest H-1117, Hungary
2
Department of Physics of Materials, Charles University, Ke Karlovu 5, Prague 2 121 16, Czech Republic
*
Author to whom correspondence should be addressed.
Materials 2017, 10(2), 196; https://doi.org/10.3390/ma10020196
Submission received: 6 January 2017 / Revised: 6 February 2017 / Accepted: 14 February 2017 / Published: 17 February 2017
Browse Figures
Versions Notes

Abstract

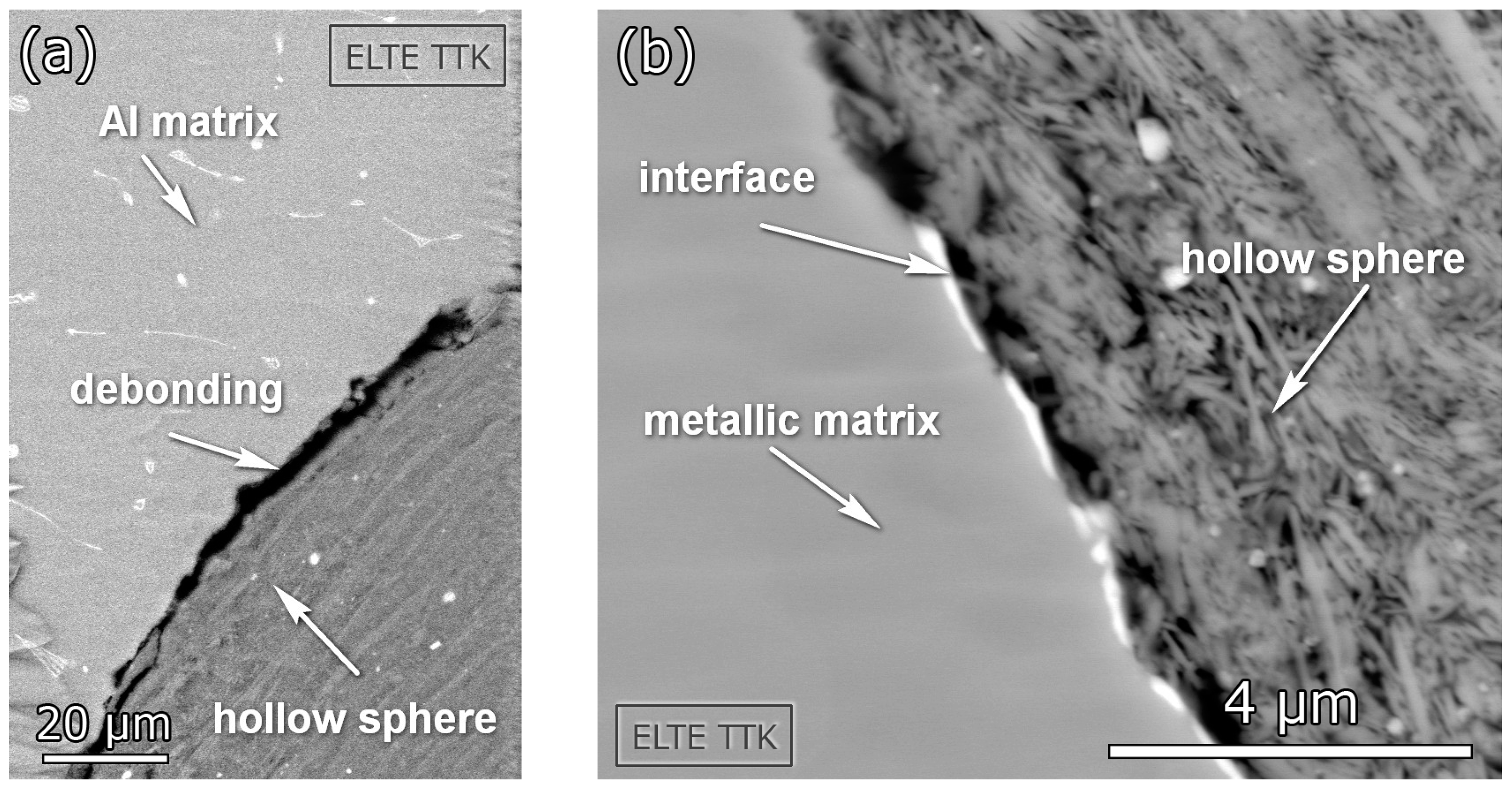

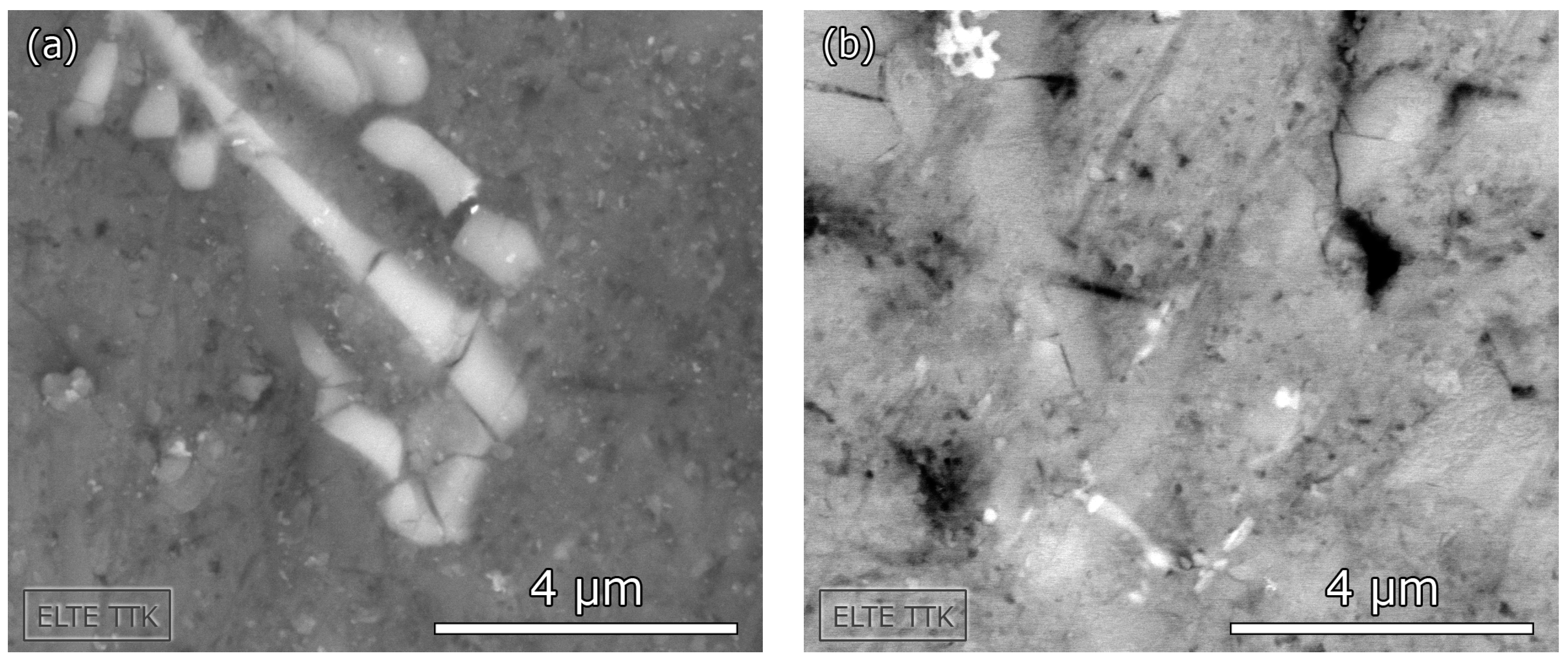

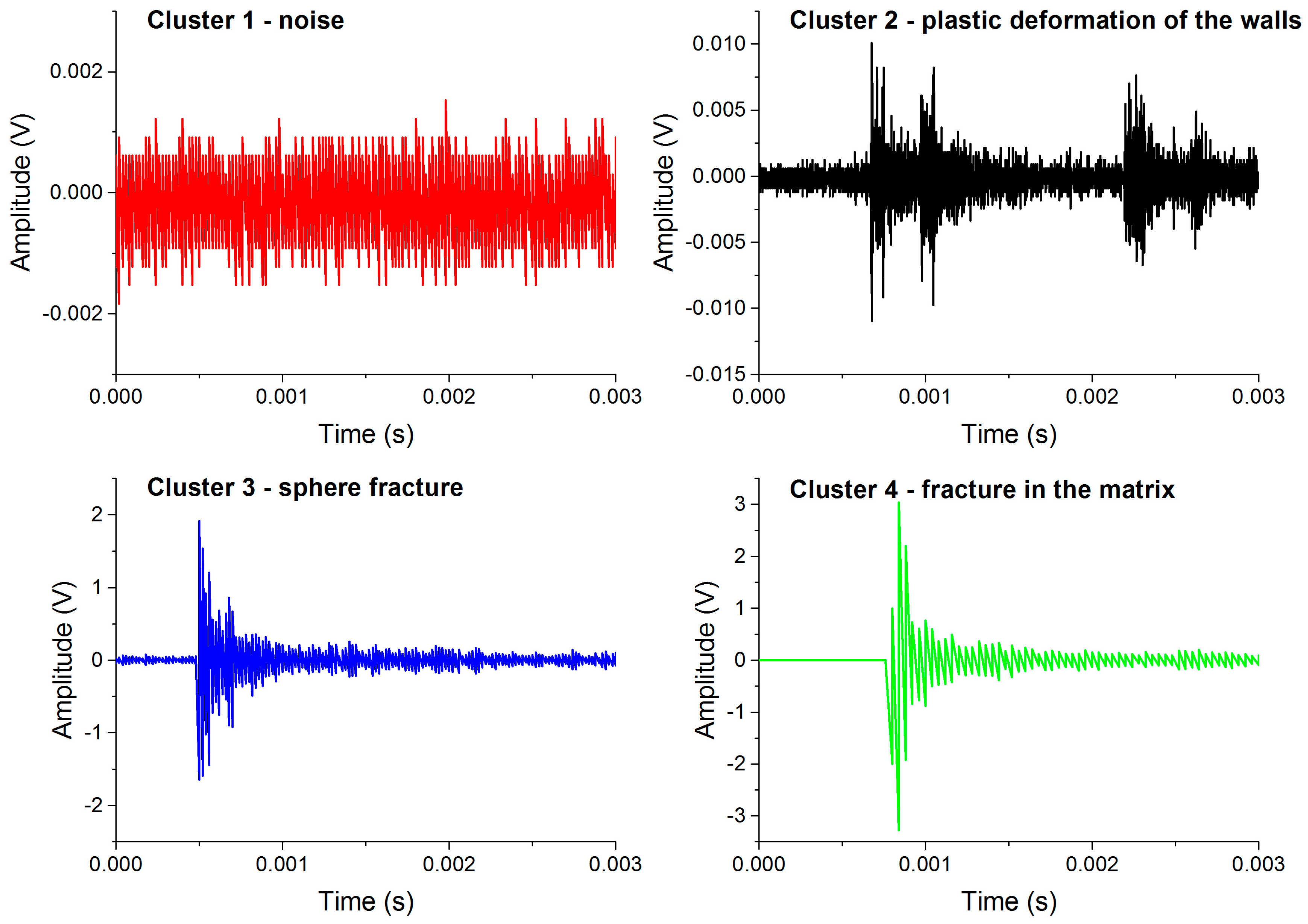

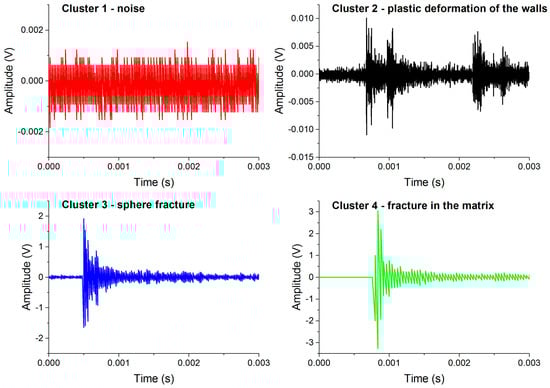

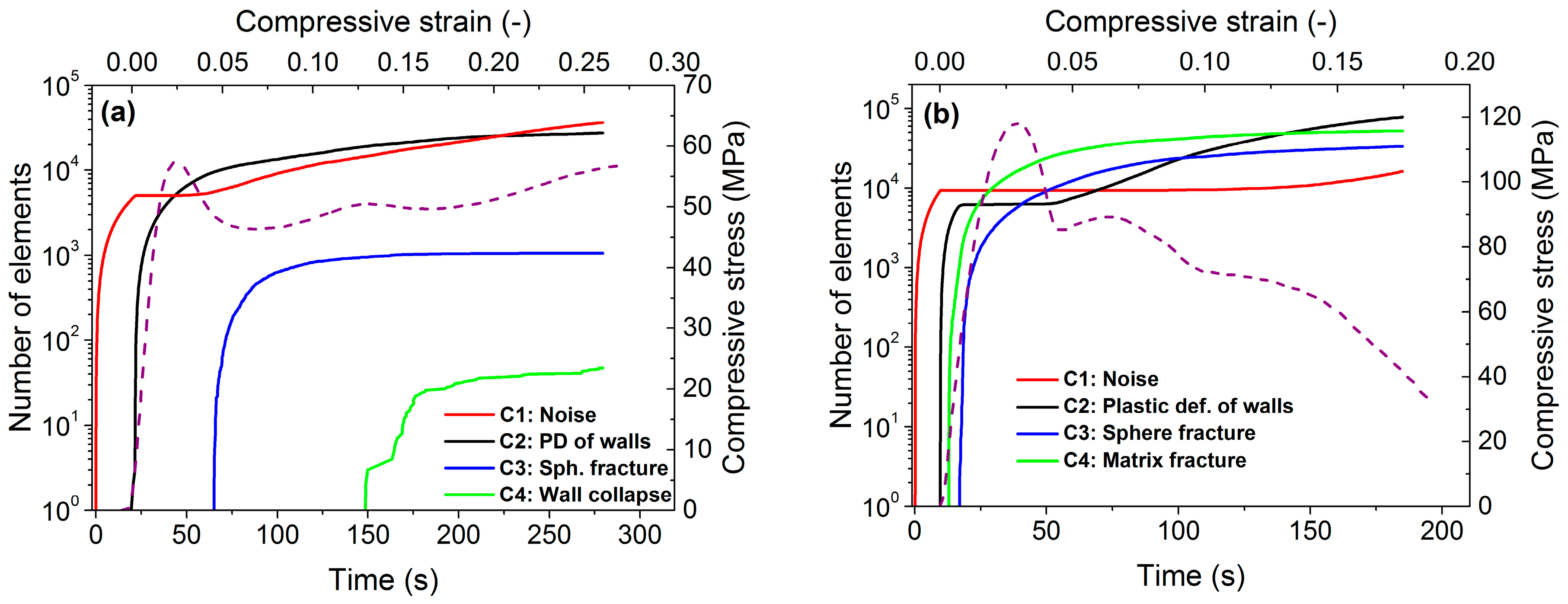

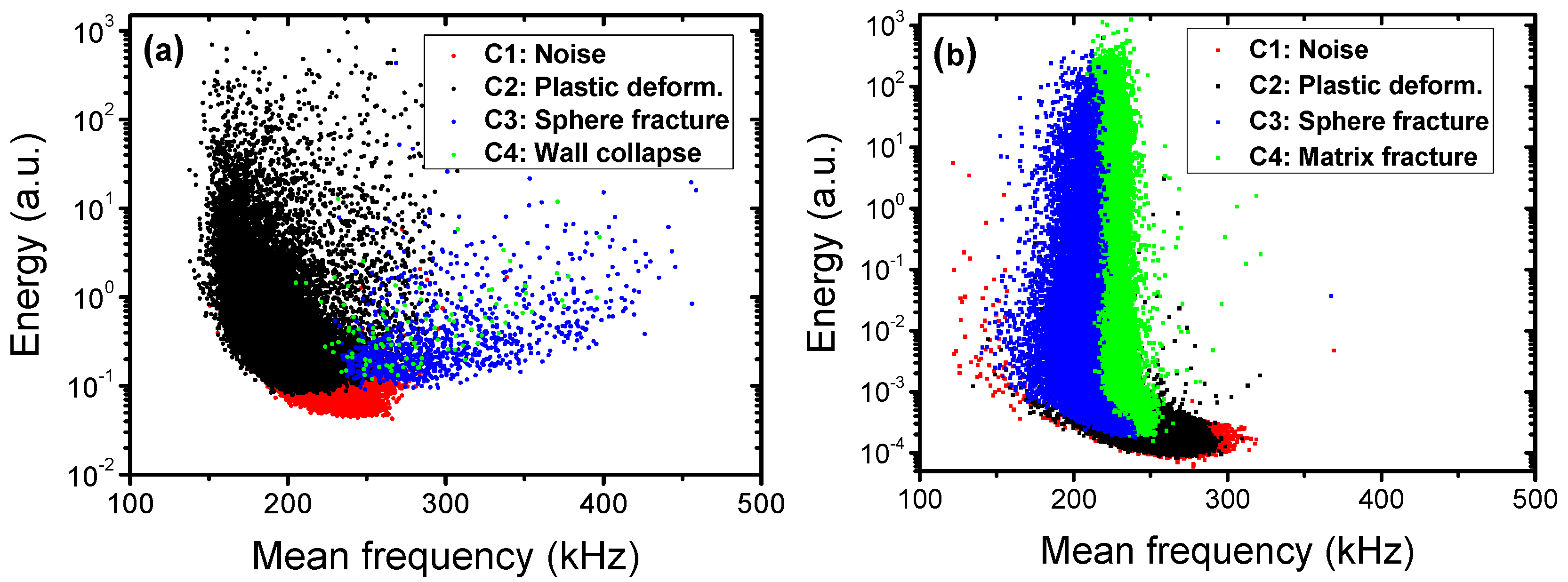

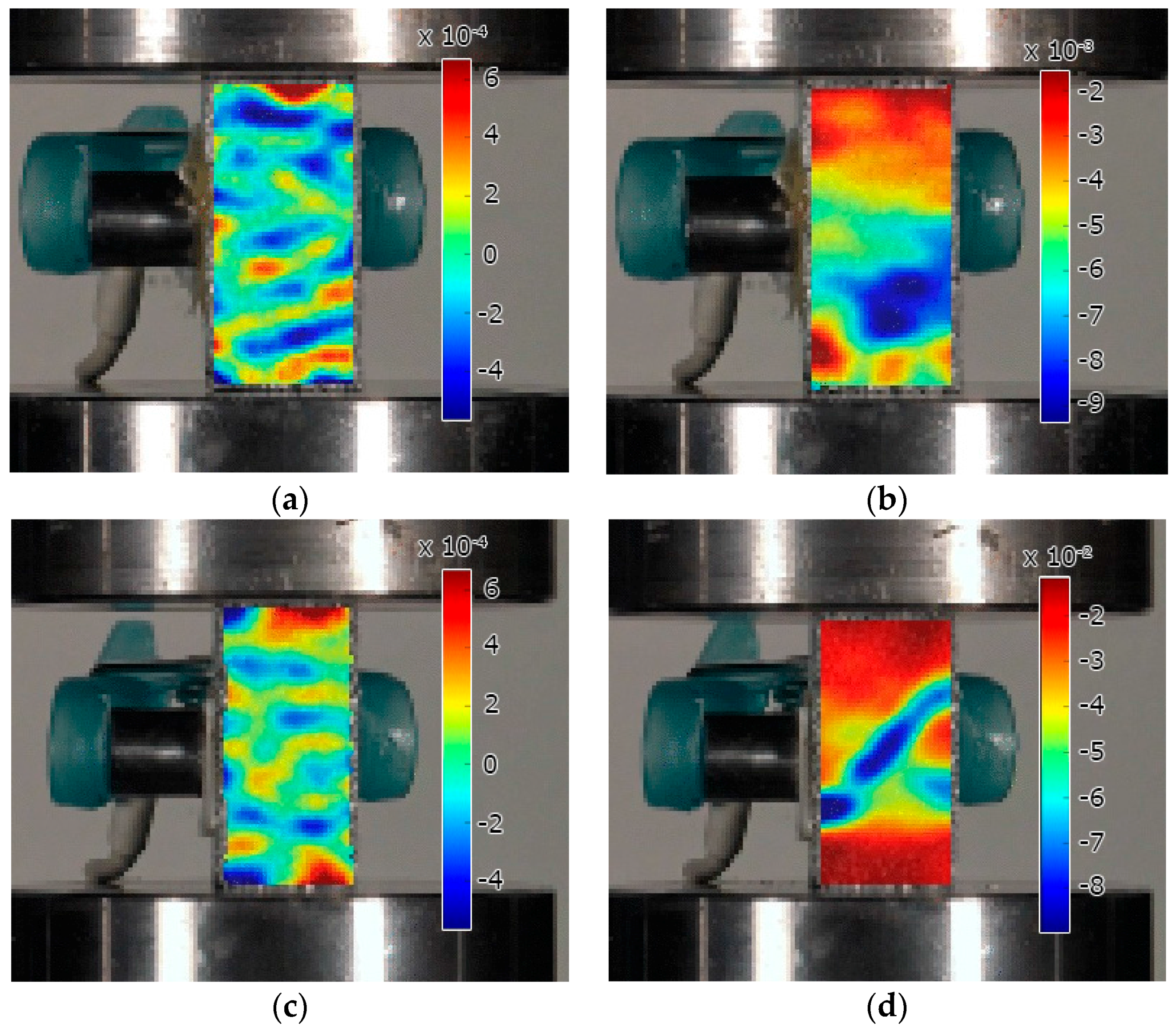

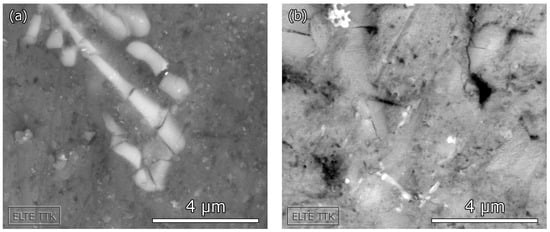

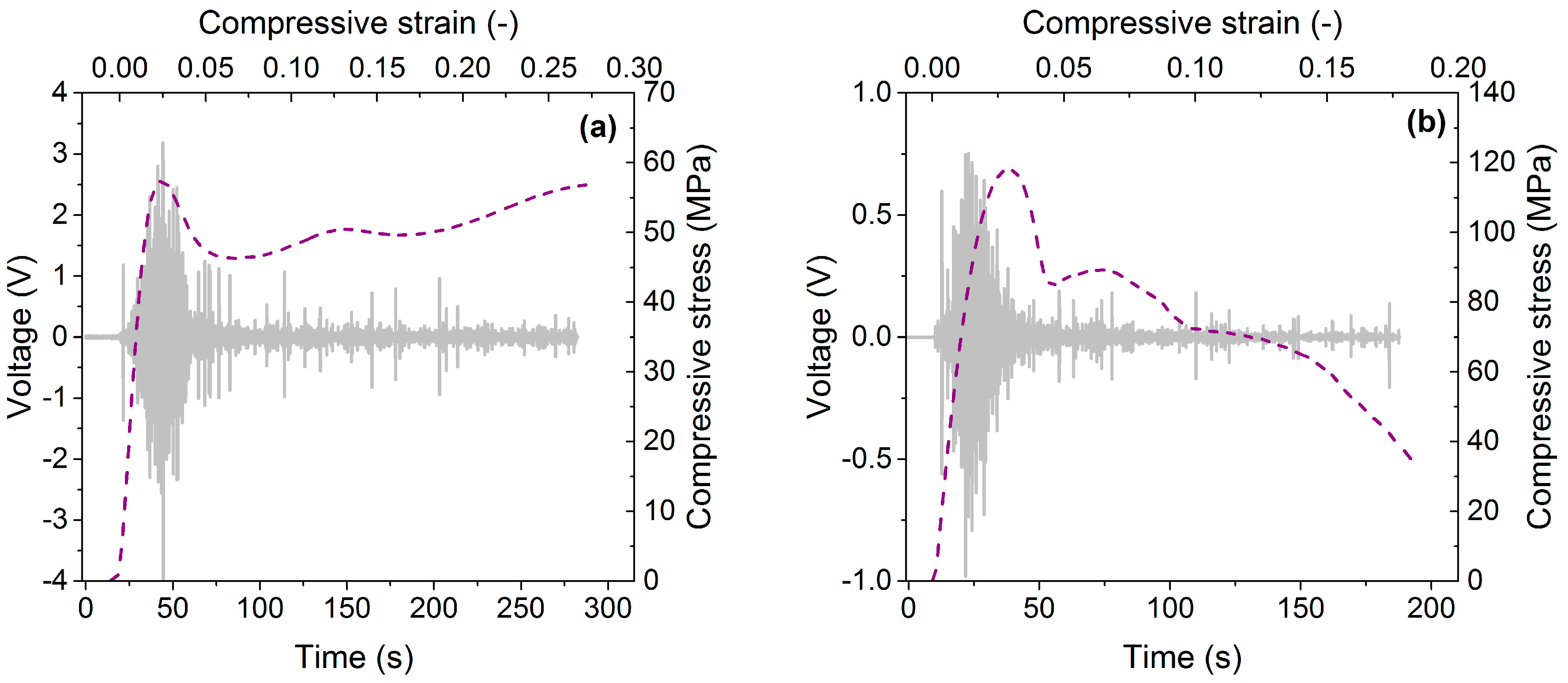

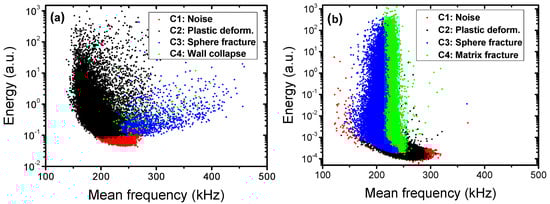

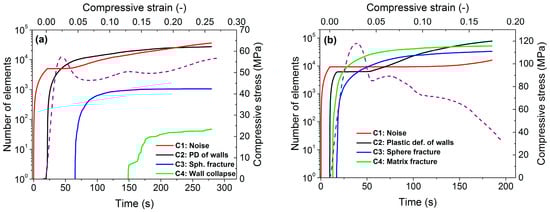

The influence of the matrix material on the deformation and failure mechanisms in metal matrix syntactic foams was investigated in this study. Samples with commercially pure Al (Al) and Al-12 wt % Si (AlSi12) eutectic aluminum matrix, reinforced by hollow ceramic spheres, were compressed at room temperature. Concurrently, the acoustic emission response and the strain field development on the surface were monitored in-situ. The results indicate that the plastic deformation of the cell walls is the governing mechanism in the early stage of straining for both types of foams. At large stresses, deformation bands form both in the Al and AlSi12 foam. In Al foam, cell walls collapse in a large volume. In contrast, the AlSi12 foam is more brittle; therefore, the fracture of precipitates and the crushing of the matrix take place within a distinctive deformation band, along with an occurrence of a significant stress drop. The onset stress of ceramic sphere failure was shown to be not influenced by the matrix material. The in-situ methods provided complementary data which further support these results.
Keywords: syntactic foams; acoustic emission; mechanical properties syntactic foams; acoustic emission; mechanical properties

Share and Cite

MDPI and ACS Style

Kádár, C.; Máthis, K.; Knapek, M.; Chmelík, F. The Effect of Matrix Composition on the Deformation and Failure Mechanisms in Metal Matrix Syntactic Foams during Compression. Materials 2017, 10, 196. https://doi.org/10.3390/ma10020196

AMA Style

Kádár C, Máthis K, Knapek M, Chmelík F. The Effect of Matrix Composition on the Deformation and Failure Mechanisms in Metal Matrix Syntactic Foams during Compression. Materials. 2017; 10(2):196. https://doi.org/10.3390/ma10020196

Chicago/Turabian Style

Kádár, Csilla, Kristián Máthis, Michal Knapek, and František Chmelík. 2017. "The Effect of Matrix Composition on the Deformation and Failure Mechanisms in Metal Matrix Syntactic Foams during Compression" Materials 10, no. 2: 196. https://doi.org/10.3390/ma10020196

APA Style

Kádár, C., Máthis, K., Knapek, M., & Chmelík, F. (2017). The Effect of Matrix Composition on the Deformation and Failure Mechanisms in Metal Matrix Syntactic Foams during Compression. Materials, 10(2), 196. https://doi.org/10.3390/ma10020196

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
