MultiObjective ThermoEconomic Optimization Strategy for ORCs Applied to Subcritical and Transcritical Cycles for Waste Heat Recovery
Abstract
:1. Introduction
Reference  Objective Function  Cycle Architecture

Hettiarachchi et al. [26] (2007)  Heat exchange area per unit power (m^{2}/kWe)  SCORC
Cayer et al. [27] (2010)  Relative cost per unit power (€/kWe)  TCORC
Shengjun et al. [28] (2011)  Levelized energy cost ($/kWh) Heat exchange area per unit power (m^{2}/kWe)  SCORC, TCORC
Quoilin et al. [29] (2011)  Specific investment cost (€/kWe)  SCORC
Wang et al. [17] (2012)  Linear combination of area per unit power (m^{2}/kWe) and heat recovery efficiency (%)  SCORC
Wang et al. [30] (2013)  Heat exchange area per unit power (m^{2}/kWe)  SCORC
Wang et al.^{ 1} [31] (2013)  Exergy efficiency (%) vs. total investment cost (€/kWe)  SCORC
Lecompte et al. [32] (2013)  Specific investment cost (€/kWe)  SCORC
Pierobon et al.^{ 1} [33] (2013)  Net present value (€) vs. volume (m^{3}) Volume (m^{3}) vs. thermal efficiency (%)  SCORC
Astolfi et al. [34] (2013)  Plant total specific cost (k€/kW)  TCORC
Shu et al. [35] (2014)  Net present value ($) Deprecated payback period (years) Heat exchange area per unit power (m^{2}/kWe)  SCORC TCORC
Li et al. [36] (2014)  Electricity production cost ($/kWh)  SCORC ZM
Li et al. [37] (2014)  Electricity production cost ($/kWh)  SCORC
Muhammad et al. [38] (2014)  Specific investment cost ($/kW)  SCORC
Nusiaputra et al. [39] (2014)  Specific investment cost ($/kW) Mean cash flow ($/year)  SCORC
Li et al. [40] (2014)  Total area (m^{2}) Relative cost per unit power ($/W) Ratio heat exchanger cost tot total cost (%)  SCORC
Toffolo et al. [41] (2014)  Specific investment cost ($/kW) Levelized cost of electricity ($/kWh)  SCORC TCORC
Meinel et al. [42] (2014)  Specific costs per kilowatt hour (€/kWh)  SCORC
Objective Function  Formula  Comments

Min. specific area (SA)  $\frac{{C}_{inv}}{{A}_{total}}$

Min. specific investment cost (SIC)  $\frac{{C}_{inv}}{{\dot{W}}_{net}}$

Min. simple payback period (PB)  $\frac{{C}_{inv}}{R}$

Max. net present value (NPV)
$$\sum}_{t=1}^{years}\frac{{R}_{t}}{{\left(1+r\right)}^{t}$$


Min. levelized cost of electricity (LCOE)  $\frac{{{\displaystyle \sum}}_{t=1}^{years}NPV\left({C}_{t,inv}+{C}_{t,fuel}+{C}_{t,OM}\right)}{{{\displaystyle \sum}}_{t=1}^{years}NPV\left({E}_{t,gen}\right)}$

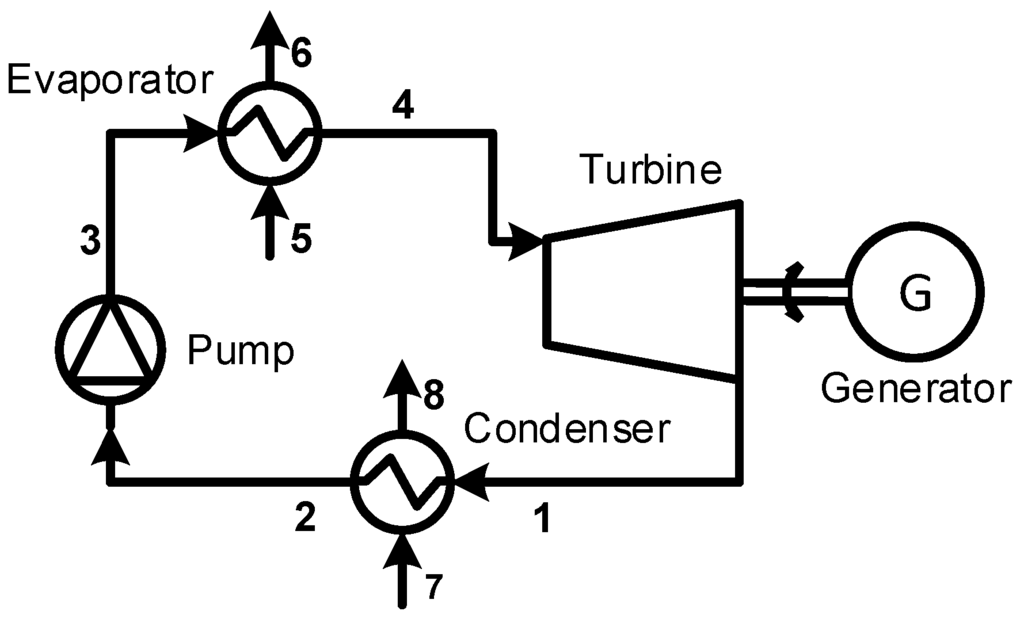

2. Description of the Thermodynamic Cycles and Cases

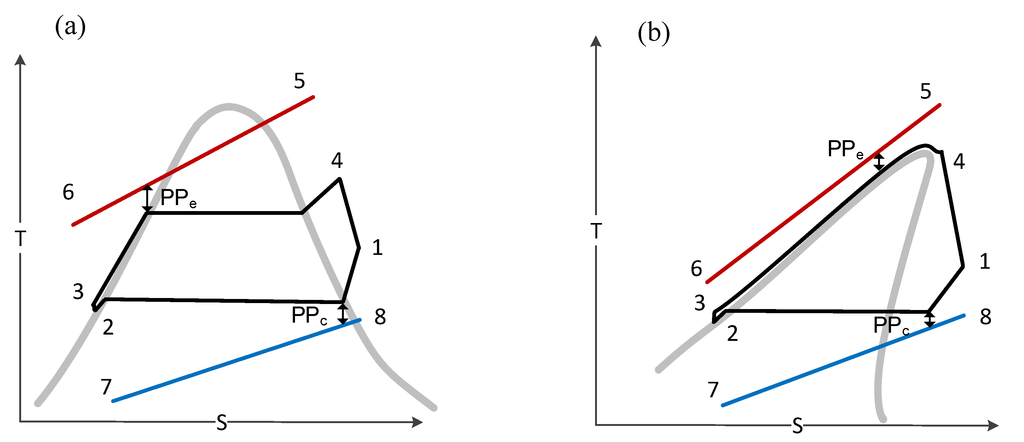

2.1. Description Subcritical and Transcritical ORC
2.2. Case Definition
3. Model and Assumptions
3.1. Cycle Assumptions
Variable  Description  Value

PP_{e}  Pinch point temperature difference evaporator (°C)  Optimized
PP_{c}  Pinch point temperature difference condenser (°C)  Optimized
T_{7}  Inlet temperature cooling fluid condenser (°C)  25
T_{4}  Inlet temperature turbine (°C)  Optimized ^{1}
p_{e}  Evaporation pressure (Pa)  Optimized ^{2}
p_{c}  Condensation pressure (Pa)  Optimized
ε_{turbine}  Isentropic efficiency turbine ()  0.7
ε_{pumps}  Isentropic efficiency pumps ()  0.6
ε_{generator}  Generator efficiency ()  0.98
ΔT_{sub}  Temperature subcooling (°C)  3
ΔT_{sup}  Temperature superheating (°C)  5 ^{2}
3.2. Heat Exchanger Models
Variable  Description  Value

${D}_{h}$  Hydraulic diameter (m)  0.0035
$t$  Plate thickness (m)  0.0005
$\mathrm{\beta}$  Chevron angle (°)  45
$\mathrm{\lambda}$  Plate thermal conductivity (W/m/K)  13.56
${p}_{co}$  Corrugation pitch (m)  0.007
3.3. Cost Models
Component  B  K1  K2  K3  Valid Range

Plate heat exchangers  Area (m^{2})  4.6656  −0.1557  0.1547  10–1000 (m^{2})
Turbine  Fluid power (kW)  2.2476  1.4965  −0.1618  100–1500 (kW)
Pumps (centrifugal)  Shaft power (kW)  3.3892  0.0536  0.1538  1–300 (kW)
Electrical motor pump  Shaft power (kW)  2.4604  1.4191  −0.1798  75–2600 (kW)
Electrical generator [41]  Shaft power (kW)  ${C}_{PEC}^{0}=1850000\xb7{\left(P/11800\right)}^{0.94}$
Component  B1  B2  C1  C2  C3  F_{m}  F_{BM}

Plate heat exchangers p (bar) < 19  0.96  1.21  0  0  0  1
Turbine              3.5
Pumps (centrifugal) 10 < p (bar) < 100  1.89  1.35  −0.3935  0.3957  −0.00226  1
Pumps (centrifugal) p (bar) < 10  1.89  1.35  0  0  0  1
Electrical motor pump              1.5
Electrical generator [41]              1.5
3.4. Working Fluid Selection
Variable  Uncertainty

Density  0.1% (liquid phase, temperature <400 K and pressure <30 MPa) 0.2% (liquid phase, temperature >310 K and pressure >30 MPa) 1% (liquid phase, temperature <310 K and pressure >30 MPa) 1% (vapor phase, temperature >400 K)
Vapor pressure  0.2% (temperature >250 K) 0.35% (temperature >370 K)
Liquid phase heat capacity  5%
3.5. Expander Considerations
4. Optimization Strategy
Variable  Description  Lower  Upper

${G}_{\mathrm{c},\mathrm{wf}}$  Mass flux working fluid condenser (kg/m^{2}/s)  20  100
${G}_{\mathrm{e},\mathrm{wf}}$  Mass flux working fluid evaporator (kg/m^{2}/s)  20, 100 ^{1}  50, 200 ^{1}
$P{P}_{\mathrm{c}}$  Pinch point temperature difference condenser (°C)  3  10
$P{P}_{e}$  Pinch point temperature difference evaporator (°C)  3  10
${T}_{c}$  Liquid saturation temperature condenser (°C)  35  50
${T}_{e}$ ^{2}  Liquid saturation temperature evaporator (°C)  100  148.5
T_{7}^{1}  Turbine inlet temperature (°C)  150  175
${N}_{e}$  Number of passes hot fluid side evaporator ()  1  3
${N}_{c}$  Number of passes cold fluid side condenser ()  1  3
Parameter  Value

Generations  50
Population size  120
Crossover rate  0.8
Migration rate  0.2
Mutation type  Gaussian (shrink = 1, scale = 1)
5. Results and Discussion

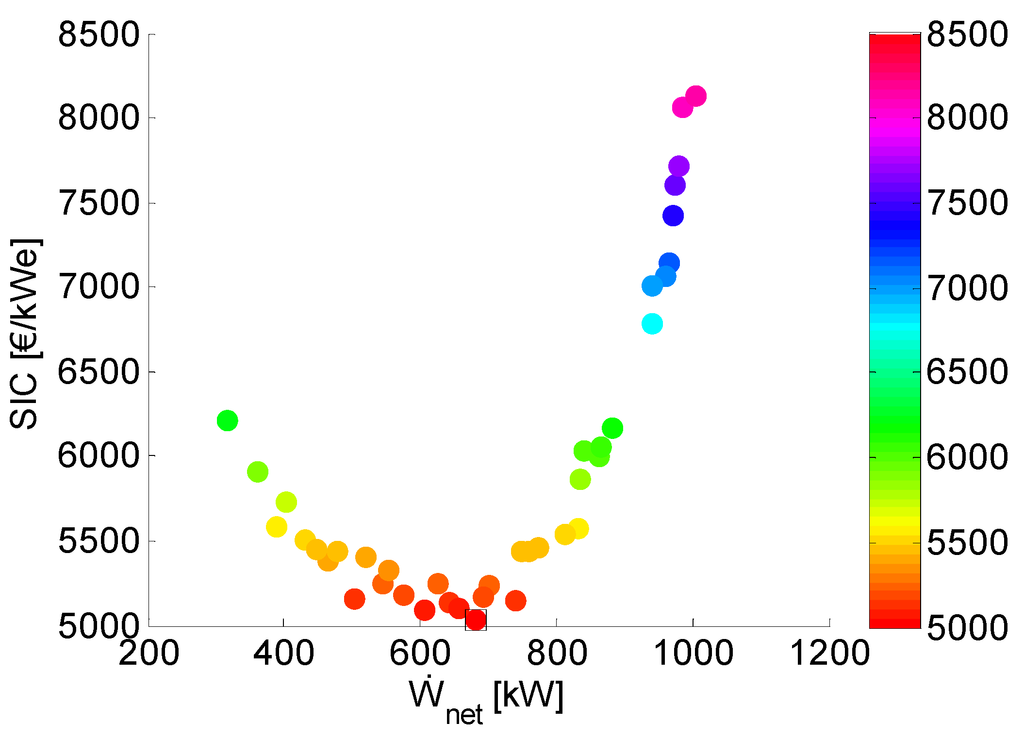

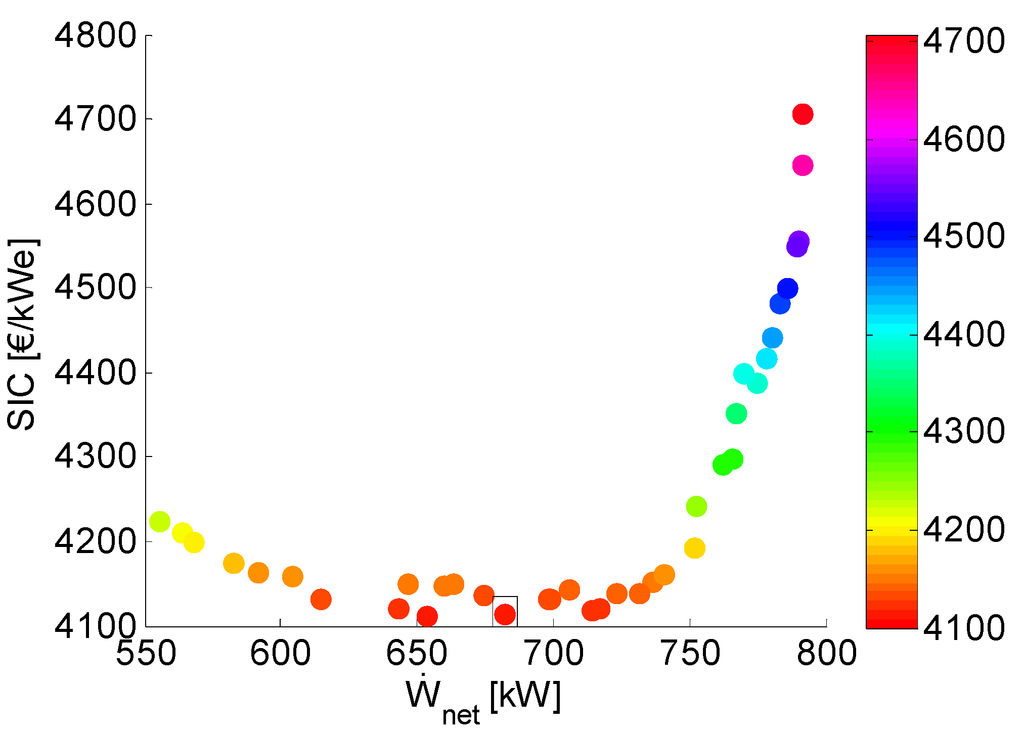

5.1. Pareto Fronts and Specific Investment Cost
Variable  Minimum SIC  Maximum Net Power Output

SCORC  TCORC  SCORC  TCORC
${\dot{W}}_{net}$ (kWe)  681.8  681.3  791.5  1040
${\mathrm{\eta}}_{I}$ (%)  10.47  11.20  10.9  11.1
$P{P}_{\mathrm{e}}$ (°C)  5.9  8.2  3  3
$P{P}_{c}$ (°C)  8.0  7.0  3  3
${T}_{e}$ (°C)  128.8    124.5
${T}_{c}$ (°C)  41.1  39.85  35.2  37.0
${T}_{4}$ (°C)  128.8  161.6  124.5  160.0
${C}_{GR}$ (k€)  2805  3436  3725  8162
$SIC$ (€/kWe)  4114  5044  4707  8137
${A}_{e}$ (m^{2})  258  879  418  1205
${A}_{c}$ (m^{2})  398  385  888  756
${N}_{e}$ ()  2  2  2  2
${N}_{c}$ ()  2  2  2  2
${\dot{m}}_{e,hf}$ (kg/s)  28.58  26.7  28.9  40.52
${\dot{m}}_{e,cf}$ (kg/s)  205.30  150  217  255
${G}_{e,wf}$ (kg/s/m^{2})  91.0  187  70.3  175.0
${G}_{c,wf}$ (kg/s/m^{2})  54.0  53.5  22.4  46.1

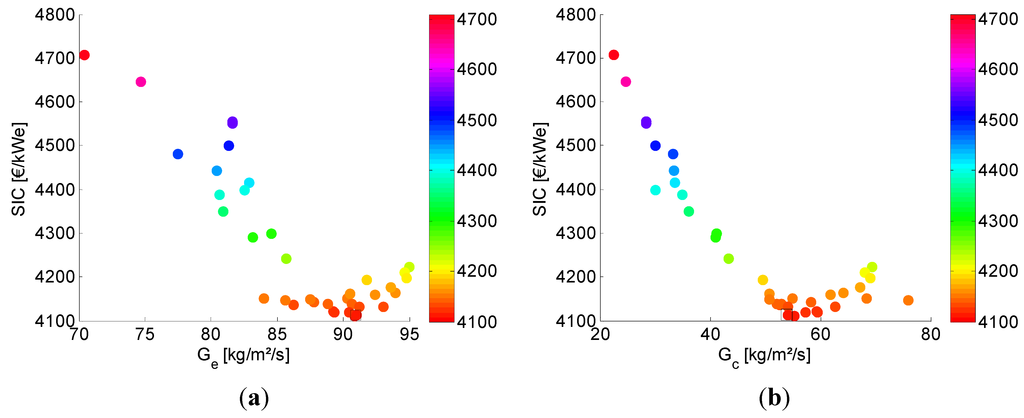

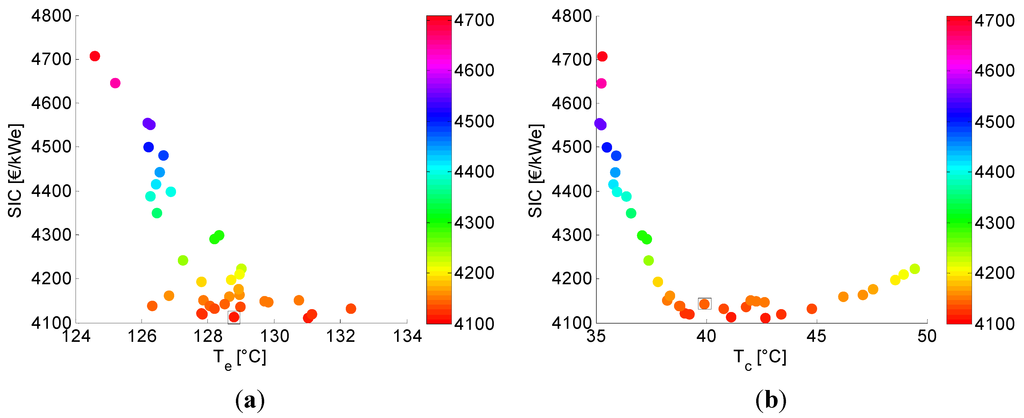

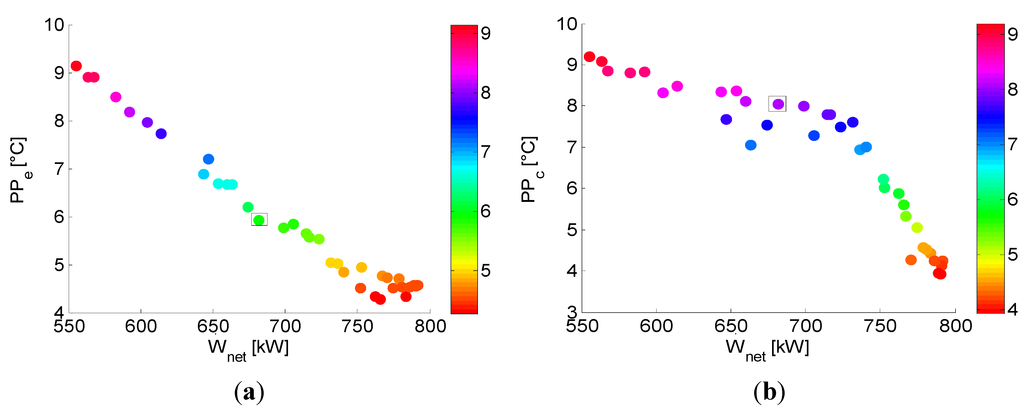

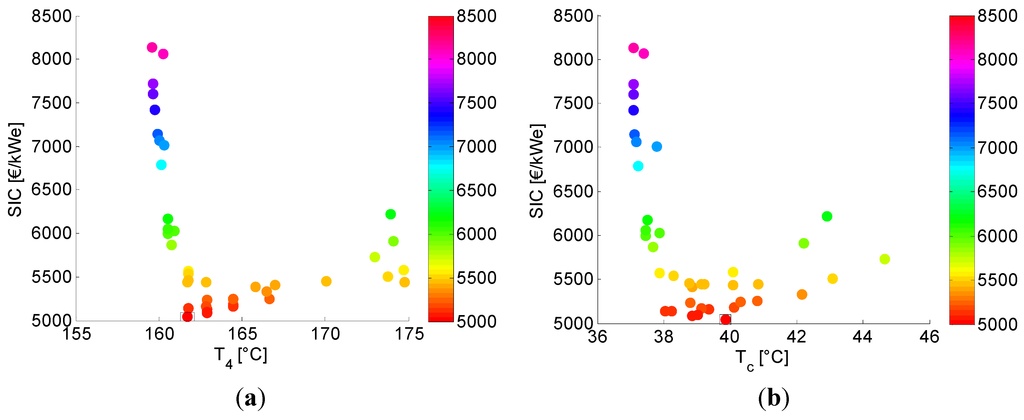

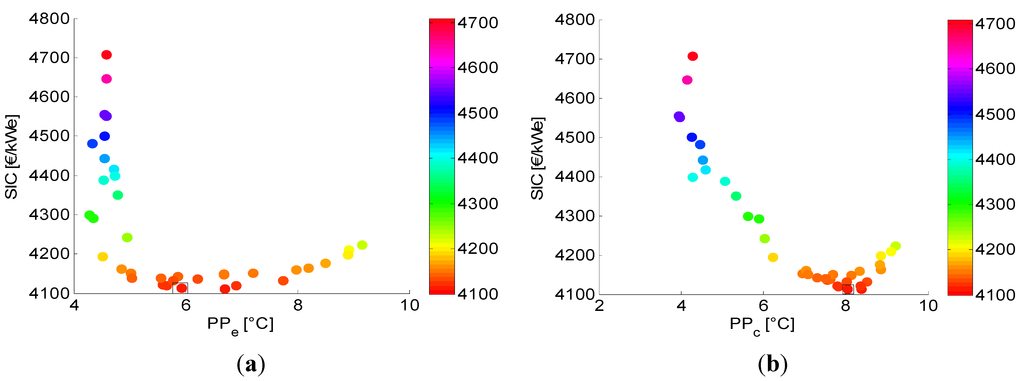

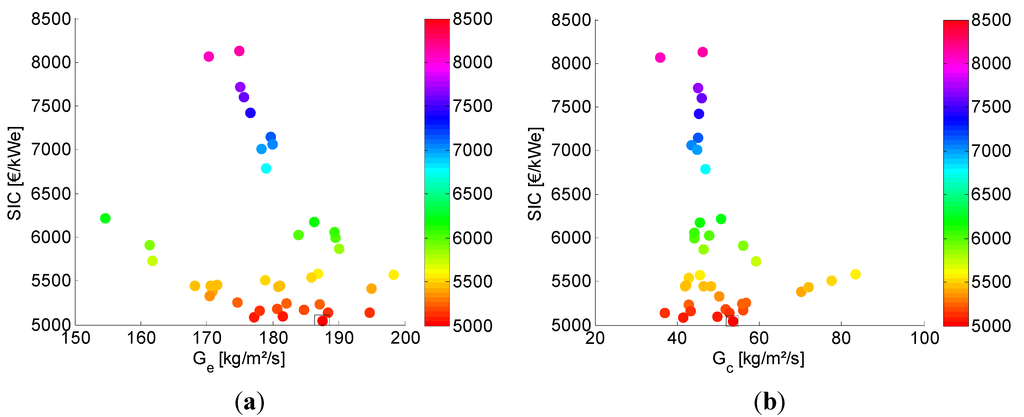

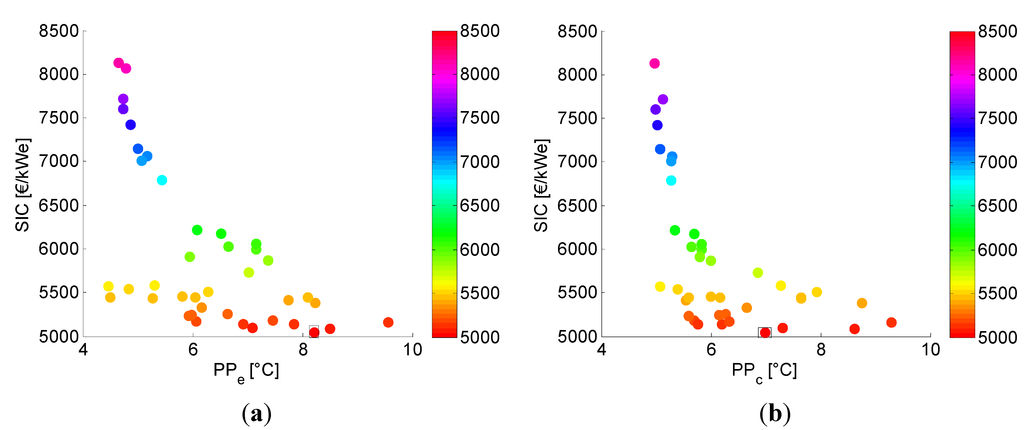

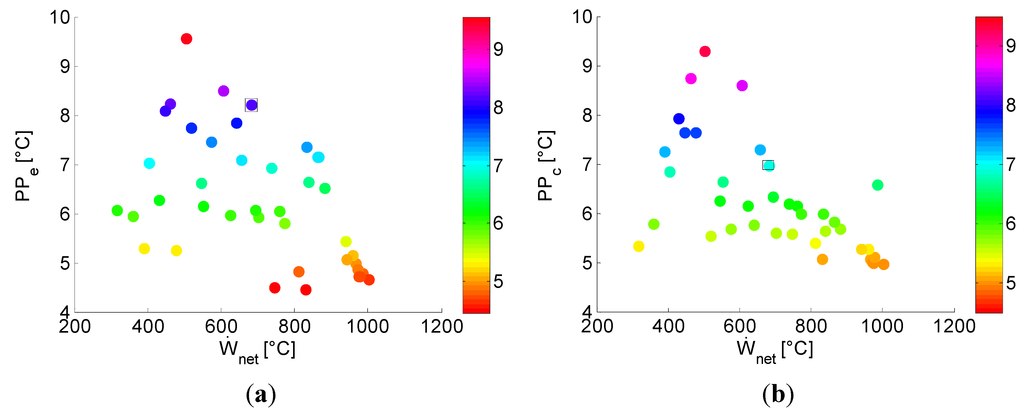

5.2. Analysis of the Parameter Space
5.3. Turbine Performance Parameters

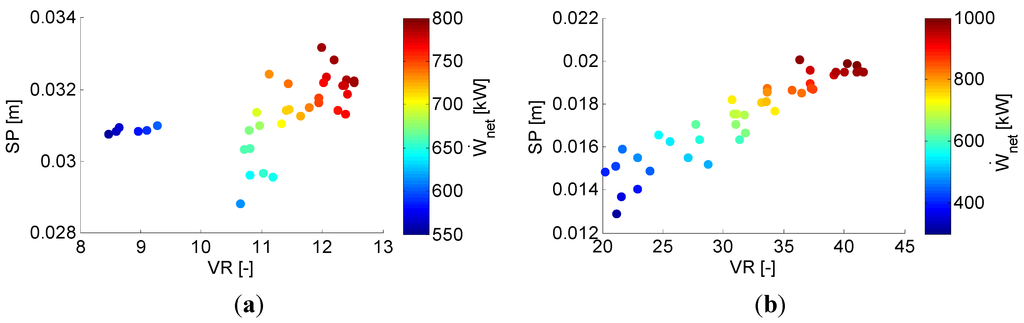

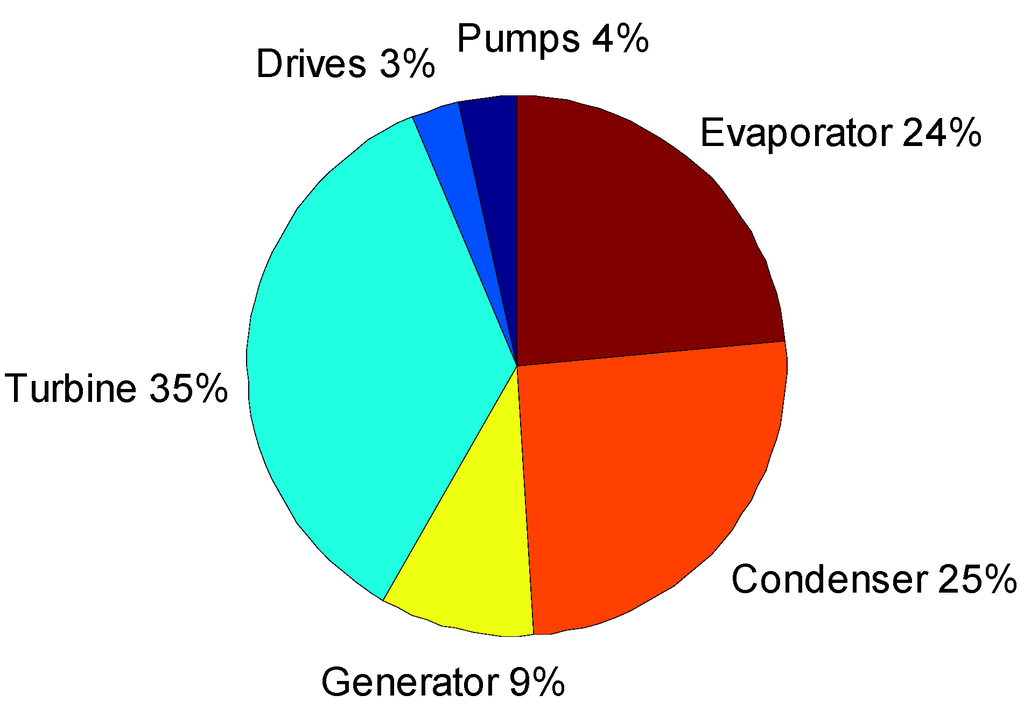

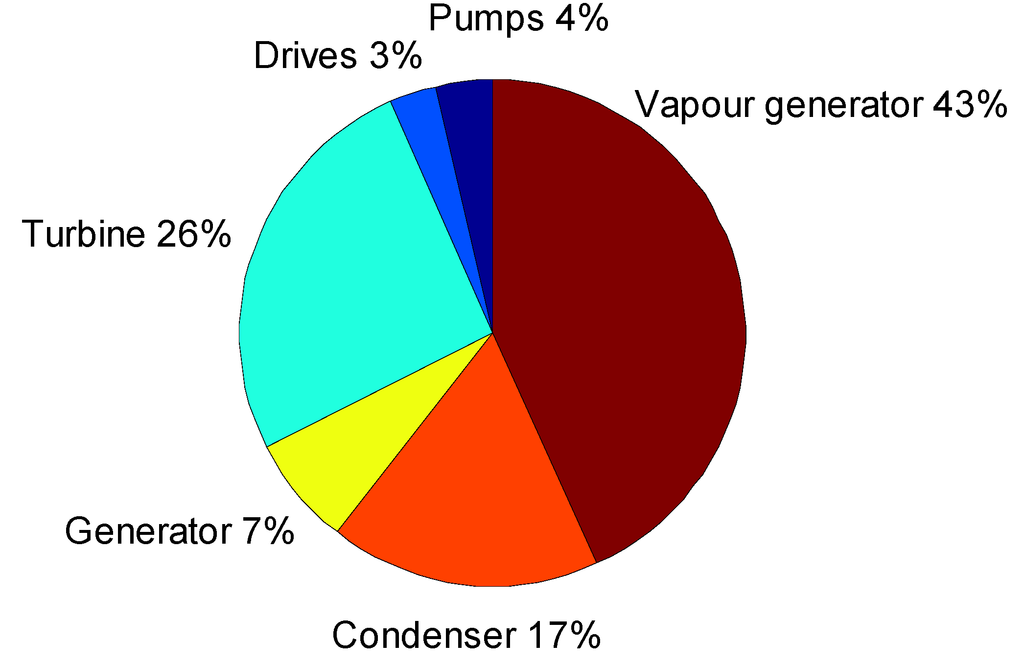

5.4. Distribution of the Costs
5.5. Financial Analysis and Decision Making
Parameter  Value

ORC lifetime (y)  20
discount rate (%)  6
production hours (h/y)  8000
price electricity (€/MWh)  69.6
increase electricity price (%/y)  0.50
maintenance cost (${C}_{maintenance}/{C}_{TM}$)  0.02
Case  ${\dot{W}}_{net}$ (kW)  SIC (€/kWe)  NPV (k€)  Payback Time (y)

Min. SIC SCORC  681.8  4114  1070  8.46
Min. SIC TCORC  681.3  5044  284  10.70
Max. NPV SCORC  731.3  4138  1126  8.52
Max. NPV TCORC  681.3  5044  284  10.70

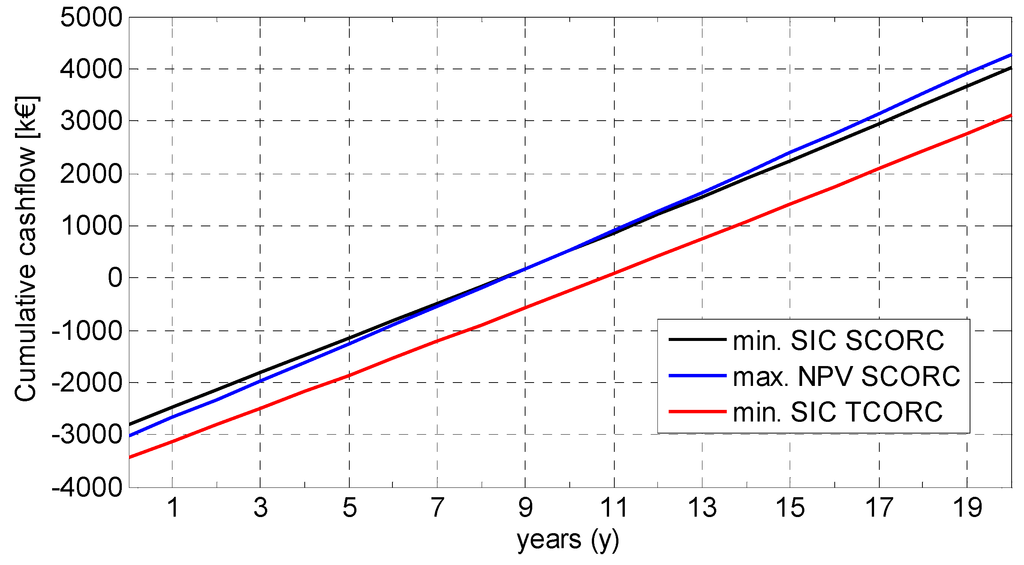

6. Conclusions
