# A Position-Insensitive Nonlinear Inductive Power Transfer System Employing Saturable Inductor

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theory and Properties of Nonlinear Resonator

## 3. Proposed Topology and Operation

#### 3.1. Nonlinear Topology

#### 3.2. Saturable Inductor Modeling

#### 3.3. Effect of Saturable Inductor on System Performance

## 4. Experimental Validation and Further Discussion

#### 4.1. Waveforms Analysis of the IPT System

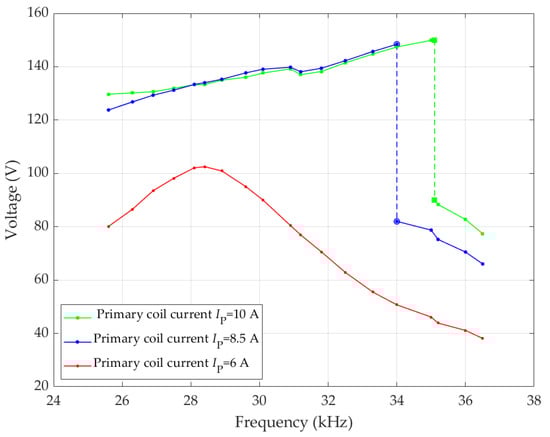

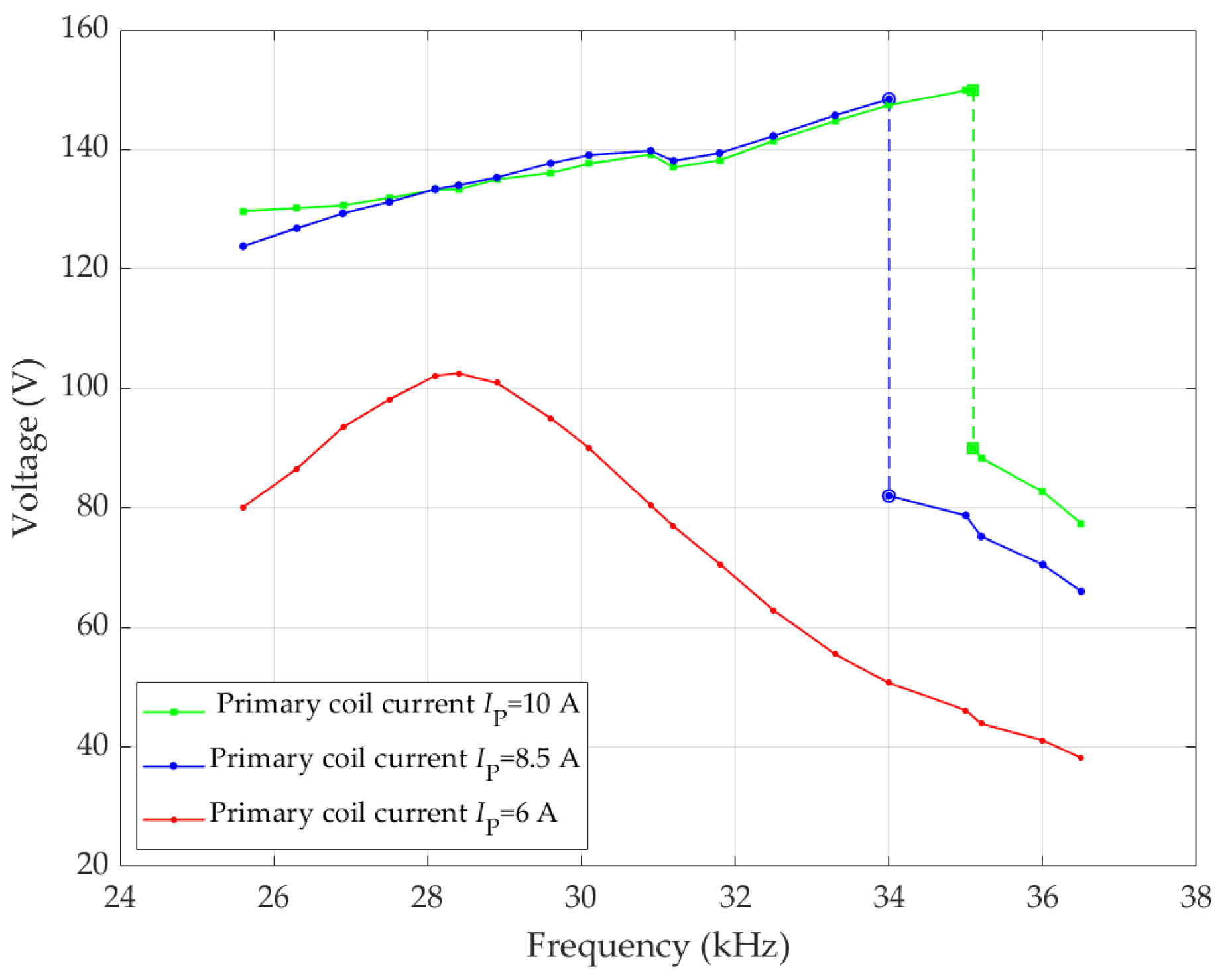

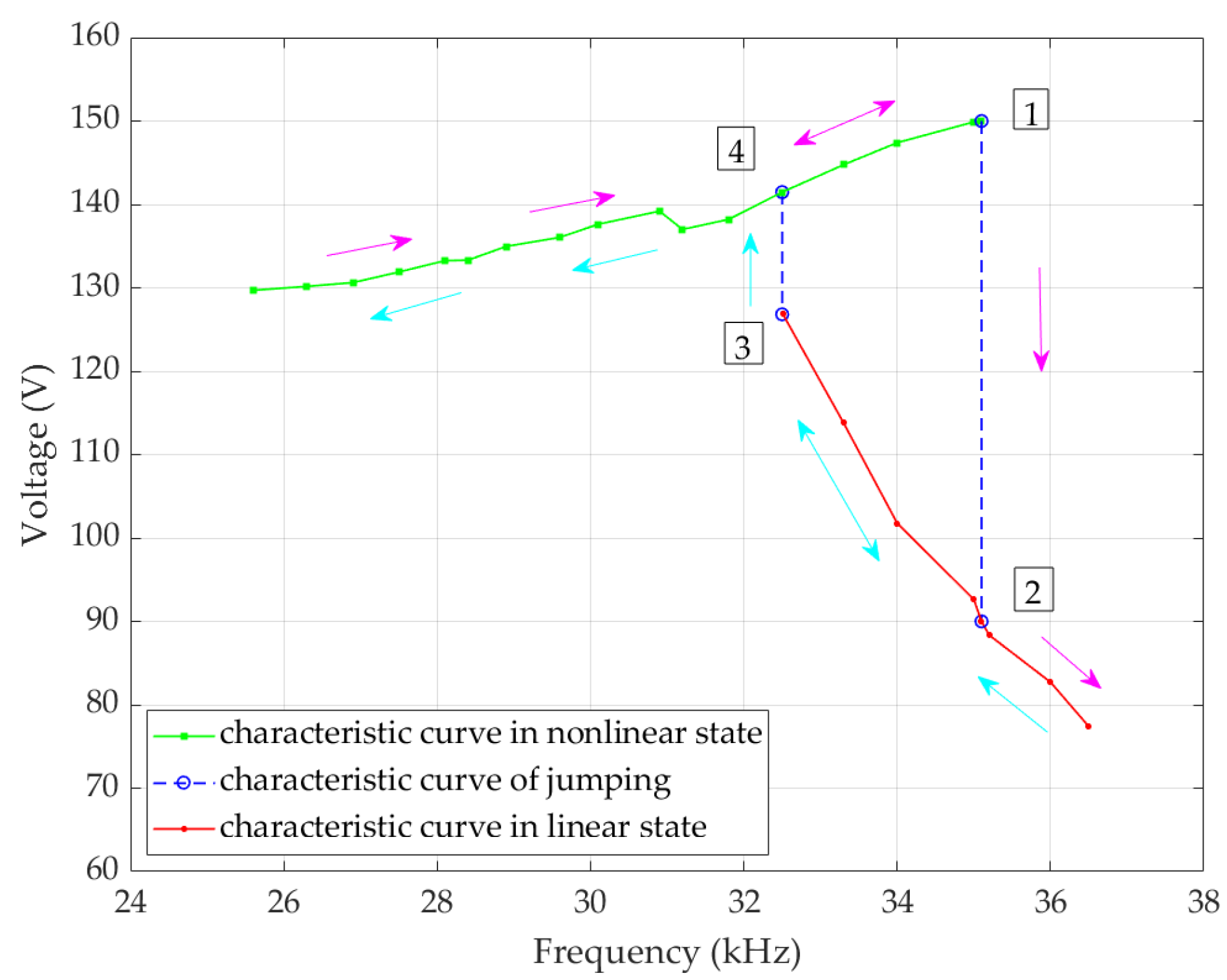

#### 4.2. Hysteresis and Jumping Characteristics

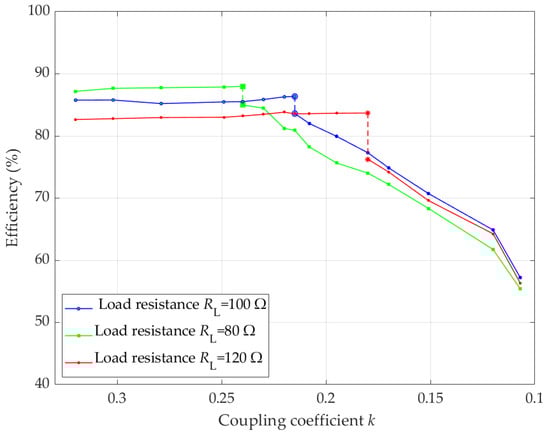

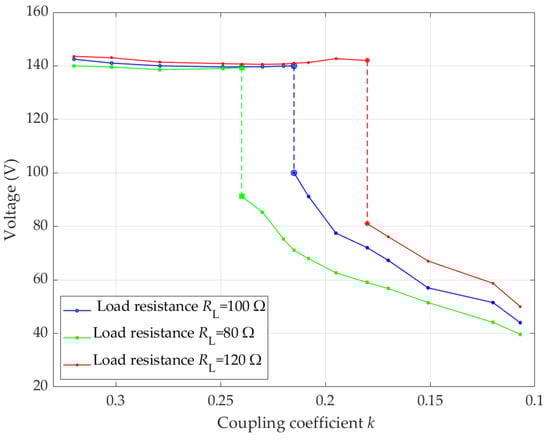

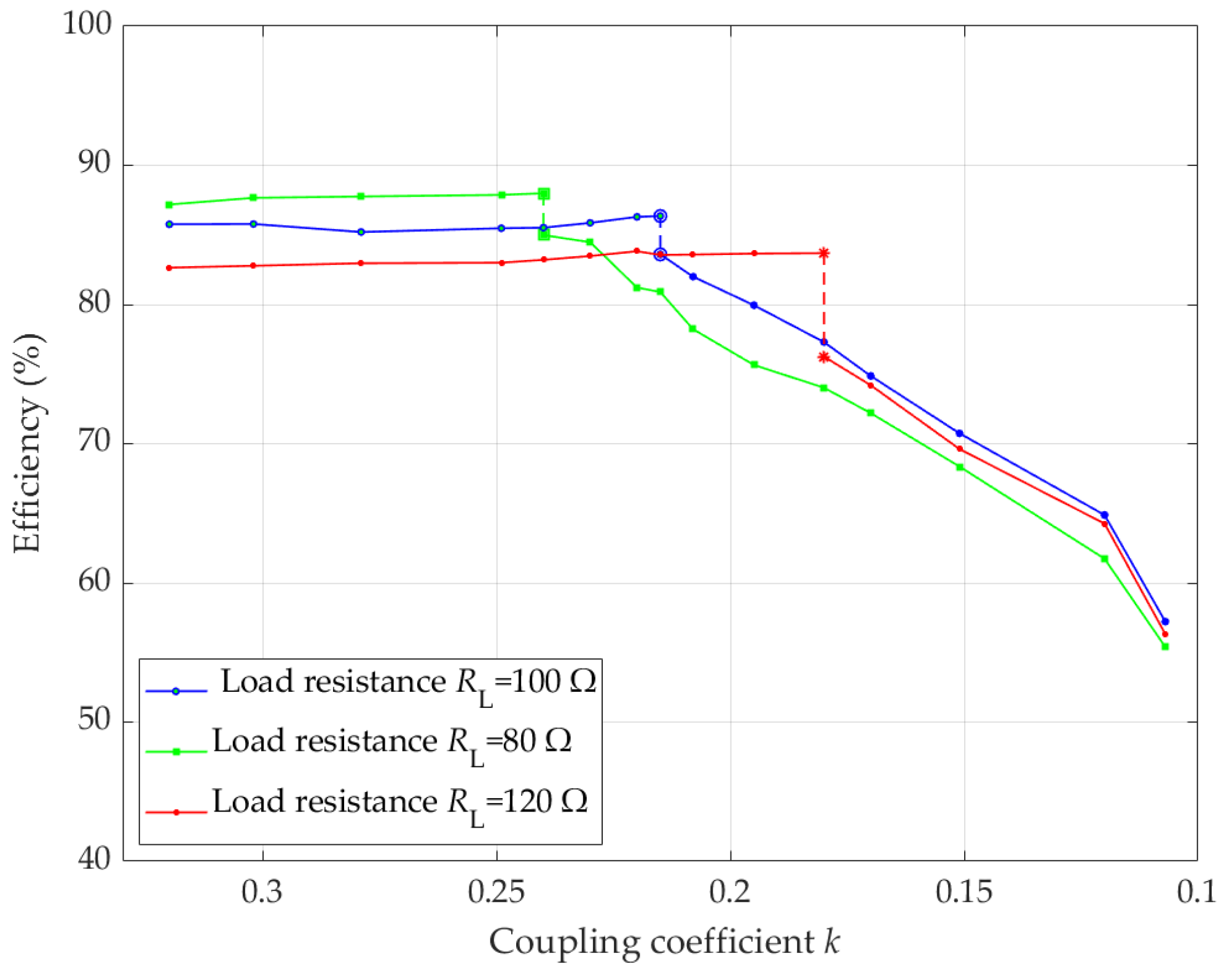

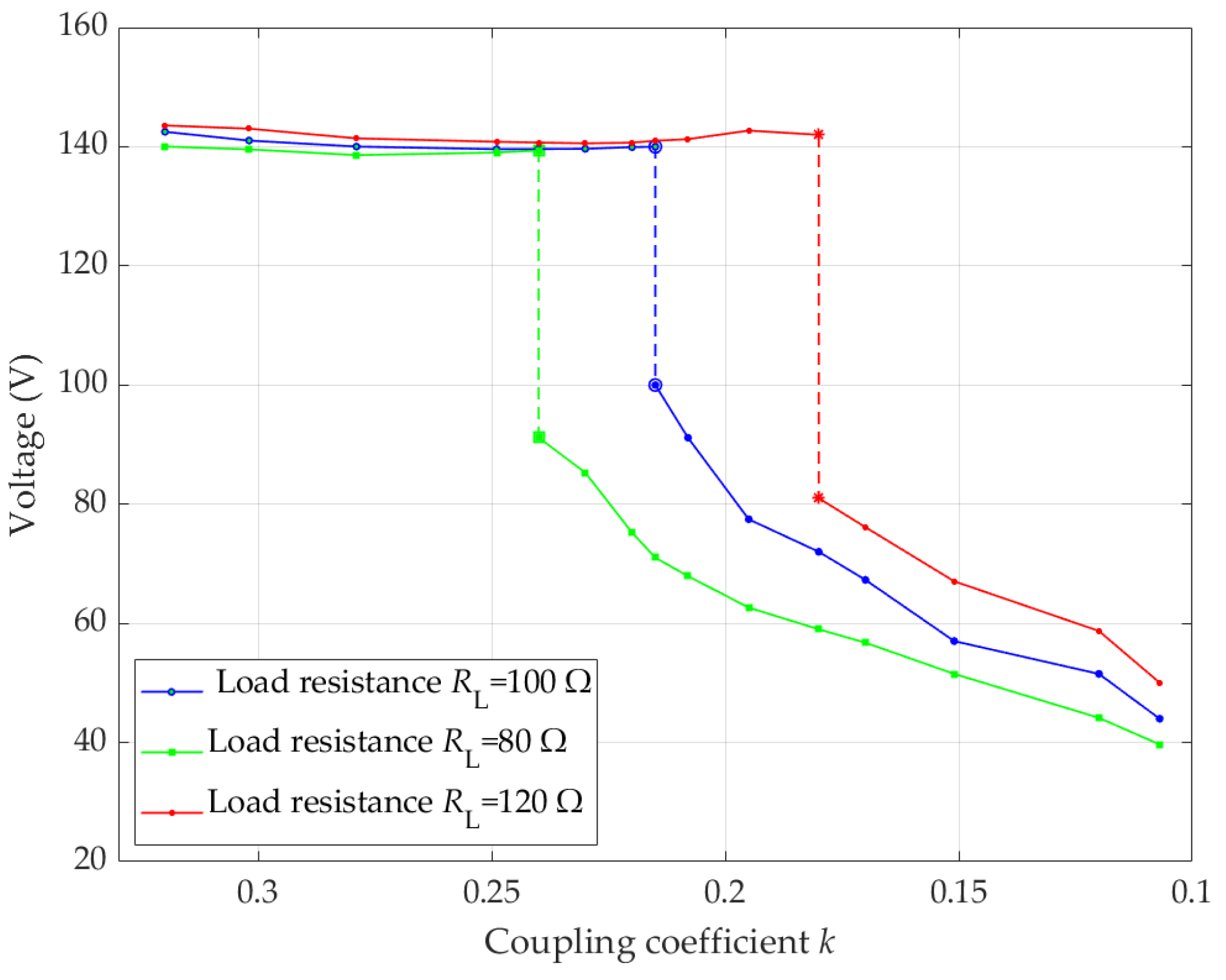

#### 4.3. Position and Load Insensitivity

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A

## References

- Aydin, E.; Aydemir, M.T.; Aksoz, A.; El Baghdadi, M.; Hegazy, O. Inductive Power Transfer for Electric Vehicle Charging Applications: A Comprehensive Review. Energies
**2022**, 15, 4962. [Google Scholar] [CrossRef] - Yuan, Z.; Yang, Q.; Zhang, X.; Ma, X.; Chen, Z.; Xue, M.; Zhang, P. High-Order Compensation Topology Integration for High-Tolerant Wireless Power Transfer. Energies
**2023**, 16, 638. [Google Scholar] [CrossRef] - El Ghanam, E.; Hassan, M.; Osman, A. Design of a High Power, LCC-Compensated, Dynamic, Wireless Electric Vehicle Charging System with Improved Misalignment Tolerance. Energies
**2021**, 14, 885. [Google Scholar] [CrossRef] - Budhia, M.; Boys, J.T.; Covic, G.A.; Huang, C.-Y. Development of a Single-Sided Flux Magnetic Coupler for Electric Vehicle IPT Charging Systems. IEEE Trans. Power Electron.
**2013**, 60, 318–328. [Google Scholar] [CrossRef] - Zaheer, A.; Covic, G.A.; Kacprzak, D. A Bipolar Pad in a 10-kHz 300-W Distributed IPT System for AGV Applications. IEEE Trans. Ind. Electron.
**2014**, 61, 3288–3301. [Google Scholar] [CrossRef] - Kim, S.; Covic, G.A.; Boys, J.T. Tripolar Pad for Inductive Power Transfer Systems for EV Charging. IEEE Trans. Power Electron.
**2017**, 32, 5045–5057. [Google Scholar] [CrossRef] - Yang, X.; Yang, J.; Fan, J.; Wang, B.; Li, D. A Magnetic Field Containment Method for an IPT System with Multiple Transmitting Coils Based on Reflective Properties. Electronics
**2023**, 12, 653. [Google Scholar] [CrossRef] - Chen, C.; Zhou, H.; Deng, Q.; Hu, W.; Yu, Y.; Lu, X.; Lai, J. Modeling and Decoupled Control of Inductive Power Transfer to Implement Constant Current/Voltage Charging and ZVS Operating for Electric Vehicles. IEEE Access.
**2018**, 6, 59917–59928. [Google Scholar] [CrossRef] - Joseph, P.K.; Elangovan, D.; Arunkumar, G. Linear control of wireless charging for electric bicycles. Appl. Energy
**2019**, 255, 113898. [Google Scholar] [CrossRef] - Colak, K.; Asa, E.; Bojarski, M.; Czarkowski, D.; Onar, O.C. A Novel Phase-Shift Control of Semibridgeless Active Rectifier for Wireless Power Transfer. IEEE Trans. Power Electron.
**2015**, 30, 6288–6297. [Google Scholar] [CrossRef] - Lee, J.H.; Son, W.-J.; Ann, S.; Byun, J.; Lee, B.K. Improved Pulse Density Modulation with a Distribution Algorithm for Semi-Bridgeless Rectifier of Inductive Power Transfer System in Electric Vehicles. In Proceedings of the 2019 10th International Conference on Power Electronics and ECCE Asia—ICPE 2019—ECCE Asia, Busan, Republic of Korea, 27–30 May 2019; pp. 1–6. [Google Scholar]
- Diekhans, T.; Doncker, R.W.D. A Dual-Side Controlled Inductive Power Transfer System Optimized for Large Coupling Factor Variations and Partial Load. IEEE Trans. Power Electron.
**2015**, 30, 6320–6328. [Google Scholar] [CrossRef] - Zhong, W.; Hui, S.Y.R. Charging Time Control of Wireless Power Transfer Systems Without Using Mutual Coupling Information and Wireless Communication System. IEEE Trans. Ind. Electron.
**2017**, 64, 228–235. [Google Scholar] [CrossRef] - Feng, H.; Cai, T.; Duan, S.; Zhao, J.; Zhang, X.; Chen, C. An LCC-Compensated Resonant Converter Optimized for Robust Reaction to Large Coupling Variation in Dynamic Wireless Power Transfer. IEEE Trans. Ind. Electron.
**2016**, 63, 6591–6601. [Google Scholar] [CrossRef] - Borage, M.; Tiwari, S.; Kotaiah, S. Analysis and design of an LCL-T resonant converter as a constant-current power supply. IEEE Trans. Ind. Electron.
**2005**, 52, 1547–1554. [Google Scholar] [CrossRef] - Zhao, L.; Thrimawithana, D.J.; Madawala, U.K. Hybrid Bidirectional Wireless EV Charging System Tolerant to Pad Misalignment. IEEE Trans. Ind. Electron.
**2017**, 64, 7079–7086. [Google Scholar] [CrossRef] - Villa, J.L.; Sallan, J.; Osorio, J.F.S.; Llombart, A. High-Misalignment Tolerant Compensation Topology For ICPT Systems. IEEE Trans. Ind. Electron.
**2012**, 59, 945–951. [Google Scholar] [CrossRef] - Aldhaher, S.; Luk, P.C.-K.; Bati, A.; Whidborne, J.F. Wireless Power Transfer Using Class E Inverter With Saturable DC-Feed Inductor. IEEE T. Ind. Appl.
**2014**, 50, 2710–2718. [Google Scholar] [CrossRef] [Green Version] - Mai, R.; Chen, Y.; Li, Y.; Zhang, Y.; Cao, G.; He, Z. Inductive Power Transfer for Massive Electric Bicycles Charging Based on Hybrid Topology Switching With a Single Inverter. IEEE Trans. Power Electron.
**2017**, 32, 5897–5906. [Google Scholar] [CrossRef] - Wang, X.; Mortazawi, A. Bandwidth Enhancement of RF Resonators Using Duffing Nonlinear Resonance for Wireless Power Applications. IEEE Trans. Microw. Theory Tech.
**2016**, 64, 3695–3702. [Google Scholar] [CrossRef] - Abdelatty, O.; Wang, X.; Mortazawi, A. Position-Insensitive Wireless Power Transfer Based on Nonlinear Resonant Circuits. IEEE Trans. Microw. Theory Tech.
**2019**, 67, 3844–3855. [Google Scholar] [CrossRef] - Chai, R.; Mortazawi, A. A Position-Insensitive Wireless Power Transfer System Employing Coupled Nonlinear Resonators. IEEE Trans. Microw. Theory Tech.
**2021**, 69, 1752–1759. [Google Scholar] [CrossRef] - Zhou, J.; Zhang, B.; Liu, G.; Qiu, D. Resonance and Distance Insensitive Wireless Power. Transfer with Parity-Time Symmetric Duffing Resonators. In Proceedings of the 2018 IEEE Wireless Power Transfer Conference (WPTC), Montreal, QC, Canada, 3–7 June 2018; pp. 1–4. [Google Scholar]
- Zhou, J.; Zhang, B.; Xiao, W.; Qiu, D.; Chen, Y. Nonlinear Parity-Time-Symmetric Model for Constant Efficiency Wireless Power Transfer: Application to a Drone-in-Flight Wireless Charging Platform. IEEE Trans. Ind. Electron.
**2019**, 66, 4097–4107. [Google Scholar] [CrossRef] - Wu, L.; Zhang, B.; Jiang, Y.; Zhou, J. A Robust Parity-Time-Symmetric WPT System With Extended Constant-Power Range for Cordless Kitchen Appliances. IEEE Trans. Ind. Electron.
**2012**, 58, 1179–1189. [Google Scholar] [CrossRef] - Yang, X.; Jiao, C.; Yang, J.; Fan, J.; Li, D.; Wang, B. Bandwidth Enhancement for Wireless Power Transfer System Employing Non-Linear Resonator. IEEE Access
**2021**, 9, 485–496. [Google Scholar] [CrossRef] - Chen, D.; Wang, Y.; Chen, X.; Huang, W.; Xie, J. Duffing Nonlinearity Localization via Extension Energy Confinement in an Elastic Mode Semicircular Beams Resonator. IEEE Electron Device Lett.
**2019**, 40, 314–317. [Google Scholar] [CrossRef] - Yang, D.; Dong, L.; Shao, G.; Shi, J. The study of nonlinear vibration of Duffing equation under multi-frequency excitation. In Proceedings of the 2010 IEEE International Conference on Information and Automation, Harbin, China, 20–23 June 2010; pp. 309–312. [Google Scholar]
- Shougat, M.R.E.U.; Ramakrishnan, S. The Hysteresis Phenomenon and Q Factor Enhancement in Nonlinear NEMS Resonators Driven by Lévy Stable Stochastic Processes. In Proceedings of the 2018 IEEE 13th Nanotechnology Materials and Devices Conference (NMDC), Portland, OR, USA, 17–17 October 2018; pp. 1–4. [Google Scholar]
- Kovacic, I.; Brennan, M.J. The Duffing Equation: Nonlinear Oscillators and Their Behaviour; Wiley: Hoboken, NJ, USA, 2011. [Google Scholar]
- Chung, S.C.; Huang, S.R.; Huang, J.S. Applications of describing functions to estimate the performance of nonlinear inductance. IEEE P. Sci. Meas. Tech.
**2001**, 148, 108–114. [Google Scholar] [CrossRef] - Dayerizadeh, A.; Feng, H.; Lukic, S.M. Dynamic Wireless Charging: Reflexive Field Containment Using Saturable Inductors. IEEE T. Ind. Appl.
**2020**, 56, 1784–1792. [Google Scholar] [CrossRef]

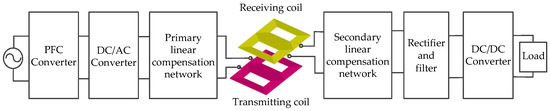

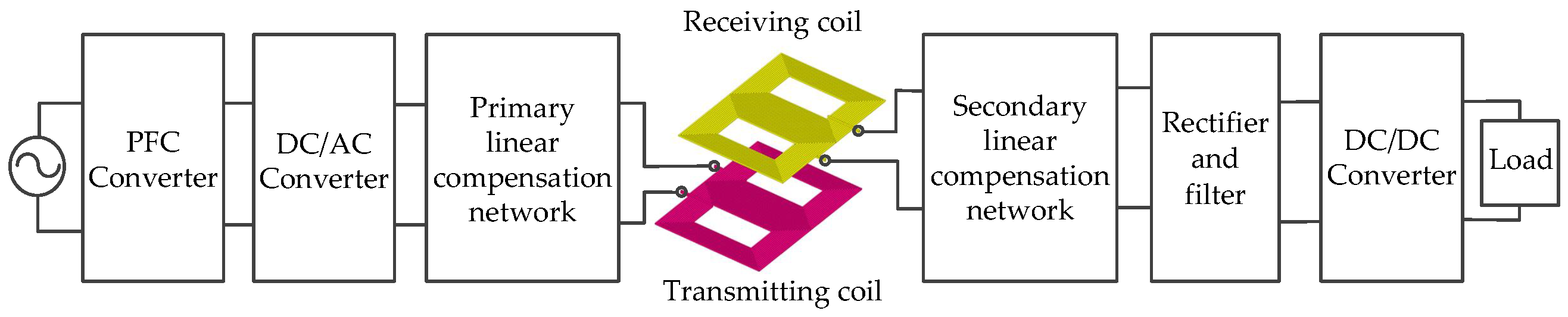

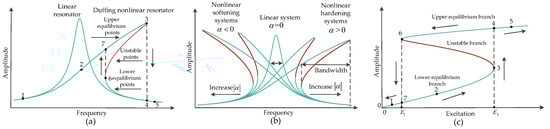

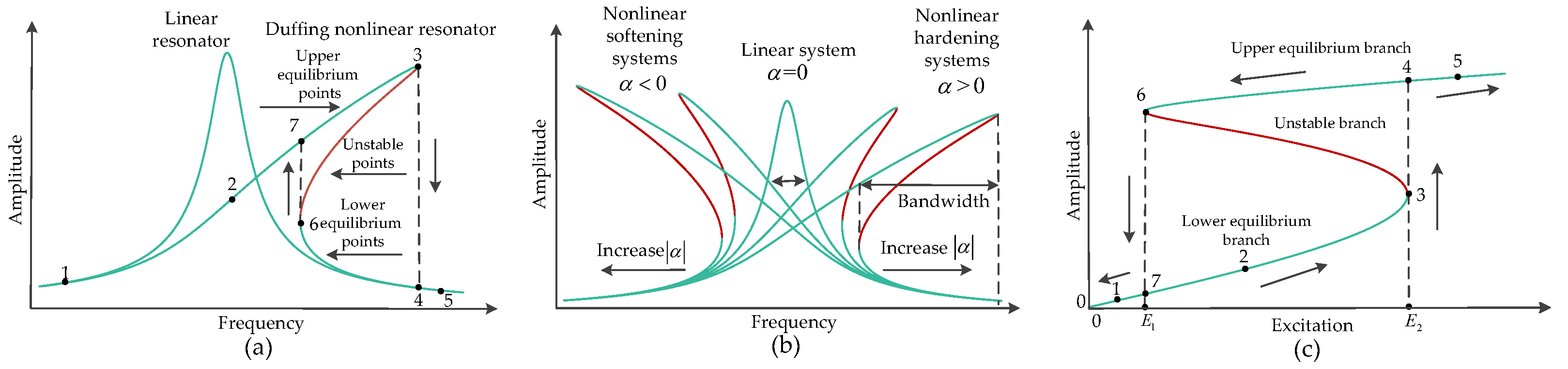

**Figure 2.**The characteristic diagram of Duffing resonator. (

**a**) The amplitude-frequency characteristic. (

**b**) Response amplitude versus power frequency under different $\alpha $. (

**c**) The curve of response amplitude with excitation amplitude.

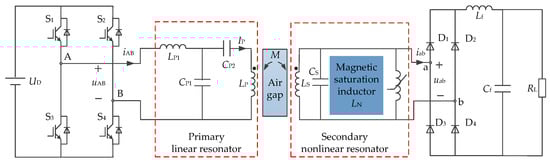

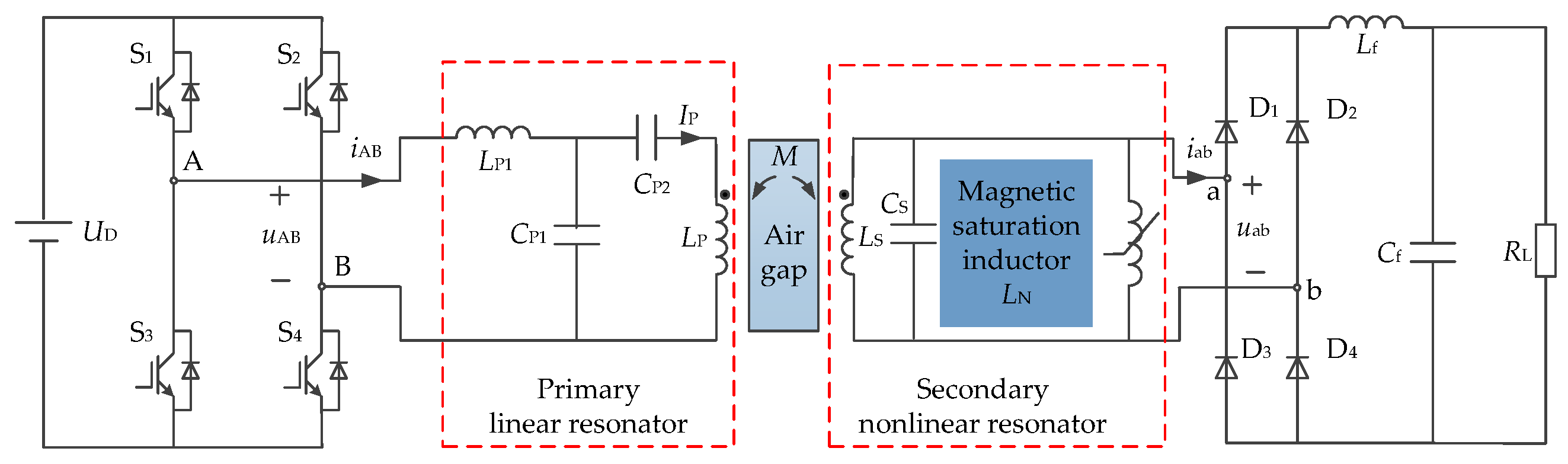

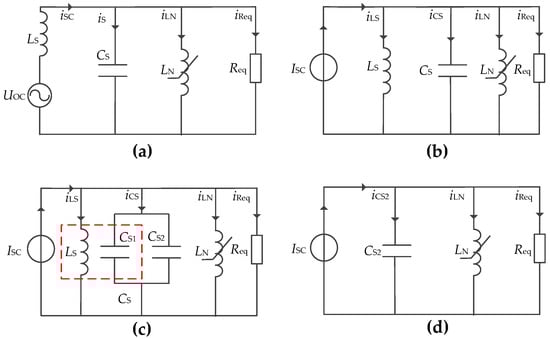

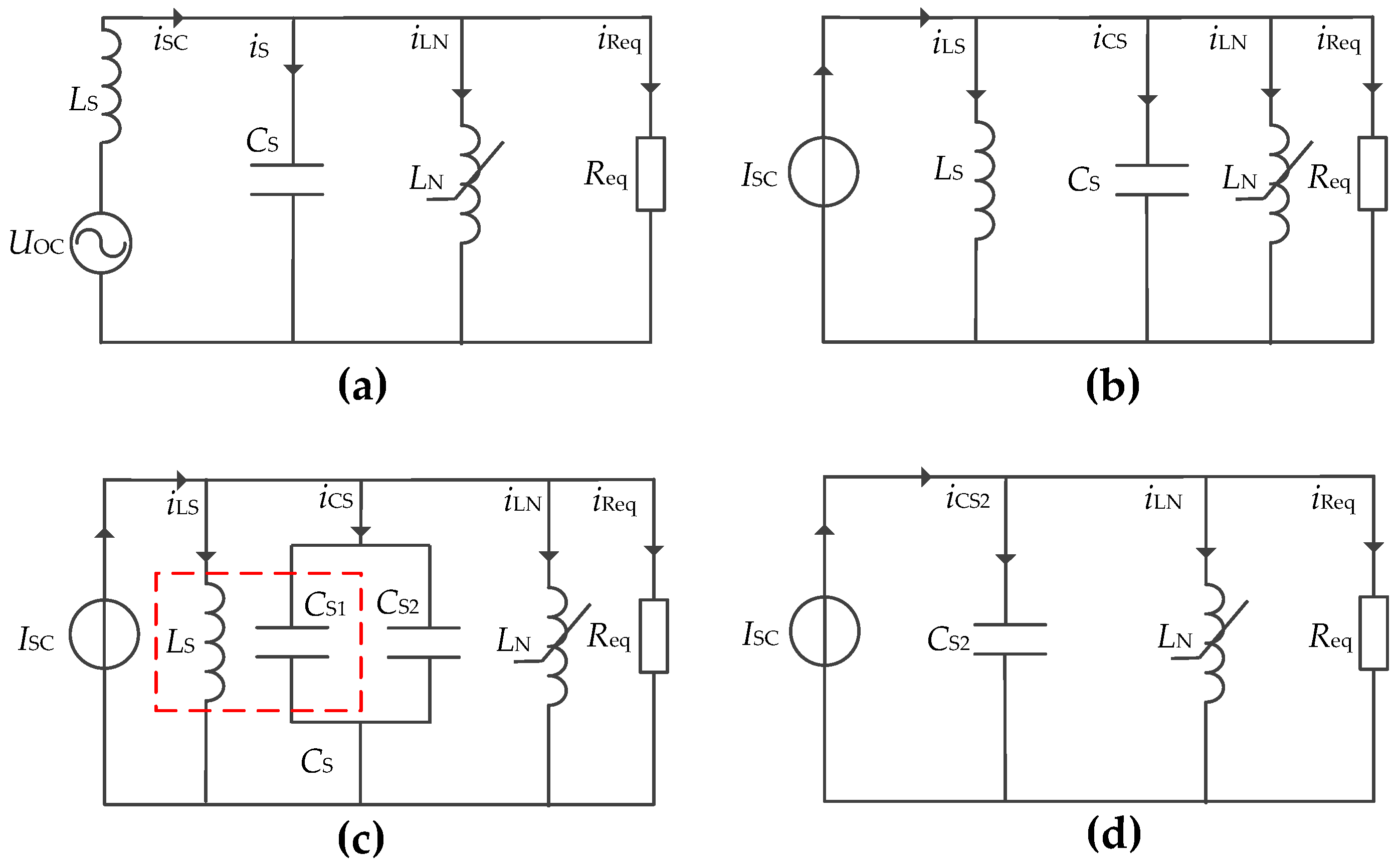

**Figure 4.**Equivalent circuits of the proposed IPT system. (

**a**) Equivalent circuit of the receiving side. (

**b**) Norton equivalent circuit. (

**c**) Resonant equivalent circuit. (

**d**) The simplified equivalent circuit.

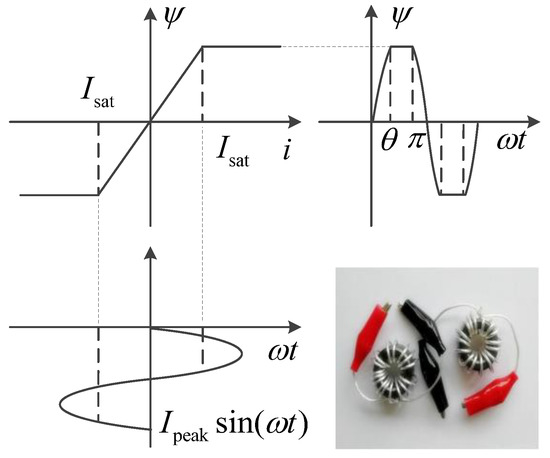

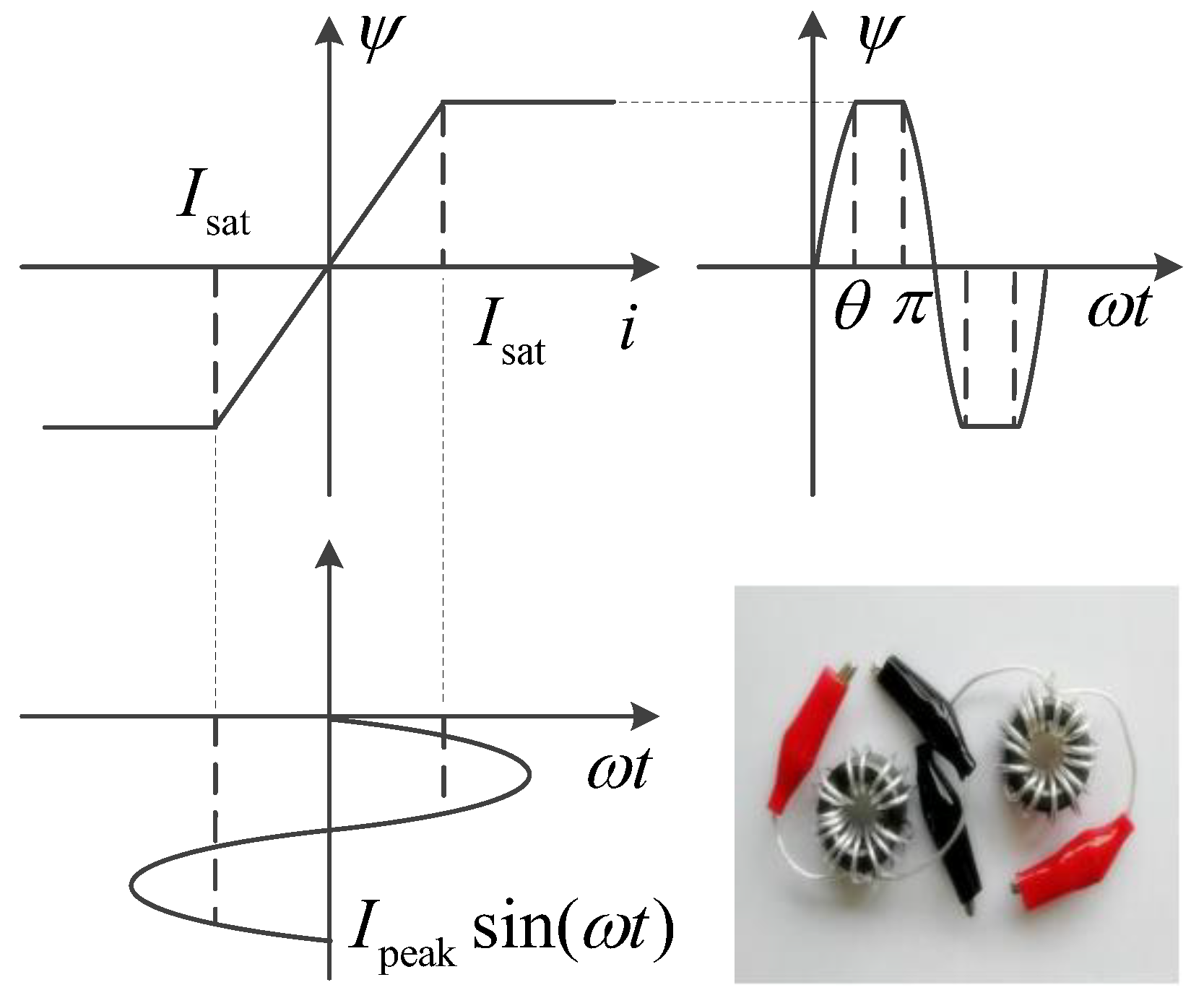

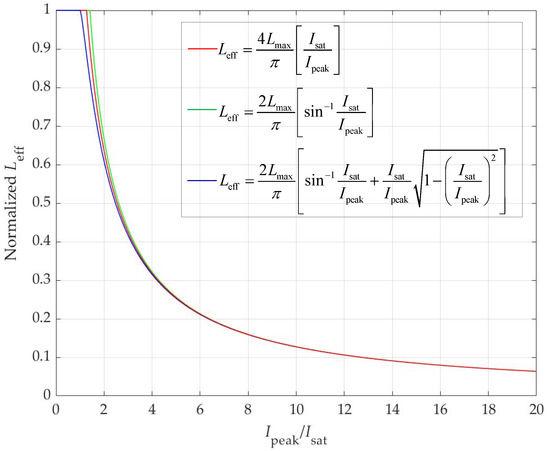

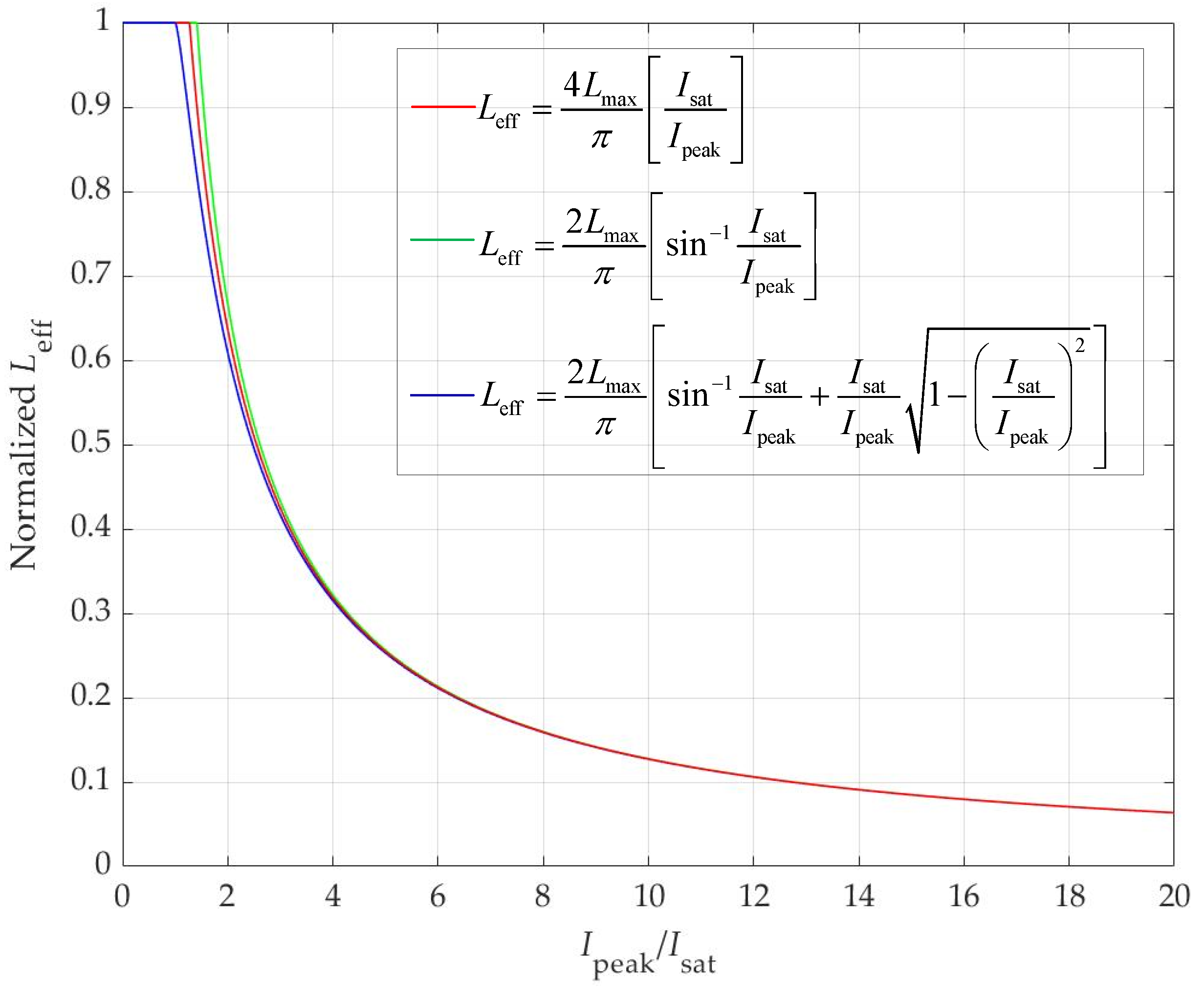

**Figure 6.**Effective inductance of the saturable inductor versus current based on (13), (15) and (16).

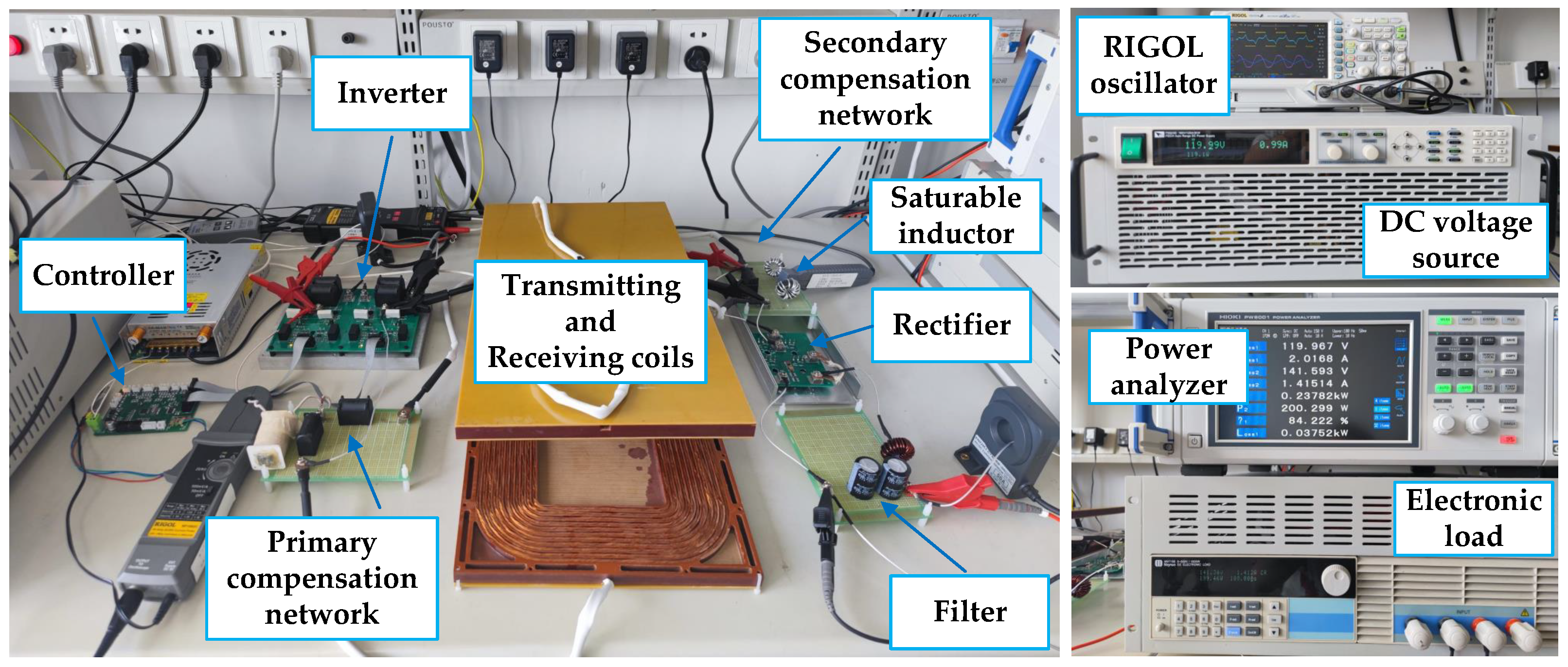

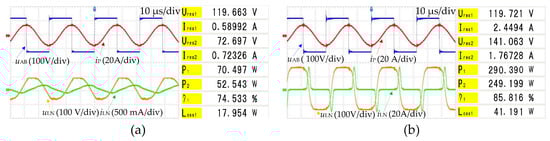

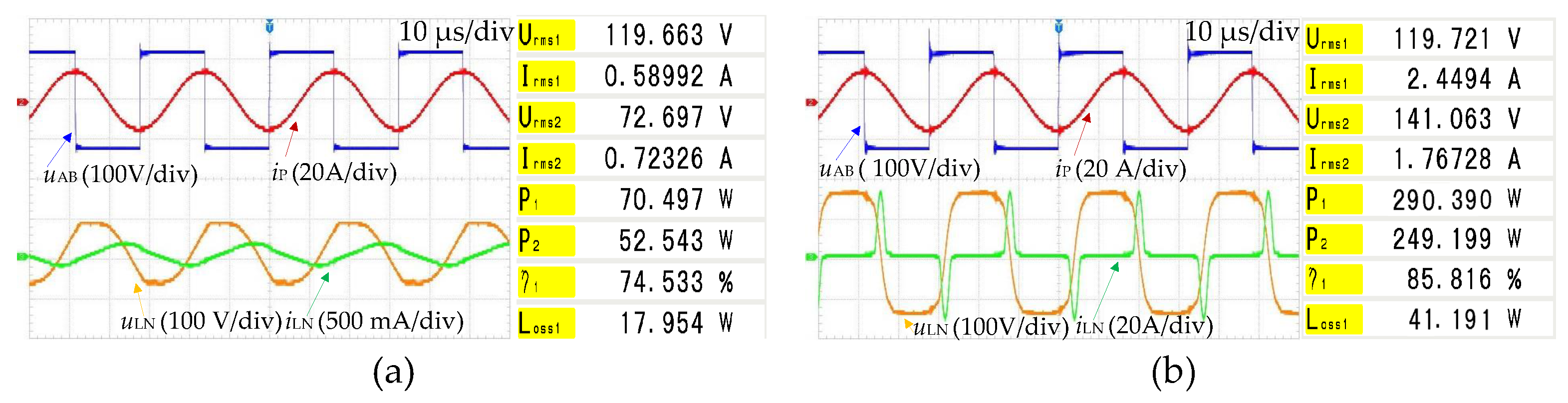

**Figure 8.**Experimental waveforms of the IPT system working in the linear state and nonlinear state. (
