# Condition Monitoring Accuracy in Inverter-Driven Permanent Magnet Synchronous Machines Based on Motor Voltage Signature Analysis

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Background

#### 2.1. PMSM Faults and MVSA Approach

#### 2.2. PMSM Drives

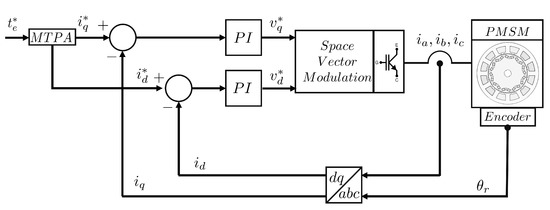

#### 2.2.1. Field Oriented Control

_{d}and i

_{q}) of the rotor flux linkage frame are regulated separately using a proportional–integral (PI) controllers in FOC so that the output torque is regulated indirectly. Hence, FOC is also called indirect torque control. Figure 1 depicts the implementation of FOC-driven PMSM, where an encoder is needed to estimate the rotor position (${\theta}_{r}$) required for current vector decoupling. The widely applied modulation technique to control the inverter switching scheme in FOC is the Space Vector Pulse Width Modulation (SVPWM) due to its high utilization of the DC link and low harmonic distortion [33]. The principle behind SVPWM is to synthesize a reference space voltage vector using timely applied active and zero voltage vectors at a fixed switching frequency.

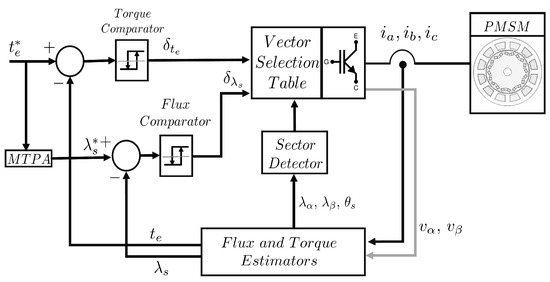

#### 2.2.2. Direct Torque Control

#### 2.3. Supervised Classification

## 3. Finite Element Analysis Simulations

#### 3.1. Healthy Machine Modeling and Control

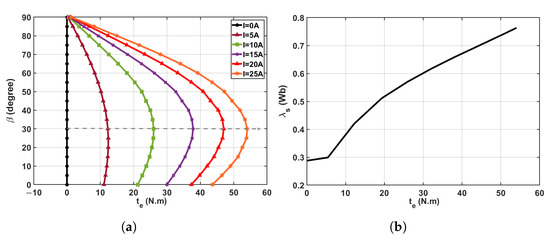

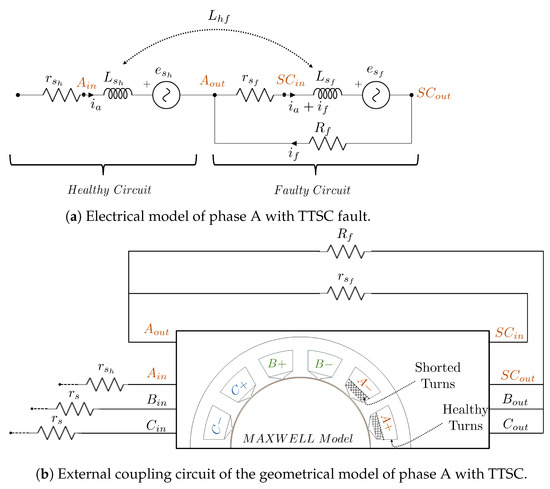

#### 3.2. Turn-to-Turn Short Circuit Fault Implementation

#### 3.3. High Resistance Contact Fault Implementation

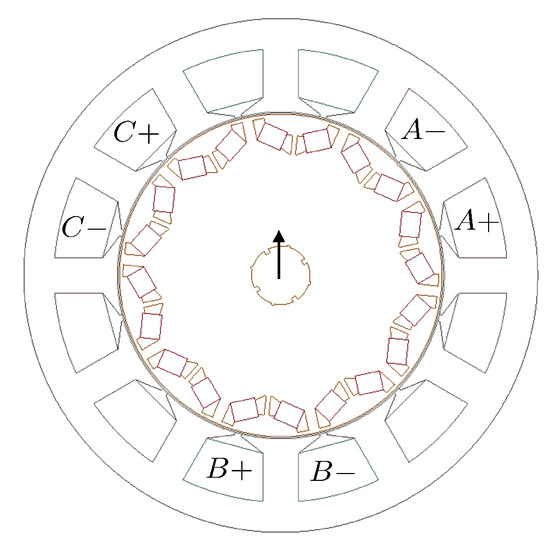

#### 3.4. Static Eccentricity Fault Implementation

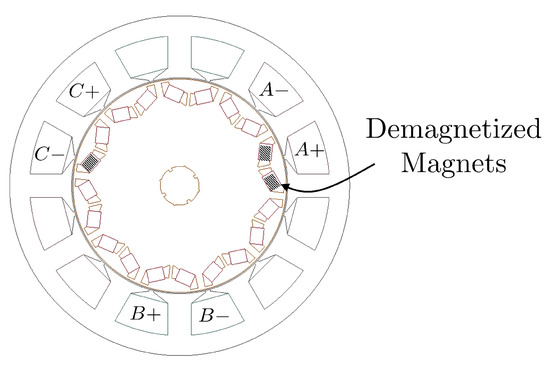

#### 3.5. Local Demagnetization Fault Implementation

## 4. Numerical Results

#### 4.1. Analysis in FOC-Driven PMSM

#### 4.2. Analysis in DTC-Driven PMSM

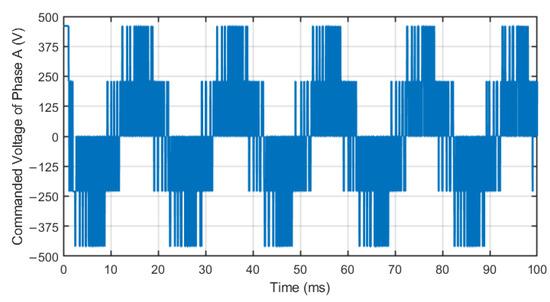

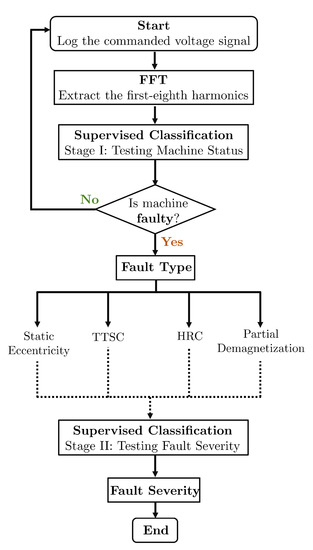

## 5. Diagnosis Approach

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

DTC | Direct Torque Control |

FEM | Finite Element Model |

FFT | Fast Fourier Transform |

FOC | Field Oriented Control |

HRC | High Resistance Contact |

k-NN | K-Nearest Neighbor |

LDA | Linear Discriminate Analysis |

MCC | Motor Control Center |

MTPA | Maximum Torque Per Amperes |

MVSA/MCSA | Machine Voltage or Current Signature Analysis |

NdFeB | Neodymium-Iron-Boron Magnet |

NVH | Noise, Vibration, and Harshness |

PMSM | Permanent Magnet Synchronous Machine |

SNR | Signal-to-Noise Ratio |

STFT | Short Time Fourier transform |

SVM | Support Vector Machines |

SVPWM | Space Vector Pulse Width Modulation |

TTSC | Turn-to-Turn Short Circuit |

VFD | Variable Frequency Drives |

ZSVC | Zero-Sequence Voltage Component |

## References

- Petrov, I.; Egorov, D.; Link, J.; Stern, R.; Ruoho, S.; Pyrhönen, J. Hysteresis Losses in Different Types of Permanent Magnets Used in PMSMs. IEEE Trans. Ind. Electron.
**2017**, 64, 2502–2510. [Google Scholar] [CrossRef] - Melfi, M.J.; Evon, S.; McElveen, R. Induction versus permanent magnet motors. IEEE Ind. Appl. Mag.
**2009**, 15, 28–35. [Google Scholar] [CrossRef] - Cao, W.; Mecrow, B.C.; Atkinson, G.J.; Bennett, J.W.; Atkinson, D.J. Overview of Electric Motor Technologies Used for More Electric Aircraft (MEA). IEEE Trans. Ind. Electron.
**2012**, 59, 3523–3531. [Google Scholar] [CrossRef] - Jung, S.Y.; Mi, C.C.; Nam, K. Torque Control of IPMSM in the Field-Weakening Region With Improved DC-Link Voltage Utilization. IEEE Trans. Ind. Electron.
**2015**, 62, 3380–3387. [Google Scholar] [CrossRef] - Choi, S.; Haque, M.S.; Tarek, M.T.B.; Mulpuri, V.; Duan, Y.; Das, S.; Garg, V.; Ionel, D.M.; Masrur, M.A.; Mirafzal, B.; et al. Fault Diagnosis Techniques for Permanent Magnet AC Machine and Drives—A Review of Current State of the Art. IEEE Trans. Transp. Electrif.
**2018**, 4, 444–463. [Google Scholar] [CrossRef] - Lee, S.B.; Stone, G.C.; Antonino-Daviu, J.; Gyftakis, K.N.; Strangas, E.G.; Maussion, P.; Platero, C.A. Condition Monitoring of Industrial Electric Machines: State of the Art and Future Challenges. IEEE Ind. Electron. Mag.
**2020**, 14, 158–167. [Google Scholar] [CrossRef] - Roux, W.L.; Harley, R.G.; Habetler, T.G. Detecting faults in rotors of PM drives. IEEE Ind. Appl. Mag.
**2008**, 14, 23–31. [Google Scholar] [CrossRef] - Wang, B.; Wang, J.; Griffo, A.; Sen, B. Stator Turn Fault Detection by Second Harmonic in Instantaneous Power for a Triple-Redundant Fault-Tolerant PM Drive. IEEE Trans. Ind. Electron.
**2018**, 65, 7279–7289. [Google Scholar] [CrossRef] - Mohanraj, D.; Gopalakrishnan, J.; Chokkalingam, B.; Mihet-Popa, L. Critical Aspects of Electric Motor Drive Controllers and Mitigation of Torque Ripple—Review. IEEE Access
**2022**, 10, 73635–73674. [Google Scholar] [CrossRef] - Wang, Z.; Chen, J.; Cheng, M.; Chau, K.T. Field-Oriented Control and Direct Torque Control for Paralleled VSIs Fed PMSM Drives With Variable Switching Frequencies. IEEE Trans. Power Electron.
**2016**, 31, 2417–2428. [Google Scholar] [CrossRef] - Niu, F.; Wang, B.; Babel, A.S.; Li, K.; Strangas, E.G. Comparative Evaluation of Direct Torque Control Strategies for Permanent Magnet Synchronous Machines. IEEE Trans. Power Electron.
**2016**, 31, 1408–1424. [Google Scholar] [CrossRef] - Geyer, T.; Mastellone, S. Model Predictive Direct Torque Control of a Five-Level ANPC Converter Drive System. IEEE Trans. Ind. Appl.
**2012**, 48, 1565–1575. [Google Scholar] [CrossRef] - Geyer, T.; Papafotiou, G.; Morari, M. Model Predictive Direct Torque Control—Part I: Concept, Algorithm, and Analysis. IEEE Trans. Ind. Electron.
**2009**, 56, 1894–1905. [Google Scholar] [CrossRef] - Haddad, R.Z.; Lopez, C.A.; Foster, S.N.; Strangas, E.G. A Voltage-Based Approach for Fault Detection and Separation in Permanent Magnet Synchronous Machines. IEEE Trans. Ind. Appl.
**2017**, 53, 5305–5314. [Google Scholar] [CrossRef] - Zanardelli, W.G.; Strangas, E.G.; Aviyente, S. Identification of Intermittent Electrical and Mechanical Faults in Permanent-Magnet AC Drives Based on Time–Frequency Analysis. IEEE Trans. Ind. Appl.
**2007**, 43, 971–980. [Google Scholar] [CrossRef] - Chen, H.; He, J.; Guan, X.; Demerdash, N.A.O.; EL-Refaie, A.M.; Lee, C.H.T. High-Resistance Connection Diagnosis in Five-Phase PMSMs Based on the Method of Magnetic Field Pendulous Oscillation and Symmetrical Components. IEEE Trans. Ind. Electron.
**2022**, 69, 2288–2299. [Google Scholar] [CrossRef] - Ebrahimi, B.M.; Faiz, J. Feature Extraction for Short-Circuit Fault Detection in Permanent-Magnet Synchronous Motors Using Stator-Current Monitoring. IEEE Trans. Power Electron.
**2010**, 25, 2673–2682. [Google Scholar] [CrossRef] - Ebrahimi, B.M.; Faiz, J.; Roshtkhari, M.J. Static-, Dynamic-, and Mixed-Eccentricity Fault Diagnoses in Permanent-Magnet Synchronous Motors. IEEE Trans. Ind. Electron.
**2009**, 56, 4727–4739. [Google Scholar] [CrossRef] - Haddad, R.Z.; Strangas, E.G. On the Accuracy of Fault Detection and Separation in Permanent Magnet Synchronous Machines Using MCSA/MVSA and LDA. IEEE Trans. Energy Convers.
**2016**, 31, 924–934. [Google Scholar] [CrossRef] - Allafi, I.M.; Foster, S.N. Fault Detection and Identification for Inverter-Driven Permanent Magnet Synchronous Machines. In Proceedings of the 2021 IEEE 13th International Symposium on Diagnostics for Electrical Machines, Power Electronics and Drives (SDEMPED), Dallas, TX, USA, 22–25 August 2021; Volume 1, pp. 358–364. [Google Scholar] [CrossRef]
- Hang, J.; Ding, S.; Ren, X.; Hu, Q.; Huang, Y.; Hua, W.; Wang, Q. Integration of Interturn Fault Diagnosis and Torque Ripple Minimization Control for Direct-Torque-Controlled SPMSM Drive System. IEEE Trans. Power Electron.
**2021**, 36, 11124–11134. [Google Scholar] [CrossRef] - Hang, J.; Wu, H.; Ding, S.; Hua, W.; Wang, Q. A DC-Flux-Injection Method for Fault Diagnosis of High-Resistance Connection in Direct-Torque-Controlled PMSM Drive System. IEEE Trans. Power Electron.
**2020**, 35, 3029–3042. [Google Scholar] [CrossRef] - Allafi, I.M.; Foster, S.N. On the Accuracy of Frequency Based Fault Diagnosis for DTC-driven PMSM. In Proceedings of the 2022 International Conference on Electrical Machines (ICEM), Valencia, Spain, 5–8 September 2022; pp. 1628–1634. [Google Scholar] [CrossRef]
- Allafi, I.M.; Foster, S.N. Condition Monitoring of Direct Torque Controlled Permanent Magnet Synchronous Machines. In Proceedings of the 2022 IEEE Energy Conversion Congress and Exposition (ECCE), Detroit, MI, USA, 9–13 October 2022; pp. 1–7. [Google Scholar] [CrossRef]
- Qiu, X.; Ji, J.; Zhou, D.; Zhao, W.; Chen, Y.; Huang, L. A Modified Flux Observer for Sensorless Direct Torque Control of Dual Three-Phase PMSM Considering Open-Circuit Fault. IEEE Trans. Power Electron.
**2022**, 37, 15356–15369. [Google Scholar] [CrossRef] - Wang, Z.; Wang, X.; Cao, J.; Cheng, M.; Hu, Y. Direct Torque Control of T-NPC Inverters-Fed Double-Stator-Winding PMSM Drives With SVM. IEEE Trans. Power Electron.
**2018**, 33, 1541–1553. [Google Scholar] [CrossRef] - Wang, X.; Wang, Z.; Cheng, M.; Hu, Y. Remedial Strategies of T-NPC Three-Level Asymmetric Six-Phase PMSM Drives Based on SVM-DTC. IEEE Trans. Ind. Electron.
**2017**, 64, 6841–6853. [Google Scholar] [CrossRef] - Strangas, E.G.; Clerc, G.; Razik, H.; Soualhi, A. Applications and Specifics. In Fault Diagnosis, Prognosis, and Reliability for Electrical Machines and Drives; Wiley-IEEE Press: Piscataway, NJ, USA, 2022; pp. 125–344. [Google Scholar] [CrossRef]
- Zhao, J.; Guan, X.; Li, C.; Mou, Q.; Chen, Z. Comprehensive Evaluation of Inter-Turn Short Circuit Faults in PMSM Used for Electric Vehicles. IEEE Trans. Intell. Transp. Syst.
**2021**, 22, 611–621. [Google Scholar] [CrossRef] - Thorsen, O.; Dalva, M. A survey of faults on induction motors in offshore oil industry, petrochemical industry, gas terminals, and oil refineries. IEEE Trans. Ind. Appl.
**1995**, 31, 1186–1196. [Google Scholar] [CrossRef] - Hong, J.; Park, S.; Hyun, D.; Kang, T.j.; Lee, S.B.; Kral, C.; Haumer, A. Detection and Classification of Rotor Demagnetization and Eccentricity Faults for PM Synchronous Motors. IEEE Trans. Ind. Appl.
**2012**, 48, 923–932. [Google Scholar] [CrossRef] - Espinosa, A.G.; Rosero, J.A.; Cusidó, J.; Romeral, L.; Ortega, J.A. Fault Detection by Means of Hilbert–Huang Transform of the Stator Current in a PMSM With Demagnetization. IEEE Trans. Energy Convers.
**2010**, 25, 312–318. [Google Scholar] [CrossRef] - Yao, H.; Yan, Y.; Shi, T.; Zhang, G.; Wang, Z.; Xia, C. A Novel SVPWM Scheme for Field-Oriented Vector-Controlled PMSM Drive System Fed by Cascaded H-Bridge Inverter. IEEE Trans. Power Electron.
**2021**, 36, 8988–9000. [Google Scholar] [CrossRef] - Nam, K.H. AC Motor Control and Electrical Vehicle Applications, 2nd ed.; CRC PRESS: Boca Raton, FL, USA, 2018. [Google Scholar]
- Cintron-Rivera, J.G.; Babel, A.S.; Montalvo-Ortiz, E.E.; Foster, S.N.; Strangas, E.G. A simplified characterization method including saturation effects for permanent magnet Machines. In Proceedings of the 2012 XXth International Conference on Electrical Machines, Marseille, France, 2–5 September 2012; pp. 837–843. [Google Scholar] [CrossRef]
- Babel, A.S.; Cintron-Rivera, J.G.; Foster, S.N.; Strangas, E.G. Evaluation of a Parameter Identification Method for Permanent Magnet AC Machines Through Parametric Sensitivity Analysis. IEEE Trans. Energy Convers.
**2014**, 29, 240–249. [Google Scholar] [CrossRef] - Zhong, L.; Rahman, M.; Hu, W.; Lim, K. Analysis of direct torque control in permanent magnet synchronous motor drives. IEEE Trans. Power Electron.
**1997**, 12, 528–536. [Google Scholar] [CrossRef] - Untaroiu, C.D.; Adam, T.J. Performance-Based Classification of Occupant Posture to Reduce the Risk of Injury in a Collision. IEEE Trans. Intell. Transp. Syst.
**2013**, 14, 565–573. [Google Scholar] [CrossRef] - Ibraheem, I. Linear and Quadratic Classifier to Detection of Skin Lesions “Epicutaneus”. In Proceedings of the 2011 5th International Conference on Bioinformatics and Biomedical Engineering, Wuhan, China, 10–12 May 2011; pp. 1–5. [Google Scholar] [CrossRef]
- Ali, M.Z.; Shabbir, M.N.S.K.; Liang, X.; Zhang, Y.; Hu, T. Machine Learning-Based Fault Diagnosis for Single- and Multi-Faults in Induction Motors Using Measured Stator Currents and Vibration Signals. IEEE Trans. Ind. Appl.
**2019**, 55, 2378–2391. [Google Scholar] [CrossRef] - Cortes, C.; Vapnik, V. Support-vector networks. Mach. Learn.
**1995**, 20, 273–297. [Google Scholar] [CrossRef] - Cintron-Rivera, J.G.; Foster, S.N.; Strangas, E.G. Mitigation of turn-to-turn faults in fault tolerant permanent magnet synchronous motors. IEEE Trans. Energy Convers.
**2015**, 30, 465–475. [Google Scholar] [CrossRef] - Martinez, A.; Kak, A. PCA versus LDA. IEEE Trans. Pattern Anal. Mach. Intell.
**2001**, 23, 228–233. [Google Scholar] [CrossRef] [Green Version]

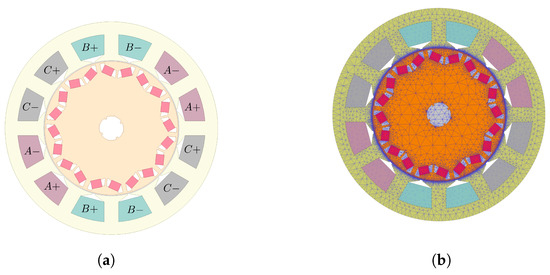

**Figure 3.**The electromagnetic simulation of studied PMSM machine: (

**a**) FEM of the studied machine and (

**b**) Mesh of the machine model.

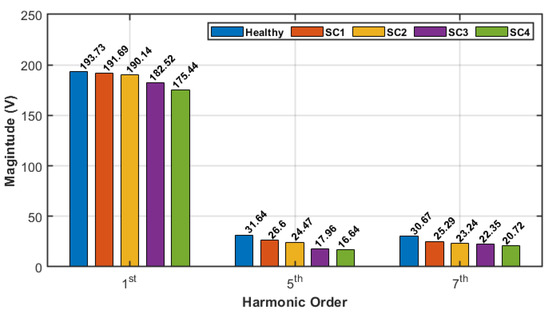

**Figure 10.**Variations in the harmonic content of stator voltage spectrum for healthy and faulty machine under TTSC fault in FOC drive.

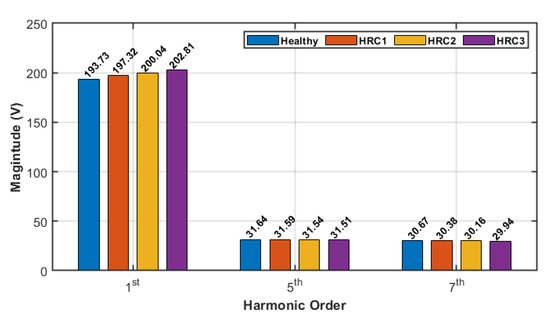

**Figure 11.**Variations in the harmonic content of stator voltage spectrum for healthy and faulty machine under HRC fault in FOC drive.

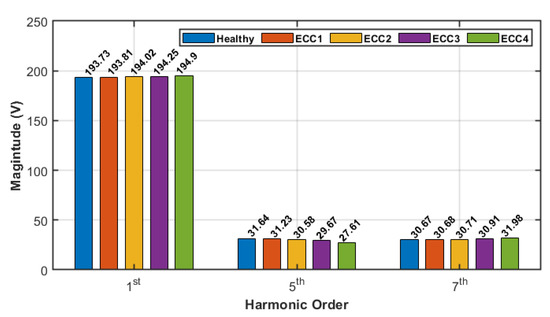

**Figure 12.**Variations in the harmonic content of stator voltage spectrum for healthy and faulty machine under eccentricity fault in FOC drive.

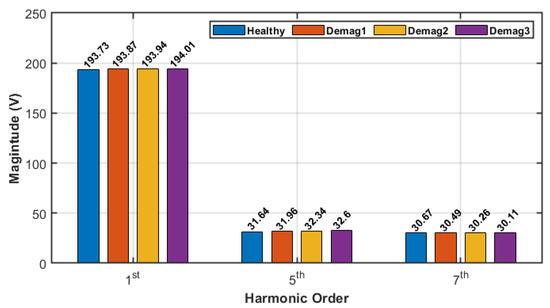

**Figure 13.**Variations in the harmonic content of stator voltage spectrum for healthy and faulty machine under demagnetization fault in FOC drive.

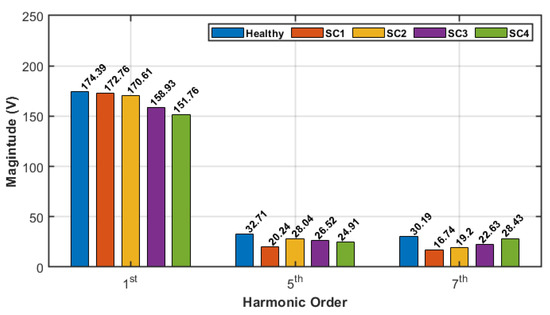

**Figure 15.**Variations in the harmonic content of stator voltage spectrum for healthy and faulty machine under TTSC fault in DTC drive.

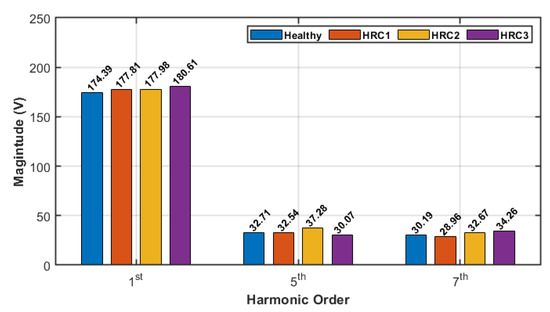

**Figure 16.**Variations in the harmonic content of stator voltage spectrum for healthy and faulty machine under HRC fault in DTC drive.

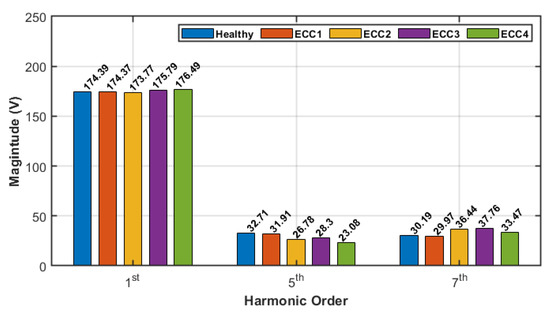

**Figure 17.**Variations in the harmonic content of stator voltage spectrum for healthy and faulty machine under eccentricity fault in DTC drive.

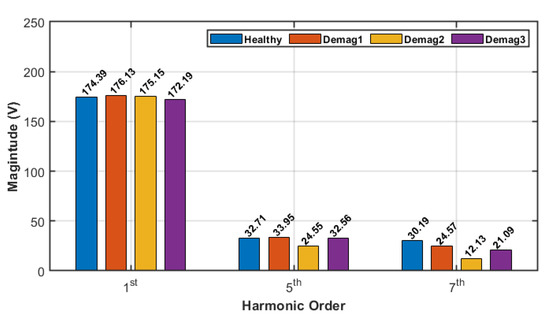

**Figure 18.**Variations in the harmonic content of stator voltage spectrum for healthy and faulty machine under demagnetization fault in DTC drive.

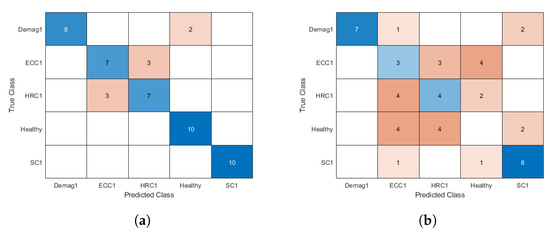

**Figure 20.**Confusion matrix of LDA classifier for fault diagnosis for: (

**a**) FOC drives and (

**b**) DTC drives.

Machine Specification | Symbol | Value | Machine Specification | Symbol | Value |
---|---|---|---|---|---|

Pole pairs | ${P}_{n}$ | 5 | d-axis inductance | ${L}_{d}$ | 31.3 mH |

Slots | Q | 12 | q-axis inductance | ${L}_{q}$ | 62.4 mH |

Turns per slot | ${N}_{s}$ | 150 | Mutual inductance | ${M}_{s}$ | ≈0 H |

Air gap length | g | 1 mm | Rated phase current | ${I}_{rms}$ | 18 A |

Residual flux density | ${B}_{r}$ | 1.2 T | Rated line voltage | ${V}_{rms}$ | 480 V |

Magnet flux linkage | ${\lambda}_{PM}$ | 287 mWb | Rated torque | ${T}_{e}$ | 65 N·m |

Phase resistance | ${r}_{s}$ | 1.5 $\mathsf{\Omega}$ | Rated speed | ${n}_{m}$ | 800 rpm |

Case | ${\mathit{N}}_{\mathit{f}}$ | ${\mathit{R}}_{\mathit{f}}$ |
---|---|---|

SC1 | 15 | 0.5 $\mathsf{\Omega}$ |

SC2 | 15 | 0.25 $\mathsf{\Omega}$ |

SC3 | 30 | 0.5 $\mathsf{\Omega}$ |

SC4 | 30 | 0.25 $\mathsf{\Omega}$ |

Case | $\frac{\mathbf{\Delta}{\mathit{r}}_{\mathit{s}}}{{\mathit{r}}_{\mathit{s}}}\%$ |
---|---|

HRC1 | 50% |

HRC2 | 100% |

HRC3 | 150% |

Case | $\frac{\mathit{\u03f5}}{\mathit{g}}\%$ |
---|---|

ECC1 | 10% |

ECC2 | 40% |

ECC3 | 60% |

ECC4 | 80% |

Case | Severity |
---|---|

Demag1 | One Magnet |

Demag2 | Two Adjacent Magnets |

Demag3 | Three Nonadjacent Magnets |

Case | FOC | DTC | ||||
---|---|---|---|---|---|---|

LDA | k-NN | SVM | LDA | k-NN | SVM | |

Healthy | 100% | 100% | 97.5% | 0% | 0% | 50% |

TTSC | 100% | 100% | 100% | 80% | 70% | 75% |

HRC | 70% | 100% | 80% | 40% | 40% | 67.5% |

Eccentricity | 70% | 100% | 97.5% | 30% | 50% | 57.5% |

Demagnetization | 80% | 70% | 87.5% | 70% | 40% | 80% |

Overall | 84% | 94% | 92.5% | 44% | 42% | 66% |

**Table 7.**The accuracy of fault severity estimation using MVSA approach for FOC- and DTC-driven PMSM.

Fault Type | FOC | DTC | ||
---|---|---|---|---|

LDA | SVM | LDA | SVM | |

TTSC | 85% | 97.5% | 42.5% | 64.167% |

SC1 | 100% | 100% | 50% | 63.333% |

SC2 | 100% | 100% | 40% | 66.667% |

SC3 | 80% | 93.333% | 30% | 66.667% |

SC4 | 60% | 96.667% | 50% | 60% |

HRC | 96.667% | 86.667% | 30% | 38.333% |

HRC1 | 100% | 100% | 30% | 35% |

HRC2 | 90% | 80% | 20% | 30% |

HRC3 | 100% | 100% | 40% | 50% |

Eccentricity | 100% | 100% | 30% | 62.5% |

ECC1 | 100% | 100% | 20% | 53.333% |

ECC2 | 100% | 100% | 20% | 53.333% |

ECC3 | 100% | 100% | 40% | 70% |

ECC4 | 100% | 100% | 40% | 73.333% |

Demagnetization | 86.667% | 71.667% | 46.667% | 56.667% |

Demag1 | 100% | 100% | 80% | 75% |

Demag2 | 90% | 50% | 20% | 55% |

Demag3 | 70% | 60% | 40% | 40% |
