# Distinct Turbulent Regions in the Wake of a Wind Turbine and Their Inflow-Dependent Locations: The Creation of a Wake Map

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Setup

## 3. Results

#### 3.1. Mean Velocity

#### 3.2. Variance

#### 3.3. Turbulence Intensity

#### 3.4. Energy Spectral Density and Decay Exponent in the Inertial Sub-Range

#### 3.5. Integral Length and Taylor Length

#### 3.6. Castaing Parameter

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

cf. | confer (Latin)—compare with |

TI | turbulence intensity |

## References

- Vermeer, L.J.; Sørensen, J.N.; Crespo, A. Wind turbine wake aerodynamics. Prog. Aerosp. Sci.
**2003**, 39, 467–510. [Google Scholar] [CrossRef] - Sanderse, B. Aerodynamics of Wind Turbine Wakes; Report, ECN-E-09-016; ECN Wind Energy: Petten, The Netherlands, 2009. [Google Scholar]
- Sørensen, J.N. Aerodynamic Aspects of Wind Energy Conversion. Annu. Rev. Fluid Mech.
**2011**, 43, 427–448. [Google Scholar] [CrossRef] [Green Version] - Porté-Agel, F.; Bastankhah, M.; Shamsoddin, S. Wind-Turbine and Wind-Farm Flows: A Review. Bound. Layer Meteorol.
**2020**, 174, 1–59. [Google Scholar] [CrossRef] [Green Version] - Eriksen, P.E.; Krogstad, P.Å. Development of coherent motion in the wake of a model wind turbine. Renew. Energy
**2017**, 108, 449–460. [Google Scholar] [CrossRef] - Bastankhah, M.; Porté-Agel, F. A new analytical model for wind-turbine wakes. Renew. Energy
**2014**, 70, 116–126. [Google Scholar] [CrossRef] - Neunaber, I. Turbulence in Wakes. In Handbook of Wind Energy Aerodynamics, 1st ed.; Springer: Cham, Switzerland, 2021; accepted. [Google Scholar]
- Xie, S.; Archer, C. Self-similarity and turbulence characteristics of wind turbine wakes via large-eddy simulation. Wind Energy
**2015**, 18, 1815–1838. [Google Scholar] [CrossRef] - Duckworth, A.; Barthelmie, R.J. Investigation and Validation of Wind Turbine Wake Models. Wind Eng.
**2008**, 32, 459–475. [Google Scholar] [CrossRef] - Stevens, R.J.A.M.; Meneveau, C. Flow Structure and Turbulence in Wind Farms. Annu. Rev. Fluid Mech.
**2017**, 49, 311–339. [Google Scholar] [CrossRef] - Arjomand Kermani, N.; Andersen, S.J.; Sørensen, J.N.; Shen, W.Z. Analysis of turbulent wake behind a wind turbine. In ICOWES 2013; Technical University of Denmark: Lyngby, Denmark, 2013. [Google Scholar]
- Lignarolo, L.E.M.; Mehta, D.; Stevens, R.J.A.M.; Yilmaz, A.E.; van Kuik, G.; Andersen, D.J.; Meneveau, C.; Ferreira, C.J.; Ragni, D.; Meyers, J.; et al. Validation of four LES and a vortex model against stereo-PIV measurements in the near wake of an actuator disc and a wind turbine. Renew. Energy
**2016**, 94, 510–523. [Google Scholar] [CrossRef] - Zhang, W.; Markfort, C.D.; Porté-Agel, F. Near-wake flow structure downswind of a wind turbine in a turbulent boundary layer. Exp. Fluids
**2012**, 52, 1219–1235. [Google Scholar] [CrossRef] [Green Version] - Bastankhah, M.; Porté-Agel, F. A New Miniature Wind Turbine for Wind Tunnel Experiments. Part II: Wake Structure and Flow Dynamics. Energies
**2017**, 10, 923. [Google Scholar] [CrossRef] [Green Version] - Aubrun, S.; Loyer, S.; Hancock, P.; Hayden, P. Wind turbine wake properties: Comparison between a non-rotating simplified wind turbine model and a rotating model. J. Wind Eng. Ind. Aerodyn.
**2013**, 120, 1–8. [Google Scholar] [CrossRef] - Chamorro, L.P.; Guala, M.; Arndt, R.E.A.; Sotiropoulos, F. On the evolution of turbulent scales in the wake of a wind turbine model. J. Turbul.
**2012**, 13, N27. [Google Scholar] [CrossRef] - Jin, Y.; Liu, H.; Aggarwal, R.; Singh, A.; Chamorro, L.P. Effects of Freestream Turbulence in a Model Wind Turbine Wake. Energies
**2016**, 9, 830. [Google Scholar] [CrossRef] [Green Version] - Al-Abadi, A.; Kim, Y.J.; Ertunç, Ö.; Delgado, A. Turbulence Impact on Wind Turbines: Experimental Investigations on a Wind Turbine Model. J. Phys. Conf. Ser.
**2016**, 753, 032046. [Google Scholar] [CrossRef] [Green Version] - Barlas, E.; Buckingham, S.; van Beck, J. Roughness Effects on WInd-Turbine Wake Dynamics in a Boundary-Layer Wind Tunnel. Bound. Layer Meteorol.
**2016**, 158, 27–42. [Google Scholar] [CrossRef] [Green Version] - Maeda, T.; Kamada, Y.; Murata, J.; Yonekura, S.; Ito, T.; Okawa, A.; Kogaki, T. Wind tunnel study on wind and turbulence intensity profiles in wind turbine wake. J. Therm. Sci.
**2011**, 20, 127–132. [Google Scholar] [CrossRef] - Bastine, D.; Wächter, M.; Peinke, J.; Trabucchi, D.; Kühn, M. Characterizing Wake Turbulence with Staring Lidar Measurements. J. Phys. Conf. Ser.
**2015**, 625, 012006. [Google Scholar] [CrossRef] - Chamorro, L.P.; Hill, C.; Ellis, C.; Arndt, R.E.A.; Sotiropoulos, F. On the interaction between an turbulent open channel flow and an axial-flow turbine. J. Fluid Mech.
**2013**, 716, 658–670. [Google Scholar] [CrossRef] - Singh, A.; Howard, K.B.; Guala, M. On the homogenization of turbulent flow structures in the wake of a model wind turbine. Phys. Fluids
**2014**, 26, 025103. [Google Scholar] [CrossRef] - Ali, N.; Fuchs, A.; Neunaber, I.; Peinke, J.; Cal, R.B. Multi-scale/fractal processes in the wake of a wind turbine array boundary layer. J. Turbul.
**2019**, 20, 93–120. [Google Scholar] [CrossRef] - Wessel, A. Development of a Physical Model for Calculation of Turbulence Inside Wind Farms. Ph.D. Thesis, Faculty of Mathmatics and Natural Sciences, University of Oldenburg, Oldenburg, Germany, 2008. [Google Scholar]
- Ali, N.; Aseyev, A.S.; Melius, M.; Tutkun, M.S.; Cal, R.B. Evaluation of Higher Order Moments and Isotropy in the Wake of a Wind Turbine Array. In Wither Turbulence and Big Data in the 21st Century? Springer: Cham, Switzerland, 2017; pp. 273–294. ISBN 978-3-319-41217-7. [Google Scholar]
- Schottler, J.; Bartl, J.; Mühle, F.; Sætran, L.; Peinke, J.; Hölling, M. Wind tunnel experiments on wind turbine wakes in yaw: Redefining the wake width. Wind Energy Sci.
**2018**, 3, 257–273. [Google Scholar] [CrossRef] [Green Version] - Kröger, L.; Frederik, J.; van Wingeren, J.-W.; Peinke, J.; Hölling, M. Generation of user defined turbulent inflow conditions by an active grid for validation experiments. J. Phys. Conf. Ser.
**2018**, 1037, 052002. [Google Scholar] [CrossRef] [Green Version] - Schottler, J.; Hölling, A.; Peinke, J.; Hölling, M. Design and implementation of a controllable model wind turbine for experimental studies. J. Phys. Conf. Ser.
**2016**, 753, 072030. [Google Scholar] [CrossRef] [Green Version] - Neunaber, I. Stochastic Investigation of the Evolution of Small-Scale Turbulence in the Wake of a Wind Turbine Exposed to Different Inflow Conditions. Ph.D. Thesis, Faculty of Mathmatics and Natural Sciences, University of Oldenburg, Oldenburg, Germany, 2019. Available online: http://oops.uni-oldenburg.de/3852/ (accessed on 14 August 2020).
- Petrović, V.; Schottler, J.; Neunaber, I.; Hölling, M.; Kühn, M. Wind tunnel validation of a closed loop active power control for wind farms. J. Phys. Conf. Ser.
**2018**, 1037, 032020. [Google Scholar] [CrossRef] - Hultmark, M.; Smits, A.J. Temperature corrections for constant temperature and constant current hot-wire anemometers. Meas. Sci. Technol.
**2010**, 21, 105404. [Google Scholar] [CrossRef] - Burton, T.; Jenkins, N.; Sharpeand, D.; Bossanyi, E. Wind Energy Handbook; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2001. [Google Scholar] [CrossRef]
- Okulov, V.L.; Naumov, I.V.; Mikkelsen, R.F.; Sørensen, J.N. Wake effect on a uniform flow behind wind-turbine model. J. Phys. Conf. Ser.
**2015**, 625, 012011. [Google Scholar] [CrossRef] - Hurst, D.; Vassilicos, J.C. Scalings and decay of fractal-generated turbulence. Phys. Fluids
**2007**, 19, 035103. [Google Scholar] [CrossRef] [Green Version] - Hinze, J.O. Turbulence, 2nd ed.; McGraw-Hill Inc.: New York, NY, USA, 1975. [Google Scholar]
- Kolmogorov, A.N. The local structure of turbulence in an incompressible viscous fluid for very high Reynolds number. Soviet Physics Uspekhi
**1968**, 10, 734–746, reprinted in Dokl. Akad. Nauk SSSR**1941**, 30, 299. [Google Scholar] [CrossRef] - Chillá, F.; Peinke, J.; Castaing, B. Multiplicative Process in Turbulent Velocity Statistics: A Simplified Analysis. J. Phys. II Fr.
**1996**, 6, 455–460. [Google Scholar] [CrossRef] [Green Version] - Morales, A.; Wächter, M.; Peinke, J. Characterization of wind turbulence by higher-order statistics. Wind Energy
**2012**, 15, 391–496. [Google Scholar] [CrossRef] - Castaing, B.; Gagne, Y.; Hopfinger, E.J. Velocity probability density functions of high Reynolds number turbulence. Physica D
**1990**, 46, 177–200. [Google Scholar] [CrossRef] - Wächter, M.; Heißelmann, H.; Hölling, M.; Morales, A.; Milan, P.; Mücke, T.; Peinke, J.; Reinke, N.; Rinn, P. The turbulent nature of the atmospheric boundary layer and its impact on the wind energy conversion process. J. Turbul.
**2012**, 13, N26. [Google Scholar] [CrossRef] [Green Version] - Schwarz, C.M.; Ehrich, S.; Martín, R.; Peinke, J. Fatigue load estimations of intermittent wind dynamics based on a Blade Element Momentum method. J. Phys. Conf. Ser.
**2018**, 1037, 072040. [Google Scholar] [CrossRef] - Taylor, G.I. The Spectrum of Turbulence. Proc. R. Soc. Lond.
**1938**, A164, 476–490. [Google Scholar] [CrossRef] [Green Version] - Pope, S.B. Turbulent Flows; Cambridge University Press: Cambridge, UK, 2000. [Google Scholar] [CrossRef]
- Wu, Y.-T.; Porté-Agel, F. Atmospheric Turbulence Effects on Wind-Turbine Wakes: An LES Study. Energies
**2012**, 5, 5340–5362. [Google Scholar] [CrossRef]

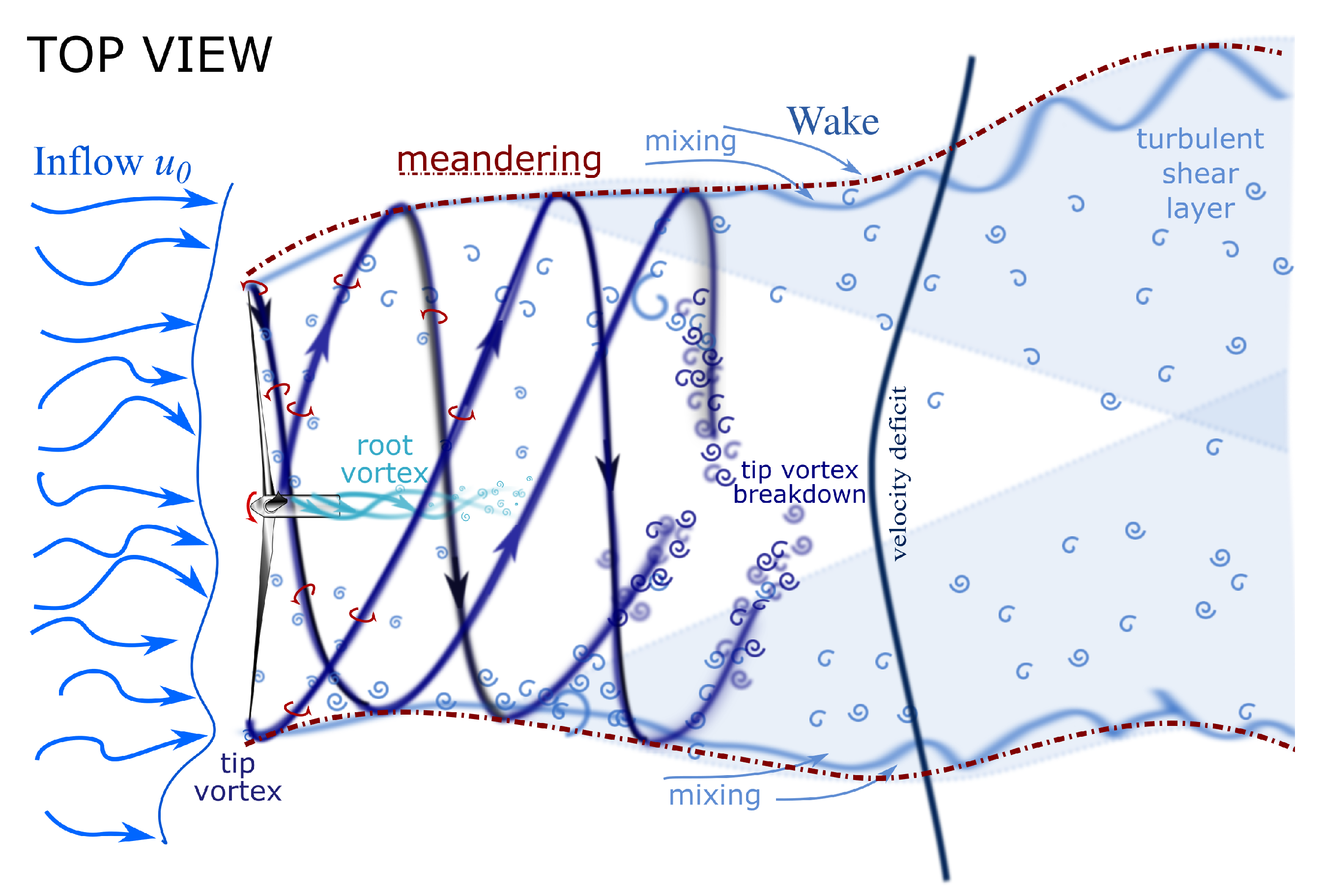

**Figure 1.**Sketch of the evolution of the turbulent wake of a wind turbine (adapted from [7] by the author).

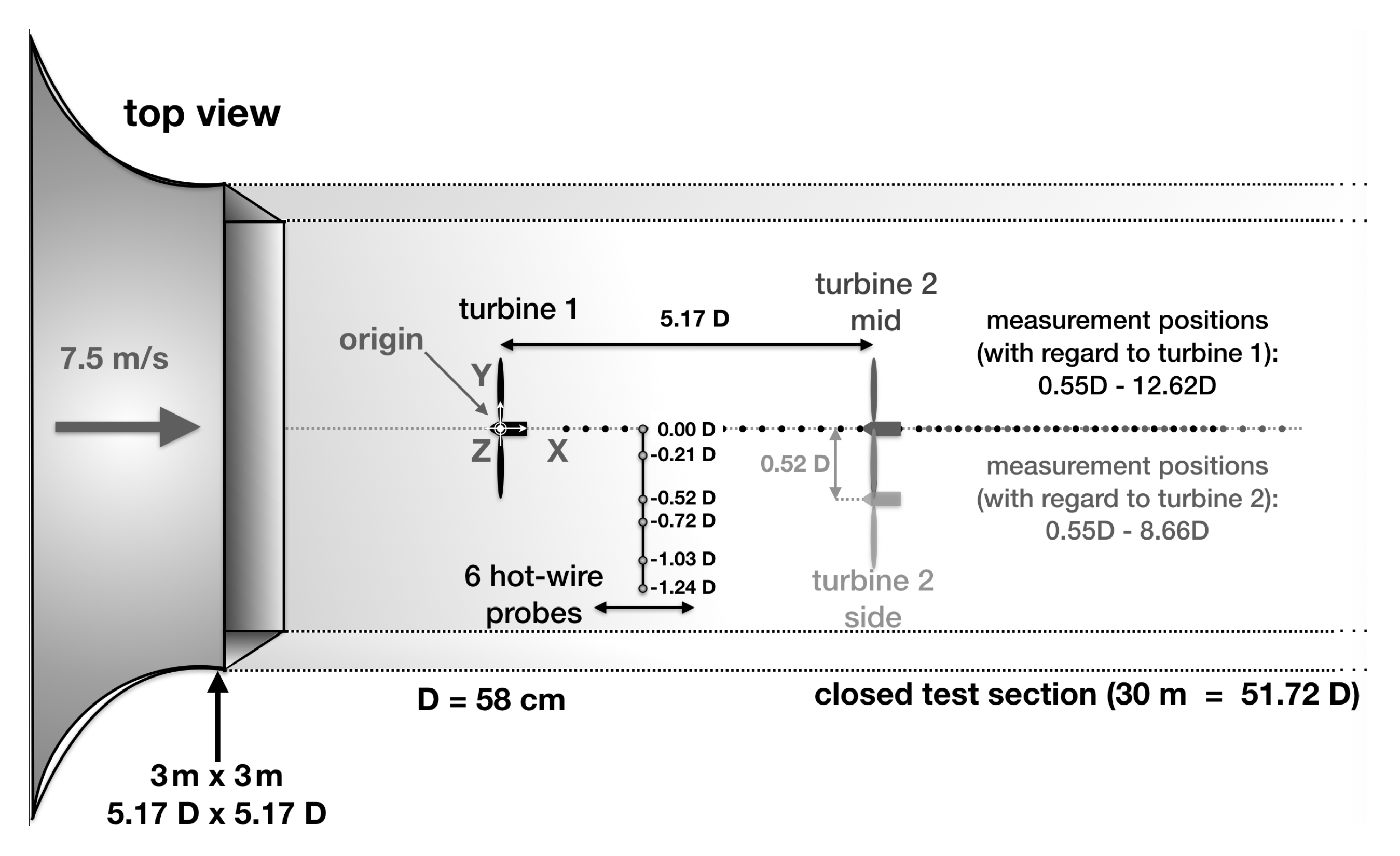

**Figure 2.**Experimental setup showing the wind tunnel with its inlet nozzle on the left and the positions of the model wind turbines together with the measurement positions marked by dots. Altered from [30].

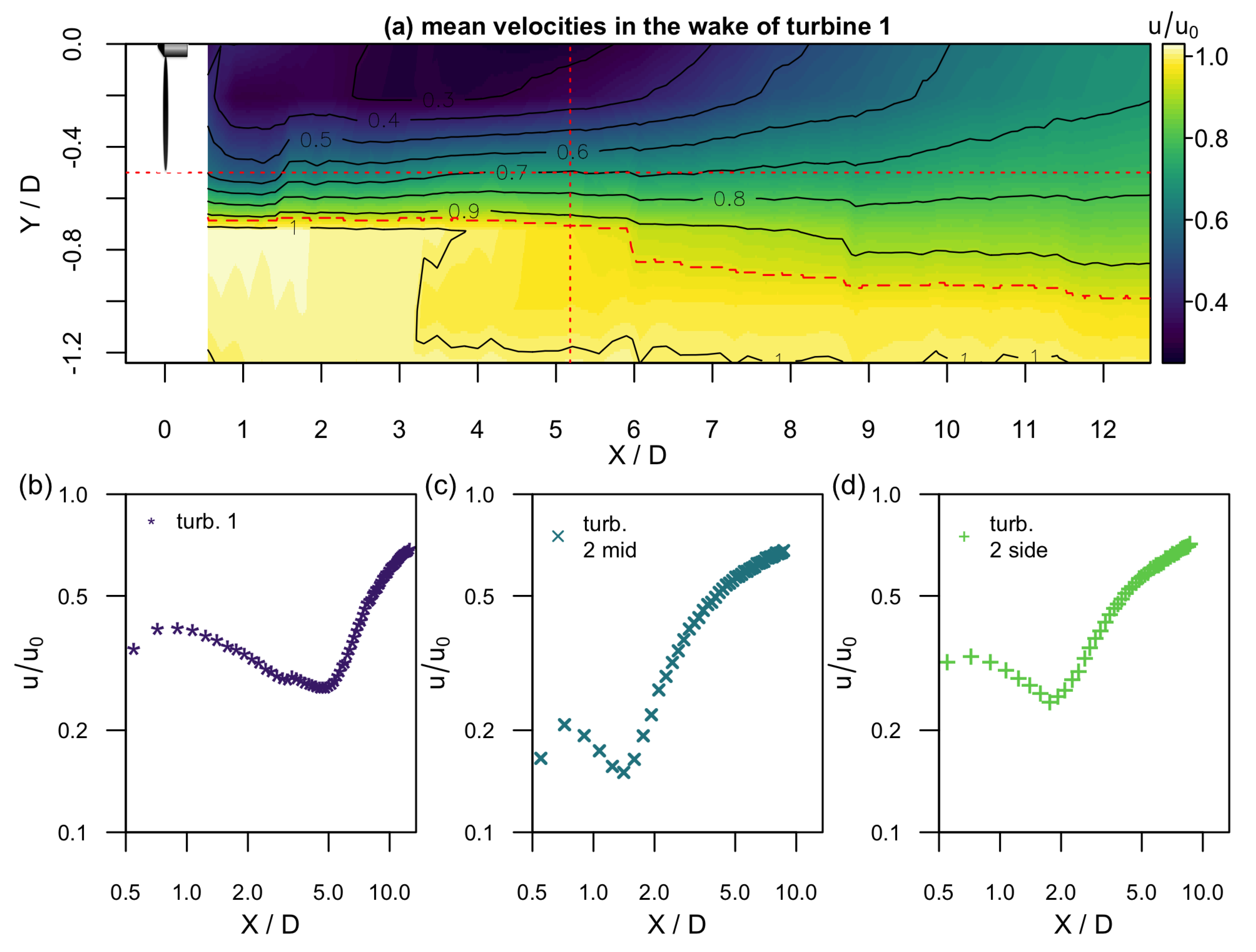

**Figure 3.**Downstream evolution of the mean velocity $u/{u}_{0}$ that is normalized by the inflow velocity ${u}_{0}$: (

**a**) shows an interpolated contour plot of $u/{u}_{0}$ downstream of turbine 1. The horizontal red dotted line indicates the position of the blade tip and the vertical red dotted line the position of turbine 2. The dashed red curve gives an approximation of the wake boundary at $u/{u}_{0}=0.95$. (

**b**–

**d**) show the centerline evolution of $u/{u}_{0}$ over $X/D$ with logarithmic axes for the wakes of turbine 1, turbine 2 mid, and turbine 2 side.

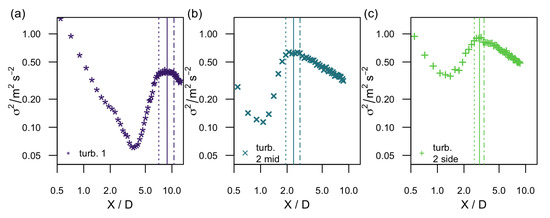

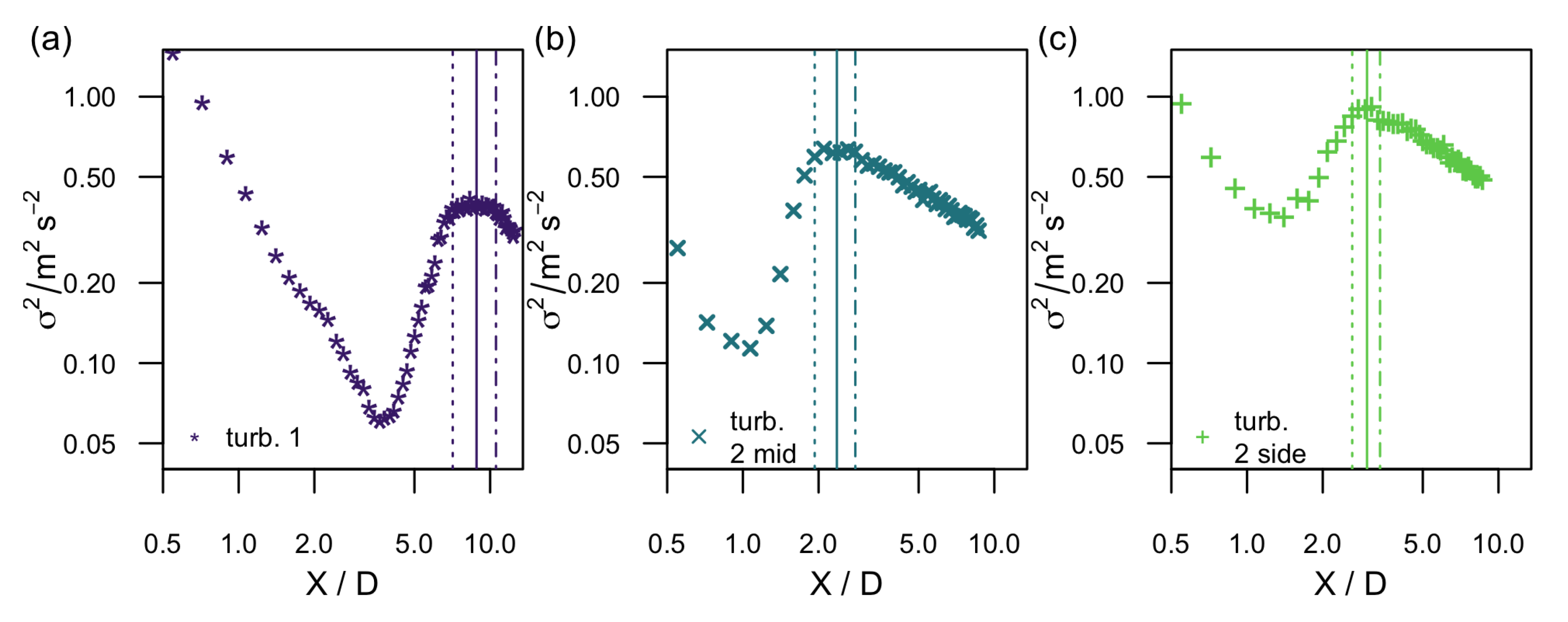

**Figure 4.**Downstream evolution of the variance ${\sigma}^{2}$ at the centerline for the wakes of turbine 1, turbine 2 mid and turbine 2 side (

**a**–

**c**) with logarithmic axes. The straight vertical line indicates the local maximum, the dashed line the maximum curvature, and the dash-dotted line mirrors the distance between the first two lines.

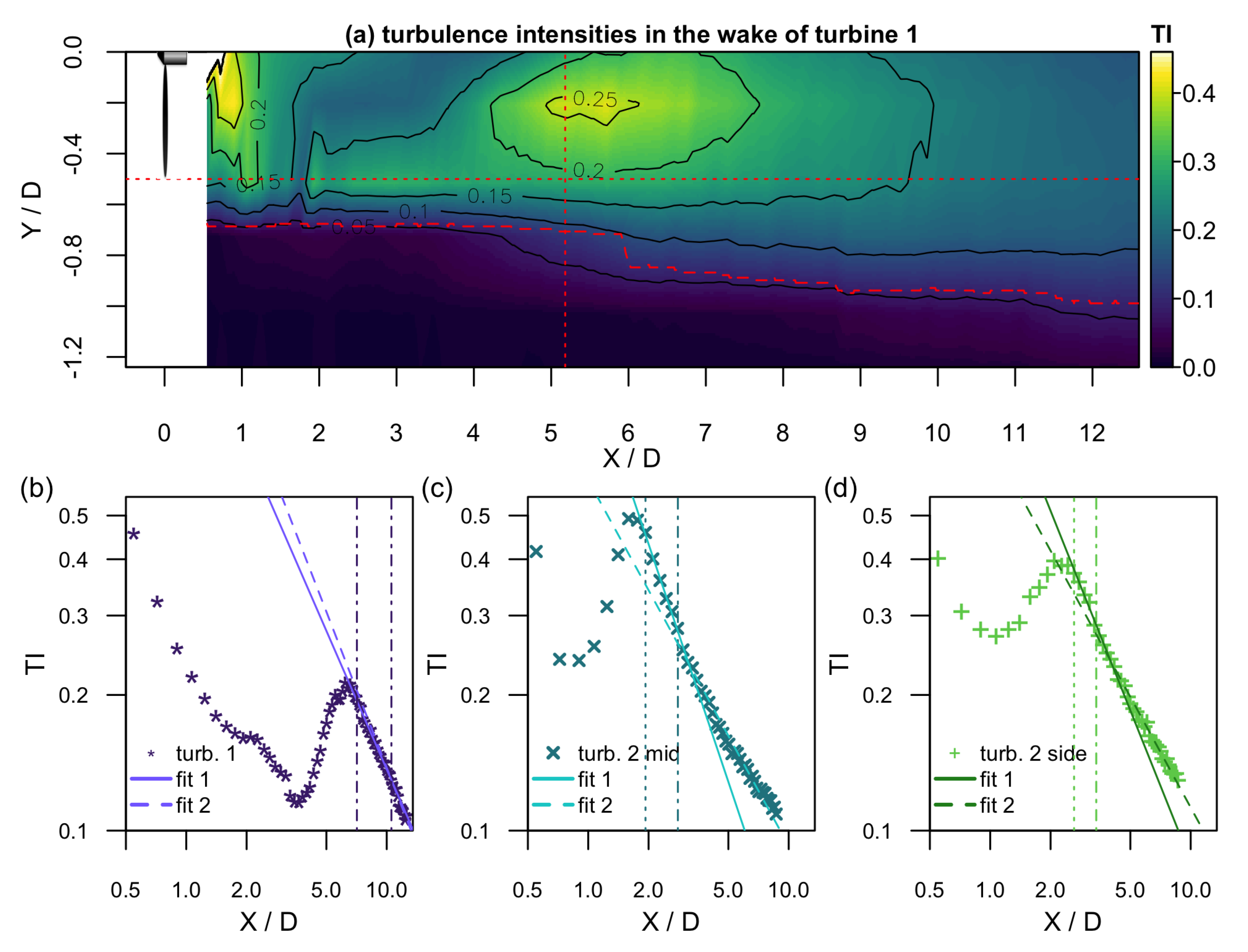

**Figure 5.**Downstream evolution of the turbulence intensity: The interpolated contour plot (

**a**) shows the evolution of the turbulence intensity downstream of turbine 1. The horizontal red dotted line indicates the position of the blade tip and the vertical red dotted line the position of turbine 2. The dashed red curve gives an approximation of the wake boundary at $u/{u}_{0}=0.95$. In (

**b**–

**d**), the centerline evolution of the turbulence intensity is plotted with logarithmic axes for the three configurations. In addition, the decay region of the turbulence intensity is fitted, and the fit regions are indicated by the dotted and the dash-dotted line.

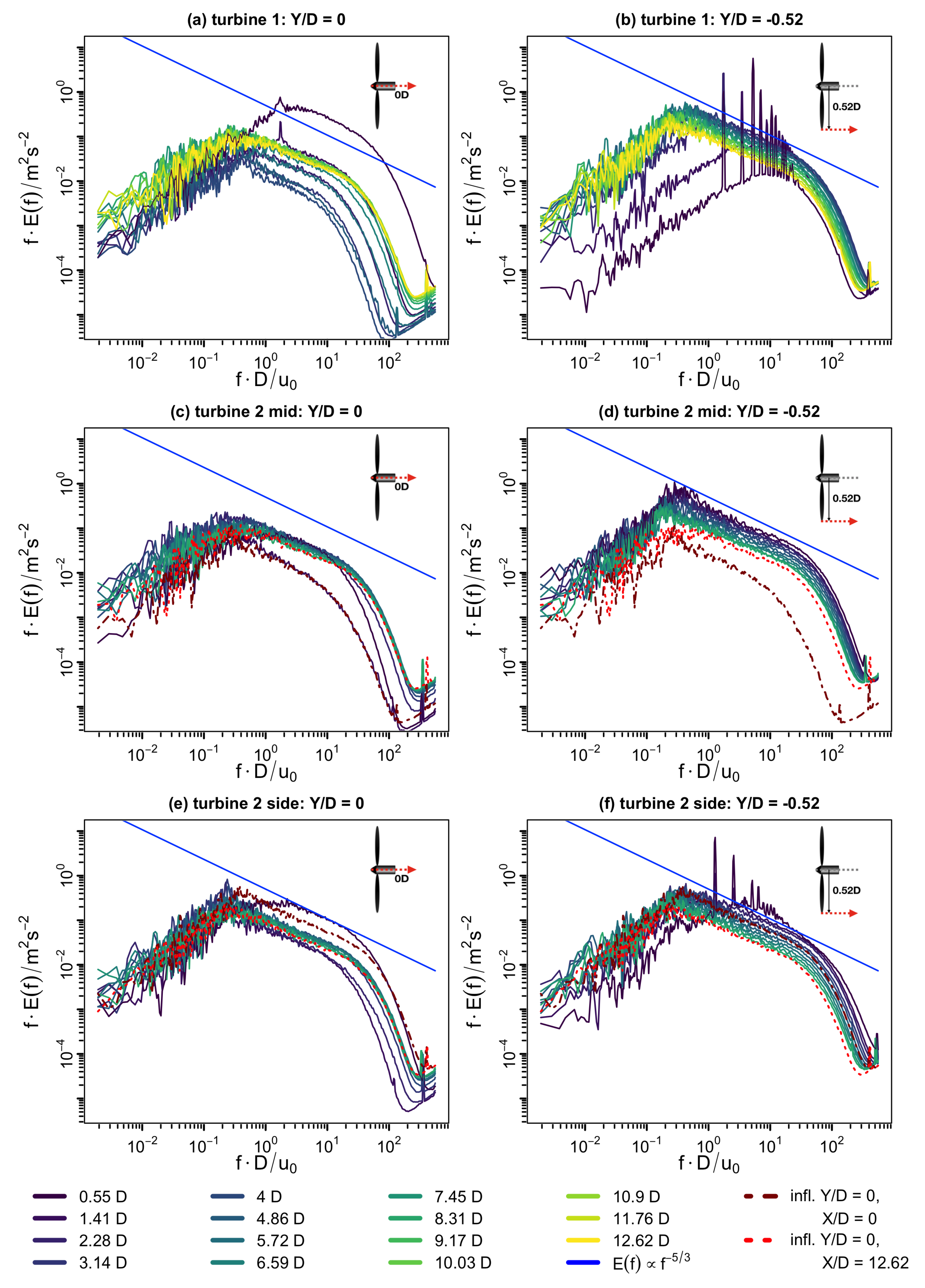

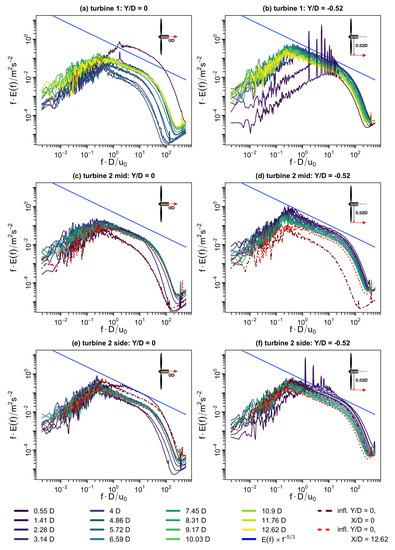

**Figure 6.**Downstream evolution of the pre-multiplied energy spectral density $E\left(f\right)\xb7f$ over $f\xb7D/{u}_{0}$ for two different radial positions ($Y/D=0$ (sub-plots (

**a**,

**c**,

**e**), and $Y/D=-0.52$ (sub-plots (

**b**,

**d**,

**f**)) downstream of the three wake scenarios turbine 1 (

**a**,

**b**), turbine 2 mid (

**c**,

**d**), and turbine 2 side (

**e**,

**f**). An increasing downstream position is indicated by a brighter color. In addition, the decay according to $E\left(f\right)\propto {f}^{-5/3}$ is indicated (blue line), and the spectrum of the inflow generated by turbine 1 is plotted for turbine 2 mid and side at the position of the rotor (dark red dash-dotted lines) and at the last measurement position (red dashed lines).

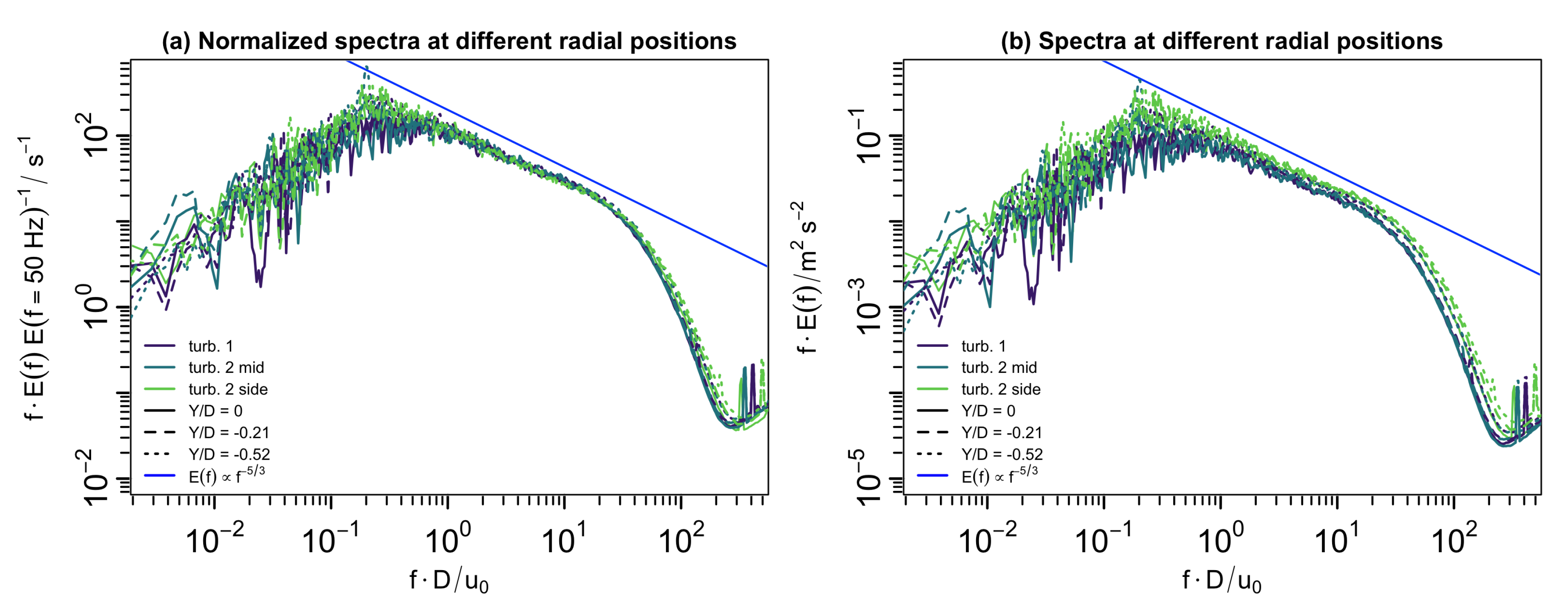

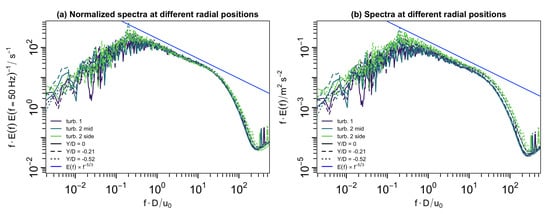

**Figure 7.**Comparison of the energy spectra in the far wake for the three scenarios turbine 1 (dark violet), turbine 2 mid (turquoise) and turbine 2 side (green), and the radial positions $Y/D=0$ (straight line), $Y/D=-0.21$ (dashed line), and $Y/D=-0.52$ (dotted line). In (

**a**), the energy spectra are normalized by the energy at $f=50\phantom{\rule{0.222222em}{0ex}}\mathrm{Hz}$ to collapse the inertial sub-range and thus emphasize the similarity and in (

**b**) the spectra are shown.

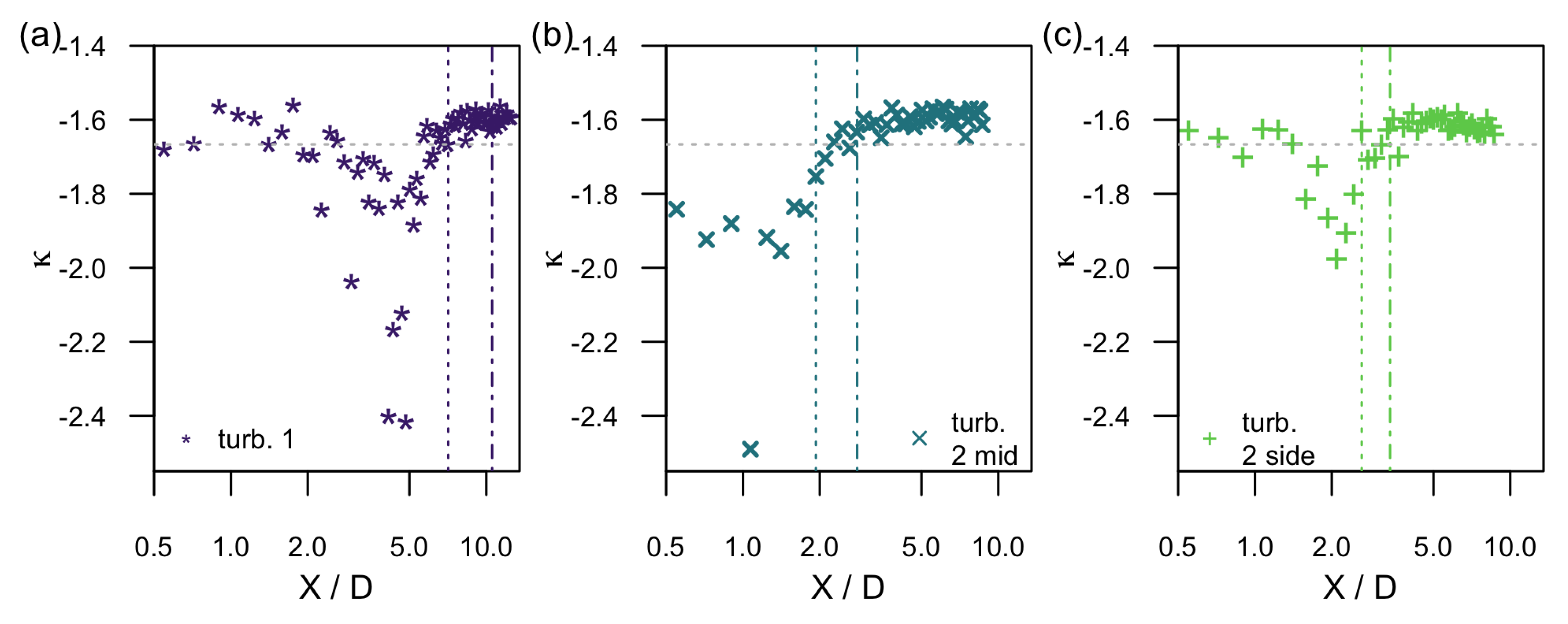

**Figure 8.**Decay exponent $\kappa $ of the energy spectral density in the inertial sub-range for the three scenarios in (

**a**–

**c**). The exponent is fitted according to $E\left(f\right)\propto {f}^{\kappa}$, and $\kappa =-5/3$ is indicated in the dashed grey horizontal line. The vertical lines indicate as before the downstream region of the maximum variance.

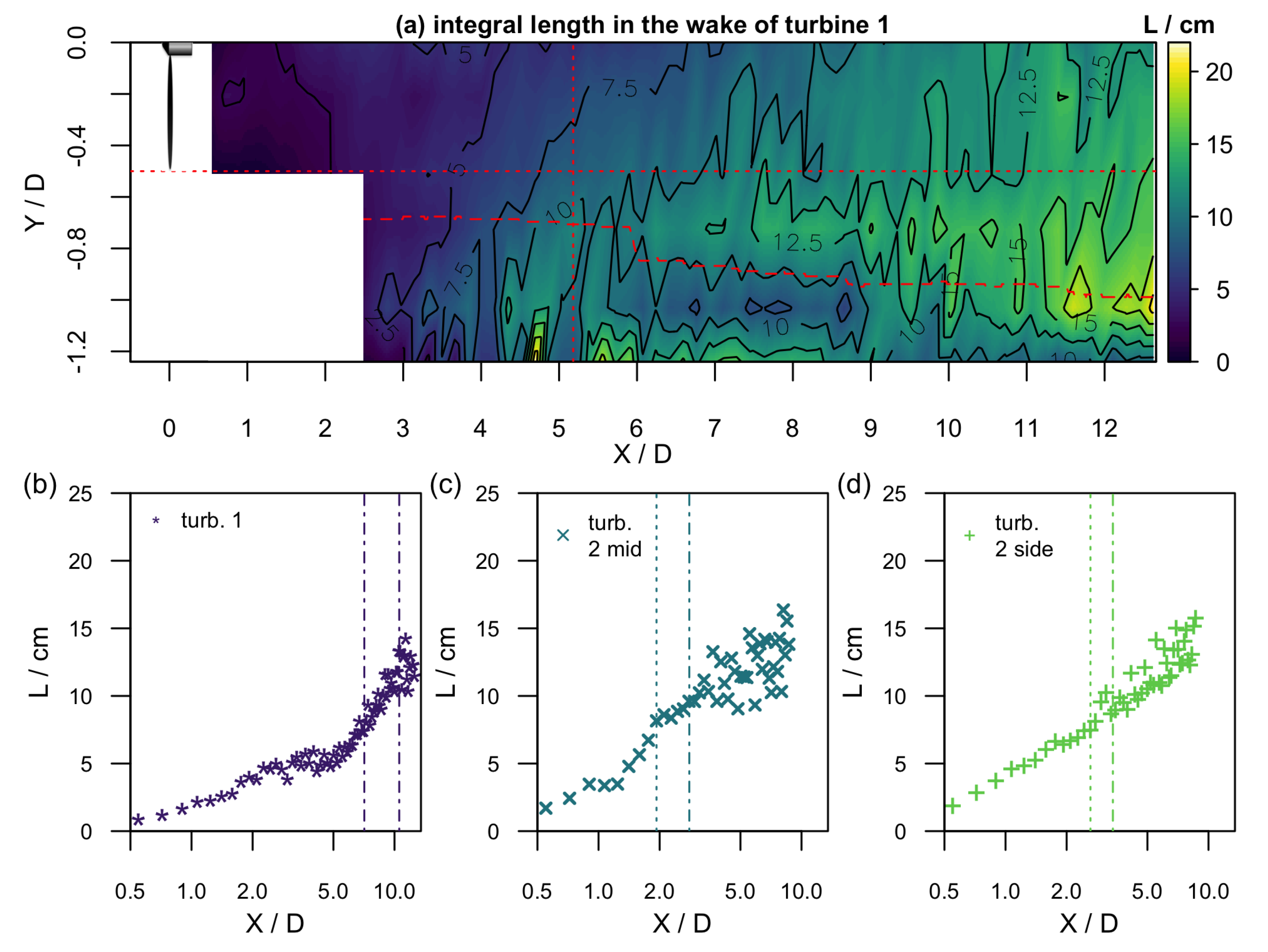

**Figure 9.**Downstream evolution of the integral length scale L: An interpolated contour plot shows the evolution of the whole measurement section downstream of turbine 1 (

**a**). The dotted red horizontal line shows the position of the blade tip, the dotted red vertical line the position of turbine 2, and the dashed red line gives an approximation of the wake boundary at $u/{u}_{0}=0.95$. The centerline evolution is plotted with a logarithmic x-axis for all three wake scenarios in (

**b**–

**d**).

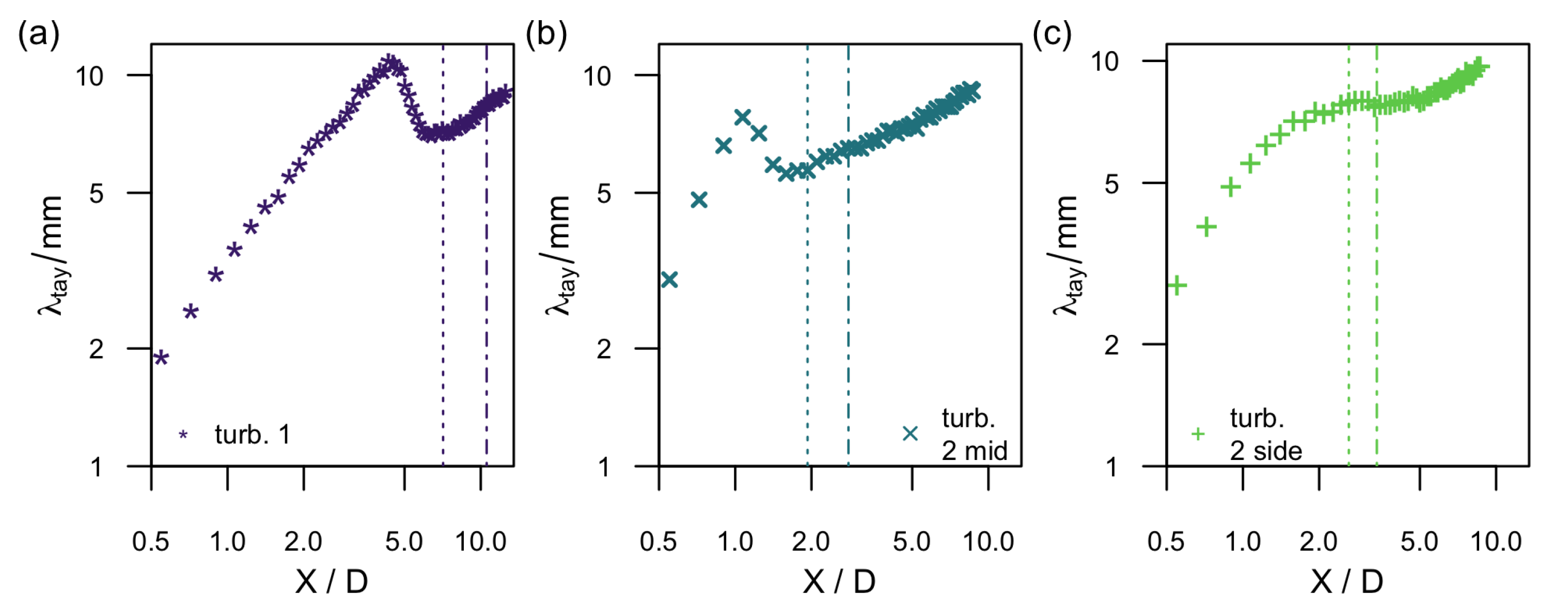

**Figure 10.**Downstream evolution of the Taylor length ${\lambda}_{tay}$ at the centerline with logarithmic axes for the three wakes in (

**a**–

**c**).

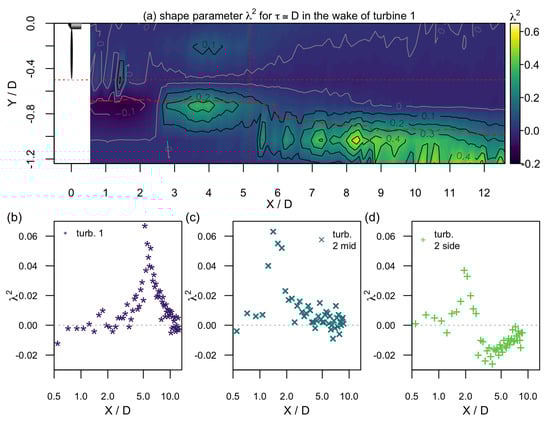

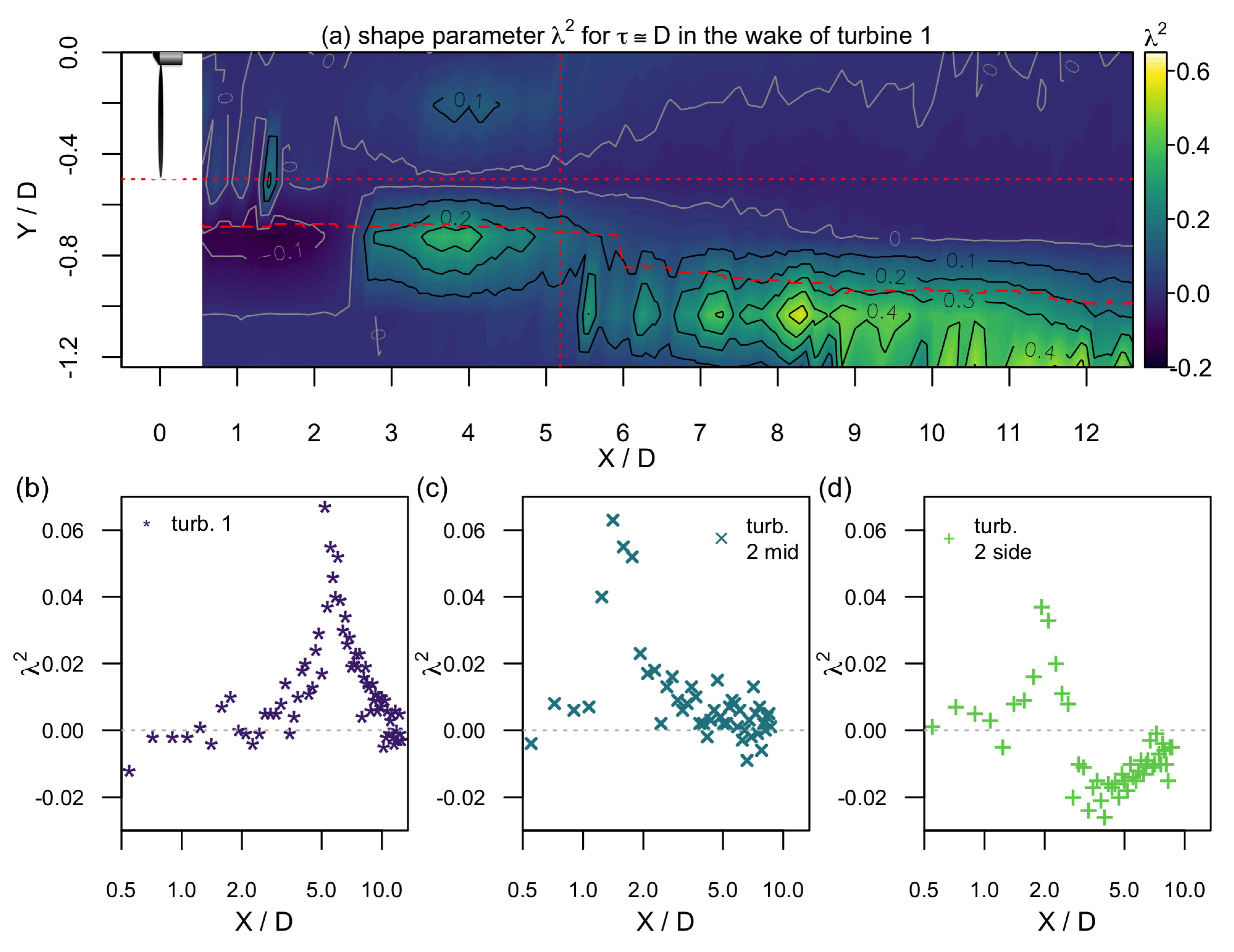

**Figure 11.**Evolution of the Castaing parameter ${\lambda}^{2}$ downstream of turbine 1 as interpolated contour plot (

**a**) and downstream of turbine 1, turbine 2 mid, and turbine 2 side at the centerline (

**b**–

**d**).

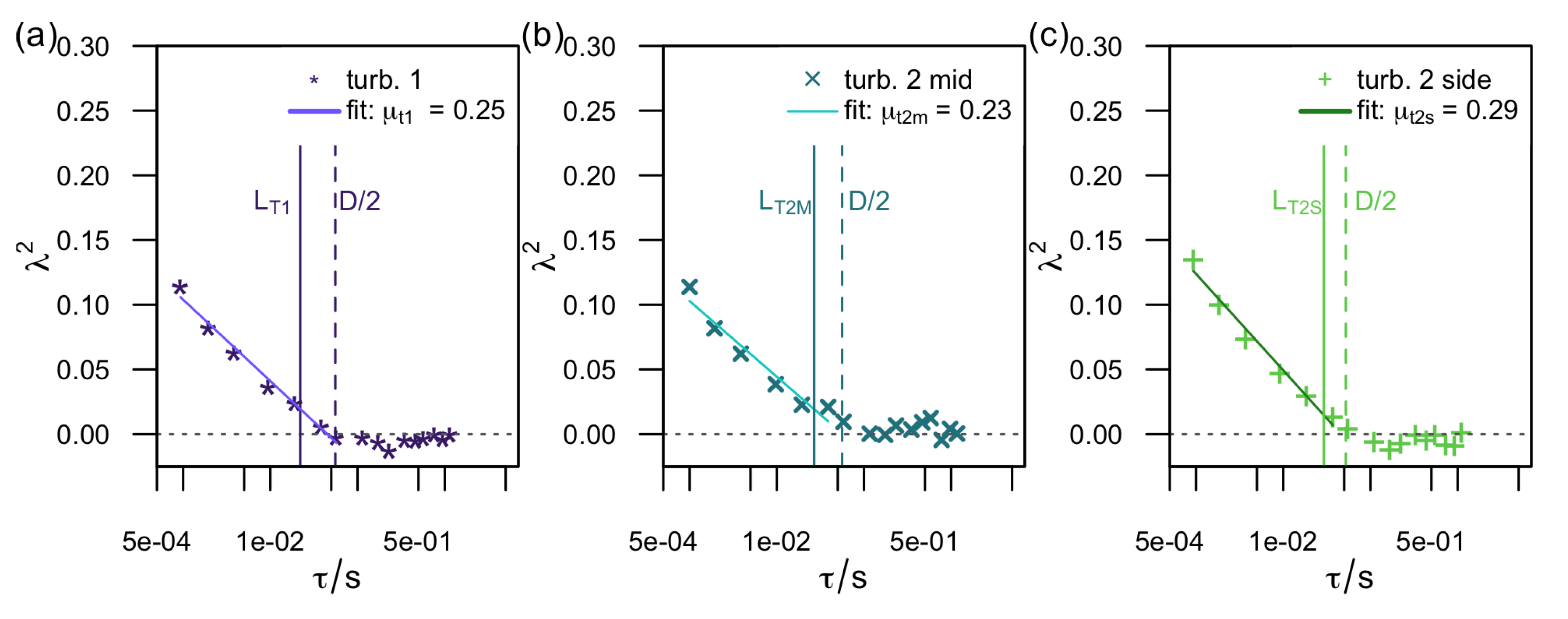

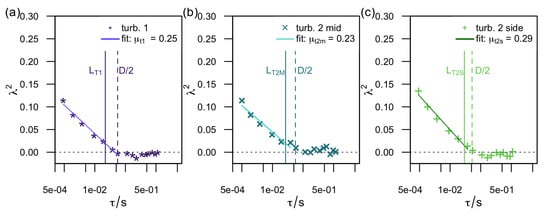

**Figure 12.**Evolution of the Castaing parameter ${\lambda}^{2}$ over time scale $\tau $ for turbine 1 (

**a**), turbine 2 mid (

**b**), and turbine 2 side (

**c**) at the respective last measurement position ($X/D=12.62$ or $X/D=8.66$) at the centerline. The vertical line indicates $\tau \simeq L$ and the dashed line indicates $\tau \simeq D/2$. In addition, a fit according to ${\lambda}^{2}\propto 0.25\xb7ln\mathrm{F}\left(\tau \right)$ with $\mathrm{F}\left(\tau \right)\propto {\tau}^{-4/9\xb7\mu}$. The respective values for the intermittency parameter $\mu $ are written in the legend.

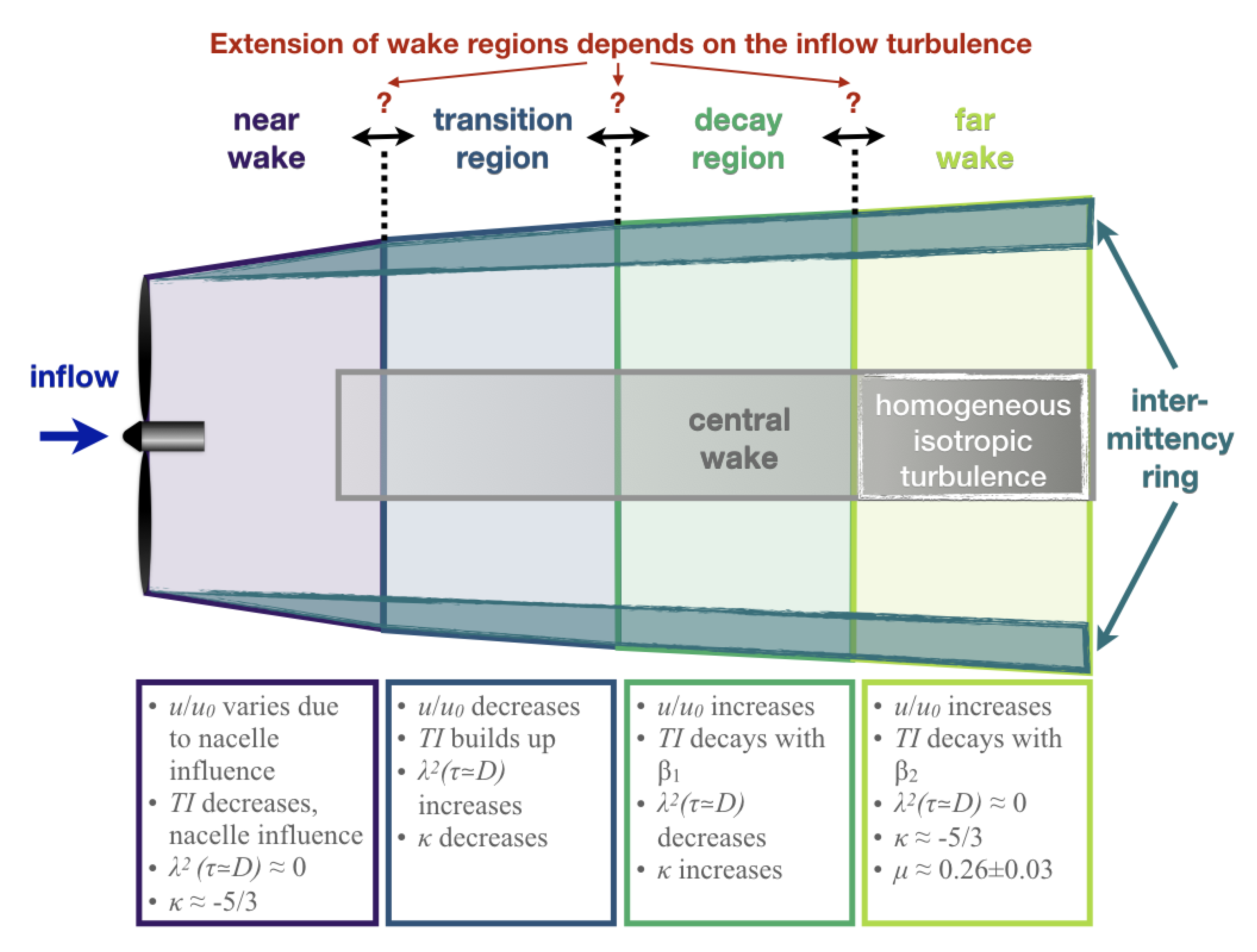

**Figure 13.**Wake Map: The four downstream regions near wake, transition region, decay region, and far wake with their respective properties are indicated. The extension of the regions depends on the inflow conditions. The wake also has a wake core with indications of homogeneous isotropic turbulence in the far wake, and a ring with high intermittency at scales $\tau \simeq D$ surrounding the wake. Figure adapted from [30].
