Stability Control for Gob-Side Entry Retaining with Supercritical Retained Entry Width in Thick Coal Seam Longwall Mining

1
Work Safety Key Lab on Prevention and Control of Gas and Roof Disasters for Southern Coal Mines, Hunan Provincial Key Laboratory of Safe Mining Techniques of Coal Mines, Hunan University of Science and Technology, Xiangtan 411201, China
2
State Key Laboratory of Mining Disaster Prevention and Control Co-founded by Shandong Province and the Ministry of Science and Technology, Shandong University of Science and Technology, Qingdao 266590, China
3
Key Laboratory of Safe and Effective Coal Mining, Ministry of Education, Anhui University of Science and Technology, Huainan 232001, China
4
School of Resource & Environment and Safety Engineering, Hunan University of Science and Technology, Xiangtan 411201, China
*
Author to whom correspondence should be addressed.
Received: 18 March 2019 / Revised: 29 March 2019 / Accepted: 8 April 2019 / Published: 10 April 2019
(This article belongs to the Special Issue Green Coal Mining Techniques)
  |
PDF [5205 KB, uploaded 10 April 2019]
  |

Abstract

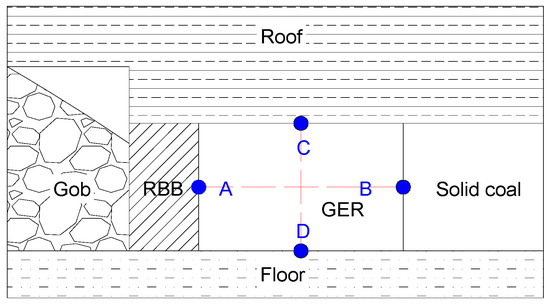

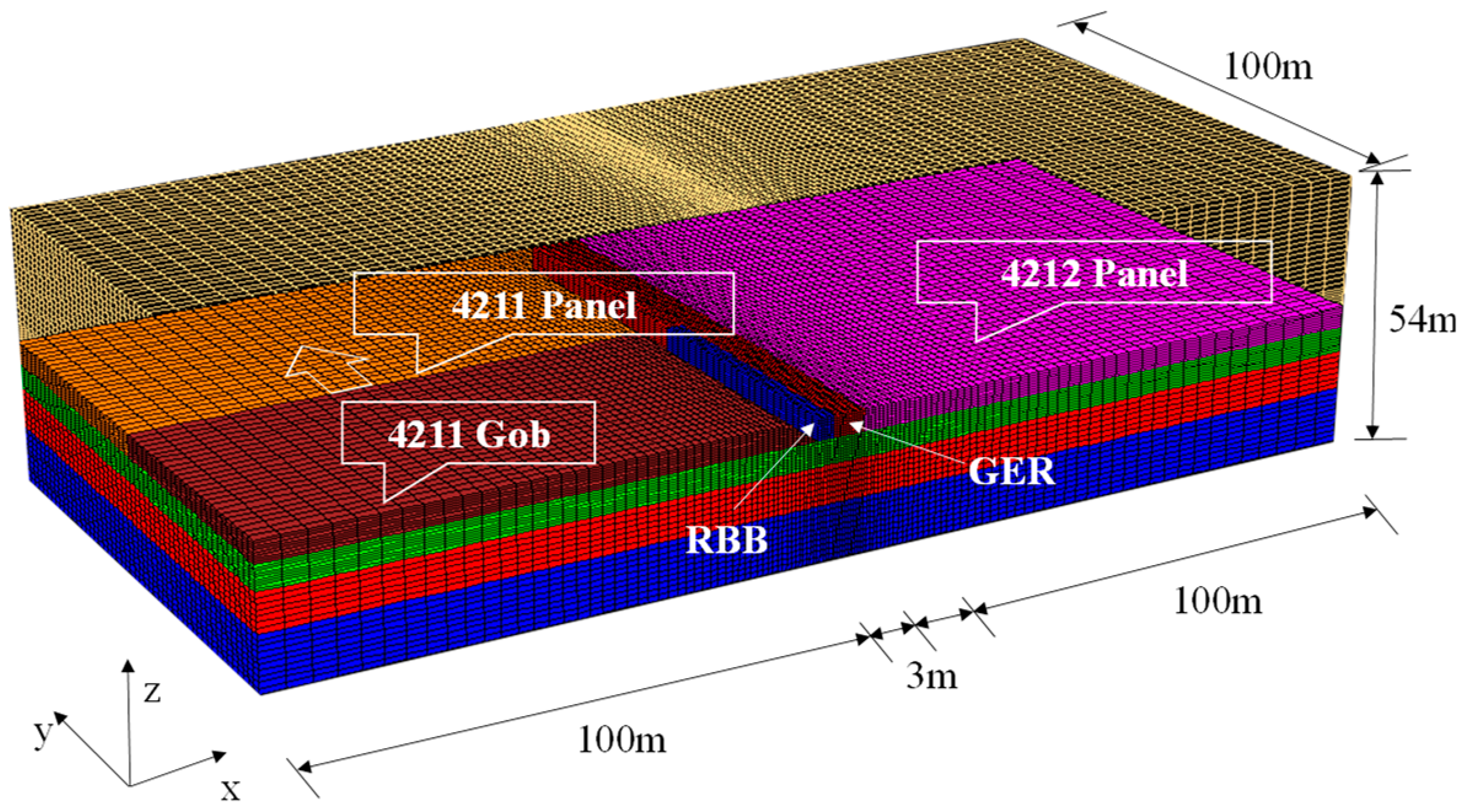

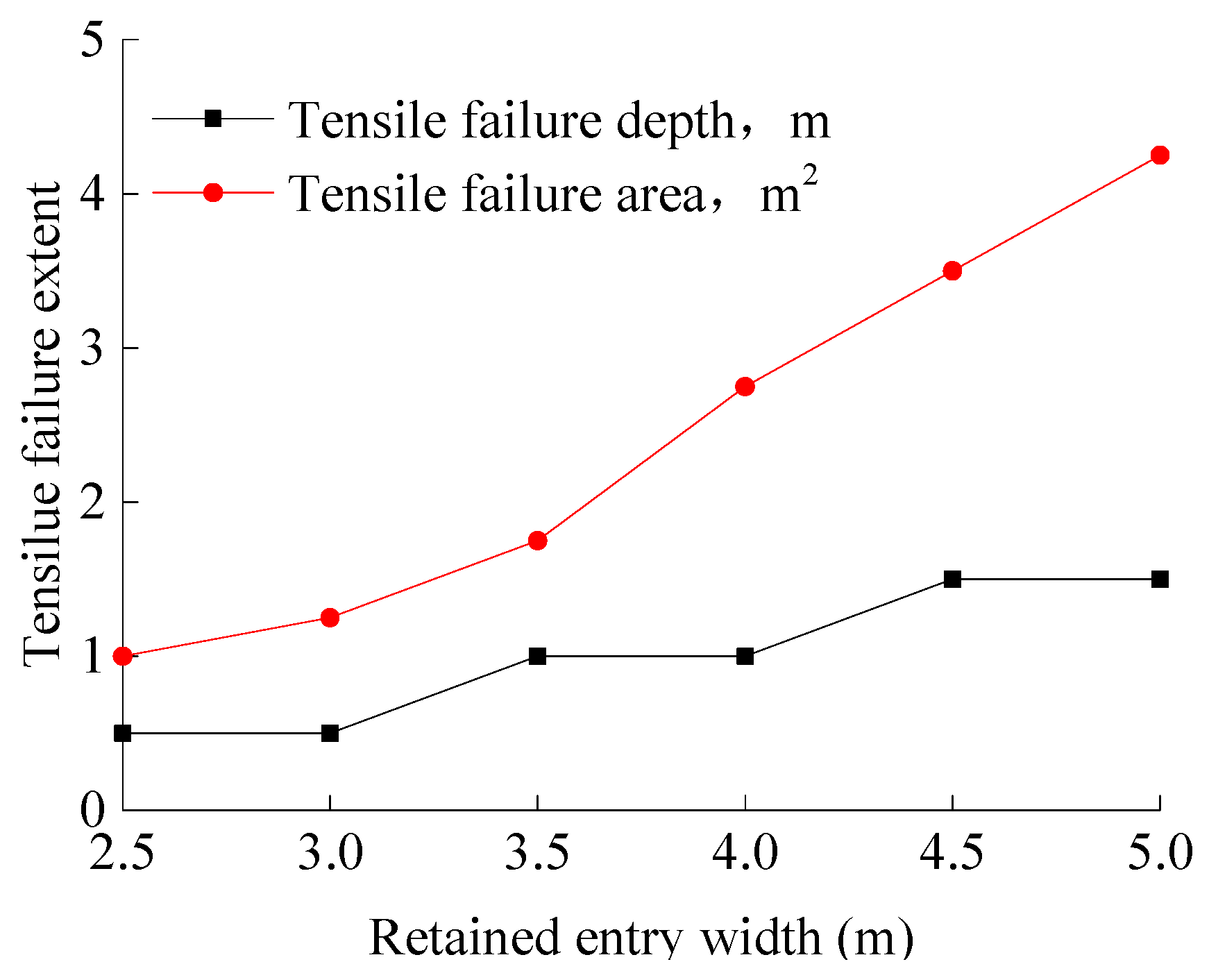

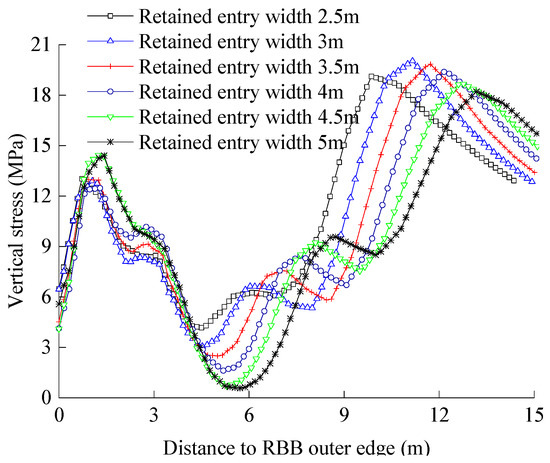

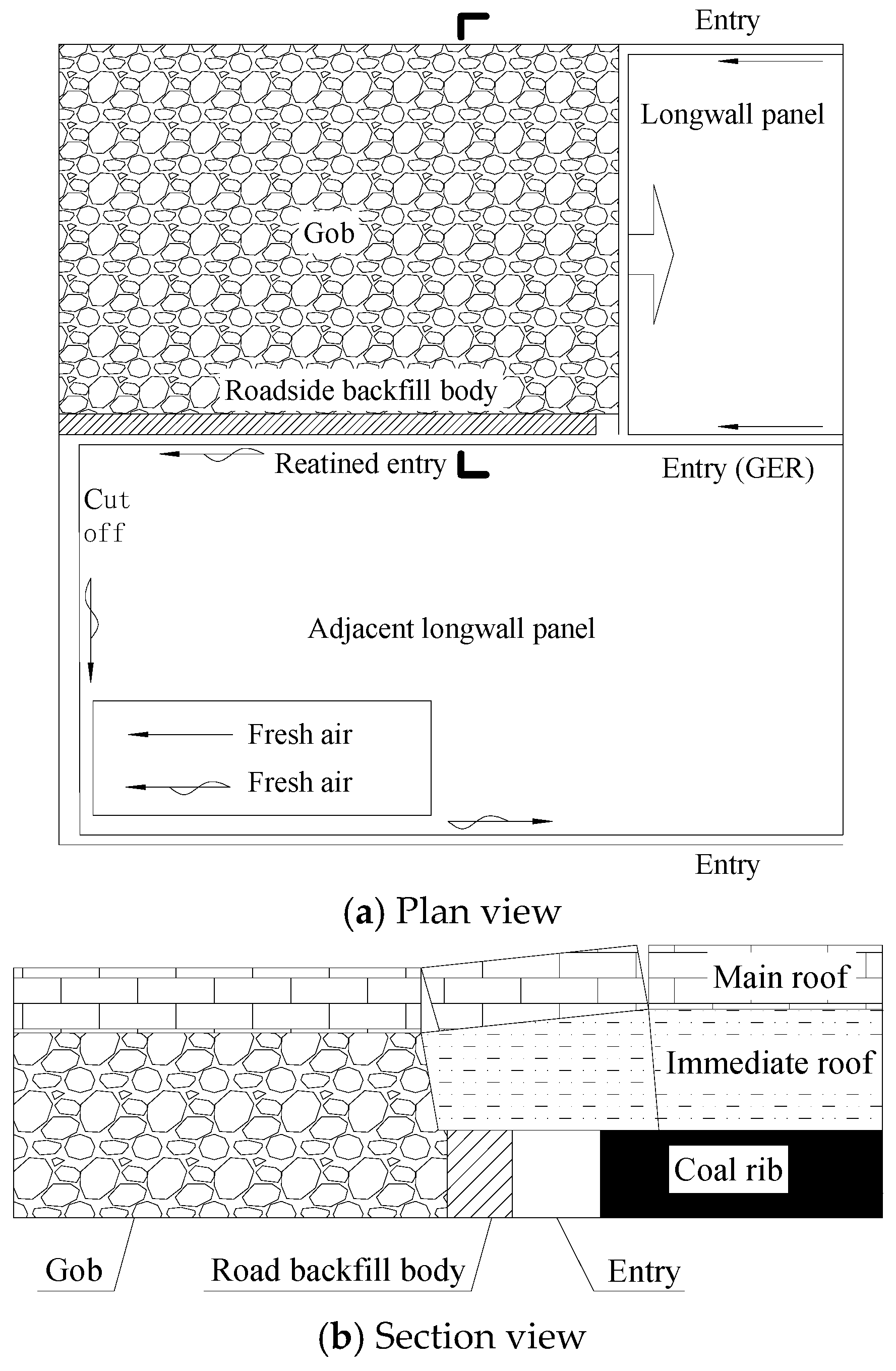

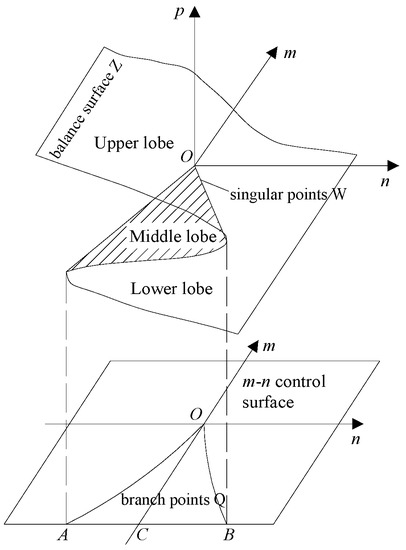

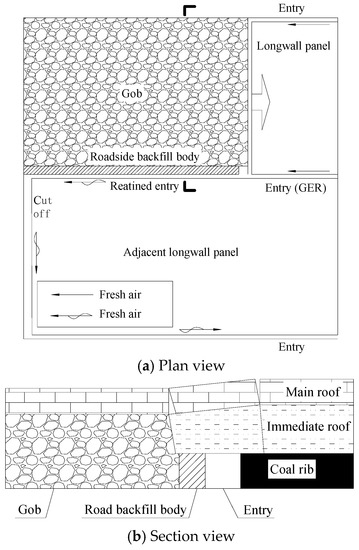

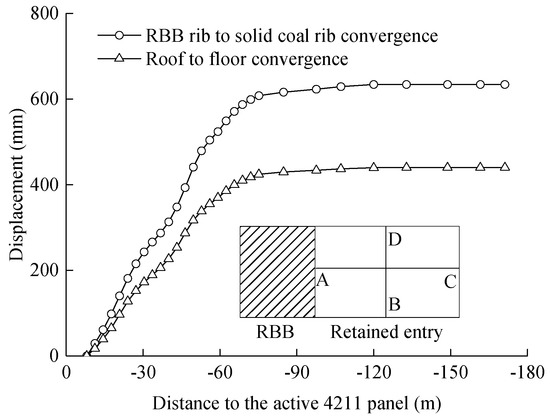

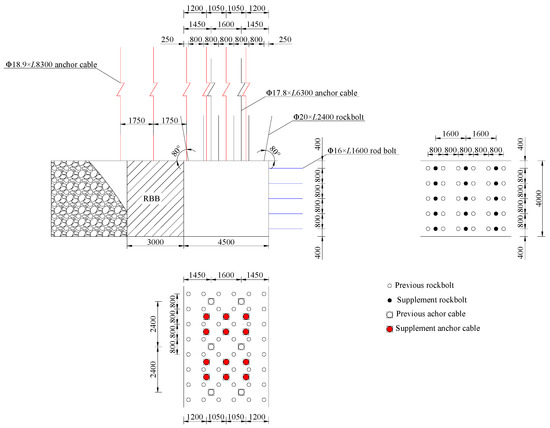

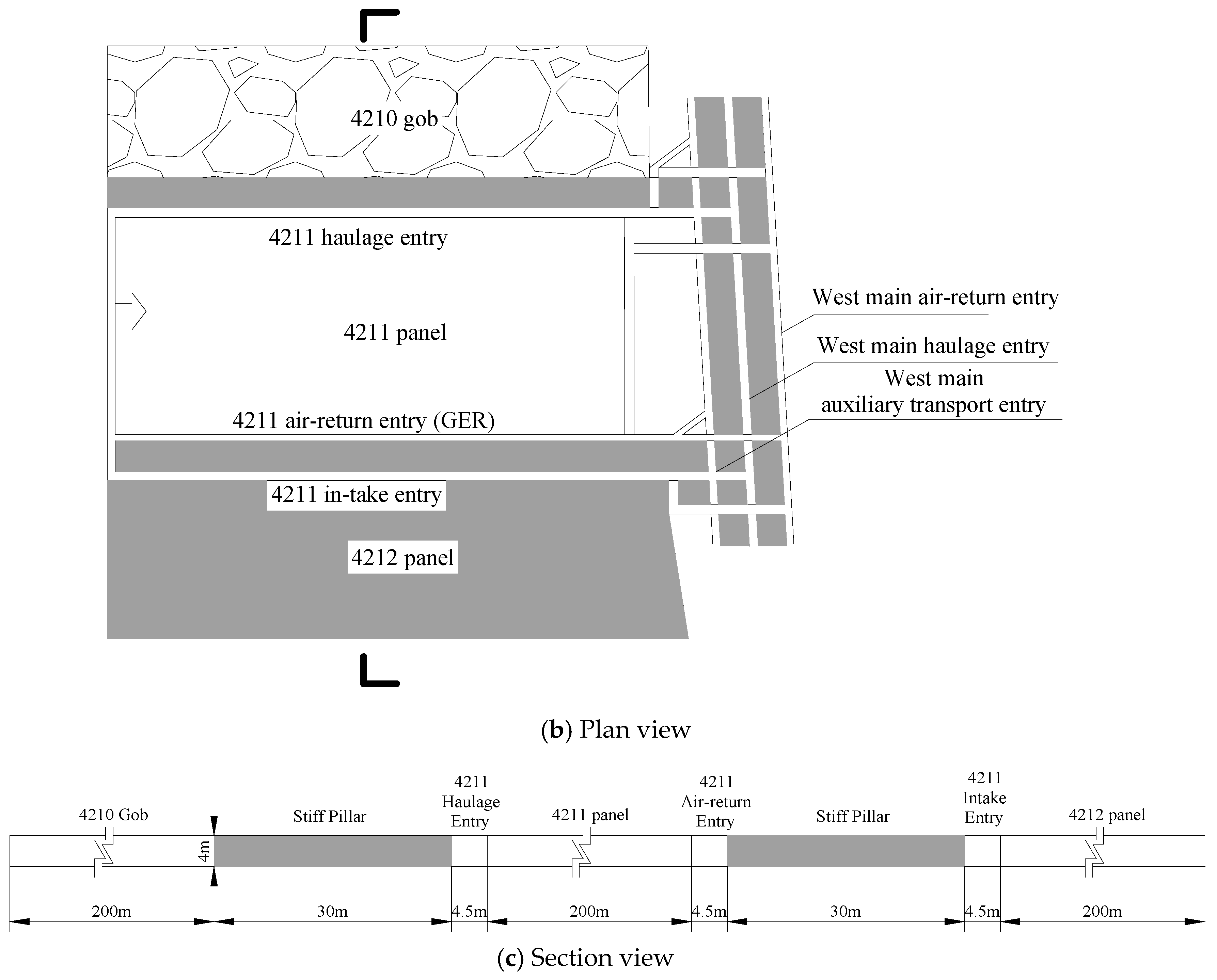

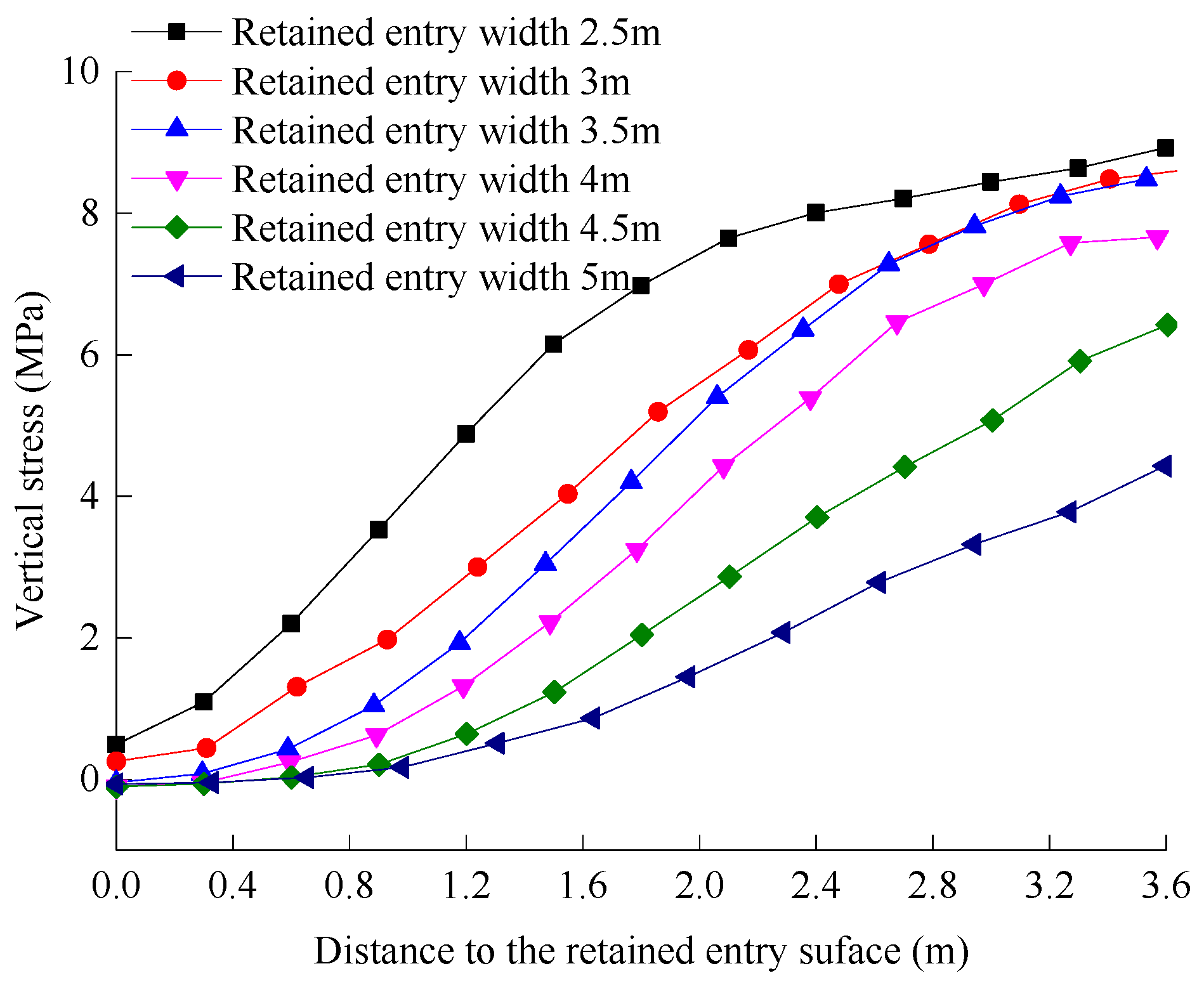

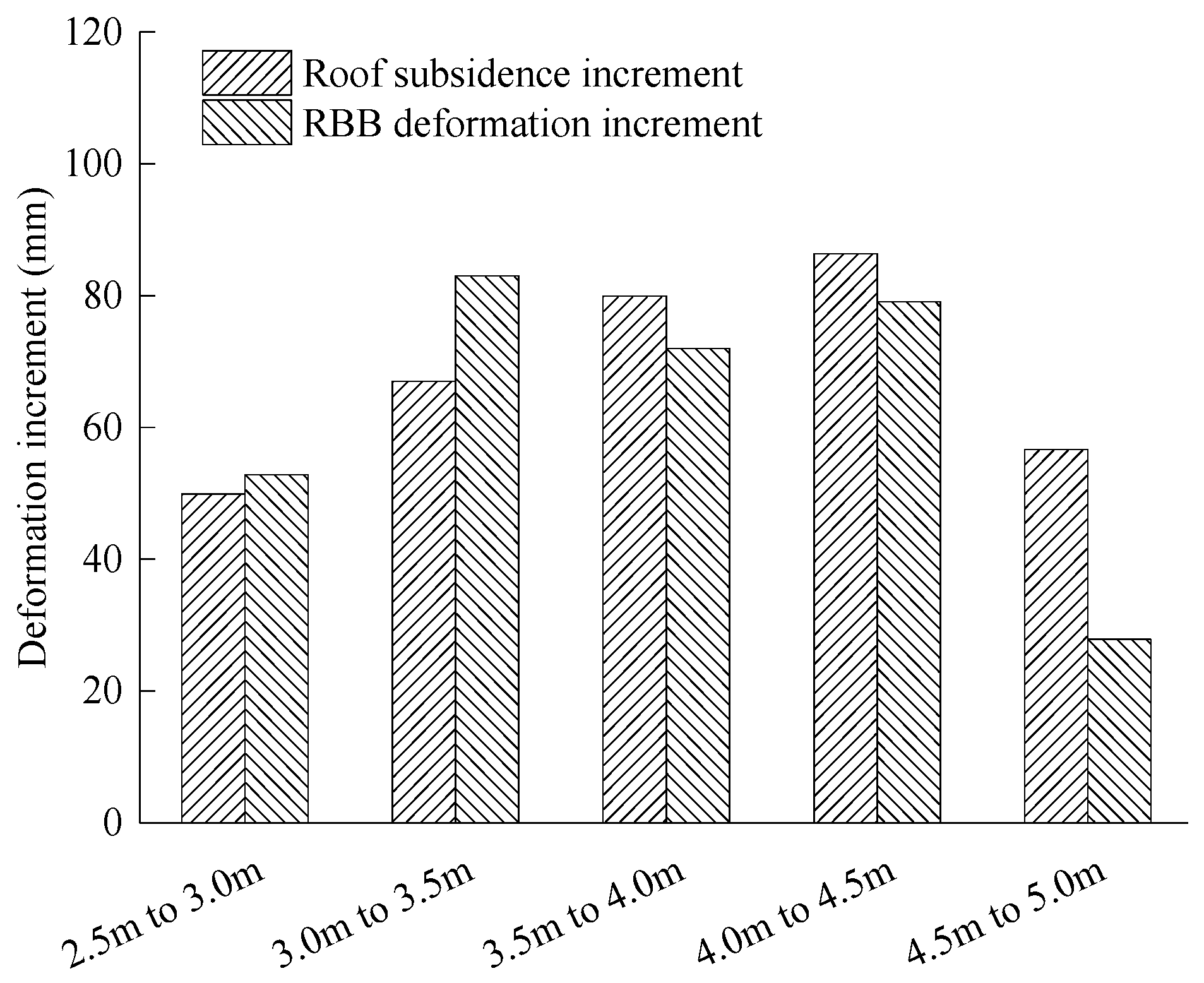

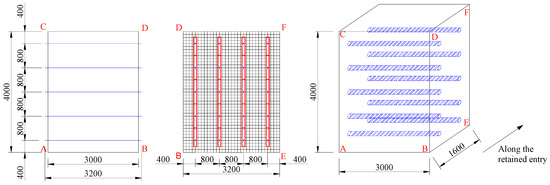

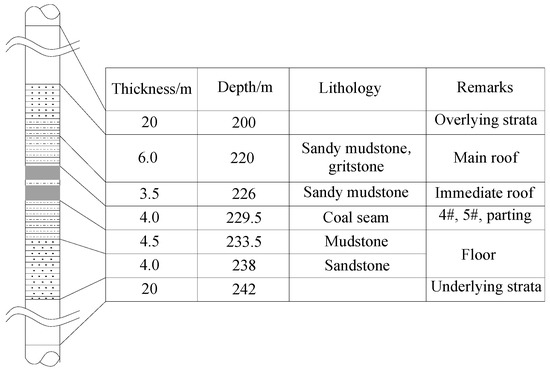

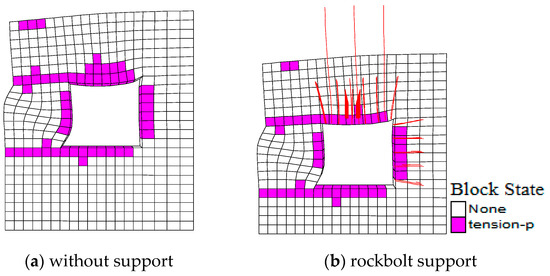

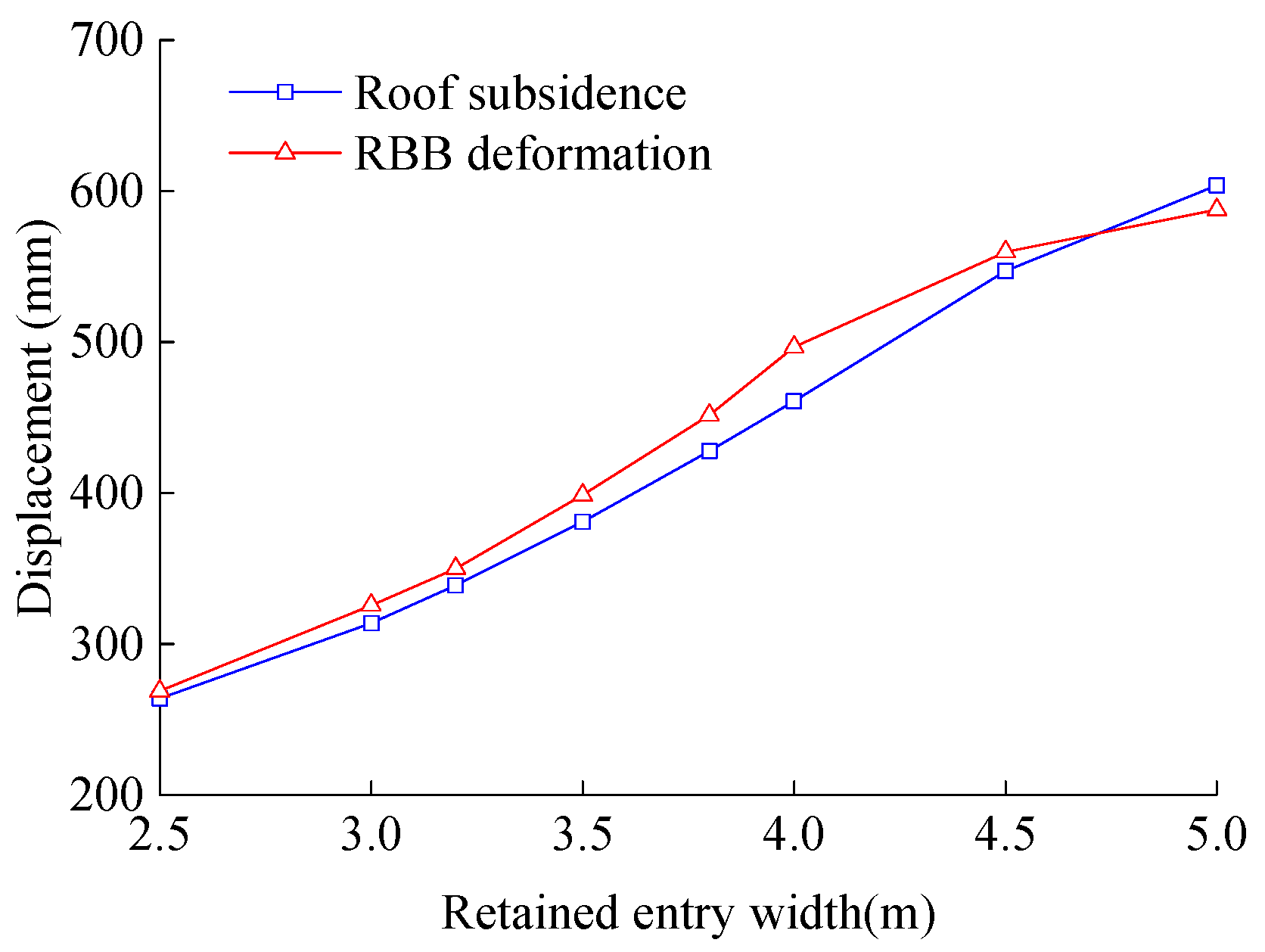

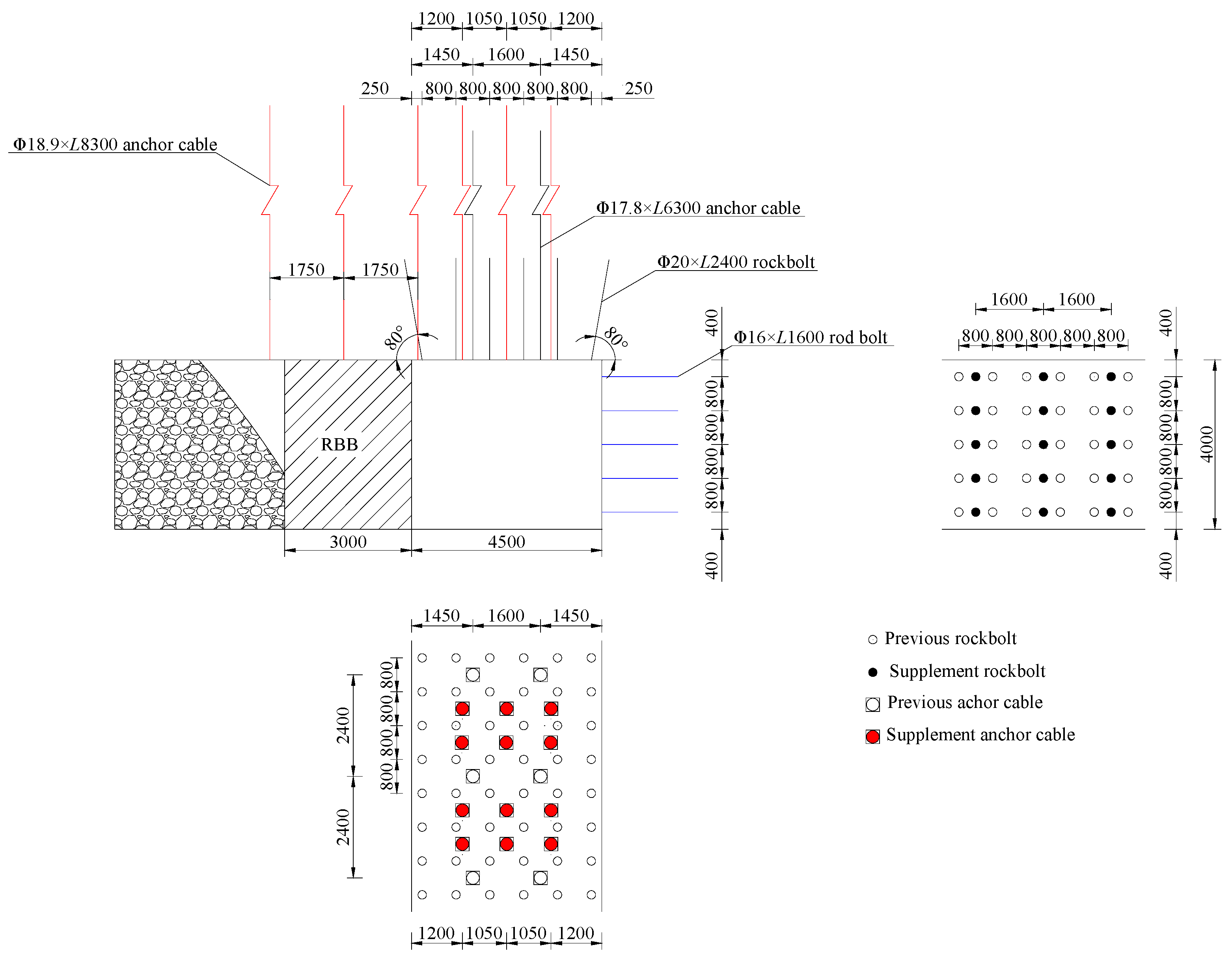

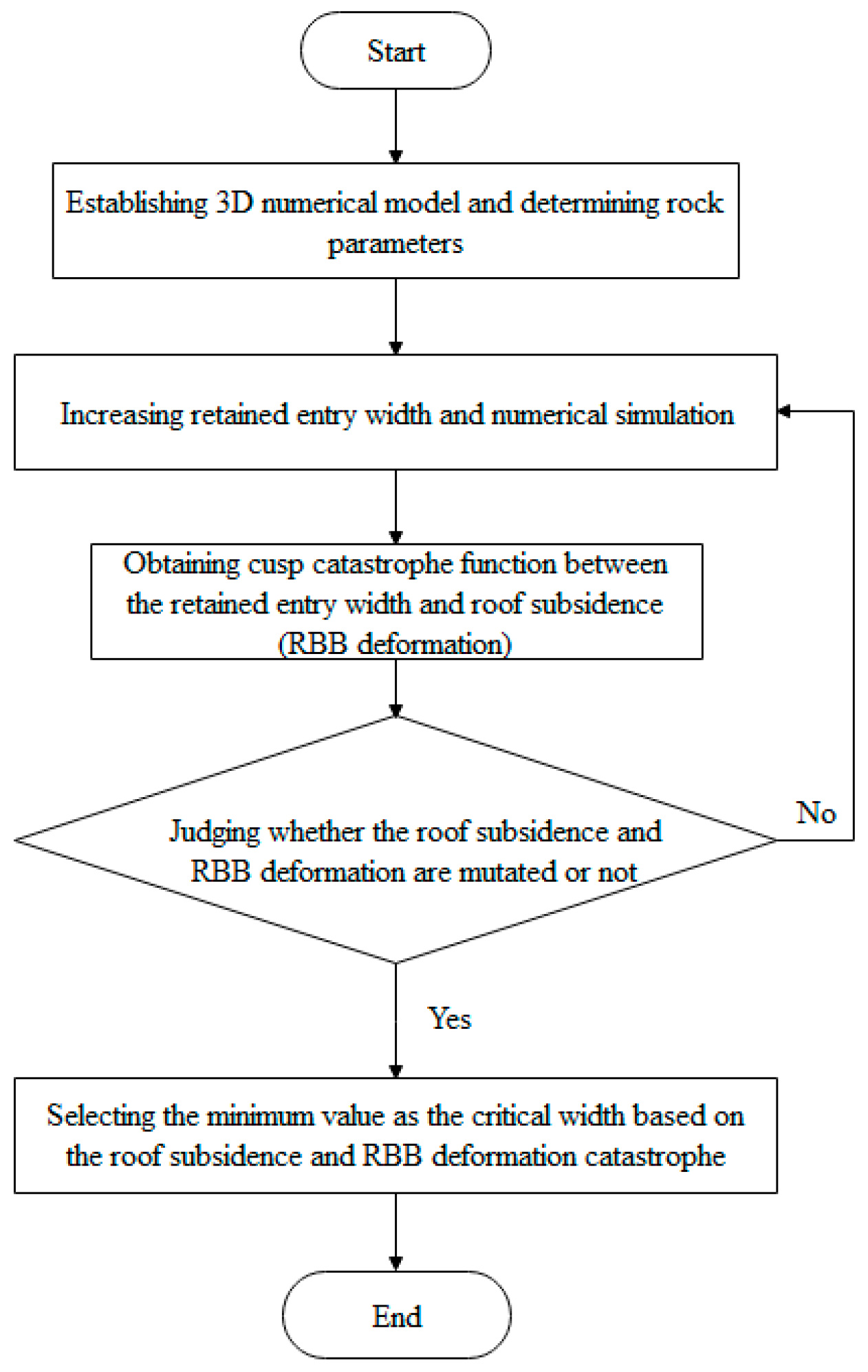

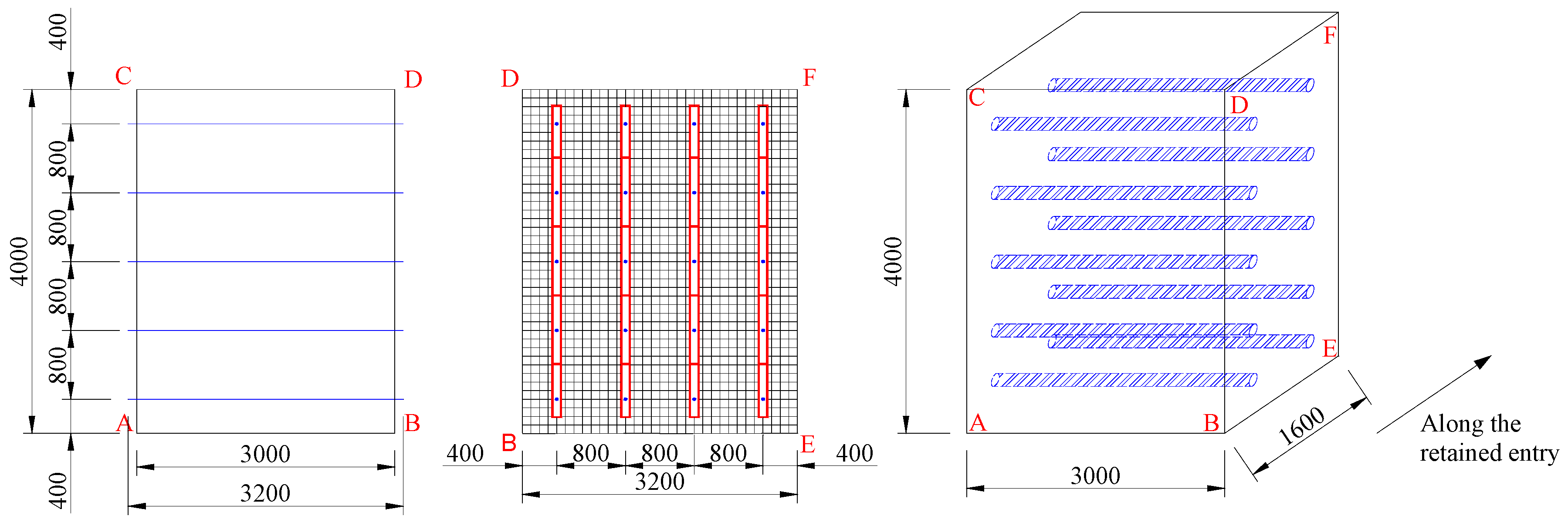

Taking gob-side entry retaining with large mining height (GER-LMH) of the 4211 panel in the Liujiazhuang coal mine as the engineering background, a numerical simulation was conducted to study the surrounding rock deformation, stress, and plastic zone distribution of GER-LMH with respect to retained entry width. The concept of critical retained entry width of GER-LMH was proposed. In view of the deformation characteristics of surrounding rock, an innovative approach to determine the critical width of GER-LMH based on the cusp catastrophe theory was proposed. The cusp catastrophe functions were set up by approximate roadside backfill body rib convergence and roof subsidence series with respect to different retained entry widths. The critical retained entry width of GER-LMH was 4.0 m according to bifurcation set equations. Surrounding rock stability control principle and technique of GER-LMH was proposed, including “rib strengthening and roof control”: road-in support with high pre-stress rockbolts and anchor cables, roadside backfill body construction technology with high-water quick consolidated filling materials and counter-pulled rockbolt, road-in reinforced support technology with hydraulic prop support and roof master. Field test and field monitoring results show that GER-LMH with supercritical retained entry width in the 4211 panel could meet the requirements for ventilation when the 4211 panel was retreating. View Full-Text
Keywords: large mining height; gob-side entry retaining; cusp catastrophe; critical retaining width; surrounding rock control large mining height; gob-side entry retaining; cusp catastrophe; critical retaining width; surrounding rock control
