Experimental and Numerical Analysis of the Effect of Vortex Generator Installation Angle on Flow Separation Control

1
China Huadian Engineering Co., Ltd. (CHEC), Beijing 100160, China
2
College of Energy, Power and Mechanical Engineering, North China Electric Power University, Beijing 102206, China
*
Author to whom correspondence should be addressed.
Energies 2019, 12(23), 4583; https://doi.org/10.3390/en12234583
Received: 5 November 2019 / Revised: 24 November 2019 / Accepted: 27 November 2019 / Published: 2 December 2019

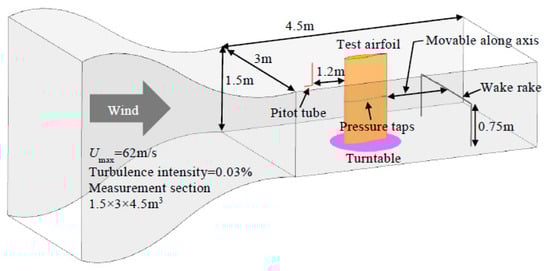

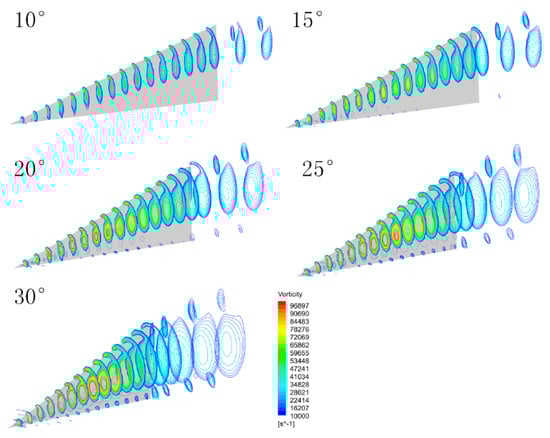

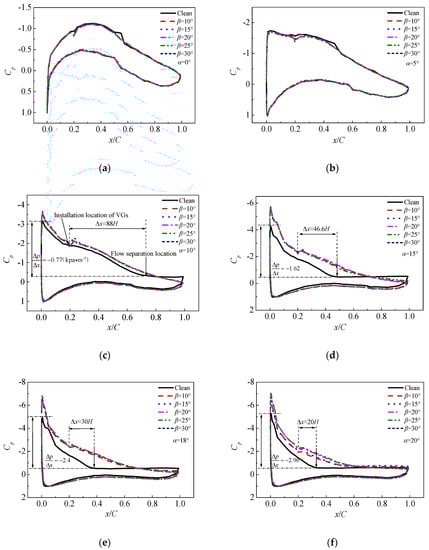

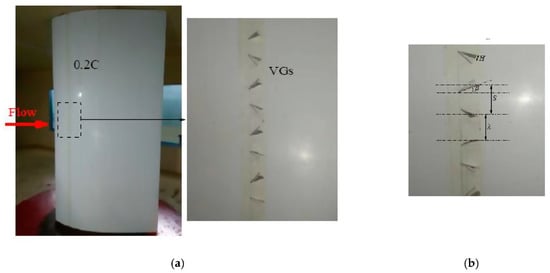

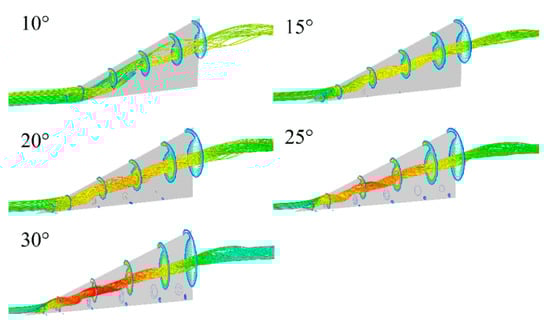

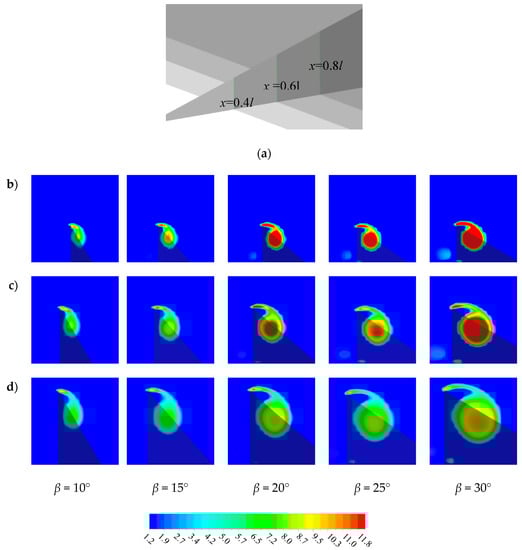

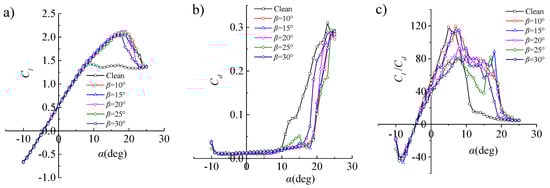

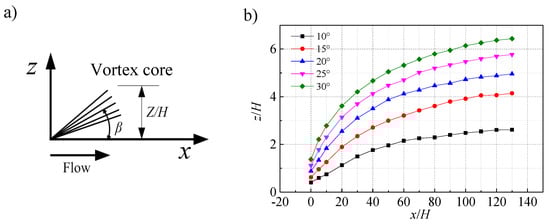

In order to explore the effect of the installation angle of vortex generator (VG) on boundary-layer flow control, the vortex characteristics of plate VG and their effect on the aerodynamic characteristics of an airfoil was studied numerically and using wind tunnel experiments. The effects of five VG installation angles (β) of 10°, 15°, 20°, 25°, and 30° on the characteristics of vortices were studied. The results show that the strength of vortices on the leeward side of VG increases with an increased installation angle until, eventually, the vortex core breaks down. During the downstream development of the VG leading-edge separation vortices, these vortices deviate in the radial direction. The larger the installation angle, the larger this deviation distance in the radial direction becomes. The effects of installation angle on the aerodynamic performance of airfoils were studied in a wind tunnel using the same five VG installation angles. The results show that VG can delay flow separation on the airfoil suction surface, thereby increasing lift and reducing drag. The stall angle of the airfoil with VG was increased by 10°. When the installation angle of the VG was 20°, the maximum lift coefficient of airfoil increased by 48.77%. For an airfoil angle of attack (AoA) of 18°, the drag of the airfoil decreased by 88%, and the lift-drag ratio increased by 1146.04%. Considering the best overall distribution of lift-drag ratio, the positive effect of the VG was found to be when β = 20° and the worst VG effectiveness was observed at β = 30°. View Full-Text
Keywords: vortex generator; installation angle; airfoil; wind turbine; aerodynamic performance vortex generator; installation angle; airfoil; wind turbine; aerodynamic performance
Show Figures

Figure 1

MDPI and ACS Style

Li, X.-K.; Liu, W.; Zhang, T.-J.; Wang, P.-M.; Wang, X.-D. Experimental and Numerical Analysis of the Effect of Vortex Generator Installation Angle on Flow Separation Control. Energies 2019, 12, 4583.
