Comprehensive Hydraulic Improvement and Parametric Analysis of a Francis Turbine Runner

1
Department of Energy and Power Engineering, Tsinghua University, Beijing 100084, China
2
Hunan Vanguard Group Co. Ltd., Changsha 100761, China
*
Author to whom correspondence should be addressed.
Energies 2019, 12(2), 307; https://doi.org/10.3390/en12020307
Received: 10 December 2018 / Revised: 11 January 2019 / Accepted: 13 January 2019 / Published: 19 January 2019
  |
PDF [8185 KB, uploaded 19 January 2019]
  |

Abstract

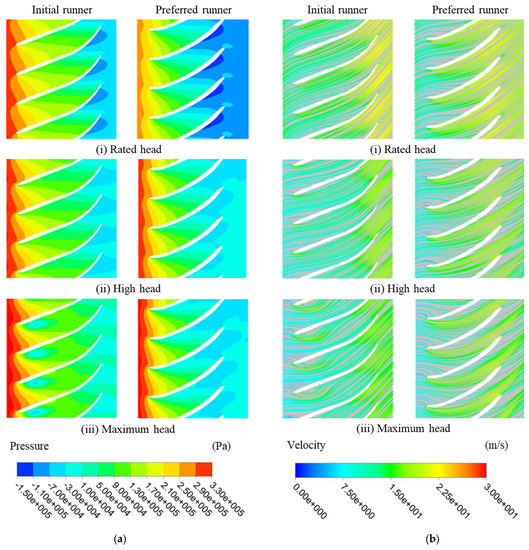

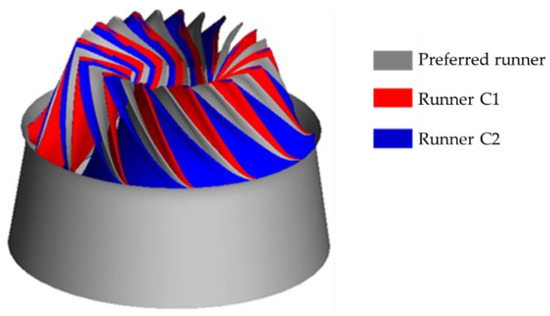

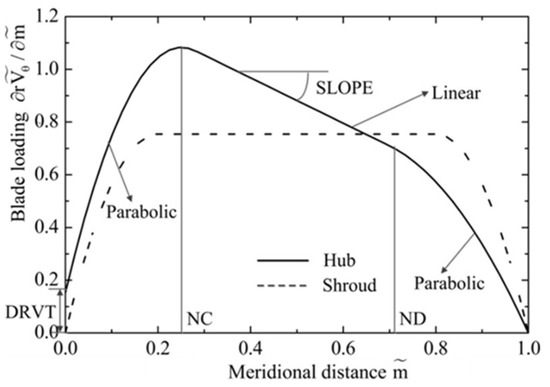

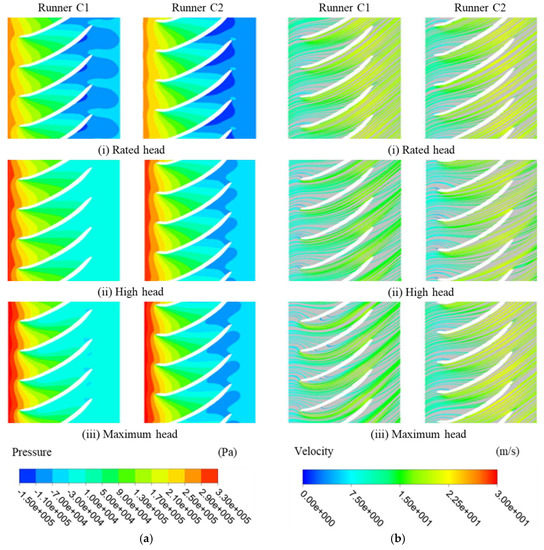

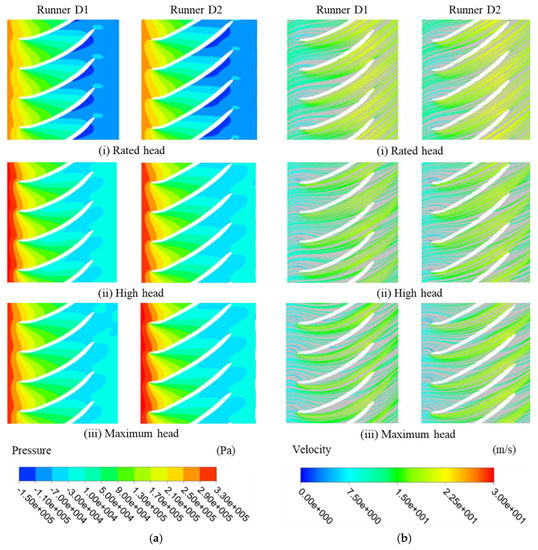

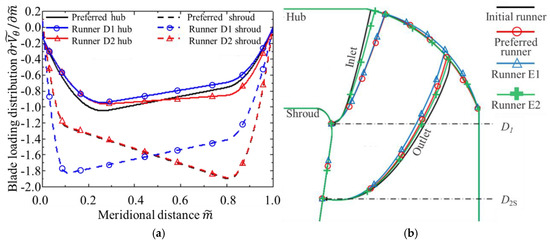

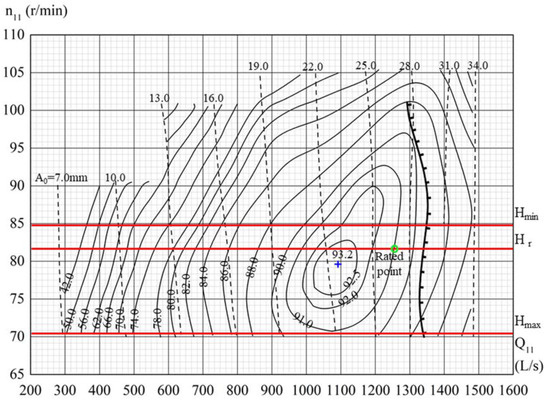

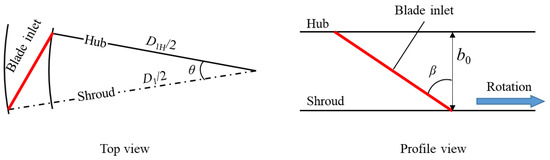

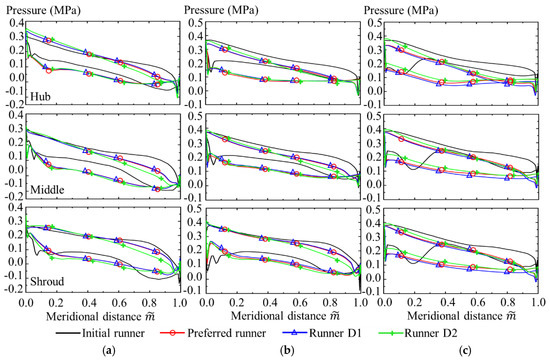

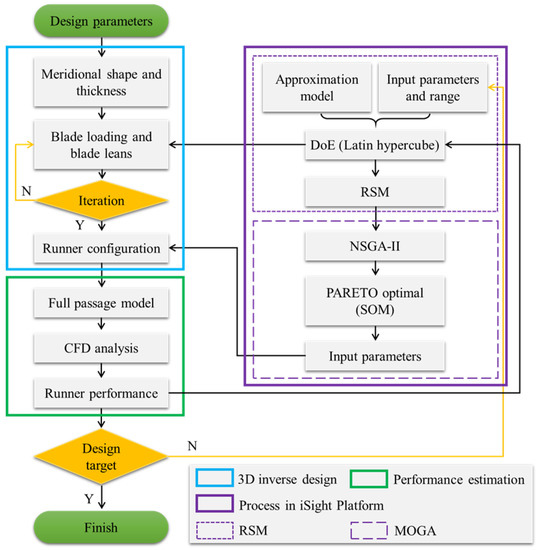

Hydraulic turbines are usually required to operate in a wide range. The operation at off-design conditions not only reduces the unit efficiency, but also significantly deteriorates the dynamic stability of the turbines. In order to develop a turbine runner with good performances under multi operation conditions, a comprehensive hydraulic improvement has been done of a Francis turbine runner with a multipoint and multi-objective optimization design system. Compared with the initial runner, the runner generated from this method has a satisfactory improvement. In detail, unit efficiencies of the preferred runner are increased by 0.91%, 0.47% and 0.37%, respectively, under the rated head, a high head and the maximum head. The lowest pressure at blade surface is improved by 376.2 kPa under the rated head. CFD calculations are conducted to analyze the flow conditions inside of the preferred runner. In addition, runners with different main design inputs, namely blade lean, blade loading and blade meridional shape are furtherly investigated to reveal their relationship with runner’s internal flow and outer performances. In summary, this optimization system supplies satisfactory results and convincing recommendations to determine the design inputs for low-head Francis turbine runners. View Full-Text
Keywords: Francis turbine runner; hydraulic improvement; optimization; CFD; parametric analysis Francis turbine runner; hydraulic improvement; optimization; CFD; parametric analysis
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Ma, Z.; Zhu, B.; Rao, C.; Shangguan, Y. Comprehensive Hydraulic Improvement and Parametric Analysis of a Francis Turbine Runner. Energies 2019, 12, 307.
