1. Introduction
Coal workers’ pneumoconiosis (CWP) is the most serious occupational disease occurring in underground coal miners. The leading cause of CWP is prolonged exposure to airborne coal mining dust which contains high concentrations of free crystalline silica [
1]. CWP is an irreversible disease, characterized by inflammation and development of progressive pulmonary fibrosis, which can eventually lead to respiratory failure and no effective treatment for silicosis has been identified to date [
2,
3].
China is one of the world countries with the most cases of pneumoconiosis, dust exposed population and new cases annually [
4,
5], which accounted for 87.72% of all reported occupational diseases in 2013. In the developed countries, the incidence of CWP for coal miners has been low because of the use of effective dust control measurements [
6]. However, in the developing countries, the incidence of CWP is still at high levels, especially in China [
7]. Data from the official website of the China National Institute of Occupational Health and Poison Control showed that 23,152 new cases were diagnosed with pneumoconiosis in 2013, of which 13,955 (60.28%) had CWP and 8,095 (34.96%) had silicosis, that is, CWP accounted for approximately 50% of the total new cases of pneumoconiosis in China. The new occupational cases were mainly from the coal industry (57.13%) [
8]. In order to take efficient measures to prevent and control the occurence of CWP, we should explore the prevalence characteristics of CWP, for instance, duration of dust exposure, stages of CWP, job titles, duration of the interphase of CWP progress, complications,
etc.The mines were divided into state-owned mines, joint-stock mines and private mines according to the economic types. Generally speaking, the conditions and safety measurements in state-owned mines are better than those of private mines. Here, we investigated the prevalence of pneumoconiosis in a state-owned mine which was located in Jiangsu Province in the east of China. The accumulated number of workers in the underground coal mine with dust exposure was 8928, including employees on the job and retired. The overall prevalence of CWP was 5.54%. To some extent, this example could represent all of the large state-owned coal mines in the east of China. This coal mine is equipped with advanced mining equipment and effective measures to control dust exposure. The prevalence characteristics of CWP could provide some clues to control both the dust exposure levels and the incidence of CWP.
3. Results
Since the coal mine was constructed, a total of 495 CWP cases were diagnosed and divided into three categories, stage I, stage II and stage III, according to the Chinese diagnostic criteria. Among them, 90.71% were involved in tunneling or mining for at least one year. At the end of Oct, 2014, 71.11% of total cases were at stage I and the remainder were at stage II (17.58%) and stage III (11.31%). The mean ages at the first diagnosis were significantly different among three categories, in which the stage I, stage II and stage III were 52.3, 46.8 and 43.3 years old, respectively (
p < 0.0001). Both the means of exposure duration and latent period had the same trends that stage II and III were significantly shorter than that of stage I. The youngest case was 27 years old and the shortest exposure duration and latent period were 6 years and 7 years, respectively (
Table 1).
As shown in
Figure 1, there were no significant differences between the tunneling and mining workers and the transporting and helping workers at the mean ages and latent period, but the exposure duration of the former ones (26.4 years) was shorter than that of later ones (29.6 years).

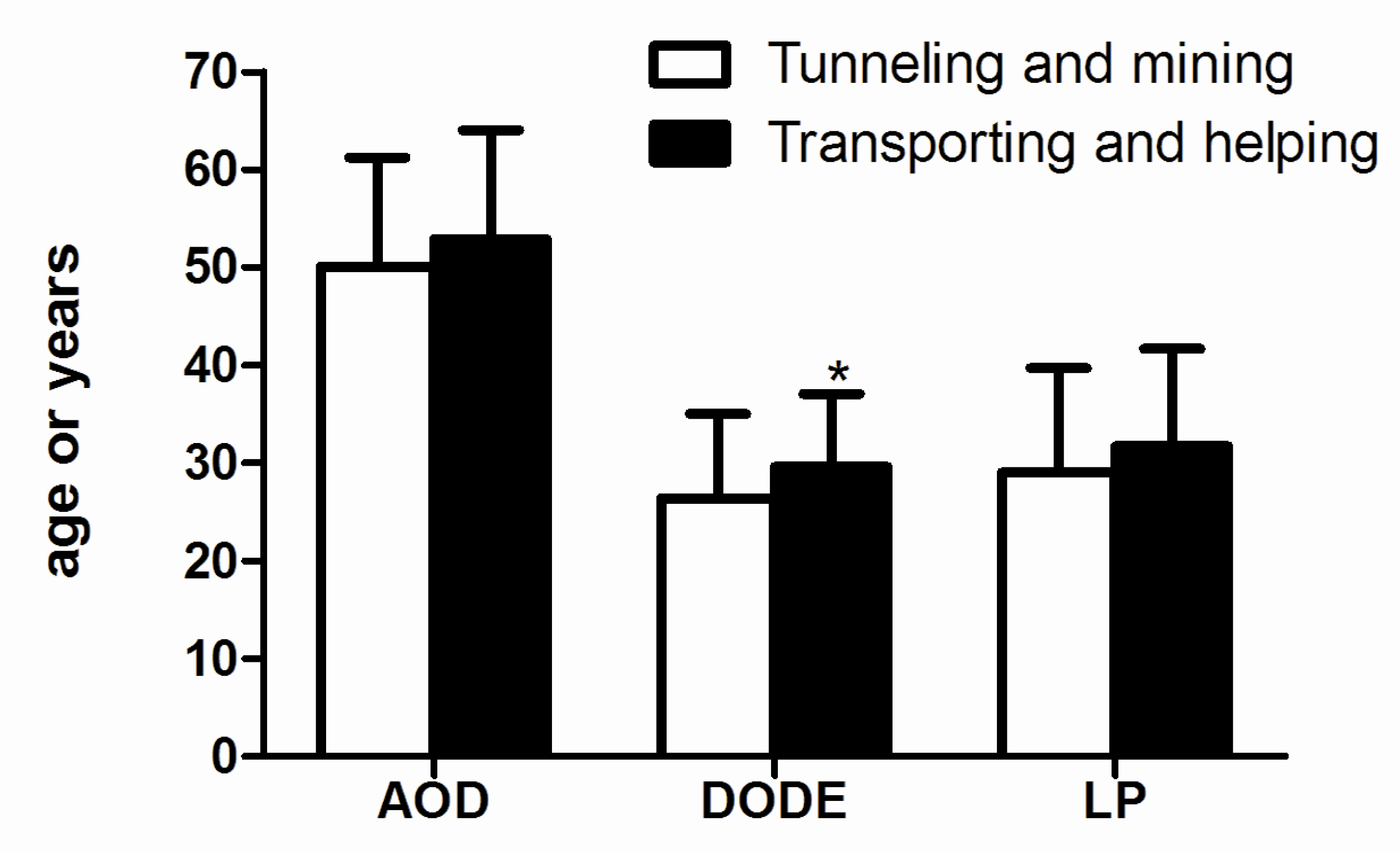

Figure 1.
The age of diagnosis, duration of dust exposure and latent period of CWP patients in different job titles. Abbreviations: AOD, age of diagnosis; DODE, duration of dust exposure (years); LP, latent period (years). * p < 0.05 compared with tunneling and mining workers.
Figure 1.
The age of diagnosis, duration of dust exposure and latent period of CWP patients in different job titles. Abbreviations: AOD, age of diagnosis; DODE, duration of dust exposure (years); LP, latent period (years). * p < 0.05 compared with tunneling and mining workers.
The mean age at diagnosis for tunneling and mining workers was 50.1, and for transporting and helping workers it was 52.9. The mean duration of dust exposure for tunneling and mining workers was 26.4 years, and for transporting and helping workers it was 29.6 years. The average latent period of tunneling and mining workers was 29.0 years, and for transporting and helping workers it was 31.7 years.
The mean and median of CWP age, exposure duration, and latent period for the different periods are shown in
Table 2. The mean age at diagnosis increased significantly over time with the mean age of diagnosis being 41.4 years old before the 1980s, 45.8 years old in the 1980s, 50.8 years old in the 1990s and 60.0 years old after 2000 (
p < 0.0001). Meanwhile, the mean exposure duration also significantly increased over time with the means in the 1980s, 1990s and after 2000 being 25.2, 26.6 and 32.0 years, respectively, compared to 21.8 years before the 1980s and furthermore the mean after 2000 was found to be much longer than that of any other era. The mean latent period before the 1980s was 21.5 years, 25.2 years in the 1980s, 29.8 years in the 1990s and 37.6 years after 2000, respectively, and there was a marked increase over the past years (
p < 0.0001).
Table 1.
The distributions of age of diagnosis, duration of dust exposure, latent period and job titles in different stages of CWP.
Table 1.
The distributions of age of diagnosis, duration of dust exposure, latent period and job titles in different stages of CWP.
CWP Stage | N | Constituent Ratio (%) | Age of Diagnosis | Duration of Dust Exposure (yrs) | Latent Period (yrs) | Job Titles |
---|
Mean
± SD | Median | Range | Mean
± SD | Median | Range | Mean
± SD | Median | Range | Tunneling and Mining (%) | Transporting and Helping (%) |
---|
I | 352 | 71.11 | 52.3 ± 11.0 | 52.0 | 27.0–81.0 | 27.7 ± 8.4 | 31.3 | 6.0–51.4 | 31.0 ± 10.7 | 30.0 | 7.0–60.0 | 313 (88.92) | 39 (11.08) |
II | 87 | 17.58 | 46.8 ± 10.4 a | 51.0 | 29.0–74.0 | 25.1 ± 8.1 a | 23.9 | 8.4–55.0 | 26.8 ± 10.0 a | 24.0 | 9.0–55.0 | 82 (94.25) | 5 (5.75) |
III | 56 | 11.31 | 43.3 ± 8.6 a,b | 42.0 | 29.0–66.0 | 22.9 ± 8.7 a | 21.3 | 10.0–46.7 | 22.8 ± 8.3 a | 21.5 | 10.0–46.0 | 54 (96.43) | 2 (3.57) |
Total | 595 | 100.00 | 50.3 ± 11.1 | 53.0 | 27.0–81.0 | 26.7 ± 8.5 | 29.0 | 6.0–55.0 | 29.3 ± 10.7 | 31.0 | 7.0–60.0 | 449 (90.71) | 46 (9.29) |
F or χ2 | | | 23.514 | | | 9.537 | | | 18.344 | | | 4.805 | |
p | | | <0.0001 | | | <0.0001 | | | <0.0001 | | | 0.090 | |
Table 2.
The distributions of age of diagnosis, duration of dust exposure and latent period of CWP in different eras of diagnosis.
Table 2.
The distributions of age of diagnosis, duration of dust exposure and latent period of CWP in different eras of diagnosis.
Time Range | N | Age of Diagnosis | Duration of Dust Exposure (yrs) | Latent Period (yrs) |
---|
Mean
± SD | Median | Range | Mean
± SD | Median | Range | Mean
± SD | Median | Range |
---|
<1980 | 91 | 41.4 ± 7.16 | 40.0 | 29.0–66.0 | 21.8 ± 7.5 | 20.1 | 8.4–46.7 | 21.5 ± 7.2 | 20.0 | 9.0–46.0 |
1980– | 69 | 45.8 ± 8.2 a | 44.0 | 28.0–71.0 | 25.2 ± 8.0 a | 24.3 | 8.7–51.4 | 25.2 ± 7.7 a | 24.0 | 8.0–51.0 |
1990– | 229 | 50.8 ± 9.5 a,b | 51.0 | 27.0–80.0 | 26.6 ± 7.8 a | 27.0 | 6.0–45.0 | 29.8 ± 9.3 a,b | 30.0 | 7.0–60.0 |
2000– | 106 | 60.0 ± 10.9 a,b,c | 59.0 | 37.0–81.0 | 32.0 ± 8.5 a,b,c | 33.0 | 6.5–55.0 | 37.6 ± 11.6 a,b,c | 35.5 | 8.0–57.0 |
F | | 72.808 | | | 28.140 | | | 54.316 | | |
p | | <0.0001 | | | <0.0001 | | | <0.0001 | | |
There were 196 (39.60%) CWP cases diagnosed after ending dust exposure, and the interphase ranged from 1 year to 37.5 years (mean 9.5 years). The ratios increased remarkably with the time passed (
p < 0.0001) and notably after 2000, 75.47% cases were diagnosed after ending dust exposure (
Table 3).
Table 3.
The distributions of period after ending exposure of CWP in different diagnosis periods.
Table 3.
The distributions of period after ending exposure of CWP in different diagnosis periods.
Time Range | N | Period after Ending Exposure (yrs) |
---|
N (%) | Mean
± SD | Median | Range |
---|
<1980 | 91 | 8 (8.79) | 7.2 ± 4.8 | 8.3 | 1.0–13.6 |
1980– | 69 | 11 (15.94) | 6.3 ± 5.5 | 6.0 | 1.0–16.0 |
1990– | 229 | 97 (42.36) | 9.8 ± 8.0 | 8.1 | 1.0–35.0 |
2000– | 106 | 80 (75.47) | 9.7 ± 7.6 | 10.0 | 1.0–37.5 |
χ2 or F | | 102.450 | 0.949 | | |
p | | <0.0001 | 0.418 | | |
CWP progress is shown in
Table 4. There were 419 CWP cases who were first diagnosed as stage I and 61 (14.56%) cases progressed from stage I to stage II up to Oct, 2014, in which the interphase ranged between 0.2 and 24 years (median 5 years). Similarly, a total of 38 CWP cases were first diagnosed as stage II and 12 (31.58%) cases progressed from stage II to stage III and the interphase ranged between 0.2 and 2 years (median 7.5 years). Moreover, 26 CWP cases progressed from stage I to stage III, including 17 cases that progressed from stage I to stage II and then to stage III and the interphase ranged between 2 and 32 years (median 17 years).
Table 4.
The duration of CWP progress.
Table 4.
The duration of CWP progress.
CWP Progress | N | Median (yrs) | Range (yrs) |
---|
I→II | 61 | 5.0 | 0.2–24.0 |
II→III | 12 | 7.5 | 0.5–21.0 |
I→III | 26 | 17.0 | 2.0–32.0 |
Total | 97 | 7.0 | 0.2–32.0 |
As shown in
Table 5, 36 (7.27%) CWP cases were complicated with pulmonary tuberculosis. The incidence of tuberculosis in stage I was 1.99%, 11.49% in stage II and 33.93% in stage III, in which the incidence increased significantly with the CWP progress (
p < 0.0001). No difference was observed among the job titles. Moreover, the incidence gradually declined with the time passing (
p < 0.0001), and it was lower than 5% in CWP cases after 1990.
Table 5.
CWP with pulmonary tuberculosis complication.
Table 5.
CWP with pulmonary tuberculosis complication.
Group | N | Pulmonary TB | p |
---|
N | % |
---|
Stage | | | | <0.0001 |
I | 352 | 7 | 1.99 | |
II | 87 | 10 | 11.49 | |
III | 56 | 19 | 33.93 | |
Job titles | | | | 0.392 |
Tunneling and mining | 449 | 34 | 7.57 | |
Transporting and helping | 46 | 2 | 4.35 | |
Eras of diagnosis | | | | <0.0001 |
<1980 | 91 | 15 | 16.48 | |
1980– | 69 | 12 | 17.39 | |
1990– | 229 | 8 | 3.49 | |
2000– | 106 | 1 | 0.94 | |
Ninety five (19.19%) CWP cases were dead, including 35 (9.94%) cases with stage I, 26 (29.89%) case with stage II and 34 (60.71%) cases with stage III (
Table 6). The mortality increased with CWP progress (
p < 0.0001) and decreased with the time passed (
p < 0.0001). In addition, the mean death age of CWP was 56.8 years, which was much shorter than the mean age of CWP survivors (71.6 years).
Table 6.
The death status of CWP cases.
Table 6.
The death status of CWP cases.
Group | N | Death | χ2 | p |
---|
N | % |
---|
Stage | | | | 88.085 | <0.0001 |
I | 352 | 35 | 9.94 | | |
II | 87 | 26 | 29.89 | | |
III | 56 | 34 | 60.71 | | |
Job titles | | | | 0.005 | 0.946 |
Tunneling and mining | 449 | 86 | 19.15 | | |
Transporting and helping | 46 | 9 | 19.57 | | |
Eras of diagnosis | | | | 138.683 | <0.0001 |
<1980 | 91 | 55 | 60.44 | | |
1980– | 69 | 17 | 24.64 | | |
1990– | 229 | 23 | 10.04 | | |
2000– | 106 | 0 | 0 | | |
4. Discussion
CWP is a chronic occupational pulmonary disease without effective treatment. The long-term inhalation of dust exposure can activate the inflammation response of the alveoli, lead to irreversible pulmonary damage, and ultimately CWP [
3,
11,
12]. In our study, most of the diagnosed patients were CWP patients in stage I. As CWP progressed, the onset age was younger and younger. Patients with stage II/III had a shorter duration of dust exposure and latent period than those with stage I CWP. The age at diagnosis, duration of dust exposure and CWP latency period could reflect the risk of dust exposure. The workers with the youngest age at diagnosis, the shortest duration of dust exposure and latent period, had the highest risk of dust exposure. Coal miners with distinct durations of dust exposure and occupational categories may be at diverse levels of risk for CWP [
13]. This may due to the effective approaches for dust control and adequate prevention measures in the coal mine.
Our data showed that the majority of CWP patients were tunneling and coal mining workers. In general, tunneling and mining miners had highest levels of dust exposure and the highest risk for CWP [
13,
14]. The highest numbers of patients with the higher stages corresponded to the tunneling and mining miners. The rate of tunneling and mining miners in patients with stage III was 96.43%. The mean duration of dust exposure for CWP patients among tunneling and mining miners was shorter than that in transport and helping miners, showing that the tunneling and mining miners should be protected from CWP in the coal mine. The above results were in agreement with previous studies, which demonstrated that work types and duration of dust exposure are vital factors for the occurrence of CWP [
2,
15,
16], therefore, strengthening management, implementation of effective wet work, adequate individual protective equipment and automation and the closed production of dust are the main measures for decreasing the risk of CWP in the tunneling and mining workplaces [
17]. Monitoring and dust control need to be improved in the tunneling and mining areas [
18], and a safe workplace and environment should be ensured [
19].
With the delayed age of diagnosis, the mean age for CWP diagnosis and the latent period increased. The mean duration of dust exposure for CWP patients diagnosed after 2000 was longer than that before 2000, showing that effective dust suppression measures, the use of qualified and valid personal protective equipment help delay the onset of CWP.
In the present study, 196 (39.6%) CWP cases were diagnosed after ending dust exposure. The interphase ranged from 1 year to 37.5 years (mean 9.5 years). Miners could develop CWP 15 to 20 years after being separated from dust exposure, especially at low concentrations, identified as late-onset pneumoconiosis [
18]. The miners from environments with the highest concentration and content of free silica had the greatest probability for the development of respiratory diseases, such as CWP [
13,
20]. Given that the damage to the organism caused by dust inhalation is a long-term process, the risk for pulmonary fibrosis could remain and the progression could continue even after dust exposure removal [
21,
22]. Consequently, the physical examination for terminating dust-exposed workers should be performed regularly, and the frequency of the examination in the first 10 years out of dust exposure should be increased. This will help facilitate early detection and timely treatment of CWP, improve the quality of life for CWP patients and prolong their lifespan.
The interphase of CWP progress could reflect the speed of the CWP deterioration [
23]. This is mainly related to the cumulative dust inhalation, the content of free silica, the severity of the first diagnosis, pulmonary tuberculosis and the duration after dust exposure removal [
24]. Our study indicated that the mean duration for the interphase from stage I to stage II was 5.0 years, the duration from stage II to stage III was 7.5 years and stage I to stage III was 17.0 years. In consistency with the data of Wang
et al. and Guan
et al. [
23,
25], the duration for the interphase of CWP progression was not associated with years to diagnosis. The onset age did not increase with a shorter of duration of the interphase of CWP progress. This may be due to the fact that there were only 61 cases who progressed from stage I to III. The sample size was so small that the duration for the progress of CWP had a non-normal distribution and it might not adequately reflect the characteristics of the CWP interphase.
CWP patients often present complications with some other diseases, including tuberculosis, cancer or autoimmune diseases [
20,
26]. Tuberculosis was the most common complication [
27]. The rate of CWP cases complicated with pulmonary tuberculosis was 7.27% in the coal mine, which was reduced by 8.55% compared with the proportion of 15.82% in 1986. The rates of cases with CWP stage I, II and III complicated with pulmonary tuberculosis were1.99%, 11.49% and 33.93%, respectively, which was lower than the 14.82%, 14.74% and 34.60% numbers in 1986 [
18]. The patients with higher stage had an increased risk of tuberculosis. Silicosis was reported to coexist with tuberculosis. The upper airway stimulated by dust for a long time would lose the defense ability and become susceptible to be invaded by
Mycobacterium tuberculosis. Firstly, the fibrosis in the lung of silicosis patients hindered the circulation in blood and lymph, reducing the defense capability against
M. tuberculosis. Secondly, the free silica in dust plays a toxic role on macrophages, weakening the capability of phagocytosis and the
Mycobacterium tuberculosis killing ability of macrophages. Finally, the space where coal miners work is relatively small, increasing their opportunity and time of contact with
Mycobacterium tuberculosis, to which the chance of
Mycobacterium tuberculosis spreading in the air must be added. Some data indicates that pneumoconiosis complicated with tuberculosis was not a simple combination of pneumoconiosis and pulmonary tuberculosis. It was an integral part of the pathological process of pulmonary fibrosis and lung parenchyma destruction, with mutual promotion and influence [
28,
29]. Hence, tuberculosis prevention education is needed in the workers exposed to dust and pneumoconiosis patients. Meanwhile, cardiopulmonary exercises are demanded for decreasing the chance of tuberculosis infection. Tuberculosis screening frequency should be increased for patients with pneumoconiosis in Stage II and Stage III. Active treatments and better management are required for pneumoconiosis patients suffering from tuberculosis to reduce the mortality. Tuberculosis patients should leave jobs with dust exposure, decreasing any further danger of exposure to dust to the patients’ life.
CWP patients with the highest stage had the highest mortality. This phenomenon may result from the fact that CWP patients are susceptible to pulmonary tuberculosis, respiratory failure and chronic pulmonary heart disease [
30]. The mean age of surviving CWP patients was 71.6 years old, which was similar to the age of the normal population, demonstrating that the control of coal dust pollution, personal protective measures, CWP screening and better levels of health care had been developed at the enterprise.
Several limitations of our study should be addressed. Ninety five CWP patients had died and the majority of surviving CWP patients had retired, scattered, and were contacted by a single way. Therefore, it was difficult to investigate their smoking status one by one, leading to incomplete smoking status information, so the impact of smoking on the incidence of CWP in the coal mine was not analyzed. We plan to collect relevant information in future CWP physical re-examination and cohort studies. Smoking was significantly associated with pneumoconiosis. Smokers with long-term cigarette use were reported to be more susceptible than non-smokers to the associated silicosis [
31]. Hessel
et al. [
32] showed that hydrocyanic acid in the tobacco smoke could harm the bronchial epithelium and cilium, reducing the capability to remove dust. Some population-based studies have confirmed that smoking promoted the incidence of silicosis [
31]. Consequently, smoking cessation would have a positive effect in the prevention of CWP and it should be encouraged in coal miners. In addition, considering that mine dust concentrations were not monitored before 1974, the cumulative dust exposure could not be calculated for all patients with CWP.
