Article

Butenolides from the Coral-Derived Fungus Aspergillius terreus SCSIO41404

1
Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou), Guangzhou 511458, China
2
Research Center for Deepsea Bioresources, Sanya 572025, China
3
CAS Key Laboratory of Tropical Marine Bio-Resources and Ecology/Guangdong Key Laboratory of Marine Materia Medica, South China Sea Institute of Oceanology, Chinese Academy of Sciences, Guangzhou 510301, China
4
Wuya College of Innovation, Shenyang Pharmaceutical University, Shenyang 110016, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Mar. Drugs 2022, 20(3), 212; https://doi.org/10.3390/md20030212
Submission received: 20 January 2022 / Revised: 14 March 2022 / Accepted: 15 March 2022 / Published: 17 March 2022

Abstract

:
Five undescribed butenolides including two pairs of enantiomers, (+)-asperteretal G (1a), (−)-asperteretal G (1b), (+)-asperteretal H (2a), (−)-asperteretal H (2b), asperteretal I (3), and para-hydroxybenzaldehyde derivative, (S)-3-(2,3-dihydroxy-3-methylbutyl)-4-hydroxybenzaldehyde (14), were isolated together with ten previously reported butenolides 413, from the coral-derived fungus Aspergillus terreus SCSIO41404. Enantiomers 1a/1b and 2a/2b were successfully purified by high performance liquid chromatography (HPLC) using a chiral column, and the enantiomers 1a and 1b were new natural products. Structures of the unreported compounds, including the absolute configurations, were elucidated by NMR and MS data, optical rotation, experimental and calculated electronic circular dichroism, induced circular dichroism, and X-ray crystal data. The isolated butenolides were evaluated for antibacterial, cytotoxic, and enzyme inhibitory activities. Compounds 7 and 12 displayed weak antibacterial activity, against Enterococcus faecalis (IC50 = 25 μg/mL) and Klebsiella pneumoniae (IC50 = 50 μg/mL), respectively, whereas 6 showed weak inhibitory effect on acetylcholinesterase. Nevertheless, most of the butenolides showed inhibition against pancreatic lipase (PL) with an inhibition rate of 21.2–73.0% at a concentration of 50 μg/mL.

1. Introduction

Marine-derived fungi have been proven to be a valuable and rich source of novel and bioactive natural products [1]. Butenolides or butyrolactones, possessing the α,β-unsaturated γ-butyrolactone skeleton, were frequently isolated from fungi, especially the Aspergillus species [2]. Butenolides have been reported to show diverse biological activities, including anti-inflammatory, cytotoxic, antiviral, antioxidant, antimicrobial, antidiabetic, protein kinase-inhibitory, and α-glucosidase-inhibitory activities [2,3,4]. Furthermore, in vivo pharmacological, pharmacokinetics, and metabolism studies have been recently reported [3,5,6], indicating that they could be potential drug leads. Butenolides have also been reported as mycotoxins, possessing significant toxicity such as hepatic and renal oxidative damage [7]. For naturally occurring butenolides, racemic or scalemic mixtures are common [4]. Therefore, separation of racemic or scalemic mixtures to obtain enantiopure compounds is a very difficult task in natural products research. For a discovery of bioactive secondary metabolites, the coral-derived fungus Aspergillus terreus SCSIO41404 was investigated. Consequently, five undescribed butenolides (1a, 1b, 2a, 2b, and 3), ten previously reported compounds (413), and an undescribed para-hydroxybenzaldehyde derivative (14) were isolated and identified from the ethyl acetate (EtOAc) extract of the fungal fermentation (Figure 1). Mixtures of 1a/1b and 2a/2b were successfully separated by HPLC using a chiral column to afford two pairs of enantiomers. The first pair of enantiomers (1a and 1b) are considered to be new natural products, since the mixture 1a/1b has previously been obtained synthetically [8]. Herein, we report the isolation, structure determination, and preliminary antibacterial, cytotoxic, and enzyme inhibitory activity assays of these compounds.

2. Results and Discussion

The wheat culture of Aspergillus sp. SCSIO41404 was extracted with EtOAc. Several chromatographic methods, including silica gel column and semi-preparative HPLC with octadecylsilyl (ODS) column, were used for isolation of the 16 compounds (Figure 1).
Compound 1 was isolated as a yellow powder and its molecular formula C16H12O4 was based on HRESIMS m/z 269.0811 [M + H]+ (calcd for C16H13O4, 269.0808), accounting for eleven degrees of unsaturation. The 1H NMR spectrum (Table 1) showed an A2B2 spin system of the para-disubstituted benzene ring [δH 7.17 (2H, d, J = 8.6 Hz, H-2′, H-6′) and 6.74 (2H, d, J = 8.6 Hz, H-3′, H-5′)], a monosubstituted benzene ring [δH 7.63 (2H, d, J = 7.4 Hz, H-2″, H-6″), 7.28 (2H, t, J = 7.4 Hz, H-3″, H-5″) and 7.23 (1H, t, J = 7.4 Hz, H-4″)], and a singlet at δH 6.26 (1H, H-4). Besides the above six corresponding hydrogen-bearing carbon signals [δC 130.6 (C-2′/6′), 116.7 (C-3′/5′), 128.9 (C-2″/6″), 129.3 (C-3″/5″), 129.4 (C-4″), 82.4 (C-4)], six carbons remained in the 13C NMR spectrum, including an ester carbonyl [δC 171.5 (C-1)] and five non-protonated sp2 carbons [δC 140.2 (C-2), 132.2 (C-3), 128.4 (C-1′), 159.7 (C-4′), and 129.5 (C-1″)]. The carbon signals (δC 171.5, 140.2, 132.2, 82.4) and the HMBC correlations from H-4 to C-1, C-2 and C-3, indicated the presence of the butenolide skeleton (Figure 2) [9]. These data showed a close similarity to a synthetic racemic furanone derivative (3-hydroxy-5-(4-hydroxyphenyl)-4-phenyl-2(5H)-furanone, 5d in the reference) [8]. Moreover, the other key HMBC correlations (Figure 2), from H-4 to C-1′ and C-1″, from H-2′/H-6′ to C-4 (δC 82.4) and C-4′, confirmed a planar structure of 1, which was assigned the trivial name asperteretal G (1).
Although 1 has one stereogenic carbon (C-4), its optical rotation was close to zero and the inapparent Cotton effect in the electronic circular dichroism (ECD) spectrum suggested that 1 was not enantiomerically pure. Therefore, 1 was subject to a separation by HPLC using a chiral column CHIRALPAK IC, eluted with isopropanol (IPA)/n-hexane (Hex): 18/82, to obtain two pure enantiomers (1a and 1b, two well-separated peaks in a ratio of approximately 1:1) (Figure 3). The enantiomers 1a and 1b possessed opposite Cotton effects in the ECD spectra, and their absolute configurations were determined by comparison of the experimental ECD spectra with those calculated for each enantiomer (Figure 4A,C). The ECD spectra of 1a and 1b showed positive and negative Cotton effects in the regions of π→π* transition (260–280 nm), respectively, indicating the 4S and 4R absolute configurations for 1a and 1b, respectively, since 1a was obtained as a suitable crystal, and its X-ray analysis was performed. The structure of 1a and the absolute configuration of C-4 were confirmed as shown in the ortep diagram (Figure 5). The crystal data collected on a XtalLAB PRO single-crystal diffractometer using Cu Kα radiation are in Table S1. Therefore, this pair of enantiomers, as new natural products, were obtained for the first time, and named (+)-asperteretal G (1a) and (−)-asperteretal G (1b).
Compound 2 was obtained as a colorless oil. Its molecular formula was established as C13H14O4 by HRESIMS m/z 235.0969 [M + H]+ (calcd for C13H15O4, 235.0965), accounting for seven degrees of unsaturation. In the 1H NMR spectrum (Table 1) of 2, the proton signals of a para-disubstituted benzene ring [δH 7.09 (2H, d, J = 8.6 Hz, H-2′, H-6′) and 6.79 (2H, d, J = 8.6 Hz, H-3′, H-5′)] and an isopropyl group [2.49 (1H, hept, J = 7.0 Hz, H-1″), 0.99 (3H, d, J = 7.0 Hz, H-2″), and 1.08 (3H, d, J = 7.0 Hz, H-3″)] were clearly observed. Analysis of the NMR data (Table 1) indicated that 2 had a similar skeleton to that of 1, except for the phenyl group attached to C-3 in 1 was replaced by an isopropyl group, which was confirmed by HMBC correlations from H3-2″ and H3-3″ to C-3 (Figure 2). HMBC correlations from H-4 (δH 5.72, s) to C-1 (δC 172.5), C-3 (δC 141.0) and C-2 (δC 138.5), from H-2′/H-6′ to C-4 (δC 83.0) and C-4′ (δC 159.7), and COSY correlations from H-1″ to H3-2″, H-1″ and H3-3″, confirmed the structure of 2. Therefore, the planar structure of 2, named asperteretal H (2), was elucidated as shown.
Similarly, the optical rotation and the inapparent ECD Cotton effect also suggested that 2 was not enantiomerically pure. The enantiomers 2a and 2b were also successfully separated by HPLC with a chiral column CHIRALPAK IC, eluted with IPA/Hex: 12/88 (two well-separated peaks in a ratio of approximately 1:1) (Figure 3). Enantiomers 2a and 2b showed opposite Cotton effects in the ECD spectra, and their absolute configurations were also determined by comparison of the experimental with the calculated ECD spectra for each enantiomer (Figure 4B,D). The positive and negative Cotton effects of 2a and 2b in the region near 250 nm, respectively, supporting the 4R and 4S absolute configurations for 2a and 2b, respectively [10,11]. Thus, this pair of enantiomers were identified as (+)-asperteretal H (2a) and (−)-asperteretal H (2b).
Compound 3 was obtained as a yellow oil. Its molecular formula C22H22O6 was determined based on HRESIMS m/z 381.1340 [M − H] (calcd for C22H21O6, 381.1344), accounting for twelve degrees of unsaturation. The 1H NMR spectrum (Table 1) revealed diagnostic signals of a para-disubstituted [δH 7.48 (2H, d, J = 8.8 Hz, H-2′, H-6′) and 6.83 (2H, d, J = 8.8 Hz, H-3′, H-5′)] and a 1,3,4-trisubstituted benzene rings [δH 6.92 (d, J = 2.3 Hz, H-2″), 6.66 (d, J = 8.4 Hz, H-5″) and 6.95 (dd, J = 8.4, 2.3 Hz, H-6″)], two oxygen-bearing methines [δH 6.48 (s, H-4), 3.72 (H-8″)], two methylenes [δH 3.80 (d, J = 15.7 Hz H-5a), 3.72 (H-5b), 2.95 (dd, J = 16.6, 4.8 Hz, H-7″a) and 2.66 (dd, J = 16.6, 7.3 Hz, H-7″b)], and two methyls [δH 1.30 (3H, s, H-10″), 1.23 (3H, s, H-11″)]. The 13C NMR spectrum (Table 1), in combination with DEPT and HSQC spectra, revealed the presence of 20 carbon resonances including two methyls [δC 25.8 (C-10″), 21.2 (C-11″)], two sp3 methylenes [δC 32.2 (C-7″), 30.0 (C-5)], eight protonated sp2 (δC 131.7, 131.7, 130.3, 128.2, 118.1, 116.6, 116.6, 99.2), one sp3 oxygenated methine (δC 70.5) and one ester carbonyl (δC 175.1), seven on-protonated sp2 (δC 160.9, 153.0, 158.5, 130.6, 125.7, 123.3, 121.4), and one sp3 oxygenated methine (δC 78.0). Its 1D-NMR data were similar to those of asperteretal E [4], except that H2-8″ of asperteretal E was replaced by a hydroxyl group (C-8″, δH/C 3.72/70.5). COSY correlation from H2-7″ to H-8″ and HMBC correlations from H-8″ to C-3″ and H2-7″, H3-10″, H3-11″ to C-8″ confirmed a planar structure of 3. Compound 3 was named asperteretal I. Since there are two stereogenic carbons (C-4 and C-8″), there are four possible stereomers for 3. The inapparent ECD Cotton effect (Figure S1) spectra suggested that 3 was not enantiomerically pure [4]. Our effort to separate the isomers of 3 with various chiral columns and mobile phase systems was not successful. Therefore, the absolute configurations of C-4 and C-8″ in 3 were still undetermined.
Compound 14 was isolated as a yellow oil and had a molecular formula C12H16O4 as determined by HRESIMS m/z 223.0976 [M − H] (calcd for C12H15O4, 223.0976), accounting for five degrees of unsaturation. Analysis of the NMR data indicated that 14 possessed an aldehyde group (δH 9.75, s, δC 193.1, CHO-7), a 1,2,4-trisubstituted benzene ring (δH 7.75, d, J = 2.0 Hz, δC 134.8, CH-2; δH 7.64, dd, J = 8.3, 2.0 Hz, δC 131.5, CH-6; δH 6.91, d, J = 8.3 Hz, δC 116.7, CH-5), an oxygen-bearing sp3 methine (δH 3.63, dd, J = 10.4, 1.8 Hz, δC 79.4, CH-9), a sp3 methylene (δH 3.07, dd, J = 14.1, 1.8 Hz, 2.60, dd, J = 14.1, 10.4 Hz, δC 33.8, CH2-8), and two methyls (δH 1.25, 6H, s, δC 25.7, 25.1, CH3-11 and CH3-12). These data were similar to those of 3-(2,3-dihydroxy-isopentyl)-4-hydroxy-acetophenone [12] except for the replacement of the acetyl group on C-1 of 3-(2,3-dihydroxy-isopentyl)-4-hydroxy-acetophenone with an aldehyde group (CHO-7) in 14 [12]. Moreover, the HMBC correlations from H-6 to C-7 and H-7 to C-2 further determined the structure (Figure 1). The absolute configuration of C-9 was determined to be S by using the Mo2(OAc)4–induced circular dichroism method (a positive cotton effect at 314 nm) (Figure 6) [13]. Thus, 14 was identified as (S)-3-(2,3-dihydroxy-3-methylbutyl)-4-hydroxybenzaldehyde.
The previously reported compounds were identified as butyrolactone II (4) [14], methyl I-2-benzyl-4-hydroxy-3-(4-hydroxyphenyl)-5-oxo-2,5-dihydrofuran-2-carboxylate (5) [8,15], butyrolactone I (6) [16], versicolactone B (7) [17], aspernolide D (8) [18], aspernolide A (9) [19], butyrolacton V (10) [16], terrelactone (11) [20], butyrolactone VI (12) [21], and butyrolactone IV (13) [16] by comparison of their spectroscopic data (Supporting Information, Figures S26–S35) with those reported in the literature.
Compounds 114 were evaluated for their cytotoxic activity against human lung carcinoma (A549) and human hepatocellular carcinoma (HepG2) cell lines, but none showed cytotoxicity at a concentration of 50 μM. Most of the compounds were screened for their enzyme inhibitory effects against pancreatic lipase (PL) and acetylcholinesterase (AChE) in vitro, and also antibacterial activity against five pathogenic bacteria, Staphylococcus aureus ATCC 29213, Enterococcus faecalis ATCC 29212, Klebsiella pneumoniae ATCC 13883, methicillin-resistant S. aureus (MRSA, clinical strain), and methicillin-resistant S. epidermidis (MRSE, clinical strain) (Table 2). Only 7 and 12 displayed weak antibacterial activity against E. faecalis (IC50 value of 25 μg/mL) and K. pneumoniae (IC50 value of 50 μg/mL), respectively. Compound 6 displayed weak inhibitory effect on AChE (35.2%, at 50 μg/mL concentration). Nevertheless, most of the butenolides (1a/1b, 2a/2b, 3, 6, 7, 10, 12, and 13) showed inhibition against PL with inhibition rate of 21.2–73.0% at a concentration of 50 μg/mL (Table 2).

3. Materials and Methods

3.1. General Experimental Procedures

UV spectra were measured on a Shimadzu UV-2600 PC spectrophotometer (Shimadzu, Kyoto, Japan). Optical rotations were recorded on a PerkinElmer MPC 500 (Waltham, MA, USA) polarimeter. For ECD spectra, Chirascan circular dichroism spectrometer (Applied Photophysics, Leatherhead Surrey, UK) was used. NMR spectra were acquired by a Bruker Avance spectrometer (Bruker, Billerica, MA, USA) at 700 MHz for 1H and 175 MHz for 13C. HRESIMS spectra were recorded on a Bruker miXis TOF-QII mass spectrometer (Bruker, Billerica, MA, USA). X-ray diffraction intensity data were measured on an Agilent Xcalibur Nova single-crystal diffractometer (Santa Clara, CA, USA) using Cu Kα radiation. TLC and column chromatography were performed on plates precoated with silica gel GF254 (10–40 μm) and over silica gel (200–300 mesh) (Qingdao Marine Chemical Factory, Qingdao, China), respectively. Spots were detected on TLC (Qingdao Marine Chemical Factory, Qingdao, China) under 254 nm UV light. Semi-preparative HPLC was performed using an ODS column (YMC-pack ODS-A, YMC Co., Ltd., Kyoto, Japan, 10 mm × 250 mm, 5 μm).

3.2. Fungal Material

The fungal strain Aspergillus sp. SCSIO41404 was isolated from a soft coral Sinularia sp., collected in the Luhuitou waters (109°29′37.3″ E, 18°11′33.4″ N) of Sanya Bay in the South China Sea, in June 2019. The strain was stored on Muller Hinton broth (MB) agar (malt extract 15 g, sea salt 10 g, agar 15 g, H2O 1 L, pH 7.4–7.8) at 4 °C and deposited in the CAS Key Laboratory of Tropical Marine Bio-resources and Ecology, South China Sea Institute of Oceanology, Chinese Academy of Sciences, Guangzhou, China. The strain was identified as Aspergillus terreus based on the ITS region of the rDNA (GenBank accession No. KU866665.1) (Table S2).

3.3. Fermentation and Extraction

The seed medium (malt extract 15 g, sea salt 10 g, H2O 1 L, pH 7.4–7.8) in 500 mL Erlenmeyer flasks (150 mL/flask) was incubated at 28 °C for 3 days on a rotating shaker (180 rpm). The seed medium was added to the wheat fermentation medium (wheat 200 g, sea salt 10g, H2O 200 mL) in a 1000 mL Erlenmeyer flask. In total, 40 Erlenmeyer flasks were incubated for 30 days at 25 °C without shaking. The whole wheat cultures were crushed and extracted with EtOAc three times to afford an organic extract.

3.4. Isolation and Purification

The EtOAc extract (638.1 g) was subjected to silica gel column chromatography eluted with PE-EtOAc-MeOH (50:1:0 to 0:0:1, v/v) in gradient to yield seven fractions (Frs.1–7). Fr.1 was subjected to HPLC with an ODS column, eluted with MeOH/H2O (5–100%) to afford six subfractions (Frs.1-1–1-6). Fr.1-4 was purified by semipreparative HPLC (47% MeOH/H2O, 2 mL/min) to yield 5 (4.8 mg). Fr.2 was subjected to MPLC with an ODS column, eluted with MeOH/H2O (10–100%) to afford eight subfractions (Frs.2-1–2-8). Fr.2-3 was purified by semipreparative HPLC (60% MeOH/H2O, 2 mL/min) to yield 1 (5.9 mg) and 2 (8.5 mg). Fr.3 was purified by semipreparative HPLC (65% MeCN/H2O, 2 mL/min) to yield 7 (10.2 mg). Fr.4 gave predominantly 6 (25 g). Fr.5 was purified by semipreparative HPLC (65% MeOH/H2O, 2 mL/min) to give 4 (8.9 mg), 9 (3.2 mg), 10 (17.3 mg), and 13 (5.3 mg). Fr.6 was subjected to MPLC with an ODS column, eluting with MeOH/H2O (5%100%) to give eight subfractions (Frs.6-1–6-8). Fr.6-4 was purified by semipreparative HPLC (42% MeOH/H2O, 2 mL/min) to yield 14 (2.5 mg). Fr.6-6 was purified by semipreparative HPLC (29% MeCN/H2O, 2 mL/min) to yield 3 (1.6 mg), 8 (0.81 mg), 11 (5.4 mg), and 12 (10.2 mg).
Asperteretal G (1): yellow powder; UV (MeOH) λmax (log ε) = 203 (4.37), 221 (4.21), 226 (4.20), 286 (4.17), 327 (3.80) nm; 1H and 13C NMR data, Table 1; HRESIMS m/z 269.0811 [M + H]+ (calcd for C16H13O4, 269.0808) (Figures S2–S9).
(+)-asperteretal G (1a): [ α ] D 25 +36.9 (c 0.1, MeOH); ECD (0.2 mg/mL, IPA) λmaxε) 223 (+5.56), 237 (−4.04), 265 (+3.67), 307 (−2.51) nm.
(−)-asperteretal G (1b): [ α ] D 25 −23.7 (c 0.1, MeOH); ECD (0.2 mg/mL, IPA) λmaxε) 223 (−3.57), 239 (+3.40), 263 (−4.23), 308 (+2.64) nm.
Asperteretal H (2): colorless oil; UV (MeOH) λmax (log ε) = 202 (4.28), 230 (4.33), 277 (3.53), 283 (3.51), 310 (3.42) nm; 1H and 13C NMR data, Table 1; HRESIMS m/z 235.0969 [M + H]+ (calcd for C13H15O4, 235.0965) (Figures S10–S17).
(+)-asperteretal H (2a): [ α ] D 25 +68.2 (c 0.1, MeOH); ECD (0.2 mg/mL, IPA) λmaxε) 210 (−3.59), 247 (+8.08), 280 (−1.76) nm.
(−)-asperteretal H (2b): [ α ] D 25 −39.7 (c 0.1, MeOH); ECD (0.2 mg/mL, IPA) λmaxε) 210 (+4.10), 243 (−10.27), 281 (+1.24) nm.
Asperteretal I (3): yellow oil; [ α ] D 25 +8.0 (c 0.1, MeOH); UV (MeOH) λmax (log ε) = 203 (4.45), 305 (4.09) nm; 1H and 13C NMR data, Table 1; HRESIMS m/z 381.1340 [M − H] (calcd for C22H21O6, 381.1344) (Figures S18–S25).
(S)-3-(2,3-Dihydroxy-3-methylbutyl)-4-hydroxybenzaldehyde (14): yellow oil; [ α ] D 25 +7.7 (c 0.10, MeOH); UV (MeOH) λmax (log ε) = 203 (3.88), 224 (3.49), 276 (3.13) nm; 1H NMR (700 MHz, CD3OD) δH 9.75 (1H, s, H-7), 7.75 (1H, d, J = 2.0 Hz, H-2), 7.64 (1H, dd, J = 8.3, 2.0 Hz, H-6), 6.91 (1H, d, J = 8.3 Hz, H-5), 3.63 (1H, dd, J = 10.4, 1.8 Hz, H-9), 3.07 (1H, dd, J = 14.1, 1.8 Hz, Ha-8), 2.60 (1H, dd, J = 14.1, 10.4 Hz, Hb-8), 1.25 (6H, s, H-11, H-12); 13C NMR (175 MHz, CD3OD) δC 193.1 (CH, C-7), 164.0 (qC, C-4), 134.8 (CH, C-2), 131.5 (CH, C-6), 130.1 (qC, C-1), 129.1 (qC, C-3), 116.7 (CH, C-5), 79.4 (CH, C-9), 73.9 (qC, C-10), 33.8 (CH2, C-8), 25.7 (CH3, C-12), 25.1 (CH3, C-11); HRESIMS m/z 223.0976 [M − H] (calcd for C12H15O4, 223.0976) (Figures S36–S43).

3.5. X-ray Crystallographic Analysis

Colorless crystals of 1a were obtained in MeOH/CHCl3 (1:2) followed by slow evaporation at 4 °C and the crystals’ data were collected on a XtalLAB PRO single-crystal diffractometer using Cu Kα radiation. The X-ray crystal structure of 1a was solved using SHELXS97, expanded by difference Fourier techniques, and refined by full-matrix least-squares calculation finally. All non-hydrogen atoms were refined anisotropically, and hydrogen atoms were fixed at calculated positions. Crystallographic data of 1a (Table S1) have been deposited in the Cambridge Crystallographic Data Centre (deposition number: CCDC 2077455). These data can be obtained, free of charge, on application to CCDC, 12 Union Road, Cambridge CB21EZ, UK [fax: +44(0)-1223-336033 or e-mail: [email protected]].

3.6. Mo2(AcO)4-Induced Circular Dichroism

Mo2(AcO)4 (1.0 mg) and 14 (1.0 mg) were dissolved in dimethyl sulfoxide (DMSO) (1 mL) to use as stock solutions, which were mixed by 1:2 v/v. After mixing, the CD spectrum was recorded immediately and scanned every 5 min, until a stationary ICD spectrum (the CD of 14 in Mo2(AcO)4 solution subtracted from inherent CD of 14 in DMSO) was observed. The sign of the diagnostic band at around 310 nm in the ICD spectrum was correlated to the absolute configuration of C-9 of 14 [22].

3.7. ECD Calculation

The structures of 1a, 1b, 2a, and 2b were subjected to random conformational searches using the Spartan’14 software with the MMFF method, as used previously [23]. The conformers with a Boltzmann population of over 5% were chosen for ECD calculations using the Gaussian 09 software [24], and the stable conformers were initially optimized at the B3LYP/6-31+G(d,p) level in MeOH using the CPCM model. The overall theoretical calculation of ECD was achieved in MeOH using time-dependent density functional theory at the B3LYP/6-31+G (d, p) level. The ECD spectra were generated using the SpecDis 1.6 (University of Würzburg, Würzburg, Germany) and Prism 5.0 (GraphPad Software Inc., San Diego, CA, USA) software with a half-bandwidth of 0.3–0.4 eV, according to the Boltzmann-calculated contribution of each conformer after UV correction.

3.8. Bioassay

The cytotoxic activity of the obtained compounds was evaluated by the MTT method as reported in our previous study [25]. The antibacterial activity against five bacterial strains, Staphylococcus aureus ATCC 29213, Enterococcus faecalis ATCC 29212, Klebsiella pneumoniae ATCC 13883, methicillin-resistant S. aureus (MRSA, clinical strain), and methicillin-resistant S. epidermidis (MRSE, clinical strain) was evaluated using a modified broth microdilution method [25,26]. The acetylcholinesterase and PL inhibitory activities were evaluated according to the methods used in our previous study [26,27].

4. Conclusions

We describe here the isolation and structure elucidation of five undescribed and ten previously reported butenolides from the coral-derived fungus Aspergillus terreus SCSIO41404, together with an undescribed para-hydroxybenzaldehyde derivative (S)-3-(2,3-dihydroxy-3-methylbutyl)-4-hydroxybenzaldehyde. Two pairs of enantiomers were separated by HPLC using a chiral column, and enantiomers (+)-asperteretal G (1a) and (−)-asperteretal G (1b) were new natural products. After preliminary antibacterial, cytotoxic and enzyme inhibitory bioassays of these compounds, several natural butenolides showed inhibition against PL. This is the first report of the PL inhibitor activity of butenolides, and the effects of these butenolides on the regulation of lipid metabolism deserve further study [28].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/md20030212/s1, ITS sequence data of the strain; physicochemical data of 413; Table S1: X-ray crystallographic data of 1; Table S2: Primer sequences for the genes; Figure S1: Experimental ECD spectrum of 3; Figures S2–S25: NMR, HRESIMS and UV spectroscopic data of 13; Figures S26–S35: 1H NMR spectra of 413; Figures S36–S43: NMR, HRESIMS and UV spectroscopic data of 14 (PDF); Crystallographic data of 1 (CIF).

Author Contributions

Conceptualization, X.Z.; methodology, Q.P. and W.C.; investigation, Q.P., W.C. and J.X.; resources, X.L.; writing—original draft preparation, Q.P.; writing—review and editing, W.C., X.L., J.X., Y.L. and X.Z.; supervision and project administration, X.Z.; funding acquisition, Y.L. and X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key Area Research and Development Program of Guangdong Province (2020B1111030005), Key Special Project for Introduced Talents Team of Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou) (GML2019ZD0406), Guangdong Local Innovation Team Program (2019BT02Y262), National Natural Science Foundation of China (U20A20101, 81973235), and Liao Ning Revitalization Talents Program (XLYC1802037).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors gratefully acknowledge the assistance of Xiao, Zheng, Sun, and Zhang in the analytical facility center of the SCSIO for recording spectroscopic data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shabana, S.; Lakshmi, K.R.; Satya, A.K. An updated review of secondary metabolites from marine fungi. Mini-Rev. Med. Chem. 2021, 21, 602–642. [Google Scholar] [CrossRef] [PubMed]
  2. Cheng, Z.; Li, Y.; Liu, W.; Liu, L.; Liu, J.; Yuan, W.; Luo, Z.; Xu, W.; Li, Q. Butenolide derivatives with α-glucosidase inhibitions from the deep-sea-derived fungus Aspergillus terreus YPGA10. Mar. Drugs 2019, 17, 332. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Liu, B.; Chen, N.; Xu, Y.; Zhang, J.W.; Sun, Y.; Zhao, L.Z.; Ji, Y.B. A new benzophenone with biological activities from metabolites of butyrolactone I in rat faeces. Nat. Prod. Res. 2021, 35, 2489–2497. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, Y.; Liu, J.; Li, L.; Gong, C.; Wang, S.; Yang, F.; Hua, H.; Lin, H. New butenolide derivatives from the marine sponge-derived fungus Aspergillus terreus. Bioorg. Med. Chem. Lett. 2018, 28, 315–318. [Google Scholar] [CrossRef]
  5. Chen, S.; Zhang, Y.; Niu, X.; Mohyuddin, S.G.; Wen, J.; Bao, M.; Yu, T.; Wu, L.; Hu, C.; Yong, Y.; et al. Coral-derived endophytic fungal product, butyrolactone-I, alleviates LPS induced intestinal epithelial cell inflammatory response through TLR4/NF-κB and MAPK signaling pathways: An in vitro and in vivo studies. Front. Nutr. 2021, 8, 748118. [Google Scholar] [CrossRef]
  6. Wu, L.; Xie, C.L.; Yang, X.W.; Chen, G. Pharmacokinetics and metabolism study of deep-sea-derived butyrolactone I in rats by UHPLC–MS/MS and UHPLC–Q-TOF-MS. Mar. Drugs 2022, 20, 11. [Google Scholar] [CrossRef]
  7. Wang, Y.M.; Wang, H.J.; Peng, S.Q. In ovo exposure of a Fusarium mycotoxin butenolide induces hepatic and renal oxidative damage in chick embryos, and antioxidants provide protections. Toxicol. In Vitro 2009, 23, 1354–1359. [Google Scholar] [CrossRef]
  8. Weber, V.; Coudert, P.; Rubat, C.; Duroux, E.; Vallee-Goyet, D.; Gardette, D.; Bria, M.; Albuisson, E.; Leal, F.; Gramain, J.C.; et al. Novel 4,5-diaryl-3-hydroxy-2(5H)-furanones as anti-oxidants and anti-inflammatory agents. Bioorgan. Med. Chem. 2002, 10, 1647–1658. [Google Scholar] [CrossRef]
  9. Ye, Y.Q.; Xia, C.F.; Yang, J.X.; Yang, Y.C.; Qin, Y.; Gao, X.M.; Du, G.; Li, X.M.; Hu, Q.F. Butyrolactones derivatives from the fermentation products of an endophytic fungus Aspergillus versicolor. Bull. Korean Chem. Soc. 2014, 35, 3059–3062. [Google Scholar] [CrossRef] [Green Version]
  10. Gawronski, J.K.; Oeveren, V.A.; Hanncke, V.D.D.; Leung, C.W.; Feringa, B.L. Simple circular dichroic method for the determination of absolute configuration of 5-substituted 2(5H)-furanones. J. Org. Chem. 1996, 61, 1513–1515. [Google Scholar] [CrossRef] [Green Version]
  11. Uchida, I.; Kuriyama, K. The π-π circular dichroism of δβ-unsaturated γ-lactones. Tetrahedron Lett. 1974, 15, 3761–3764. [Google Scholar] [CrossRef]
  12. Piacente, S.; Aquino, R.; Detommasi, N.; Deugaz, O.L.; Orellana, H.C. p-hydroxyacetophenone derivatives from Werneria ciliolate. Phytochemistry 1992, 31, 2182–2184. [Google Scholar] [CrossRef]
  13. Di Bari, L.; Pescitelli, G.; Pratelli, C.; Pini, D.; Salvadori, P. Determination of absolute configuration of acyclic 1,2-diols with Mo2(OAc)4. 1. Snatzke’s method revisited. J. Org. Chem. 2001, 66, 4819–4825. [Google Scholar] [CrossRef]
  14. Pang, X.; Zhao, J.Y.; Fang, X.M.; Zhang, T.; Zhang, D.W.; Liu, H.Y.; Su, J.; Cen, S.; Yu, L.Y. Metabolites from the plant endophytic fungus Aspergillus sp. CPCC 400735 and their anti-HIV activities. J. Nat. Prod. 2017, 80, 2595–2601. [Google Scholar] [CrossRef]
  15. Morishima, H.; Fujita, K.; Nakano, M.; Atsumi, S.; Ookubo, M.; Kitagawa, M.; Matsumoto, H.; Okuyama, A.; Okabe, T. Preparation, antitumor activity, and formulations of dihydrofuran compounds. Japanese Patent JP 06100445, 1994. [Google Scholar]
  16. Liao, W.Y.; Shen, C.N.; Lin, L.H.; Yang, Y.L.; Han, H.Y.; Chen, J.W.; Kuo, S.C.; Wu, S.H.; Liaw, C.C. Asperjinone, a nor-neolignan, and terrein, a suppressor of ABCG2-expressing breast cancer cells, from Thermophilic Aspergillus terreus. J. Nat. Prod. 2012, 75, 630–635. [Google Scholar] [CrossRef]
  17. Zhou, M.; Du, G.; Yang, H.Y.; Xia, C.F.; Yang, J.X.; Ye, Y.Q.; Gao, X.M.; Li, X.N.; Hu, Q.F. Antiviral butyrolactones from the endophytic fungus Aspergillus versicolor. Planta Med. 2015, 81, 235–240. [Google Scholar] [CrossRef] [Green Version]
  18. Zhou, M.; Lou, J.; Li, Y.K.; Wang, Y.D.; Zhou, K.; Ji, B.K.; Dong, W.; Gao, X.M.; Du, G.; Hu, Q.F. Butyrolactones from the endophytic fungus Aspergillus versicolor and their anti-tobacco mosaic virus activity. J. Brazil. Chem. Soc. 2015, 26, 545–549. [Google Scholar]
  19. Parvatkar, R.R.; D’Souza, C.; Tripathi, A.; Naik, C.G. Aspernolides A and B, butenolides from a marine-derived fungus Aspergillus terreus. Phytochemistry. 2009, 70, 128–132. [Google Scholar] [CrossRef]
  20. Wang, Y.; Zheng, J.K.; Liu, P.P.; Wang, W.; Zhu, W.M. Three new compounds from Aspergillus terreus PT06-2 grown in a high salt medium. Mar. Drugs 2011, 9, 1368. [Google Scholar] [CrossRef] [Green Version]
  21. Haritakun, R.; Rachtawee, P.; Chanthaket, R.; Boonyuen, N.; Isaka, M. Butyrolactones from the fungus Aspergillus terreus BCC 4651. Chem. Pharm. Bull. 2010, 58, 1545–1548. [Google Scholar] [CrossRef] [Green Version]
  22. Wang, J.J.; Liang, Z.; Li, K.L.; Yang, B.; Liu, Y.H.; Fang, W.; Tang, L.; Zhou, X.F. Ene-yne hydroquinones from a marine-derived strain of the fungus Pestalotiopsis neglecta with effects on liver X receptor alpha. J. Nat. Prod. 2020, 83, 1258–1264. [Google Scholar] [CrossRef]
  23. Li, K.; Su, Z.; Gao, Y.; Lin, X.; Pang, X.; Yang, B.; Tao, H.; Luo, X.; Liu, Y.; Zhou, X. Cytotoxic minor piericidin derivatives from the Actinomycete Strain Streptomyces psammoticus SCSIO NS126. Mar. Drugs 2021, 19, 428. [Google Scholar] [CrossRef] [PubMed]
  24. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision x.x; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  25. Cai, J.; Chen, C.; Tan, Y.; Chen, W.; Luo, X.; Luo, L.; Yang, B.; Liu, Y.; Zhou, X. Bioactive polyketide and diketopiperazine derivatives from the mangrove-sediment-derived fungus Aspergillus sp. SCSIO41407. Molecules 2021, 26, 4851. [Google Scholar] [CrossRef] [PubMed]
  26. Pang, X.Y.; Lin, X.P.; Yang, J.; Zhou, X.F.; Yang, B.; Wang, J.J.; Liu, Y.H. Spiro-phthalides and isocoumarins isolated from the marine-sponge-derived fungus Setosphaeria sp. SCSIO41009. J. Nat. Prod. 2018, 81, 1860–1868. [Google Scholar] [CrossRef] [PubMed]
  27. Peng, Q.Y.; Cai, J.; Long, J.Y.; Yang, B.; Lin, X.P.; Wang, J.F.; Xiao, J.; Liu, Y.H.; Zhou, X.F. New azaphthalide and phthalide derivatives from the marine coral-derived fungus Aspergillus sp. SCSIO41405. Phytochem. Lett. 2021, 43, 94–97. [Google Scholar] [CrossRef]
  28. Liu, T.T.; Liu, X.T.; Chen, Q.X.; Shi, Y. Lipase inhibitors for obesity: A review. Biomed. Pharmacother. 2020, 128, 110314. [Google Scholar] [CrossRef] [PubMed]

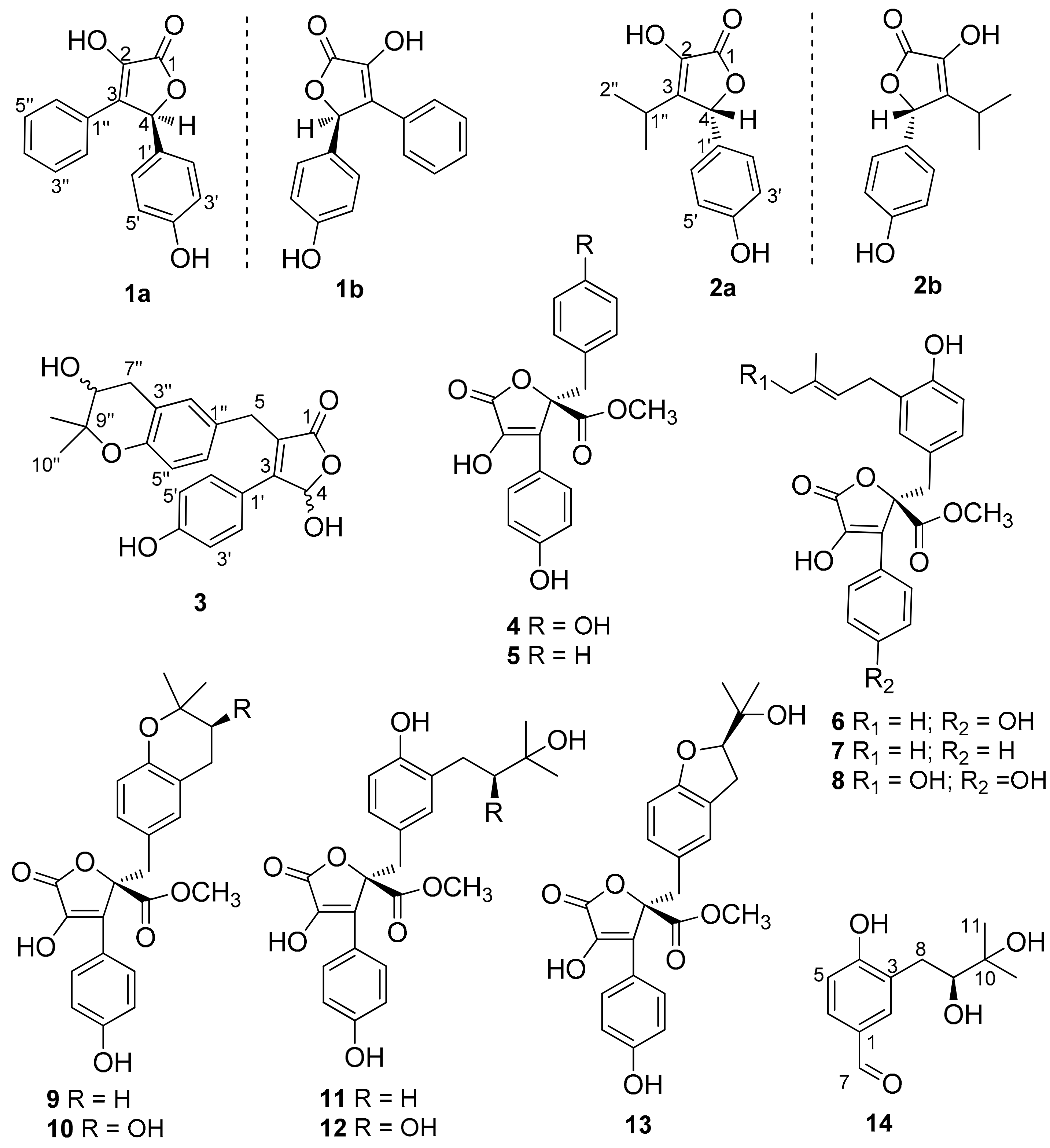

Figure 1. Structures of (114).
Figure 1. Structures of (114).
Marinedrugs 20 00212 g001

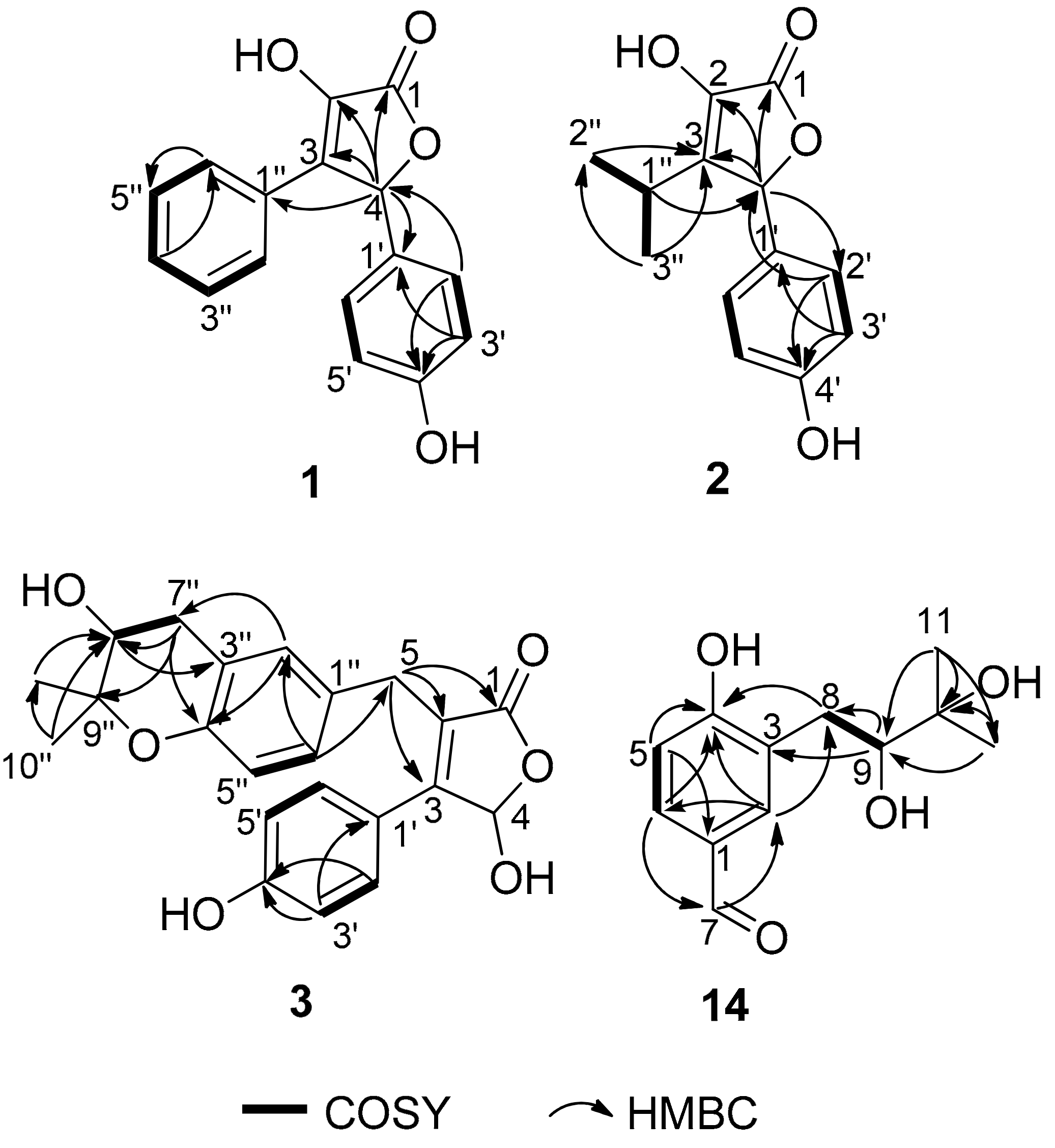

Figure 2. Key COSY and HMBC correlations in (13) and (14).
Figure 2. Key COSY and HMBC correlations in (13) and (14).
Marinedrugs 20 00212 g002

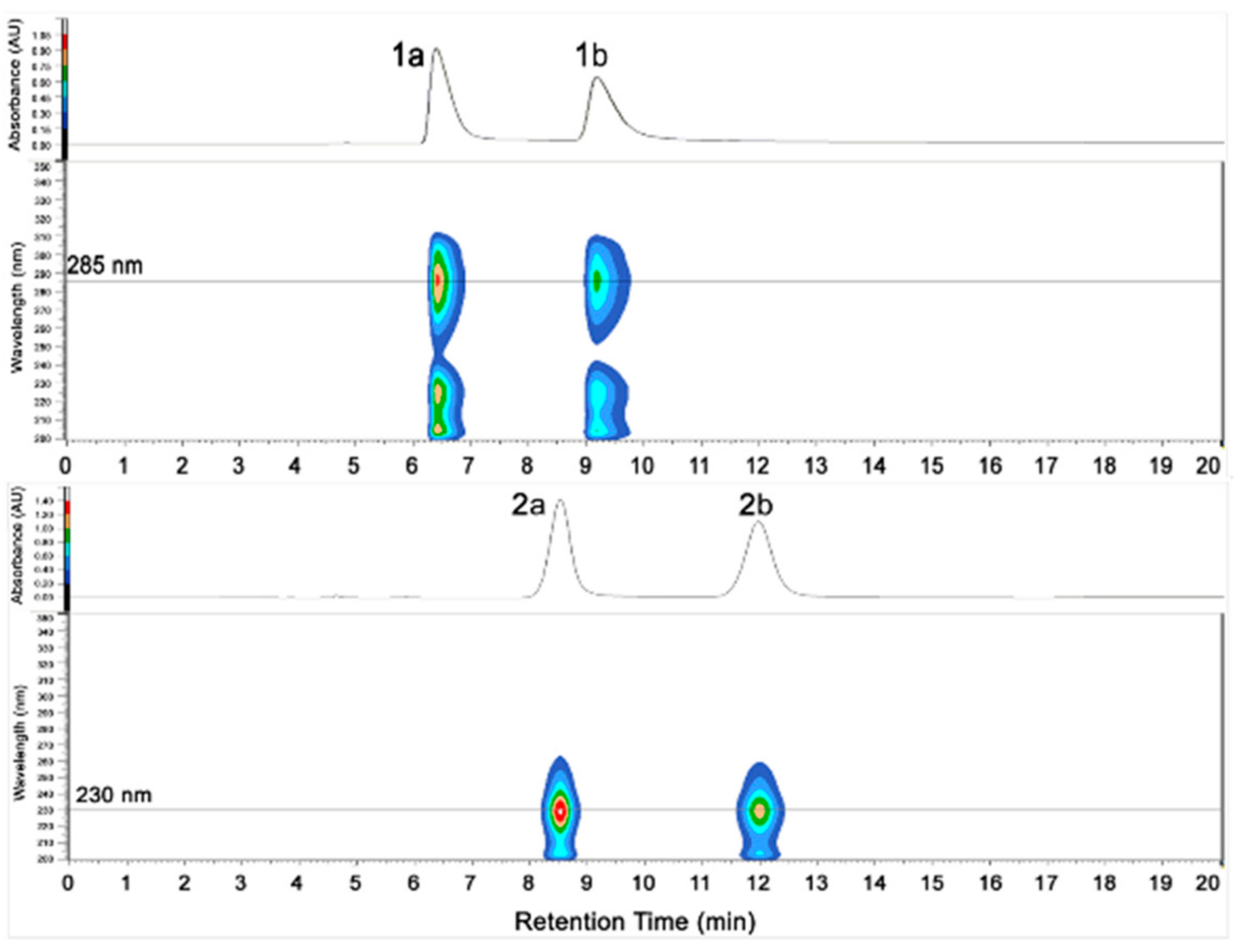

Figure 3. HPLC chromatograms of (±)-1 and (±)-2.
Figure 3. HPLC chromatograms of (±)-1 and (±)-2.
Marinedrugs 20 00212 g003

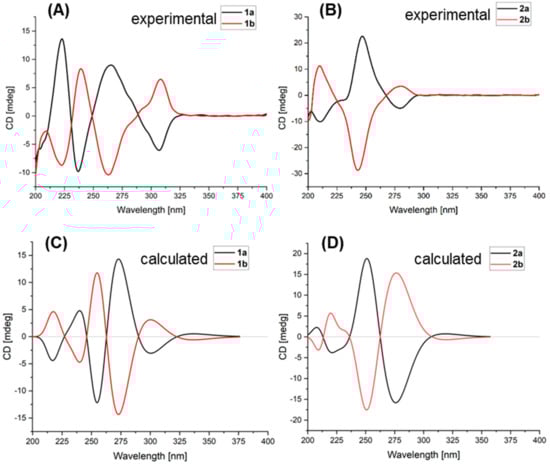

Figure 4. Experimental and calculated ECD spectra of 1a, 1b (A,C), 2a, and 2b (B,D).
Figure 4. Experimental and calculated ECD spectra of 1a, 1b (A,C), 2a, and 2b (B,D).
Marinedrugs 20 00212 g004

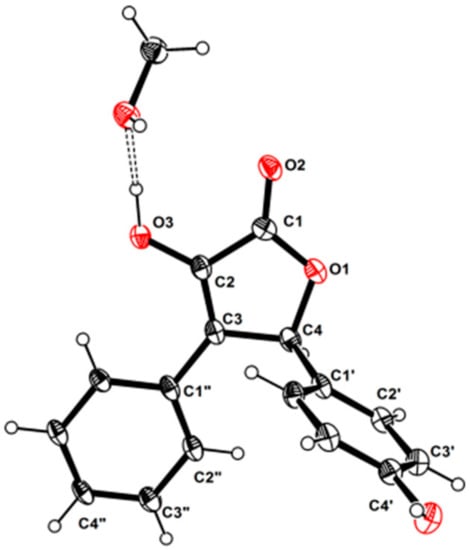

Figure 5. The ortep view of 1a.
Figure 5. The ortep view of 1a.
Marinedrugs 20 00212 g005

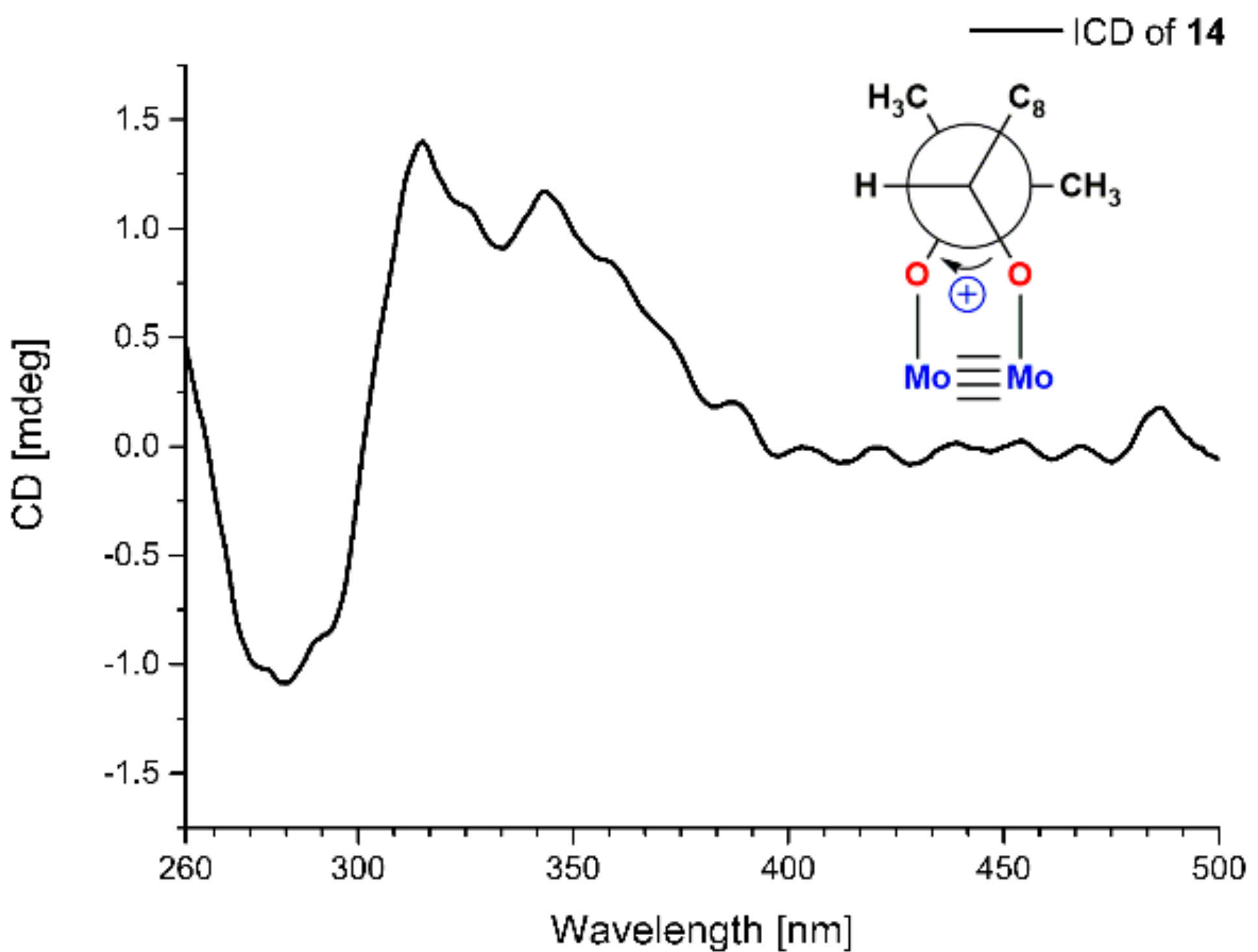

Figure 6. Mo2(Oac)4-induced CD spectrum of 14.
Figure 6. Mo2(Oac)4-induced CD spectrum of 14.
Marinedrugs 20 00212 g006
Table 1. 1H NMR (700 MHz) and 13C NMR (175 MHz) Data for 13 in CD3OD.
Table 1. 1H NMR (700 MHz) and 13C NMR (175 MHz) Data for 13 in CD3OD.
123
NoδC, TypeδH (J in Hz)δC, TypeδH (J in Hz)δC, TypeδH (J in Hz)
1171.5, C 172.5, C 175.1, C
2140.2, C 138.5, C 125.7, C
3132.2, C 141.0, C 158.5, C
482.4, CH6.26, s83.0, CH5.72, s99.2, CH6.48, s
5 30.0, CH23.72, overlapped
3.80, d (15.7)
1′128.4, C 127.6, C 123.3, C
2′130.6, CH7.17, d (8.6)130.1, CH7.09, d (8.6)131.7, CH7.48, d (8.8)
3′116.7, CH6.74, d (8.6)116.5, CH6.79, d (8.6)116.6, CH6.83, d (8.8)
4′159.7, C 159.7, C 160.9, C
5′116.7, CH6.74, d (8.6)116.5, CH6.79, d (8.6)116.6, CH6.83, d (8.8)
6′130.6, CH7.17, d (8.6)130.1, CH7.09, d (8.6)131.7, CH7.48, d (8.8)
1″129.5, C 27.4, CH2.49, hept (7.0)130.6, C
2″128.9, CH7.63, d (7.4)21.0, CH30.99, d (7.0)130.3, CH6.92, d (2.3)
3″129.3, CH7.28, t (7.4)20.1, CH31.08, d (7.0)121.4, C
4″129.4, CH7.23, t (7,4) 153.0, C
5″129.3, CH7.28, t (7.4) 118.1, CH6.66, d (8.4)
6″128.9, CH7.63, d (7.4) 128.2, CH6.95, dd (8.4, 2.3)
7″ 32.2, CH22.66, dd (16.6, 7.3)
2.95, dd (16.6, 4.8)
8″ 70.5, CH3.72, overlapped
9″ 78.0, C
10″ 25.8, CH31.30, s
11″ 21.2, CH31.23, s
Table 2. The enzyme inhibitory and antibacterial activities of 17 and 1013.
Table 2. The enzyme inhibitory and antibacterial activities of 17 and 1013.
Comp.Enzyme Inhibition Rate at 50 μg/mL (%)Antibacterial Activities (MIC, μg/mL)
PLAChEE. faecalisK. pneumoniae
1a/1b58.8<10>100>100
2a/2b67.2<10>100>100
335.5<10>100>100
4<10<10>100>100
5<10<10>100>100
637.635.2>100100
773.0<1025>100
1054.1<10>100>100
11<10<10>100>100
1221.2<10>10050
1366.8<10>100>100
Control86.5 a83.7 b4 c0.5 c
a Orlistat, b tacrine, and c ampicillin were used as positive controls.
