Article

Development and Modeling of a Novel Magnetorheological Elastomer Isolator in Hybrid Mode with a Compression–Shear Hybrid Fractional-Derivative Parametric Model

by
Yun Tian
1,
Zhongwei Hu
2,*,
Yingqing Guo
3,
Lihua Zhu
1,
Jun Dai
2,
Yuxuan Tao
4 and
Xin Wang
4
1
School of Civil Engineering, Xi’an University of Architecture and Technology, Xi’an 710055, China
2
Institute of Dynamics and Smart Disaster Prevention, Northeastern University, Shenyang 110819, China
3
College of Mechanical and Electronic Engineering, Nanjing Forestry University, Nanjing 210037, China
4
China-Pakistan Belt and Road Joint Laboratory on Smart Disaster Prevention of Major Infrastructures, Southeast University, Nanjing 211189, China
*
Author to whom correspondence should be addressed.
Sensors 2025, 25(20), 6376; https://doi.org/10.3390/s25206376 (registering DOI)
Submission received: 7 September 2025 / Revised: 13 October 2025 / Accepted: 14 October 2025 / Published: 15 October 2025
(This article belongs to the Special Issue Structural Health Monitoring and Smart Disaster Prevention)
Versions Notes

Abstract

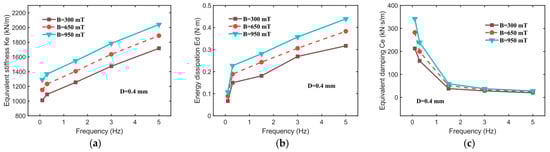

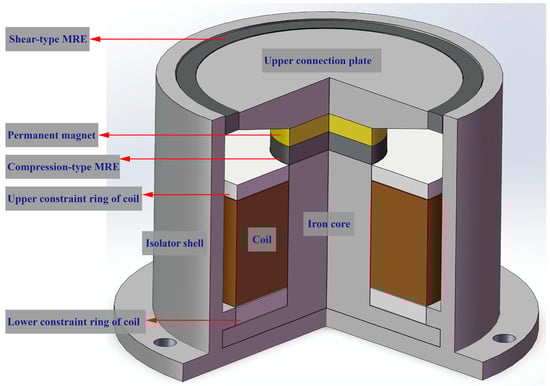

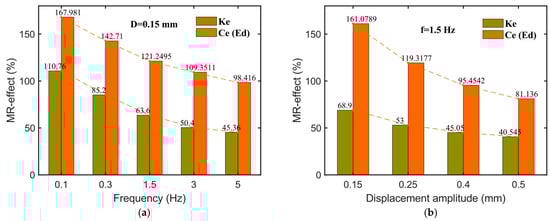

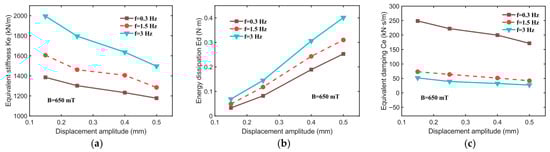

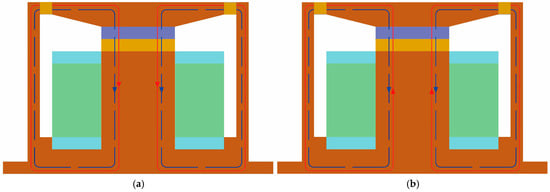

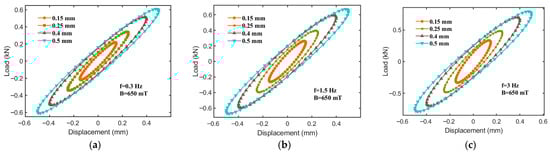

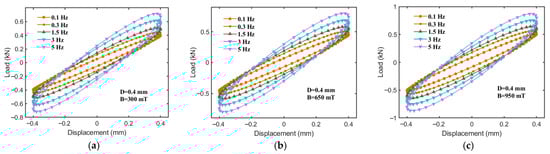

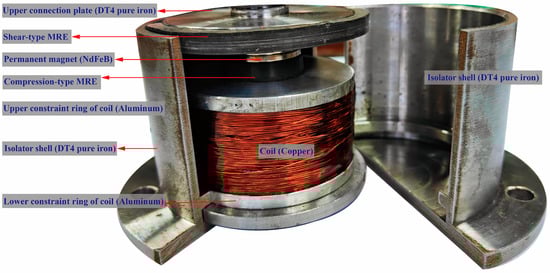

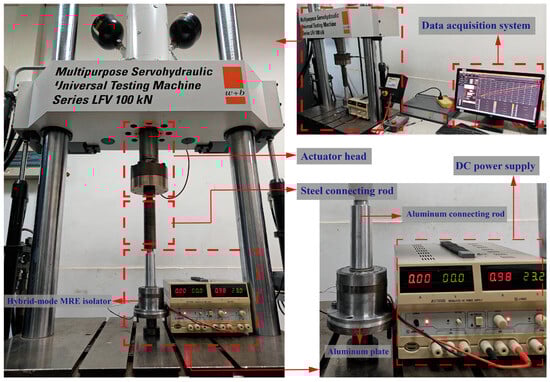

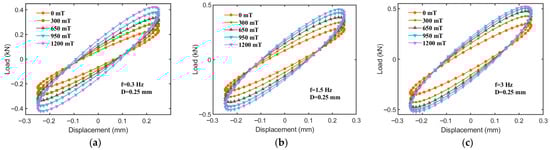

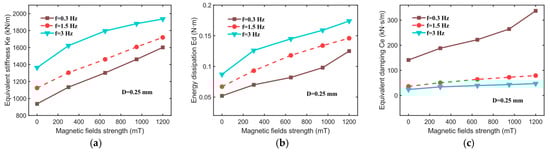

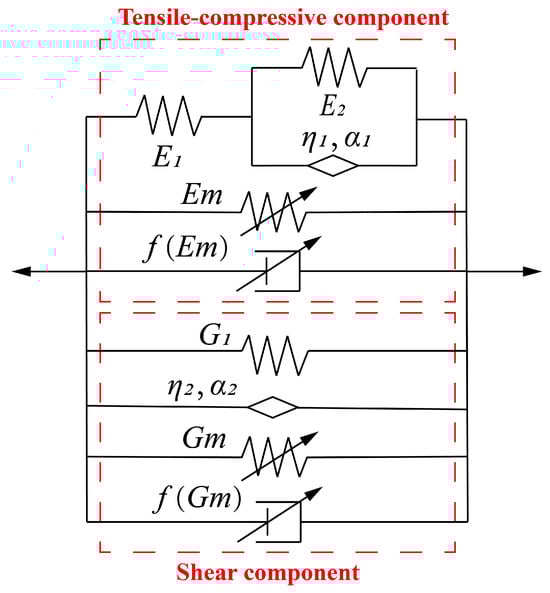

Magnetorheological elastomers (MREs) are composed of soft silicone rubber, carbonyl iron particles (CIPs), and various additives. This study designs and fabricates a novel hybrid-mode MRE isolator that can operate in both compression and shear modes simultaneously. Experimental and modeling investigations are conducted to examine the dynamic mechanical properties of the hybrid-mode MRE isolator under varying excitation frequencies, displacement amplitudes, and magnetic field strengths. The equivalent stiffness, energy dissipation, and equivalent damping of the MRE isolator are determined. Experimental results reveal that the hybrid-mode MRE isolator exhibits a pronounced MR effect by utilizing a hybrid magnetic field generation system, with all three parameters significantly increasing as the magnetic field strength increases. However, as the excitation frequency increases, the equivalent stiffness and energy dissipation increase, while the equivalent damping decreases. Based on the experimental findings, a compression–shear hybrid fractional-derivative parametric (CSHF) model is proposed to describe the impact of different operating conditions on the dynamic viscoelastic properties of the MRE isolator. A comparative analysis of the experimental results and model predictions indicates that the proposed mechanical model can accurately describe the dynamic mechanical characteristics of the hybrid-mode MRE isolator.
Keywords: magnetorheological elastomer (MRE); hybrid mode MRE isolator; dynamic mechanical properties; compression-shear hybrid fractional-derivative parametric (CSHF) model; hybrid magnetic field generation system magnetorheological elastomer (MRE); hybrid mode MRE isolator; dynamic mechanical properties; compression-shear hybrid fractional-derivative parametric (CSHF) model; hybrid magnetic field generation system
