# A Bearing Fault Diagnosis Method Based on Wavelet Packet Transform and Convolutional Neural Network Optimized by Simulated Annealing Algorithm

^{*}

## Abstract

**:**

## 1. Introduction

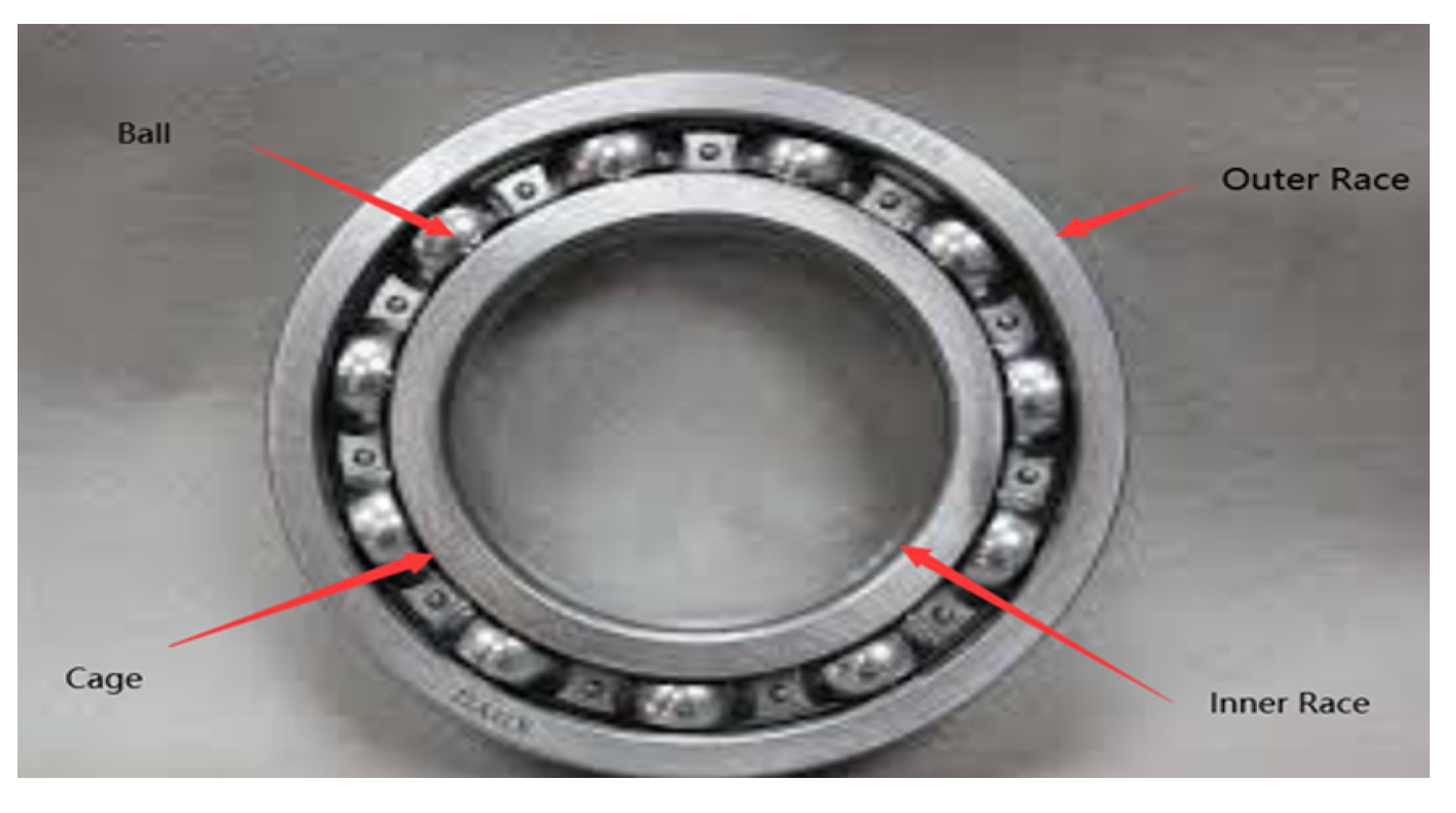

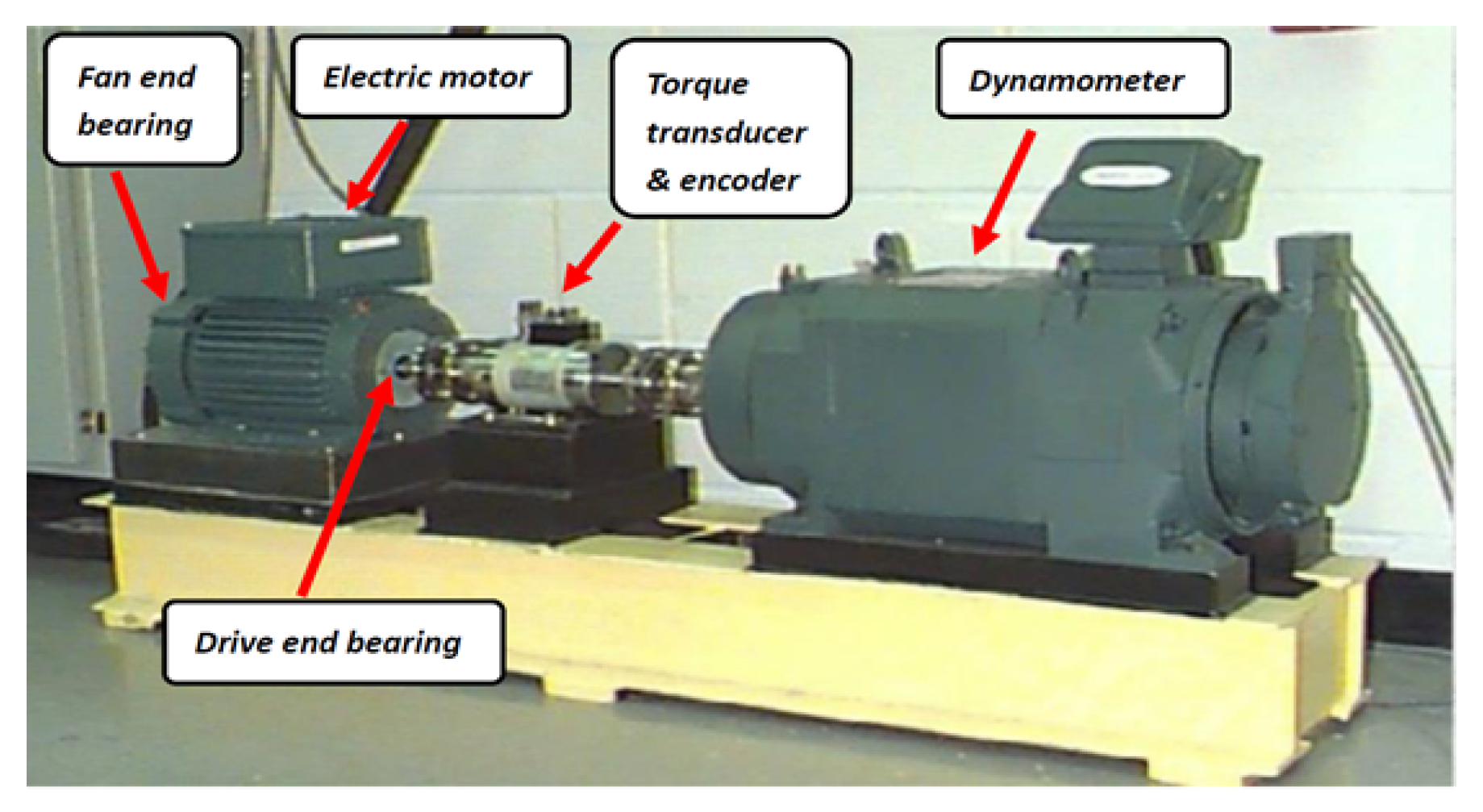

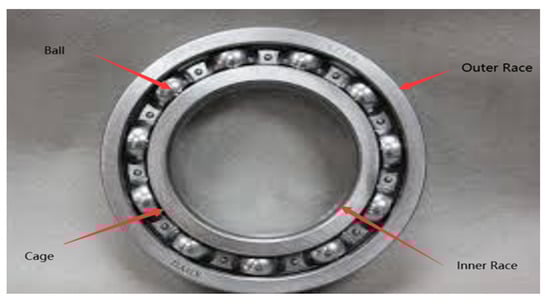

## 2. Data Set Description

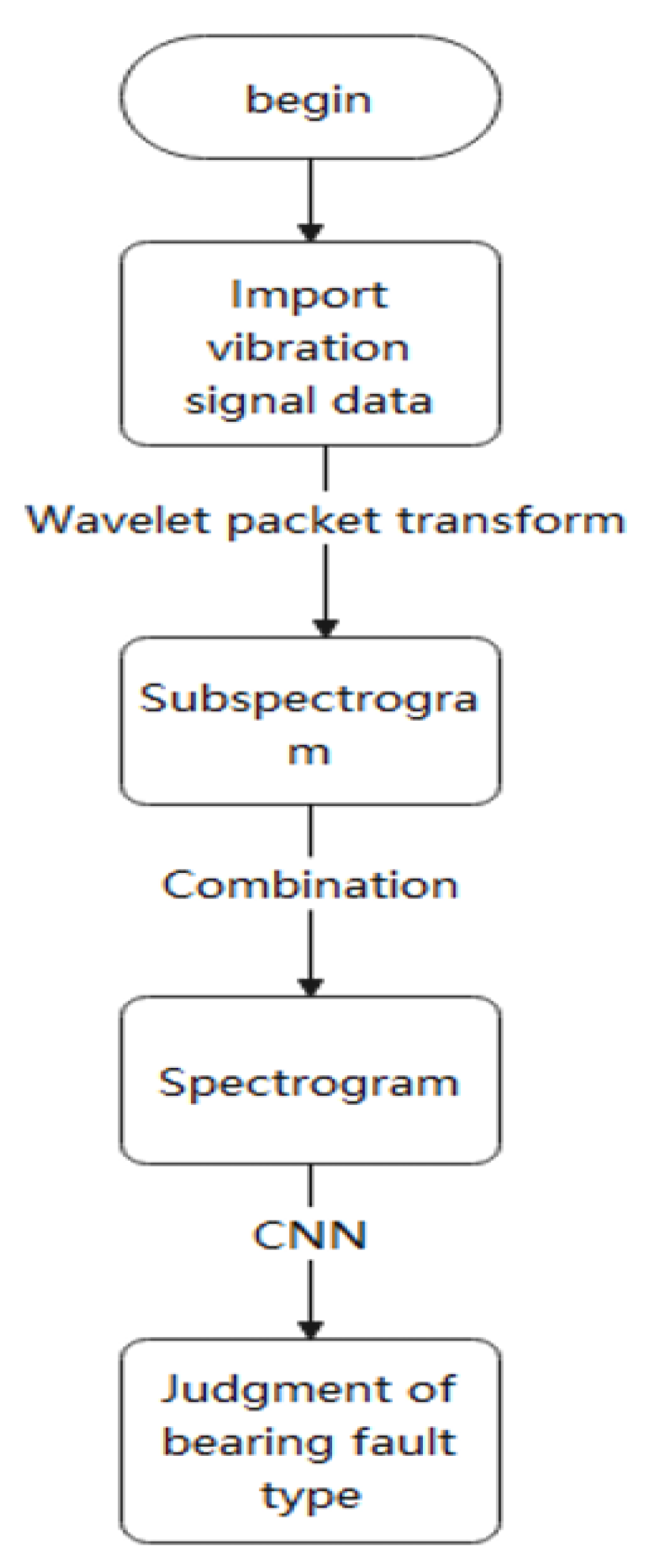

## 3. The Proposed Bearing Fault Diagnosis Method

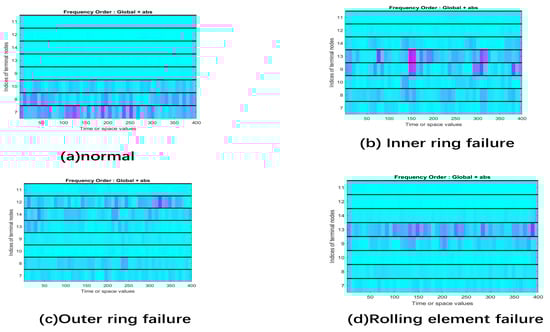

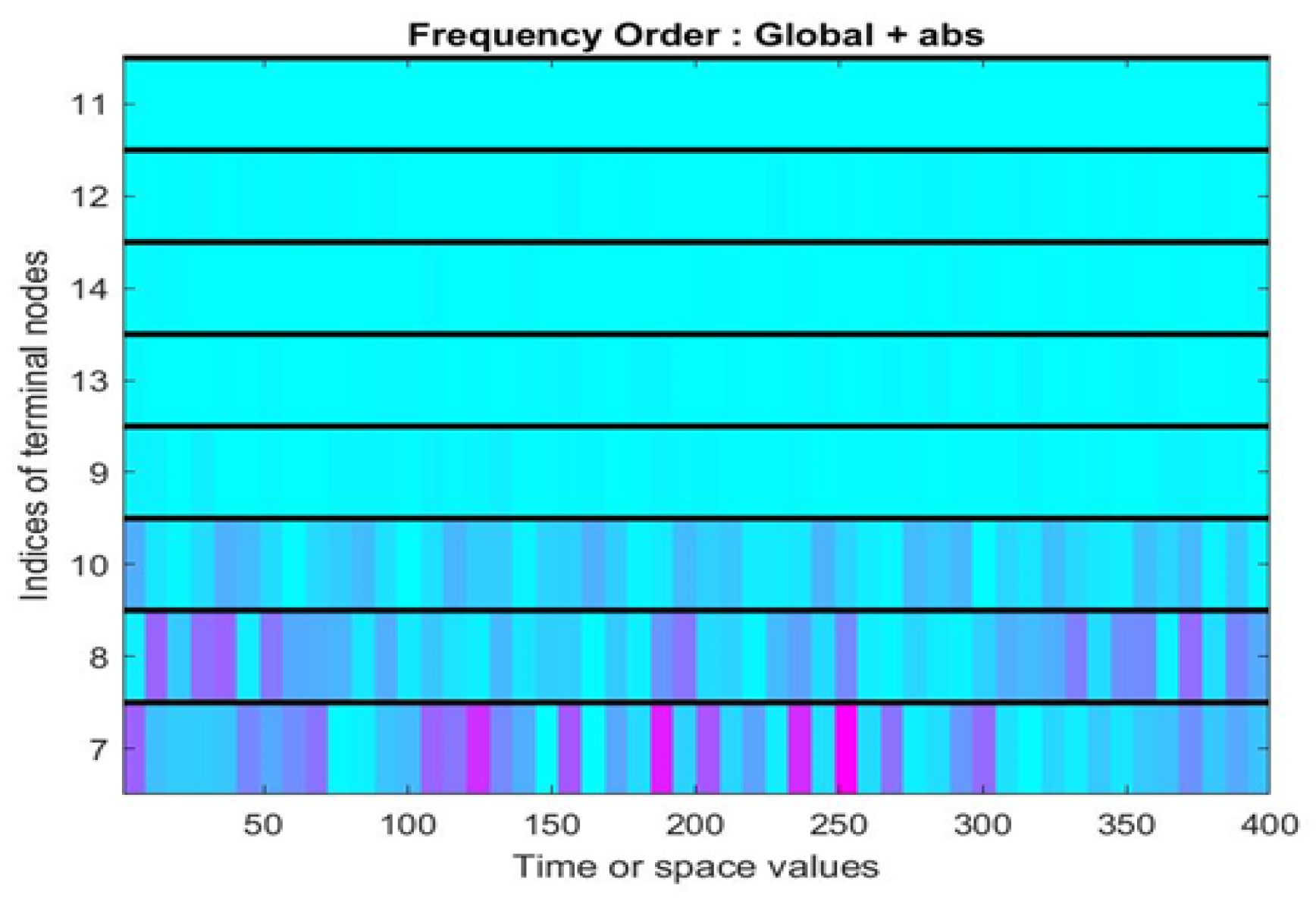

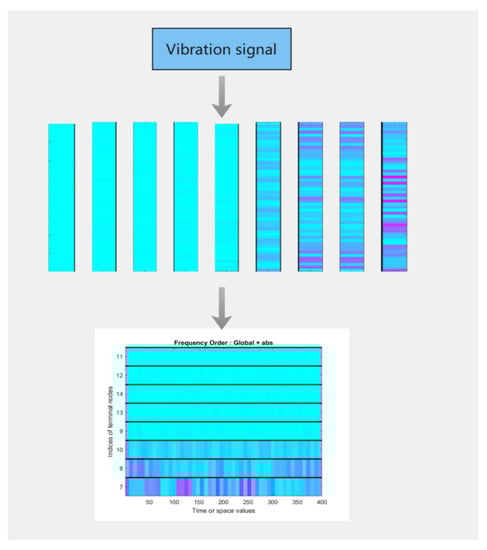

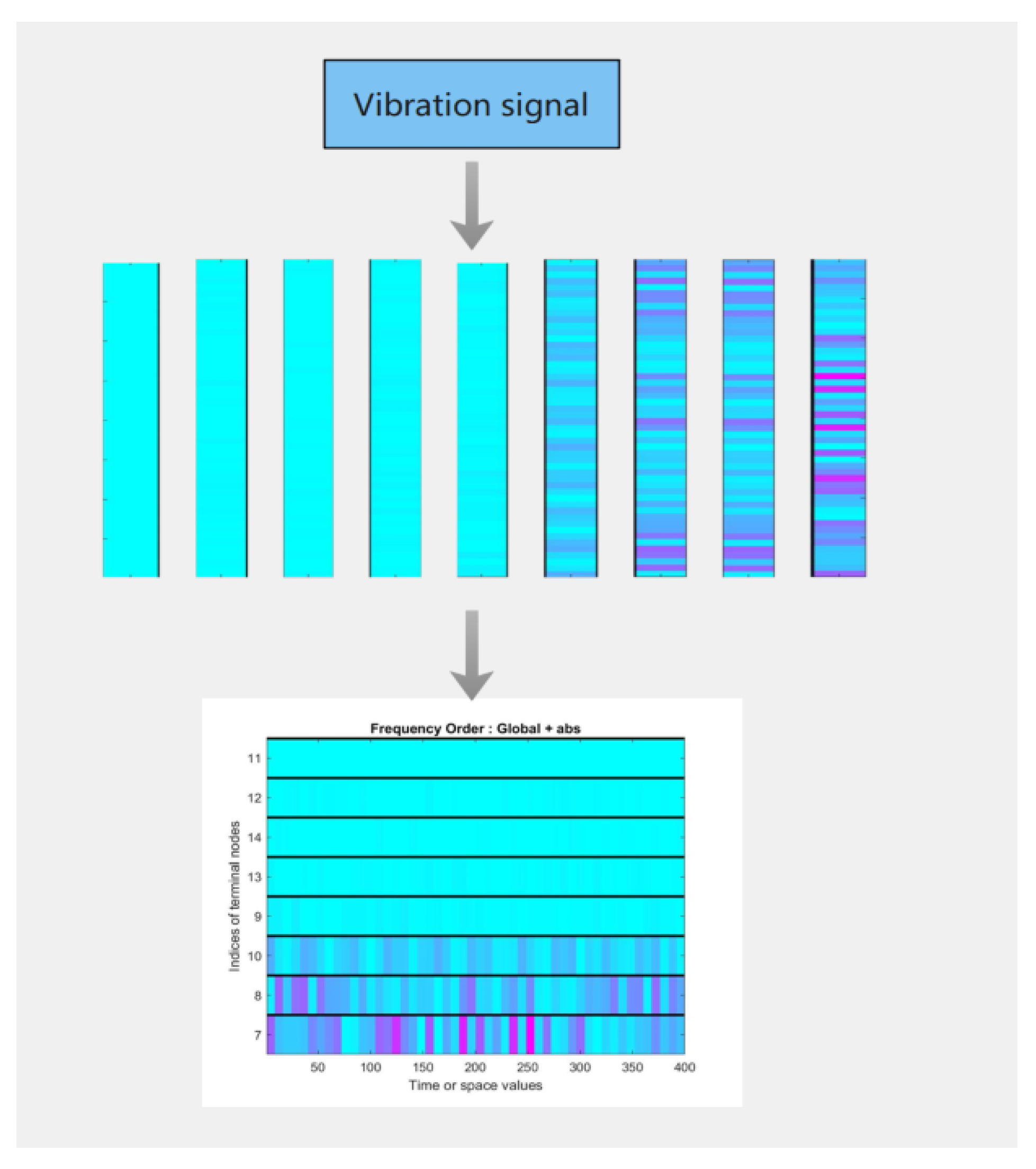

#### 3.1. Feature Extraction Based on Wavelet Packet Transform

#### 3.2. Fault Classification Based on a Convolutional Neural Network

#### 3.2.1. Convolutional Layer

#### 3.2.2. Activation Function

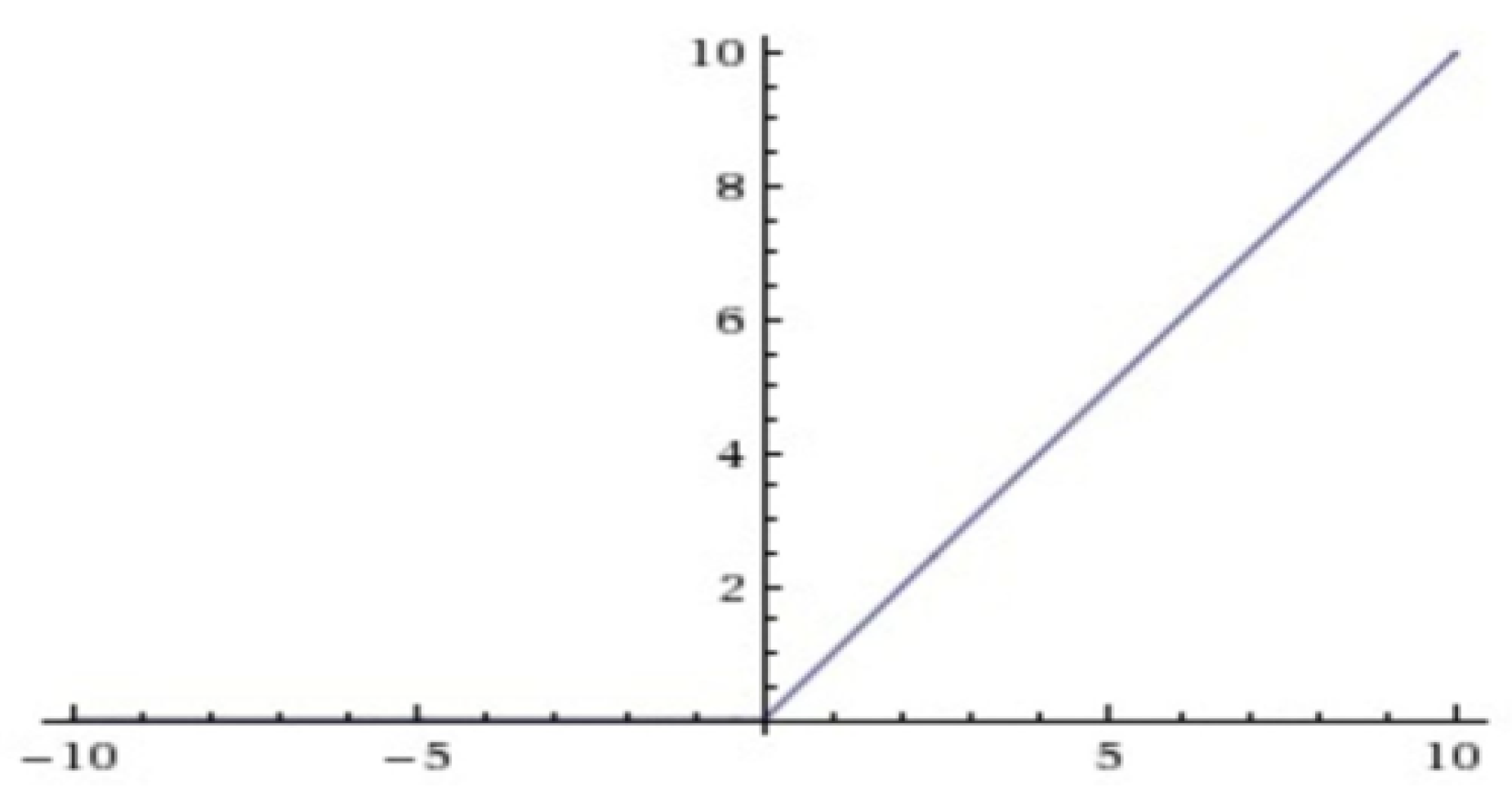

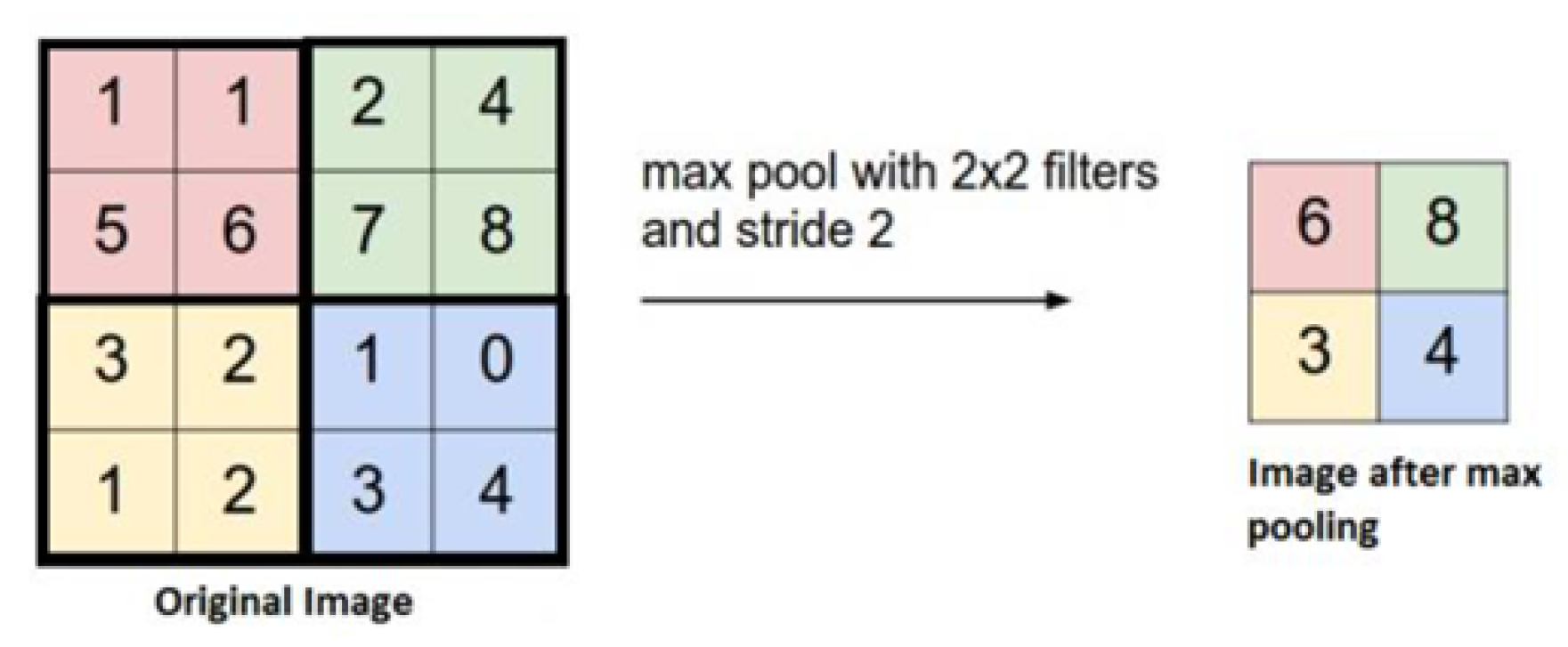

#### 3.2.3. Pooling Layer

#### 3.2.4. Fully Connected Layer

#### 3.2.5. Fault Classification

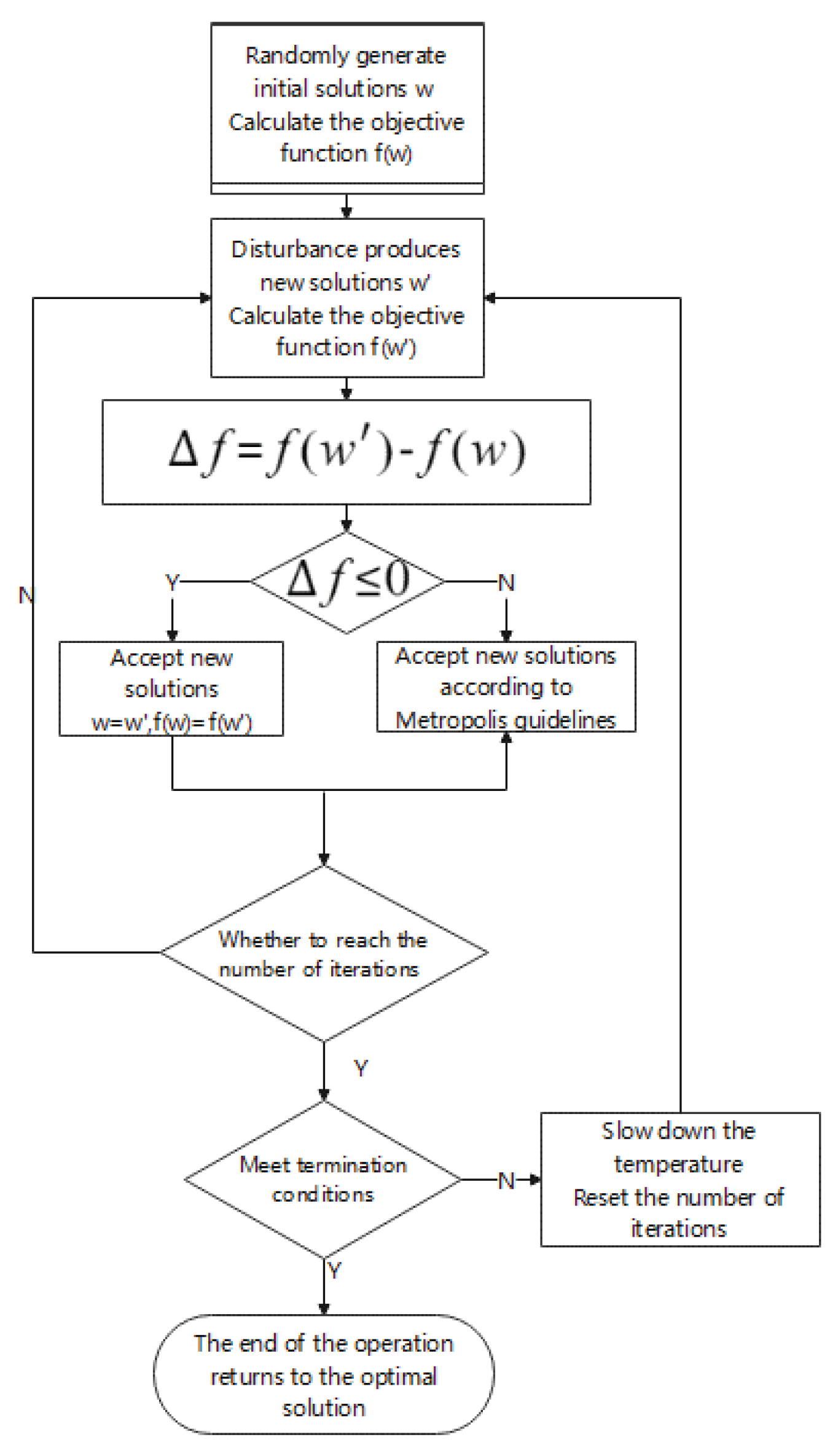

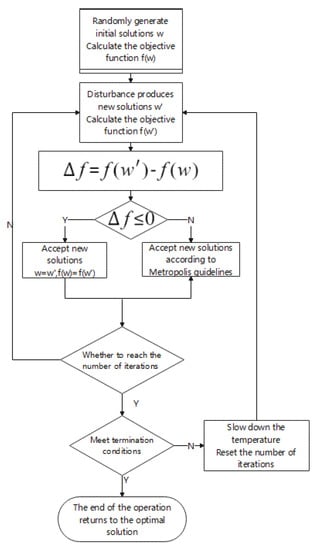

#### 3.3. Optimization Based on Simulated Annealing Algorithm

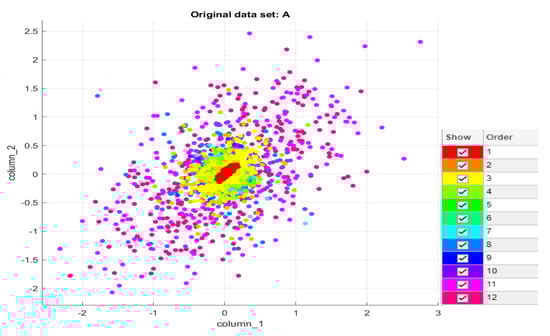

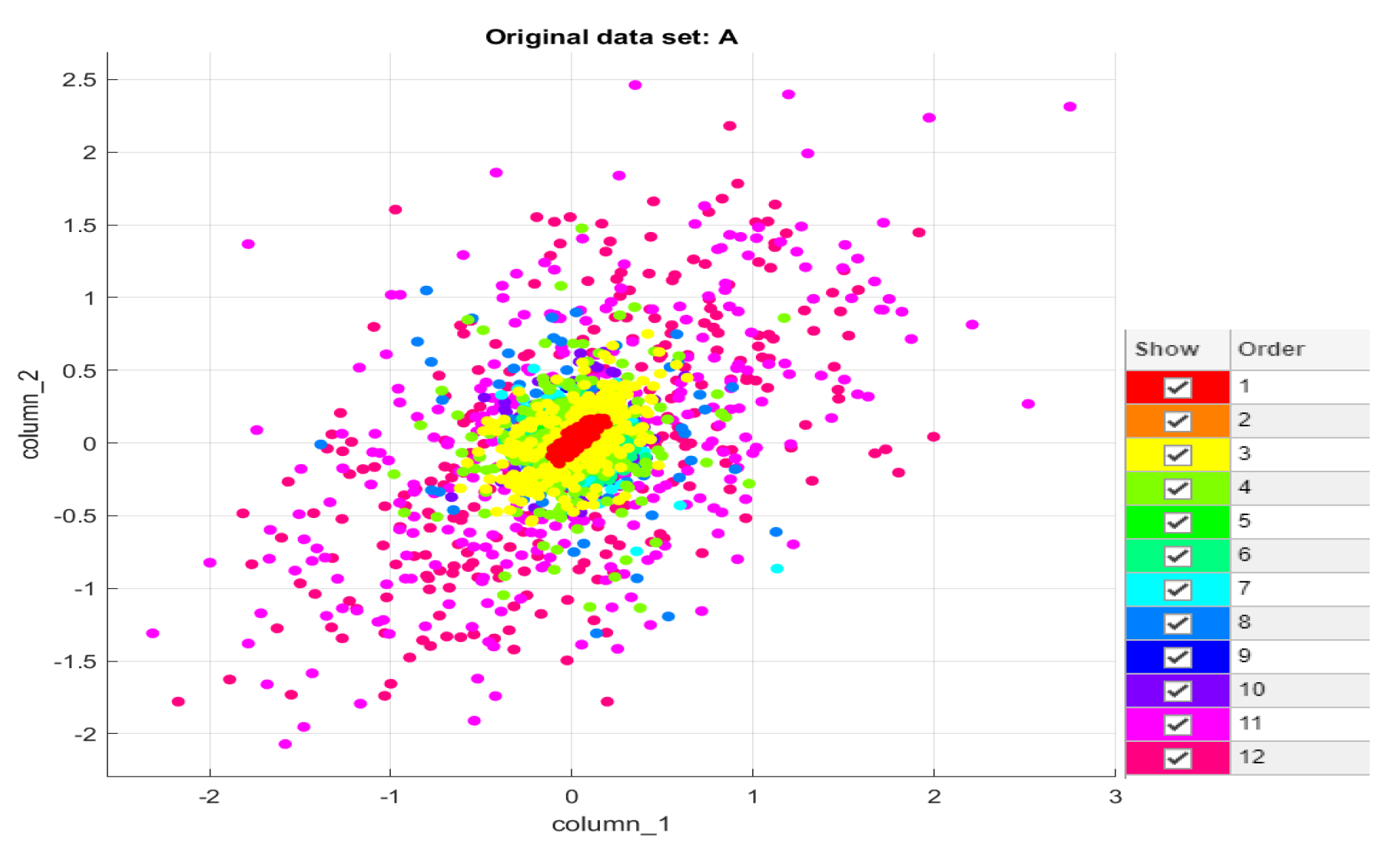

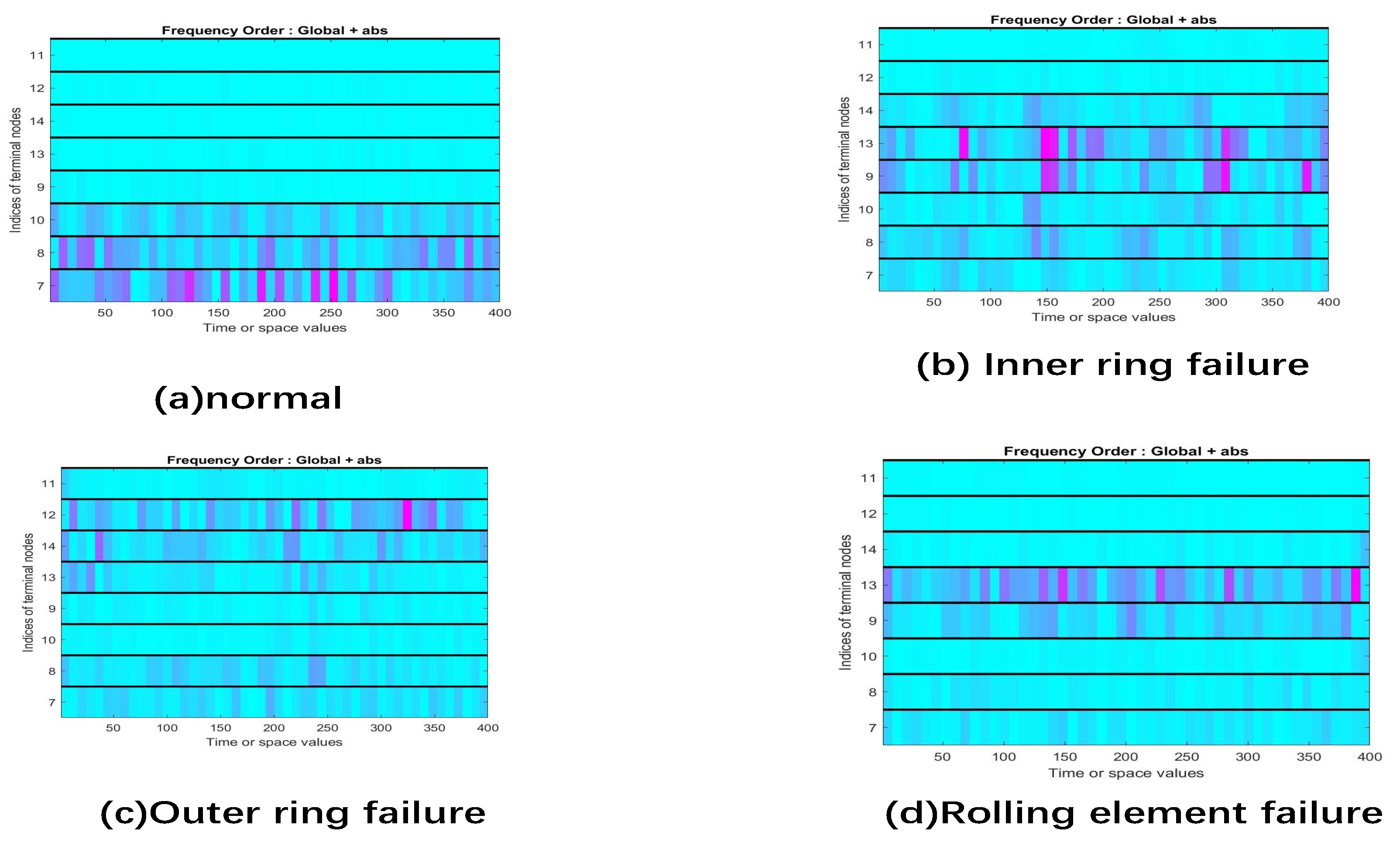

## 4. Analysis of Results

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Hoang, D.T.; Kang, H.J. A survey on deep learning based bearing fault diagnosis. Neurocomputing
**2019**, 335, 327–335. [Google Scholar] [CrossRef] - Islam, M.M.M.; Kim, J.M. Reliable multiple combined fault diagnosis of bearings using heterogeneous feature models and multiclass support vector machines. Reliab. Eng. Syst. Saf.
**2019**, 184, 55–66. [Google Scholar] [CrossRef] - Gu, Y.K.; Zhou, X.Q.; Yu, D.P.; Shen, Y.J. Fault diagnosis method of rolling bearing using principal component analysis and support vector machine. J. Mech. Sci. Technol.
**2018**, 32, 5079–5088. [Google Scholar] [CrossRef] - Dong, S.; Xu, X.; Chen, R. Application of fuzzy C-means method and classification model of optimized K-nearest neighbor for fault diagnosis of bearing. J. Braz. Soc. Mech. Sci. Eng.
**2016**, 38, 2255–2263. [Google Scholar] [CrossRef] - Tian, J.; Morillo, C.; Azarian, M.H.; Pecht, M. Motor bearing fault detection using spectral kurtosis-based feature extraction coupled with K-nearest neighbor distance analysis. IEEE Trans. Ind. Electron.
**2015**, 63, 1793–1803. [Google Scholar] [CrossRef] - Kang, M.; Ramaswami, G.K.; Hodkiewicz, M.; Cripps, E.; Kim, J.M.; Pecht, M. A sequential K-nearest neighbor classification approach for data-driven fault diagnosis using distance-and density-based affinity measures. In International Conference on Data Mining and Big Data; Springer: Cham, Switzerland, 2016; pp. 253–261. [Google Scholar]
- Sun, X.; Tan, J.; Wen, Y.; Feng, C. Rolling bearing fault diagnosis method based on data-driven random fuzzy evidence acquisition and Dempster–Shafer evidence theory. Adv. Mech. Eng.
**2016**, 8, 1687814015624834. [Google Scholar] [CrossRef] - Shen, F.; Chen, C.; Yan, R.; Gao, R.X. Bearing fault diagnosis based on SVD feature extraction and transfer learning classification. In Proceedings of the 2015 Prognostics and System Health Management Conference (PHM), Beijing, China, 21–23 October 2015; pp. 1–6. [Google Scholar]
- Yuan, L.; Lian, D.; Kang, X.; Chen, Y.; Zhai, K. Rolling bearing fault diagnosis based on convolutional neural network and support vector machine. IEEE Access
**2020**, 8, 137395–137406. [Google Scholar] [CrossRef] - Ning, X.; Gong, K.; Li, W.; Zhang, L. JWSAA: Joint weak saliency and attention aware for person re-identification. Neurocomputing
**2021**, 453, 801–811. [Google Scholar] [CrossRef] - Ning, X.; Duan, P.; Li, W.; Zhang, S. Real-time 3D face alignment using an encoder-decoder network with an efficient deconvolution layer. IEEE Signal Process. Lett.
**2020**, 27, 1944–1948. [Google Scholar] [CrossRef] - Wang, L.H.; Zhao, X.P.; Wu, J.X.; Xie, Y.Y.; Zhang, Y.H. Motor fault diagnosis based on short-time Fourier transform and convolutional neural network. Chin. J. Mech. Eng.
**2017**, 30, 1357–1368. [Google Scholar] [CrossRef] - Lei, Y.; Jia, F.; Lin, J.; Xing, S.; Ding, S.X. An intelligent fault diagnosis method using unsupervised feature learning towards mechanical big data. IEEE Trans. Ind. Electron.
**2016**, 63, 3137–3147. [Google Scholar] [CrossRef] - Zhang, Y.; Xing, K.; Bai, R.; Sun, D.; Meng, Z. An enhanced convolutional neural network for bearing fault diagnosis based on time–frequency image. Measurement
**2020**, 157, 107667. [Google Scholar] [CrossRef] - Yao, D.; Liu, H.; Yang, J.; Li, X. A lightweight neural network with strong robustness for bearing fault diagnosis. Measurement
**2020**, 159, 107756. [Google Scholar] [CrossRef] - Hoang, D.T.; Kang, H.J. Rolling element bearing fault diagnosis using convolutional neural network and vibration image. Cogn. Syst. Res.
**2019**, 53, 42–50. [Google Scholar] [CrossRef] - Zhao, D.; Wang, T.; Chu, F. Deep convolutional neural network based planet bearing fault classification. Comput. Ind.
**2019**, 107, 59–66. [Google Scholar] [CrossRef] - Saucedo-Dorantes, J.J.; Arellano-Espitia, F.; Delgado-Prieto, M.; Osornio-Rios, R.A. Diagnosis Methodology Based on Deep Feature Learning for Fault Identification in Metallic, Hybrid and Ceramic Bearings. Sensors
**2021**, 21, 5832. [Google Scholar] [CrossRef] [PubMed] - Gelman, L.; Patel, T.H.; Persin, G.; Murray, B.; Thomson, A. Novel technology based on the spectral kurtosis and wavelet transform for rolling bearing diagnosis. Int. J. Progn. Health Manag.
**2013**, 4. [Google Scholar] [CrossRef] - Gelman, L.; Kırlangıç, A.S. Novel vibration structural health monitoring technology for deep foundation piles by non-stationary higher order frequency response function. Struct. Control. Health Monit.
**2020**, 27, e2526. [Google Scholar] [CrossRef] - Gelman, L.; Chandra, N.H.; Kurosz, R.; Pellicano, F.; Barbieri, M.; Zippo, A. Novel spectral kurtosis technology for adaptive vibration condition monitoring of multi-stage gearboxes. Insight-Non-Destr. Test. Cond. Monit.
**2016**, 58, 409–416. [Google Scholar] [CrossRef] - Abdel-Basset, M.; Mohamed, R.; Saber, S.; Askar, S.S.; Abouhawwash, M. Modified Flower Pollination Algorithm for Global Optimization. Mathematics
**2021**, 9, 1661. [Google Scholar] [CrossRef] - Abdel-Basset, M.; Mohamed, R.; Abouhawwash, M.; Chang, V.; Askar, S.S. A Local Search-Based Generalized Normal Distribution Algorithm for Permutation Flow Shop Scheduling. Appl. Sci.
**2021**, 11, 4837. [Google Scholar] [CrossRef] - Abdel-Basset, M.; Mohamed, R.; Abouhawwash, M.; Chakrabortty, R.K.; Ryan, M.J. A Simple and Effective Approach for Tackling the Permutation Flow Shop Scheduling Problem. Mathematics
**2021**, 9, 270. [Google Scholar] [CrossRef] - Szegedy, C.; Liu, W.; Jia, Y.; Sermanet, P.; Reed, S.; Anguelov, D.; Erhan, D.; Vanhoucke, V.; Rabinovich, A. Going deeper with convolutions. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Boston, MA, USA, 8–10 June 2015; pp. 1–9. [Google Scholar]
- Zamani, H.; Nadimi-Shahraki, M.H.; Gandomi, A.H. QANA: Quantum-based avian navigation optimizer algorithm. Eng. Appl. Artif. Intell.
**2021**, 104, 104314. [Google Scholar] [CrossRef] - Nadimi-Shahraki, M.H.; Fatahi, A.; Zamani, H.; Mirjalili, S.; Abualigah, L.; Abd Elaziz, M. Migration-Based Moth-Flame Optimization Algorithm. Processes
**2021**, 9, 2276. [Google Scholar] [CrossRef] - Chu, W.; Ho, P.S.; Li, W. An adaptive machine learning method based on finite element analysis for ultra low-k chip package design. IEEE Trans. Compon. Packag. Manuf. Technol.
**2021**, 11, 1435–1441. [Google Scholar] [CrossRef] - Wu, Z.; Chu, W. Sampling strategy analysis of machine learning models for energy consumption prediction. In Proceedings of the 2021 IEEE 9th International Conference on Smart Energy Grid Engineering (SEGE), Oshawa, ON, Canada, 11–13 August 2021; pp. 77–81. [Google Scholar]
- Smith, W.A.; Randall, R.B. Rolling element bearing diagnostics using the Case Western Reserve University data: A benchmark study. Mech. Syst. Signal Process.
**2015**, 64, 100–131. [Google Scholar] [CrossRef] - Boudiaf, A.; Moussaoui, A.; Dahane, A.; Atoui, I. A comparative study of various methods of bearing faults diagnosis using the case Western Reserve University data. J. Fail. Anal. Prev.
**2016**, 16, 271–284. [Google Scholar] [CrossRef] - Zarei, J.; Poshtan, J. Bearing fault detection using wavelet packet transform of induction motor stator current. Tribol. Int.
**2007**, 40, 763–769. [Google Scholar] [CrossRef] - Wu, J.D.; Liu, C.H. An expert system for fault diagnosis in internal combustion engines using wavelet packet transform and neural network. Expert Syst. Appl.
**2009**, 36, 4278–4286. [Google Scholar] [CrossRef] - Yen, G.G.; Lin, K.C. Wavelet packet feature extraction for vibration monitoring. IEEE Trans. Ind. Electron.
**2000**, 47, 650–667. [Google Scholar] [CrossRef] [Green Version] - Acharya, U.R.; Oh, S.L.; Hagiwara, Y.; Tan, J.H.; Adam, M.; Gertych, A.; San Tan, R. A deep convolutional neural network model to classify heartbeats. Comput. Biol. Med.
**2017**, 89, 389–396. [Google Scholar] [CrossRef] [PubMed] - Prosvirin, A.; Kim, J.Y.; Kim, J.M. Bearing fault diagnosis based on convolutional neural networks with kurtogram representation of acoustic emission signals. In Advances in Computer Science and Ubiquitous Computing; Springer: Singapore, 2017; pp. 21–26. [Google Scholar]
- Zhang, W.; Li, C.; Peng, G.; Chen, Y.; Zhang, Z. A deep convolutional neural network with new training methods for bearing fault diagnosis under noisy environment and different working load. Mech. Syst. Signal Process.
**2018**, 100, 439–453. [Google Scholar] [CrossRef] - Xu, G.; Liu, M.; Jiang, Z.; Söffker, D.; Shen, W. Bearing fault diagnosis method based on deep convolutional neural network and random forest ensemble learning. Sensors
**2019**, 19, 1088. [Google Scholar] [CrossRef] [Green Version] - Zhu, J.; Chen, N.; Peng, W. Estimation of bearing remaining useful life based on multiscale convolutional neural network. IEEE Trans. Ind. Electron.
**2018**, 66, 3208–3216. [Google Scholar] [CrossRef] - Xiong, J.; Liu, X.; Zhu, X.; Zhu, H.; Li, H.; Zhang, Q. Semi-supervised fuzzy c-means clustering optimized by simulated annealing and genetic algorithm for fault diagnosis of bearings. IEEE Access
**2020**, 8, 181976–181987. [Google Scholar] [CrossRef] - Yong, W.; Zhou, J.; Jahed Armaghani, D.; Tahir, M.M.; Tarinejad, R.; Pham, B.T.; Van Huynh, V. A new hybrid simulated annealing-based genetic programming technique to predict the ultimate bearing capacity of piles. Eng. Comput.
**2020**, 37, 1–17. [Google Scholar] [CrossRef] - Dybała, J.; Zimroz, R. Rolling bearing diagnosing method based on empirical mode decomposition of machine vibration signal. Appl. Acoust.
**2014**, 77, 195–203. [Google Scholar] [CrossRef]

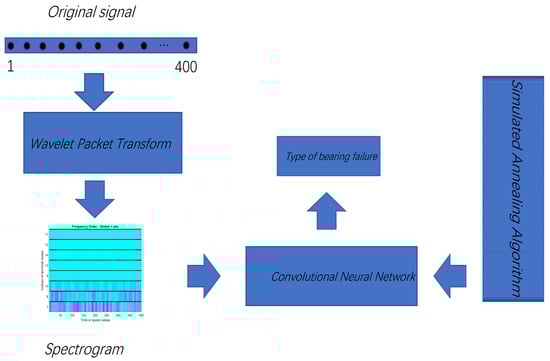

**Figure 4.**Schematic diagram of the method presented in this paper. First, input the original signal with a length of 400, perform wavelet packet transformation, and obtain a spectrogram. The obtained spectrogram is then used as a training data set and sent to the convolutional neural network. Finally, the simulated annealing algorithm is used to adjust the parameters of the convolutional neural network.

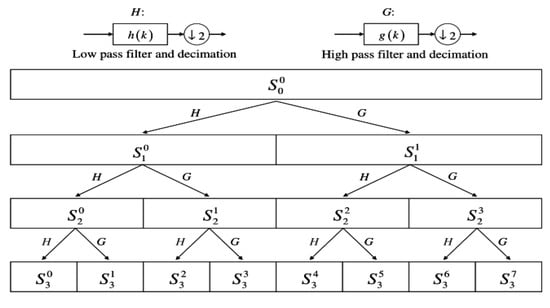

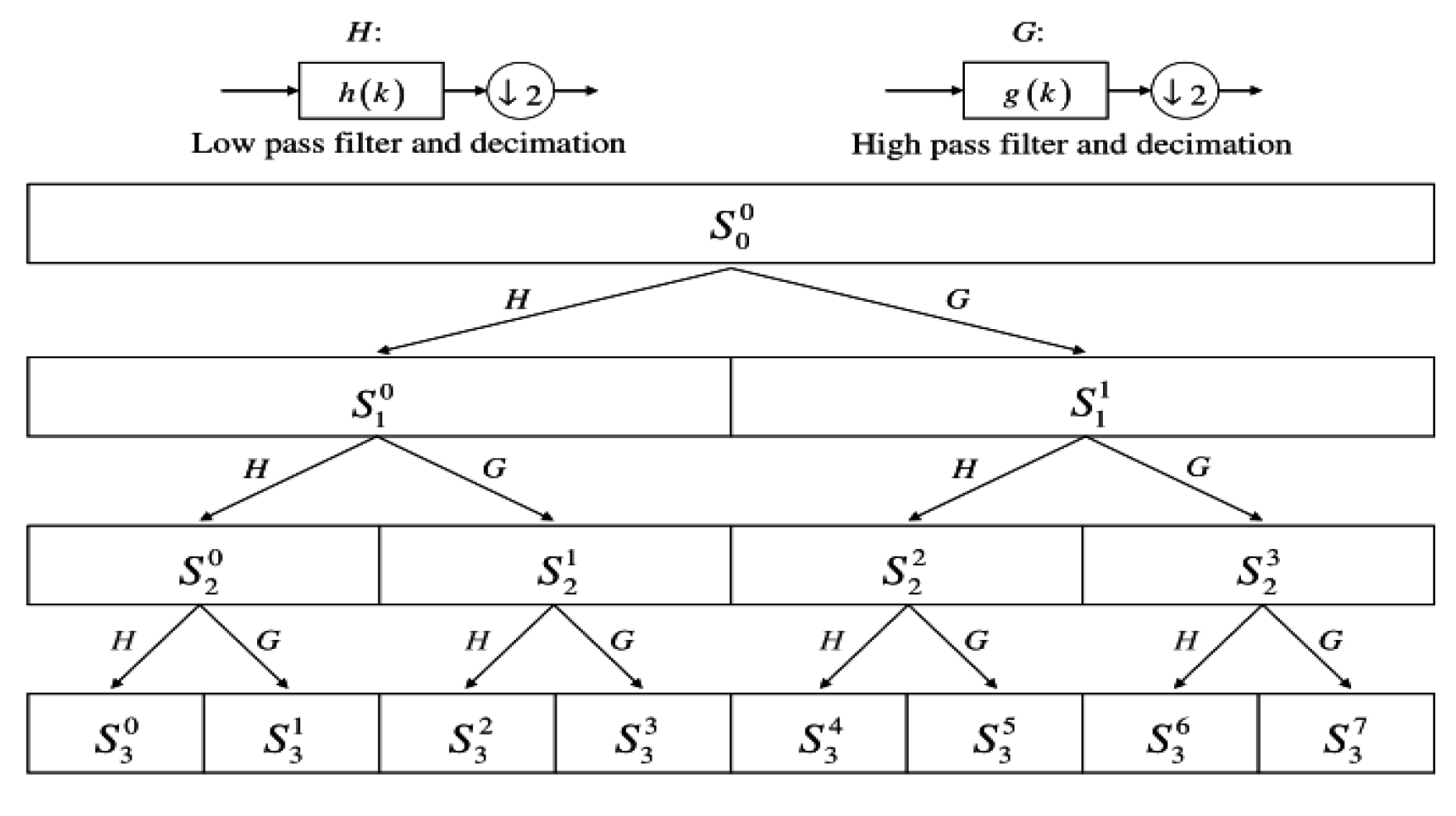

**Figure 5.**WPT decomposition tree structure [34].

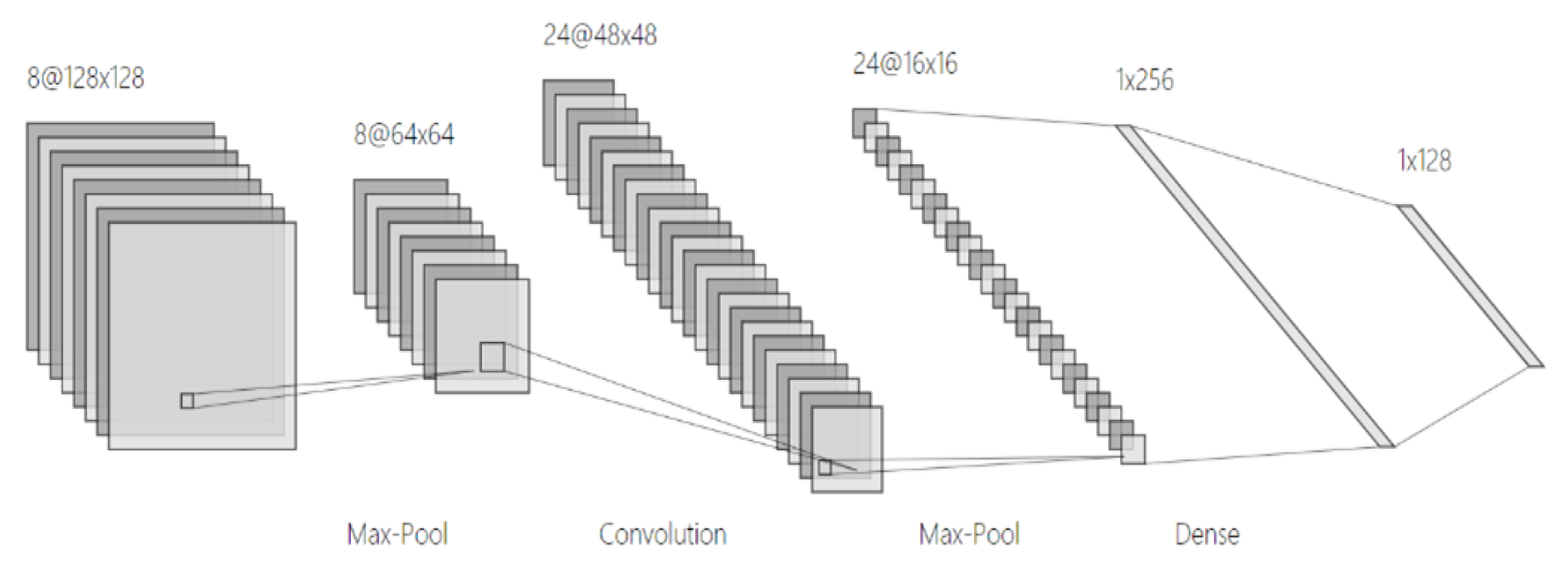

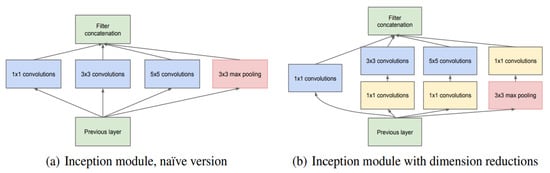

**Figure 12.**Convolutional neural network structure used in the experiment (partial) [25].

Class | Name | Samples | Distribution | Description |
---|---|---|---|---|

1 | normal_FE_1 | 846 | 22.2% | normal, 1 hp load |

2 | normal_DE_2 | 846 | 22.2% | normal, 2 hp load |

3 | Inner_FE_1_007 | 212 | 5.56% | 0.007’’, 1 hp load |

4 | Inner_DE_1_007 | 212 | 5.56% | 0.007’’, 1 hp load |

5 | Ball_FE_1_007 | 211 | 5.53% | 0.007’’, 1 hp load |

6 | Ball_DE_1_007 | 211 | 5.53% | 0.007’’, 1 hp load |

7 | Outer_FE_1_007 | 212 | 5.56% | 0.007’’, 1 hp load |

8 | Outer_DE_1_007 | 212 | 5.56% | 0.007’’, 1 hp load |

9 | Inner_FE_1_014 | 212 | 5.56% | 0.014’’, 1 hp load |

10 | Inner_FE_2_014 | 212 | 5.56% | 0.014’’, 2 hp load |

11 | Inner_DE_2_028 | 212 | 5.56% | 0.028’’, 2 hp load |

12 | Inner_DE_3_028 | 212 | 5.56% | 0.028’’, 3 hp load |

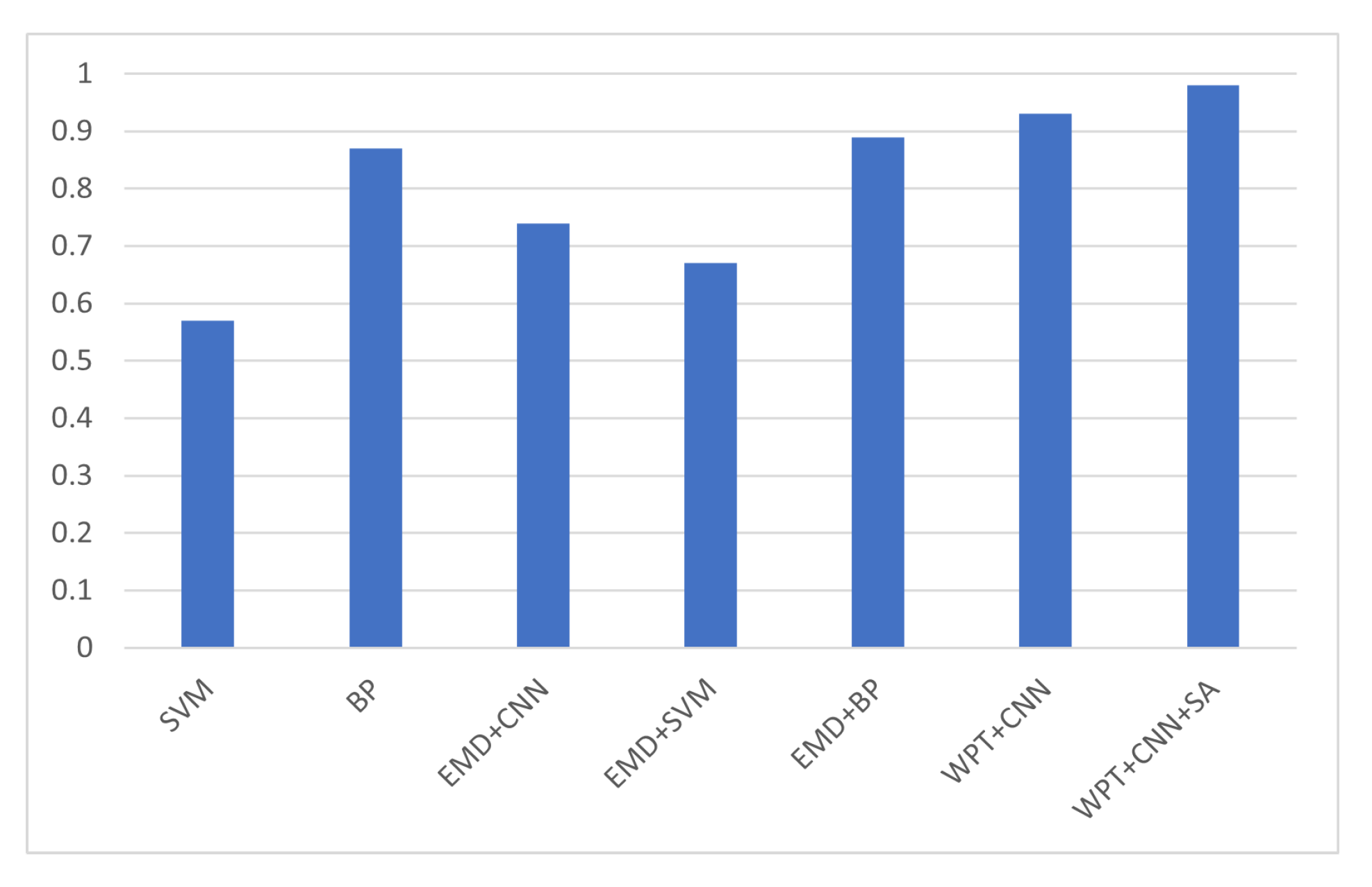

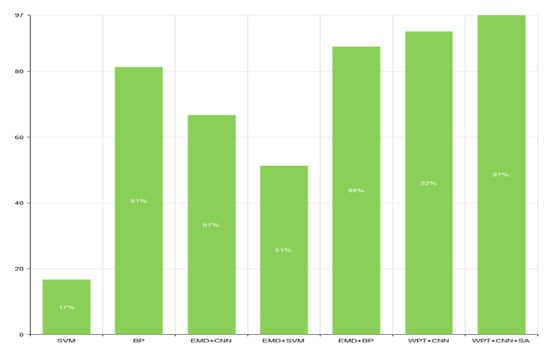

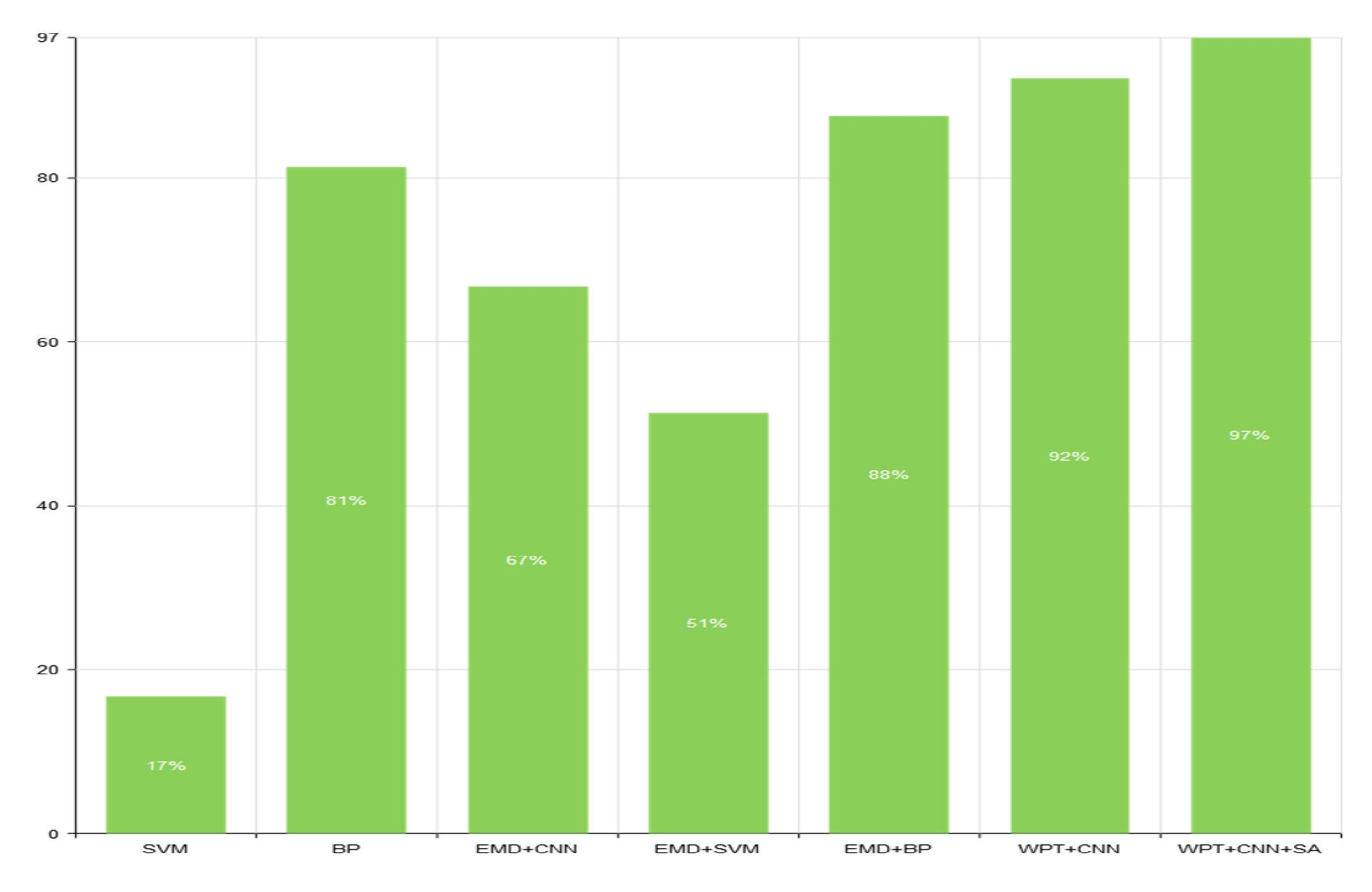

**Table 2.**Experimental omparison. The experimental results come from the implementation of the existing methods. On the machine equipped with GTX 1660TI, the matlab neural network toolbox is used to conduct multiple experiments, and the average value is obtained to obtain the result.

Class | Method | Sample Number | Accuracy(%) |
---|---|---|---|

1 | SVM | 1000 | 16.67 |

2 | BP | 1000 | 81.31 |

3 | EMD+CNN | 1000 | 66.76 |

4 | EMD+SVM | 1000 | 51.32 |

5 | EMD+BP | 1000 | 87.53 |

6 | WPT+CNN | 1000 | 92.13 |

7 | WPT+CNN+SA | 1000 | 97.12 |
