# A Review on Coupled Bulk Acoustic Wave MEMS Resonators

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Fundamentals of BAW Resonators

#### 2.1. BAW Resonators

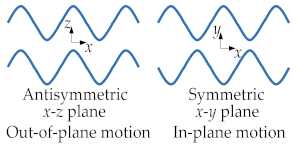

#### 2.1.1. BAW Propagation

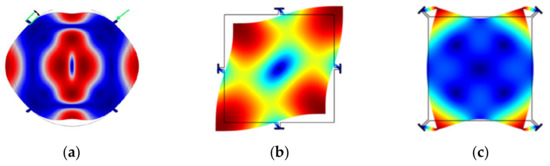

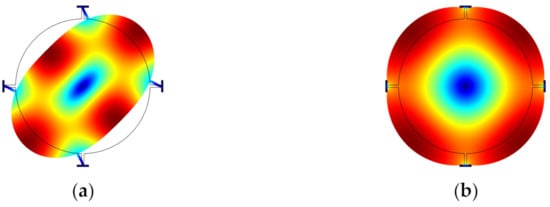

#### 2.1.2. Bulk Vibration Modes

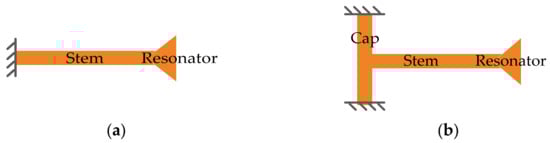

#### 2.1.3. BAW Resonators with Different Suspension Structures

#### 2.2. Multi Degrees-of-Freedom (Multi-DoF) Coupled BAW Resonators

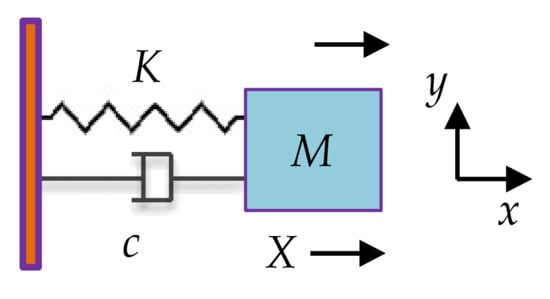

#### 2.2.1. Mass-Spring-Damper System for a Single Degree of Freedom (1-DoF) BAW Resonator

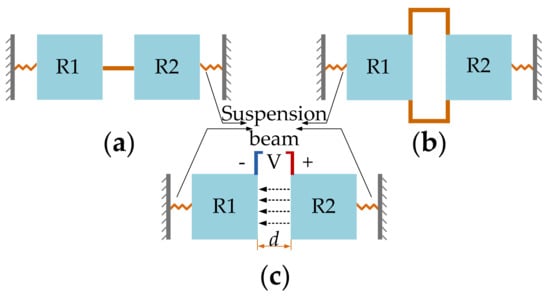

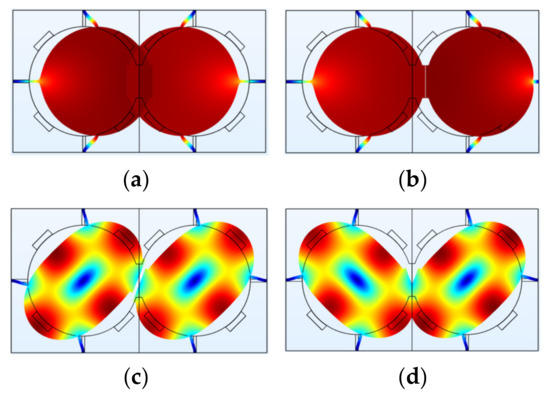

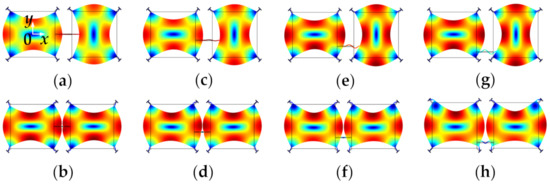

#### 2.2.2. Coupling Mechanisms

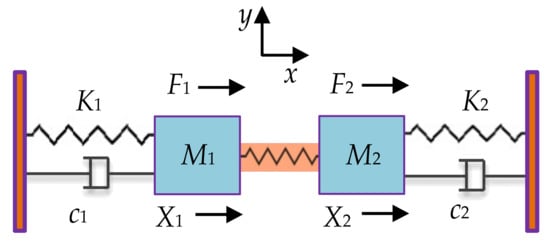

#### 2.2.3. Mass-Spring-Damper System for 2-DoF Weakly Coupled BAW Resonators

_{1}and M

_{2}are the mass of two resonators, K

_{1}and K

_{2}are the suspension spring stiffness, K

_{c}is the stiffness of the coupling spring, c

_{1}and c

_{2}are the damping coefficient. Similarly, the displacements of the two resonators are X

_{1}and X

_{2}, and the external forces applied to the two resonators are F

_{1}and F

_{2}.

_{1}= F

_{2}= 0 and c = 0, the resonant frequency of this system can be obtained, expressed as [48]:

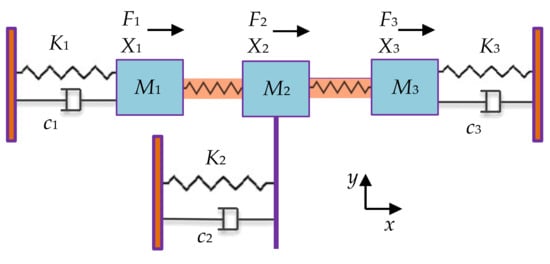

#### 2.2.4. Mass-Spring-Damper System for 3-DoF Weakly Coupled BAW Resonators

_{3}is the mass of resonator 3, K

_{3}is the supporting spring stiffness, Kc

_{1}and Kc

_{2}are the stiffness of the coupling spring, and c

_{3}is the damping. Similarly, the displacement of resonator 3 is X

_{3}, and the force applied to the three resonators is F

_{1}, F

_{2}, and F

_{3}, respectively.

_{1}= F

_{2}= F

_{3}= 0 and c = 0, the resonant frequency of this system can be obtained, expressed as [79]:

#### 2.2.5. Mode Aliasing

_{3dB}is the 3 dB bandwidth of each mode, f

_{1}and f

_{2}are the resonant frequency of two adjacent modes.

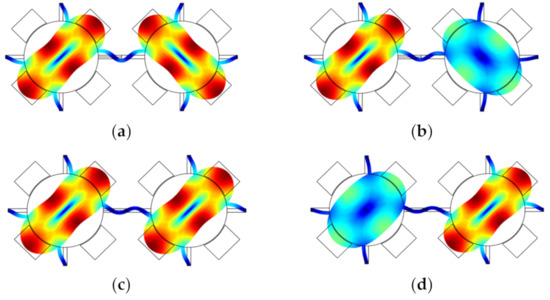

#### 2.3. Weakly Coupled BAW Resonators

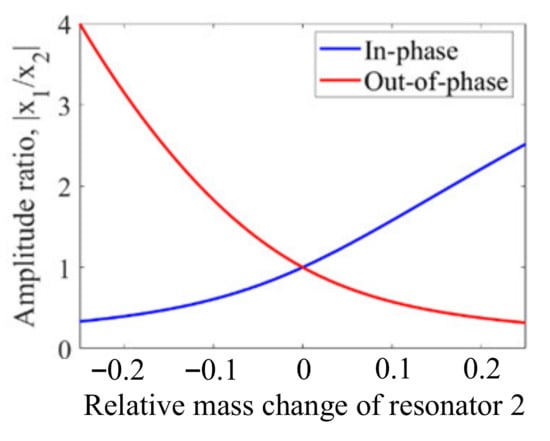

#### 2.3.1. Mode Localization

_{1}/X

_{2}| of two resonators as an output metric is several orders of magnitude higher than that using the conventional frequency shift as an output metric, which provides a new sensing mechanism with high sensitivity. As a result of the increase of the parametric sensitivity, the resolution limit of the mode-localized sensors can also be improved by orders of magnitude especially when more than 2-DoF resonators are coupled together, which has first been theoretically validated in [81].

_{1}/X

_{2}| of the resonator amplitude at the same resonant frequency is then utilized for sensing applications. In Figure 13, the relationship between the relative mass change on resonator 2 and the amplitude ratio |X

_{1}/X

_{2}| is presented. When there is no mass perturbation in this system, the amplitude ratio is equal to 1, indicating both resonators have the same deformation. in the presence of a mass perturbation, the amplitude ratio is no longer equal to 1. Besides, the in-phase and out-of-phase modes have different mode shape changes with the same mass perturbation, which could be used to detect the position of the perturbation (for details see Section 2.3.4).

#### 2.3.2. Sensitivity Characterization

_{2}= M + ΔM or K

_{2}= K + ΔK) is used to characterize the normalized sensitivity which is obtained as:

_{2}= M + ΔM or K

_{2}= K + ΔK) represented by the amplitude change (X) is obtained as [48]:

_{c}) times larger than that of the 1-DoF resonator. However, when the amplitude ratio (AR) of the two resonators is adopted as an index to characterize the normalized sensitivity, the normalized sensitivity represented by the AR is obtained as:

_{1}/X

_{2}|.

_{3}= M + ΔM or K

_{3}= K + ΔK) is obtained as [48,49,50,51]:

_{1}/X

_{3}|.

_{2}is designed to be two times or larger than K (Kc < K/10 < K

_{2}/20, K

_{1}= K

_{3}= K) [48,49,50,51], the normalized sensitivity can be expressed as:

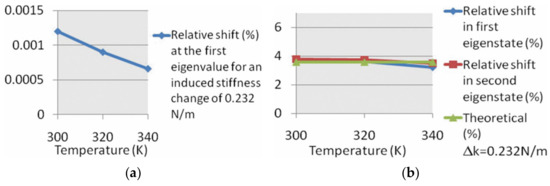

#### 2.3.3. Common Mode Rejection

_{T}, which is applied to both resonators as a common-mode signal. Now let’s consider a situation in which a small external stiffness perturbation (ΔK) is applied to only one of the two resonators (e.g., resonator 2 here) in the presence of ΔK

_{T}:

_{T}on the sensitivity is canceled out as a common-mode signal. However, in reality, the two resonators are not fully identical due to fabrication errors, and the influence of ΔK

_{T}on the sensitivity (the frequency shift or the AR) can be reduced dramatically but not completely [83], as shown in Figure 14.

_{T}and ΔK are both introduced to the resonator at the same time, the system stiffness K

_{s}is:

_{T}or caused by the ΔK, making the sensors based on the 1-DoF resonator vulnerable to temperature fluctuation if no extra temperature compensation method is used.

#### 2.3.4. Detection of the Position of Perturbations

## 3. Coupled BAW Resonators with Different Transduction Methods

#### 3.1. Capacitive Actuation and Sensing

**Table 8.**Description of several classic transduction mechanisms applied to coupled BAW MEMS resonators.

Transduction Methods | Capacitive Actuation and Sensing | Piezoresistive Sensing | Piezoelectric Actuation and Sensing |
---|---|---|---|

Actuation force (F) | $F\approx \left(\frac{1}{2}{V}_{\mathrm{d}}^{2}+2\left|{V}_{\mathrm{ac}}\right|{V}_{\mathrm{d}}\right)\frac{\mathrm{d}C}{\mathrm{d}x}$ [76] | Not applicable yet | $F=\frac{{e}_{33}{A}_{3}{V}_{ac}}{h}-\mathrm{Longitudinal}$ $F=\frac{{e}_{31}{A}_{1}{V}_{ac}}{h}$- Transverse [92] |

Sensed motional current (i_{mot}) | ${i}_{\mathrm{mot}}={V}_{\mathrm{d}}\frac{\partial C}{\partial x}\frac{\partial x}{\partial t}$ [76] | ${i}_{\mathrm{mot}}\approx \frac{{V}_{\mathrm{d}}}{R}\left(\frac{\Delta {R}_{\mathrm{r}}}{{R}_{\mathrm{r}}}\right)$ [95] | $\left|{i}_{\mathrm{mot}}\right|=\left|\omega \cdot {e}_{33}{A}_{3}{S}_{3}\right|\mathrm{Longitudinal}$ $\left|{i}_{\mathrm{mot}}\right|=\left|\omega \cdot {e}_{31}{A}_{3}{S}_{1}\right|$ Transverse [92] |

Cons | Parasitic capacitance; Nonlinearity; complex circuit design; thin film damping; limitation in liquids [96] | Temperature dependency; high power consumption with using high DC voltages; noisy | Processing difficulty in piezoelectric materials; not possible static measurement |

Pros | Low power consumption; good noise performance; easy to fabricate | Simple setup; inherent shielding; applicable to liquids [97] | Eliminating frequency drifts caused by DC voltage variations due to no DC voltages needed here [13]; Applicable to liquids [98,99,100,101] |

#### 3.1.1. One-Port Configuration

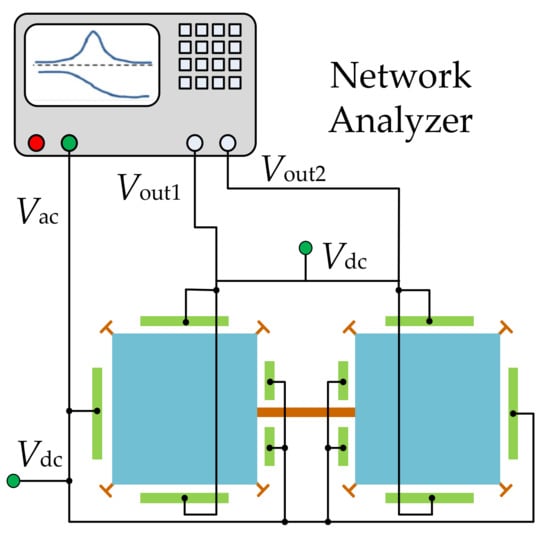

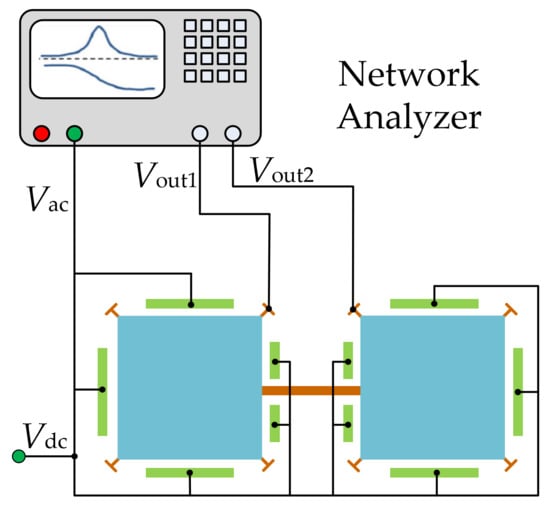

#### 3.1.2. Two-Port Configuration

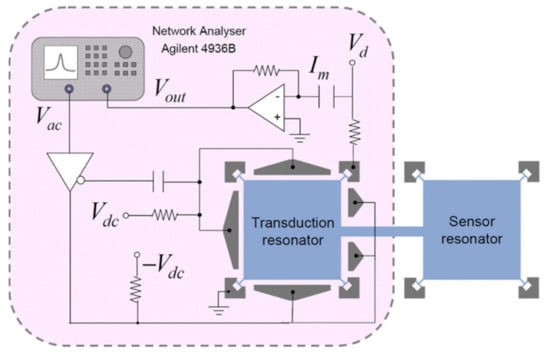

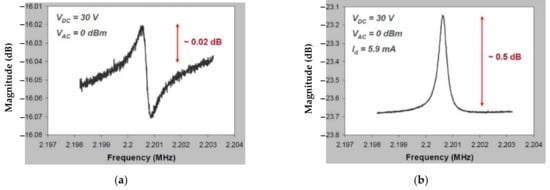

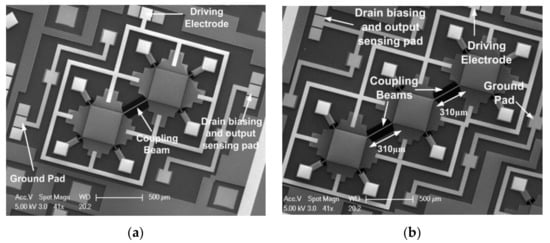

#### 3.2. Capacitive Actuation and Piezoresisitive Sensing

_{d}) is applied to the resonator at the anchors to detect the change of resistance, and then the motional current can be obtained [39,40].

_{d}rather than shrinking the transduction gap or increasing the applied actuation voltage, but it is limited to the piezoresistive coefficient of the single crystal silicon and the dissipation of the electric power of the resonator.

#### 3.3. Piezoelectric Actuation and Piezoelectric Sensing

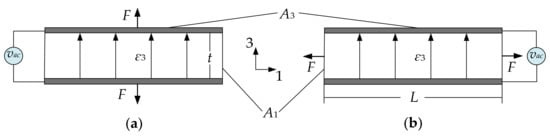

_{3}), and the transverse actuation configuration (see Figure 21b), where the force (F) is perpendicular to the applied electric field (ε

_{3}). The electrodes (marked in grey in Figure 21) on the top and bottom surface of the piezoelectric material form a capacitor and the current through the capacitor will have a piezoelectric component in addition to the regular capacitance current.

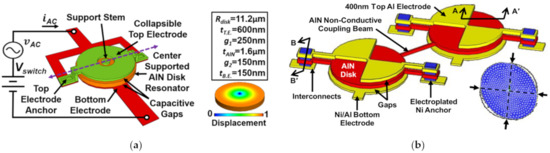

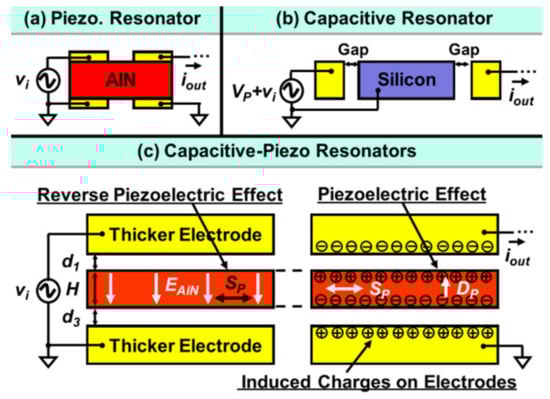

#### 3.4. Capacitive-Piezo Transduction

## 4. Applications of Coupled BAW Resonators

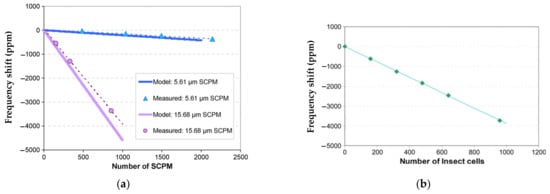

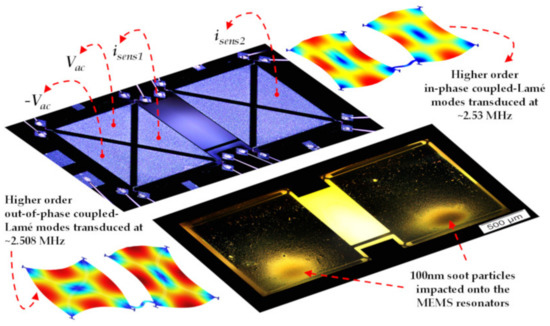

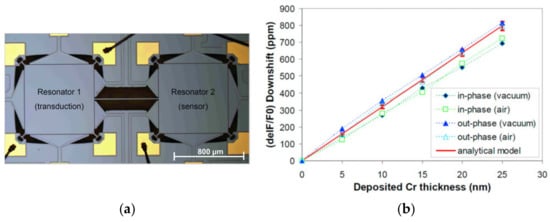

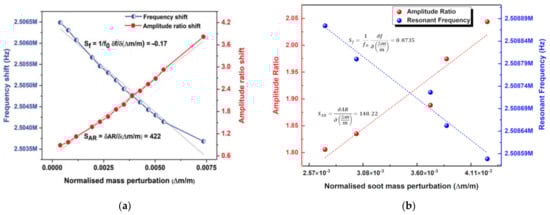

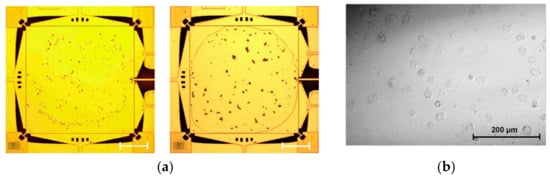

#### 4.1. Sensors Based on Weakly Coupled BAW Resonators

^{2}) [116] and C-FBARs (1.78 ng/cm

^{2}) [117]), the detection limit of this device operating in the air (1.46 ng/cm

^{2}or 36 ng/cm

^{2}) is not superior. To improve the sensitivity, further miniaturization of the proof mass or a secondary label of mass may be needed.

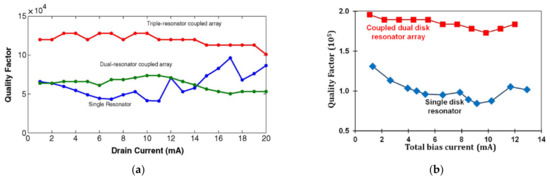

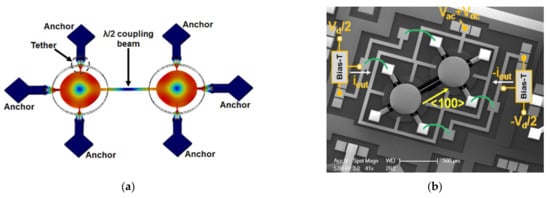

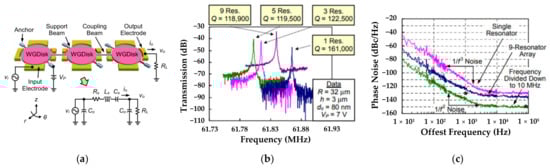

#### 4.2. Oscillators Based on Coupled BAW Resonators

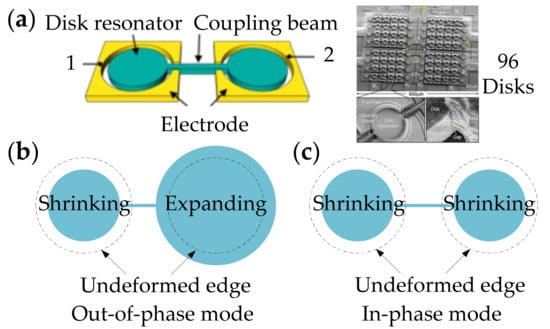

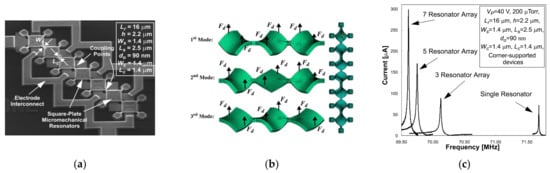

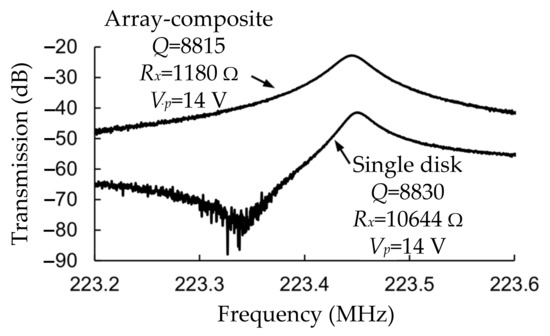

#### 4.3. Filters Based on Coupled BAW Resonators

## 5. Conclusions and Outlook

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Chollet, F.; Liu, H. A (not so) Short Introduction to Micro Electromechanical Systems, MEMS Encyclopedia. 2015. Available online: https://memscyclopedia.org/introMEMS.html (accessed on 1 April 2015).
- Nathanson, H.C.; Newell, W.E.; Wickstrom, R.A.; Davis, J.R. The Resonant Gate Transistor. IEEE Trans. Electron Devices
**1967**, 14, 117–133. [Google Scholar] [CrossRef] - Abdolvand, R.; Bahreyni, B.; Lee, J.E.-Y.; Nabki, F. Micromachined Resonators: A Review. Micromachines
**2016**, 7, 160. [Google Scholar] [CrossRef] [PubMed] - Campanella, H. Acoustic Wave and Electromechanical Resonators: Concept to Key Applications; Artech House: Norwood, MA, USA, 2010. [Google Scholar]
- Hashimoto, K.; Hashimoto, K.Y. Surface Acoustic Wave Devices in Telecommunications; Springer: Berlin, Germany, 2000; Volume 116. [Google Scholar]
- Ishikawa, I.; Katakura, K.; Ogura, Y. Full-Circular Surface Acoustic Wave Excitation for High Resolution Acoustic Microscopy Using Spherical Lens and Time Gate Technology. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**1999**, 46, 41–46. [Google Scholar] [CrossRef] [PubMed] - Kaitila, J.; Ylilammi, M.; Ella, J.; Aigner, R. Spurious Resonance Free Bulk Acoustic Wave Resonators. In Proceedings of the IEEE Symposium on Ultrasonics, Honolulu, HI, USA, 5–8 October 2003; Volume 1, pp. 84–87. [Google Scholar]
- Lavasani, H.M.; Pan, W.; Harrington, B.P.; Abdolvand, R.; Ayazi, F. Electronic Temperature Compensation of Lateral Bulk Acoustic Resonator Reference Oscillators Using Enhanced Series Tuning Technique. IEEE J. Solid-State Circuits
**2012**, 47, 1381–1393. [Google Scholar] [CrossRef] - Chandrasekar, S.; Santhanam, S. A Calculation of the Bulk Modulus of Polycrystalline Materials. J. Mater. Sci.
**1989**, 24, 4265–4267. [Google Scholar] [CrossRef] - Fattinger, G. BAW Resonator Design Considerations-An Overview. In Proceedings of the 2008 IEEE International Frequency Control Symposium, Honolulu, HI, USA, 19–21 May 2008; pp. 762–767. [Google Scholar]
- Liu, C.; Li, M.; Chen, B.; Zhang, Y.; Zhu, Y.; Wang, N. Evaluation of the Impact of Abnormal Grains on the Performance of Sc
_{0.15}Al_{0.85}N-based BAW resonators and filters. J. Micromechan. Microeng.**2022**, 32, 34002. [Google Scholar] [CrossRef] - Karnati, K.; Schaefer, M.; Yusuf, W.; Rothemund, R.; Al-Joumayly, M.; Fattinger, G. 5G C-V2X Filter Using BAW Technology. In Proceedings of the 2021 IEEE MTT-S International Microwave Filter Workshop (IMFW), Perugia, Italy, 17–19 November 2021; pp. 109–111. [Google Scholar]
- Wu, G.; Xu, J.; Ng, E.; Chen, W. MEMS Resonators for Frequency Reference and Timing Applications. J. Microelectromech. Syst.
**2020**, 29, 1137–1166. [Google Scholar] [CrossRef] - Weinstein, D.; Bhave, S.A.; Tada, M.; Mitarai, S.; Morita, S.; Ikeda, K. Mechanical Coupling of 2D Resonator Arrays for MEMS Filter Applications. In Proceedings of the 2007 IEEE International Frequency Control Symposium Joint with the 21st European Frequency and Time Forum, Geneva, Switzerland, 29 May–1 June 2007; pp. 1362–1365. [Google Scholar]
- Yantchev, V.; Katardjiev, I. Thin Film Lamb Wave Resonators in Frequency Control and Sensing Applications: A Review. J. Micromechan. Microeng.
**2013**, 23, 43001. [Google Scholar] [CrossRef] - Nguyen, C.T.C. MEMS Technology for Timing and Frequency Control. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2007**, 54, 251–270. [Google Scholar] [CrossRef] [Green Version] - Parajuli, M.; Sobreviela, G.; Zhang, H.; Seshia, A.A. A Silicon MEMS Disk Resonator Oscillator Demonstrating 36 Ppt Frequency Stability. In Proceedings of the 2021 21st International Conference on Solid-State Sensors, Actuators and Microsystems (Transducers), Orlando, FL, USA, 20–24 June 2021; pp. 305–308. [Google Scholar]
- Parajuli, M.; Sobreviela, G.; Zhang, H.; Seshia, A.A. Enhancement of Frequency Stability in Injection Locked Bulk Mode MEMS Oscillators. In Proceedings of the 2021 IEEE 34th International Conference on Micro Electro Mechanical Systems (MEMS), Gainesville, FL, USA, 25–29 January 2021; pp. 941–944. [Google Scholar]
- De Miguel-Ramos, M.; Díaz-Durán, B.; Escolano, J.; Barba, M.; Mirea, T.; Olivares, J.; Clement, M.; Iborra, E. Gravimetric Biosensor Based on a 1.3GHz AlN Shear-Mode Solidly Mounted Resonator. Sens. Actuators B Chem.
**2016**, 239, 1282–1288. [Google Scholar] [CrossRef] [Green Version] - Savchenko, V.; Mnushka, O. Simulation of the Parameters and Temperature Characteristics of the BAW QCR Based Sensors. In Proceedings of the 2021 IEEE 16th International Conference on the Experience of Designing and Application of CAD Systems (CADSM), Lviv, Ukraine, 22–26 February 2021; pp. 24–28. [Google Scholar]
- Specht, J.P.; Esfahani, S.; Tan, T.H.; Sosada-Ludwikowska, F.; Wimmer-Teubenbacher, R.; Köck, A.; Cole, M.; Gardner, J.W. AlN FBAR Particle Sensor with a Thermophoretic Sampling Mechanism. IEEE Sens. J.
**2021**, 21, 19427–19435. [Google Scholar] [CrossRef] - Lee, S.H.; Jung, Y.; Kim, T.; Kim, T.; Kim, Y.; Jung, S. Polymer Coated Film Bulk Acoustic Resonator (FBAR) Arrays for Indoor Air Quality (IAQ) Monitoring. In Proceedings of the 2015 IEEE SENSORS, Busan, Korea, 1–4 November 2015. [Google Scholar] [CrossRef]
- Demirci, M.U.; Abdelmoneum, M.A.; Nguyen, C.T.-C. Mechanically Corner-Coupled Square Microresonator Array for Reduced Series Motional Resistance. In Proceedings of the TRANSDUCERS’03. 12th International Conference on Solid-State Sensors, Actuators and Microsystems. Digest of Technical Papers (Cat. No.03TH8664), Boston, MA, USA, 8–12 June 2003; Volume 2, pp. 955–958. [Google Scholar]
- Li, S.-S.; Lin, Y.-W.; Ren, Z.; Nguyen, C.T.-C. An MSI Micromechanical Differential Disk-Array Filter. In Proceedings of the TRANSDUCERS 2007–2007 International Solid-State Sensors, Actuators and Microsystems Conference, Lyon, France, 10–14 June 2007; pp. 307–311. [Google Scholar]
- Su, Z.; Ye, L. Identification of Damage Using Lamb Waves: From Fundamentals to Applications; Springer: Berlin/Heidelberg, Germany, 2009; Volume 48. [Google Scholar]
- Lee, J.E.Y.; Yan, J.; Seshia, A.A. Study of Lateral Mode SOI-MEMS Resonators for Reduced Anchor Loss. J. Micromechan. Microeng.
**2011**, 21, 045010. [Google Scholar] [CrossRef] - Lifshitz, R.; Roukes, M.L. Thermoelastic Damping in Micro- and Nanomechanical Systems. Phys. Rev. B
**2000**, 61, 5600–5609. [Google Scholar] [CrossRef] [Green Version] - Elsayed, M.Y.; Cicek, P.-V.; Nabki, F.; El-Gamal, M.N. Bulk Mode Disk Resonator with Transverse Piezoelectric Actuation and Electrostatic Tuning. J. Microelectromech. Syst.
**2016**, 25, 252–261. [Google Scholar] [CrossRef] - Zhang, Y.; Luo, J.; Flewitt, A.J.; Cai, Z.; Zhao, X. Film Bulk Acoustic Resonators (FBARs) as Biosensors: A Review. Biosens. Bioelectron.
**2018**, 116, 1–15. [Google Scholar] [CrossRef] - Gabl, R.; Feucht, H.-D.; Zeininger, H.; Eckstein, G.; Schreiter, M.; Primig, R.; Pitzer, D.; Wersing, W. First Results on Label-Free Detection of DNA and Protein Molecules Using a Novel Integrated Sensor Technology Based on Gravimetric Detection Principles. Biosens. Bioelectron.
**2004**, 19, 615–620. [Google Scholar] [CrossRef] - Montagut, Y.; Narbon, J.G.; Jimenez, Y.; March, C.; Montoya, A.; Arnau, A. QCM Technology in Biosensors. In Biosensors; Serra, P.A., Ed.; IntechOpen: Rijeka, Croatia, 2011. [Google Scholar]
- Guo, P.; Xiong, J.; Zheng, D.; Zhang, W.; Liu, L.; Wang, S.; Gu, H. A Biosensor Based on a Film Bulk Acoustic Resonator and Biotin–Avidin System for the Detection of the Epithelial Tumor Marker Mucin 1. RSC Adv.
**2015**, 5, 66355–66359. [Google Scholar] [CrossRef] - Chen, D.; Wang, J.J.; Li, D.H.; Li, Z.X. Film Bulk Acoustic Resonator Based Biosensor for Detection of Cancer Serological Marker. Electron. Lett.
**2011**, 47, 1169–1170. [Google Scholar] [CrossRef] - Nirschl, M.; Blüher, A.; Erler, C.; Katzschner, B.; Vikholm-Lundin, I.; Auer, S.; Voros, J.; Pompe, W.; Schreiter, M.; Mertig, M. Film Bulk Acoustic Resonators for DNA and Protein Detection and Investigation of in Vitro Bacterial S-Layer Formation. Sens. Actuators A
**2008**, 156, 180–184. [Google Scholar] [CrossRef] - Xu, W.; Zhang, X.; Choi, S.; Chae, J. A High-Quality-Factor Film Bulk Acoustic Resonator in Liquid for Biosensing Applications. J. Microelectromech. Syst.
**2011**, 20, 213–220. [Google Scholar] [CrossRef] - Hesis, T. Analysis and Design of Bulk Acoustic Wave Filters Based on Acoustically Coupled Resonators. Ph.D. Thesis, Universitat Autònoma de Barcelona, Bellaterra, Spain, 14 June 2011. [Google Scholar]
- Iqbal, A.; Lee, J.E.-Y. Piezoresistive Sensing in a SOI Mechanically Coupled Micromechanical Multiple-Resonator Array. IEEE Trans. Electron Devices
**2012**, 59, 3091–3096. [Google Scholar] [CrossRef] - Iqbal, A.; Zhang, W.; Lee, J.E.-Y. Enhanced Piezoresistive Sensing via Synchronized Oscillations in a Mechanically Coupled Disk Array. In Proceedings of the 2013 Transducers Eurosensors XXVII: The 17th International Conference on Solid-State Sensors, Actuators and Microsystems (TRANSDUCERS EUROSENSORS XXVII), Barcelona, Spain, 16–20 June 2013; pp. 1384–1387. [Google Scholar]
- Lin, A.; Yan, J.; Seshia, A. Mechanically Coupled Bulk-Mode Dual Resonator Mass Sensor. Procedia Eng.
**2010**, 5, 1454–1457. [Google Scholar] [CrossRef] [Green Version] - Lin, A.T.-H.; Yan, J.; Seshia, A.A. Electrically Addressed Dual Resonator Sensing Platform for Biochemical Detection. J. Microelectromech. Syst.
**2012**, 21, 34–43. [Google Scholar] [CrossRef] - Chellasivalingam, M.; Pandit, M.; Kalberer, M.; Seshia, A.A. Ultra-Fine Particulate Detection Using Mode-Localized MEMS Resonators. In Proceedings of the 2019 Joint Conference of the IEEE International Frequency Control Symposium and European Frequency and Time Forum (EFTF/IFC), Orlando, FL, USA, 14–18 April 2019; pp. 1–5. [Google Scholar]
- Chellasivalingam, M.; Imran, H.; Pandit, M.; Boies, A.M.; Seshia, A.A. Weakly Coupled Piezoelectric MEMS Resonators for Aerosol Sensing. Sensors
**2020**, 20, 3162. [Google Scholar] [CrossRef] - Anderson, P.W. Absence of Diffusion in Certain Random Lattices. Phys. Rev.
**1958**, 109, 1492–1505. [Google Scholar] [CrossRef] - Spletzer, M.; Raman, A.; Wu, A.Q.; Xu, X.; Reifenberger, R. Ultrasensitive Mass Sensing Using Mode Localization in Coupled Microcantilevers. Appl. Phys. Lett.
**2006**, 88, 254102. [Google Scholar] [CrossRef] [Green Version] - Spletzer, M.; Raman, A.; Sumali, H.; Sullivan, J.P. Highly Sensitive Mass Detection and Identification Using Vibration Localization in Coupled Microcantilever Arrays. Appl. Phys. Lett.
**2008**, 92, 114102. [Google Scholar] [CrossRef] [Green Version] - Thiruvenkatanathan, P.; Yan, J.; Woodhouse, J.; Seshia, A.A. Enhancing Parametric Sensitivity in Electrically Coupled MEMS Resonators. J. Microelectromech. Syst.
**2009**, 18, 1077–1086. [Google Scholar] [CrossRef] - Thiruvenkatanathan, P.; Yan, J.; Woodhouse, J.; Aziz, A.; Seshia, A.A. Ultrasensitive Mode-Localized Mass Sensor with Electrically Tunable Parametric Sensitivity. Appl. Phys. Lett.
**2010**, 96, 81913. [Google Scholar] [CrossRef] [Green Version] - Zhao, C.; Montaseri, M.H.; Wood, G.S.; Pu, S.H.; Seshia, A.A.; Kraft, M. A Review on Coupled MEMS Resonators for Sensing Applications Utilizing Mode Localization. Sens. Actuators A Phys.
**2016**, 249, 93–111. [Google Scholar] [CrossRef] - Zhao, C.; Wood, G.S.; Xie, J.; Chang, H.; Pu, S.H.; Chong, H.M.H.; Kraft, M. A Sensor for Stiffness Change Sensing Based on Three Weakly Coupled Resonators with Enhanced Sensitivity. In Proceedings of the 2015 28th IEEE International Conference on Micro Electro Mechanical Systems (MEMS), Estoril, Portugal, 18–22 January 2015; pp. 881–884. [Google Scholar]
- Zhao, C.; Wood, G.S.; Xie, J.; Chang, H.; Pu, S.H.; Kraft, M. A Force Sensor Based on Three Weakly Coupled Resonators with Ultrahigh Sensitivity. Sens. Actuators A Phys.
**2015**, 232, 151–162. [Google Scholar] [CrossRef] [Green Version] - Wang, Y.; Zhao, C.; Wang, C.; Cerica, D.; Baijot, M.; Xiao, Q.; Stoukatch, S.; Kraft, M. A Mass Sensor Based on 3-DOF Mode Localized Coupled Resonator under Atmospheric Pressure. Sens. Actuators A Phys.
**2018**, 279, 254–262. [Google Scholar] [CrossRef] - Ruby, R.C.; Bradley, P.; Oshmyansky, Y.; Chien, A.; Larson, J.D. Thin Film Bulk Wave Acoustic Resonators (FBAR) for Wireless Applications. In Proceedings of the 2001 IEEE Ultrasonics Symposium. Proceedings. An International Symposium (Cat. No.01CH37263), Atlanta, GA, USA, 7–10 October 2001; Volume 1, pp. 813–821. [Google Scholar]
- Mueller, W. A Brief Overview of FBAR Technology; Agilent Technologies Inc.: Santa Clara, CA, USA, 2001. [Google Scholar]
- Ruby, R.C. 11E-2 Review and Comparison of Bulk Acoustic Wave FBAR, SMR Technology. In Proceedings of the 2007 IEEE Ultrasonics Symposium Proceedings, New York, NY, USA, 28–31 October 2007; pp. 1029–1040. [Google Scholar]
- Lakin, K.M.; McCarron, K.T.; Rose, R.E. Solidly Mounted Resonators and Filters. In Proceedings of the 1995 IEEE Ultrasonics Symposium Proceedings. An International Symposium, Seattle, WA, USA, 7–10 November 1995; Volume 2, pp. 905–908. [Google Scholar]
- Lanz, R.; Muralt, P. Solidly Mounted BAW Filters for 8 GHz Based on AlN Thin Films. In Proceedings of the IEEE Symposium on Ultrasonics, Honolulu, HI, USA, 5–8 October 2003; Volume 1, pp. 178–181. [Google Scholar]
- Kaajakari, V.; Mattila, T.; Oja, A.; Kiihamaki, J.; Kattelus, H.; Koskenvuori, M.; Rantakari, P.; Tittonen, I.; Seppa, H. Square-Extensional Mode Single-Crystal Silicon Micromechanical RF-Resonator. In Proceedings of the TRANSDUCERS ’03. 12th International Conference on Solid-State Sensors, Actuators and Microsystems. Digest of Technical Papers (Cat. No.03TH8664), Boston, MA, USA, 8–12 June 2003; Volume 2, pp. 951–954. [Google Scholar]
- Clark, J.R.; Hsu, W.-T.; Abdelmoneum, M.A.; Nguyen, C.T.-C. High-Q UHF Micromechanical Radial-Contour Mode Disk Resonators. J. Microelectromech. Syst.
**2005**, 14, 1298–1310. [Google Scholar] [CrossRef] - Basu, J.; Chakraborty, S.; Bhattacharyya, T.K. Micromechanical Radial-Contour Mode Disk Resonator for a CMOS-MEMS Oscillator. In Proceedings of the 2010 Annual IEEE India Conference (INDICON), Kolkata, India, 17–19 December 2010; pp. 1–4. [Google Scholar]
- Wang, J.; Ren, Z.; Nguyen, C.T.-C. 1.156-GHz Self-Aligned Vibrating Micromechanical Disk Resonator. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2004**, 51, 1607–1628. [Google Scholar] [CrossRef] [PubMed] - Khine, L.; Palaniapan, M.; Wong, W.-K. 12.9 MHz Lame-Mode Differential SOI Bulk Resonators. In Proceedings of the TRANSDUCERS 2007–2007 International Solid-State Sensors, Actuators and Microsystems Conference, Lyon, France, 10–14 June 2007; pp. 1753–1756. [Google Scholar]
- Zarifi, M.H.; Daneshmand, M. Bulk Disc Resonators Radial and Wineglass Mode Resonance Characterization for Mass Sensing Applications. Microsyst. Technol.
**2015**, 22, 1013–1020. [Google Scholar] [CrossRef] - Hao, Z.; Pourkamali, S.; Ayazi, F. VHF Single-Crystal Silicon Elliptic Bulk-Mode Capacitive Disk Resonators-Part I: Design and Modeling. J. Microelectromech. Syst.
**2004**, 13, 1043–1053. [Google Scholar] [CrossRef] - Pourkamali, S.; Hao, Z.; Ayazi, F. VHF Single Crystal Silicon Capacitive Elliptic Bulk-Mode Disk Resonators-Part II: Implementation and Characterization. J. Microelectromech. Syst.
**2004**, 13, 1054–1062. [Google Scholar] [CrossRef] - Ali, A.; Lee, J.E.-Y. Piezoelectric Transduction of a Button-like Mode Disk Resonator for Enhanced Quality Factor in Water. In Proceedings of the 2017 Joint Conference of the European Frequency and Time Forum and IEEE International Frequency Control Symposium (EFTF/IFCS), Besancon, France, 9–13 July 2017; pp. 26–29. [Google Scholar]
- Ali, A.; Lee, J.E.-Y. Higher-Order Wine Glass Mode Piezoelectric Square Resonator with Improved Quality Factor in Water. In Proceedings of the 2017 IEEE SENSORS, Glasgow, UK, 29 October–1 November 2017; pp. 1–3. [Google Scholar]
- Shahraini, S.; Shahmohammadi, M.; Fatemi, H.; Abdolvand, R. Side-Supported Radial-Mode Thin-Film Piezoelectric-on-Silicon Disk Resonators. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2019**, 66, 727–736. [Google Scholar] [CrossRef] - Lin, A.T.-H.; Yan, J.; Seshia, A.A. Electrostatically Transduced Face-Shear Mode Silicon MEMS Microresonator. In Proceedings of the 2010 IEEE International Frequency Control Symposium, Newport Beach, CA, USA, 1–4 June 2010; pp. 534–538. [Google Scholar]
- Prasad, A.; Charmet, J.; Seshia, A.A. Simultaneous Interrogation of High-Q Modes in a Piezoelectric-on-Silicon Micromechanical Resonator. Sens. Actuators A Phys.
**2016**, 238, 207–214. [Google Scholar] [CrossRef] - Yang, J.; Ono, T.; Esashi, M. Energy Dissipation in Submicrometer Thick Single-Crystal Silicon Cantilevers. J. Microelectromech. Syst.
**2002**, 11, 775–783. [Google Scholar] [CrossRef] - Li, W.-C.; Lin, Y.; Kim, B.; Ren, Z.; Nguyen, C.T.-C. Quality Factor Enhancement in Micromechanical Resonators at Cryogenic Temperatures. In Proceedings of the TRANSDUCERS 2009–2009 International Solid-State Sensors, Actuators and Microsystems Conference, Denver, CO, USA, 21–25 June 2009; pp. 1445–1448. [Google Scholar]
- Xu, Y.; Lee, J.E.-Y. Evidence on the Impact of T-Shaped Tether Variations on Q Factor of Bulk-Mode Square-Plate Resonators. In Proceedings of the 2012 7th IEEE International Conference on Nano/Micro Engineered and Molecular Systems (NEMS), Kyoto, Japan, 5–8 March 2012; pp. 463–468. [Google Scholar]
- Demirci, M.U.; Nguyen, C.T.-C. Mechanically Corner-Coupled Square Microresonator Array for Reduced Series Motional Resistance. J. Microelectromech. Syst.
**2006**, 15, 1419–1436. [Google Scholar] [CrossRef] [Green Version] - Lee, J.E.-Y.; Zhu, Y.; Seshia, A. A Bulk Acoustic Mode Single-Crystal Silicon Microresonator with a High-Quality Factor. J. Micromechan. Microeng.
**2008**, 18, 64001. [Google Scholar] [CrossRef] [Green Version] - Pachkawade, V.; Junghare, R.; Patrikar, R.; Kraft, M. Mechanically Coupled Ring-Resonator Filter and Array (Analytical and Finite Element Model). IET Comput. Digit. Technol.
**2016**, 10, 261–267. [Google Scholar] [CrossRef] [Green Version] - Wang, Y. Mems Multi-Dof Weakly Coupled Resonator Based on Mode Localization for Mass Change Sensing Applications. Ph.D. Thesis, Université de Liège, Liège, Belgium, 2019. [Google Scholar]
- Erbes, A.; Thiruvenkatanathan, P.; Woodhouse, J.; Seshia, A.A. Numerical Study of the Impact of Vibration Localization on the Motional Resistance of Weakly Coupled MEMS Resonators. J. Microelectromech. Syst.
**2015**, 24, 997–1005. [Google Scholar] [CrossRef] - Thiruvenkatanathan, P.; Woodhouse, J.; Yan, J.; Seshia, A.A. Manipulating Vibration Energy Confinement in Electrically Coupled Microelectromechanical Resonator Arrays. J. Microelectromech. Syst.
**2011**, 20, 157–164. [Google Scholar] [CrossRef] - Siamak, H.-M. Capacitance readout circuits based on weakly-coupled resonators. Ph.D. Thesis, University of British Columbia, Vancouver, BC, Canada, June 2016. [Google Scholar]
- Ozgurluk, A. High-Q Strong Coupling Capacitive-Gap Transduced RF Micromechanical Resonators. Ph.D. Thesis, University of California, Berkeley, UC, USA, 10 January 2020. [Google Scholar]
- Zhang, Z.; Chang, H. Resolution Limit of Mode-Localised Sensors. Sci. China Inf. Sci.
**2021**, 64, 142401. [Google Scholar] [CrossRef] - Golnaraghi, D.F.; Kuo, D.B.C. Automatic Control Systems, 10th ed.; McGraw-Hill Education: New York, NY, USA, 2017. [Google Scholar]
- Thiruvenkatanathan, P.; Yan, J.; Seshia, A.A. Common Mode Rejection in Electrically Coupled MEMS Resonators Utilizing Mode Localization for Sensor Applications. In Proceedings of the 2009 IEEE International Frequency Control Symposium Joint with the 22nd European Frequency and Time forum, Besancon, France, 20–24 April 2009; pp. 358–363. [Google Scholar]
- Thiruvenkatanathan, P. Mode-Localized Sensing in Micromechanical Resonator Arrays. Ph.D. Thesis, University of Cambridge, Cambridge, UK, 2011. [Google Scholar]
- Kang, H.; Ruan, B.; Hao, Y.; Chang, H. A Mode-Localized Resonant Accelerometer with Self-Temperature Drift Suppression. IEEE Sens. J.
**2020**, 20, 12154–12165. [Google Scholar] [CrossRef] - Zhang, H.; Chang, H.; Yuan, W. Characterization of Forced Localization of Disordered Weakly Coupled Micromechanical Resonators. Microsyst. Nanoeng.
**2017**, 3, 17023. [Google Scholar] [CrossRef] [Green Version] - Lee, J.E.-Y.; Bahreyni, B.; Seshia, A. An Axial Strain Modulated Double-Ended Tuning Fork Electrometer. Sens. Actuators A Phys.
**2008**, 148, 395–400. [Google Scholar] [CrossRef] - Nguyen, C.T.-C.; Howe, R.T. An Integrated CMOS Micromechanical Resonator High-Q Oscillator. IEEE J. Solid-State Circuits
**1999**, 34, 440–455. [Google Scholar] [CrossRef] [Green Version] - Verd, J.; Uranga, A.; Abadal, G.; Teva, J.; Torres, F.; Pérez-Murano, F.; Fraxedas, J.; Esteve, J.; Barniol, N. Monolithic Mass Sensor Fabricated Using a Conventional Technology with Attogram Resolution in Air Conditions. Appl. Phys. Lett.
**2007**, 91, 13501. [Google Scholar] [CrossRef] [Green Version] - Blanc, N.; Brugger, J.; de Rooij, N.F.; Dürig, U. Scanning Force Microscopy in the Dynamic Mode Using Microfabricated Capacitive Sensors. J. Vac. Sci. Technol. B Microelectron. Nanom. Struct. Process. Meas. Phenom.
**1996**, 14, 901–905. [Google Scholar] [CrossRef] [Green Version] - Bai, Y.; Lu, Y.; Hu, P.; Wang, G.; Xu, J.; Zeng, T.; Li, Z.; Zhang, Z.; Tan, J. Absolute Position Sensing Based on a Robust Differential Capacitive Sensor with a Grounded Shield Window. Sensors
**2016**, 16, 680. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kaajakari, V. Practical MEMS, 1st ed.; Small Gear Pub.: Las Vegas, NV, USA, 2009. [Google Scholar]
- Kaajakari, V.; Mattila, T.; Oja, A.; Seppa, H. Nonlinear Limits for Single-Crystal Silicon Microresonators. J. Microelectromech. Syst.
**2004**, 13, 715–724. [Google Scholar] [CrossRef] [Green Version] - Seeger, J.I.; Boser, B.E. Charge Control of Parallel-Plate, Electrostatic Actuators and the Tip-in Instability. J. Microelectromech. Syst.
**2003**, 12, 656–671. [Google Scholar] [CrossRef] [Green Version] - Lin, A.-H.; Lee, J.-Y.; Yan, J.; Seshia, A.A. Methods for Enhanced Electrical Transduction and Characterization of Micromechanical Resonators. Sens. Actuators A Phys.
**2010**, 158, 263–272. [Google Scholar] [CrossRef] - Ali, A. Electrical Characterization of Piezoelectric MEMS Resonators in Liquid Phase for Sensing Applications. Ph.D. Thesis, City University of Hong Kong, Hong Kong, China, 2018. [Google Scholar]
- Rahafrooz, A.; Pourkamali, S. Rotational Mode Disk Resonators for High-Q Operation in Liquid. In Proceedings of the SENSORS, 2010 IEEE, Waikoloa, HI, USA, 1–4 November 2010; pp. 1071–1074. [Google Scholar]
- Begum, H.; Qian, J.; Lee, J.E.-Y. Effect of Crystal Orientation on Liquid Phase Performance of Piezoelectric-on-Silicon Elliptical Plate Resonators. Sens. Actuators A Phys.
**2022**, 340, 113548. [Google Scholar] [CrossRef] - Qian, J.; Begum, H.; Lee, J.E.-Y. Acoustic Centrifugation Facilitating Particle Sensing in Liquid on a Piezoelectric Resonator. IEEE Electron Device Lett.
**2022**, 43, 801–804. [Google Scholar] [CrossRef] - Begum, H.; Qian, J.; Lee, J.E.Y. Fully Differential Higher Order Transverse Mode Piezoelectric Membrane Resonators for Enhanced Liquid-Phase Quality Factors. J. Micromechan. Microeng.
**2021**, 31, 104004. [Google Scholar] [CrossRef] - Begum, H.; Qian, J.; Lee, J.E.-Y. Piezoelectric Elliptical Plate Micromechanical Resonator with Low Motional Resistance for Resonant Sensing in Liquid. IEEE Sens. J.
**2021**, 21, 7339–7347. [Google Scholar] [CrossRef] - Puers, B.; Peeters, E.; Van Den Bossche, A.; Sansen, W. A Capacitive Pressure Sensor with Low Impedance Output and Active Suppression of Parasitic Effects. Sens. Actuators A Phys.
**1990**, 21, 108–114. [Google Scholar] [CrossRef] - Lee, J.E.-Y.; Seshia, A. Parasitic Feedthrough Cancellation Techniques for Enhanced Electrical Characterization of Electrostatic Microresonators. Sens. Actuators A Phys.
**2009**, 156, 36–42. [Google Scholar] [CrossRef] - Xu, Y.; Lee, J.E.-Y. Single-Device and On-Chip Feedthrough Cancellation for Hybrid MEMS Resonators. IEEE Trans. Ind. Electron.
**2012**, 59, 4930–4937. [Google Scholar] [CrossRef] - Wei, X.; Seshia, A.A. Differential Piezoresistive Sensing in a Bulk-Mode Micromechanical Resonator. Micro Nano Lett.
**2013**, 8, 107–110. [Google Scholar] [CrossRef] - Qaradaghi, V.; Ramezany, A.; Babu, S.; Lee, J.B.; Pourkamali, S. Nanoelectromechanical Disk Resonators as Highly Sensitive Mass Sensors. IEEE Electron Device Lett.
**2018**, 39, 1744–1747. [Google Scholar] [CrossRef] - Harley, J.A.; Kenny, T.W. A High-Stiffness Axial Resonant Probe for Atomic Force Microscopy. J. Microelectromech. Syst.
**2001**, 10, 434–441. [Google Scholar] [CrossRef] - Minne, S.C.; Manalis, S.R.; Quate, C.F. Parallel Atomic Force Microscopy Using Cantilevers with Integrated Piezoresistive Sensors and Integrated Piezoelectric Actuators. Appl. Phys. Lett.
**1995**, 67, 3918–3920. [Google Scholar] [CrossRef] - Tu, C.; Zhu, H.; Xu, Y.; Lee, J.E.-Y. Differential-Capacitive-Input and Differential-Piezoresistive-Output Enhanced Transduction of a Silicon Bulk-Mode Microelectromechanical Resonator. Sens. Actuators A Phys.
**2014**, 210, 41–50. [Google Scholar] [CrossRef] - Cowen, A.; Hames, G.; Glukh, K.; Hardy, B. PiezoMUMPs Design Handbook; MEMSCAP Inc.: Durham, NC, USA, 2014. [Google Scholar]
- Ho, G.K.; Abdolvand, R.; Sivapurapu, A.; Humad, S.; Ayazi, F. Piezoelectric-on-Silicon Lateral Bulk Acoustic Wave Micromechanical Resonators. J. Microelectromech. Syst.
**2008**, 17, 512–520. [Google Scholar] [CrossRef] - Humad, S.; Abdolvand, R.; Ho, G.K.; Piazza, G.; Ayazi, F. High Frequency Micromechanical Piezo-on-Silicon Block Resonators. In Proceedings of the IEEE International Electron Devices Meeting 2003, Washington, DC, USA, 8–10 December 2003; p. 39-3. [Google Scholar]
- Abdolvand, R.; Lavasani, H.M.; Ho, G.K.; Ayazi, F. Thin-Film Piezoelectric-on-Silicon Resonators for High-Frequency Reference Oscillator Applications. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2008**, 55, 2596–2606. [Google Scholar] [CrossRef] - Hung, L.-W.; Nguyen, C.T.-C. Capacitive-Piezoelectric AlN Resonators with Q > 12,000. In Proceedings of the 2011 IEEE 24th International Conference on Micro Electro Mechanical Systems, Cancun, Mexico, 23–27 January 2011; pp. 173–176. [Google Scholar]
- Schneider, R.A.; Nguyen, C.T.-C. On/off Switchable High-Q Capacitive-Piezoelectric AlN Resonators. In Proceedings of the 2014 IEEE 27th International Conference on Micro Electro Mechanical Systems (MEMS), San Francisco, CA, USA, 26–30 January 2014; Volume 11, pp. 1265–1268. [Google Scholar]
- Burg, T.P.; Godin, M.; Knudsen, S.M.; Shen, W.; Carlson, G.; Foster, J.S.; Babcock, K.; Manalis, S.R. Weighing of Biomolecules, Single Cells and Single Nanoparticles in Fluid. Nature
**2007**, 446, 1066–1069. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Xu, W.; Choi, S.; Chae, J. A Contour-Mode Film Bulk Acoustic Resonator of High Quality Factor in a Liquid Environment for Biosensing Applications. Appl. Phys. Lett.
**2010**, 96, 53703. [Google Scholar] [CrossRef] [Green Version] - Lin, Y.-W.; Li, S.-S.; Ren, Z.; Nguyen, C.T.C. Low Phase Noise Array-Composite Micromechanical Wine-Glass Disk Oscillator. In Proceedings of the IEEE International Electron Devices Meeting, 2005. IEDM Technical Digest, Washington, DC, USA, 5 December 2005; pp. 4–281. [Google Scholar]

**Figure 1.**Finite element model (FEM) simulation of a BAW resonator with square plate structure in COMSOL. (

**a**) WG mode; (

**b**) Extensional mode.

**Figure 2.**FEM simulation of a BAW resonator with disk structure in COMSOL. (

**a**) WG mode; (

**b**) Extensional mode.

**Figure 3.**Other FEM simulated bulk modes in COMSOL. (

**a**) BL mode (Adapted with permission from Ref. [63]); (

**b**) Face-shear mode; (

**c**) Butterfly mode.

**Figure 4.**Schematic diagrams of suspensions. (

**a**) Straight-beam suspension; (

**b**) T-shaped suspension. Adapted with permission from Ref. [26].

**Figure 7.**2-DoF coupled BAW resonators with different coupling methods. (

**a**) Fixed-fixed straight coupling beam; (

**b**) Folded coupling beam; (

**c**) Electrostatic coupling. Note: d is the lateral transduction gap between the resonator R1 and resonator R2, and the dotted arrow lines indicate the electric field direction.

**Figure 8.**WG modes of a 2-DoF coupled BAW square plate resonator system with the same mechanical coupling beam located at different positions (represented by y) simulated in COMSOL. (

**a**) Out-of-phase WG mode, y = 0 μm; (

**b**) In-phase WG mode, y = 0 μm; (

**c**) Out-of-phase WG mode, y = −100 μm; (

**d**) In-phase WG mode, y = −100 μm; (

**e**) Out-of-phase WG mode, y = −200 μm; (

**f**) In-phase WG mode, y = −200 μm; (

**g**) Out-of-phase WG mode, y = −300 μm; (

**h**) In-phase WG mode, y = −300 μm. Note: y represents the y-axis value of the center location of the coupling beam, and the origin is at the center of the first square-plate proof mass. Note: There is a coordinate system in (

**a**) with the original point set at the center of the left resonator. The y-axis value shows the position of the coupling beam. When the coupling beam is in the center position of both two resonators, y = 0. Then the beam moves down to the edge part, the y axis value is −100 μm, −200 μm, and −300 μm, respectively.

**Figure 9.**A 2-DoF electrostatically coupled BAW disk resonator system operating in different modes simulated in COMSOL. (

**a**) Out-of-phase mode 1; (

**b**) In-phase mode 1; (

**c**) Out-of-phase mode 2 (WG mode); (

**d**) In-phase mode 2 (WG mode). The deformation of resonators is magnified. In reality, the frequencies of the two modes are prone to be aliased due to the limited Q factor.

**Figure 12.**A 2-DoF weakly coupled BAW disk resonator system with mode localization simulated in COMSOL. (

**a**) Out-of-phase mode without perturbation; (

**b**) Out-of-phase mode with a small mass perturbation on the right resonator; (

**c**) In-phase mode without perturbation; (

**d**) In-phase mode with a small mass perturbation on the right resonator.

**Figure 13.**Relationship between the amplitude ratio change and the relative mass change on resonator 2.

**Figure 14.**Effect of temperature change on the normalized sensitivity of resonators(Reprinted with permission from Ref. [83]). (

**a**) 1-DoF resonators; (

**b**) 2-DoF resonators.

**Figure 17.**Measurement setup for a coupled BAW resonator system using capacitive actuation and piezoresistive sensing (Reprinted with permission from Ref. [40]).

**Figure 18.**The frequency response measured for a BAW resonator with square extensional (SE) mode in the air (Adapted with permission from Ref. [95]). (

**a**) One-port capacitive actuation and sensing method; (

**b**) One-port capacitive actuation and piezoresistive sensing method.

**Figure 19.**SEM image of the fabricated BAW rectangular-plate resonators with capacitive actuation and piezoresistive sensing setup (Adapted with permission from Ref. [37]). (

**a**) A 2-DoF coupled BAW resonator device; (

**b**) A 3-DoF coupled BAW resonator device.

**Figure 20.**(

**a**) FEM simulation of 2-DoF BAW disk resonators with in-phase extensional mode shown; (

**b**) SEM image of the fabricated 2-DoF BAW disk resonators with capacitive actuation and piezoresistive sensing. Reprinted with permission from Ref. [38].

**Figure 21.**Piezoelectric transduction configuration. (

**a**) Longitudinal configuration; (

**b**) Transverse configuration. Note: t is the thickness of the piezoelectric layer, A

_{1}is the cross-sectional area of the piezoelectric layer, A

_{3}is the electrode area, ε

_{3}is the intensity of the electric field, and F is the generated force.

**Figure 22.**Schematic of the piezoelectric transduction mechanism applied to a 2-DoF weakly coupled BAW square-plate resonator device vibrating at in-phase and out-of-phase WG modes. The mass perturbation is conducted by applying particles onto the bottom surface of the resonators. Reprinted with permission from Ref. [42].

**Figure 23.**Working principle of a conventional piezoelectric resonator, capacitive resonator and novel capacitive-piezo resonator (Reprinted with permission from Ref. [114]).

**Figure 24.**(

**a**) Schematic of a 1-DoF capacitive-piezo disk resonator operated at the radial contour mode with the anchor at the center (Reprinted with permission from Ref. [115]); (

**b**) Schematic of a 2-DoF capacitive-piezo disk resonator device operated at the WG mode with the anchor connected to the resonator body by a suspension beam (Reprinted with permission from Ref. [114]).

**Figure 25.**(

**a**) Optical micrograph of the 2-DoF BAW resonator system; (

**b**) Comparison between the analytical frequency shift and the measured one with respect to the deposited Cr film thickness. Reprinted with permission from Ref. [39].

**Figure 26.**Optical micrograph of attached analytes. (

**a**) SCPMs with diameters of 5.61 μm and 15.68 μm; (

**b**) High Five insect cells. Reprinted with permission from Ref. [40].

**Figure 27.**Relationship between the frequency shift and the number of analytes attached to the resonator from. (

**a**) SCPMs; (

**b**) High Five insect cells. Reprinted with permission from Ref. [40].

**Figure 29.**(

**a**) Comparison of Q factors among the single, 2-DoF and 3-DoF square-plate BAW resonators as the drain current (Reprinted with permission from Ref. [37]); (

**b**) Comparison of Q factors between the single and 2-DoF disk BAW resonators with bias current increasing (Reprinted with permission from Ref. [38]).

**Figure 30.**(

**a**) SEM image of a 7-DoF strongly coupled BAW resonator system with anchors at the center; (

**b**) FEM simulated out-of-plane motion of the coupled resonator systems; (

**c**) Frequency response of several multi-DoF coupled resonators. Reprinted with permission from Ref. [37].

**Figure 31.**(

**a**) Schematic of a 3-DoF strongly coupled disk resonator system with the equivalent electric circuit; (

**b**) Measured frequency response for several multi-DoF disk resonator systems; (

**c**) Relationship between the offset frequency and phase noise. Adapted with permission from Ref. [118].

**Figure 32.**(

**a**) Schematic and SEM image of a 2-DoF and 96-DoF coupled BAW disk resonator filter system; (

**b**) Revised schematic of the out-of-phase radial contour mode shape; (

**c**) Revised schematic of the in-phase radial contour mode shape. Adapted with permission from Ref. [80].

**Figure 33.**A comparison of frequency spectra between a 30-DoF disk system and a single disk system. Adapted with permission from Ref. [80].

Type of Waves | Characteristics | Schematic of Wave Propagation |
---|---|---|

Longitudinal wave | Propagation through the medium in the same or opposite direction of particle vibration or oscillation. It is also called pressure waves. | Adapted with permission from Ref. [25]. |

Transverse wave | Propagation through the medium in the direction perpendicular to particle oscillation direction. It is also called shear-mode waves. | Adapted with permission from Ref. [4]. |

Lamb wave | It exists in thin plates, also called the plate wave, and the particle motion lies in the plane that is perpendicular to the plate and the propagation direction of the wave [25]. It is divided into symmetric waves and antisymmetric waves [24]. | Adapted with permission from Ref. [24]. |

**Table 2.**Dimensions and materials of a 2-DoF coupled BAW square plate resonator system modeled in COMSOL (Adapted with permission from Ref. [26]).

Parameters | Value |
---|---|

Length of the square plate (μm) | 800 |

Thickness of the device (μm) | 25 |

Length and width of the stem (μm) | 67.2 and 14.1 |

Length and width of the cap (μm) | 70.7 and 10.6 |

Length and width of the coupling beam (μm) | 400 and 14 |

Materials selection for FEM simulation | Single crystal silicon (SCS) |

**Table 3.**The in-phase and out-of-phase mode resonant frequencies of a 2-DoF coupled BAW square plate resonator system with the same mechanical coupling beam located at different positions obtained by FEM simulation in COMSOL.

Location of Coupling Beam | In-Phase Mode (Hz) | Out-of-Phase Mode (Hz) | Frequency Difference |
---|---|---|---|

y = 0 μm | 4,702,389 | 4,769,160.74 | 1.42% |

y = −100 μm | 4,704,931.73 | 4,762,091 | 1.21% |

y = −200 μm | 4,711,448.66 | 4,746,444.54 | 0.74% |

y = −300 μm | 4,717,826.99 | 4,730,406.99 | 0.27% |

**Table 4.**Dimensions and materials of a 2-DoF electrostatically coupled BAW square resonator system modeled in COMSOL.

Parameters | Value |
---|---|

Diameter of the disk plate (μm) | 1500 |

Thickness of the device (μm) | 30 |

Lateral transduction gap (μm) | 2 |

Length and width of the stem (μm) | 225 and 37.5 |

Length and width of the convex plate (μm) | 5.5 and 450 |

Materials selection for FEM simulation | Single crystal silicon (SCS) |

**Table 5.**Differences in resonant frequencies of a 2-DoF electrostatically coupled BAW disk resonator system operated at different vibrational modes obtained by FEM simulation in COMSOL.

Vibration Modes | Out-of-Phase Mode (Hz) | In-Phase Mode (Hz) | Frequency Difference |
---|---|---|---|

Mode 1 | 365,455.475 | 365,537.439 | 0.02% |

Mode 2 (WG mode) | 2,654,149.09 | 2,654,150.75 | 0.00006% |

**Table 6.**Differences in resonant frequencies of a 2-DoF mechanically coupled BAW square resonator system operated at different vibrational modes obtained by FEM simulation in COMSOL.

Vibrational Modes | In-Phase Mode (Hz) | Out-of-Phase Mode (Hz) | Frequency Difference |
---|---|---|---|

Mode 1 | 381,093.019 | 411,584.939 | 8% |

Mode 2 (WG mode) | 4,711,448.66 | 4,746,444.54 | 0.74% |

**Table 7.**Dimensions and materials of a 2-DoF weakly coupled BAW disk resonator system modeled in COMSOL.

Parameters | Value |
---|---|

Diameter of the disk plate (μm) | 200 |

Thickness of the device (μm) | 30 |

Lateral transduction gap (μm) | 2 |

Length and width of the stem (μm) | 50 and 10 |

Length and width of coupling beams (μm) | 125 and 10 |

Materials selection for FEM simulation | Single crystal silicon (SCS) |

References | [39] | [40] | [41,42] |
---|---|---|---|

Vibration mode | Extensional mode | Extensional mode | WG mode |

Actuation way | Capacitive | Capacitive | Piezoelectric |

Sensing way | Piezoresistive | Piezoresistive | Piezoelectric |

Frequency (MHz) | 5.492, 5.423 | 5.492; 3.145 | ~2.5 |

Q factors | 5139, 8505 | 5139; 8676 | 1773.8 |

Mass perturbation | Cr film | Microbeads and cells | Particles |

Characterize sensitivity | Frequency shift | Frequency shift | Frequency shift; AR shift |

Sensitivity | 34 Hz/ng | −12 Hz/cell | 0.0735; 148.22 |

Detection limit | Not mentioned | 1.46/36 ng/cm^{2};~1.68 dried cells | Not mentioned |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
