Article

Automatic, Qualitative Scoring of the Clock Drawing Test (CDT) Based on U-Net, CNN and Mobile Sensor Data

Department of Electronic Engineering, Hallym University, Chuncheon 24252, Korea
*
Author to whom correspondence should be addressed.
Academic Editors: Sonya A. Coleman, Dermot Kerr and Yunzhou Zhang
Sensors 2021, 21(15), 5239; https://doi.org/10.3390/s21155239
Received: 22 June 2021 / Revised: 26 July 2021 / Accepted: 29 July 2021 / Published: 3 August 2021
(This article belongs to the Special Issue Image Sensing and Processing with Convolutional Neural Networks)

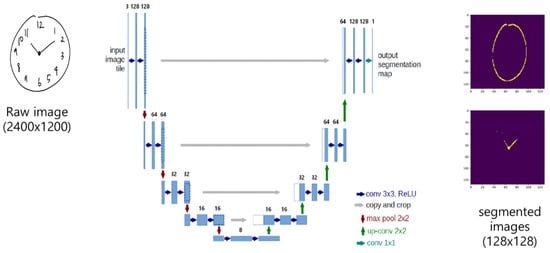

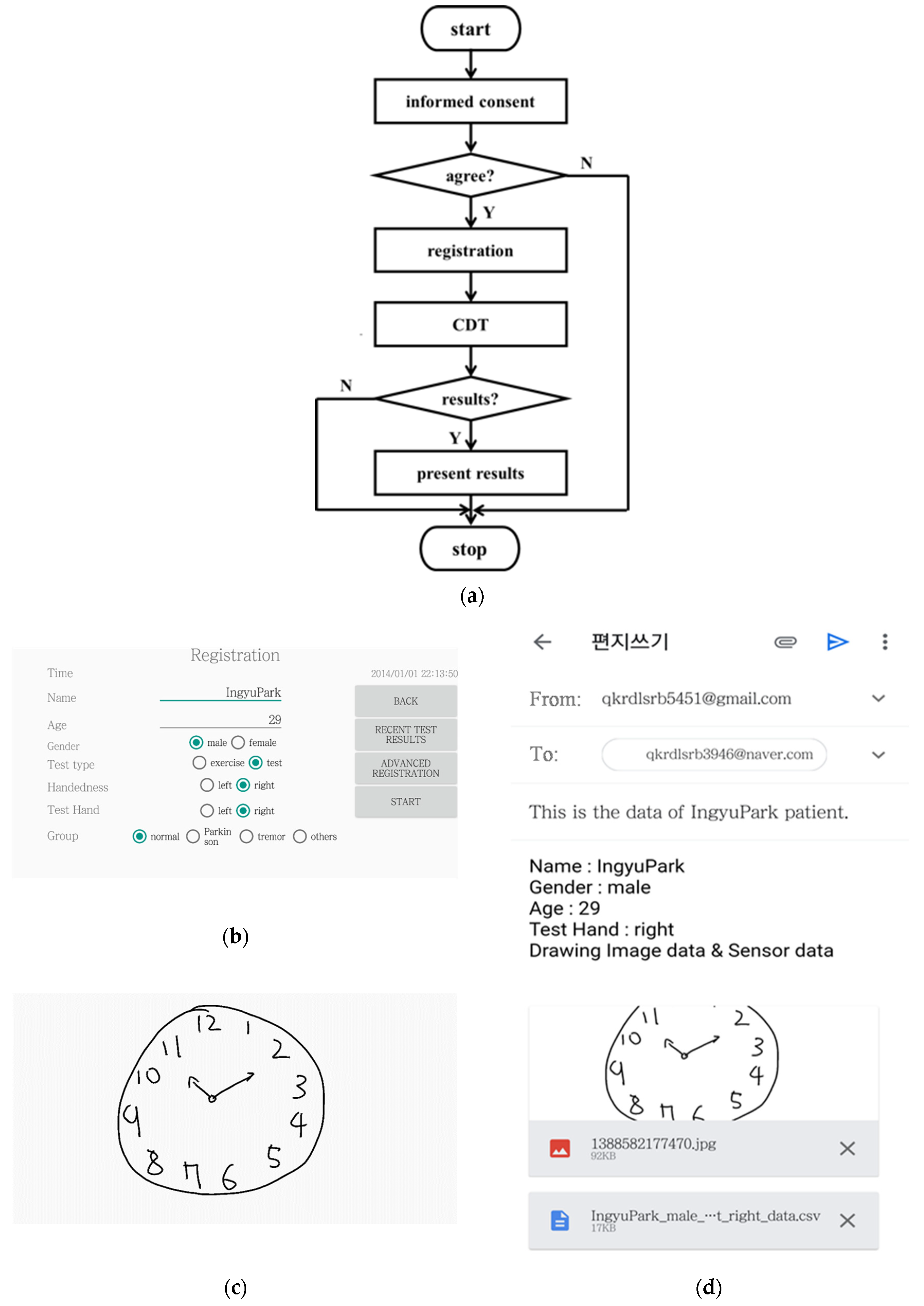

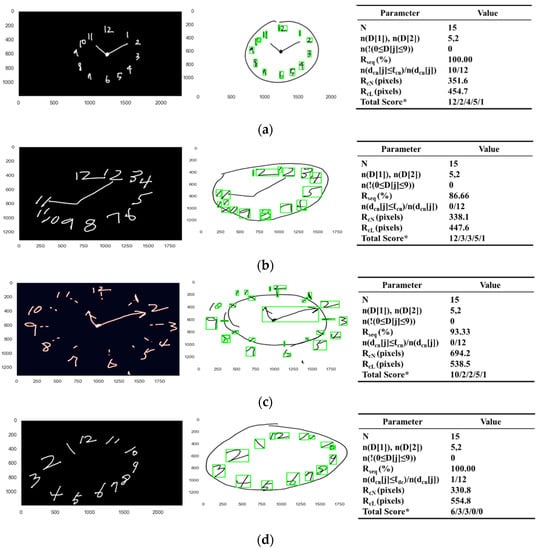

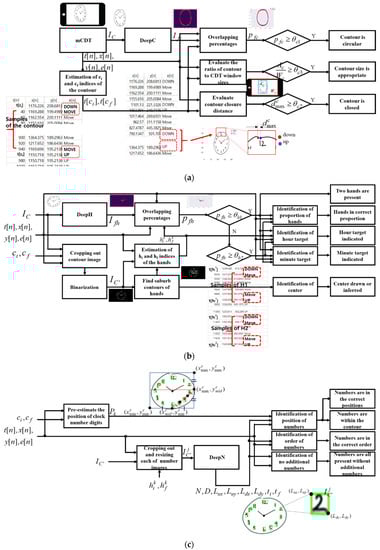

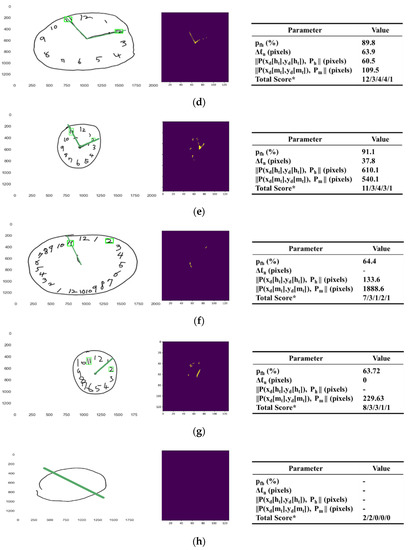

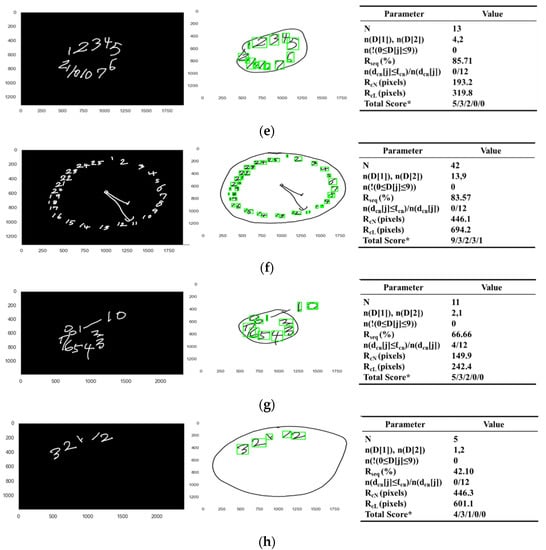

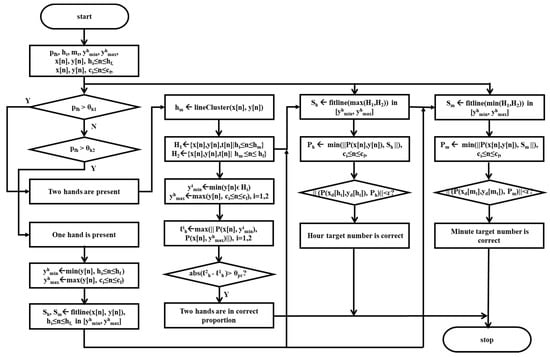

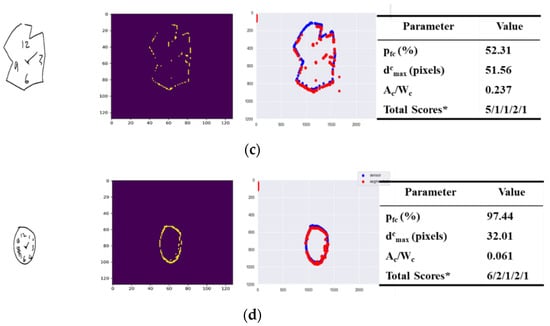

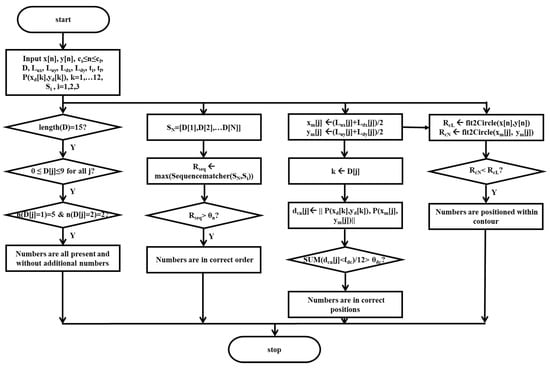

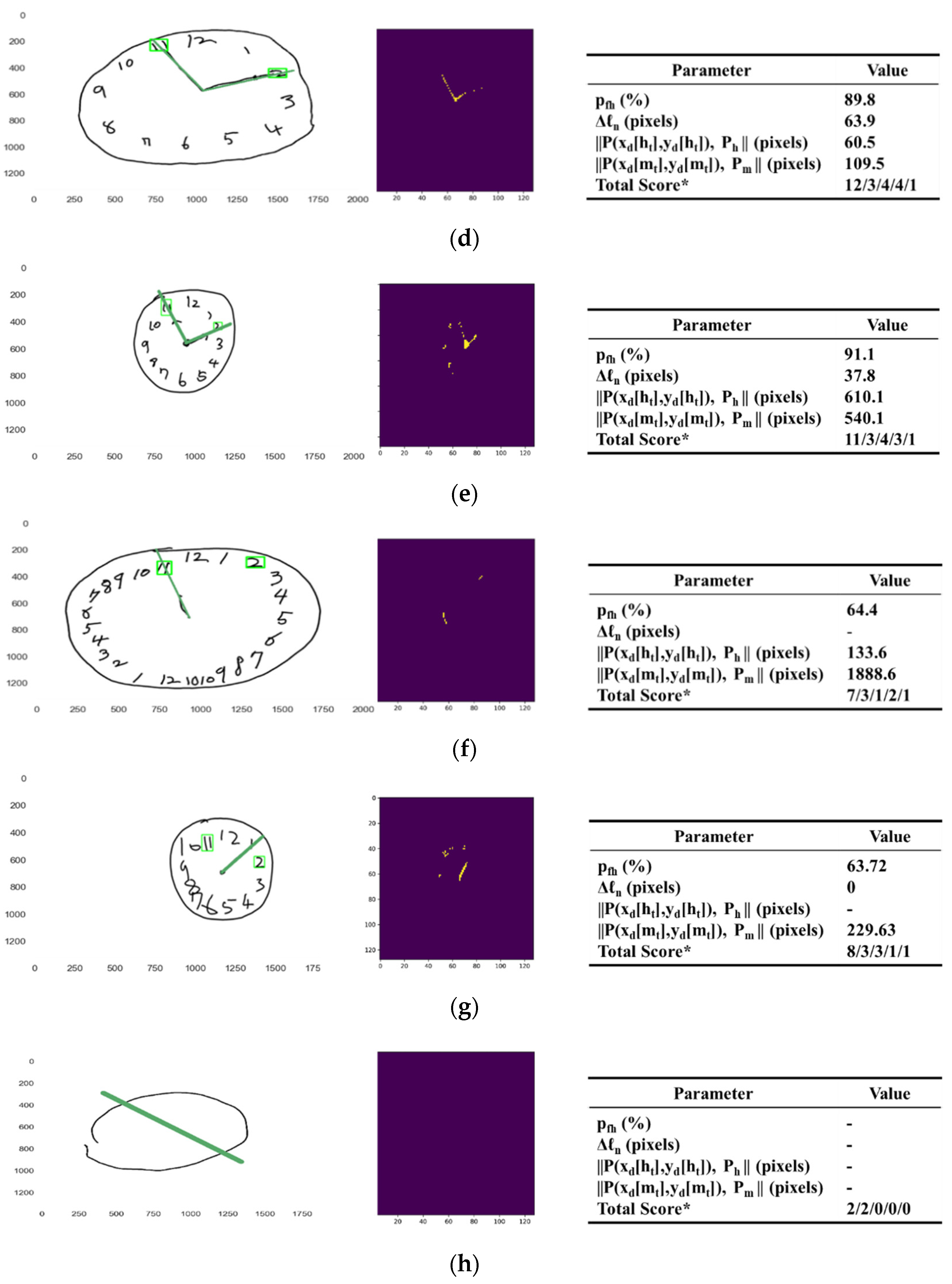

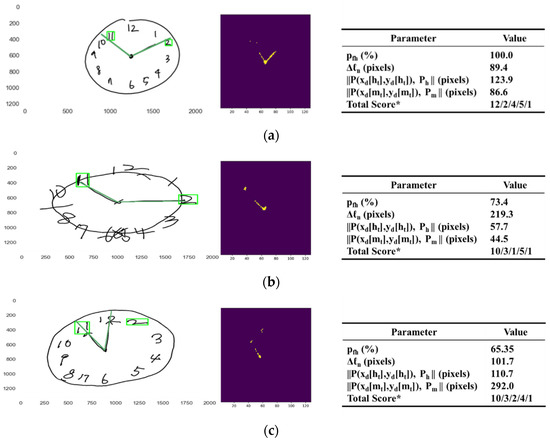

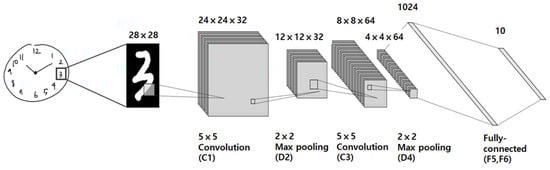

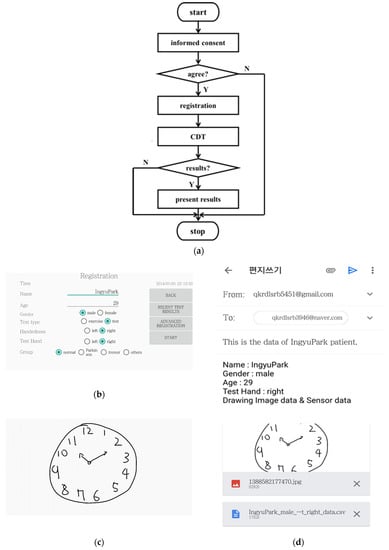

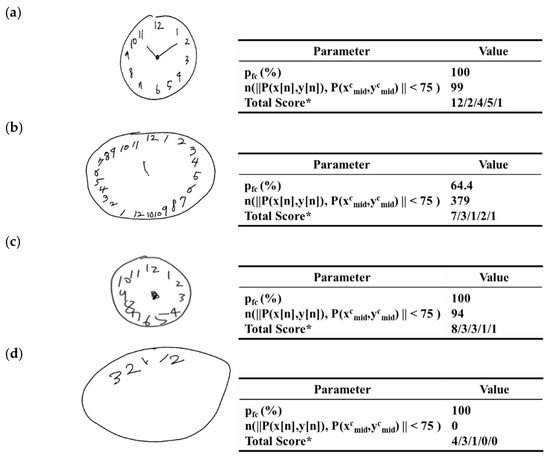

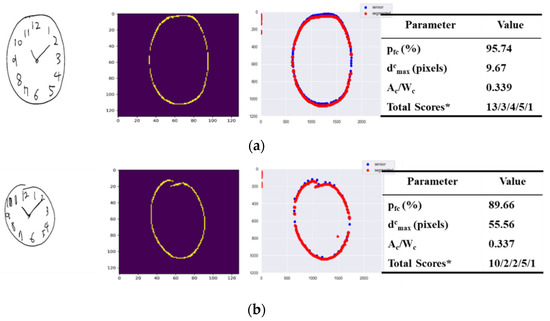

The Clock Drawing Test (CDT) is a rapid, inexpensive, and popular screening tool for cognitive functions. In spite of its qualitative capabilities in diagnosis of neurological diseases, the assessment of the CDT has depended on quantitative methods as well as manual paper based methods. Furthermore, due to the impact of the advancement of mobile smart devices imbedding several sensors and deep learning algorithms, the necessity of a standardized, qualitative, and automatic scoring system for CDT has been increased. This study presents a mobile phone application, mCDT, for the CDT and suggests a novel, automatic and qualitative scoring method using mobile sensor data and deep learning algorithms: CNN, a convolutional network, U-Net, a convolutional network for biomedical image segmentation, and the MNIST (Modified National Institute of Standards and Technology) database. To obtain DeepC, a trained model for segmenting a contour image from a hand drawn clock image, U-Net was trained with 159 CDT hand-drawn images at 128 × 128 resolution, obtained via mCDT. To construct DeepH, a trained model for segmenting the hands in a clock image, U-Net was trained with the same 159 CDT 128 × 128 resolution images. For obtaining DeepN, a trained model for classifying the digit images from a hand drawn clock image, CNN was trained with the MNIST database. Using DeepC, DeepH and DeepN with the sensor data, parameters of contour (0–3 points), numbers (0–4 points), hands (0–5 points), and the center (0–1 points) were scored for a total of 13 points. From 219 subjects, performance testing was completed with images and sensor data obtained via mCDT. For an objective performance analysis, all the images were scored and crosschecked by two clinical experts in CDT scaling. Performance test analysis derived a sensitivity, specificity, accuracy and precision for the contour parameter of 89.33, 92.68, 89.95 and 98.15%, for the hands parameter of 80.21, 95.93, 89.04 and 93.90%, for the numbers parameter of 83.87, 95.31, 87.21 and 97.74%, and for the center parameter of 98.42, 86.21, 96.80 and 97.91%, respectively. From these results, the mCDT application and its scoring system provide utility in differentiating dementia disease subtypes, being valuable in clinical practice and for studies in the field. View Full-Text
Keywords: clock drawing test; automatic scoring; wearable sensor; deep learning; U-Net; CNN; MNIST clock drawing test; automatic scoring; wearable sensor; deep learning; U-Net; CNN; MNIST
