A Novel Embeddable Tubular Piezoceramics-Based Smart Aggregate for Damage Detection in Two-Dimensional Concrete Structures

1
State Key Lab of Coastal and Offshore Engineering, Dalian University of Technology, Dalian 116024, China
2
Department of Mechanical Engineering, University of Houston, Houston, TX 77204, USA
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(7), 1501; https://doi.org/10.3390/s19071501
Received: 19 February 2019 / Revised: 22 March 2019 / Accepted: 26 March 2019 / Published: 28 March 2019
(This article belongs to the Special Issue Recent Advances of Piezoelectric Transducers and Applications)
  |
PDF [3056 KB, uploaded 28 March 2019]
  |

Abstract

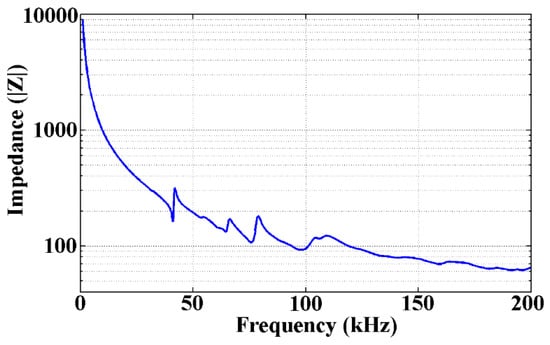

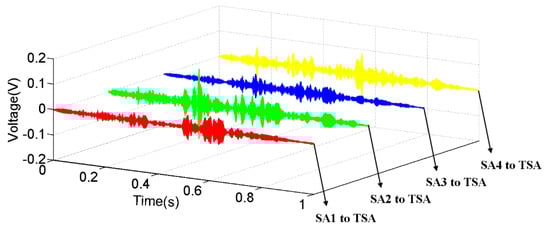

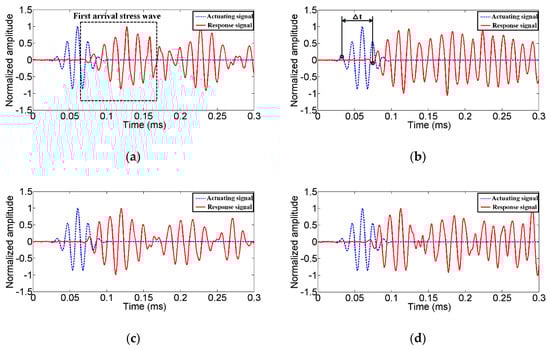

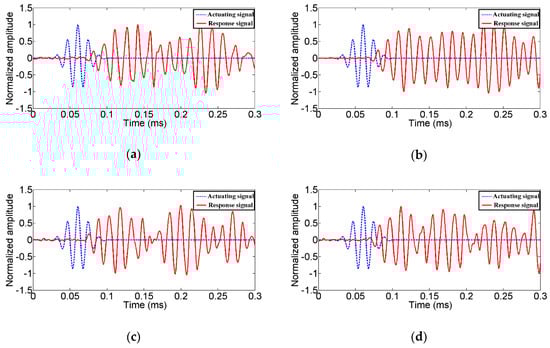

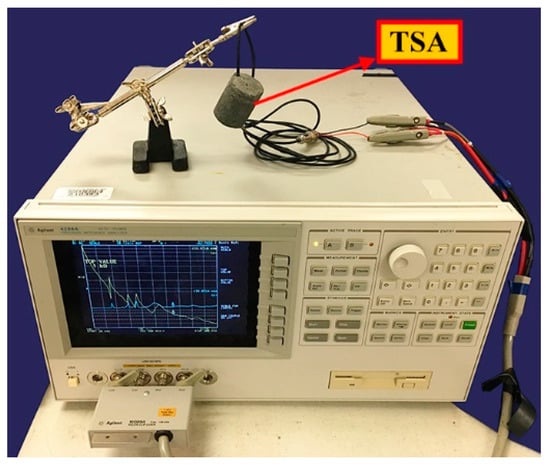

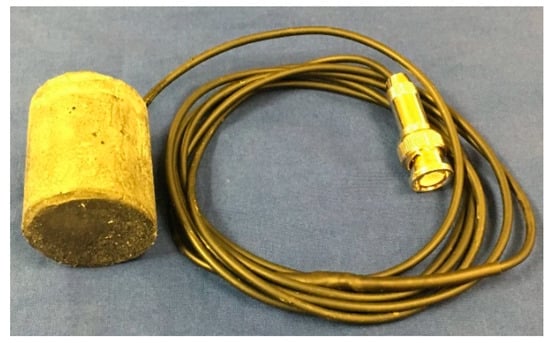

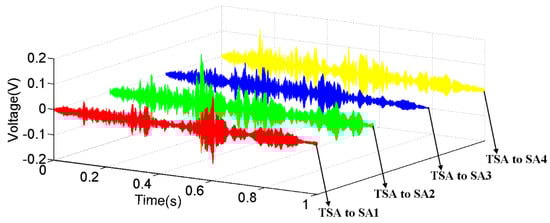

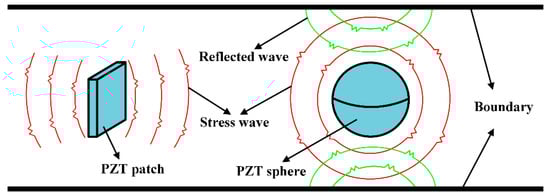

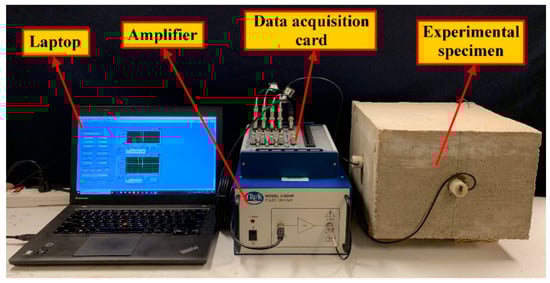

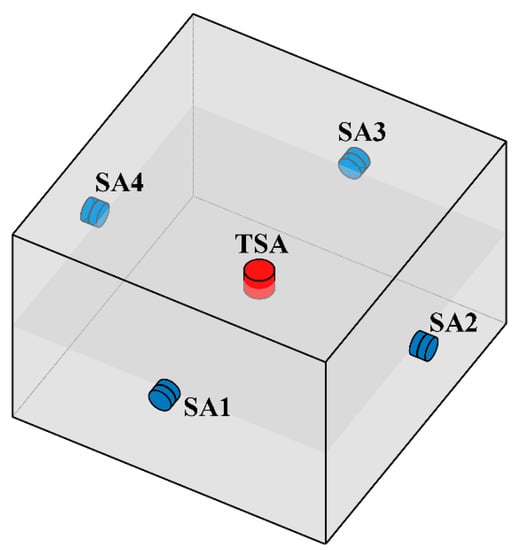

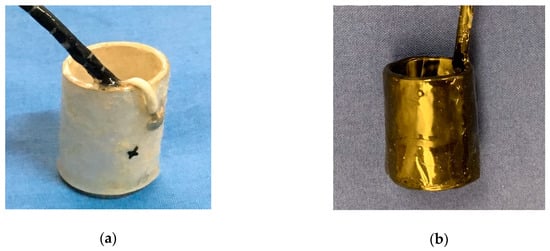

Due to their multiple advantages, piezoceramic materials have been widely used in structural health monitoring (SHM). Piezoceramic patch-based smart aggregate (SA) and spherical piezoceramic-based smart aggregate (SSA) have been developed for damage detection of concrete structures. However, the stress waves generated by these two types of transducers are limited by their geometry and are unsuitable for use in two-dimensional concrete structures (e.g., shear walls, floors and cement concrete pavements). In this paper, a novel embeddable tubular smart aggregate (TSA) based on a piezoceramic tube was designed, fabricated and tested for use in two-dimensional (2D) structures. Due to its special geometry, radially uniform stress waves can be generated, and thus the TSA is suitable for damage detection in planar structures. The suitability of the transducer for use in structural health monitoring was investigated by characterizing the ability of the transducer to transmit and measure stress waves. Three experiments, including impedance analysis, time of arrival analysis and sweep frequency analysis, were conducted to test the proposed TSA. The experimental results show that the proposed TSA is suitable for monitoring the health condition of two-dimensional concrete structures. View Full-Text
Keywords: piezoceramic; tubular smart aggregate (TSA); structure health monitoring; two-dimensional (2D) concrete structures piezoceramic; tubular smart aggregate (TSA); structure health monitoring; two-dimensional (2D) concrete structures
