Next Article in Journal
Spherical Reverse Beamforming for Sound Source Localization Based on the Inverse Method
Next Article in Special Issue
Stress-Insensitive Resonant Graphene Mass Sensing via Frequency Ratio
Previous Article in Journal
Design and Validation of Probes and Sensors for the Characterization of Magneto-Ionic Radio Wave Propagation on Near Vertical Incidence Skywave Paths
Open AccessArticle

Near Room Temperature Light-Activated WS2-Decorated rGO as NO2 Gas Sensor

1
Department of Industrial and Information Engineering and Economics, Via G. Gronchi 18, University of L’Aquila, I-67100 L’Aquila, Italy
2
Department of Physical and Chemical Sciences, Via Vetoio 10, University of L’Aquila, I-67100 L’Aquila, Italy
3
CNR-SPIN Uos L’Aquila, Via Vetoio 10, I-67100 L’Aquila, Italy
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(11), 2617; https://doi.org/10.3390/s19112617
Received: 10 May 2019 / Revised: 2 June 2019 / Accepted: 6 June 2019 / Published: 9 June 2019
(This article belongs to the Special Issue Applications of Graphene-Based Materials in Sensors)

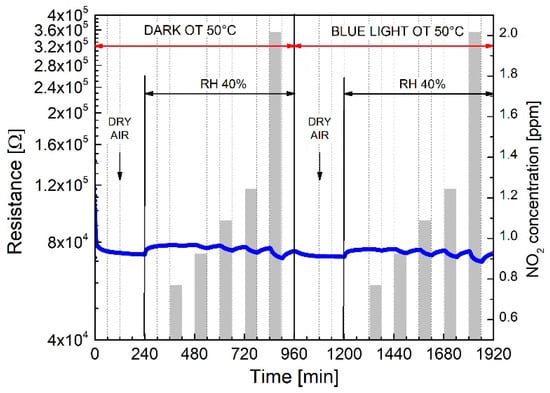

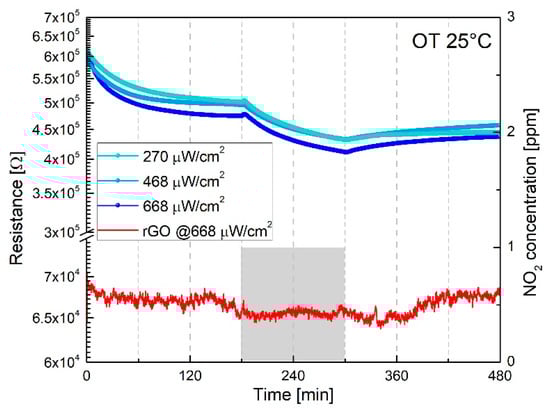

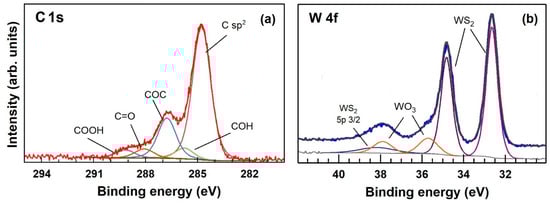

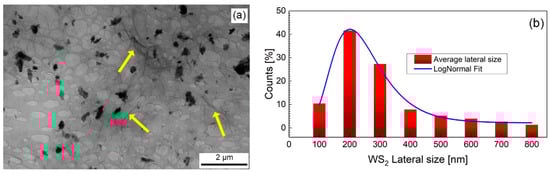

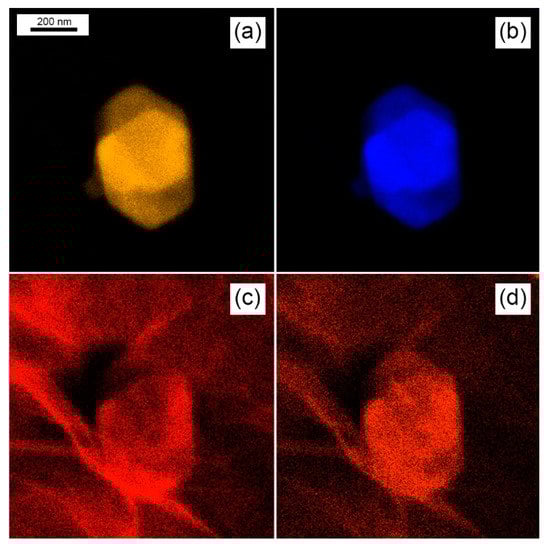

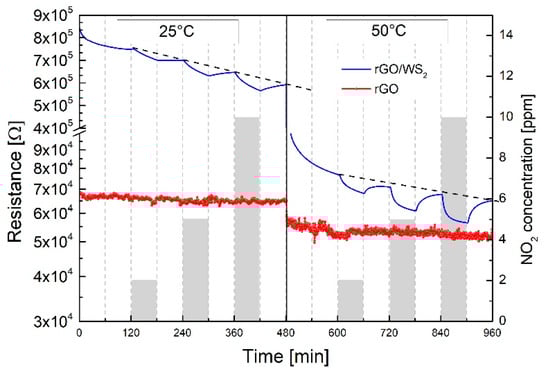

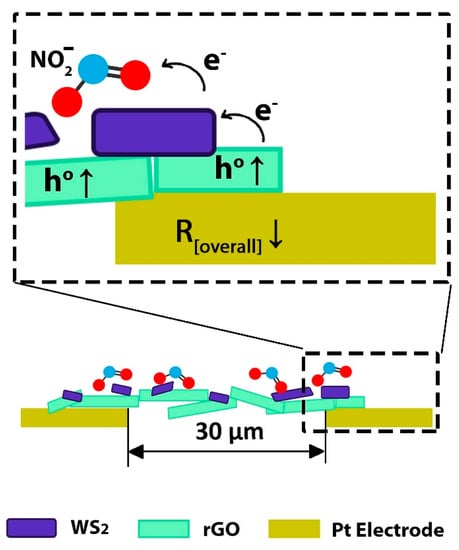

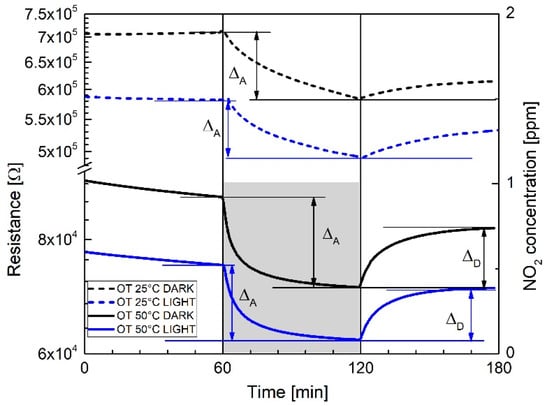

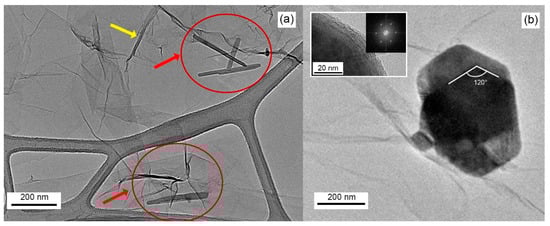

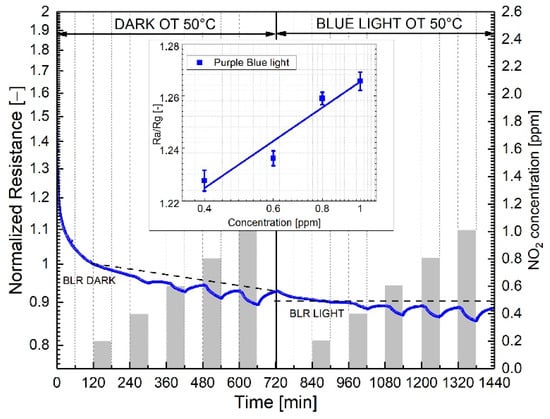

The NO2 response in the range of 200 ppb to 1 ppm of a chemoresistive WS2-decorated rGO sensor has been investigated at operating temperatures of 25 °C and 50 °C in dry and humid air (40% RH) under dark and Purple Blue (PB) light conditions (λ = 430 nm). Few-layers WS2, exfoliated by ball milling and sonication technique, with average dimensions of 200 nm, have been mixed with rGO flakes (average dimension 700 nm) to yield WS2-decorated rGO, deposited on Si3N4 substrates, provided with platinum (30 μm gap distance) finger-type electrodes. TEM analysis showed the formation of homogeneous and well-dispersed WS2 flakes distributed over a thin, continuous and uniform underlying layer of interconnected rGO flakes. XPS and STEM revealed a partial oxidation of WS2 flakes leading to the formation of 18% amorphous WO3 over the WS2 flakes. PB-light irradiation and mild heating of the sensor at 50 °C substantially enhanced the baseline recovery yielding improved adsorption/desorption rates, with detection limit of 400 ppb NO2 and reproducible gas responses. Cross sensitivity tests with humid air interfering vapor highlighted a negligible influence of water vapor on the NO2 response. A charge carrier mechanism between WS2 and rGO is proposed and discussed to explain the overall NO2 and H2O response of the WS2–rGO hybrids. View Full-Text
Keywords: WS2–rGO hybrids; chemoresistive sensors; NO2; Purple Blue light activation WS2–rGO hybrids; chemoresistive sensors; NO2; Purple Blue light activation
Show Figures

Figure 1

MDPI and ACS Style

Paolucci, V.; Emamjomeh, S.M.; Ottaviano, L.; Cantalini, C. Near Room Temperature Light-Activated WS2-Decorated rGO as NO2 Gas Sensor. Sensors 2019, 19, 2617.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
