Sensors 2018, 18(12), 4315; https://doi.org/10.3390/s18124315

A Fast Calibration Method for Phased Arrays by Using the Graph Coloring Theory

Key Laboratory of Ocean Observation-Imaging Testbed of Zhejiang Province, Institute of Marine Electronic and Intelligent System, Ocean College, Zhejiang University, 316021 Zhoushan, China
*
Authors to whom correspondence should be addressed.
Received: 21 October 2018 / Revised: 2 December 2018 / Accepted: 5 December 2018 / Published: 7 December 2018
(This article belongs to the Special Issue Recent Advances in Array Processing for Wireless Applications)
Full-Text   |   PDF [3725 KB, uploaded 7 December 2018]   |

Abstract

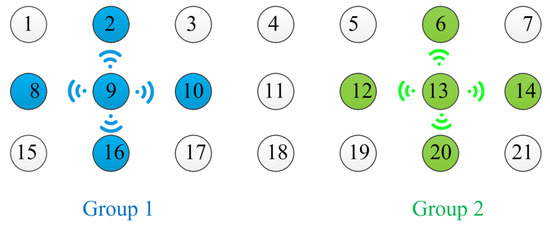

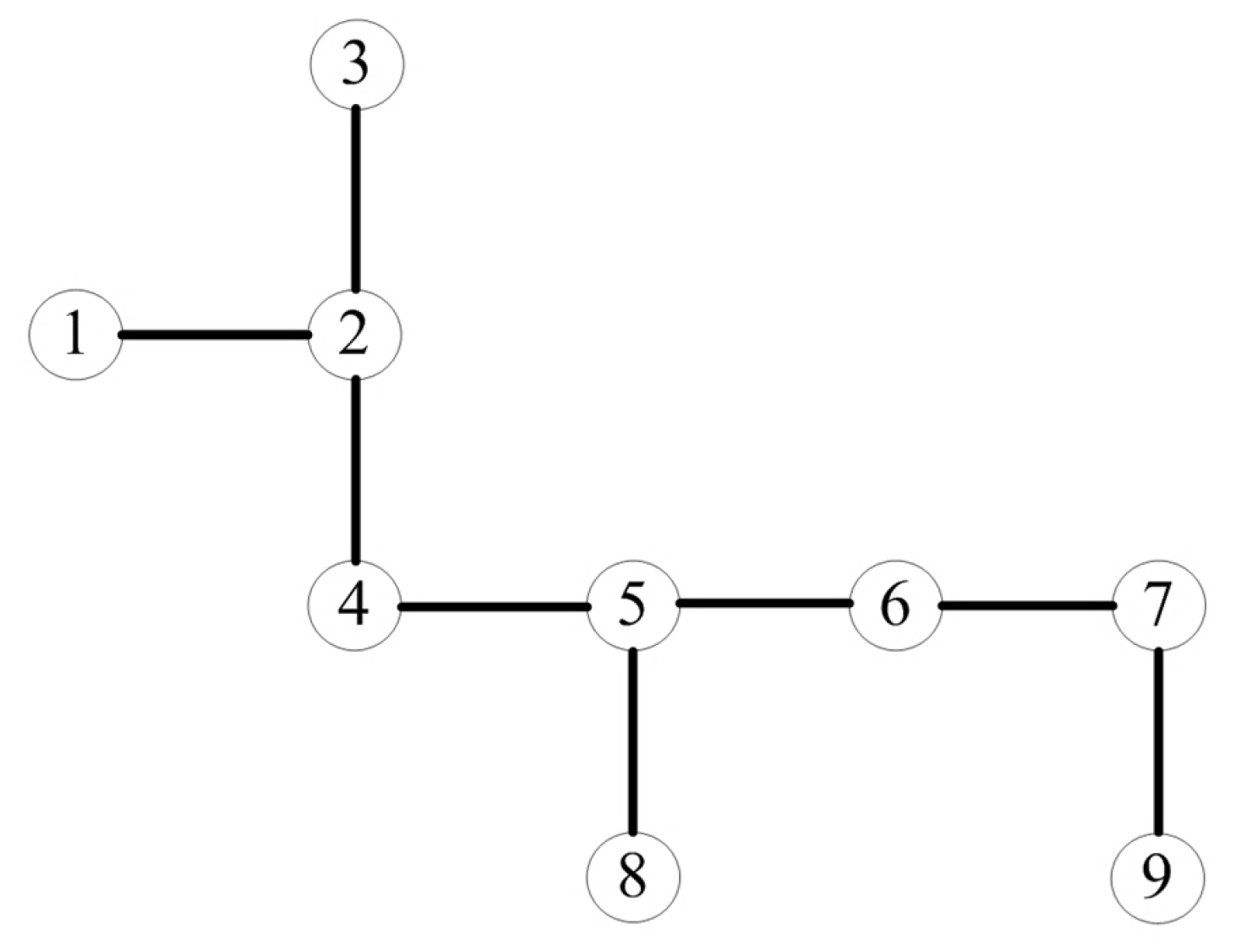

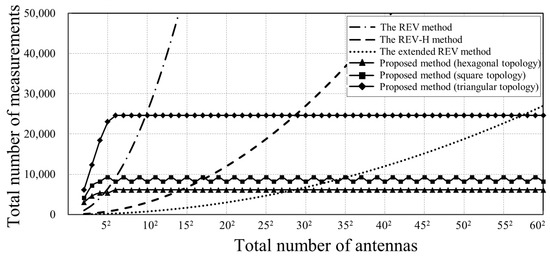

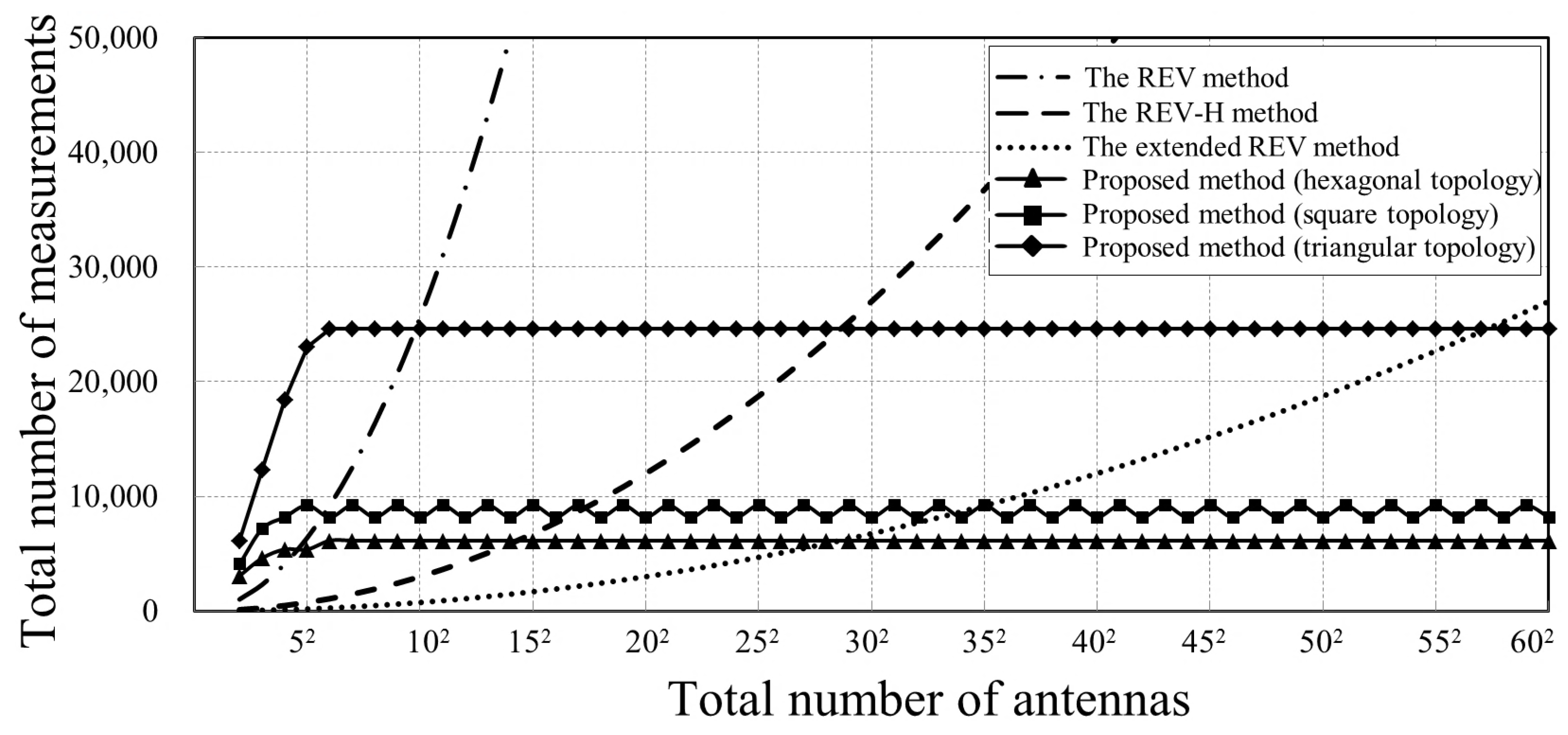

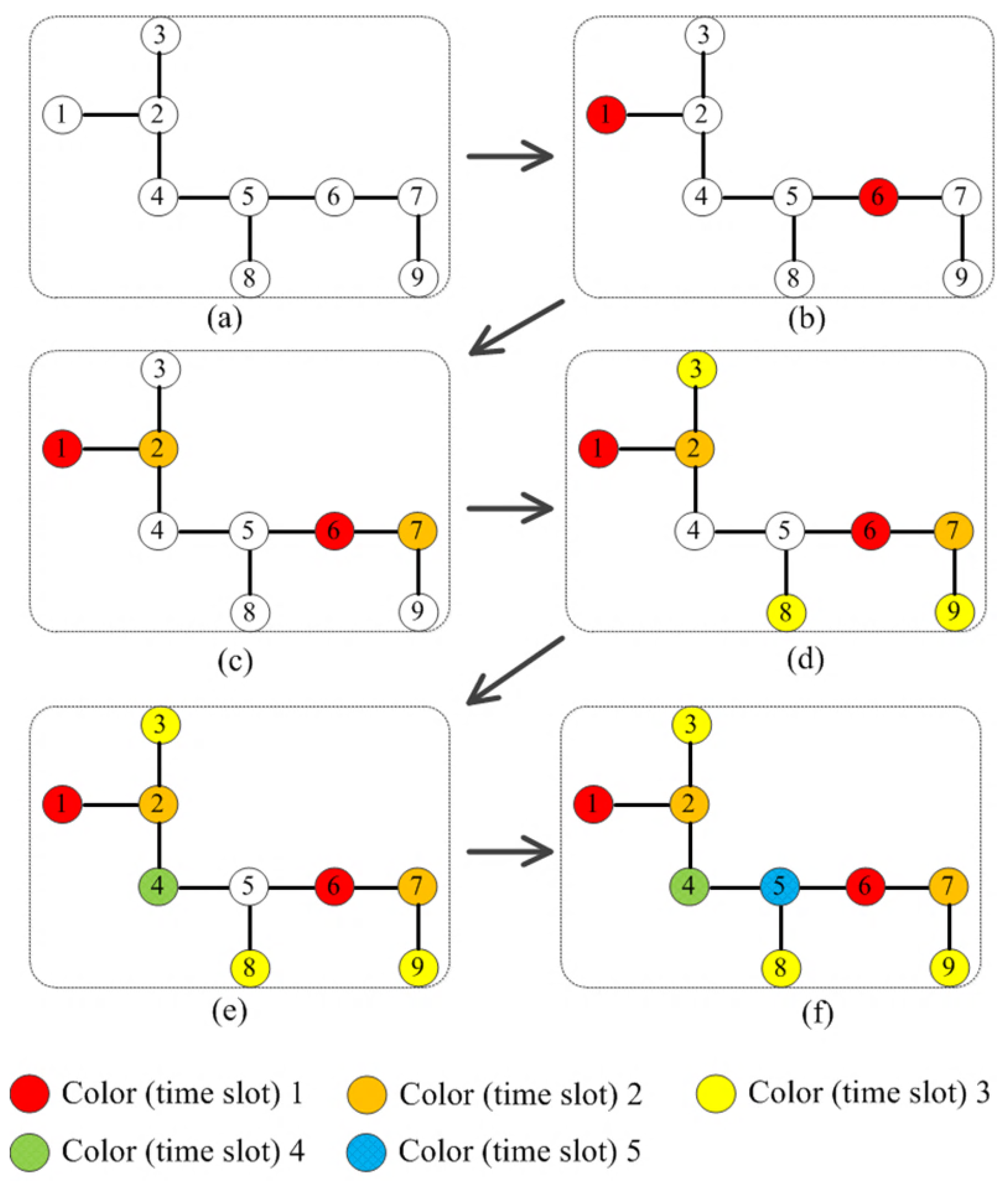

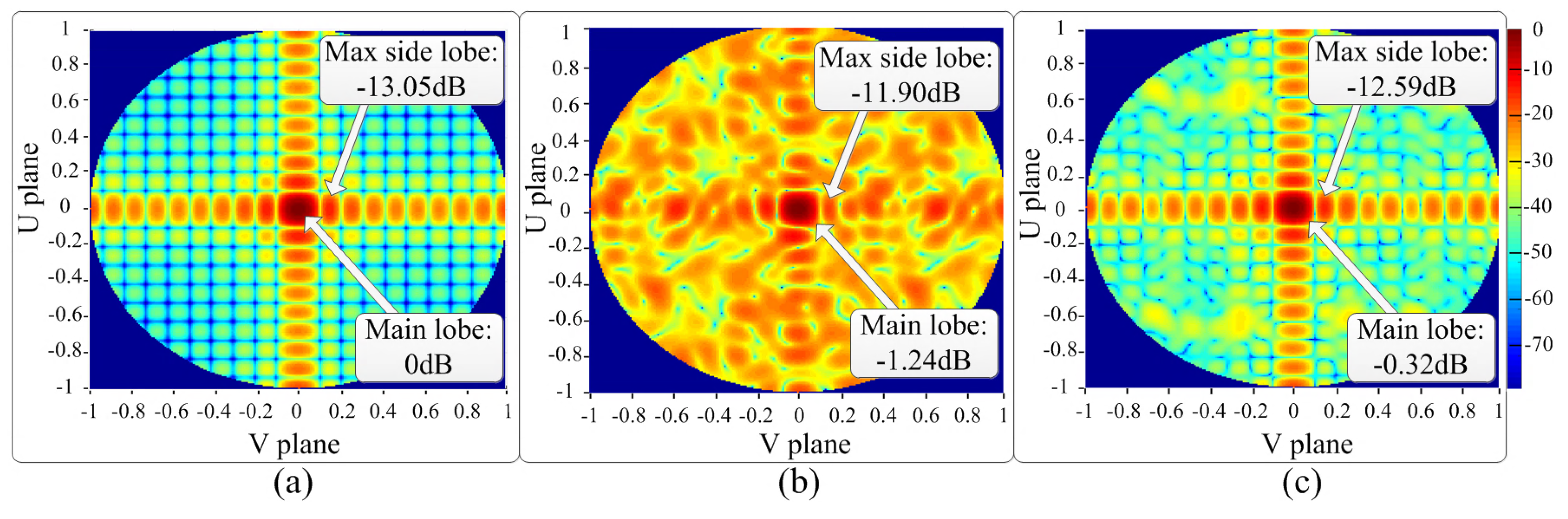

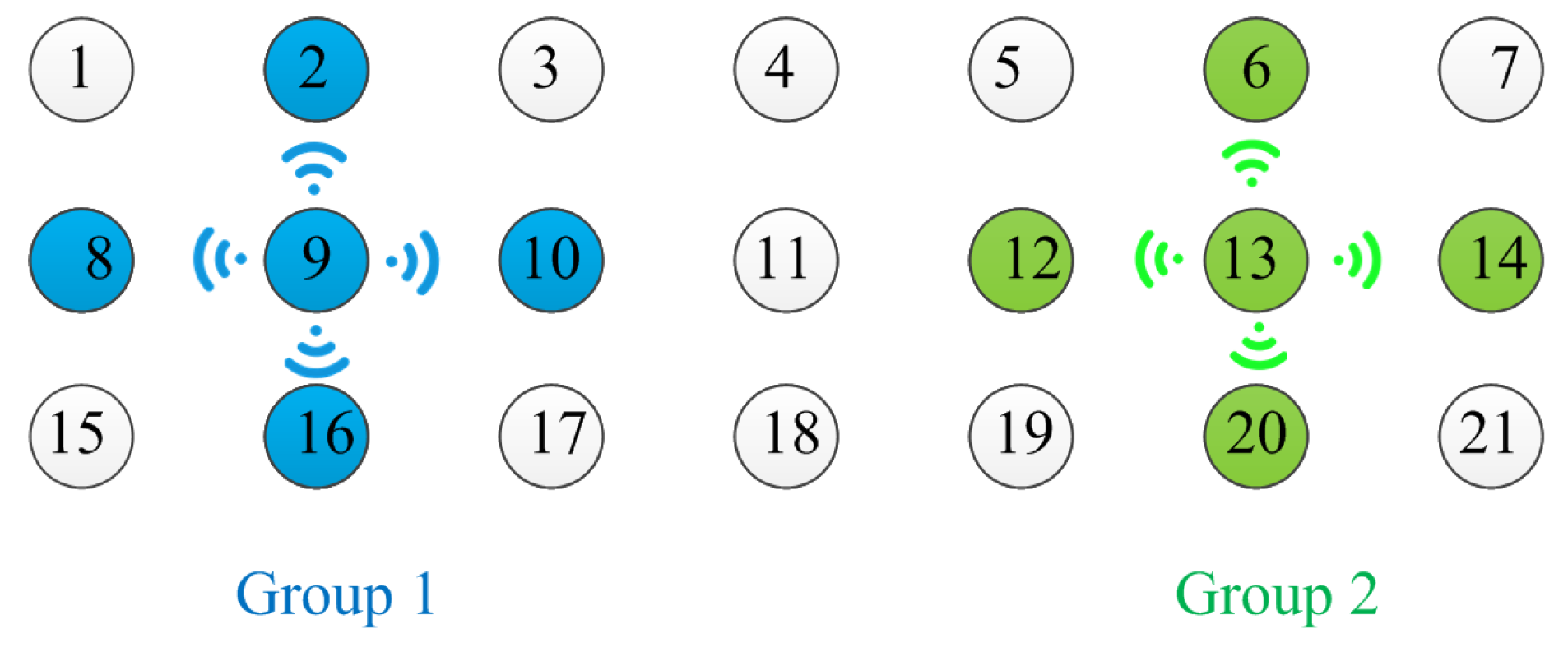

Phased array radars are able to provide highly accurate airplane surveillance and tracking performance if they are properly calibrated. However, the ambient temperature variation and device aging could greatly deteriorate their performance. Currently, performing a calibration over a large-scale phased array with thousands of antennas is time-consuming. To facilitate the process, we propose a fast calibration method for phased arrays with omnidirectional radiation patterns based on the graph coloring theory. This method transforms the calibration problem into a coloring problem that aims at minimizing the number of used colors. By reusing the calibration time slots spatially, more than one omnidirectional antenna can perform calibration simultaneously. The simulation proves this method can prominently reduce total calibration time and recover the radiation pattern from amplitude and phase errors and noise. It is worth noting that the total calibration time consumed by the proposed method remains constant and is negligible compared with other calibration methods. View Full-Text
Keywords: amplitude and phase errors; calibration; graph coloring theory; mutual coupling effect; planar phased array amplitude and phase errors; calibration; graph coloring theory; mutual coupling effect; planar phased array
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
