Open AccessCommunication
Sensors 2018, 18(12), 4246; https://doi.org/10.3390/s18124246

Design and Analysis of a Quasi-Yagi Antenna for an Indoor Location Tracking System

1
IT Research Institute, Chosun University, Gwangju 61452, Korea
2
SW Convergence Education Institute, Chosun University, Gwangju 61452, Korea
3
Department of Information and Communication Engineering, Graduate School, Chosun University, Gwangju 61452, Korea
*
Author to whom correspondence should be addressed.
Received: 6 November 2018 / Revised: 26 November 2018 / Accepted: 30 November 2018 / Published: 3 December 2018
(This article belongs to the Special Issue RF Technology for Sensor Applications)
Full-Text   |   PDF [4877 KB, uploaded 3 December 2018]   |

Abstract

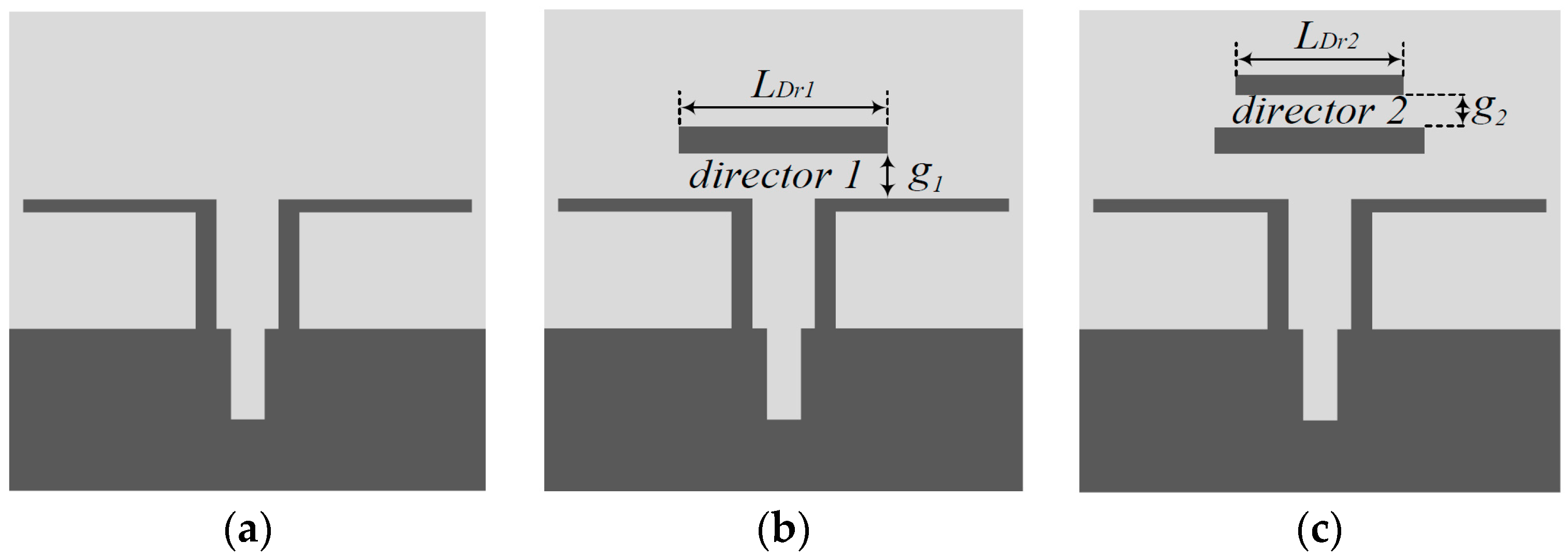

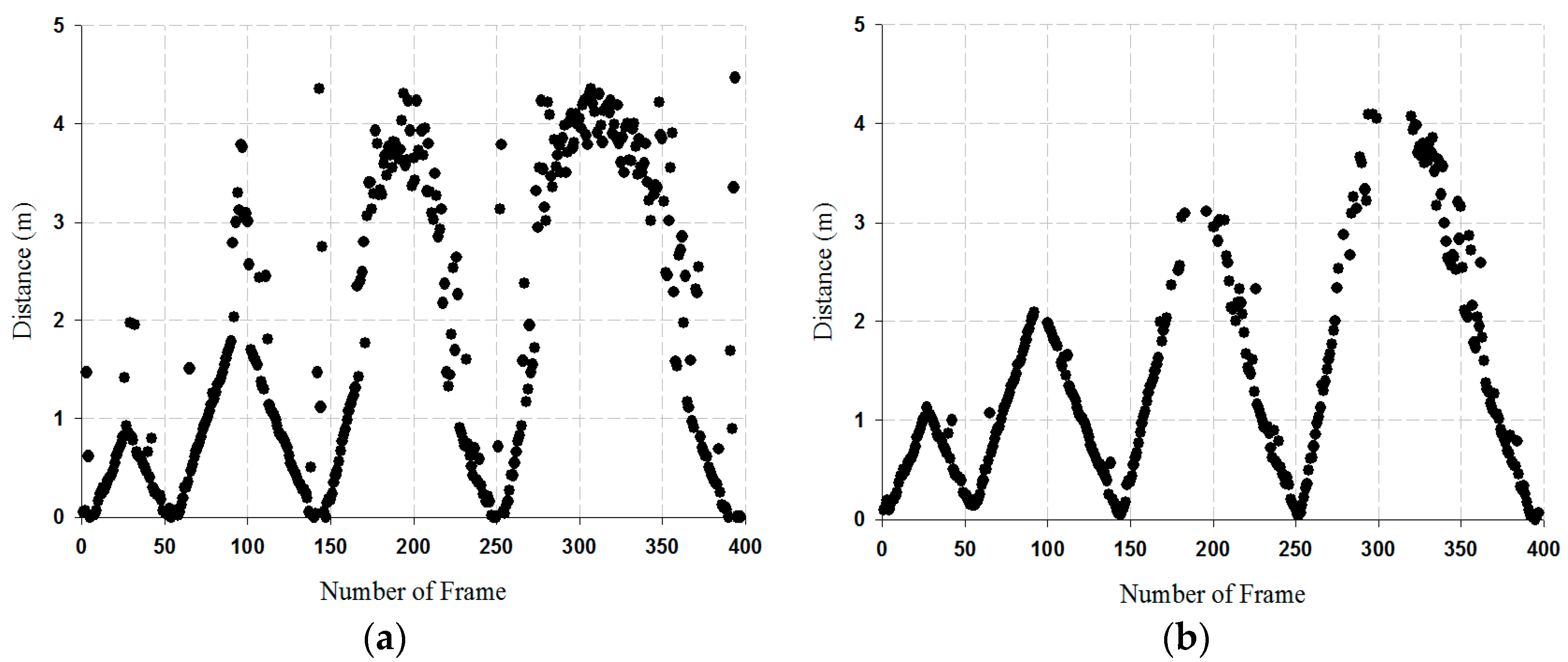

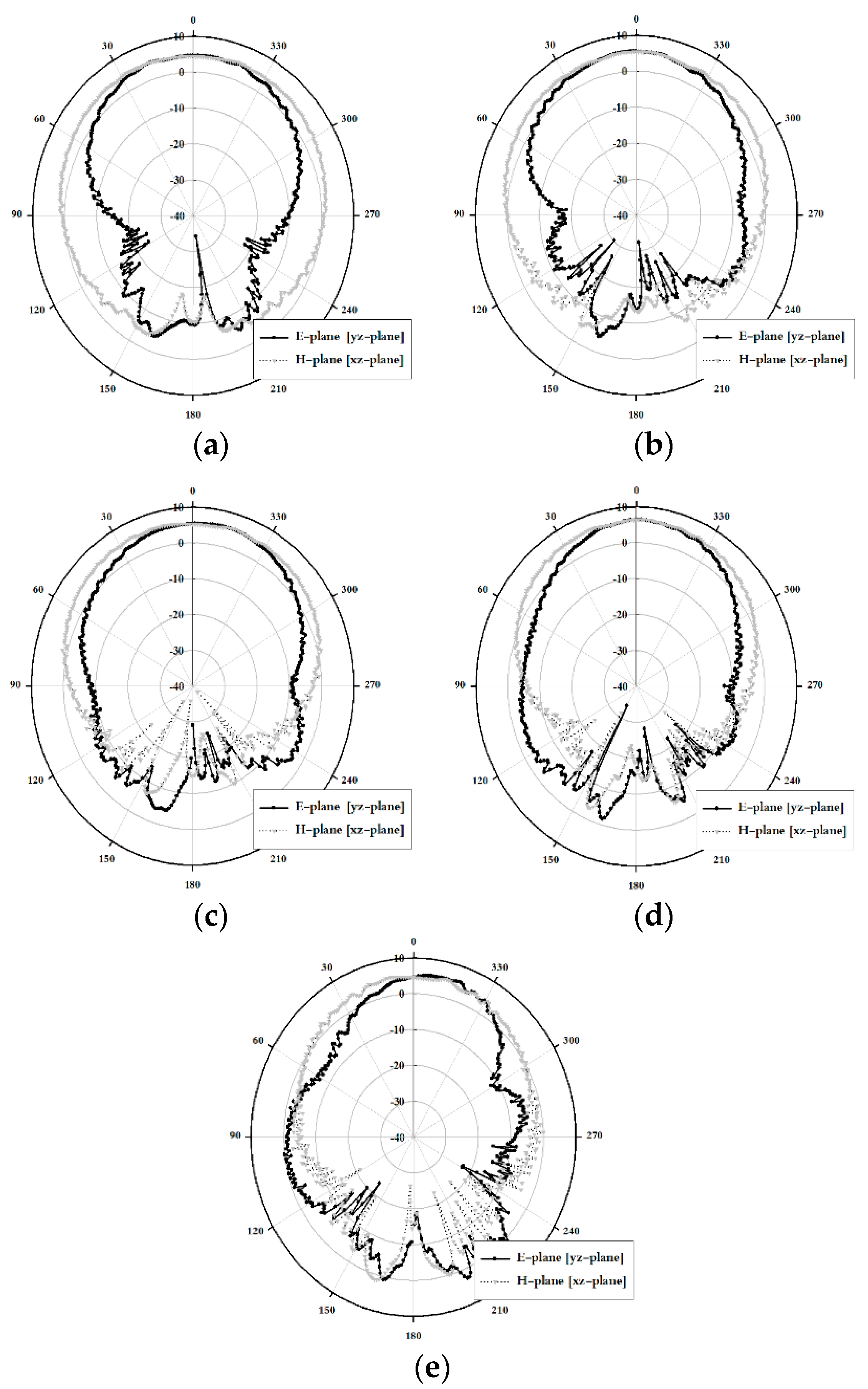

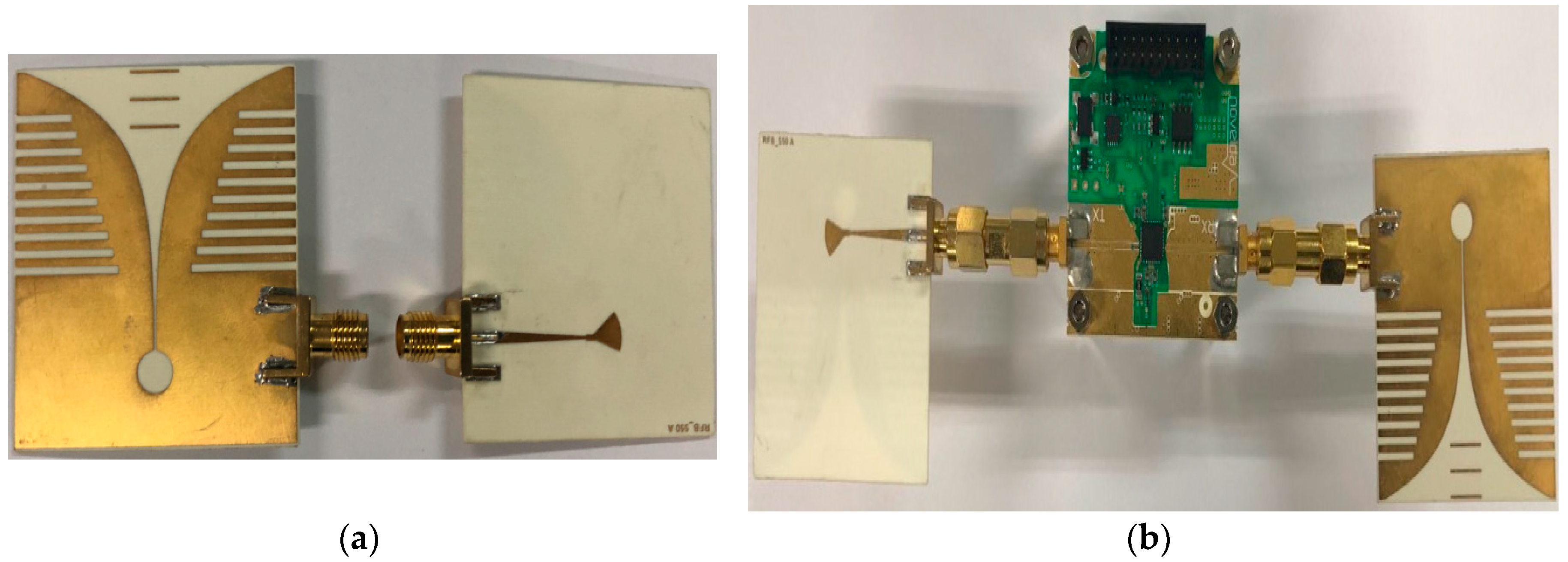

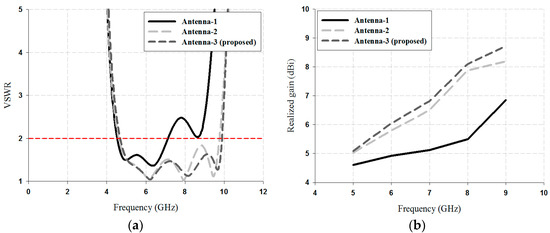

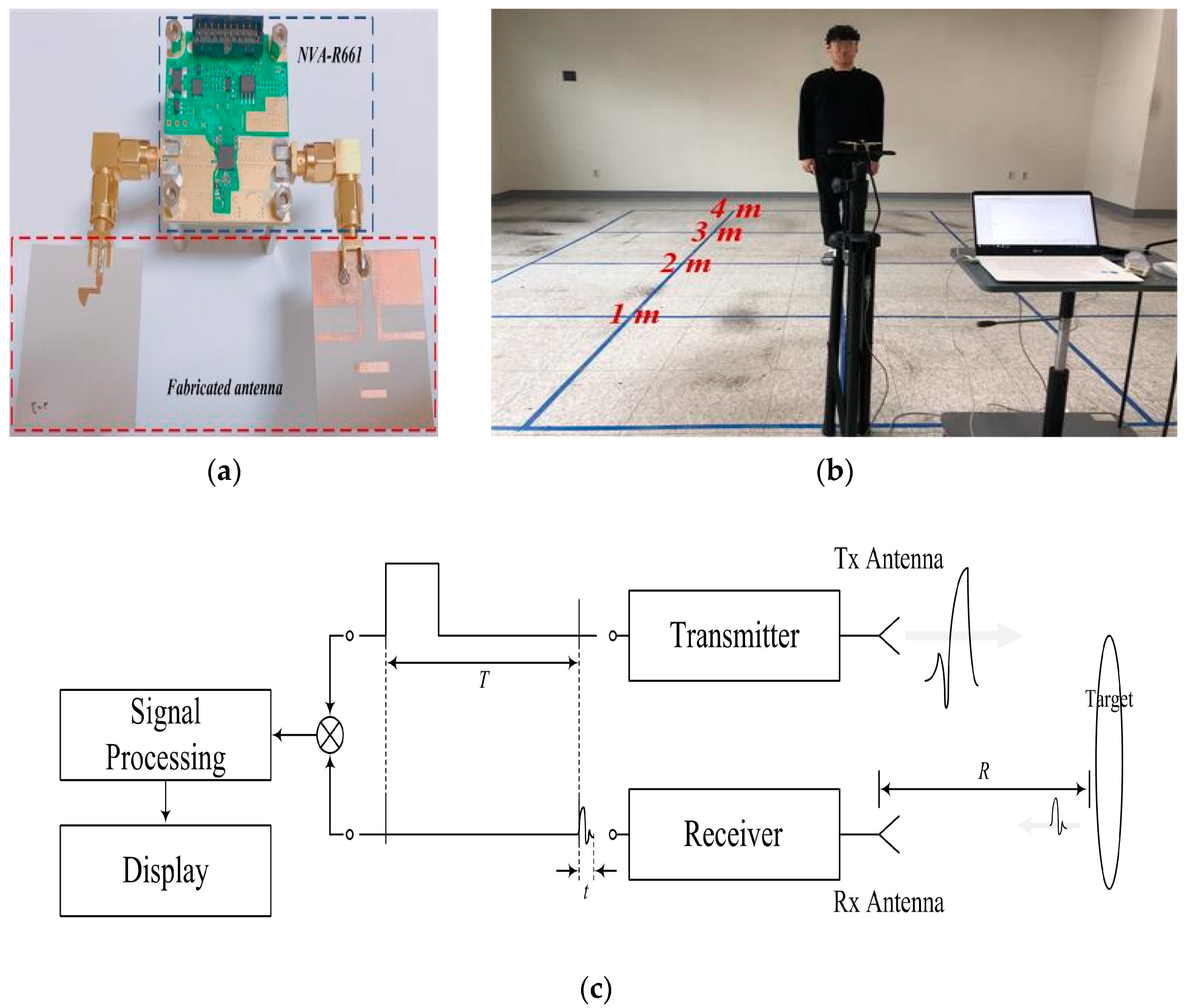

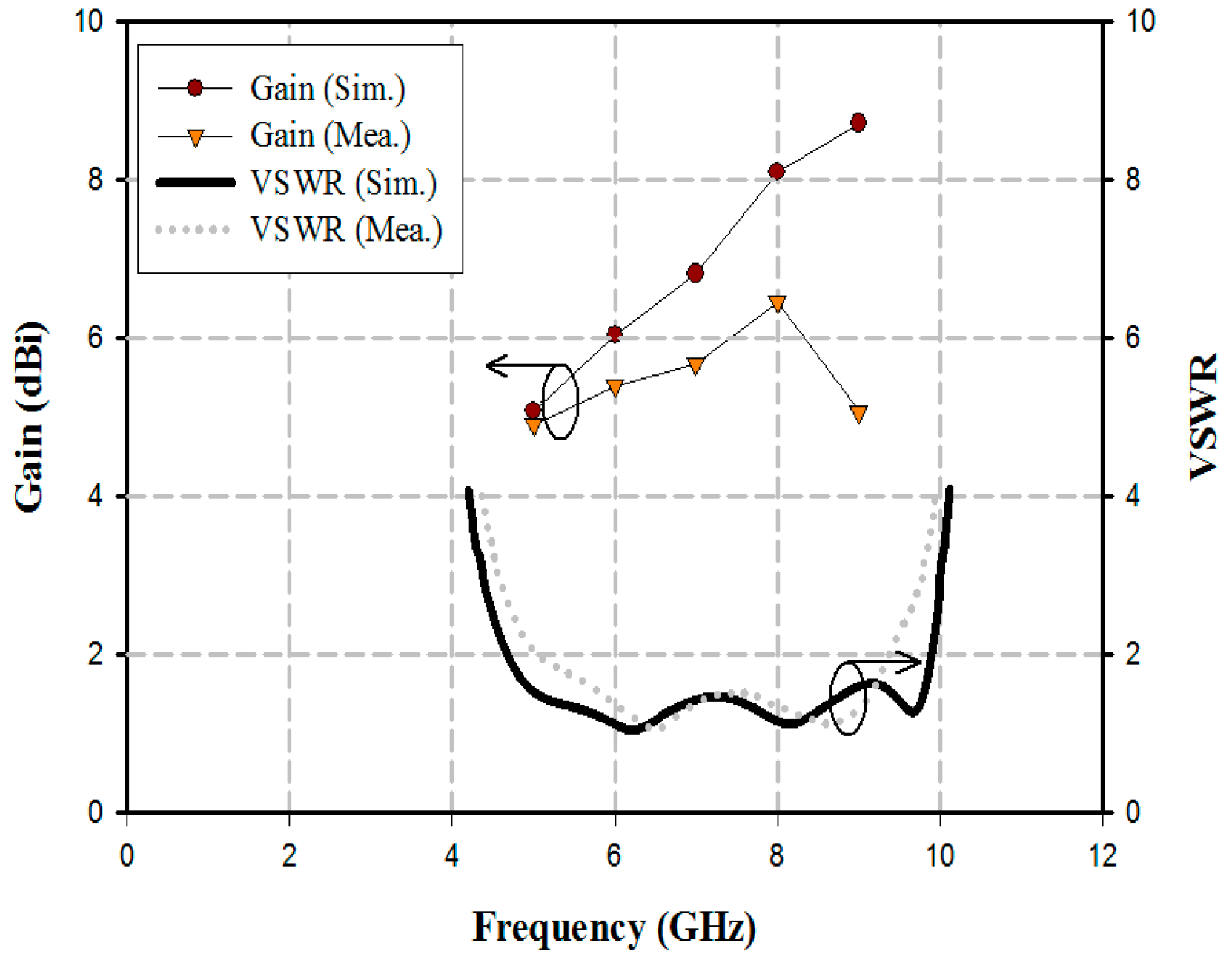

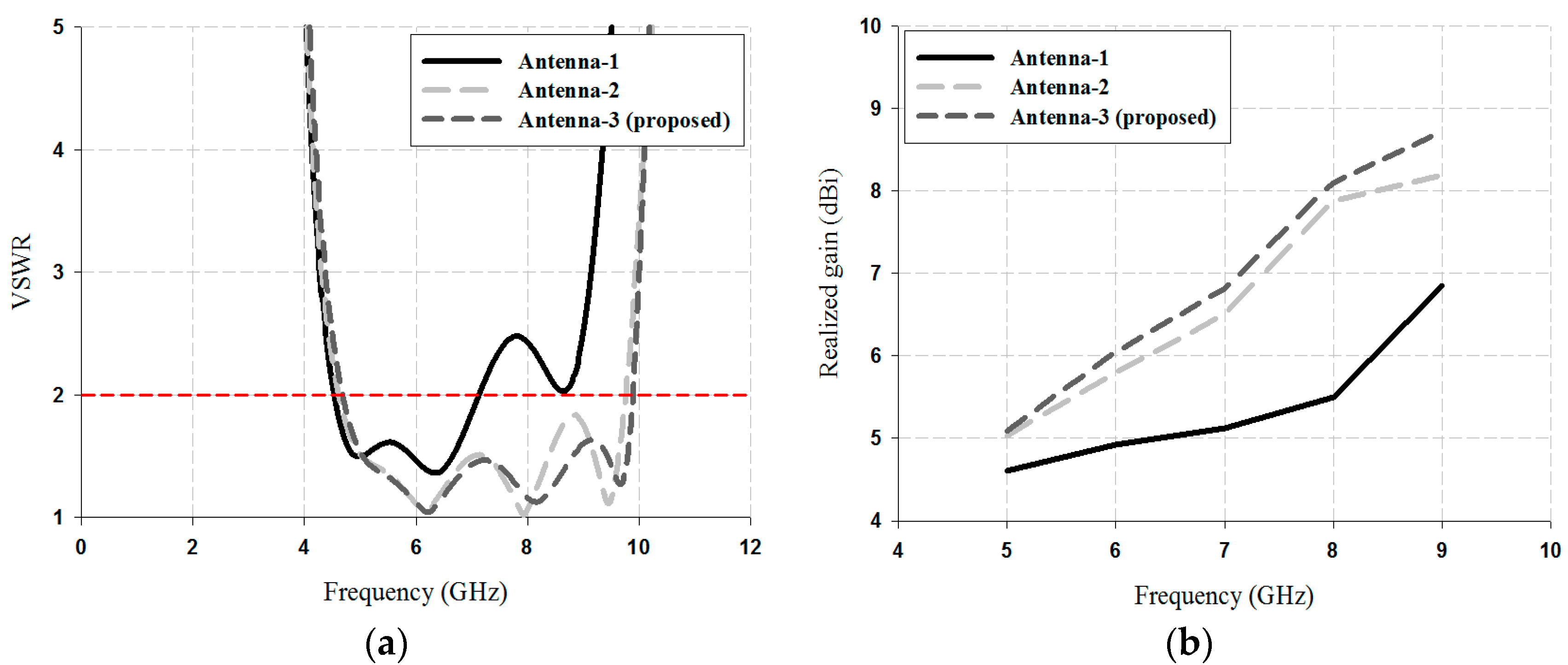

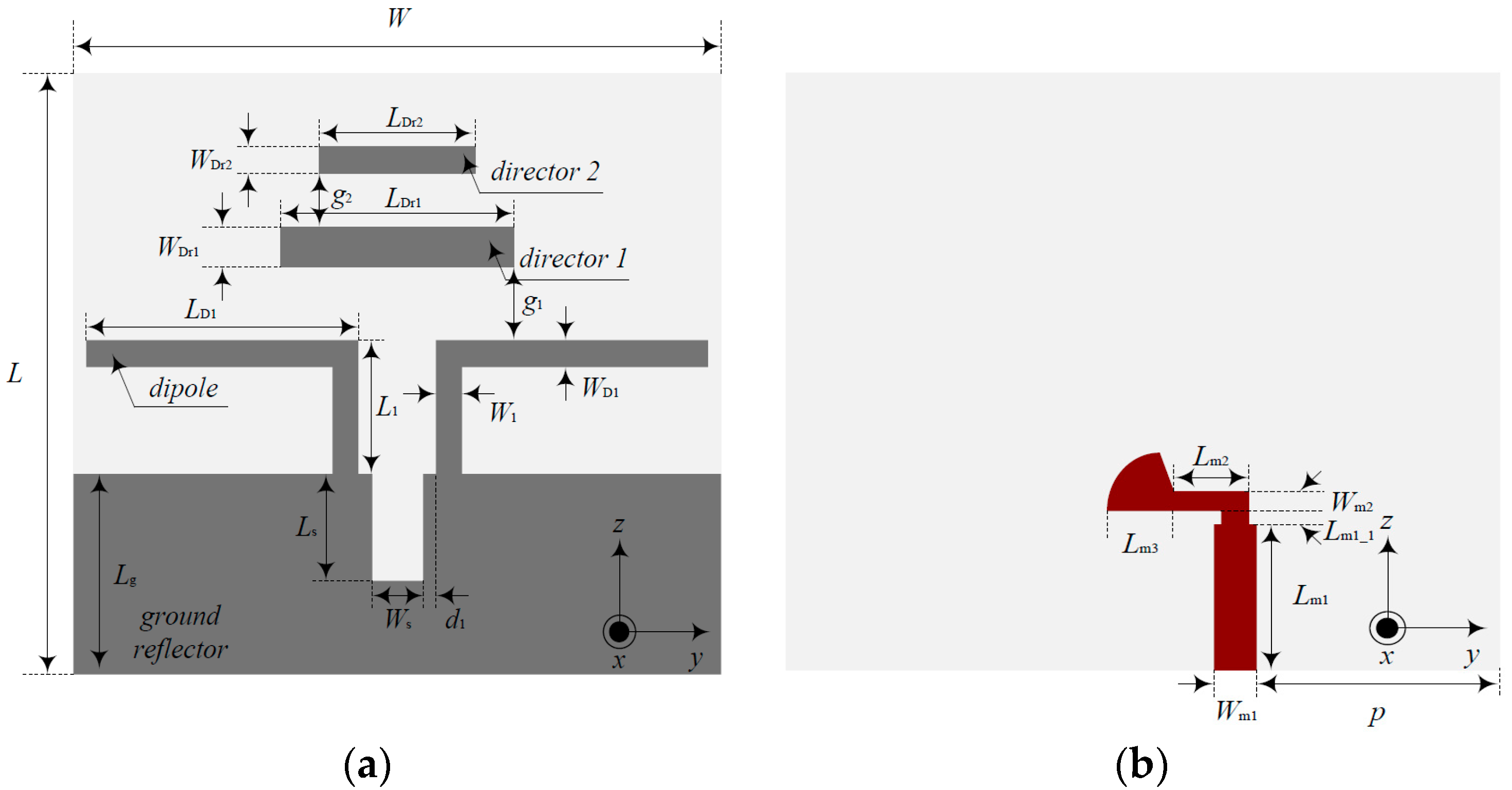

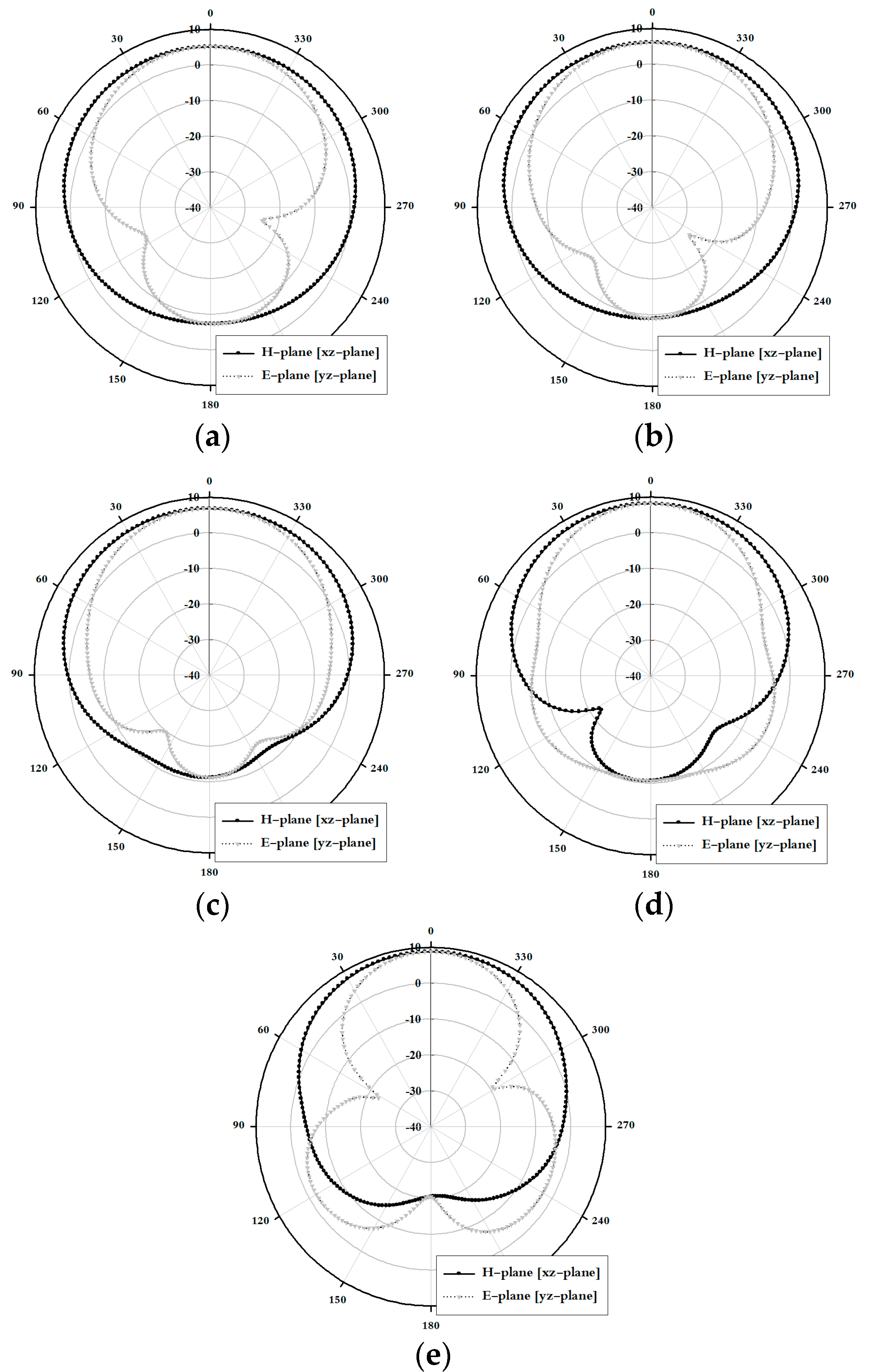

In this paper, a quasi-Yagi antenna for an indoor location tracking system is proposed. The performance of the proposed antenna was verified by testing it using an indoor location tracking system. To improve the bandwidth and gain, two parasitic directors were added near the dipole. The performance verification of the proposed antenna is explained, along with a performance comparison of the VSWR (voltage standing wave ratio) radiation pattern and the realized gain. The proposed antenna was connected to an NVA-R661 module of Xethru Inc. for indoor location tracking. The proposed antenna exhibited a wide bandwidth of 4.36 GHz by satisfying a VSWR ≤ 2 from 5.03 to 9.39 GHz, the maximum gain was 6.46 dBi in the 8 GHz band. The radiation pattern exhibited a good directivity characteristic within the proposed band. The location tracking result of a moving target clearly describes the route of the target along a moving line. View Full-Text
Keywords: quasi-yagi antenna; indoor location tracking system; IR-UWB (Impulse-Radio Ultra Wideband) radar; parasitic director quasi-yagi antenna; indoor location tracking system; IR-UWB (Impulse-Radio Ultra Wideband) radar; parasitic director
