# An Improved Alignment Method for the Strapdown Inertial Navigation System (SINS)

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Reference Frames Definition

- $i$-frame: Earth-Centered Initially Fixed (ECIF) orthogonal reference frame.
- $e$-frame: Earth-Centered Earth-Fixed (ECEF) orthogonal reference frame.
- $t$-frame: Orthogonal reference frame aligned with East-North-Up (ENU) geographic frame.
- $b$-frame: body frame.
- $n$-frame: navigation frame.
- $p$-frame: Pseudo-Earth-Centered Earth-Fixed (PECEF) orthogonal reference frame obtained by two successive transformations from $e$-frame.
- ${t}_{p}$-frame: pseudo-orthogonal reference frame aligned with pseudo-East-North-Up $({E}_{p}{N}_{p}{U}_{p})$ pseudo-geographic frame.

## 3. The Analysis of Problem

## 4. The Principle of the Proposed Algorithm

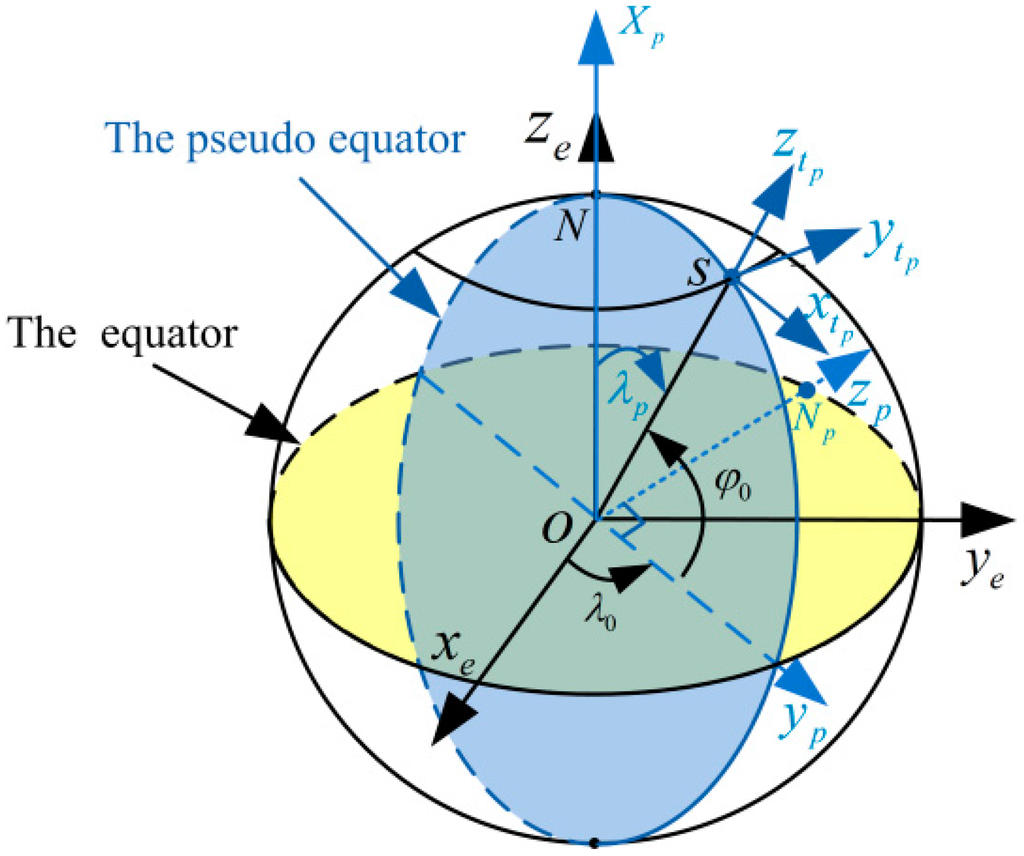

#### 4.1. The Definition of the Pseudo-Frame

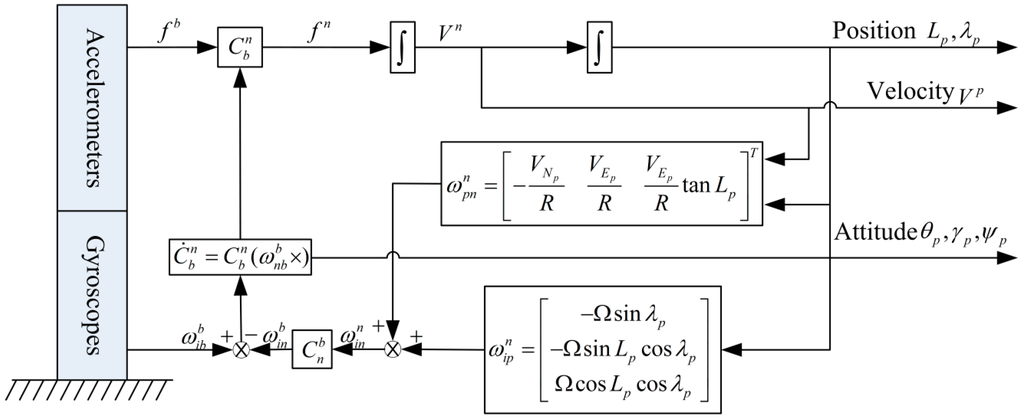

#### 4.2. The Mechanization of the SINS in Pseudo-Frame

#### 4.3. The Static Error Equations of the SINS in Pseudo-Frame

- The velocity error equations:$$\delta {\dot{V}}_{{E}_{p}}=2\Omega \mathrm{cos}{L}_{p}\mathrm{cos}{\lambda}_{p}\delta {V}_{{N}_{p}}-g{\varphi}_{{y}_{p}}+{\nabla}_{{E}_{p}}\mathrm{and}$$$$\delta {\dot{V}}_{{N}_{p}}=-2\Omega \mathrm{cos}{L}_{p}\mathrm{cos}{\lambda}_{p}\delta {V}_{{E}_{p}}+g{\varphi}_{{x}_{p}}+{\nabla}_{{N}_{p}}$$
- The attitude error equations:$${\dot{\varphi}}_{{x}_{p}}=-\Omega \mathrm{cos}{\lambda}_{p}\delta {\lambda}_{p}-\frac{\delta {V}_{{N}_{p}}}{R}+\Omega \mathrm{cos}{L}_{p}\mathrm{cos}{\lambda}_{p}{\varphi}_{{y}_{p}}+\Omega \mathrm{sin}{L}_{p}\mathrm{cos}{\lambda}_{p}{\varphi}_{{z}_{p}}+\text{}{\epsilon}_{{E}_{p}}$$$${\dot{\varphi}}_{{y}_{p}}=-\Omega \mathrm{cos}{L}_{p}\mathrm{cos}{\lambda}_{p}\delta {L}_{p}+\Omega \mathrm{sin}{L}_{p}\mathrm{sin}{\lambda}_{p}\delta {\lambda}_{p}+\frac{\delta {V}_{{E}_{p}}}{R}-\Omega \mathrm{cos}{L}_{p}\mathrm{cos}{\lambda}_{p}{\varphi}_{{x}_{p}}\text{\hspace{0.17em}}-\Omega \mathrm{sin}{\lambda}_{p}{\varphi}_{{z}_{p}}+{\epsilon}_{{N}_{p}}\mathrm{and}$$$${\dot{\varphi}}_{{z}_{p}}=-\Omega \mathrm{sin}{L}_{p}\mathrm{cos}{\lambda}_{p}\delta {L}_{p}-\Omega \mathrm{cos}{L}_{p}\mathrm{sin}{\lambda}_{p}\delta {\lambda}_{p}+\frac{\delta {V}_{{E}_{p}}}{R}\mathrm{tan}{L}_{p}-\Omega \mathrm{sin}{L}_{p}\mathrm{cos}{\lambda}_{p}{\varphi}_{{x}_{p}}\text{\hspace{0.17em}}+\Omega \mathrm{sin}{\lambda}_{p}{\varphi}_{{y}_{p}}+{\epsilon}_{{U}_{p}}$$
- The position error equations:$$\delta {\dot{L}}_{p}=\frac{\delta {V}_{{N}_{p}}}{R}\mathrm{and}$$$$\delta {\dot{\lambda}}_{p}=\frac{\delta {V}_{{E}_{p}}}{R}\mathrm{sec}{L}_{p}$$

## 5. The Filter Model of Kalman for Zero-Velocity Alignment

## 6. Simulations and Experiments

#### 6.1. The Simulations of Fine Alignment Assisted by the KF

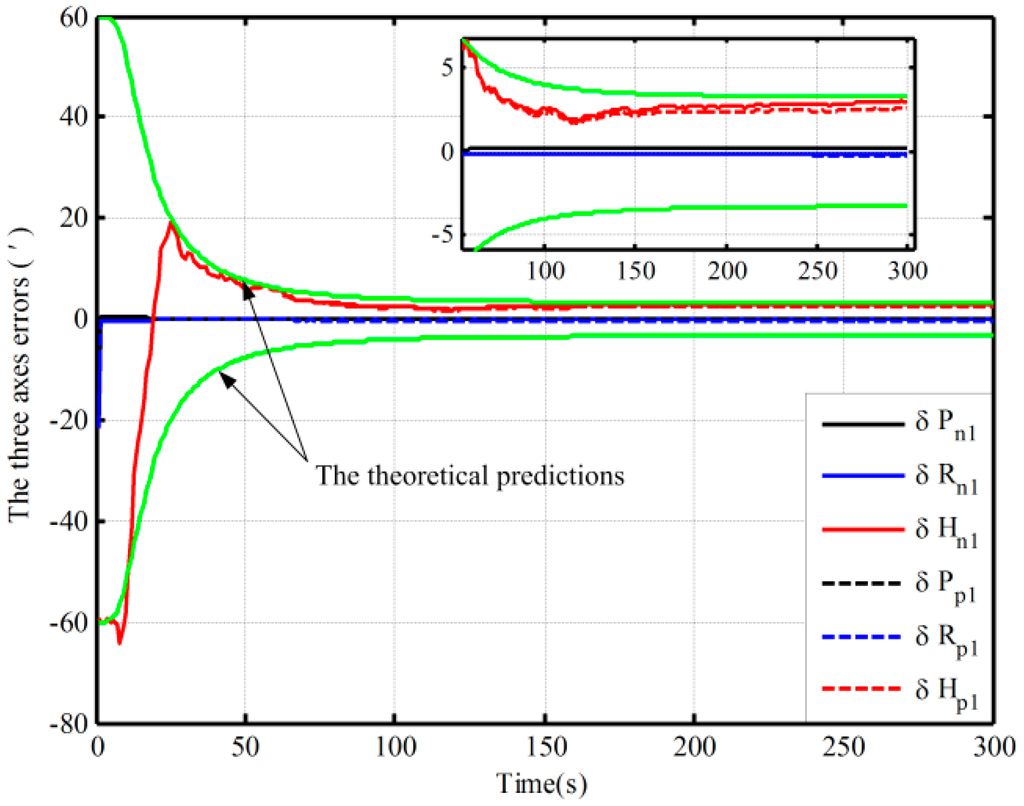

#### 6.1.1. The Simulations Based on the Open-Loop KF

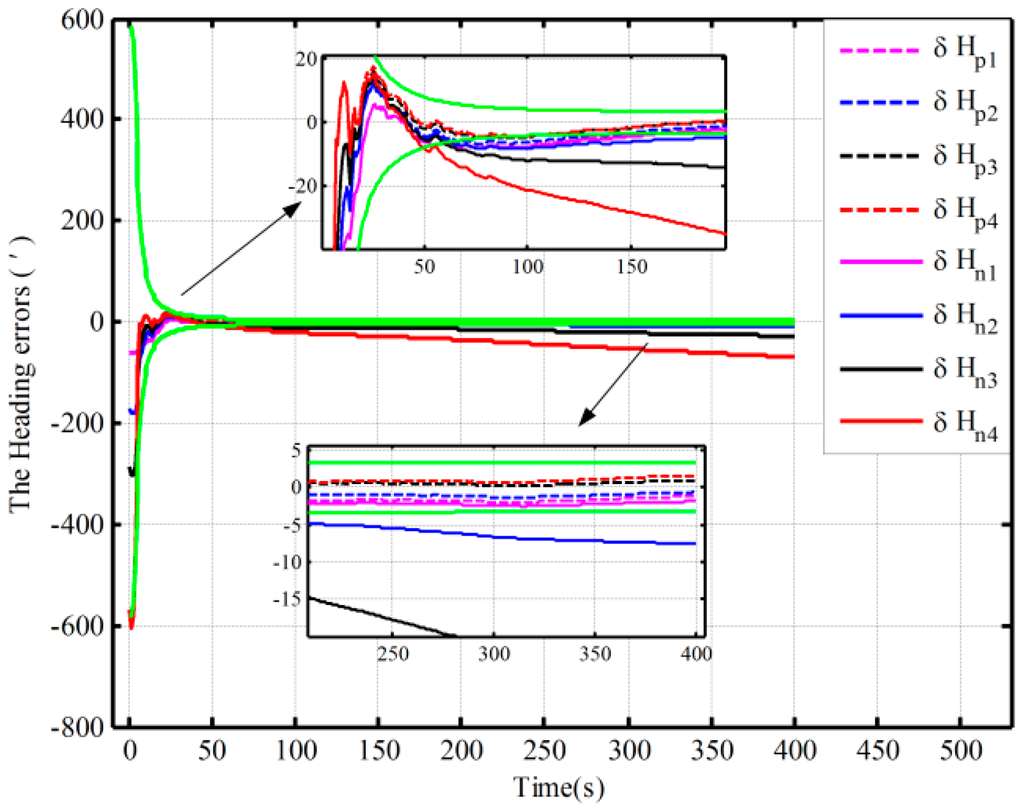

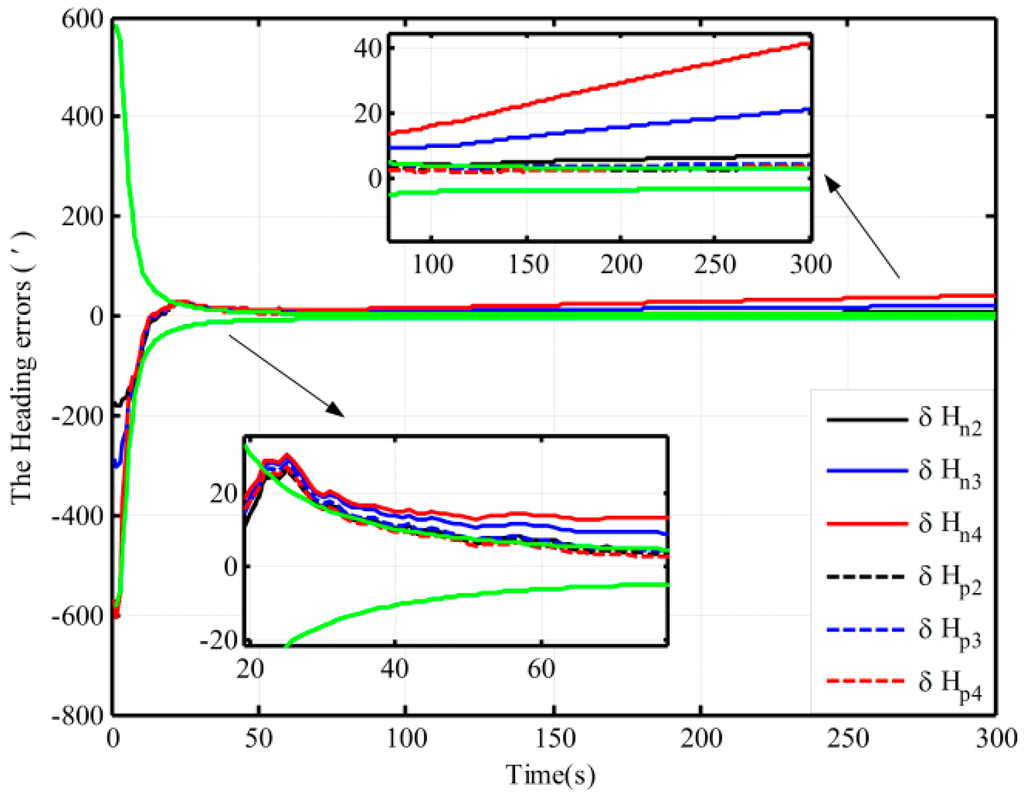

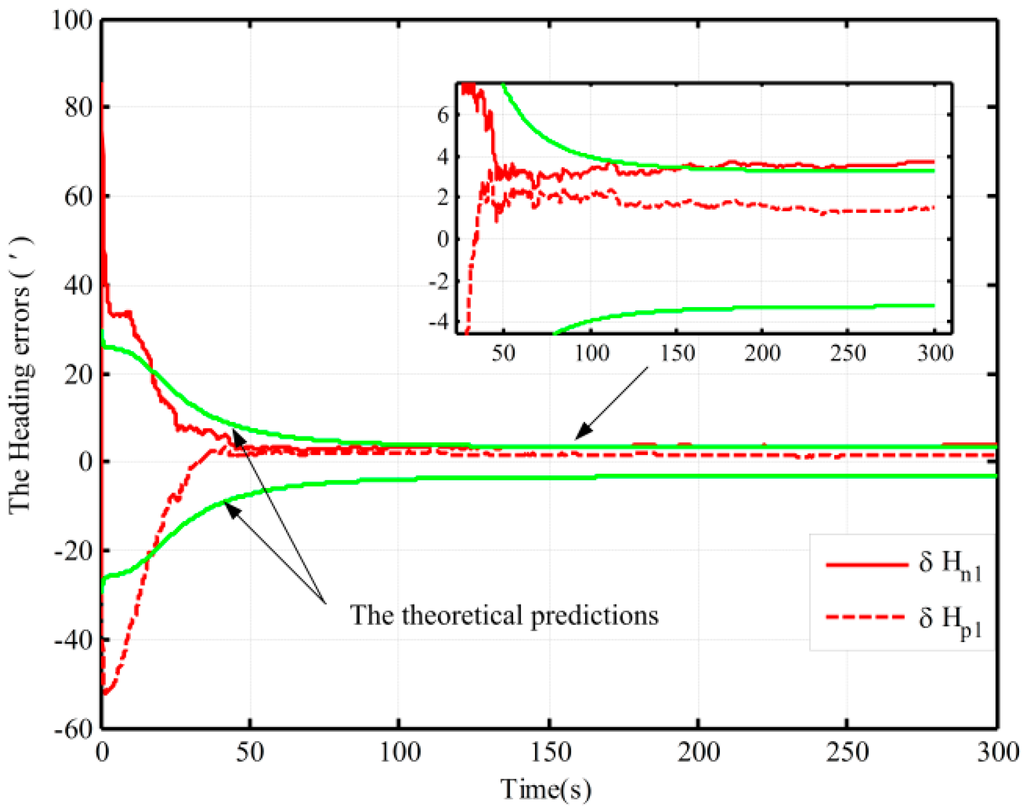

#### 6.1.2. The Simulations Based on the Closed-Loop KF

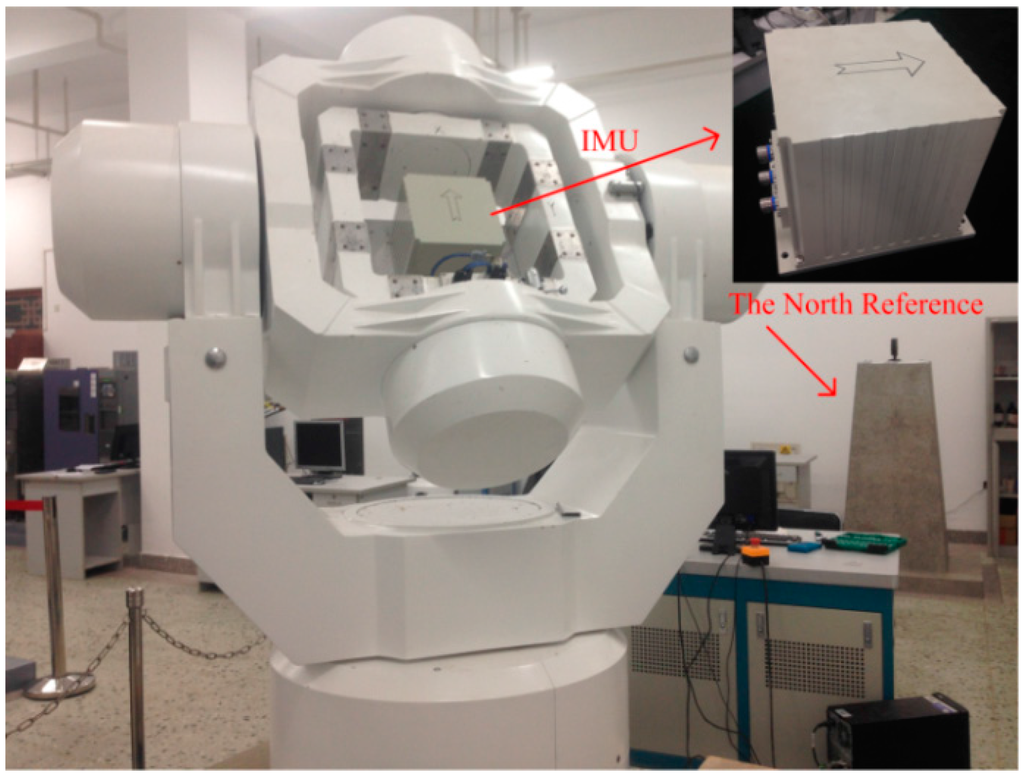

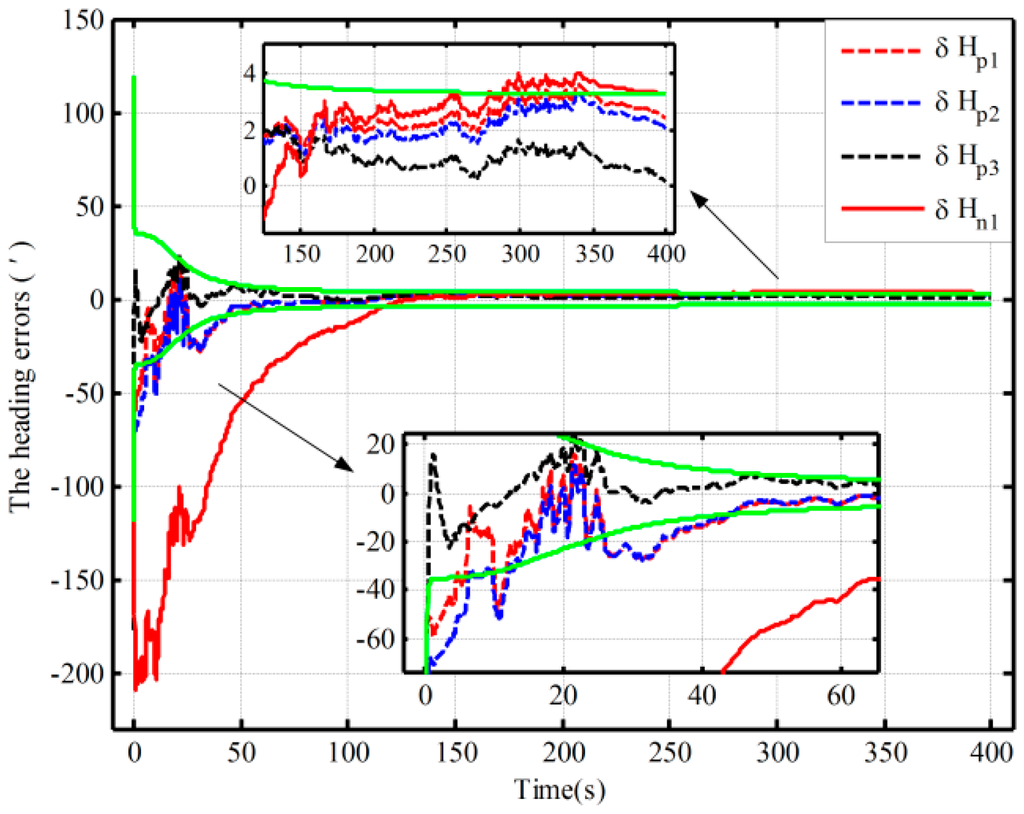

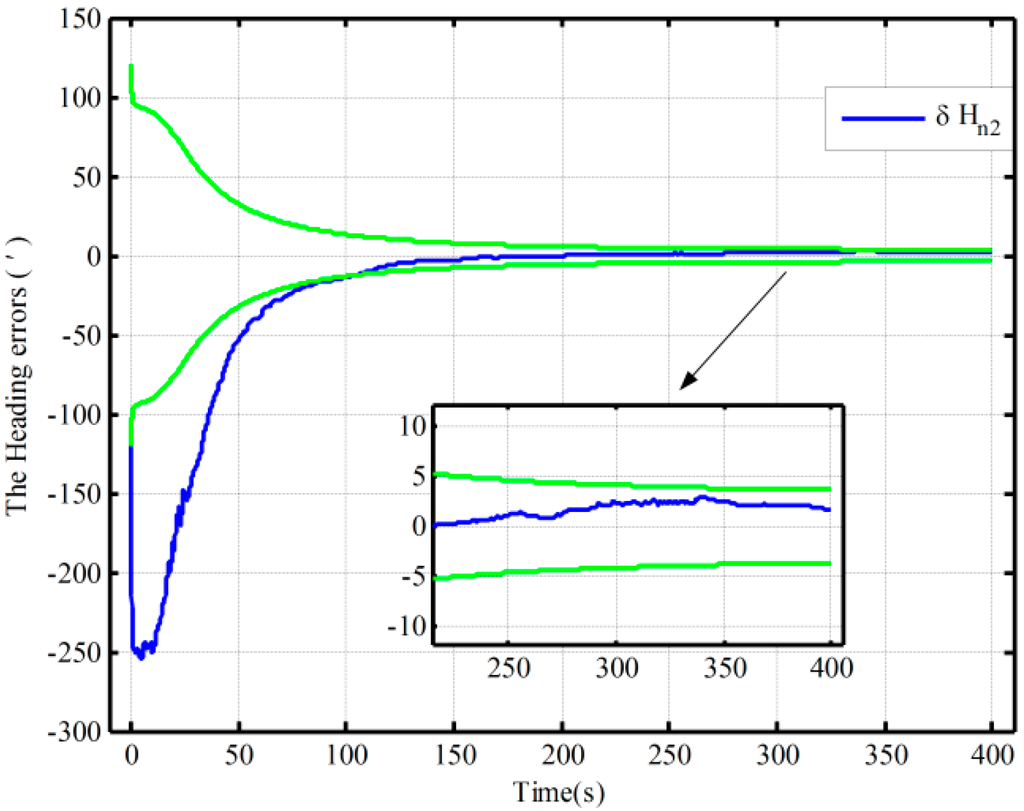

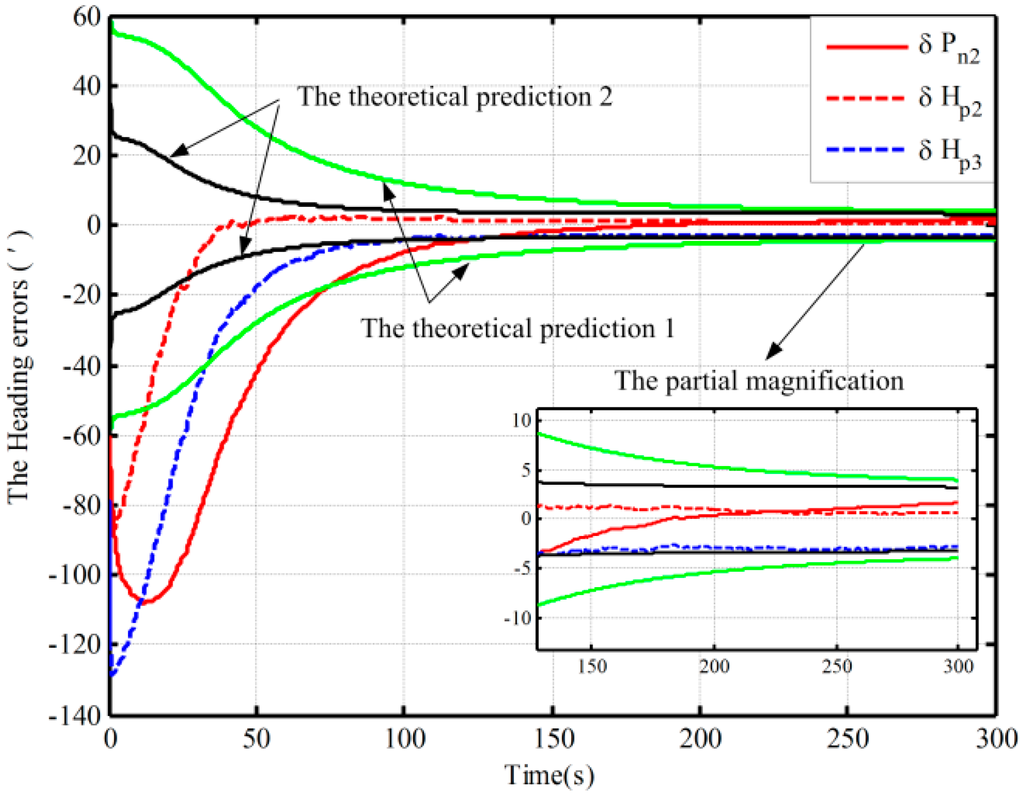

#### 6.2. The Experiments of Fine Alignment Based on the KF

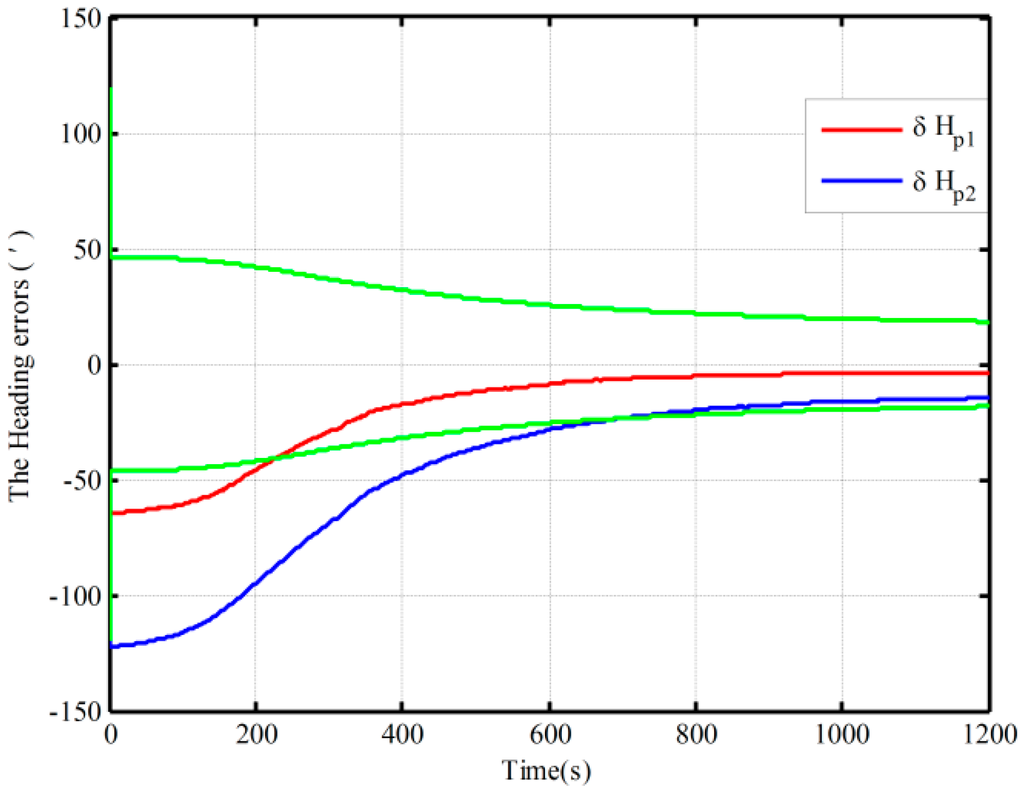

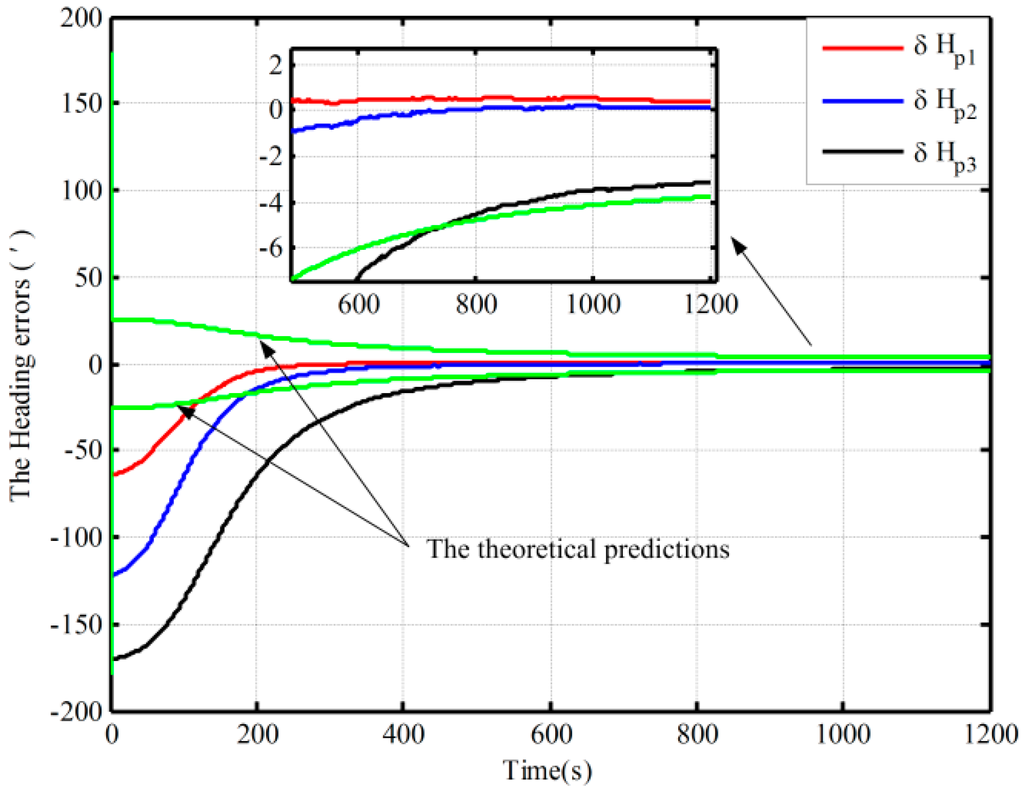

#### 6.3. The Simulations of Polar Alignment

## 7. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Zhou, J.; Nie, X.; Lin, J. A novel laser Doppler velocimeter and its integrated navigation system with strapdown inertial navigation. Opt. Laser Technol.
**2014**, 64, 319–323. [Google Scholar] [CrossRef] - Xu, F.; Fang, J. Velocity and position error compensation using strapdown inertial navigation system/celestial navigation system integration based on ensemble neural network. Aerosp. Sci. Technol.
**2008**, 12, 302–307. [Google Scholar] [CrossRef] - Zhu, L.; Cheng, X. An Improved Initial Alignment Method for Rocket Navigation Systems. J. Navig.
**2013**, 66, 737–749. [Google Scholar] [CrossRef] - Li, W.; Wu, W.; Wang, J. A fast SINS initial alignment scheme for underwater vehicle applications. J. Navig.
**2013**, 66, 181–198. [Google Scholar] [CrossRef] - Cao, S.; Guo, L. Multi-objective robust initial alignment algorithm for Inertial Navigation System with multiple disturbances. Aerosp. Sci. Technol.
**2012**, 21, 1–6. [Google Scholar] [CrossRef] - Li, J.; Xu, J.; Chang, L. An Improved Optimal Method for Initial Alignment. J. Navig.
**2014**, 67, 727–736. [Google Scholar] [CrossRef] - Qi, N. Research on Initial Alignment of SINS for Marching Vehicle. In Proceedings of the IEEE Third International Conference on Instrumentation, Measurement, Computer, Communication and Control (IMCCC), Shenyang, China, 21–23 September 2013.
- Zhou, W.D.; Ma, H.; Ji, Y.R. Coarse Alignment for SINS Using Gravity in the Inertial Frame Based on Attitude Quaternion. Appl. Mech. Mater.
**2013**, 241, 413–417. [Google Scholar] [CrossRef] - Ali, J.; Ushaq, M. A consistent and robust Kalman filter design for in-motion alignment of inertial navigation system. Measurement
**2009**, 42, 577–582. [Google Scholar] [CrossRef] - Zhao, R.; Gu, Q. Nonlinear filtering algorithm with its application in INS alignment. In Proceedings of the Tenth IEEE Workshop on Statistical Signal and Array Processing, Pocono Manor, PA, USA, 14–16 August 2000.
- Li, W.; Wang, J.; Lu, L. A novel scheme for DVL-aided SINS in-motion alignment using UKF techniques. Sensors
**2013**, 13, 1046–1063. [Google Scholar] [CrossRef] [PubMed] - Li, Z.; Wang, J.; Gao, J. A Vondrak Low Pass Filter for IMU Sensor Initial Alignment on a Disturbed Base. Sensors
**2014**, 14, 23803–23821. [Google Scholar] [CrossRef] [PubMed] - Liu, X.; Xu, X.; Liu, Y. A Method for SINS Alignment with Large Initial Misalignment Angles Based on Kalman Filter with Parameters Resetting. Math. Probl. Eng.
**2014**, 2014, 346291. [Google Scholar] [CrossRef] - Kelley, R.T.; Bedoya, C. Design, development and evaluation of an Ada coded INS/GPS open loop Kalman filter. In Proceedings of the IEEE Aerospace and Electronics Conference, Dayton, OH, USA, 21–25 May 1990.
- Silva, F.O.; Hemerly, E.M.; Waldemar Filho, C.L. Influence of latitude in coarse self-alignment of strapdown inertial navigation systems. In Proceedings of the 2014 IEEE/ION Position, Location and Navigation Symposium, Monterey, CA, USA, 5–8 May 2014; pp. 1219–1226.
- Lü, S.; Xie, L.; Chen, J. New techniques for initial alignment of strapdown inertial navigation system. J. Frankl. Inst.
**2009**, 346, 1021–1037. [Google Scholar] [CrossRef] - Wang, L.D.; Zhao, Y.; Zhang, N. An improved adaptive algorithm for INS/GPS system. Appl. Mech. Mater.
**2013**, 397, 1606–1610. [Google Scholar] [CrossRef] - Youlong, W. Characteristics of Communication and Navigation on Cross-Polar Routes. Eng. Technol.
**2006**, 1, 46–48. [Google Scholar] - Wu, F.; Qin, Y.Y.; Zhou, Q. Airborne weapon transfer alignment algorithm in polar region. J. Chin. Inert. Technol.
**2013**, 2, 3. [Google Scholar] - Li, Q.; Ben, Y.; Yu, F. System reset of transversal strap down INS for ship in polar region. Measurement
**2015**, 60, 247–257. [Google Scholar] [CrossRef] - Zhang, H.M. The Technology of Undersea Navigation and Position; Wuhan University, Inc.: Wuhan, China, 2010. [Google Scholar]
- Anderson, E.W.I. Navigation in Polar Regions. J. Navig.
**1957**, 10, 156–161. [Google Scholar] [CrossRef] - Qin, Y.Y. Inertial Navigation; Science, Inc.: Beijing, China, 2006. [Google Scholar]
- Titterton, D.; Weston, J.L. Strapdown Inertial Navigation Technology, 2nd ed.; IET, Inc.: Chicago, IL, USA, 2004. [Google Scholar]
- Pham, T.M. Kalman filter mechanization for INS airstart. In Proceedings of the IEEE/AIAA 10th Digital Avionics Systems Conference, Los Angeles, CA, USA, 14–17 October 1991.

The Coarse Alignment Accuracy | Errors | ||
---|---|---|---|

Pitch | Roll | Heading | |

Case 1 | 0.3° | 0.3° | 1° |

Case 2 | 1° | 1° | 3° |

Case 3 | 2° | 2° | 5° |

Case 4 | 3° | 3° | 10° |

The Coarse Alignment Accuracy | Errors | ||
---|---|---|---|

Pitch | Roll | Heading | |

Case 1 | 0.2° | 0.2° | 0.5° |

Case 2 | 0.3° | 0.3° | 1° |

Case 3 | 0.5° | 0.5° | 2° |

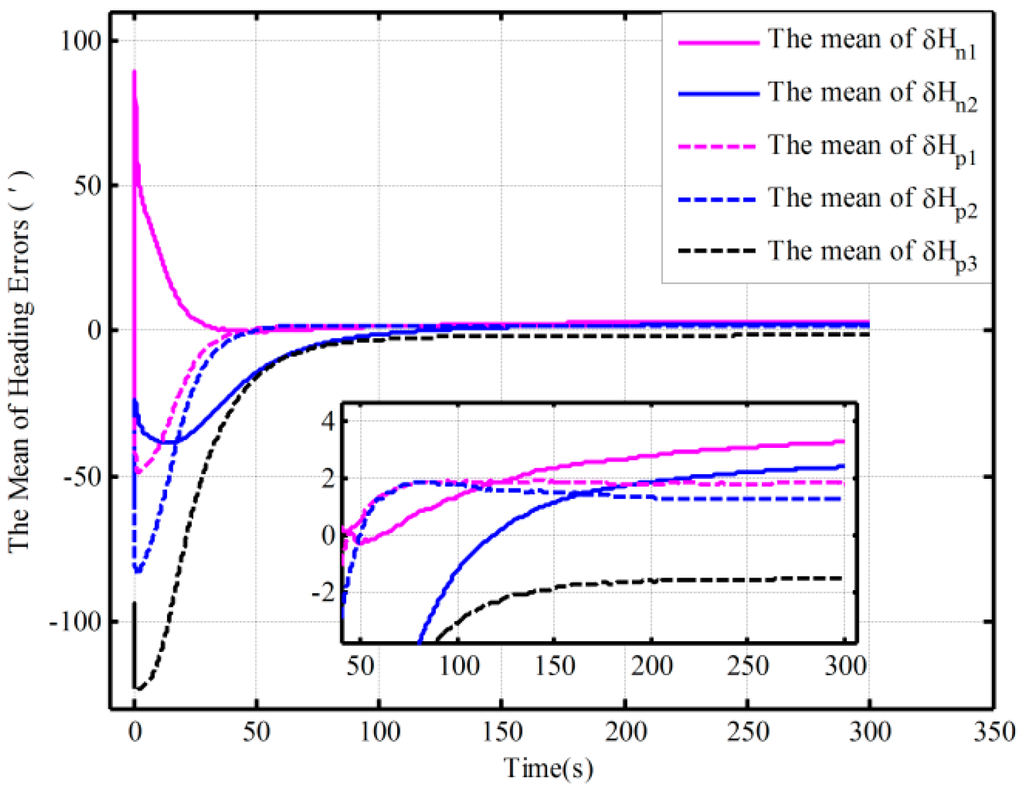

Conditions | The Proposed Algorithm | The Traditional Algorithm | ||
---|---|---|---|---|

Mean | Variance | Mean | Variance | |

Case 1 | 1.57′ | 5 × 10^{−4} | 1.76′ | 6.25 × 10^{−4} |

Case2 | 1.74′ | 6.6 × 10^{−4} | 3.59′ | 2.6 × 10^{−3} |

Case3 | 2.53′ | 1.28 × 10^{−3} | 15.9′ | 1.28 × 10^{−5} |

Case4 | 1.82′ | 7.26 × 10^{−4} | 28.32′ | 8.35 × 10^{−3} |

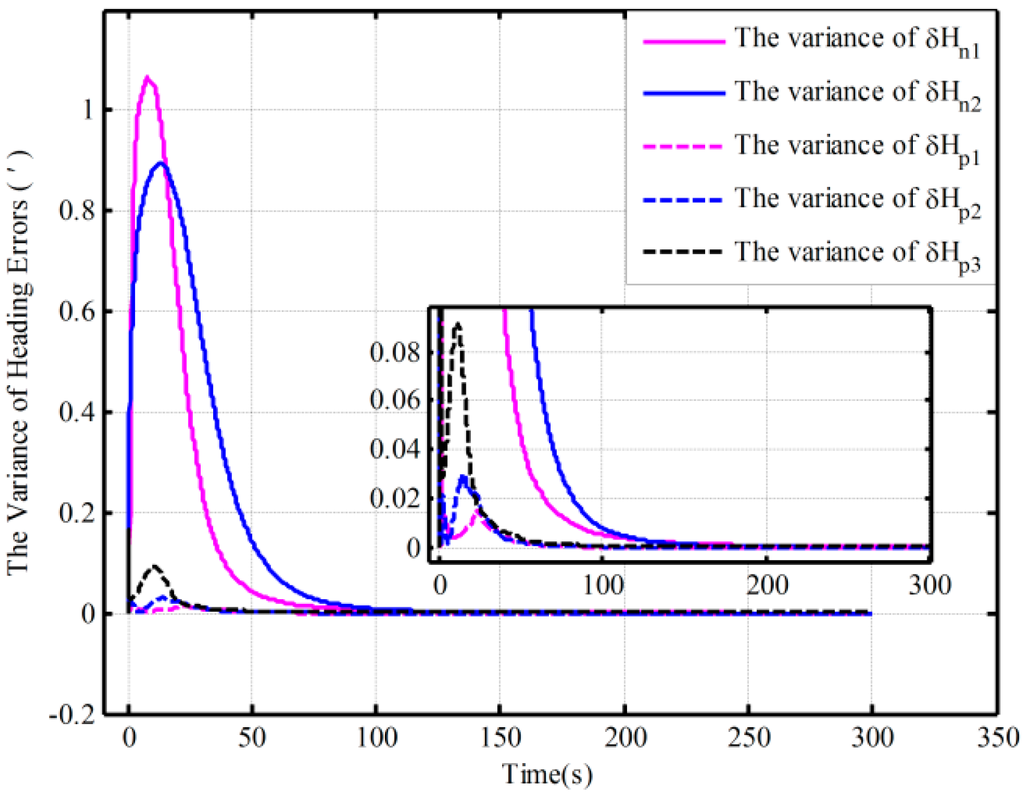

Conditions | The Proposed Algorithm | The Traditional Algorithm | The Larger Noise Matrix Algorithm | |||
---|---|---|---|---|---|---|

Mean | Variance | Mean | Variance | Mean | Variance | |

Case 1 | 1.81′ | 5 × 10^{−5} | 2.80′ | 8.93 × 10^{−4} | − | − |

Case 2 | 1.33′ | 1 × 10^{−4} | × | × | 1.87′ | 4.2 × 10^{−4} |

Case 3 | −1.62′ | 1 × 10^{−3} | × | × | − | − |

^{1.}“×”denotes that alignment result diverges, and “−”denotes the experiment dose was not conducted.

The Coarse Alignment Accuracy | Errors | ||
---|---|---|---|

Pitch | Roll | Heading | |

Case 1 | 0.3° | 0.3° | 1° |

Case 2 | 0.5° | 0.5° | 2° |

Case 3 | 1° | 1° | 3° |
