Sensors 2016, 16(12), 2095;

A Wide-Swath Spaceborne TOPS SAR Image Formation Algorithm Based on Chirp Scaling and Chirp-Z Transform

School of Electronic and Information Engineering, Beihang University, Beijing 100191, China
Collaborative Innovation Center of Geospatial Technology, Wuhan 430079, China
Electronic and Electronic Engineering Department, University of Sheffield, Sheffield S1-3JD, UK
Author to whom correspondence should be addressed.
Academic Editor: Nicolas Baghdadi
Received: 20 October 2016 / Revised: 5 December 2016 / Accepted: 7 December 2016 / Published: 9 December 2016
(This article belongs to the Section Remote Sensors)
Full-Text   |   PDF [2659 KB, uploaded 9 December 2016]   |

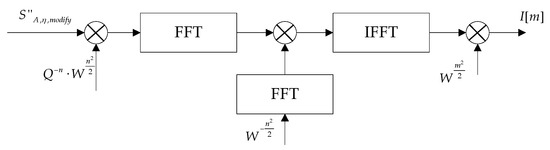

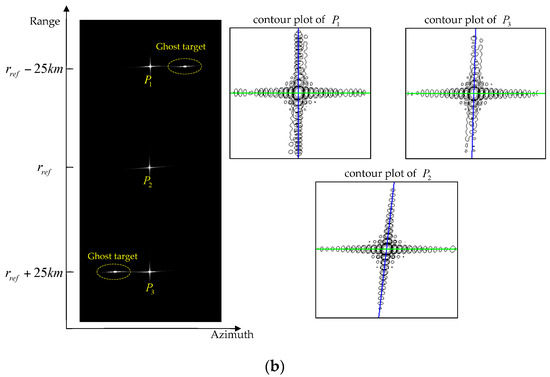

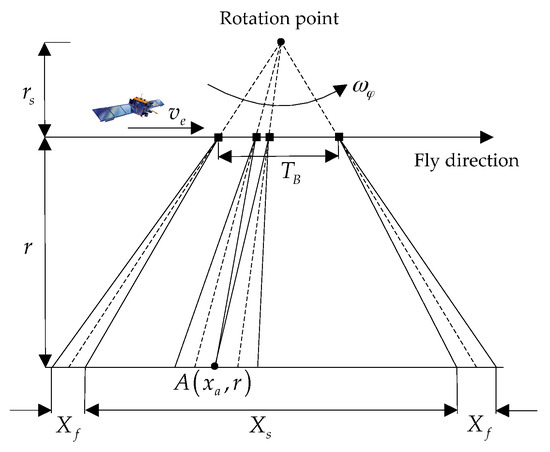

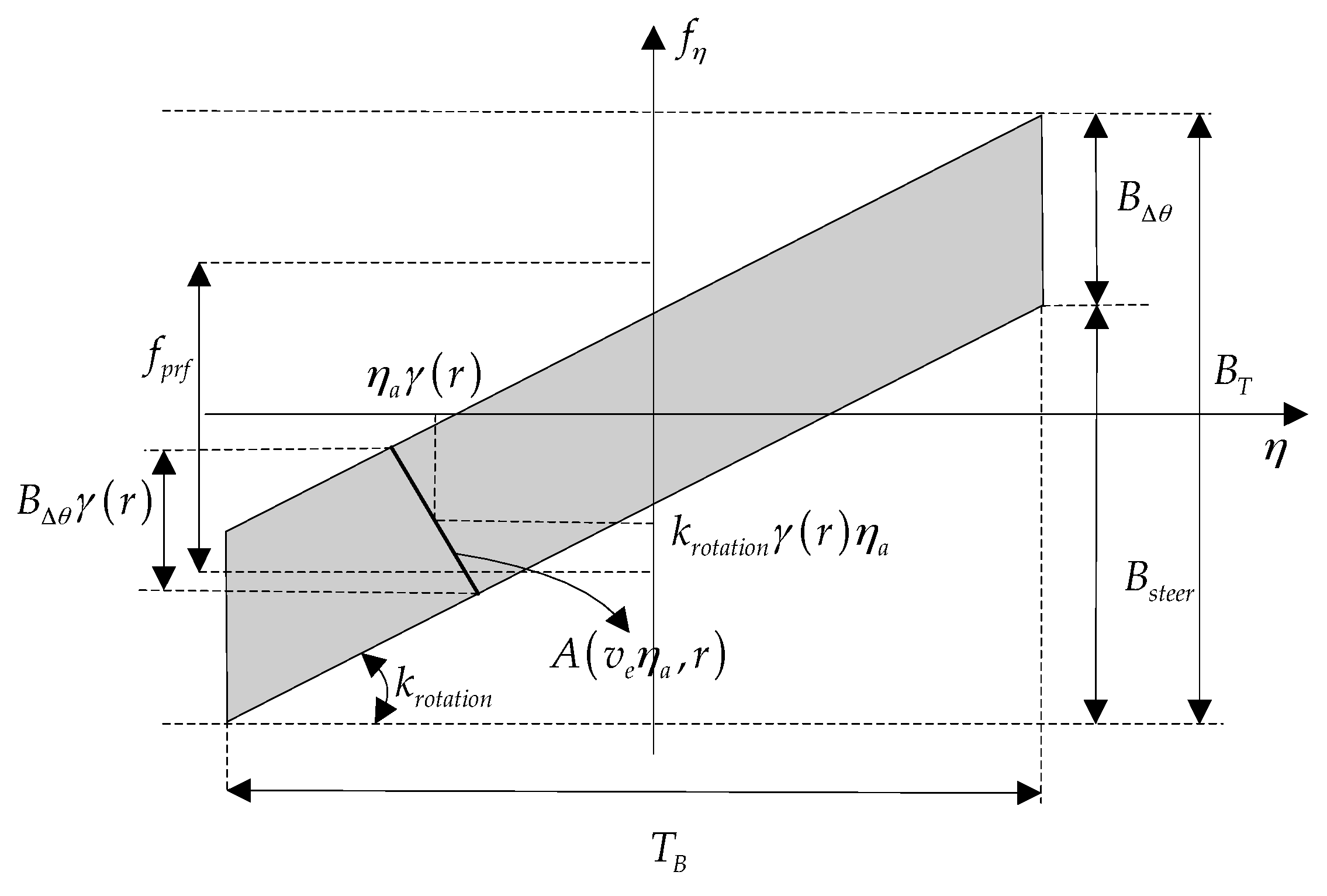

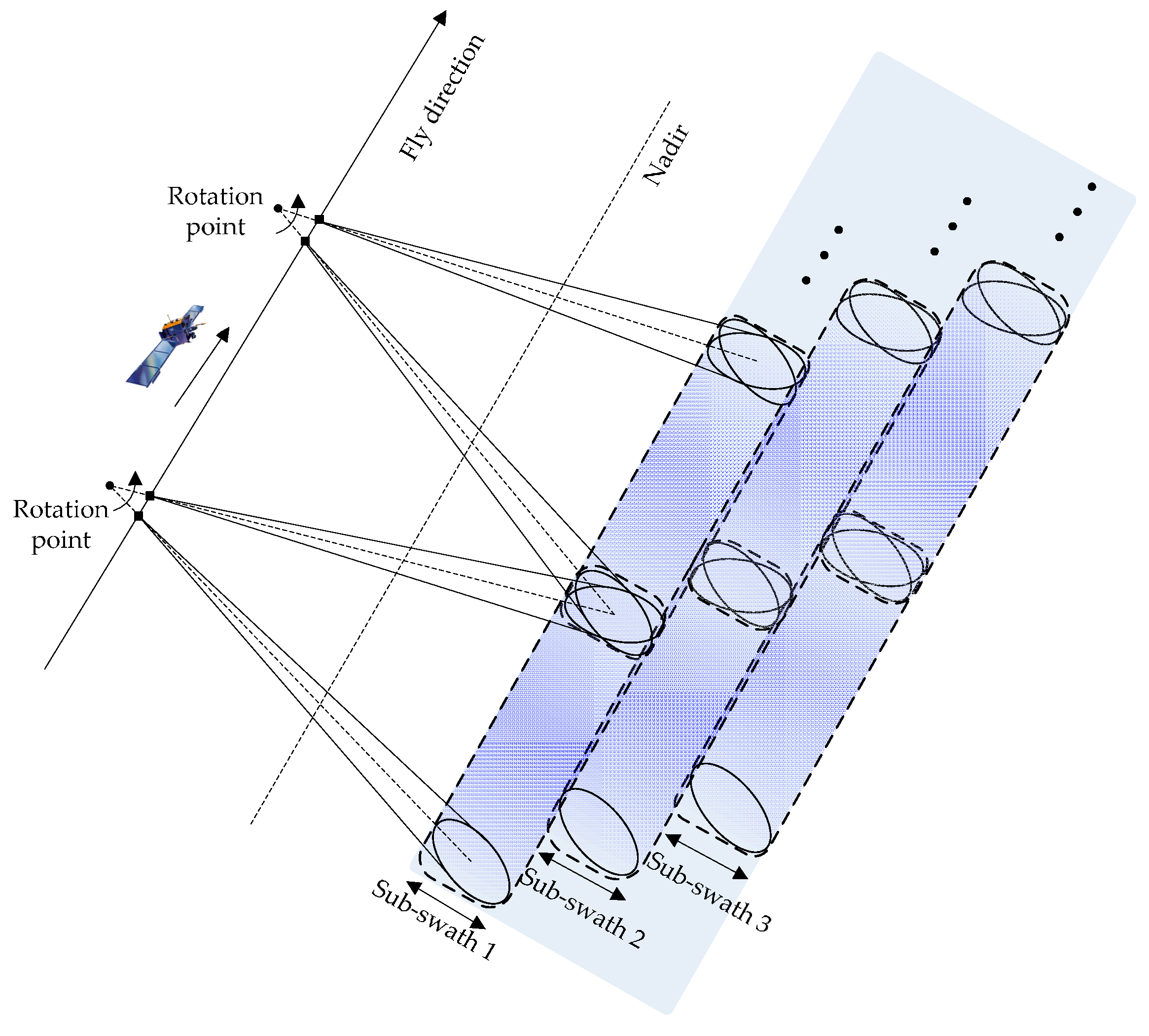

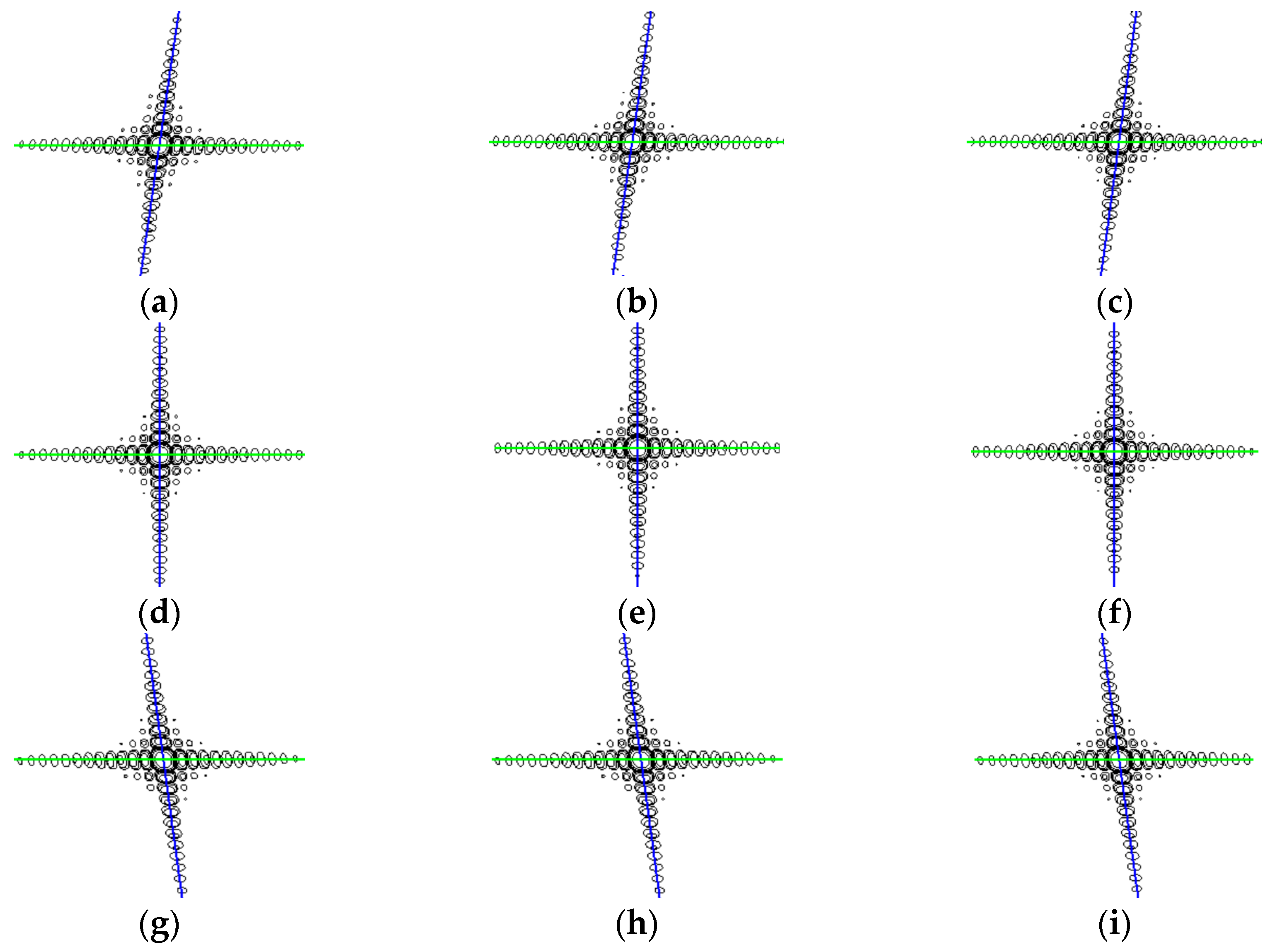

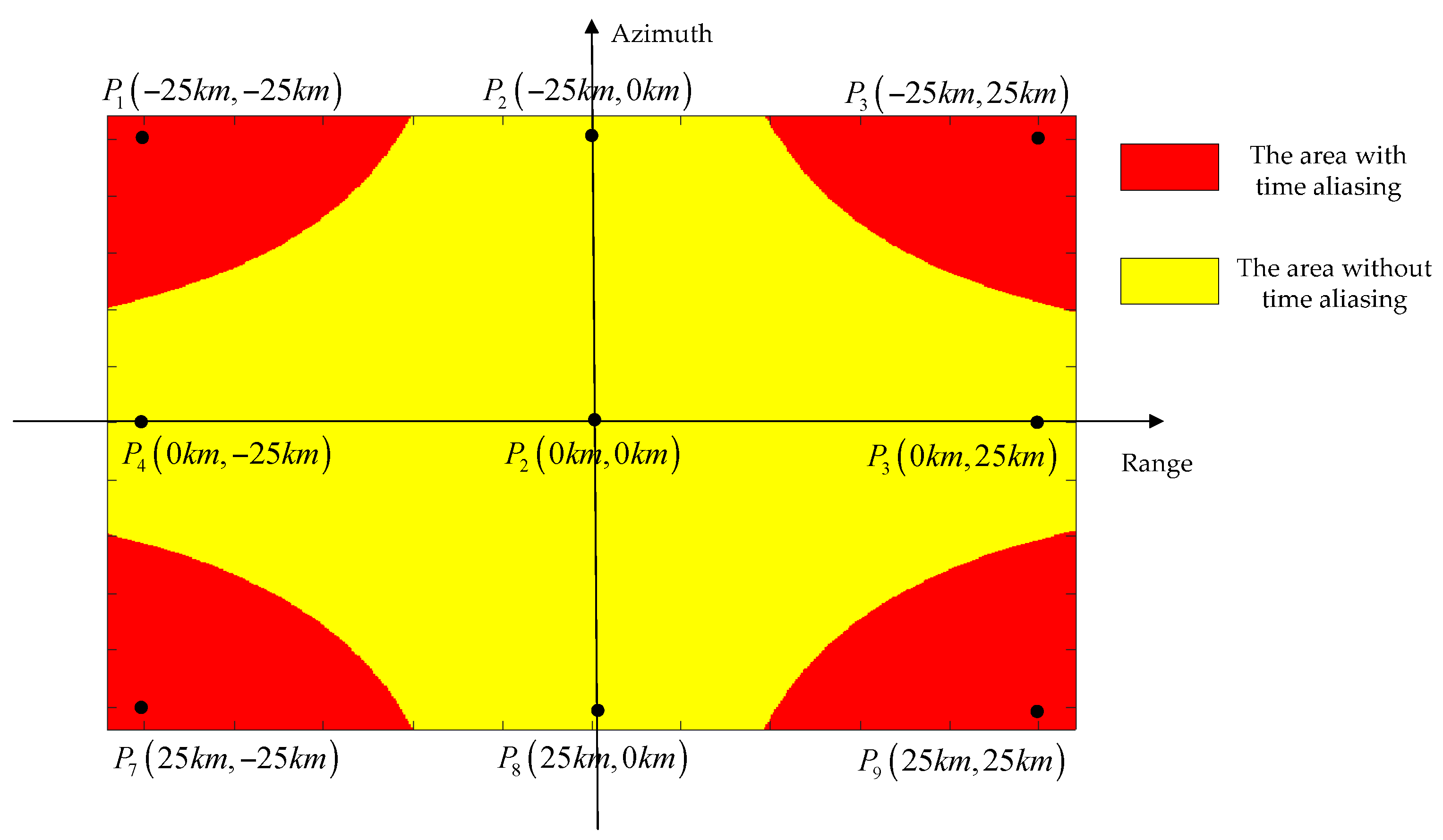

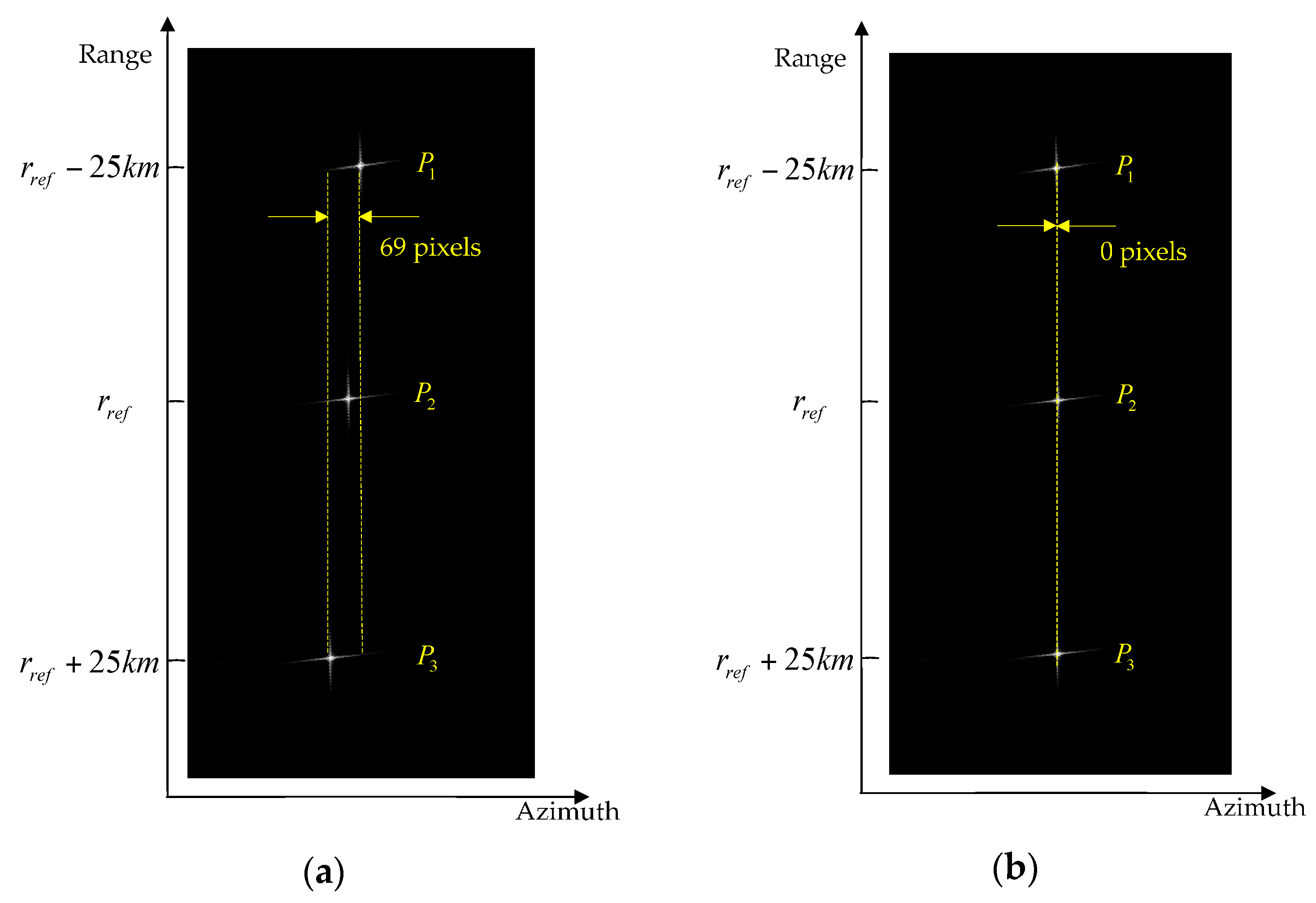

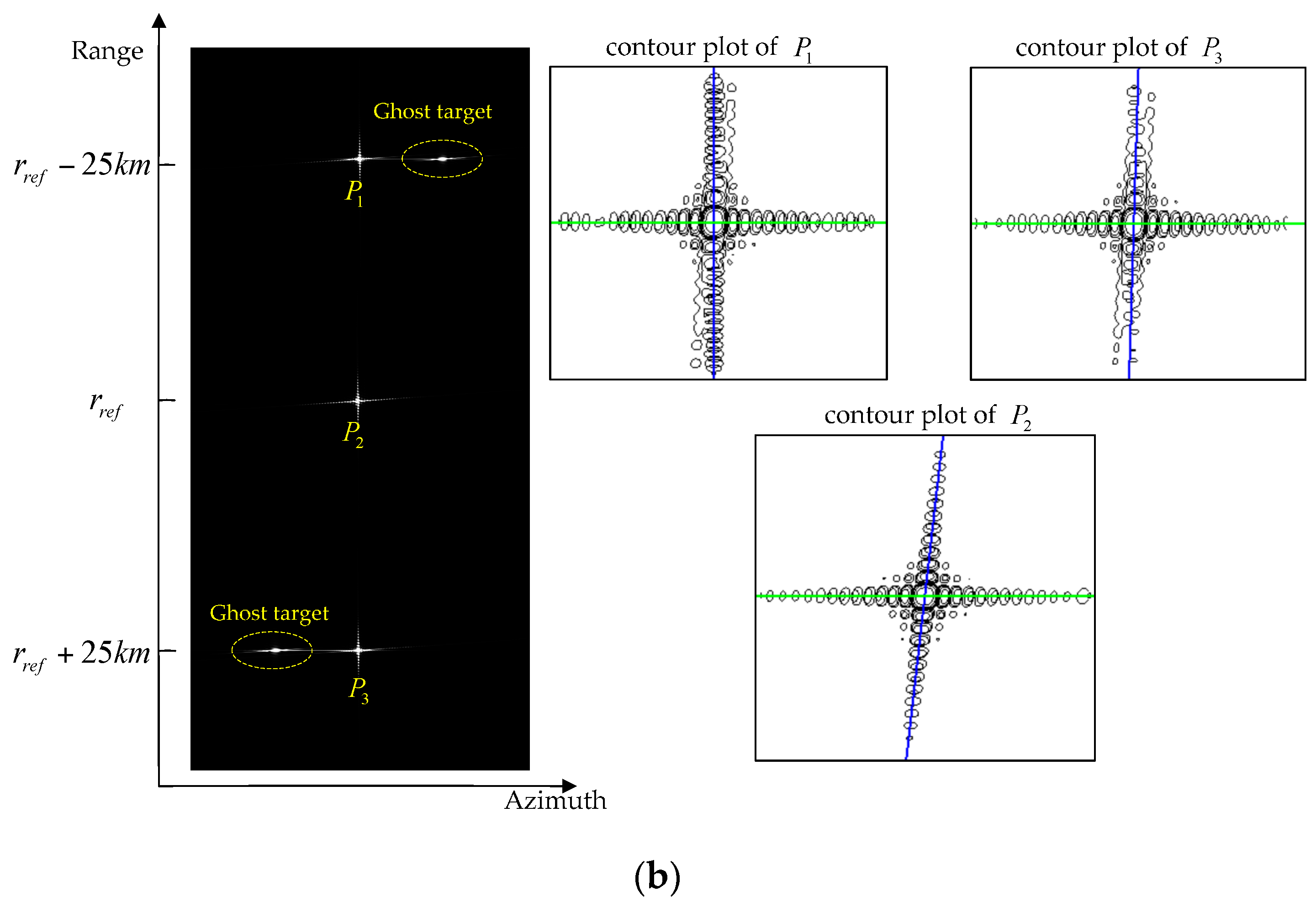

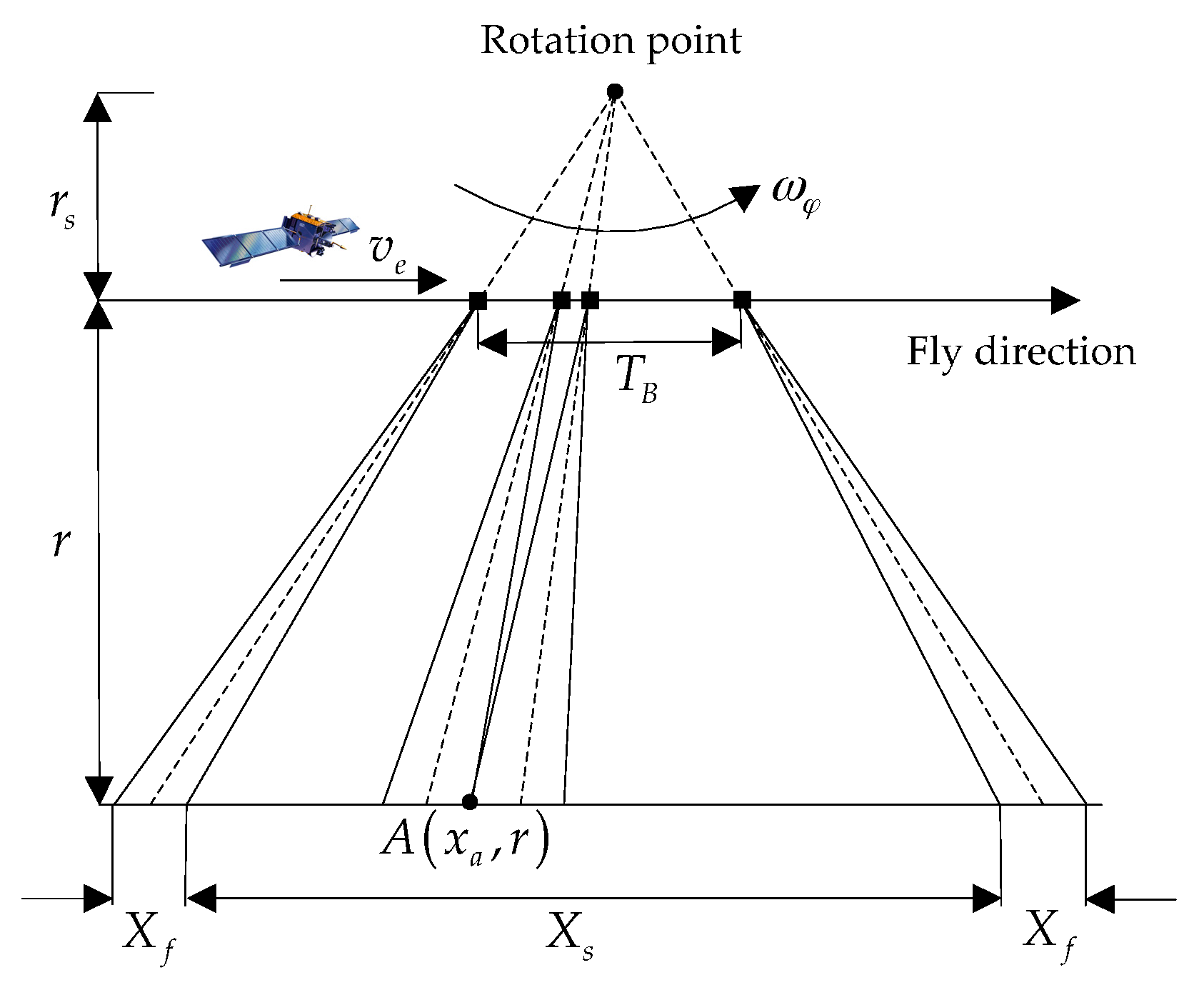

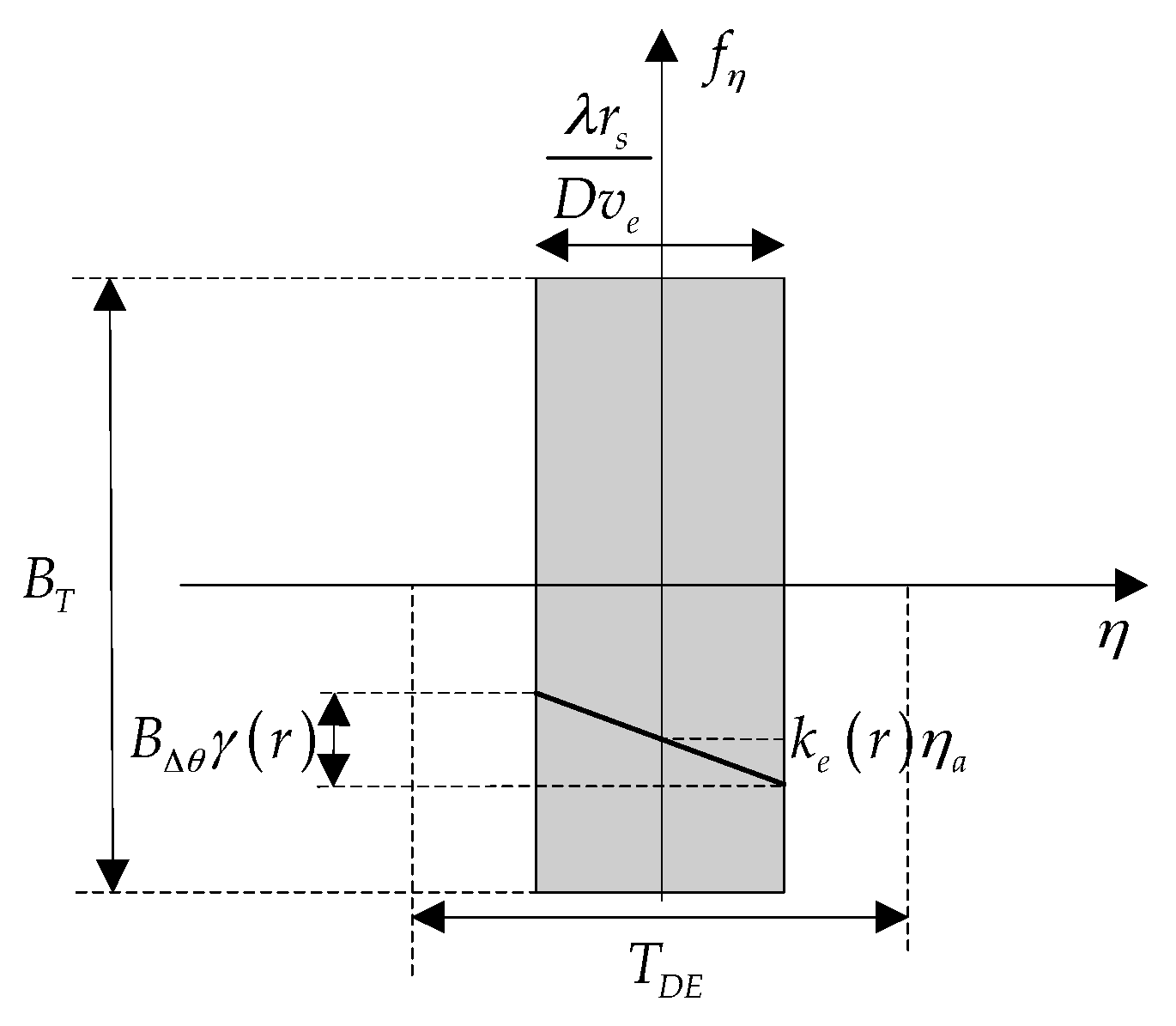

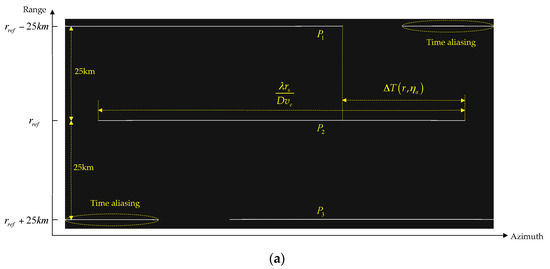

Based on the terrain observation by progressive scans (TOPS) mode, an efficient full-aperture image formation algorithm for focusing wide-swath spaceborne TOPS data is proposed. First, to overcome the Doppler frequency spectrum aliasing caused by azimuth antenna steering, the range-independent derotation operation is adopted, and the signal properties after derotation are derived in detail. Then, the azimuth deramp operation is performed to resolve image folding in azimuth. The traditional dermap function will introduce a time shift, resulting in appearance of ghost targets and azimuth resolution reduction at the scene edge, especially in the wide-swath coverage case. To avoid this, a novel solution is provided using a modified range-dependent deramp function combined with the chirp-z transform. Moreover, range scaling and azimuth scaling are performed to provide the same azimuth and range sampling interval for all sub-swaths, instead of the interpolation operation for the sub-swath image mosaic. Simulation results are provided to validate the proposed algorithm. View Full-Text
Keywords: SAR; TOPS; modified azimuth deramp; chirp-z SAR; TOPS; modified azimuth deramp; chirp-z

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Yang, W.; Chen, J.; Zeng, H.C.; Wang, P.B.; Liu, W. A Wide-Swath Spaceborne TOPS SAR Image Formation Algorithm Based on Chirp Scaling and Chirp-Z Transform. Sensors 2016, 16, 2095.
