Open AccessArticle
Sensors 2015, 15(2), 4212-4228;

Sol-Gel Deposition of Iridium Oxide for Biomedical Micro-Devices

Department of Electrical Engineering, University of Texas, Arlington, TX 76019, USA
Department of Electrical Engineering, ETS, Montreal, QC H3C 1K3, Canada
Author to whom correspondence should be addressed.
Received: 17 December 2014 / Accepted: 6 February 2015 / Published: 12 February 2015
(This article belongs to the Special Issue Sol-Gel Based Sensors and Devices)
Full-Text   |   PDF [1817 KB, uploaded 12 February 2015]   |

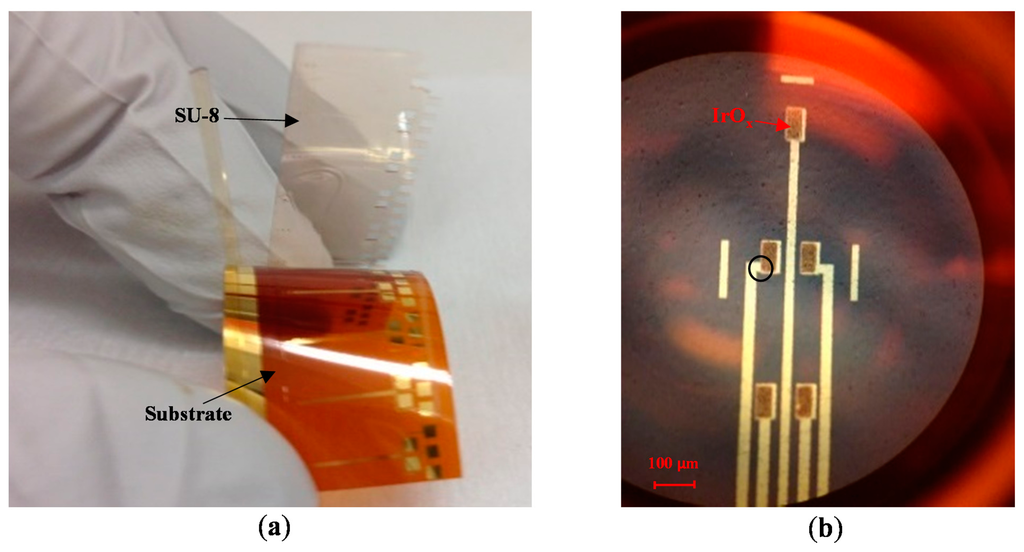

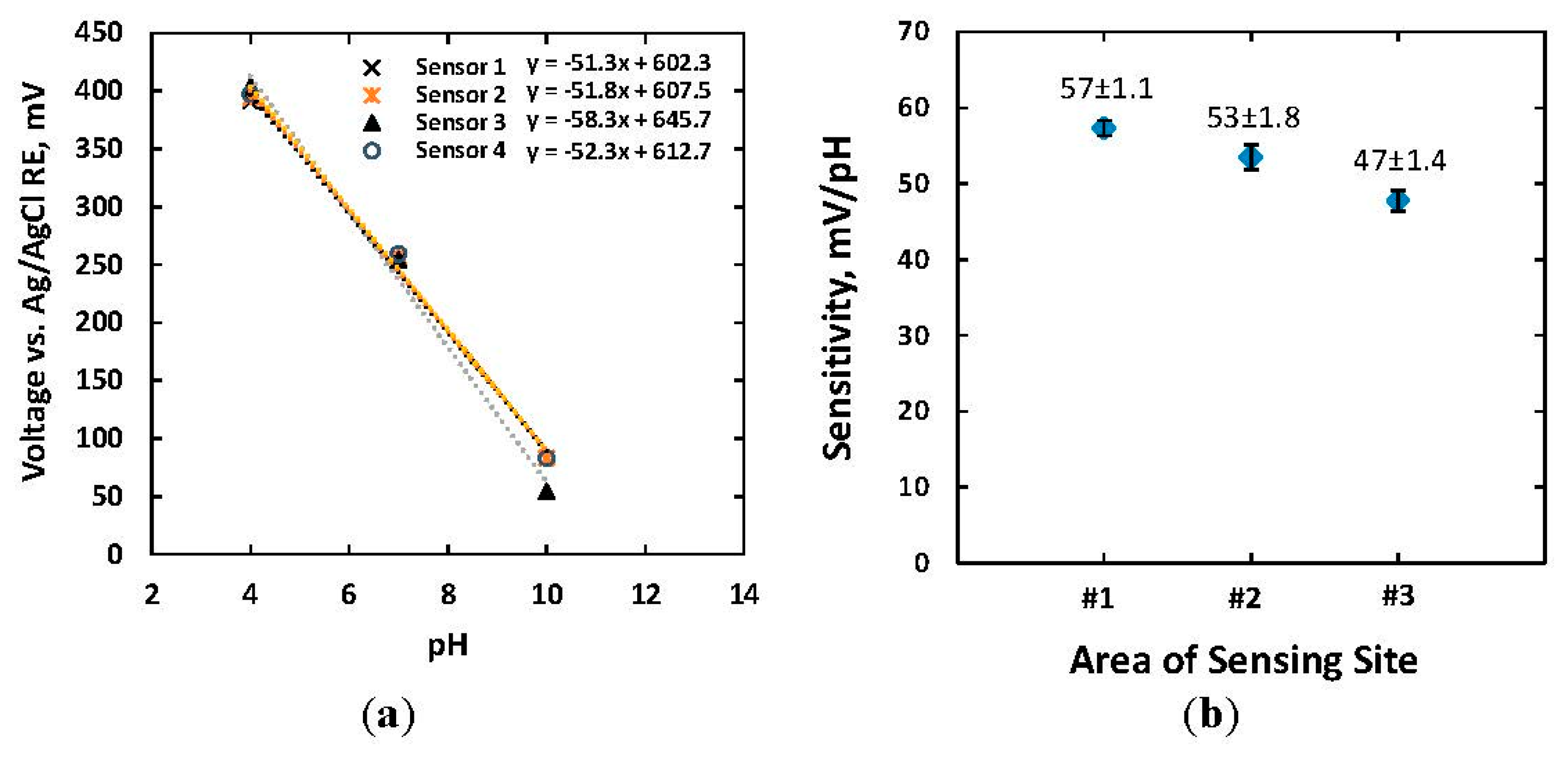

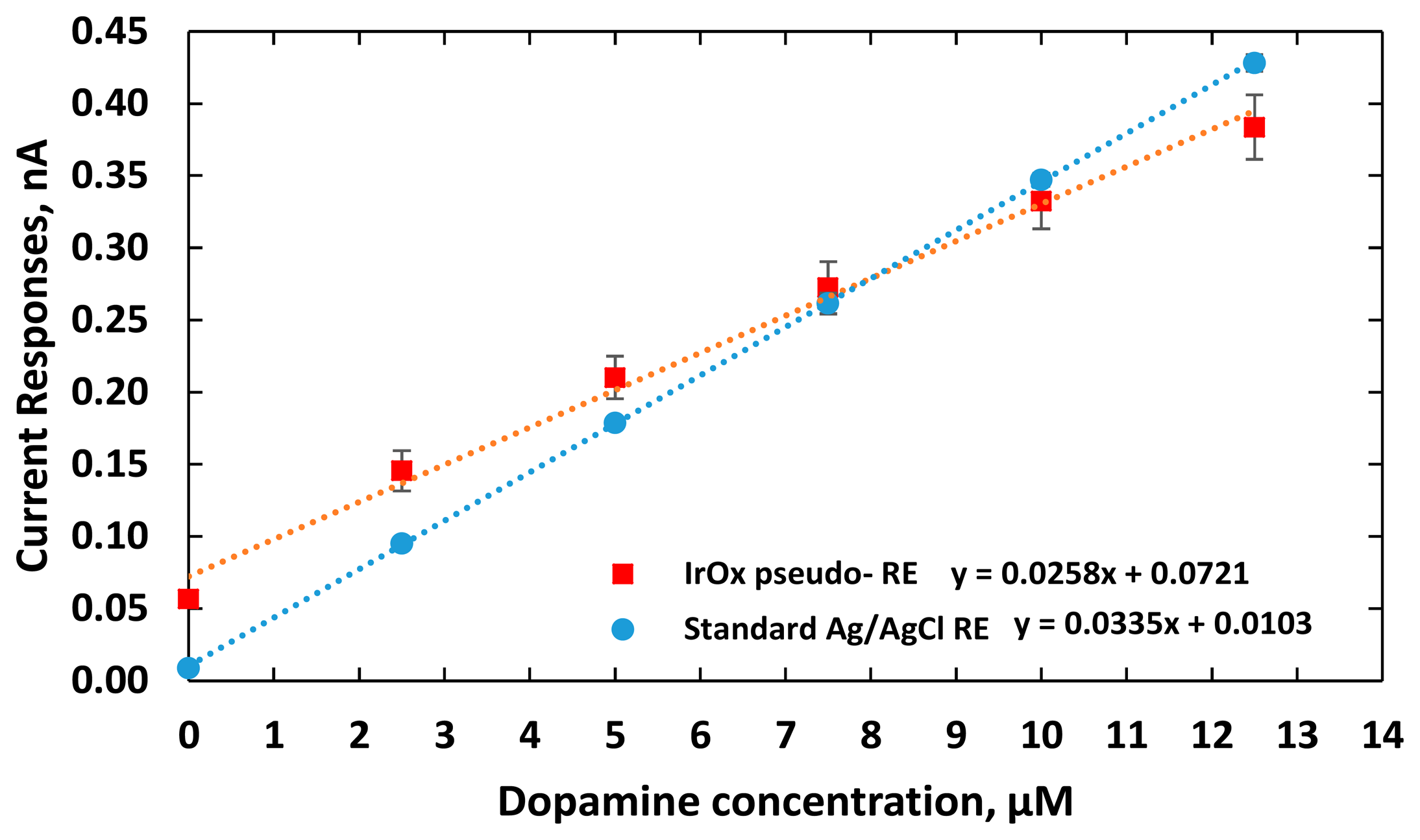

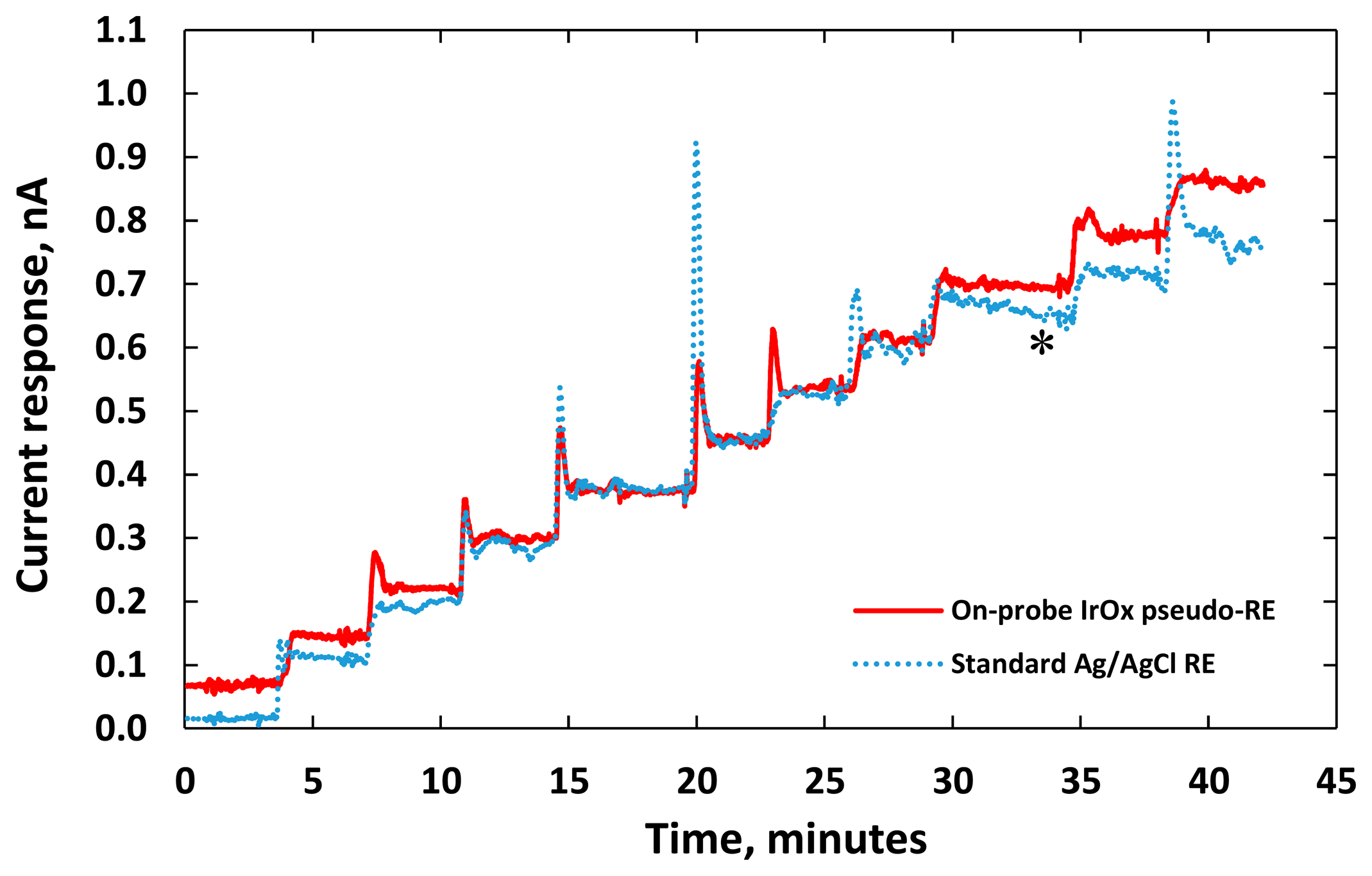

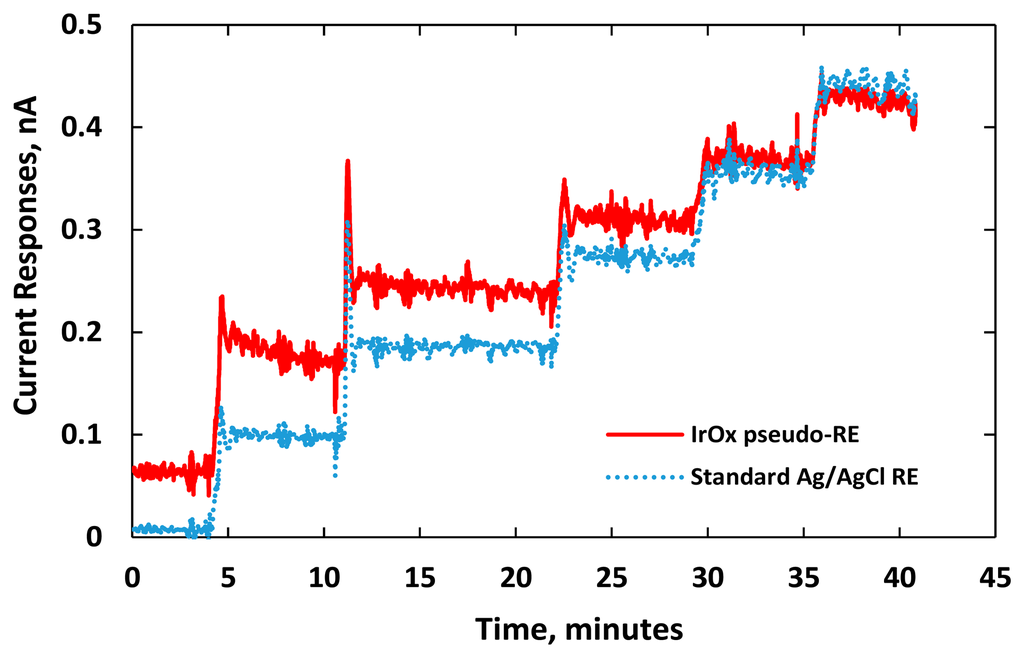

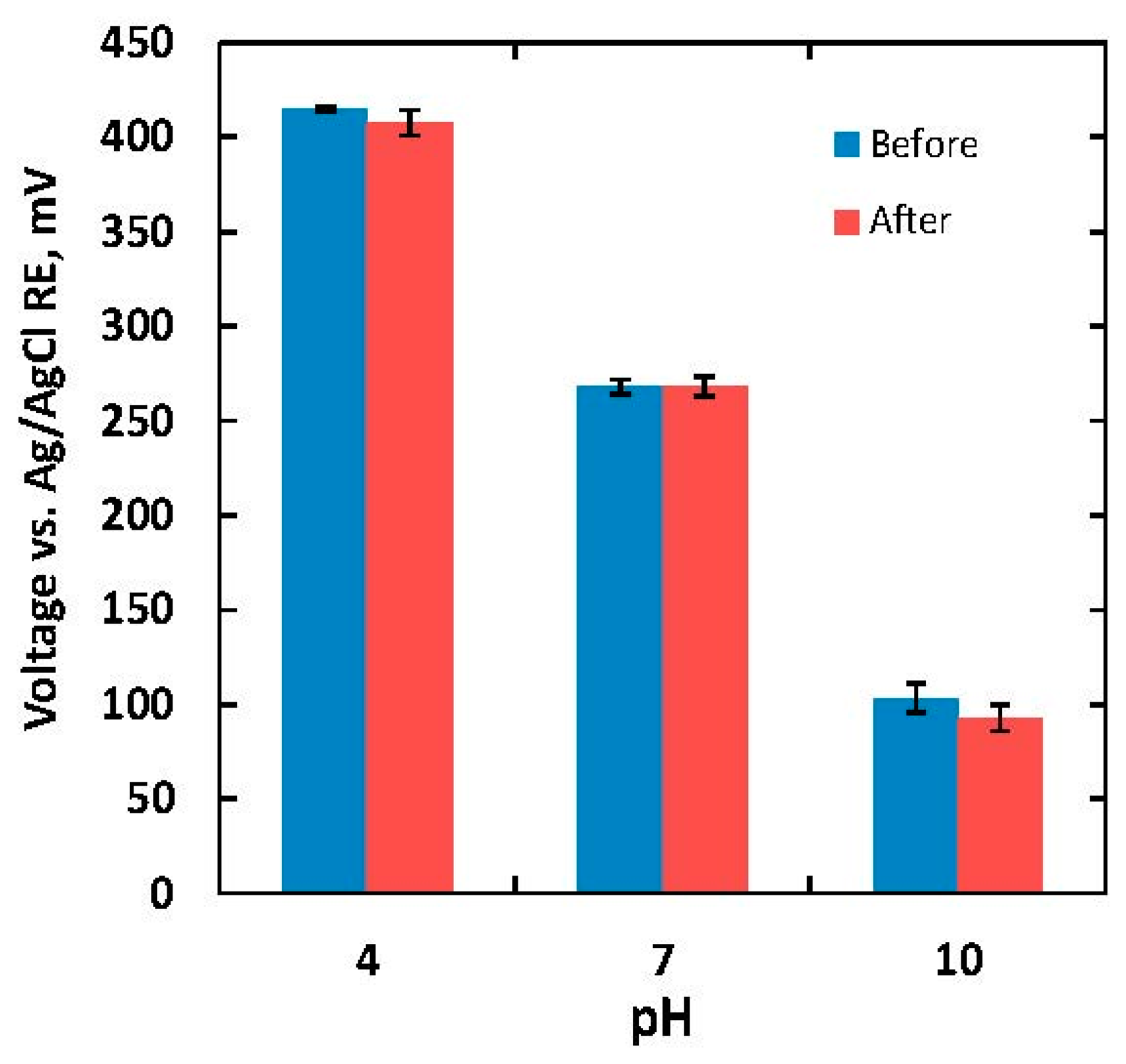

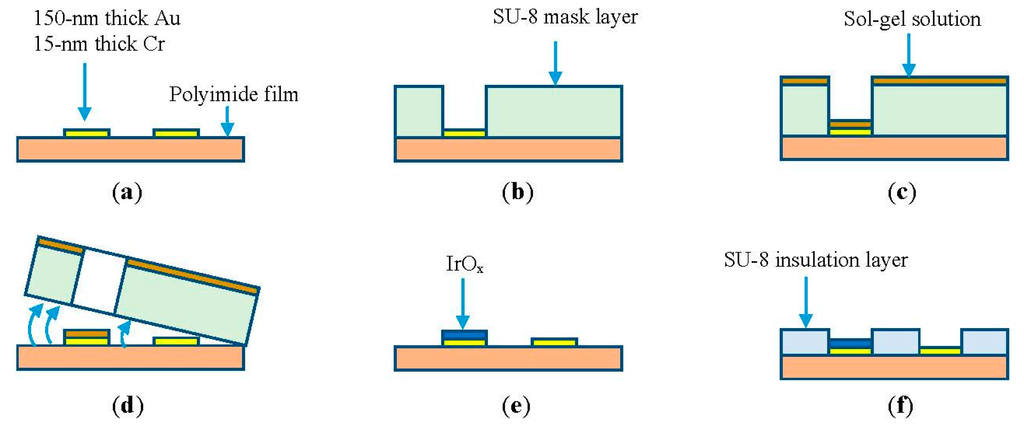

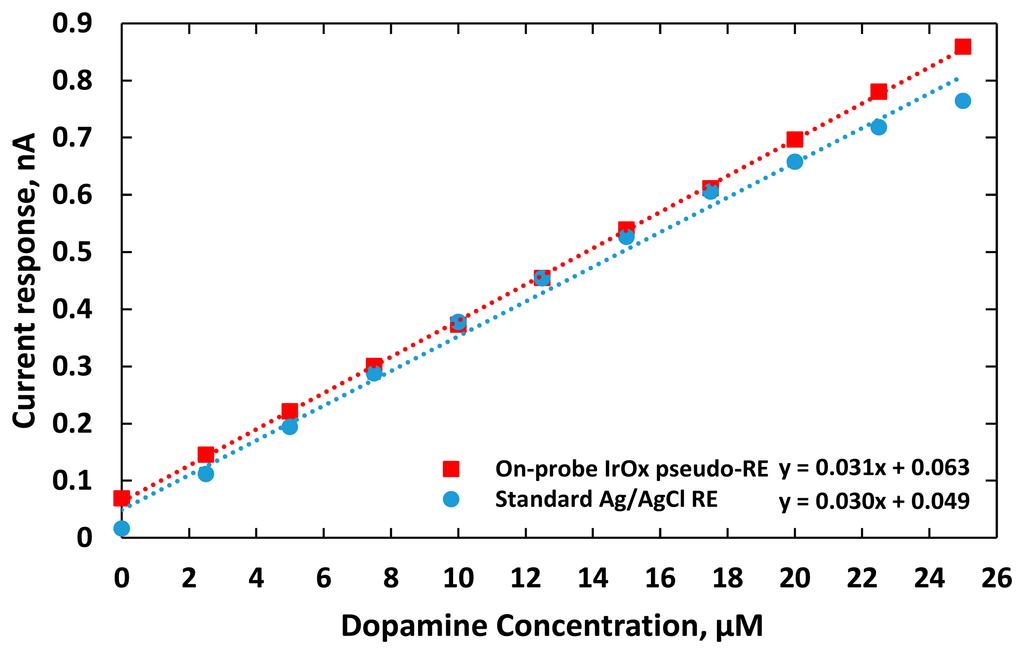

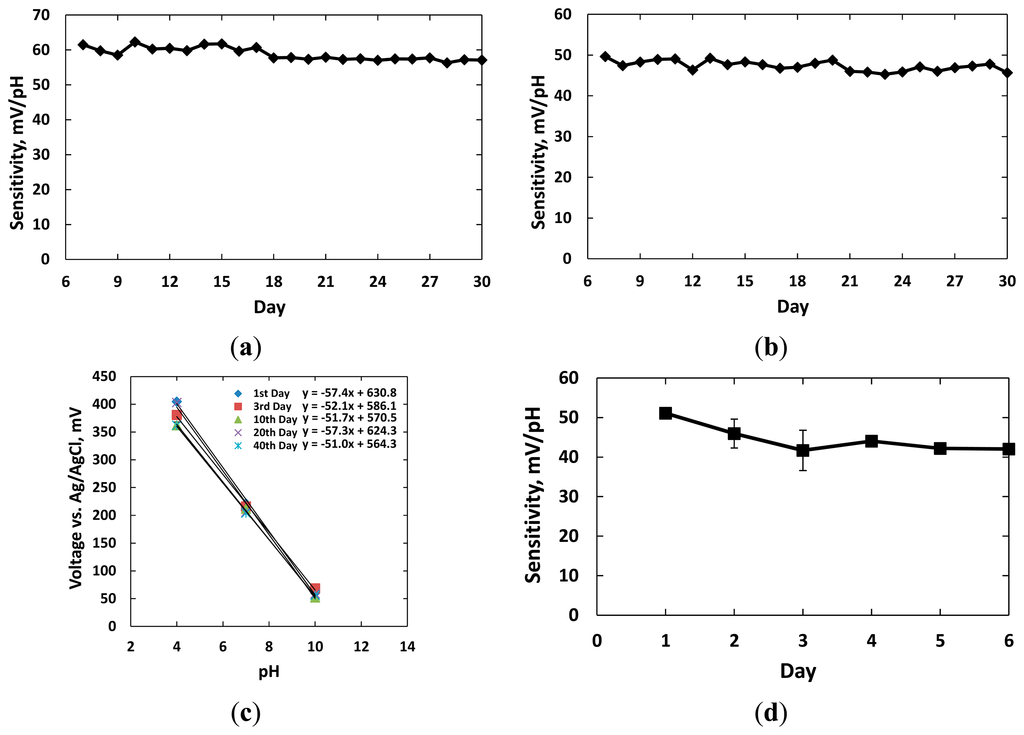

Flexible iridium oxide (IrOx)-based micro-electrodes were fabricated on flexible polyimide substrates using a sol-gel deposition process for utilization as integrated pseudo-reference electrodes for bio-electrochemical sensing applications. The fabrication method yields reliable miniature on-probe IrOx electrodes with long lifetime, high stability and repeatability. Such sensors can be used for long-term measurements. Various dimensions of sol-gel iridium oxide electrodes including 1 mm × 1 mm, 500 µm × 500 µm, and 100 µm × 100 µm were fabricated. Sensor longevity and pH dependence were investigated by immersing the electrodes in hydrochloric acid, fetal bovine serum (FBS), and sodium hydroxide solutions for 30 days. Less pH dependent responses, compared to IrOx electrodes fabricated by electrochemical deposition processes, were measured at 58.8 ± 0.4 mV/pH, 53.8 ± 1.3 mV/pH and 48 ± 0.6 mV/pH, respectively. The on-probe IrOx pseudo-reference electrodes were utilized for dopamine sensing. The baseline responses of the sensors were higher than the one using an external Ag/AgCl reference electrode. Using IrOx reference electrodes integrated on the same probe with working electrodes eliminated the use of cytotoxic Ag/AgCl reference electrode without loss in sensitivity. This enables employing such sensors in long-term recording of concentrations of neurotransmitters in central nervous systems of animals and humans. View Full-Text
Keywords: dopamine; Nernst-response; neurotransmitter sensors; pseudo-reference electrodes; sol-gel IrOx dopamine; Nernst-response; neurotransmitter sensors; pseudo-reference electrodes; sol-gel IrOx

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Nguyen, C.M.; Rao, S.; Yang, X.; Dubey, S.; Mays, J.; Cao, H.; Chiao, J.-C. Sol-Gel Deposition of Iridium Oxide for Biomedical Micro-Devices. Sensors 2015, 15, 4212-4228.
