A Variant Quorum Sensing System in Aeromonas veronii MTCC 3249

by
Kamlesh Jangid
1,*,
Perunninakulath S. Parameswaran
2 and
Yogesh S. Shouche
1
1
Microbial Culture Collection, National Centre for Cell Science, Pune, Maharashtra 411007, India
2
National Institute of Oceanography, Dr. Salim Ali Road, P.O. Box 1913, Kochi, Kerala 682018, India
*
Author to whom correspondence should be addressed.
Sensors 2012, 12(4), 3814-3830; https://doi.org/10.3390/s120403814
Submission received: 21 February 2012 / Revised: 17 March 2012 / Accepted: 20 March 2012 / Published: 26 March 2012
(This article belongs to the Special Issue Microbial Quorum Sensing: Linking the Outside World to Microbial Behaviour)
Browse Figures
Versions Notes

Abstract

: We have investigated the quorum sensing control in Aeromonas veronii MTCC 3249, originally isolated as A. culicicola from the midgut of Culex quinquefasciatus. Based on biosensor assays, the bacterium showed constant production of multiple acyl-homoserine lactones (AHLs) with increasing cell-density. The luxRI gene homologs, acuR (A. culicicola transcriptional Regulator) and acuI (A. culicicola autoInducer) were successfully amplified by inverse-PCR. Sequence analysis indicated acuRI were divergent from all known quorum sensing gene homologs in Aeromonas. Two localized regions in the C-terminal autoinducer binding domain of acuR showed indels suggesting variations in autoinducer specificity. Further, only a single copy of the quorum sensing genes was detected, suggesting a tight regulation of mechanisms under its control. Chromatography and further chemical analysis identified two AHLs in the culture supernatant: 6-carboxy-HHL (homoadipyl homoserine lactone), a novel AHL, and N-tetradecanoylhomoserine lactone. The existence of a potentially variant quorum sensing system might therefore, reflect in some way the ecological strategies adopted by this bacterium in the mosquito midgut.

1. Introduction

Aeromonas spp. are important disease-causing pathogens of fish and other cold-blooded species, as well as humans [1]. Many of its virulence determinants are expressed at high cell densities in the late exponential phase and may thus be under quorum sensing control [2]. Further, the close proximity of LuxRI gene homologs to iciA, an inhibitor of chromosome replication links quorum sensing and cell division in this genus. Recently, homologs of the V. fischeri luxRI genes have been detected in most Aeromonas species [3], unlike a few years ago, when only two species, A. hydrophila and A. salmonicida, were known to secrete quorum sensing molecules.

The discovery of quorum sensing in Aeromonas has placed focus on this genus for the elucidation of its role in pathogenesis. Unlike A. hydrophila, wherein both the serine and metallo protease activities are under quorum sensing control [4], the general secretory pathway for the export of serine protease in A. salmonicida (exe) is not under quorum sensing control [2]. Further, the production of extracellular proteases in A. hydrophila is decreased in the presence of long chain N-acyl-L-homoserine lactones (AHLs) such as 3-oxo-C12-HSL. Thus, the quorum sensing system could be a potential target for novel pharmaceutical agents based on the long chain AHLs to decrease the virulence of the bacterium [4].

The increasing incidences of isolation of Aeromonas species from both clinical and environmental samples have interested microbiologists worldwide. One such strain, A. culicicola MTCC 3249, later determined to be a subjective synonym of A. veronii [5], was isolated from the midgut of Culex quinquefasciatus by Pidiyar et al. [6]. In a study on the effect of A. veronii MTCC 3249 on the susceptibility of Culex quinquefasciatus to the Japanese encephalitis virus (JEV), the bacterium increased the susceptibility of mosquitoes to JEV when added in the mosquito's blood meal [7]. Further, 27 strains of A. veronii were isolated from drinking water supply in Spain [8] suggesting a diverse worldwide distribution of the species. Given that contaminated drinking water supply is a major source of diarrhoeal diseases in Spain, the pathogenic potential of this species must be tested.

In addition, gaining an insight into the quorum sensing machinery of A. veronii MTCC 3249 has become a priority. This hemolytic strain was reported to rapidly increase its cell number (2,000-fold) after the blood meal of mosquito [6]. Similar observations were reported in other species of Aeromonas that form biofilms and inhabit nutrient rich, localized environments [2,4,9,10]. The rapid growth of midgut bacteria after blood meal may be fuelled by the iron and protein-rich bolus of blood [11]. However, such high increase in cell number also suggests the presence of a very efficient regulatory mechanism. Given the close proximity of iciA homolog downstream of the autoinducer synthase gene in Aeromonas, the involvement of quorum sensing in increasing the cell density cannot be ruled out. This tempted us to investigate the nature of this control.

We also investigated whether A. veronii contained paralogs of the acuRI quorum sensing genes. We hypothesized that like many other bacteria, such as Clostridium perfringens [12], Erwinia carotovora [13], Pseudomonas aureofaciens [14], etc., A. veronii MTCC 3249 might also possess multiple quorum sensing systems. This stems from the fact that luxRI gene homologs in Aeromonas share high sequence similarity [3] and it is likely that if multiple quorum sensing systems are present in this strain, these might also share high sequence similarity with the acuRI system. Although this specific aspect has not been investigated in the genus Aeromonas, results from A. hydrophila and A. salmonicida [2,4] suggest the involvement of multiple AHLs and as-yet unidentified factors controlling different phenotypes under quorum sensing control. Hence, the existence of multiple quorum sensing systems cannot be ruled out. Here, we present an analysis of the quorum sensing system in A. veronii MTCC 3249 that might in some way reflect on its ecological strategies in mosquito midgut.

2. Experimental Section

2.1. Bacterial Strains, Plasmids, Media, and Culture Conditions

A. hydrophila ATCC 7066T, A. veronii MTCC 3249, AHL responsive biosensor strain Chromobacterium violaceum CV026 [15] and E. coli JM109 harboring plasmids pSB401 and pSB403 [16] and pJBA89 [17] were maintained on Luria-Bertani (LB) medium throughout the study and incubations were carried out at 30 °C. Wherever required, the medium was supplemented with ampicillin (50 μg/mL) or kanamycin (40 μg/mL) or tetracycline (20 μg/mL). Cell growth was monitored by measurement of the optical density of culture medium at 540 nm.

2.2. Growth Dependent AHL Production by A. veronii MTCC 3249

The production of AHLs by A. veronii MTCC 3249 was detected using the recombinant plasmid pJBA89 in E. coli JM109 as described previously [3]. To determine the critical cell density at which A. veronii shows a rapid increase in the production of the AHLs, a growth phase dependent induction of bioluminescence by AHLs in sterile culture filtrate was studied as described previously [18]. Total viable count of A. veronii were achieved by spread plating 100 μL aliquots of different dilutions in duplicates at various time intervals during the growth in LB at 30 °C at 150 rpm. For bioluminescence induction, 100 μL supernatant fractions collected at various time intervals upon centrifugation of culture for 3 min at 12,000 rpm was mixed in a 96-well plate with 100 μL of the recombinant E. coli JM109 containing pSB401 diluted to an optical density of 0.8 at 450 nm and incubated for 30 min. Bioluminescence counts were taken on Top Count NXT, a microplate scintillation and luminescence counter (Packard, Germany). Fold induction was calculated by substracting the counts of negative control (LB with E. coli pSB401) from the entire test samples and then dividing each sample value with the zero minute count. The positive control included 1 μM final concentration of HHL. All experiments were repeated twice and final readings are an average of the two.

2.3. DNA Isolation, PCR/Inverse PCR Amplification, Hybridization and Sequencing

Genomic DNA was isolated from the two Aeromonas strains using the standard phenol/chloroform/ isoamyl alcohol method [19]. To PCR amplify the luxRI gene homologs from A. veronii, primers were designed using GeneRunner v3.01 ( www.generunner.net) based on A. hydrophila (X89469) and A. salmonicida (U65741) luxRI gene homolog sequences. All primers were numbered according to the 3′ end binding site on the ahyRI gene (Table 1). PCR conditions used were: initial denaturation at 95 °C for 3 min; 35 cycles of denaturation at 95 °C for 1 min, annealing at 50 °C for 1 min and extension at 72 °C for 1 min; and a final extension at 72 °C for 10 min. PCR amplicons were purified by PEG/NaCl precipitation and sequenced in-house on an ABI-3730 automated DNA analyzer.

For Inverse PCR amplification of the flanking regions, the strategy depicted in Figure 1 was used. All the enzymatic manipulations were carried out as described previously [19] or wherever necessary as described by the manufacturer. Briefly, 10 μg of A. veronii genomic DNA was digested with 10 U of the restriction enzyme in 1× digestion buffer in 25 μL reaction volume at 37 °C for 12–14 h. Upon digestion, heat denaturation was done at 80 °C for 15 min and 2 μL of the digested fragments was checked on 0.8% agarose in 0.5× TBE. The remaining digested product was purified using the QIAQuick PCR purification kit (QIAGEN) according to manufacturer's instructions.

Purified DNA fragments were self-ligated in 10 μL reaction volume containing 5 μL of purified product, 1× ligation buffer and 20 U of the T4 DNA ligase at 16 °C for 16 h. Upon ligation, 2 μL was used for a 50 μL PCR reaction using primers QSAcuR-255R and QSAcuR-525F under similar conditions as described above except that annealing was at 60 °C and cycle elongation was at 72 °C. Amplicons (10 μL) were run against 1 kb plus DNA marker (Invitrogen, USA) in 1% agarose gel in 1× TBE buffer at 5 V/cm for 4 h and then processed for southern hybridization to target the fragment containing the gene of interest. All protocols for blot preparation, probing, hybridization and developing were carried out essentially as described previously [19]. Blots were prepared on Hybond N+ paper (Amersham Pharmacia, USA) after depurination, denaturation and neutralization treatments followed by ∼4 h transfer in 20× SSC using vacuum blotting apparatus. Upon transfer, the blot was washed gently in 2× SSC, air dried and processed for hybridization at 55 °C as described previously [5]. PCR product amplified using primers QSAcuR-525F and QS-1444R was used as the probe.

DNA fragments corresponding to the putative acuRI genes detected in Southern hybridization were eluted from the remaining 40 μL amplicons run on 1% agarose gel in 1× TAE (pH = 8.0) under similar conditions. Elution was carried out using the QIAquick gel extraction kit (QIAGEN) according to manufacturer's instructions. The eluted fragments were cloned in pGEM-T Easy vector (Promega, USA) at molar ratios of 1:3 for vector:insert in a final reaction volume of 5 μL and transformed in E. coli JM109 competent cells as described previously [20]. LB Agar plates supplemented with ampicillin (100 μg/mL), X-gal (40 μg/mL) and IPTG (0.1 mM) were used for plating 100 μL transformed culture suspension. Clones were picked after 12–14 h incubation at 37 °C and screened by direct-colony PCR using vector specific PUC1 and PUC2 primers under the conditions described above for inverse PCR. Amplicons from positive clones were purified using PEG/NaCl precipitation and sequenced as above. Nucleotide sequence of the complete genes along with its flanking regions is submitted to GenBank with accession number AY989817.

2.4. Determination of acuRI Copy Number

Southern hybridization for acuRI copy number was performed as described previously for rrn operon [21]. PCR amplified acuR gene from A. veronii using primers AcuRF and AcuRR was used as the probe. Amplicons were purified by PEG-NaCl precipitation, and random labelled using Megaprime DNA labelling system (Amersham Pharmacia Biotech UK Ltd.). The PCR conditions used were as described above except that annealing was at 55 °C. Hybridization was performed at 60 °C for 14 h in a solution containing 5× SSC, 0.5% SDS, 5× Denhardt's solution, 0.2 mg of denatured salmon sperm DNA mL−1 and 2 ng of radiolabeled probe/mL at a specific activity of >1 × 108 dpm/μg.

2.5. Chemical Characterization of AHLs Produced by A. veronii MTCC 3249

For thin-layer chromatography (TLC) detection of AHLs, 5 mL of A. veronii culture supernatant was extracted three times with dichloromethane (7:3 supernatant/dichloromethane). The dried extract was reconstituted in 50 μL HPLC grade acetonitrile and 5 μL samples were subjected to analytical TLC on C18 reverse-phase chromatography plates (catalogue no. 4801 425; Whatman), using 60% (vol/vol) methanol in water as the mobile phase as described previously [22]. AHLs were identified by overlaying the chromatograms with a thin layer of LB agar (45 mL) seeded with CV026 (5 mL overnight culture). Plates were incubated at 30 °C overnight and examined for purple spots. Synthetic AHL standards applied in 2 μL volume onto the plates as a common mixture of BHL (catalogue no. 09945; Fluka), HHL (catalogue no. 09926; Fluka), OHL (catalogue no. 10940; Fluka), DHL (catalogue no. 17248; Fluka) and dDHL (catalogue no. 17247; Fluka) were used for reference.

Putative AHLs were extracted and purified from 12 L of stationary-phase A. veronii culture grown in M9 medium (SIGMA, USA) with 0.2% acid hydrolyzed casein (Oxoid) as described previously [2]. Extracts were vaccum dried on a Büchi rotavapor R-200 (Büchi Labortechnik, Switzerland), reconstituted in acetonitrile, and then subjected to analytical TLC (as above) and preparative HPLC (as following). Fractions were separated using Supelco PLC8 (250 by 21.2 mm) column (Chromeleon, DIONEX Corporation, USA) with an isocratic mobile phase of 70% (vol/vol) acetonitrile in water at a flow rate of 2 mL per min and monitored at 210 nm. Fractions showing activity in the CV026 reporter assay were pooled and re-chromatographed by using 60% (vol/vol) acetonitrile in water; the procedure was repeated, using a final chromatographic separation employing 30% (vol/vol) acetonitrile in water. Active fractions with same retention times were pooled and analyzed by MS and NMR.

3. Results and Discussion

3.1. Production of AHLs by A. veronii MTCC 3249

Sensitive detection of AHLs secreted by A. veronii was achieved by using recombinant derivatives of E. coli containing genes expressed only in the presence of AHLs and measured quantitatively. While A. veronii MTCC 3249 has already been shown to possess LuxRI gene homologs [3], the bioassay based detection reconfirmed the corresponding phenotype in this strain (Figure 2). The classical “T” shows the decreased gfp expression by the indicator strain as a function of the diffusion of the compound in the medium. The production of AHLs was highly correlated with increasing cell density of A. veronii (Figure 3(a)). A curve with zero slope was observed when fold induction/OD540 was plotted (Figure 3(b)) indicating that the production of AHLs was constant and proportional to CFU/mL of A. veronii MTCC 3249, and there was a linear correlation between AHL amounts and production of light by E. coli JM109 with pSB401. The slight differences could be minor variations due to the experimental error of measurements.

3.2. A. veronii MTCC 3249 acuRI System

Based on the sequence analysis of ahyRI and asaRI, eight primer pairs were designed to amplify the corresponding LuxRI gene homologs from A. veronii. However, only one pair, QS-722F and QS-1444R amplified a single DNA fragment (∼790 bp), determined to be the homolog of LuxR- type transcriptional regulator protein was annotated as acuR (for A. culicicola Regulatory protein).

The flanking regions of the acuR gene were amplified by Inverse PCR (Figure 1). Of the four restriction enzymes: BglII, EcoRI, HindIII and PstI, chosen on the basis of absence of recognition sites in both acuR and ahyRI/asaRI sequences, only PstI digest of A. veronii MTCC 3249 yielded a single band. The region corresponding to luxI homolog was annotated as acuI (for A. culicicola autoInducer synthase protein).

Both acuR and acuI shared very low sequence similarity with previously known luxRI homologs in Aeromonas. Thus, acuR shared only 85–87% sequence similarity with ahyR and asaR, whereas the latter two shared 99% sequence similarity between them. Similarly, acuI shared only 70–71% sequence similarity with ahyI and asaI, whereas the latter two were 88% similar. This low similarity probably explains the failure of attempts to get the acuI gene fragment using degenerate PCR and heterologous southern hybridization.

In addition to the low similarity, the acuRI gene sequence showed unique features suggesting a variant quorum sensing system in A. veronii. Specifically, a 6 nt deletion in acuR (position 1225), an insertion in acuI (position 32), two separate deletions in acuI (positions 48 and 61) and a shorter lux box region were present in the acuRI gene sequence (Figure 4). These indels were important because the insertion lied in the primer binding site of the degenerate primers and justified the inability to PCR amplify the acuI fragment in the first step. Further analysis of acuR sequence at NCBI's Conserved Domain Search (CD Search) confirmed that the 6 nt deletion lied in the C-terminal binding domain of the general family of transcriptional regulators. This domain contains a helix-turn-helix motif and binds DNA and thus, the deletion may be important, although this has not been investigated yet.

A. veronii MTCC 3249 possessed a single copy of the quorum sensing genes suggesting a tight regulation by a singular type of autoinducer (Figure 5). In order to express multiple factors under the control of a single transcriptional factor, there is always a high demand for rRNA transcription. Consistent with this, the strain also possessed 10 copies of the rrn operon suggesting strong and efficient transcriptional machinery and a unique ecological strategy adopted by the organism during stages of rapid growth [21]. Given the central role of rRNAs in the regulation of ribosome synthesis, it is conceivable that the number of rRNA operons may dictate the rapidity with which microbes can synthesize ribosomes and respond to favorable changes in growth conditions [23,24]. The copy number of rRNA operons per bacterial genome, which varies from 1 to as many as 15, therefore, reflects an ecological strategy that is characterized either by rapid response to resource input or efficient allocation of resources under constant, slow-growth environments [25,26]. Hence, a detailed investigation into the genes that are regulated by this system would enhance our understanding of the potentially pathogenic mechanisms under its control.

3.3. Chemical Characterization of AHLs Produced by A. veronii MTCC 3249

Using different biosensor strains enabled the detection of a wide range of AHLs produced by A. veronii. TLC overlay analysis with C. violaceum CV026 revealed a major AHL, which corresponded to the Rf values obtained for synthetic HHL (Figure 6). Additionally, an unknown CV026-positive spot, probably representing a more polar compound, migrated between the synthetic HHL and OHL standards. Although this required further confirmation, our results agree to an extent with previous observations that multiple AHLs are secreted by other members in the genus Aeromonas. Studies with A. hydrophila and A. salmonicida reported two AHLs, BHL (major) and HHL (minor), secreted by the same strain and an additional chemical compound, the identity of which is not yet known [2].

The results of MS, NMR and IR with the purified extracts confirmed this observation and one of the autoinducer compounds was identified to be a carboxyl-acid side chain derivative of N-Heptanoyl-L-homoserine lactone. An active HPLC fraction of the AHLs secreted by A. veronii MTCC 3249 was further analyzed on MS and NMR (for details see [27]). The IR spectrum peaks at 1754 indicated a gamma -lactone group, as is common in homoserine lactones (Figure 7). The carbonyl peaks at 1,715, 1,677, 1,667, etc., could be attributed to free carboxylic acid or amide groups. The strong absorption at 3,500 indicated OH/NH stretching vibrations.

The mass spectrum indicated presence of two homoserine lactones of molecular weights 311 and 243, respectively. Thus, the prominent peaks (Figure 8) at m/z 645 (2M+Na)+, 623 (2M+H)+, 334 (M+Na)+, 312 (M+H)+, 283 (M–CH3CH2)+, 239 (M+H–28–17–28)+, 211 (M+H–101)+ indicated the presence of a compound of molecular weight 311, while the values at m/z 509 (2M+Na)+, 487 (2M+H)+, 266 (M+Na)+, 244 (M+H)+, 222 (M–44+Na)+, 200 (M–44+H)+ indicated presence of a compound having 243 as the molecular weight. Given the homoserine lactone ring, the first compound has C14 acid (myrstic acid or tetradecanoic acid) as acyl group (Figure 9), corresponding to an elemental composition of C18H34NO3. The (2M+H)+ adduct ions of compound 1 are seen at m/z 623 (2M+H)+ and 645 (2M+Na)+. Other characteristic ions for compound 1 were seen at m/z 283 (312-29)+ or (M+H–C2H5)+. This loss of terminal ethyl group is known for long chain compounds, such as myrstic acid. Similarly, compound 2 has C7 dicarboxylic acid as the acyl moiety. The elemental composition of compound 2 is C11H17NO5. The observed pseudomolecular ions at m/z 244 and 266 correspond to C11H18NO5 (M+H)+ and C11H17NO5Na, respectively. The (2M+H)+ adduct ions of compound 2 are seen at m/z 509 (2M+Na)+ and 487 (2M+H)+ ions. The peak at m/z 200 (244–44) or (M+H–CO2) is characteristic for carboxylic acids.

The results of MS, NMR and IR confirmed that two types of AHL molecules were secreted by A. veronii MTCC 3249 of which one was unique. The production of 6-carboxy-HHL by A. veronii is the first report from any bacterium, the only other being from a methanogenic archaeon, Methanosaeta harundinacea [28]. In addition, A. veronii MTCC 3249 was recently shown to produce several methyl-branched AHLs as well [29]. While the methyl-branched AHLs contained hydroxy acyl chains and unsaturated long acyl chains, our compounds contained neither of these. Although we were unable to detect these methyl-branched AHLs in the HPLC fractions in our study, further chemical analysis of purified fractions from large volumes of culture supernatants is expected to clarify such anomalies.

It is very intriguing that a single strain produces so many different molecules that are potentially under control of a single system. The involvement of such unique types of AHL molecules and the presence of indels in the C-terminal binding domain of AcuR suggests a variant quorum sensing system that is potentially active in A. veronii MTCC 3249 [27]. It is interesting to note that this is the first study that reports the involvement of a carboxyl-AHL derivative in the genus Aeromonas or for any other bacterial genera.

4. Conclusions

We propose the presence of a diverse quorum sensing system in A. veronii MTCC 3249 compared to known luxRI homologs in Aeormonas. The presence of indels in the transcription regulator binding domain, a shorter Lux-box, a novel AHL type and a single copy of the quorum sensing system suggest a tight and highly efficient regulation of mechanisms under its control. The nature of these variations might reflect upon the ecological strategies adopted by the bacterium given the unique habitat and the high cell counts inside the midgut of Culex quinquefasciatus. The results presented here reflect a preliminary investigation into the quorum sensing system of A. veronii MTCC 3249. However, in order to gain a better understanding of its ecological strategies and pathogenic potential, a detailed investigation into the mechanisms under the control of quorum sensing system in this strain is proposed.

Acknowledgments

The authors thank Paul Williams (Centre for Biomolecular Sciences, University of Nottingham, UK) and Michael Givskov (BioCentrum-DTU, The Technical University of Denmark, Denmark) for providing the biosensor strains used in the study.

References

  1. Janda, J.M.; Abbott, S.L. The genus Aeromonas: Taxonomy, pathogenicity, and infection. Clin. Microbiol. Rev. 2010, 23, 35–73. [Google Scholar]
  2. Swift, S.; Karlyshev, A.V.; Durant, E.L.; Winson, M.K.; Chhabra, S.R.; Williams, P.; Macintyre, S.; Stewart, G.S.A.B. Quorum sensing in Aeromonas hydrophila and Aeromonas salmonicida: Identification of the LuxRI homologues AhyRI and AsaRI and their cognate signal molecules. J. Bacteriol. 1997, 179, 5271–5281. [Google Scholar]
  3. Jangid, K.; Kong, R.; Patole, M.S.; Shouche, Y.S. luxRI homologs are universally present in the genus. Aeromonas. BMC Microbiol. 2007, 7. [Google Scholar] [CrossRef]
  4. Swift, S.; Lynch, M.J.; Fish, L.; Kirke, D.F.; Tomas, J.M.; Stewart, G.S.; Williams, P. Quorum sensing-dependent regulation and blockade of exoprotease production in Aeromonas hydrophila. Infect. Immun. 1999, 67, 5192–5199. [Google Scholar]
  5. Huys, G.; Cnockaert, M.; Swings, J. Aeromonas culicicola Pidiyar et al. 2002 is a later subjective synonym of Aeromonas veronii Hickman-Brenner et al. 1987. Syst. Appl. Microbiol. 2005, 28, 604–609. [Google Scholar]
  6. Pidiyar, V.J.; Kaznowski, A.; Badrinarayan, N.; Patole, M.S.; Shouche, Y.S. Aeromonas culicicola sp. nov. (MTCC 3249T), from the midgut of Culex quinquefasciatus. Int. J. Syst. Evol. Microbiol. 2002, 52, 1773–1778. [Google Scholar]
  7. Mourya, D.T.; Gokhale, M.D.; Pidiyar, V.J.; Barde, P.V.; Patole, M.S.; Mishra, A.C.; Shouche, Y.S. Study of the effect of the midgut bacterial flora of Culex quinquefasciatus on the susceptibility of mosquitoes to Japanese encephalitis virus. Acta Virol. 2002, 46, 257–260. [Google Scholar]
  8. Figueras, M.J.; Suarez-Franquet, A.; Chacon, M.R.; Soler, L.; Navarro, M.; Alejandre, C.; Grasa, B.; Martinez-Murcia, A.J.; Guarro, J. First record of the rare species Aeromonas culicicola from a drinking water supply. Appl. Environ. Microbiol. 2005, 71, 538–541. [Google Scholar]
  9. Lynch, M.J.; Swift, S.; Kirke, D.F.; Keevil, C.W.; Dodd, C.E.; Williams, P. The regulation of biofilm development by quorum sensing in Aeromonas hydrophila. Environ. Microbiol. 2002, 4, 18–28. [Google Scholar]
  10. Zhu, H.; Thuruthyil, S.J.; Willcox, M.D.P. Production of N-acyl homoserine lactones by Gram-negative bacteria isolated from contact lens wearers. Clin. Exp. Ophthalmol. 2001, 29, 150–152. [Google Scholar]
  11. DeMaio, J.; Pumpuni, C.B.; Kent, M.; Beier, J.C. The midgut bacterial flora of wild Aedes triseriatus, Culex pipiens and Psorophora columbiae mosquitoes. Am. J. Trop. Med. Hyg. 1996, 54, 219–223. [Google Scholar]
  12. Wüster, A.; Babu, M.M. Conservation and evolutionary dynamics of the agr cell-to-cell communication system across Firmicutes. J. Bacteriol. 2008, 190, 743–746. [Google Scholar]
  13. Cui, Y.; Chatterjee, A.; Hasegawa, H.; Chatterjee, A.K. Erwinia carotovora subspecies produce duplicate variants of ExpR, LuxR homologs that activate rsmA transcription but differ in their interactions with N-acylhomoserine lactone signals. J. Bacteriol. 2006, 188, 4715–4726. [Google Scholar]
  14. Zhang, Z.; Pierson, L.S. A second quorum-sensing system regulates cell surface properties but not Phenazine antibiotic production in Pseudomonas aureofaciens. Appl. Environ. Microbiol. 2001, 67, 4305–4315. [Google Scholar]
  15. McClean, K.H.; Winson, M.K.; Fish, L.; Taylor, A.; Chhabra, S.R.; Camara, M.; Daykin, M.; Lamb, J.H.; Swift, S.; Bycroft, B.W.; Stewart, G.S.A.B.; Williams, P. Quorum sensing and Chromobacterium violaceum: Exploitation of violacein production and inhibition for the detection of N-acylhomoserine lactones. Microbiology 1997, 143, 3703–3711. [Google Scholar]
  16. Winson, M.K.; Swift, S.; Fish, L.; Throup, J.P.; Jørgensen, F.; Chhabra, S.R.; Bycroft, B.W.; Williams, P.; Stewart, G.S.A.B. Construction and analysis of luxCDABE-based plasmid sensors for investigating N-acylhomoserine lactone-mediated quorum sensing. FEMS Microbiol. Lett. 1998, 163, 185–192. [Google Scholar]
  17. Andersen, J.B.; Heydorn, A.; Hentzer, M.; Eberl, L.; Geisenberger, O.; Christensen, B.B.; Molin, S.; Givskov, M. GFP-based N-acylhomoserine-lactone sensor systems for detection of bacterial communication. Appl. Environ. Microbiol. 2001, 67, 575–585. [Google Scholar]
  18. Gram, L.; Christensen, A.B.; Ravn, L.; Molin, S.; Givskov, M. Production of acylated homoserine lactones by psychrotrophic members of the Enterobacteriaceae isolated from foods. Appl. Environ. Microbiol. 1999, 65, 3458–3463. [Google Scholar]
  19. Sambrook, J.; Fritsch, E.F.; Maniatis, T. Molecular Cloning: A Laboratory Manual, 2nd ed.; Cold Spring Harbor Laboratory: New York, NY, USA, 1989. [Google Scholar]
  20. Hanahan, D. Studies on transformation of Escherichia coli with plasmids. J. Mol. Biol. 1983, 166, 557–580. [Google Scholar]
  21. Pidiyar, V.J.; Jangid, K.; Patole, M.S.; Shouche, Y.S. Analysis of 16S–23S intergenic spacer regions and rrn operon copy number of Aeromonas culicicola MTCC 3249T. DNA Seq. 2003, 14, 183–194. [Google Scholar]
  22. Shaw, P.; Ping, G.; Daly, S.L.; Cha, C.; Cronan, J.E., Jr.; Rinehart, K.L.; Farrand, S.K. Detecting and characterizing acyl-homoserine lactone signal molecules by thin layer chromatography. Proc. Natl. Acad. Sci. USA 1997, 94, 6036–6041. [Google Scholar]
  23. Condon, C.; Liveris, D.; Squires, C.; Schwartz, I.; Squires, C.L. rRNA operon multiplicity in Escherichia coli and the physiological implications of rrn inactivation. J. Bacteriol. 1995, 177, 4152–4156. [Google Scholar]
  24. Stevenson, B.S.; Schmidt, T.M. Growth rate-dependent expression of RNA from plasmid-borne rRNA operons in Escherichia coli. J. Bacteriol. 1997, 180, 1970–1972. [Google Scholar]
  25. Klappenbach, J.A.; Dunbar, J.M.; Schindt, T.M. rRNA operon copy number reflects ecological strategies of bacteria. Appl. Environ. Microbiol. 2000, 66, 1328–1333. [Google Scholar]
  26. Rainey, F.A.; Ward-Rainey, N.L.; Janssen, P.H.; Hippe, H. Clostridium paradoxum DSM 7308(T) contains multiple 16S rRNA genes with heterogeneous intervening sequences. Microbiology 1996, 142, 2087–2095. [Google Scholar]
  27. Jangid, K. Molecular Taxonomy of Genus Aeromonas and Quorum Sensing in Aeromonas culicicola. Ph.D. Thesis, University of Pune, Pune, India, 8 November 2005. [Google Scholar]
  28. Zhang, G.; Zhang, F.; Ding, G.; Li, J.; Guo, X.; Zhu, J.; Zhou, L.; Cai, S.; Liu, X.; Luo, Y.; Zhang, G.; Shi, W.; Dong, X. Acyl homoserine lactone-based quorum sensing in a methanogenic archaeon. ISME J. 2012. [Google Scholar] [CrossRef]
  29. Thiel, V.; Kunze, B.; Verma, P.; Wagner-Döbler, I.; Schulz, S. New structural variants of homoserine lactones in Bacteria. ChemBioChem 2009, 10, 1861–1868. [Google Scholar]
Sensors 12 03814f1 1024

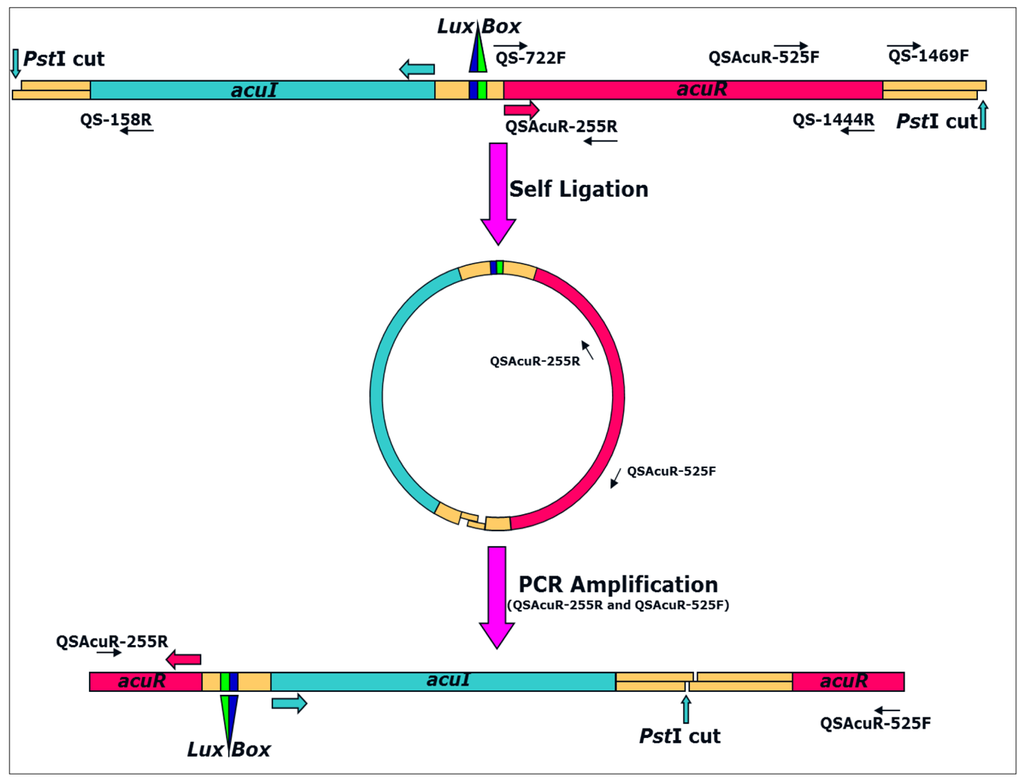

Figure 1. Strategy for Inverse PCR amplification of acuRI from A. veronii.
Figure 1. Strategy for Inverse PCR amplification of acuRI from A. veronii.
Sensors 12 03814f1 1024
Sensors 12 03814f2 1024
Figure 2. Expression of gfp by E. coli JM109 pJBA89 in response to AHL production by A. veronii MTCC 3249.
Figure 2. Expression of gfp by E. coli JM109 pJBA89 in response to AHL production by A. veronii MTCC 3249.
Sensors 12 03814f2 1024
Sensors 12 03814f3 1024
Figure 3. Growth dependent AHL production by A. veronii MTCC 3249. (a) Fold induction of bioluminescence in E. coli JM109 with pSB401 as a function of increasing AHL concentration in the culture supernatant; (b) Constant production of AHLs by A. veronii in the culture supernatant proportional to its CFU/mL.
Figure 3. Growth dependent AHL production by A. veronii MTCC 3249. (a) Fold induction of bioluminescence in E. coli JM109 with pSB401 as a function of increasing AHL concentration in the culture supernatant; (b) Constant production of AHLs by A. veronii in the culture supernatant proportional to its CFU/mL.
Sensors 12 03814f3 1024
Sensors 12 03814f4a 1024Sensors 12 03814f4b 1024Sensors 12 03814f4c 1024

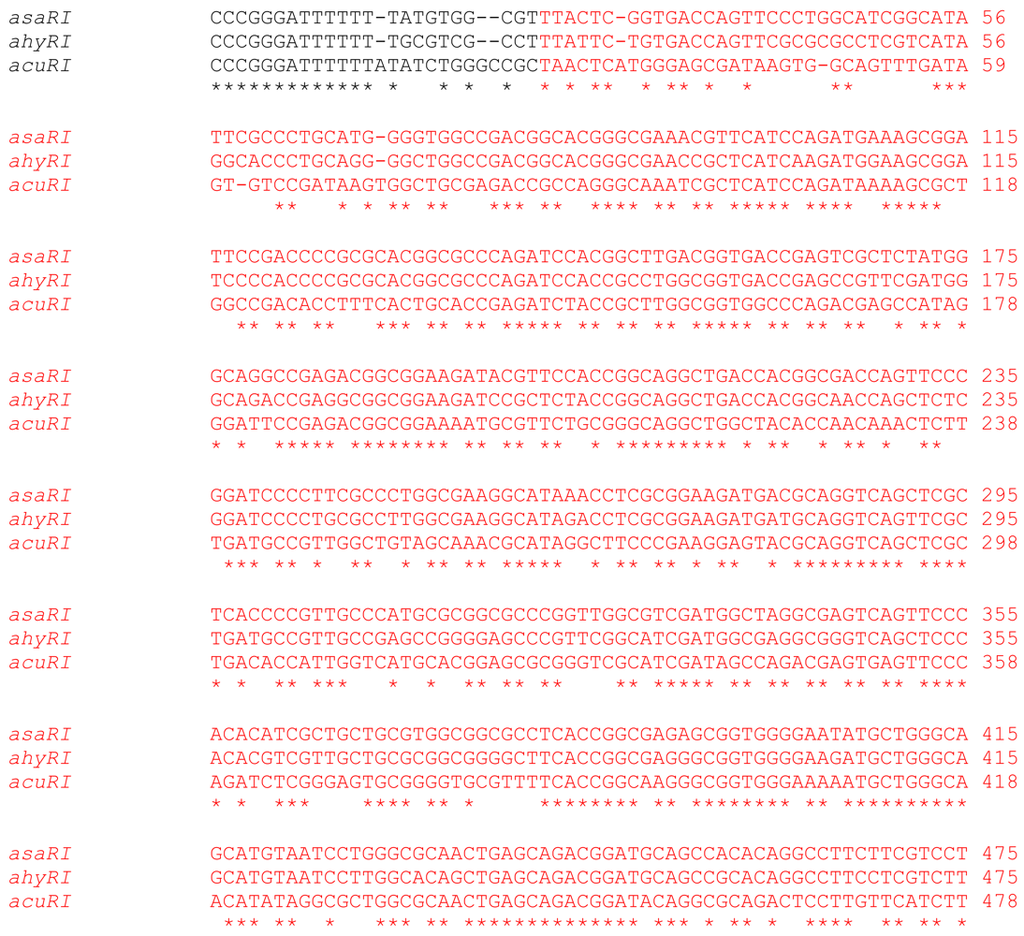

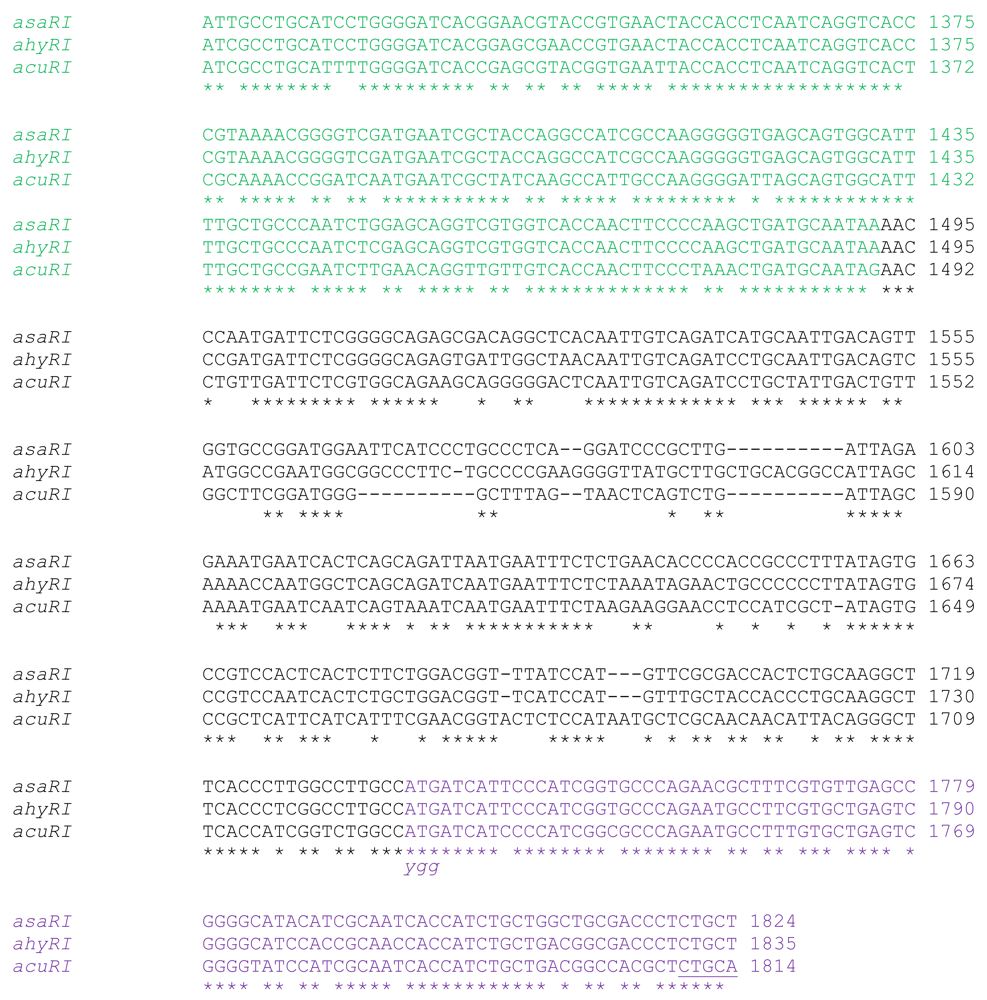

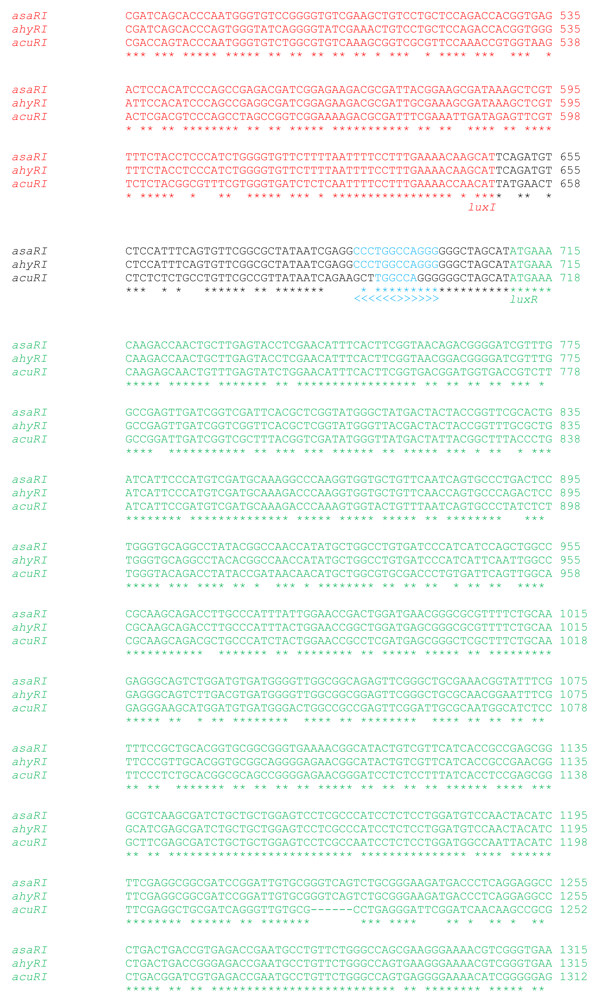

Figure 4. luxRI homolog sequences of A. hydrophila (ahyRI, X89469), A. salmonicida (asaRI, U65741), and A. veronii (acuRI, AY989817). luxI homologs (red), luxR homologs (green), and ygg homolog (purple). Region of dyad symmetry, ><, not homologous to the lux box consensus sequence (blue region). PstI site (underlined).
Figure 4. luxRI homolog sequences of A. hydrophila (ahyRI, X89469), A. salmonicida (asaRI, U65741), and A. veronii (acuRI, AY989817). luxI homologs (red), luxR homologs (green), and ygg homolog (purple). Region of dyad symmetry, ><, not homologous to the lux box consensus sequence (blue region). PstI site (underlined).
Sensors 12 03814f4a 1024Sensors 12 03814f4b 1024Sensors 12 03814f4c 1024
Sensors 12 03814f5 1024

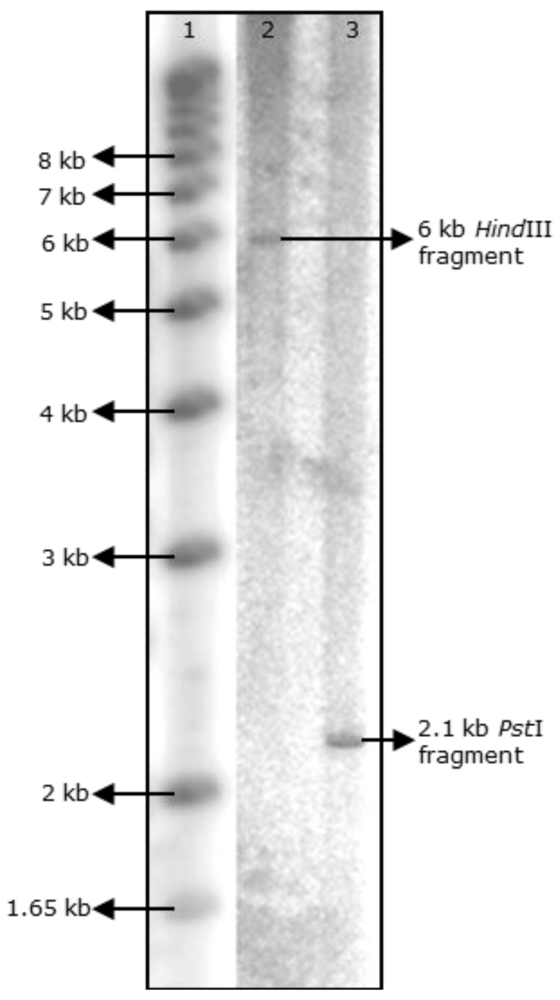

Figure 5. acuRI copy number in A. veronii MTCC 3249 using southern hybridization. Lane 1: 1 kb Plus DNA marker (Invitrogen); lane 2: HindIII digest; and lane 3: PstI digest.
Figure 5. acuRI copy number in A. veronii MTCC 3249 using southern hybridization. Lane 1: 1 kb Plus DNA marker (Invitrogen); lane 2: HindIII digest; and lane 3: PstI digest.
Sensors 12 03814f5 1024
Sensors 12 03814f6 1024
Figure 6. TLC analysis of AHLs produced by A. veronii MTCC 3249. Lane 1: mixture of synthetic AHL standards, HHL and OHL; and lane 2: acetonitrile reconstituted extract of AHLs from the culture supernatant.
Figure 6. TLC analysis of AHLs produced by A. veronii MTCC 3249. Lane 1: mixture of synthetic AHL standards, HHL and OHL; and lane 2: acetonitrile reconstituted extract of AHLs from the culture supernatant.
Sensors 12 03814f6 1024
Sensors 12 03814f7 1024

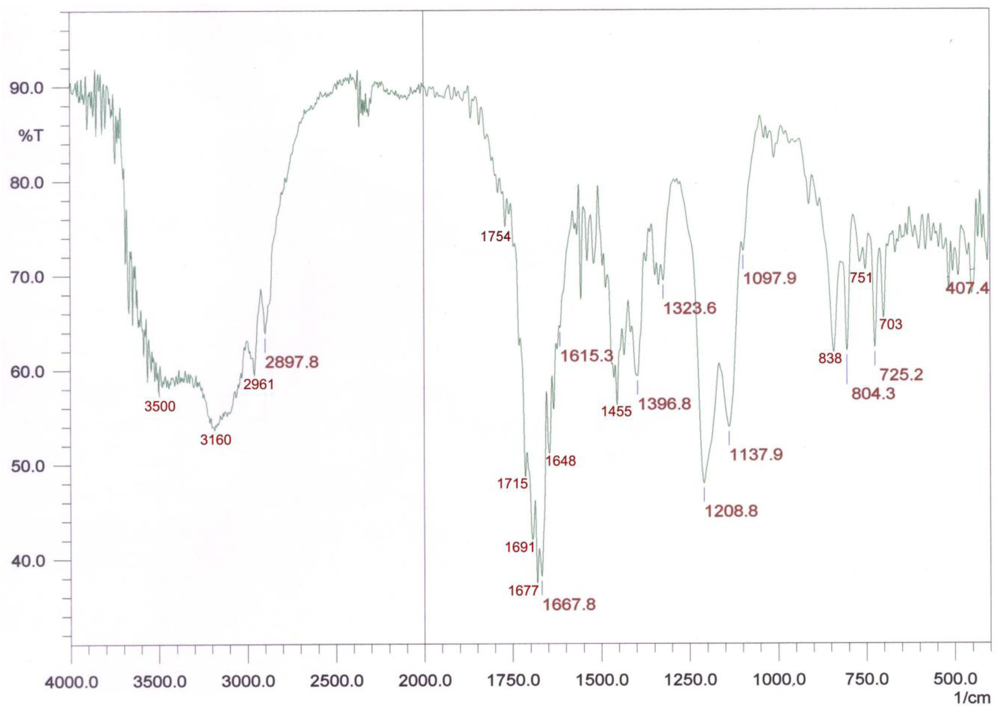

Figure 7. IR spectra of C. violaceum CV026 positive HPLC fraction from culture supernatant of A. veronii MTCC 3249.
Figure 7. IR spectra of C. violaceum CV026 positive HPLC fraction from culture supernatant of A. veronii MTCC 3249.
Sensors 12 03814f7 1024
Sensors 12 03814f8 1024

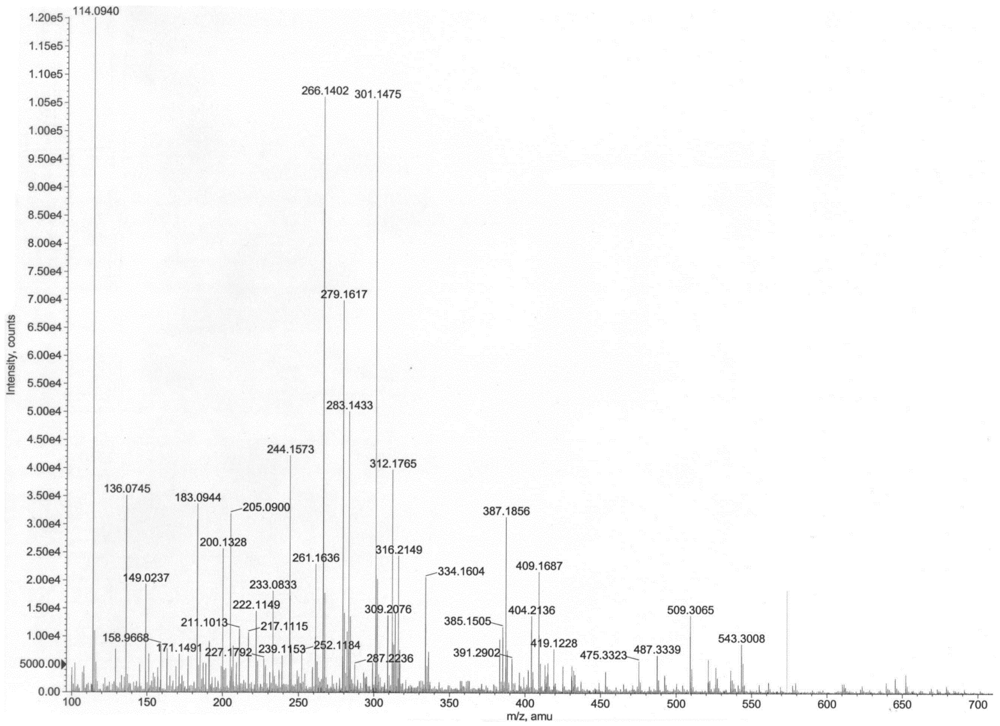

Figure 8. MS/MS scan of C. violaceum CV026 positive HPLC fraction from culture supernatant of A. veronii MTCC 3249.
Figure 8. MS/MS scan of C. violaceum CV026 positive HPLC fraction from culture supernatant of A. veronii MTCC 3249.
Sensors 12 03814f8 1024
Sensors 12 03814f9 1024

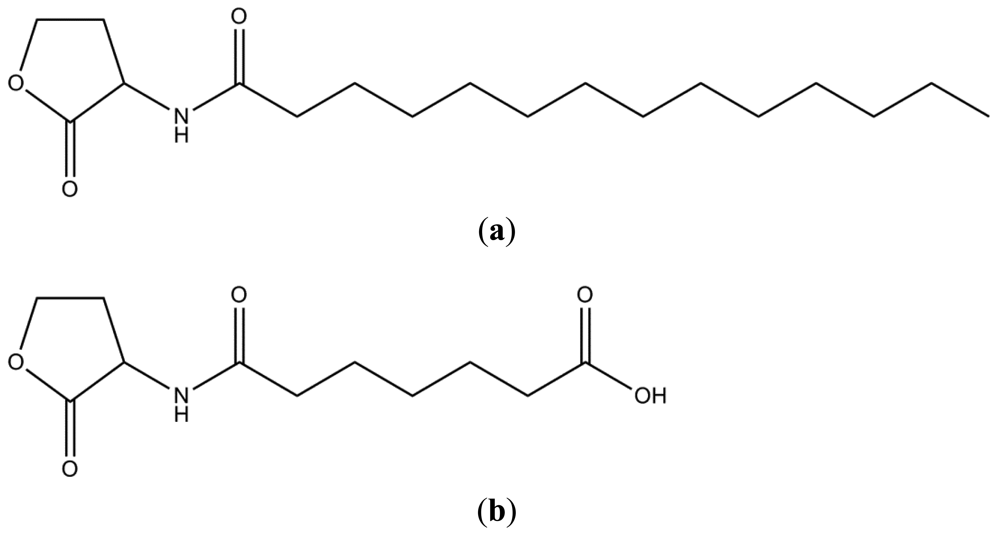

Figure 9. Chemical structures of the AHLs secreted by A. veronii MTCC 3249. (a) Compound-1: N-tetradecanoylhomoserine lactone; (b) Compound-2: 6-carboxy-HHL.
Figure 9. Chemical structures of the AHLs secreted by A. veronii MTCC 3249. (a) Compound-1: N-tetradecanoylhomoserine lactone; (b) Compound-2: 6-carboxy-HHL.
Sensors 12 03814f9 1024
Table
Table 1. List of primers used in this study.
Table 1. List of primers used in this study.
Primer NamePrimer Sequence (5′ to 3′)Remarks
QS-158RCGC ATT TTC CGC CGT CTC GGInverse Sequencing
QS-722FGGG GGC TAG CAT ATG AAA CAA GAC CDegenerate
QS-1444RTTA TTG CAT CAG CTT GGG GAA GTT GDegenerate
QS-1469FCAC CAA CTT CCC TAA ACT GAT GCA ATA GInverse Sequencing
QSAcuR-255RGGT TCC AGT AGA TGG GCA GCG TCInverse
QSAcuR-525FGGT TGT GCG CCT GAG GGA TTC GInverse Probe
AcuIFATG TTG GTT TTC AAA GGA AAA TTGA. veronii specific
AcuIRTTA TAT CTG GGC CGC TAA CTC ATG GGAA. veronii specific
AcuRFATG AAA CAA GAG CAA CTG TTT GAG TATA. veronii specific
AcuRRCTA TTG CAT CAG TTT AGG GAA GTT GGTA. veronii specific
