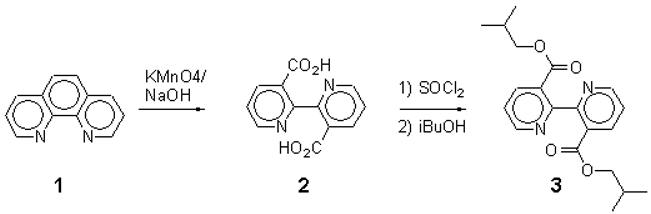

The 2,2'-bipyridine-3,3'-dicarboxylic acid (2) was prepared from 1,10-phenanthroline (1) by a literature procedure [1,2]. Compound 2 (600 mg, 2,5 mmol) and thionyl chloride (6 ml) were refluxed for 5 hours. The excess amount of thionyl chloride was distilled off and the residue dried in vacuum for 5 hours.
Toluene (20 ml) and isobutanol (1.5 ml, 16.2 mmol) were added and the mixture refluxed for 20 hours. Chloroform (40 ml) was added and the mixture was treated with a cold solution of sodium bicarbonate (2.5 %). The organic layer was dried on sodium sulfate and the solvent removed in vacuum, giving 733 mg of crude product. The mixture was purified by chromatography on silica gel column using ether as eluent to afford 3 as a white solid (702 mg, 78%).
M.p. 88-89 °C.
IR (KBr, cm-1): 1710, 1560, 1440, 1265.
1H-NMR (250 MHz, CDCl3): 8.74 (dd; 2H, H6/6', J = 4.8 and 1.6 Hz); 8.37 (dd, 2H, H4/4', J = 7.9 and 1.6 Hz); 7.44 (dd, 2H, H5/5', J = 7.9 and 4.8 Hz), 3.86 (d, 4H, 2CH2, J = 6.6 Hz), 1.68 (m, 2H, 2CH); 0.76 (d, 12H, 4CH3, J = 6.6 Hz).
Anal. Cal. for C20H24N2O4 (356.42): C 67.42, H 6.74, N 7.86; found : C 67.55, H 6.82, N 7.87.
Acknowledgement
We gratefully acknowledge the assistance from Laboratory of Organometalic and Catalyst, UMR 6509 CNRS, Campus Beaulieu, University of Rennes I.
