A New Synthetic Methodology in the Preparation of Bimetallic Chalcogenide Clusters via Cluster-to-Cluster Transformations

by
Yu-Jie Zhong
1,
Jian-Hong Liao
1,
Tzu-Hao Chiu
1,
Yuh-Sheng Wen
2 and
C. W. Liu
1,*
1
Department of Chemistry, National Dong Hwa University, Hualien 974301, Taiwan
2
Institute of Chemistry, Academia Sinica, Taipei 11528, Taiwan
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(17), 5391; https://doi.org/10.3390/molecules26175391
Submission received: 10 August 2021 / Revised: 28 August 2021 / Accepted: 3 September 2021 / Published: 5 September 2021
(This article belongs to the Special Issue Inverse Coordination Chemistry)
Browse Figures
Versions Notes

Abstract

:
A decanuclear silver chalcogenide cluster, [Ag10(Se){Se2P(OiPr)2}8] (2) was isolated from a hydride-encapsulated silver diisopropyl diselenophosphates, [Ag7(H){Se2P(OiPr)2}6], under thermal condition. The time-dependent NMR spectroscopy showed that 2 was generated at the first three hours and the hydrido silver cluster was completely consumed after thirty-six hours. This method illustrated as cluster-to-cluster transformations can be applied to prepare selenide-centered decanuclear bimetallic clusters, [CuxAg10-x(Se){Se2P(OiPr)2}8] (x = 0–7, 3), via heating [CuxAg7−x(H){Se2P(OiPr)2}6] (x = 1–6) at 60 °C. Compositions of 3 were accurately confirmed by the ESI mass spectrometry. While the crystal 2 revealed two un-identical [Ag10(Se){Se2P(OiPr)2}8] structures in the asymmetric unit, a co-crystal of [Cu3Ag7(Se){Se2P(OiPr)2}8]0.6[Cu4Ag6(Se){Se2P(OiPr)2}8]0.4 ([3a]0.6[3b]0.4) was eventually characterized by single-crystal X-ray diffraction. Even though compositions of 2, [3a]0.6[3b]0.4 and the previous published [Ag10(Se){Se2P(OEt)2}8] (1) are quite similar (10 metals, 1 Se2−, 8 ligands), their metal core arrangements are completely different. These results show that different synthetic methods by using different starting reagents can affect the structure of the resulting products, leading to polymorphism.

Graphical Abstract

1. Introduction

In pursuit of metal chalcogenide clusters, Group 11 elements (Cu, Ag, Au) are frequently employed in the synthesis of novel clusters [1,2,3,4]. Silver chalcogenide clusters have rich structural varieties which can be synthesized by many different approaches [5,6,7,8,9,10,11]. The primary strategy is the reaction of different Ag(I) precursors with highly reactive silylated chalcogen reagents E(SiMe3)2 (E = S, Se, Te) [5], which can afford S2−/Se2−/Te2− in the construction of high-nuclearity silver chalcogenide clusters stabilized by phosphine, chalcogenolate, halide, carboxylate, or alkynyl ligands [6,7,8,9,10,11]. Under this guideline, Fenske and his co-workers have structurally characterized many remarkable silver chalcogenide clusters [6,7]. For example, [Ag114Se34(SenBu)46(PtBu3)14], which contains a distorted cubic structure, was synthesized involving the reaction of C11H23CO2Ag, nBuSeSiMe3 and PtBu3 at low temperature (<−20 °C) [6]. Different diphosphine ligands (bis(diphenylphosphinol)propane, dppp) used in the previous reaction at −30 °C produce [Ag172Se40(SenBu)92(dppp)4], which not only increases the cluster nuclearity but also keeps similar cross sections of Ag2Se as that found in Ag114Se34 [6]. Another mega cluster synthesized by the reaction of CF3CO2Ag, dppm, PhS(SiMe3) and S(SiMe3)2 at −40 °C yielded [Ag70S20(PhS)28(dppm)10](CF3CO2)2 [7]. Compared with those giant silver chalcogenide clusters which are the kinetic products formed in different reaction temperatures, smaller silver chalcogenide clusters encapsulated with a single S2−/Se2− are rarely reported [12,13,14,15,16,17,18,19,20,21,22]. The as-synthesized chalcogenide anion can easily insert in the metal clusters to achieve a high coordination number, i.e., μ8-Se in [Ag8(Se){Se2P(OiPr)2}6] [15,16], μ9-Se in [Ag11(Se)(X)3{Se2P(OR)2}6] (X = I, Br; R = Et, iPr, 2Bu) [17,18], μ10-Se in [Ag10(Se){Se2P(OEt)2}8] [19] and μ12-S in [Cu12(S){S2CNR2}6{C≡CR’}4] [22]. These hyper-coordinated anions, which become the coordination center surrounded by an array of metal atoms, are examples of inverse coordination, an emerging concept coined by Ionel Haiduic [23,24]. Nevertheless, efficient controls on both the amount of chalcogenide generated in situ and the size of clusters remain challenging. Herein, we report a new synthetic pathway leading to the formation of M10(Se)L8 (L = diisopropyl diselenophosphate, dsep) via a cluster-to-cluster transformation. In addition, intriguing structural isomers identified in the M10(Se) core are also presented.

2. Results and Discussion

2.1. Synthetic Strategy

In our previous study, a decanuclear silver cluster, [Ag10(Se){Se2P(OEt)2}]8 (1), was isolated from the reaction of [Ag(CH3CN)4]PF6 and NH4[Se2P(OEt)2] in a 1:1 molar ratio at −20 °C for 24 h (Scheme 1a) [19]. The encapsulated selenide anion was generated from the slow decomposition of dsep ligands. Herein we introduced a new strategy, which is inspired by the thermal-induced self-redox reaction of [Ag7(H){S2P(OiPr)2}8] leading to the generation of a two-electron silver superatom, [Ag10{S2P(OiPr)2}8] [25]. In this work, the Se-analogue of [Ag7(H){S2P(OiPr)2}8] [26] as precursors under heating (Scheme 1b) can yield [Ag10(Se){Se2P(OEt)2}]8 (2). The composition of 2 (10 Ag+ + 1 Se2− + 8 dsep ligands) has been characterized by X-ray diffraction, which is the same as 1 but with a completely different solid-state structure. At 60 °C the cleavage of P-Se bond of dsep ligands occurs to generate Se, which can be reduced to Se2− by the interstitial hydride in [Ag7(H){Se2P(OiPr)2}8]. Unlike the reactions used silylated chalcogen reagents to generate considerable amount of chalcogenide anions, this new method can control the Se2− ratio in a relatively small range so that smaller size of metal chalcogenide clusters can be generated.
Following the same strategy, a diselenophosphate-stabilized bimetallic Cu/Ag hydride, [CuxAg7-x(H){Se2P(OiPr)2}6] (x = 1–6) [26] was used instead of [Ag7(H){Se2P(OiPr)2}8] (Scheme 1c), to form a selenide-centered decanuclear bimetallic cluster, [CuxAg10−x(Se){Se2P(OiPr)2}8] (x = 0–7) (3). This methodology provides a facile route to produce anion-encapsulated heterometallic clusters via a cluster-to-cluster transformation. However, this method cannot predict the exact position where the heterometals will possibly occupy. Nevertheless, it opens up many possibilities to generate structural isomers. Compound 3, which the entire metal core is completely different from that of 1 and 2, has been structurally characterized by XRD. The structural analysis will be discussed in the following section.

2.2. Structural Analyses

All three M10(Se)L8 clusters (1–3) are composed of ten metal atoms, one selenide anion and eight dsep ligands. Although three structures have similar compositions, their geometries are strikingly different. In the previously published structure 1, the selenide anion is encapsulated in a distorted, cis-bicapped trapezoidal-prismatic Ag10 framework (Figure 1a), which is surrounded by eight dsep ligands (Figure 1b) [19]. Short contacts are observed between the encapsulated Se2− (Seencap) and ten peripheral silver atoms where Seencap-Ag distances are in the range of 2.6312(19)–3.187(2) Å (avg. 2.939(2) Å).
In structure 2, the metal array is quite different from 1. There are two clusters in the asymmetric unit and their structures are slightly different. Considering the two Ag10(Se) cores in crystal 2 as cluster A (Figure 1c) and cluster B (Figure 1d), both clusters have six out of ten Ag atoms (Agchair) arranged in a chair-like metallo-ring conformation with one Se2− anion sitting above its center. The rest of four Ag atoms are located above the (Agchair)6Se unit to constitute the whole Ag10(Se) framework. Since the positions of the ten silver atoms in clusters A and B are slightly different, two Ag10(Se) cores are pseudo-mirror images. This also affects the distances of Ag-Seencap, resulting in different coordination modes of the central Se atom in clusters A and B. Se1 has eight short contacts to the adjacent Ag atoms ranging from 2.5113(13) to 3.0596(12) Å (avg. 2.7586(13) Å) in cluster A (Figure 1c); seven short contacts between Se2 and Ag in cluster B (Figure 1d), which range from 2.5279(12) to 3.0496(12) Å (avg. 2.8271(12) Å). Both Seencap-Ag distances in 2 are slightly shorter than those in 1, indicating stronger interactions between Ag and Seencap. The average Ag-Ag distances in clusters A (3.0780(12) Å) and B (3.0786(13) Å) are not much different. The eight dsep ligands in clusters A (Figure 1e) and B (Figure 1f) have roughly the same locations around the Ag10Se core, i.e., P7 and P16, P8 and P10, etc. However, their coordination patterns at relatively similar position are not the same due to the different metal sites in each Ag10(Se) core. For example, the dsep ligand on P8 is trimetallic (Ag1, Ag10, Ag9) triconnectivity, but P10 is tetrametallic (Ag15, Ag18, Ag13, Ag12) tetraconnectivity. Nine of the ten Ag atoms are three-coordinated and one Ag atom (Ag3) are two-coordinated to Se on the dsep ligands in cluster A; eight of the ten Ag atoms are trigonal- and two Ag atoms (Ag14 and Ag16) are digonal-coordinated in cluster B. There are 29 and 28 connectivities between dsep ligands and Ag10(Se) core in clusters A and B, respectively, which Se-Ag distances are in the range of 2.5368(13)–3.0478(14) Å (avg. 2.6672(13) Å) in cluster A and 2.5496(13)–3.0811(12) Å (avg. 2.693(2) Å) in cluster B. Cluster 1 displays 30 Se-Ag connectivities with slightly longer distances ranging from 2.577(3) to 3.127(3) Å (avg. 2.685(3) Å). These metric data strongly suggest that 1 and clusters A, B of 2 exhibit not only minute different dsep-silver bonding patterns on the outer shell but also intrinsically different Ag10(Se) cores, leading to unusual polymorphism.
The molecular formula in structure 3, [CuxAg10−x(Se){Se2P(OiPr)2}8] (x = 3.4), was determined by X-ray diffraction. Non-integer Cu atoms were satisfactorily refined, which corresponded to the co-crystallization of 60% of [Cu3Ag7(Se){Se2P(OiPr)2}8] (3a) and 40% of [Cu4Ag6(Se){Se2P(OiPr)2}8] (3b). Hence, the crystal structure can be best represented as [Cu3Ag7(Se){Se2P(OiPr)2}8]0.6[Cu4Ag6(Se){Se2P(OiPr)2}8]0.4 ([3a]0.6[3b]0.4). It is worthwhile to mention that the phenomenon of co-crystallization is frequently observed in heterometallic clusters [26,27,28,29,30,31] especially for two heterometals occupying the same site. The copper atoms in M10(Se) are distributed in six positions, where two Cu are fully occupied at two brown ellipsoids (Figure 1g) and the rest Cu atoms are randomly disordered at four cyan ellipsoids (see Figure S1). Compared with 2, the bottom six metal atoms display a M6 boat conformation with a Se2− anion at its center. The other two metals are on the top of the M6(Se) motif and two Cu atoms on each side. It shows that the Se2− anion binds to the six Mboat atoms and two metals on the top with Seencap-M distances of 2.425(2)–3.127(2) Å (avg. 2.778(2) Å). Distances of Se17-Cu5B(Ag5) and Se17-Cu6B(Ag6), 2.842(2) and 2.908(2) Å, are relatively long, exhibiting weaker interactions while Cu occupation. Distances between the fully occupied Cu and the Seencap atom are approximately 4.7 Å which are much longer than the distances (3.6–4.2 Å) of three un-bonded Ag atoms to Seencap in 2. Noticed that the M10(Se) framework in [3a]0.6[3b]0.4 (Figure 1h, bottom) is partially similar to the
Ag10(Se) framework in 1. If the two Cu atoms in [3a]0.6[3b]0.4 and the two Ag atoms from the back in 1 are removed, respectively, the leftover M8(Se) motifs are in similar atomic arrangement (Figure S2). Nevertheless, the arrangement of eight dsep ligands in [3a]0.6[3b]0.4 has no similarity to the eight ligands in 1. The top two metals are two-coordinated and the rest eight metals are three-coordinated to Se atoms of dsep ligands (Figure 1f). Se-M distances range in 2.351(2)–2.8797(19) Å (avg. 2.593(2) Å) are shorter than those in 1 and 2, which can be attributed to the smaller covalent radii of the partially doped Cu atoms. Interestingly, structures 2 and [3a]0.6[3b]0.4 display a unique Ag6 chair and a M6 boat in the metal array, respectively. The averaged adjacent, Agchair-Agchair and Mboat-Mboat distances are 3.0622(14) Å (cluster A in 2), 3.0987(12) Å (cluster B in 2) and 3.076(2) Å (in [3a]0.6[3b]0.4), indicating strong metallophilic interactions. Selected bond lengths are summarized in Table 1.

2.3. ESI Mass Spectroscopy

The positive-ion ESI-MS spectrum of 2 (Figure 2a) shows an adduct ion peak at m/z 3722.0682, corresponding to the whole cluster with an additional silver ion, [2 + Ag+]+ (calc. m/z: 3722.1350). Another intense peak at m/z 2741.6280 can be formulated as [Ag8(Cl){Se2P(OiPr)2}6]+ (calc. m/z 2741.6542). Presumably, the chloride is from CH2Cl2 used to dissolve samples for the ionization. The spectrum of 3 (Figure 2b) showed a wide distribution of [CuxAg10-x(Se){Se2P(OiPr)2}8 + Ag+]+ (x = 0–7) with the most intense peak of x = 3. The inset spectra depict the experimental isotopic distribution patterns of [Cu3Ag7(Se){Se2P(OiPr)2}8 + Ag+]+ (exp. 3591.3566, calc. 3591.2057) and [Cu4Ag6(Se){Se2P(OiPr)2}8 + Ag+]+ (exp. 3547.3810, calc. 3547.2294), which are well-matched with the calculated ones and structures of both species have been identified by the single-crystal X-ray diffraction with the composition of [Cu3Ag7(Se){Se2P(OiPr)2}8]0.6[Cu4Ag6(Se){Se2P(OiPr)2}8]0.4 ([3a]0.6[3b]0.4). Although the spectrum was measured by using single crystals, we still observed the ion peak distributions (x = 0–7) depicted in the mass spectrum. The results can be attributed to the metal exchange in the gas phase. Another intense band around m/z 2474 can be assigned to [CuyAg8-y(Cl){Se2P(OiPr)2}6]+ (y = 0–8) with the most intense peak (y = 3) at m/z 2474.8901 (calc. m/z: 2474.7998). Presumably, the [M8(Cl)L6]+ species identified in the gas phase are the decomposition products of M10(Se)L8 in the presence of chloro-solvent. In fact, the observed ion peak distributions for bimetallic clusters are frequently reported in literature [25,26,27,28].

2.4. NMR Spectroscopy

The fact that a single resonance centered at 75.3 ppm flanked by one set of satellite peaks (1JPSe = 669 Hz) in the 31P{1H} NMR spectrum (Figure S3) coupled with one set of isopropoxy resonance (4.88 and 1.36 ppm) observed in the 1H NMR spectrum of 2 at ambient temperature (Figure S6) strongly suggests its non-rigid structure in solution, which could be due to the labile Ag-Se bonds. The satellite peaks are due to the 31P nuclei coupled with the 77Se nuclei (I = 1/2) in diselenophosphate compounds [32] in which the natural abundance of 77Se is only 7.56%. The cluster-to-cluster transformation process can be monitored by the time-dependent 31P{1H} and 1H NMR spectroscopy. In the reaction shown in Scheme 1b, compound 2 which 31P resonance at 75.3 ppm was generated at the first three hours (Figure 3a). The 31P resonance of [Ag7(H){Se2P(OiPr)2}6] at 83.1 ppm gradually disappeared over time, then Ag7(H) was barely seen after 1.5 days. The consumption of Ag7(H) can also be followed by the time-dependent 1H spectra (Figure 3b). That is, the pseudo octet peak of central hydride originated from 1J(H, Ag) was gradually disappeared and the chemical shift of methine proton on isopropoxy groups displayed a down-field shift due to the different values of two species, Ag7H and Ag10Se. It can be assumed that the slow decomposition of Ag7(H) prevents Se2− being released in large quantities at one time followed by the cluster-to-cluster transformation. The fact that the coordinated hydride as the reductant can be tracked by recognizing the in-situ generated H2, which resonates at 4.61 ppm (Figure S7). Fragment peaks from dsep ligand decomposition can also be observed in the 31P{1H} NMR spectrum. The chemical shifts at 67.4 (1JPSe = 475, 848 Hz), 50.5 and 5.6 ppm belong to the resonance frequency of Se[P(Se)(OiPr)2]2, [SeOP(OiPr)2]− [33] and phosphoric acid, respectively. It is noted that the diselenophosphates are thermally unstable where its sulfur analogue is not so sensitive to heat [34].
While the 31P chemical shifts of both 1 and 2 are almost identical, their 77Se{1H} NMR (Figure S4) spectra are different. A doublet at 103.3 ppm and a broad resonance at −1292.4 ppm (Figure S5) corresponding to the resonance frequency of the dsep ligands and the encapsulated Se2−, respectively, can be seen in the 77Se spectrum of 2. The resonances are slightly different from that of 1 (108 ppm, dsep; −1395.4 ppm, Seencap) [19]. It could be due to the stronger interactions between Seencap and Ag atoms in 2, resulting in the downfield shift of the Seencap resonance. The 31P{1H} NMR spectrum of 3 shows multiple resonances overlapping together at around 73.9–75.2 ppm (Figure S8), indicating the multiple coordination environment of the dsep ligands. It is primarily arisen from the randomly doped Cu atoms on multiple positions in structure 3. Unfortunately, no satisfied signals can be detected in the 77Se NMR spectrum of 3 at ambient temperature.

2.5. Photophysical Properties

The absorption spectrum of 2 exhibits a single low-energy LMCT band at 402 nm, which is very close to 396 nm of 3 (Figure 4a). The doped Cu atoms found in the bimetallic decanuclear cluster seem not to significantly perturb the characteristic absorption band. It is assumed that both clusters 2 and 3 might have similar structures as that observed in cluster 1 in solution leading to similar electronic transition energy even though their solid-state structures are different (vide supra). Both compounds are not emissive at ambient temperature but show orange emission at 77 K. Figure 4a depicts the emission spectra of 2 and 3 in 2-MeTHF glass, while their photophysical data are briefly summarized in Table 2. Both emission profiles are structureless and the photoluminescence of 2 centered at 666 nm is slightly blue-shifted, compared to 3 centered at 707 nm. The photoluminescence decay curves of 2 (Figure 4b) and 3 (Figure 4c) can be well-fitted to a single exponential decay function (red curve). The lifetimes of 2 (λex = 401 nm) and 3 (λex = 396 nm), 16 μs and 22 μs, together with large Stokes shift (~10,000 cm−1), reflect their triplet excited state nature, a spin-forbidden phosphorescence.

3. Materials and Methods

3.1. General Remarks

All chemicals were purchased from commercial sources and used as received. Solvents were purified following standard protocols [35]. All reactions were performed in oven-dried Schlenk glassware using standard inert atmosphere techniques. All reactions were carried out under N2 atmosphere by using standard Schlenk techniques. [Ag7(H){Se2P(OiPr)2}6] and [CuxAg7-x(H){Se2P(OiPr)2}6] (x = 1–6) were prepared by the procedure reported earlier in literature [26]. 1H, 31P and 77Se NMR spectra were recorded on a Bruker Avance DPX-300 BBO probe spectrometer (Bruker BioSpin, MA, USA), operating at 300.13 MHz for 1H, 121.49 MHz for 31P and 57.239 MHz for 77Se, respectively. The chemical shift (δ) and coupling constant (J) are reported in ppm and Hz, respectively. ESI mass spectrum recorded on a Fison Quattro Bio-Q (Fisons Instruments, VG Biotech, Glasgow, UK). UV-visible absorption spectra were measured on a PerkinElmer Lambda 750 PerkinElmer, Inc., MA, USA) spectrophotometer using quartz cells with path length of 1 cm. Luminescence spectra and lifetime were recorded on an Edinburgh FLS920 fluorescence spectrometer (Edinburgh Instruments Ltd., Livingston, UK). The elemental analysis (C, H and N content) of the new compounds was determined by Elementar UNICUBE elemental analyzer (Elementar Analysensysteme GmbH, Langenselbold, Germany).

3.2. Synthesis and Characterization of Compounds 2–3

3.2.1. Synthesis and Characterization of [Ag10(Se){Se2P(OiPr)2}8] (2)

[Ag7(H){Se2P(OiPr)2}6] (0.0604 g, 0.0232 mmol) was dissolved in chloroform (30 mL). The temperature was elevated to 60 °C and kept stirring for 48 h. The solution was dried under vacuum to get a yellow solid. The compound can be purified by thin-layer chromatography (TLC) with a mixed solvent of dichloromethane and n-hexane in equal proportions (50:50, v/v). Yield: 0.0187 g (31.8%, based on Ag).
31P{1H} NMR (121.49 MHz, d-chloroform, δ, ppm): 75.3 (s, 1JPSe = 669 Hz). 77Se NMR (57.24 MHz, d-chloroform, δ, ppm): 103.3 (d, 1JPSe = 669 Hz, PSe2), −1292.4 (br, Ag10Se). 1H NMR (300.13 MHz, d-chloroform, δ, ppm): 4.88 (m, 16H, CH), 1.36 (d, 96H, CH3, 3JHH = 6 Hz). Anal. calc. for C48H112Ag10O16P8Se17·2(CHCl3): C, 15.59; H, 2.98; Found: C, 15.67; H, 2.90%. ESI-MS (m/z): exp. 3722.0682 (calc. for [2 + Ag+]+: 3722.1657).

3.2.2. Synthesis and Characterization of [CuxAg10-x(Se){Se2P(OiPr)2}8], x = 0–7 (3)

[CuxAg7−x(H){Se2P(OiPr)2}6] (x = 1–6) was prepared by the slightly modified procedures reported earlier in literature [26]. ([Cu7(H){Se2P(OiPr)2}6] and [Ag7(H){Se2P(OiPr)2}6] with molar ratio 1:1). Followed the same synthetic procedure of 2, [CuxAg7−x(H){Se2P(OiPr)2}6] (0.050 g) was used as precursor instead of [Ag7(H){Se2P(OiPr)2}6]. It was dissolved in chloroform (30 mL). The temperature was elevated to 60 °C and kept stirring for 48 h. The solution was dried under vacuum to get a yellow solid. The compound can be purified by thin-layer chromatography (TLC) with a mixed solvent of dichloromethane and n-hexane in equal proportions (50:50, v/v). Yield: 0.017 g (based on single crystals).
31P{1H} NMR (121.49 MHz, d-chloroform, δ, ppm): 75.2 (s, 1JPSe = 667 Hz), 75.1 (s, 1JPSe = 669 Hz), 74.9 (s, 1JPSe = 669 Hz), 74.7 (s, 1JPSe = 668 Hz), 74.5 (s, 1JPSe = 666 Hz). No satisfied signals can be identified in 77Se NMR spectrum at room temperature. 1H NMR (400.13 MHz, d-chloroform, δ, ppm): 4.88 (m, 16H, CH), 1.36 (d, 96H, CH3, 3JHH = 6 Hz). ESI-MS (m/z) of [CuxAg10-x(Se){Se2P(OiPr)2}8 + Ag+]+: exp. 3411.3387 (calc. for x = 7: 3411.3034), exp. 3454.4462 (calc. for x = 6: 3454.2803), exp. 3499.4094 (calc. for x = 5: 3499.2556), exp. 3547.3810 (calc. for x = 4: 3547.2294), exp. 3591.3566 (calc. for x = 3: 3591.2057), exp. 3633.3343 (calc. for x = 2: 3633.1827), exp. 3679.3110 (calc. for x = 1: 3679.1578), exp. 3728.4993 (calc. for x = 0: 3728.1321).

3.3. X-ray Crystallography

Single crystals suitable for X-ray diffraction analysis of 2 and [3a]0.6[3b]0.4 were obtained by slow evaporation of acetone solution at ambient temperature within a week. Single crystals were mounted on the tip of glass fiber coated in paratone oil and then transferred into the cold N2 gas stream. Data were collected on a Bruker APEX II CCD diffractometer (Bruker AXS Inc., WI, USA) using graphite monochromated Mo Kα radiation (λ = 0.71073 Å) at 100K. Absorption corrections for area detector were performed with SADABS [36] and the integration of raw data frame was performed with SAINT [37]. The structure was solved by direct methods and refined by least-squares against F2 using the SHELXL-2018/3 package [38], incorporated in SHELXTL/PC V6.14 [39]. All non-hydrogen atoms were refined anisotropically. The detailed refinements of occupancy ratio on each atomic site are listed in Figure S1. Selected X-ray crystallographic data are listed in Table 3.

4. Conclusions

Two decanuclear clusters, [Ag10(Se){Se2P(OiPr)2}8] (2) and [CuxAg10-x(Se){Se2P(OiPr)2}8] (x = 0–7) (3), have been successfully synthesized via the cluster-to-cluster transformation from the starting reagents, [M7(H)(dsep)6], under thermal condition. The newly developed synthetic methodology provides a facile way to produce both homometallic and heterometallic chalcogenide clusters. Surprisingly, although the composition of [Ag10(Se){Se2P(OiPr)2}8] (2) is almost identical to the previously published [Ag10(Se){Se2P(OEt)2}8] (1), the whole molecular shape in 2 is completely different from 1. This can be attributed to the use of different synthetic methods resulting in structural diversity. We also identify polymorphism on 2, where two pseudo symmetric [Ag10(Se){Se2P(OiPr)2}8] clusters are co-existed in the same asymmetric unit. Furthermore, a bimetallic chalcogenide cluster 3 can be elegantly generated by using a bimetallic hydride as the precursor. It is anticipated that a variety of metal chalcogenide clusters can be synthesized via a cluster-to-cluster transformation in the near future.

Supplementary Materials

The following are available online. X-ray refinement, NMR spectra and photophysical data. Figure S1: The M10(Se) framework of [3a]0.6[3b]0.4, (thermal ellipsoid plots were drawn at the 30 % probability level), with the refined occupancy ratios on each position. Figure S2: (a) The schematic representation of Ag8(Se) skeleton in 1 and (b) M8(Se) skeleton in [3a]0.6[3b]0.4. Figure S3: 31P{1H} NMR spectrum of 2. Figure S4: 77Se NMR spectrum of 2. Figure S5: 77Se NMR spectrum of 2. Figure S6: 1H NMR spectrum of 2. Figure S7: The magnified time-dependent 1H NMR spectrum during the reaction of 2. Figure S8: 31P{1H} NMR spectrum of 3. Figure S9: 1H NMR spectrum of 3.

Author Contributions

Y.-J.Z.: synthesis of 2 and 3. T.-H.C. and J.-H.L.: X-ray crystallography. Y.-S.W.: collected the X-ray data of compound 2. J.-H.L. and C.W.L.: co-wrote the manuscript. C.W.L. initiated and supervised the project. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministry of Science and Technology of Taiwan (MOST, Grant Nos. 109-2113-M-259-008).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors. CCDC 2098961 (2) and 2098962 ([3a]0.6[3b]0.4) contains the supplementary crystallographic data for compounds 2 and [3a]0.6[3b]0.4 in this article. These data can be obtained free of charge from The Cam-bridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.

Acknowledgments

The authors gratefully acknowledge the measurement of elemental analysis in the Core Facility Center of National Cheng Kung University and the ESI mass spectrum in National Dong Hwa University.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Fuhr, O.; Dehnen, S.; Fenske, D. Chalcogenide clusters of copper and silver from silylated chalcogenide sources. Chem. Soc. Rev. 2013, 42, 1871. [Google Scholar] [CrossRef]
  2. Xie, Y.-P.; Jin, J.-L.; Duan, G.-X.; Lu, X.; Mak, T.C.W. High-nuclearity silver(I) chalcogenide clusters: A novel class of supramolecular assembly. Coord. Chem. Rev. 2017, 331, 54. [Google Scholar] [CrossRef]
  3. Gimeno, M.C.; Laguna, A. Chalcogenide centred gold complexes. Chem. Soc. Rev. 2008, 37, 1952. [Google Scholar] [CrossRef] [PubMed]
  4. Pillay, M.N.; Van Zyl, W.E.; Liu, C.W. A construction guide for high-nuclearity (≥50 metal atoms) coinage metal clusters at the nanoscale: Bridging molecular precise constructs with the bulk material phase. Nanoscale 2020, 12, 24331. [Google Scholar] [CrossRef] [PubMed]
  5. McDonald, D.G.; Corrigan, J.F. Metal chalcogenide nanoclusters with ‘tailored’ surfaces via ‘designer’ silylated chalcogen reagents. Phil. Trans. R. Soc. A. 2010, 368, 1455. [Google Scholar] [CrossRef]
  6. Fenske, D.; Zhu, N.; Langetepe, T. Synthesis and structure of new Ag-Se clusters: [Ag30Se8(SetBu)14(PnPr3)8], [Ag90Se38(SetBu)14(PEt3)22], [Ag114Se34(SenBu)46(PtBu3)14], [Ag112Se32(SenBu)48(PtBu3)12], and [Ag172Se40(SenBu)92(dppp)4]. Angew. Chem. Int. Ed. 1998, 37, 2639. [Google Scholar] [CrossRef]
  7. Anson, C.E.; Eichhöfer, A.; Issac, I.; Fenske, D.; Fuhr, O.; Sevillano, P.; Persau, C.; Stalke, D.; Zhang, J. Synthesis and crystal structures of the ligand-stabilized silver chalcogenide clusters [Ag154Se77(dppxy)18], [Ag320(StBu)60S130(dppp)12], [Ag352S128(StC5H11)96], and [Ag490S188(StC5H11)114]. Angew. Chem. Int. Ed. 2008, 47, 1326. [Google Scholar] [CrossRef]
  8. Chen, Z.-Y.; Tam, D.Y.S.; Mak, T.C.W. Chloride assisted supramolecular assembly of a luminescent gigantic cluster: [Ag216S56Cl7(CuCPh)98(H2O)12]− with pseudo-Th skeleton and five-shell arrangement. Nanoscale 2017, 9, 8930. [Google Scholar] [CrossRef]
  9. Wang, Z.; Liu, J.-W.; Su, H.-F.; Zhao, Q.-Q.; Kurmoo, M.; Wang, X.-P.; Tung, C.-H.; Sun, D.; Zheng, L.-S. Chalcogens-induced Ag6Z4@Ag36 (Z = S or Se) core—shell nanoclusters: Enlarged tetrahedral core and homochiral crystallization. J. Am. Chem. Soc. 2019, 141, 17884. [Google Scholar] [CrossRef]
  10. Chen, Z.-Y.; Tam, D.Y.S.; Mak, T.C.W. Ethynide-stabilized high-nuclearity silver(I) sulfido molecular clusters assembled using organic sulfide precursors. Chem. Commun. 2016, 52, 6119. [Google Scholar] [CrossRef] [Green Version]
  11. Jin, J.-L.; Xie, Y.-P.; Cui, H.; Duan, G.-X.; Lu, X.; Mak, T.C.W. Structure-directing role of phosphonate in the synthesis of high-nuclearity silver(I) sulfide-ethynide-thiolate clusters. Inorg. Chem. 2017, 56, 10412. [Google Scholar] [CrossRef] [PubMed]
  12. Langer, R.; Breitung, B.; Wünsche, L.; Fenske, D.; Fuhr, O. Functionalised silver chalcogenide clusters. Z. Anorg. Allg. Chem. 2011, 637, 995. [Google Scholar] [CrossRef]
  13. Nayek, H.P.; Massa, W.; Dehnen, S. Presence or absence of a central Se atom in silver selenide/selenolate clusters with halite topology: Syntheses and properties of [(Ph3PAg)8Ag6(μ6-Se)1-x/2(SePh)12]x+ (x = 0, 1). Inorg. Chem. 2010, 49, 144. [Google Scholar] [CrossRef]
  14. Zhang, Q.; Cao, R.; Hong, M.; Su, W.; Liu, H. Polynuclear silver compound formed from aggregation of Se and Ag(1)-thiolate complex. Synthesis, structure and spectroscopic characterization of Ag11(μ5-Se)(μ4-Et2NCS2)3(μ3-Et2NCS2)6. Inorg. Chim. Acta 1998, 277, 171. [Google Scholar] [CrossRef]
  15. Liu, C.W.; Shang, I.-J.; Wang, J.-C.; Keng, T.-C. Metal dialkyl diselenophosphates: A rare example of co-crystallization with clusters, Ag8(μ8-Se)[Se2P(OPri)2]6 and Ag6[Se2P(OPri)2]6, superimposing in a trigonal lattice. Chem. Commun. 1999, 995–996. [Google Scholar] [CrossRef]
  16. Latouche, C.; Kahlal, S.; Furet, E.; Liao, P.-K.; Lin, Y.-R.; Fang, C.-S.; Cuny, J.; Liu, C.W.; Saillard, J.-Y. Shape modulation of octanuclear Cu(I) or Ag(I) dichalcogeno template clusters with respect to the nature of their encapsulated anions: A combined theoretical and experimental investigation. Inorg. Chem. 2013, 52, 7752. [Google Scholar] [CrossRef]
  17. Liu, C.W.; Shang, I.-J.; Fu, R.-J.; Liaw, B.-J.; Wang, J.-C.; Chang, I.-J. Selenium-centered, undecanuclear silver cages surrounded by iodo and dialkyldiselenophosphato ligands. Syntheses, structures, and photophysical properties. Inorg. Chem. 2006, 45, 2335. [Google Scholar] [CrossRef]
  18. Liu, C.W.; Feng, C.-S.; Fu, R.-J.; Chang, H.-W.; Saillard, J.-Y.; Kahlal, S.; Wang, J.-C.; Chang, I.-J. Structure, photophysical properties, and DFT calculations of selenide-centered pentacapped trigonal prismatic silver(I) clusters. Inorg. Chem. 2010, 49, 4934. [Google Scholar] [CrossRef]
  19. Liu, C.W.; Shang, I.-J.; Hung, C.-M.; Wang, J.-C.; Keng, T.-C. Novel silver diselenophosphate clusters: Structures of Ag10(μ10-Se)[Se2P(OEt)2]8 and {Ag[Se2P(OPri)2]}6. J. Chem. Soc. Dalton Trans. 2002, 1974–1979. [Google Scholar] [CrossRef]
  20. Chang, H.-W.; Shiu, R.-Y.; Fang, C.-S.; Liao, J.-H.; Kishore, P.V.V.N.; Kahlal, S.; Saillard, J.-Y.; Liu, C.W. A sulfide (selenide)-centered nonanuclear silver cluster: A distorted and flexible tricapped trigonal prismatic Ag9 framework. J. Clust. Sci. 2017, 28, 679. [Google Scholar] [CrossRef]
  21. Liu, C.W.; Chang, H.-W.; Liao, P.-K.; Fang, C.-S.; Saillard, J.-Y.; Kahlal, S. Crystal structure, photophysical properties, and theoretical investigation of extremely distorted pentacapped trigonal-prismatic undecasilver clusters. J. Clust. Sci. 2011, 22, 381. [Google Scholar] [CrossRef]
  22. Chakrahari, K.K.; Silalahi, R.P.B.; Liao, J.-H.; Kahlal, S.; Liu, Y.-C.; Lee, J.-F.; Chiang, M.-H.; Saillard, J.-Y.; Liu, C.W. Synthesis and structural characterization of inverse-coordination clusters from a two-electron superatomic copper nanocluster. Chem. Sci. 2018, 9, 6785. [Google Scholar] [CrossRef] [Green Version]
  23. Haiduic, I. Inverse coordination—An emerging new chemical concept. Oxygen and other chalcogens as coordination centers. Coord. Chem. Rev. 2017, 338, 1–26. [Google Scholar] [CrossRef]
  24. Haiduic, I. Inverse coordination—An emerging new chemical concept. II. Halogens as coordination centers. Coord. Chem. Rev. 2017, 348, 71. [Google Scholar] [CrossRef]
  25. Zhong, Y.-J.; Liao, J.-H.; Chiu, T.-H.; Kahlal, S.; Lin, C.-J.; Saillard, J.-Y.; Liu, C.W. A two-electron silver superatom isolated from thermally induced internal redox reaction of a silver(I) hydride. Angew. Chem. Int. Ed. 2021, 60, 12712. [Google Scholar] [CrossRef]
  26. Zhong, Y.-J.; Liao, J.-H.; Chiu, T.-H.; Wu, Y.-Y.; Kahlal, S.; McGlinchey, M.J.; Saillard, J.-Y.; Liu, C.W. Intercluster exchanges leading to hydride-centered bimetallic clusters: A multi-NMR, X-ray crystallographic, and DFT study. Dalton Trans. 2021, 50, 4727. [Google Scholar] [CrossRef]
  27. Zhong, Y.-J.; Liao, J.-H.; Chiu, T.-H.; Wu, Y.-Y.; Kahlal, S.; Saillard, J.-Y.; Liu, C.W. Hydride-encapsulated bimetallic clusters supported by 1,1-dithiolates. Chem. Commun. 2020, 56, 9300. [Google Scholar] [CrossRef]
  28. Zhong, Y.-J.; Liao, J.-H.; Chiu, T.-H.; Gam, F.; Kahlal, S.; Saillard, J.-Y.; Liu, C.W. Doping effect on the structure and properties of eight-electron silver nanoclusters. J. Chem. Phys. 2021, 155, 034304. [Google Scholar] [CrossRef]
  29. Liao, J.-H.; Kahlal, S.; Liu, Y.-C.; Chiang, M.-H.; Saillard, J.-Y.; Liu, C.W. Identification of an eight-electron superatomic cluster and its alloy in one co-crystal structure. J. Clust. Sci. 2018, 29, 827. [Google Scholar] [CrossRef]
  30. Bodiuzzaman, M.; Dar, W.A.; Pradeep, T. Cocrystals of Atomically Precise Noble Metal Nanoclusters. Small 2020, 17, 2003981. [Google Scholar] [CrossRef]
  31. Yan, J.; Malola, S.; Hu, C.; Peng, J.; Dittrich, B.; Teo, B.K.; Häkkinen, H.; Zheng, L.; Zheng, N. Co-crystallization of atomically precise metal nanoparticles driven by magic atomic and electronic shells. Nat. Commun. 2018, 9, 3357. [Google Scholar] [CrossRef] [Green Version]
  32. Liu, C.W. Phosphor-1,1-diselenolato metal complexes of group 11 and 12. Phosphorus Sulfur Silicon Relat. Elem. 2005, 180, 923–933. [Google Scholar] [CrossRef]
  33. Glidewell, C.; Leslie, E.J. Ambidentate nucleophiles. Part 3. Reactions of phosphoroselenoates with molecular halides: The use of lJ(PSe) as a structural diagnostic. J. Chem. Soc., Dalton Trans. 1977, 527–531. [Google Scholar] [CrossRef]
  34. Lobana, T.S.; Wang, J.-C.; Liu, C.W. Recent advances in the coordination chemistry of diselenophosphates and allied ligands. Coord. Chem. Rev. 2007, 251, 91. [Google Scholar] [CrossRef]
  35. Perrin, D.D.; Armarego, W.L.F. Purification of Laboratory Chemicals, 3rd ed.; Pergamon Press: Oxford, UK, 1988. [Google Scholar]
  36. SADABS, version 2014-11.0; Bruker Area Detector Absorption Corrections; Bruker AXS Inc.: Madison, WI, USA, 2014.
  37. SAINT, version 8.30A; Software for the CCD detector system; Bruker Analytical: Madison, WI, USA, 2012.
  38. Sheldrick, G.M. A short history of SHELX. Acta. Cryst. 2008, A64, 112. [Google Scholar] [CrossRef] [Green Version]
  39. SHELXTL, version 6.14; Bruker AXS Inc.: Madison, WI, USA, 2003.
Molecules 26 05391 sch001 550

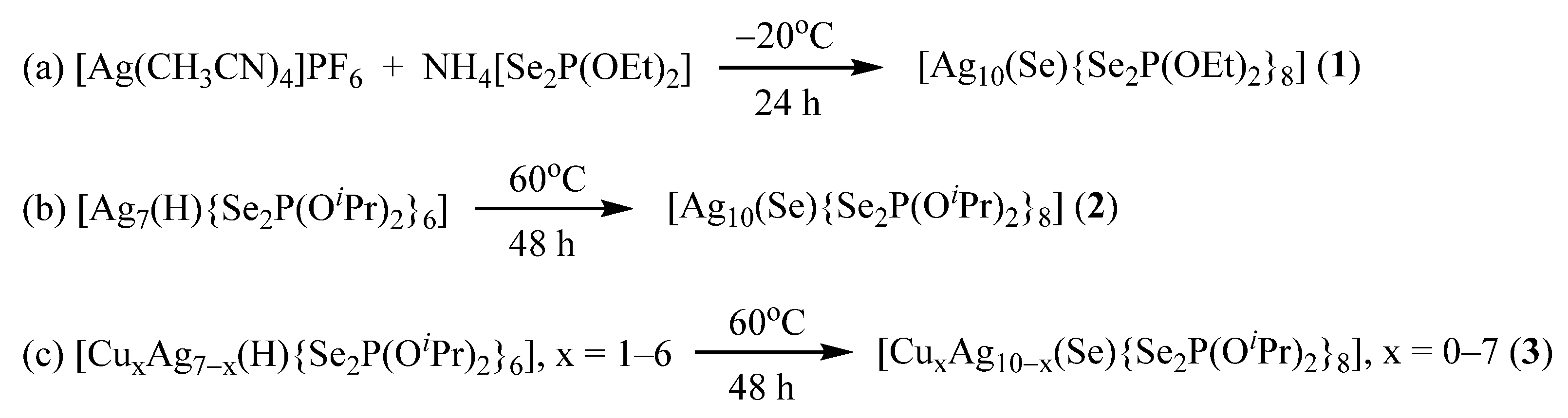

Scheme 1. (a) The synthetic pathway of previous published [Ag10(Se){Se2P(OEt)2}8] (1). (b) A new pathway for the synthesis of [Ag10(Se){Se2P(OiPr)2}8] (2) and (c) [CuxAg10−x(Se){Se2P(OiPr)2}8] (x = 0–7, 3).
Scheme 1. (a) The synthetic pathway of previous published [Ag10(Se){Se2P(OEt)2}8] (1). (b) A new pathway for the synthesis of [Ag10(Se){Se2P(OiPr)2}8] (2) and (c) [CuxAg10−x(Se){Se2P(OiPr)2}8] (x = 0–7, 3).
Molecules 26 05391 sch001
Molecules 26 05391 g001 550

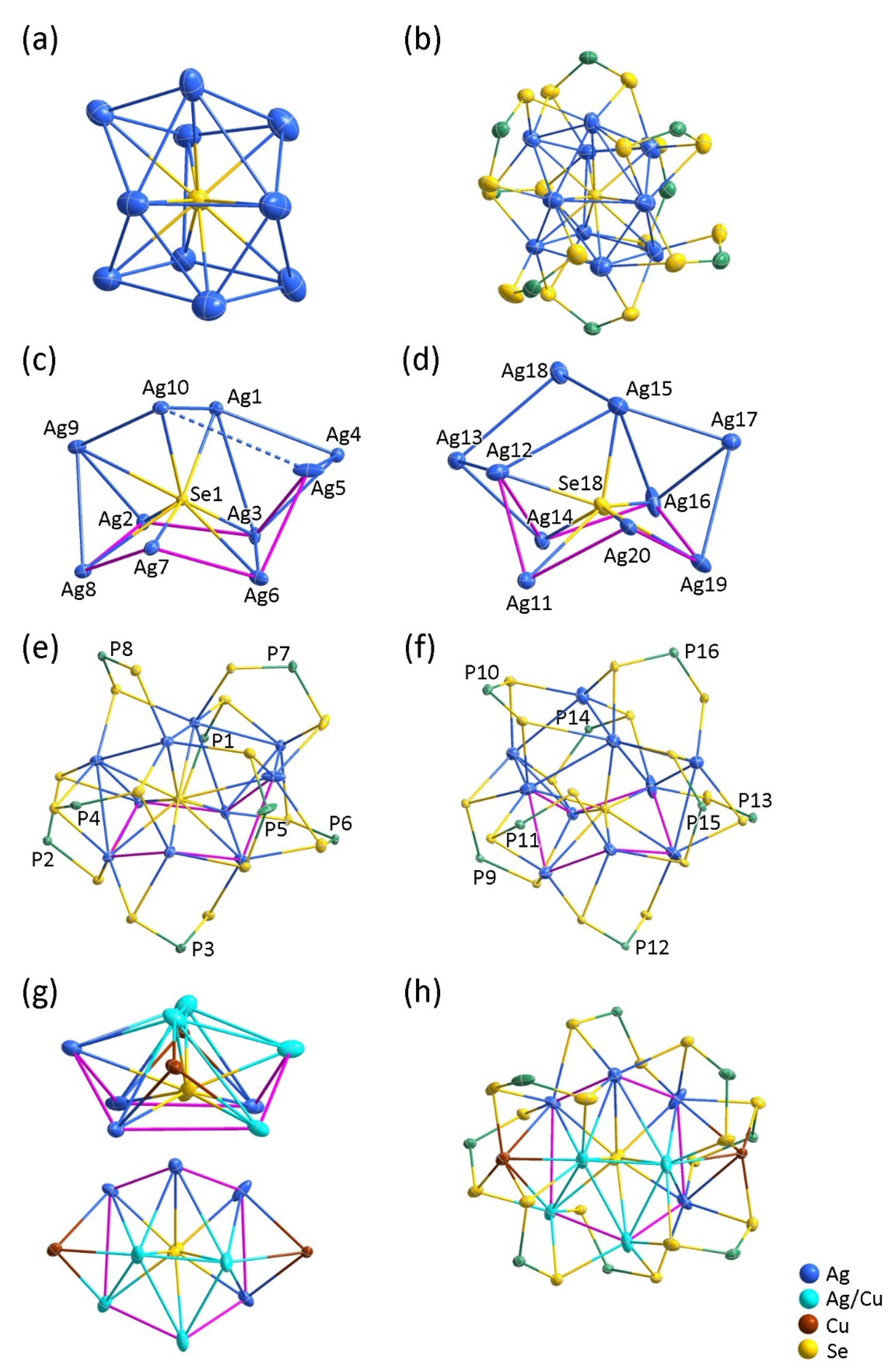

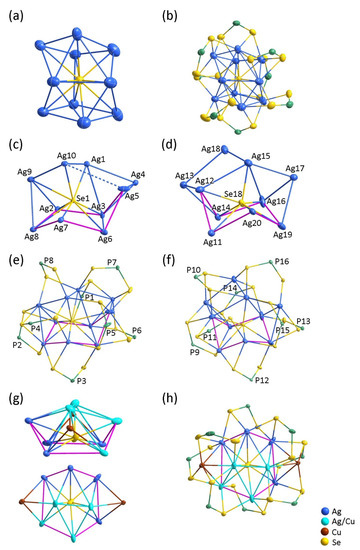

Figure 1. (a) The Ag10(Se) core and (b) the total structure of previously published [Ag10(Se){Se2P(OEt)2}8] (1). (c) The Ag10(Se) cores of cluster A and (d) cluster B in newly characterized [Ag10(Se){Se2P(OiPr)2}8] (2). (e) The total structure of cluster A and (f) cluster B in 2. (g) The CuxAg10-x(Se) (x = 3.4) core and (h) the total structure of [3a]0.6[3b]0.4. (Thermal ellipsoid plots were drawn at 30% probability with isopropoxy groups omitted for clarity).
Figure 1. (a) The Ag10(Se) core and (b) the total structure of previously published [Ag10(Se){Se2P(OEt)2}8] (1). (c) The Ag10(Se) cores of cluster A and (d) cluster B in newly characterized [Ag10(Se){Se2P(OiPr)2}8] (2). (e) The total structure of cluster A and (f) cluster B in 2. (g) The CuxAg10-x(Se) (x = 3.4) core and (h) the total structure of [3a]0.6[3b]0.4. (Thermal ellipsoid plots were drawn at 30% probability with isopropoxy groups omitted for clarity).
Molecules 26 05391 g001
Molecules 26 05391 g002 550

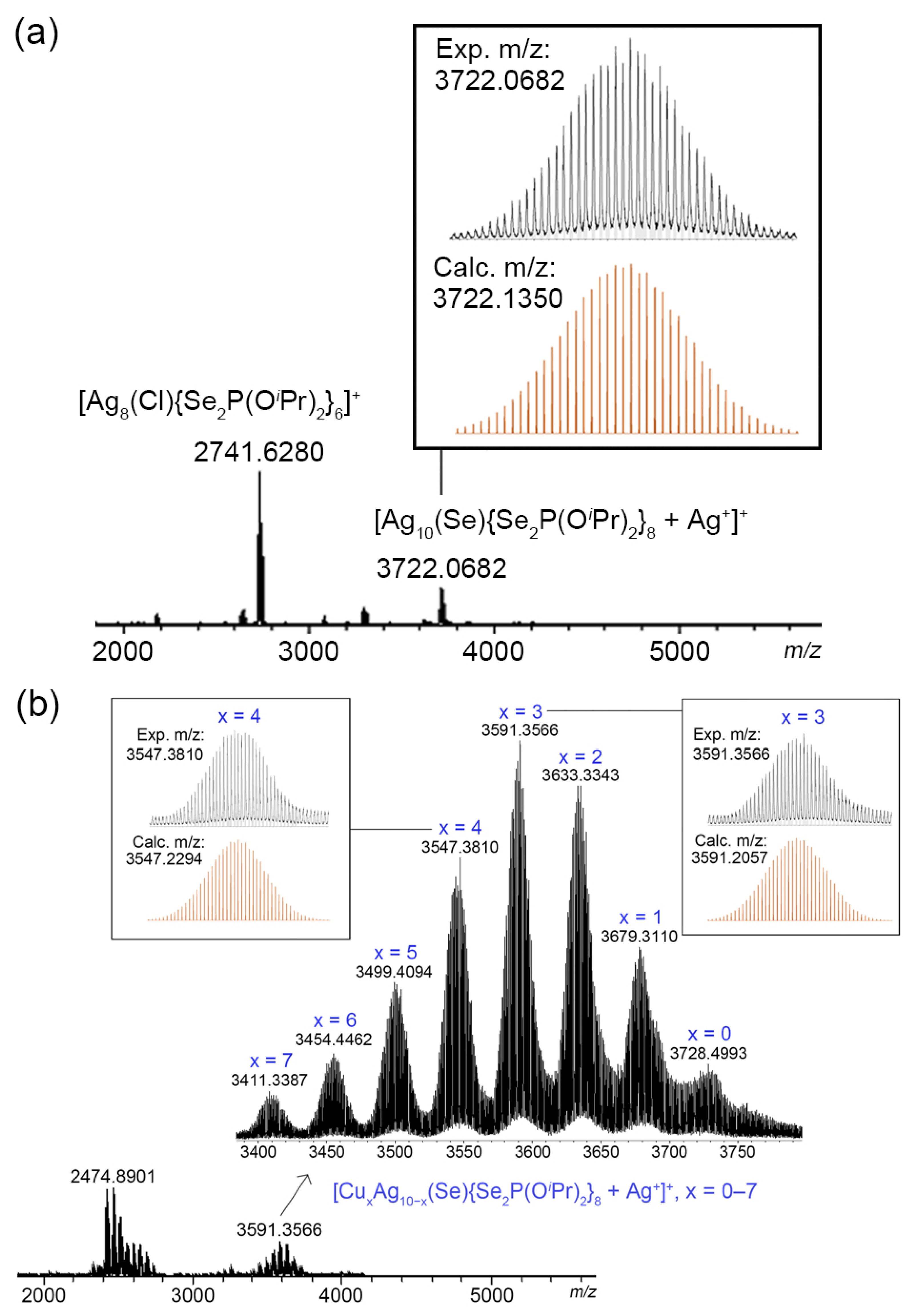

Figure 2. (a) The positive-ion ESI mass spectrum of 2. The inset is the experimental (black) and simulated (orange) isotopic distribution pattern of [2 + Ag+]+. (b) The positive-ion ESI mass spectrum of 3. The inset is the experimental (black) and simulated (orange) isotopic distribution pattern of [Cu3Ag7(Se){Se2P(OiPr)2}8 + Ag+]+ and [Cu4Ag6(Se){Se2P(OiPr)2}8 + Ag+]+.
Figure 2. (a) The positive-ion ESI mass spectrum of 2. The inset is the experimental (black) and simulated (orange) isotopic distribution pattern of [2 + Ag+]+. (b) The positive-ion ESI mass spectrum of 3. The inset is the experimental (black) and simulated (orange) isotopic distribution pattern of [Cu3Ag7(Se){Se2P(OiPr)2}8 + Ag+]+ and [Cu4Ag6(Se){Se2P(OiPr)2}8 + Ag+]+.
Molecules 26 05391 g002
Molecules 26 05391 g003 550

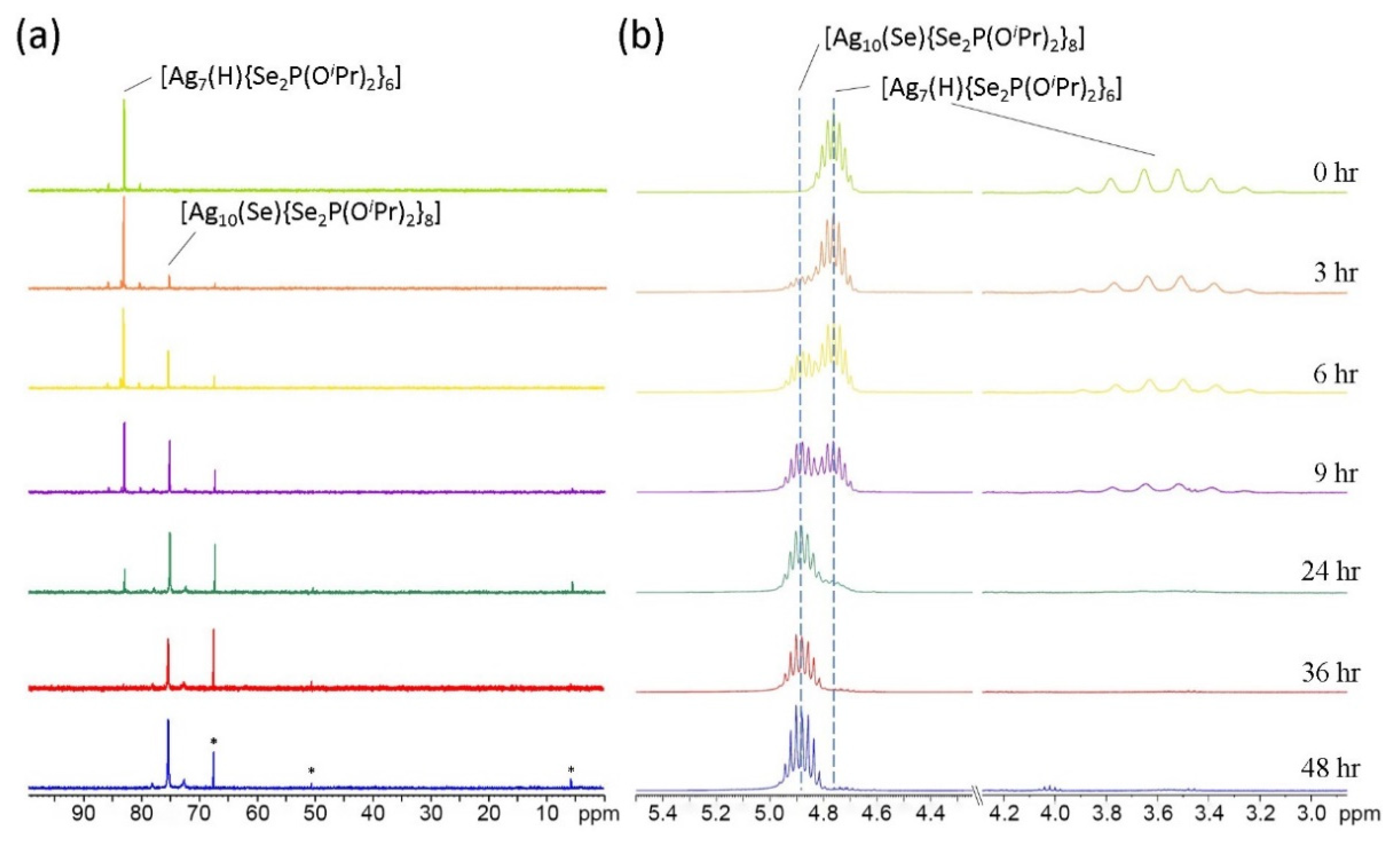

Figure 3. (a) Time-dependent 31P{1H} and (b) 1H NMR spectrum of the reaction acquired from 0 to 48 h (asterisks denote the fragments of dsep ligands after decomposition).
Figure 3. (a) Time-dependent 31P{1H} and (b) 1H NMR spectrum of the reaction acquired from 0 to 48 h (asterisks denote the fragments of dsep ligands after decomposition).
Molecules 26 05391 g003
Molecules 26 05391 g004 550

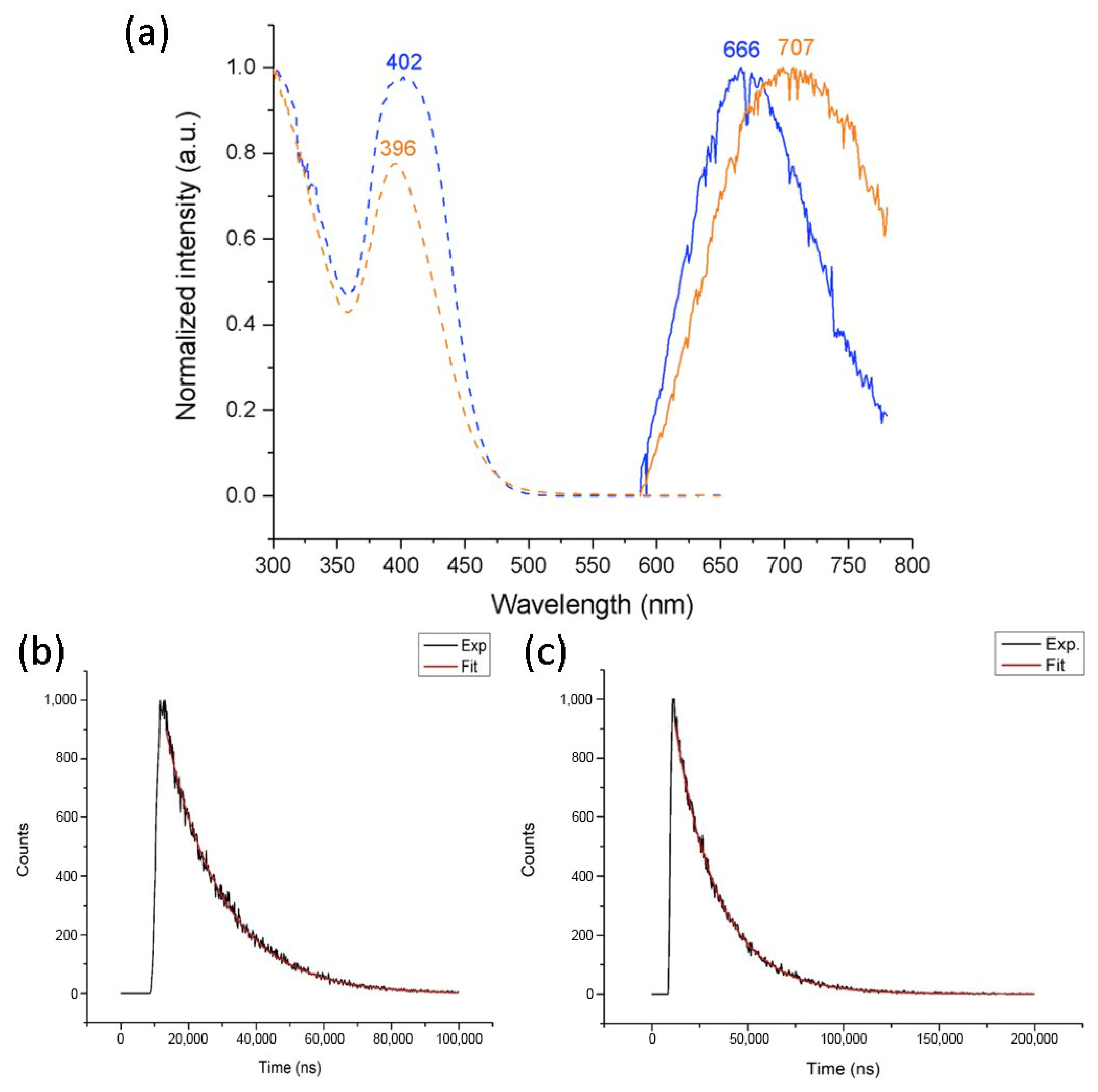

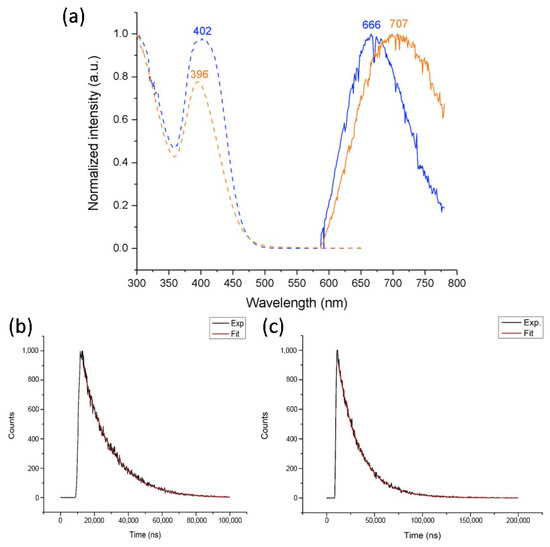

Figure 4. (a) The absorption spectrum of 2 (blue dashed line) and 3 (orange dashed line). The emission spectrum of 2 (blue solid line) and 3 (orange solid line) dissolved in 2-MeTHF at 77K. (b) The photoluminescence decay curves of 2 (λex = 401 nm) and (c) 3 (λex = 396 nm) in 2-MeTHF glass recorded at 77 K.
Figure 4. (a) The absorption spectrum of 2 (blue dashed line) and 3 (orange dashed line). The emission spectrum of 2 (blue solid line) and 3 (orange solid line) dissolved in 2-MeTHF at 77K. (b) The photoluminescence decay curves of 2 (λex = 401 nm) and (c) 3 (λex = 396 nm) in 2-MeTHF glass recorded at 77 K.
Molecules 26 05391 g004
Table
Table 1. Selected bond lengths of 1, 2 and [3a]0.6[3b]0.4.
Table 1. Selected bond lengths of 1, 2 and [3a]0.6[3b]0.4.
Comp.12[3a]0.6[3b]0.4
Ag-Ag/M-M (Å)2.957(3)–3.378(2),
avg. 3.083(3)		Clust. A2.8786(12)–3.3004(11),
avg. 3.0786(13)		2.8625(15)–2.7856(18),
avg. 3.036(2)
Clust. B2.9186(11)–3.3321(11),
avg. 3.0780(12)
Seencap-Ag/Seencap-M (Å)2.6312(19)–3.187(3),
avg. 2.939(2)		Clust. A2.5279(12)–3.0496(12),
avg. 2.8271(12)		2.425(2)–3.127(2),
avg. 2.778(2)
Clust. B2.5113(13)–3.0596(12),
avg. 2.7586(13)
Se-Ag/Se-M (Å)2.557(3)–3.127(3),
avg. 2.685(3)		Clust. A2.5496(13)–3.0811(12),
avg. 2.693(2)		2.351(2)–2.8797(19),
acg. 2.593 (2)
Clust. B2.5368(13)–3.0478(14),
avg. 2.6672(13)
Table
Table 2. Photophysical data of 2 and 3.
Table 2. Photophysical data of 2 and 3.
Comp.λabs/nm
(ε/cm −1 M−1)		λex/nm
(at 77K)		λem/nm
(at 77K)		Stoke Shift/cm−1Lifetime/
μs (at 77K)
2402 (14,600)384666990016
3396 (11,500)38770711,10022
Table
Table 3. Selected X-ray crystallographic data of 2 and [3a]0.6[3b]0.4.
Table 3. Selected X-ray crystallographic data of 2 and [3a]0.6[3b]0.4.
Compound2[3a]0.6[3b]0.4
Chemical formulaC48H112Ag10O16P8Se17C48H112Ag6.6Cu3.4O16P8Se17
Formula weight3614.153463.43
Crystal SystemTriclinicTriclinic
Space groupP(-)1P(-)1
a, Å14.7908(9)14.8584(4)
b, Å24.8040(16)14.8871(5)
c, Å27.5596(17)25.6577(7)
α, deg.83.563(2)100.1735(13)
β, deg.85.402(2)96.5137(13)
γ, deg.82.033(2)115.4953(15)
V, Å39928.6(11)4926.2(3)
Z42
Temperature, K100(2)100(2)
ρcalcd, g/cm32.4182.335
μ, mm−18.3358.458
θmax, deg.25.00024.999
Completeness, %97.5100
Reflection collected/unique53,934/34,122
[Rint = 0.0383]		167,862/17,346
[Rint = 0.2349]
Restraints/parameters876/1888382/937
a R1, b wR2 [I > 2σ(I)]0.0490, 0.10100.0555, 0.1029
a R1, b wR2 (all data)0.0714, 0.10820.1139, 0.1290
GOF1.0061.023
Largest diff. peak and hole, e/Å32.269 and −2.5122.287 and −2.157
a R1 = Σ||Fo| − |Fc||/Σ|Fo|. b wR2 = {Σ[w(Fo2 − Fc2)2]/Σ[w(Fo2)2]}1/2.
