The Influence of Oxygen Plasma on Methylammonium Lead Iodide (MAPbI3) Film Doped with Lead Cesium Triiodide (CsPbI3)

by
Shui-Yang Lien
1,2,3,
Chi-Wei Wang
4,
Wen-Ray Chen
5,
Chuan-Hsi Liu
6,
Chih-Chieh Kang
7 and
Chien-Jung Huang
4,*
1
School of Opto-Electronic and Communication Engineering, Xiamen University of Technology, Xiamen 361024, China
2
Department of Materials Science and Engineering, Da-Yeh University, Dacun, Changhua 51591, Taiwan
3
Fujian Key Laboratory of Optoelectronic Technology and Devices, Xiamen University of Technology, Xiamen 361024, China
4
Department of Applied Physics, National University of Kaohsiung, Kaohsiung University Rd., Kaohsiung 81148, Taiwan
5
Department of Electronic Engineering, National Formosa University, Wenhua Rd., Yunlin County 632301, Taiwan
6
Department of Mechatronic Engineering, National Taiwan Normal University, Heping East Rd., Taipei 10610, Taiwan
7
Department of Electro-Optical Engineering, Southern Taiwan University of Technology, Nan-Tai Street, Tainan 71105, Taiwan
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(17), 5133; https://doi.org/10.3390/molecules26175133
Submission received: 20 July 2021 / Revised: 16 August 2021 / Accepted: 23 August 2021 / Published: 24 August 2021
(This article belongs to the Special Issue Opportunities and Challenges in Organic Optoelectronic Materials and Devices)
Browse Figures
Versions Notes

Abstract

:
In recent years, the study of organic–inorganic halide perovskite as an optoelectronics material has been a significant line of research, and the power conversion efficiency of solar cells based on these materials has reached 25.5%. However, defects on the surface of the film are still a problem to be solved, and oxygen plasma is one of the ways to passivate surface defects. In order to avoid destroying the methylammonium lead iodide (MAPbI3), the influence of plasma powers on film was investigated and the cesium triiodide (CsPbI3) quantum dots (QDs) were doped into the film. In addition, it was found that oxygen plasma can enhance the mobility and carrier concentration of the MAPbI3 film.

1. Introduction

Hybrid halide perovskite (HHP) has become a promising candidate for third-generation solar cell absorption layers. Since Kojima et al. [1] first reported it in 2009, this material has shown great potential due to its excellent photovoltaic response. In the past few years, the power conversion efficiency (PCE) of solar cells based on this material has increased from 3.8 percent in 2009 [1] to 25.5 percent [2,3]. The high efficiency of lead-based perovskite solar cells can be attributed to band gaps close to the Shkreli–Quessel limit, high light absorption coefficients, excellent electric mobility and large electric diffusion lengths [4,5]. The performance of HHP solar cells is expected to be greatly improved due to their excellent optical properties. However, polycrystalline perovskite materials show a shorter photoluminescence life, indicating the existence of electric defects [6]. These defects originate from the crystal boundary inside the perovskite, which may capture free-charged carriers. In this article, references are presented that mention that trace amounts of oxygen are beneficial to methylammonium lead iodide (MAPbI3) films [7,8]. Moreover, defects can be decreased in number by introducing oxygen. Additionally, oxygen plasma treatment was used to remove excess surface ligand and precursor, and the absorption and electrical performance was also improved. However, excess oxygen ions cause oxidation and ion bombardment [9], leading to a decrease in the stability and structural destruction of the film. Thus, cesium triiodide (CsPbI3) quantum dots (QDs) were doped into the MAPbI3 film to achieve anion exchange in order to make the overall structure more stable [10], and the absorption was enhanced due to the unique optical properties of the QDs. In addition, the power of the oxygen plasma was tuned to investigate its influence on the MAPbI3. For the investigation, X-ray photoelectron spectroscopy (XPS) was used to analyze the surface composition of the MAPbI3-doped CsPbI3 QDs. Furthermore, it was found that the oxygen plasma was able to improve the carrier concentration and mobility of the MAPbI3. This innovative film as a potential material was optimized by oxygen plasma treatment at different powers. In this article, this work provides in-depth details to illustrate the investigation of the formation mechanism and surface properties.

2. Results

Figure 1 shows the transmission electron microscope (TEM) image of CsPbI3 QDs, and the d-space of CsPbI3 QDs is 0.30 nm. Figure 2a plots the absorbance spectra of a MAPbI3 film without and with CsPbI3 QDs and further optimization by means of oxygen plasma treatment at 0 to 80 W. The results show the phenomenon that the absorption of the MAPbI3 film was enhanced from 350 to 750 nm after doping CsPbI3 QDs, and this is a great improvement in absorption compared to the MAPbI3 film without CsPbI3 QDs. The reason for this is the excellent optical properties and the wide energy gap of the CsPbI3 QDs [11,12]. Multiple studies demonstrated that the light-harvesting ability of the perovskite film could be enhanced by doping with QDs [13,14]. In addition, the surface of the perovskite films was treated with the oxygen plasma at 20 to 80 W. It can be observed that the strongest absorbance of the films was at 20 W, because the excess ligands and impurities were removed from the surface. However, the absorbance gradually decreased in the power range of 40 to 80 W due to the degradation of MAPbI3 caused by high-power oxygen ion bombardment [15]. Figure 2b shows the photoluminescence (PL) results of the pure MAPbI3 film and MAPbI3 films doped with CsPbI3 QDs with and without oxygen plasma treatment at 20 W. The PL intensity of the MAPbI3 film doped with CsPbI3 QDs was drastically enhanced compared to that of pure MAPbI3 film due to the Cs ion exchange process [16]. The PL intensity of MAPbI3 film with QDs treated with oxygen plasma was also enhanced compared to the MAPbI3 film not treated with QDs. This is attributed to the removal of the ligands and impurities. In addition, the reason for the enhancement might be the passivation of surface defects with plasma treatment, and this was caused by the replacement of the defects [17]. It is observed that the luminescence peak of the composite perovskite film exhibits a shift towards higher wavelengths from 770.4 to 776.7 nm, caused by the doping with CsPbI3 QDs. In addition, the sample showed a shift to lower wavelengths from 776.7 to 773.2 nm after treatment with oxygen plasma at 20 W, which may be due to the removal of excess ligands and precursors or the decrease in the number of defects on the surface [18,19]. The decrease in the number of defects resulted in the increase in the band gap, leading to the shift in the PL peak.
To investigate the oxygen plasma’s effect on the surface of the MAPbI3 film at different powers, XPS was conducted, as shown in Figure 3. Figure 3a shows the Pb 4f7/2 and 4f5/2 core level represented by two peaks centered on 137.9 and 142.8 eV, respectively. In addition, it is found that the core levels of the MAPbI3 film shift towards higher binding energies for 20 W curves. This result could be due to the increase in the number of oxygen ions on the surface due to the oxygen plasma treatment. Figure 3b shows the peaks of the I 3d5/2 and 3d3/2 core level. It can be observed that two peaks appear at 625 and 635 eV after oxygen plasma treatment, and the intensity of the two peaks was enhanced with the increase in the plasma powers. The results reveal the bonding of the iodine in the MAPbI3 film and the oxygen ions, which causes the generation of IO3−. The IO3− improves iodine interstitial defects and results in the deep trap state being closer to the valence band [20]. Thus, the charge carrier losses can be reduced, and this means that the electric property of the MAPbI3 film could be enhanced by the formation of IO3−. However, the content of iodine in the film gradually decreased with increase in IO3−, as shown in Figure 3b, and this phenomenon is explained by the degradation of MAPbI3 due to the high plasma power. The XPS binding energy spectra for O 1s core levels are shown in Figure 3c. It can be seen that the spectra present two peaks. The OII peak corresponds to the chemisorbed oxygen atoms on the surface [21], and the OI peak corresponds to the bond of lead and oxygen. The O 1s XPS spectrum shows that the intensity of the OII peak increased with the increase in plasma power, and it can be speculated that defects are replaced with oxygen. In order to perform further analysis, the core level spectra of O 1s were peak-fitted for each plasma power, as shown in Figure 3d–h. It can be observed that only OII peak appeared for the 0 and 20 W curves, and the OI peak appeared for over 40 W curves. It is conjectured that the excessive oxygen plasma power is caused the degradation of the film and the oxygen ion species bound to the lead in MAPbI3, as reported in other studies [22,23]. In Figure 3g,h, the intensity of the OII peak is shown to drastically increase, indicating that the MAPbI3 was destroyed because of high power plasma. The above result is consistent with the result shown in Figure 2a.
In Table 1, the mobility of the MAPbI3 doped with CsPbI3 QDs was higher than that of the pure MAPbI3 film. The stability could be improved by doping with CsPbI3 QDs, and the number of defects on the film can be decreased, leading to the higher mobility [10]. For the analysis of the conduction mechanism, the mobility and the carrier concentration were measured through Hall effect measurement. Figure 4 shows the mobility and carrier concentration of different films treated with various powers of oxygen plasma from 0 to 80 W. It can be observed that the mobility was enhanced for 20 W curves. As mentioned previously in Figure 3c, the defect was replaced by oxygen, and this leads to the improvement of mobility. Furthermore, it is shown that oxygen is a method to suppress nonradioactive recombination and to improve the photovoltaic performance [24]. The plasma treatment also caused the decrease in the grain boundary of the MAPbI3 film, which can be seen in a previous study [10]. With the decrease in the grain boundaries, the scattering of charge carriers reduced and the mobility of the film increased [25]. However, an excessive supply of oxygen plasma with power over 20 W caused the formation of bonds between carbon, lead and oxygen. This effect leads to the degradation of MAPbI3 [10,15], and therefore the mobility dropped from 6.06 × 103 to 1.08 × 104 cm2/Vs. Compared to the untreated film, the carrier concentration of the treated MAPbI3 film was also enhanced. The result was attributed to the reduction in charge carrier losses, resulting from the formation of IO3−, as mentioned earlier in Figure 3b. In addition, interstitial iodine defects can decrease the carrier lifetimes of MAPbI3 [26], and the appearance of IO3− reveals the passivation of interstitial iodine defects [27]. The reason for the decreased carrier concentration at higher plasma powers is the same as that for the decreased the mobility. Based on the above results, the oxygen plasma power of 20 W is the better condition.
In Figure 5, the contact angle of the MAPbI3 films doped with CsPbI3 QDs further illustrates the effect of the oxygen plasma power and demonstrates the influence of oxygen ion bombardment. When the plasma power increased from 0 to 20 W, the contact angle of the film dropped from 91.59 degrees to 71.30 degrees. This might be due to increase in the surface energy, and the higher surface energy was caused by oxygen atoms on the surface [28]. Moreover, oxygen plasma can significantly improve surface hydrophilicity, and the increase in the hydrophilicity could be due to the carbonyl group [29,30], which might be caused by the chemisorbed oxygen atoms on the surface. However, the contact angle decreased to 81.89, 82.1 and 81.55 degrees at 40, 60 and 80 W, respectively. This means that the MAPbI3 is destroyed and oxygen ions started to bond with lead with the increase in plasma power. In addition, the oxygen ions also bond to the carbon in MAPbI3, leading to the formation of COx, and the COx is not the carbonyl group on the surface, but the gas [31,32]. Although the higher plasma powers caused the degradation of the film and the formation of COx, the carbonyl group still appeared on the surface. Thus, the contact angle would not change obviously at powers of 60 and 80 W.

3. Materials and Methods

3.1. CsPbI3 QDs Fabrication and Centrifugation

The precursor solution of QDs contained 0.4 mmol lead iodide (PbI2) (ACROS organic, 99%) and 0.4 mmol CsI (Alfa Aesar, Lancashire, UK, 99.9%) in oleic amine (ACROS organic, Geel, Belgium,2.4 mL) and DMF (J.T. Baker, Phillipsburg, NJ, USA, 99.5%, 10 mL). The precursor solution (0.5 mL) was quickly added into toluene (J.T. Baker, Phillipsburg, NJ, USA, 99.8%, 10 mL), while it was stirred to obtain the CsPbI3 QDs solution. Successively, the colloidal crude solution was centrifuged at 11,000 rpm for 15 min at 10 °C. The precipitate was collected and then successively dispersed in hexane. The above process was repeated several times.
CH3NH3I (UniRegion Bio-Tech, Hsinchu, Taiwan, 98%, 198.75 mg) and PbI2 (576.25 mg) were added into the mixture of 0.5 mL of sulfoxide (DMSO, J.T. Baker, 99.5%, 0.5 mg) and γ–butyrolactone (GBL, CHONEYE PURE CHEMICALS, Taipei, Taiwan, 0.5 mL, 1:1 ratio) to obtain the precursor solution. Then, this precursor solution was stirred at 300 rpm for 24 h in a glove box to obtain the perovskite MAPbI3 solution.

3.2. Fabrication of Composite Perovskite Films

CH3NH3I (50 μL) and CsPbI3 (1 mg) were mixed and then spin-coated onto a glass substrate in two steps, at 1000 rpm for 10 s and 5000 rpm for 20 s. Toluene was dropped on the spinning film for 15 s during the second step. Hereafter, the sample was annealed at 90 °C for 15 min to obtain the composite perovskite films. These composite perovskite films were further enhanced by oxygen plasma treatment at different powers from 0 to 80 W. The plasma treatment was carried out by radio frequency (RF) excitation with a power source of 13.56 MHz (Plasma Etch PC-150 plasma etching/cleaning system).

3.3. Characteristics Measurement

The absorbance spectrum of the composite perovskite films was measured by ultraviolet–visible (UV/Vis) absorption spectroscopy (U-3900 HITACHI, Tokyo, Japan). The XPS of the films was recorded using a PHI 5000 VersaProbe/Scanning ESCA Microprobe (ULVAC-PHI, Kanagawa, Japan). The top-view surface morphologies of the films were measured by field-emission scanning electron microscopy (FESEM—JEOL-6330 Cryo, Peabody, MA, USA). PL was measured by iHR350 (HORIBA, Kyoto, Japan). The TEM image was measured by JEOL-2100F CS STEM (JEOL, Tokyo, Japan). The Hall Effect was measured by L79/HCS (LENSEIS, Selb, Germany).

4. Conclusions

In this article, we report the effect of doping with CsPbI3 QDs and oxygen plasma treatment on MAPbI3 film. In addition, the absorbance and PL intensity was enhanced by doping with CsPbI3 QDs and oxygen plasma treatment. According to the Hall effect measurement, the carrier concentration and mobility was improved at 20 W. However, high powers from 40 to 80 W not only caused surface damage of the films but also destroyed the electric properties. Additionally, the influence of oxygen plasma on the surface composition was investigated by means of XPS. Moreover, the electric property was discussed by Hall effect measurement, and it is found that the mobility and carrier concertation of MAPbI3 was obviously enhanced through oxygen plasma treatment. According to XPS, the reason for the improvement in the mobility was also explained. In this study, we prove that oxygen plasma is a potential treatment for perovskite films.

Author Contributions

Conceptualization, C.-W.W., S.-Y.L. and C.-J.H.; methodology, C.-W.W.; formal analysis, C.-W.W., S.-Y.L., W.-R.C., C.-H.L., C.-C.K. and C.-J.H.; investigation, C.-W.W.; resources, C.-J.H.; writing—original draft preparation, C.-W.W.; writing—review and editing, C.-W.W., S.-Y.L., W.-R.C., C.-H.L., C.-C.K. and C.-J.H.; visualization, C.-W.W.; supervision, S.-Y.L. and C.-J.H.; project administration, C.-J.H.; funding acquisition, C.-J.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Technology (MOST) of the Republic of China, grant number 109-2221-E-390-008.

Institutional Review Board Statement

This study did not involve humans or animals.

Informed Consent Statement

This study did not involve humans.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We appreciate the effort from Hsiu-Ling Huang to the administrative and technical support.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not available.

References

  1. Yang, W.S.; Noh, J.H.; Jeon, N.J.; Kim, Y.C.; Ryu, S.; Seo, J.; Seok, S.I. High-Performance Photovoltaic Perovskite Layers Fabricated through Intramolecular Exchange. Science 2015, 348, 1234–1237. [Google Scholar] [CrossRef] [PubMed]
  2. Wu, T.; Qin, Z.; Wang, Y.; Wu, Y.; Chen, W.; Zhang, S.; Cai, M.; Dai, S.; Zhang, J.; Liu, J.; et al. The Main Progress of Perovskite Solar Cells in 2020–2021. Nanomicro Lett. 2021, 13, 152. [Google Scholar] [CrossRef] [PubMed]
  3. Green, M.; Dunlop, E.; Hohl-Ebinger, J.; Yoshita, M.; Kopidakis, N.; Hao, X. Solar cell efficiency tables (version 57). Prog. Photovolt. Res. Appl. 2021, 29, 3–15. [Google Scholar] [CrossRef]
  4. Kovalenko, M.V.; Manna, L.; Cabot, A.; Hens, Z.; Talapin, D.V.; Kagan, C.R.; Klimov, V.I.; Rogach, A.L.; Reiss, P.; Milliron, D.J.; et al. Prospects of nanoscience with nanocrystals. ACS Nano 2015, 9, 1012–1057. [Google Scholar] [CrossRef]
  5. Kovalenko, M.V.; Protesescu, L.; Bodnarchuk, M.I. Properties and potential optoelectronic applications of lead halide perovskite nanocrystals. Science 2017, 358, 745–750. [Google Scholar] [CrossRef] [Green Version]
  6. Huang, H.; Bodnarchuk, M.I.; Kershaw, S.V.; Kovalenko, M.V.; Rogach, A.L. Lead halide perovskite nanocrystals in the research spotlight: Stability and defect tolerance. ACS Energy Lett. 2017, 2, 2071–2083. [Google Scholar] [CrossRef] [Green Version]
  7. Kim, Y.; Yassitepe, E.; Voznyy, O.; Comin, R.; Walters, G.; Gong, X.; Kanjanaboos, P.; Nogueira, A.F.; Sargent, E.H. Efficient luminescence from perovskite quantum dot solids. ACS Appl. Mater. Interfaces 2015, 7, 25007–25013. [Google Scholar] [CrossRef]
  8. Krieg, F.; Ochsenbein, S.T.; Yakunin, S.; Ten Brinck, S.; Aellen, P.; Süess, A.; Clerc, B.; Guggisberg, D.; Nazarenko, O.; Shynkarenko, Y.; et al. Colloidal CsPbX3 (X = Cl, Br, I) nanocrystals 2.0: Zwitterionic capping ligands for improved durability and stability. ACS Energy Lett. 2018, 3, 641–646. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Yassitepe, E.; Yang, Z.; Voznyy, O.; Kim, Y.; Walters, G.; Castañeda, J.A.; Kanjanaboos, P.; Yuan, M.; Gong, X.; Fan, F.; et al. Amine-free synthesis of cesium lead halide perovskite QDs for efficient light-emitting diodes. Adv. Funct. Mater. 2016, 26, 8757–8763. [Google Scholar] [CrossRef]
  10. Huang, P.H.; Wang, C.W.; Lien, S.Y.; Lee, K.W.; Wang, N.F.; Huang, C.J. Investigation of the Stability of Methylammonium Lead Iodide (MAPbI3) Film Doped with Lead Cesium Triiodide (CsPbI3) QDs under an Oxygen Plasma Atmosphere. Molecules 2021, 26, 2678. [Google Scholar] [CrossRef]
  11. Smith, A.M.; Mohs, A.M.; Nie, S. Tuning the optical and electronic properties of colloidal nanocrystals by lattice strain. Nat. Nanotechnol. 2009, 4, 56–63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Luo, S.; Kazes, M.; Lin, H.; Oron, D. Strain-Induced Type II Band Alignment Control in CdSe Nanoplatelet/ZnS-Sensitized Solar Cells. J. Phys. Chem. C 2017, 121, 11136–11143. [Google Scholar] [CrossRef]
  13. Han, J.; Luo, S.; Yin, X.; Zhou, Y.; Nan, H.; Li, J.; Li, X.; Oron, D.; Shen, H.; Lin, H. Hybrid PbS Quantum-Dot-in-Perovskite for High-Efficiency Perovskite Solar Cell. Small 2018, 14, 1801016. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, L.-C.; Tien, C.-H.; Tseng, Z.-L.; Ruan, J.-H. Enhanced Efficiency of MAPbI3 Perovskite Solar Cells with FAPbX3 Perovskite QDs. Nanomaterials 2019, 9, 121. [Google Scholar] [CrossRef] [Green Version]
  15. Huang, P.-H.; Zhang, Z.-X.; Hsu, C.-H.; Wu, W.-Y.; Huang, C.-J.; Lien, S.-Y. Chemical Reaction and Ion Bombardment Effects of Plasma Radicals on Optoelectrical Properties of SnO2 Thin Films via Atomic Layer Deposition. Materials 2021, 14, 690. [Google Scholar] [CrossRef]
  16. Imran, M.; Saleem, A.; Khan, N.A.; Kamboh, A.H. Enhanced efficiency and stability of perovskite solar cells by partial replacement of CH3NH3+ with inorganic Cs+ in CH3NH3PbI3 perovskite absorber layer. Physica B 2019, 572, 1–11. [Google Scholar] [CrossRef]
  17. Tian, Y.; Peter, M.; Unger, E.; Abdellah, M.; Zheng, K.; Pullerits, T.; Yartsev, A.; Sundström, V.; Scheblykin, I.G. Mechanistic insights into perovskite photoluminescence enhancement: Light curing with oxygen can boost yield thousandfold. Phys. Chem. Chem. Phys. 2015, 17, 24978–24987. [Google Scholar] [CrossRef]
  18. Cai, F.; Yan, Y.; Yao, J.; Wang, P.; Wang, H.; Gurney, R.S.; Liu, D.; Wang, T. Ionic additive engineering toward high-efficiency perovskite solar cells with reduced grain boundaries and trap density. Adv. Funct. Mater. 2018, 28, 1801985. [Google Scholar] [CrossRef]
  19. Liu, X.; Cheng, Y.; Liu, C.; Zhang, T.; Zhang, N.; Zhang, S.; Chen, J.; Xu, Q.; Ouyang, J.; Gong, H. 20.7% highly reproducible inverted planar perovskite solar cells with enhanced fill factor and eliminated hysteresis. Energy Environ. Sci. 2019, 12, 1622–1633. [Google Scholar] [CrossRef]
  20. Qiao, L.; Fang, W.H.; Long, R.; Prezhdo, O.V. Extending carrier lifetimes in lead halide perovskites with alkali metals by passivating and eliminating halide interstitial defects. Angew. Chem. Int. Ed. 2020, 59, 4684–4690. [Google Scholar] [CrossRef] [PubMed]
  21. Wang, X.; Wang, X.; Di, Q.; Zhao, H.; Liang, B.; Yang, J. Mutual effects of fluorine dopant and oxygen vacancies on structural and luminescence characteristics of F doped SnO2 nanoparticles. Materials 2017, 10, 1398. [Google Scholar] [CrossRef] [Green Version]
  22. Abdelmageed, G.; Jewell, L.; Hellier, K.; Seymour, L.; Luo, B.; Bridges, F.; Zhang, J.Z.; Carter, S. Mechanisms for Light Induced Degradation in MAPbI 3 Perovskite Thin Films and Solar Cells. Appl. Phys. Lett. 2016, 109, 233905. [Google Scholar] [CrossRef]
  23. Xiao, X.; Bao, C.; Fang, Y.; Dai, J.; Ecker, B.R.; Wang, C.; Lin, Y.; Tang, S.; Liu, Y.; Deng, Y.; et al. Argon Plasma Treatment to Tune Perovskite Surface Composition for High Efficiency Solar Cells and Fast Photodetectors. Adv. Mater. 2018, 30, 1705176. [Google Scholar] [CrossRef]
  24. Liu, S.C.; Li, Z.; Yang, Y.; Wang, X.; Chen, Y.X.; Xue, D.J.; Hu, J.S. Investigation of oxygen passivation for high-performance all-inorganic perovskite solar cells. J. Am. Chem. Soc. 2019, 141, 18075–18082. [Google Scholar] [CrossRef]
  25. Chaoumead, A.; Joo, B.H.; Kwak, D.J.; Sung, Y.M. Structural and electrical properties of sputtering power and gas pressure on Ti-dope In2O3 transparent conductive films by RF magnetron sputtering. Appl. Surf. Sci. 2013, 275, 227–232. [Google Scholar] [CrossRef]
  26. Wang, S.; Jiang, Y.; Juarez-Perez, E.J.; Ono, L.K.; Qi, Y. Accelerated degradation of methylammonium lead iodide perovskites induced by exposure to iodine vapour. Nat. Energy 2016, 2, 1–8. [Google Scholar] [CrossRef]
  27. He, J.; Fang, W.H.; Long, R. Unravelling the effects of oxidation state of interstitial iodine and oxygen passivation on charge trapping and recombination in CH 3 NH 3 PbI 3 perovskite: A time-domain ab initio study. Chem. Sci. 2019, 10, 10079–10088. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Jung, K.; Kim, J.; Ko, S.; Choi, J.W.; Kim, K.C.; Lee, S.G.; Lee, M.J. Influence of a UV-ozone treatment on amorphous SnO2 electron selective layers for highly efficient planar MAPbI3 perovskite solar cells. J. Mater. Sci. Technol. 2020, 59, 195–202. [Google Scholar] [CrossRef]
  29. Sanchis, M.R.; Calvo, O.; Fenollar, O.; Garcia, D.; Balart, R. Surface modification of a polyurethane film by low pressure glow discharge oxygen plasma treatment. J. Appl. Polym. Sci. 2007, 105, 1077–1085. [Google Scholar] [CrossRef]
  30. Zhang, Y.; Jing, X.; Jing, K.; Chang, L.; Bao, W. Study on the pore structure and oxygen-containing functional groups devoting to the hydrophilic force of dewatered lignite. Appl. Surf. Sci. 2015, 324, 90–98. [Google Scholar] [CrossRef]
  31. Zhang, L.; Sit, P.H.-L. Ab Initio Study of the Role of Oxygen and Excess Electrons in the Degradation of CH3NH3PbI3. J. Mater. Chem. A 2017, 5, 9042–9049. [Google Scholar] [CrossRef]
  32. Ouyang, Y.; Li, Y.; Zhu, P.; Li, Q.; Gao, Y.; Tong, J.; Shi, L.; Zhou, Q.; Ling, C.; Chen, Q.; et al. Photo-Oxidative Degradation of Methylammonium Lead Iodide Perovskite: Mechanism and Protection. J. Mater. Chem. A 2019, 7, 2275–2282. [Google Scholar] [CrossRef]
Molecules 26 05133 g001 550
Figure 1. TEM image of the CsPbI3 QD.
Figure 1. TEM image of the CsPbI3 QD.
Molecules 26 05133 g001
Molecules 26 05133 g002 550

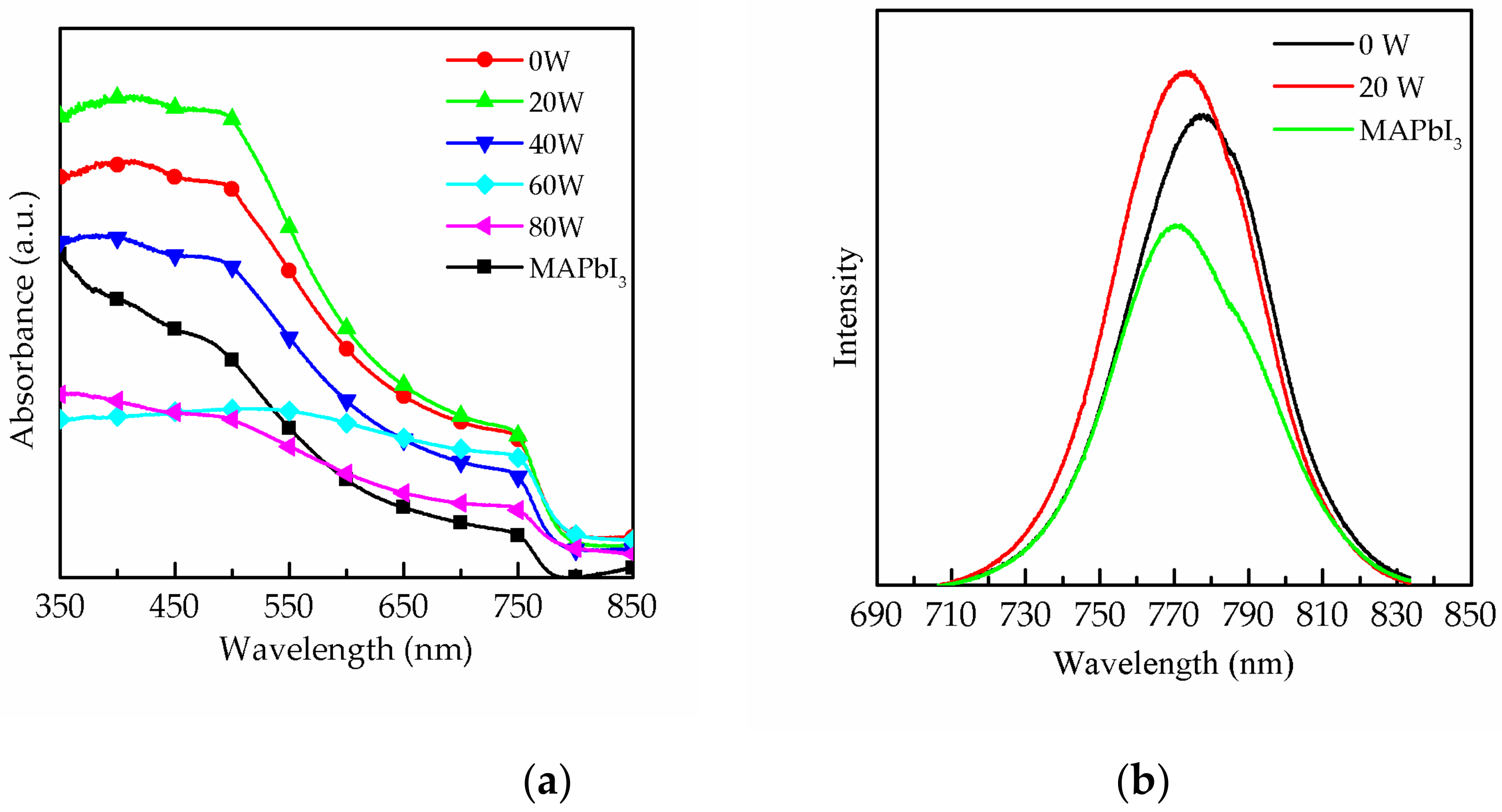

Figure 2. Absorbance spectrum of (a) the pure MAPbI3 film and the MAPbI3 film with CsPbI3 QDs treated with oxygen plasma at 0 to 80 W. (b) Photoluminescence results of the MAPbI3 film and composite perovskite films without and with oxygen plasma treatment at 20 W.
Figure 2. Absorbance spectrum of (a) the pure MAPbI3 film and the MAPbI3 film with CsPbI3 QDs treated with oxygen plasma at 0 to 80 W. (b) Photoluminescence results of the MAPbI3 film and composite perovskite films without and with oxygen plasma treatment at 20 W.
Molecules 26 05133 g002
Molecules 26 05133 g003a 550Molecules 26 05133 g003b 550

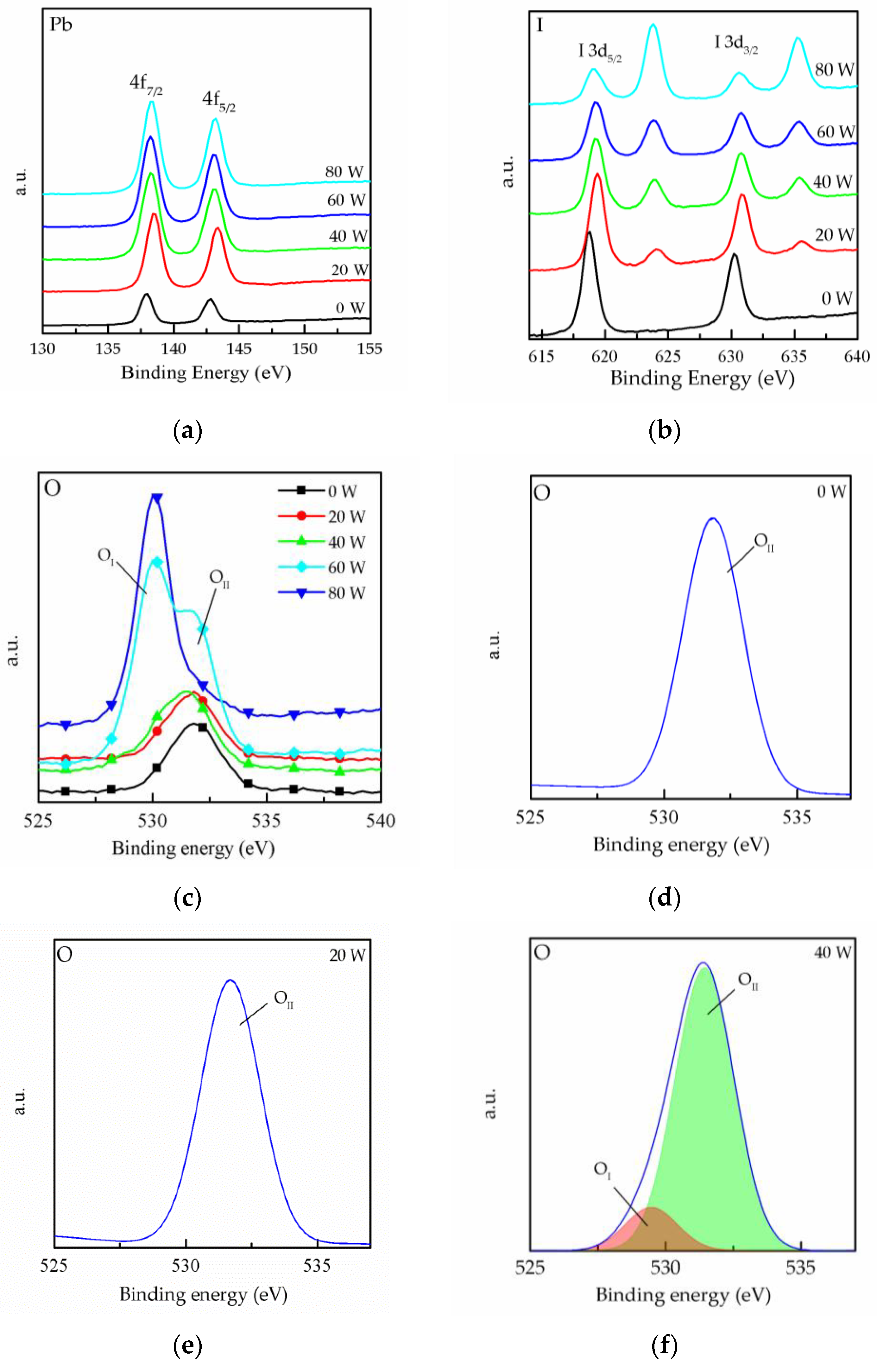

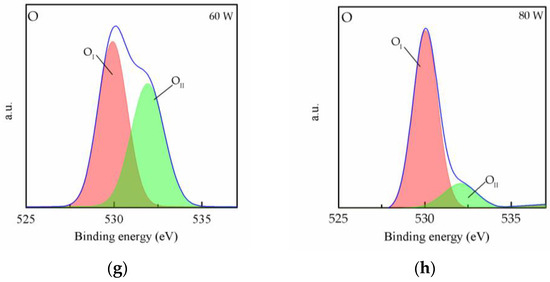

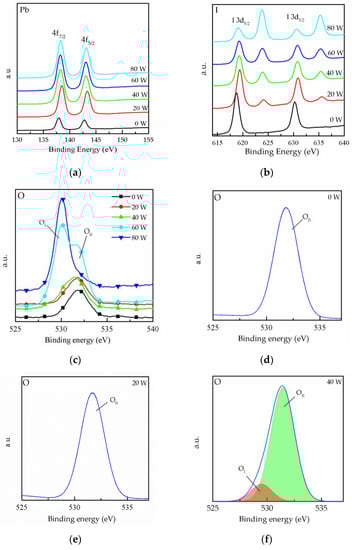

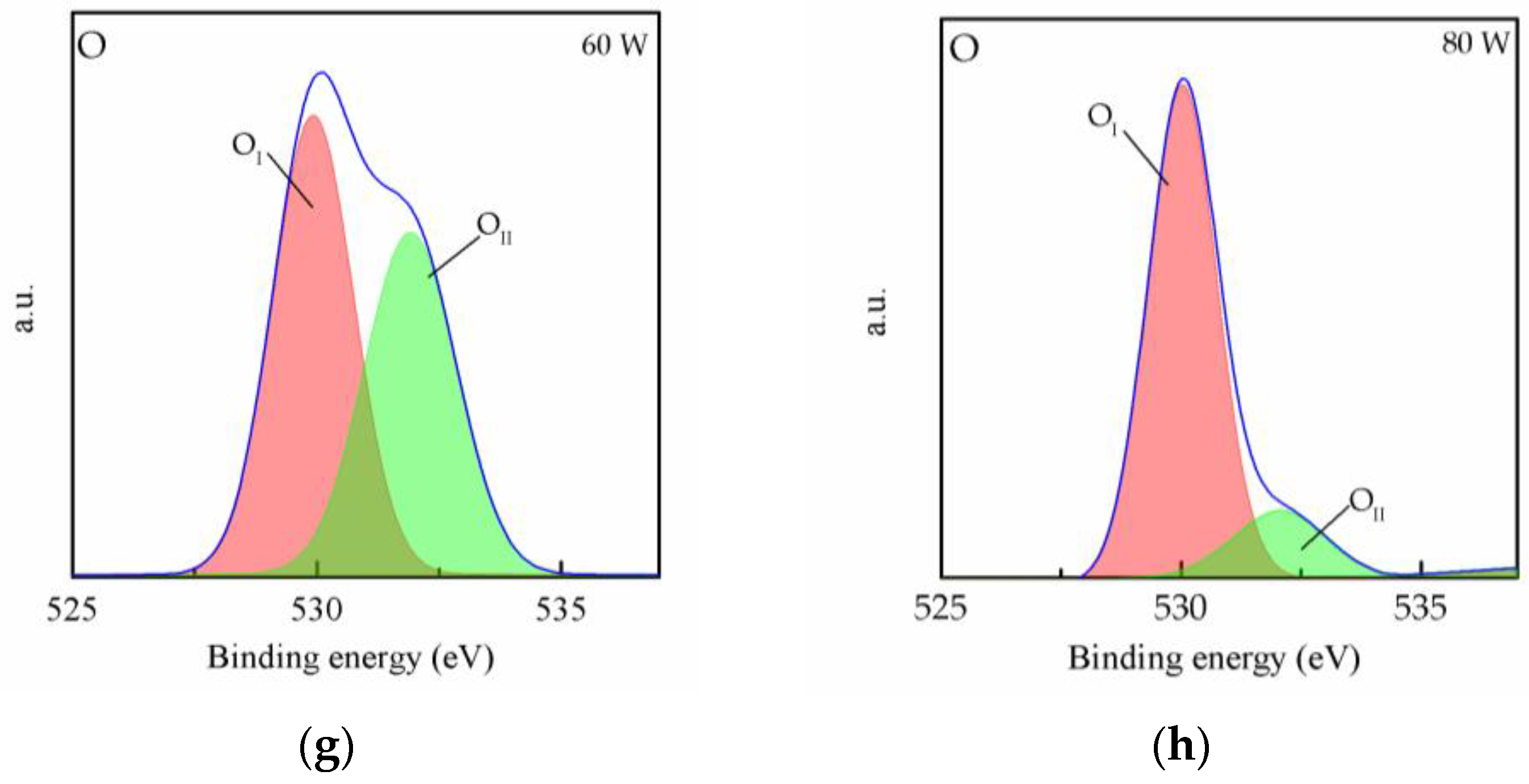

Figure 3. XPS spectra of MAPbI3 film doped with CsPbI3 QDs for (a) Pb 4f-, (b) I 3d- and (c) O 1s-treated oxygen plasma power at different powers. (d–h) Peak analyses of the XPS spectra for O 1s at different powers.
Figure 3. XPS spectra of MAPbI3 film doped with CsPbI3 QDs for (a) Pb 4f-, (b) I 3d- and (c) O 1s-treated oxygen plasma power at different powers. (d–h) Peak analyses of the XPS spectra for O 1s at different powers.
Molecules 26 05133 g003aMolecules 26 05133 g003b
Molecules 26 05133 g004 550

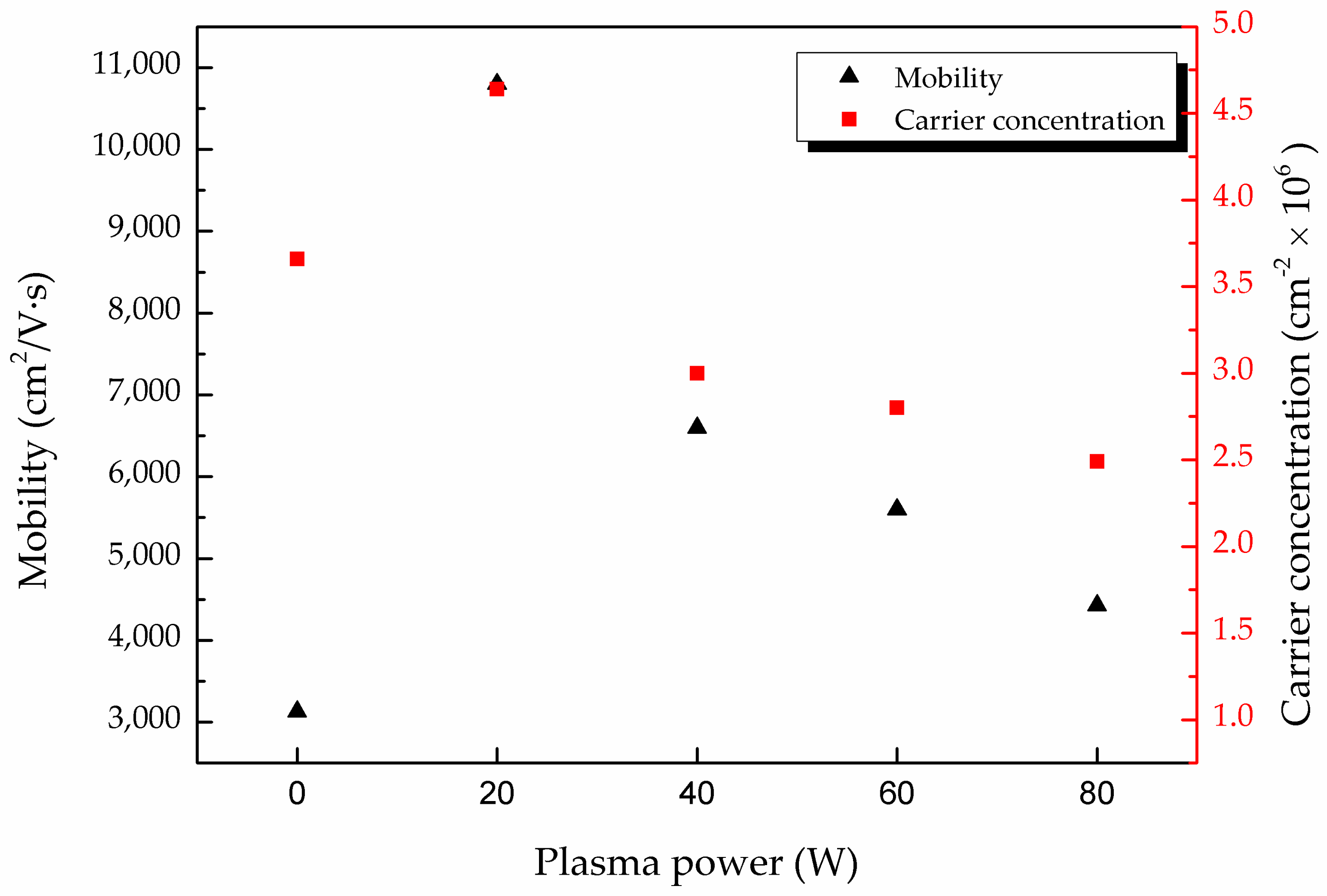

Figure 4. Carrier concentration (red) and carrier mobility (black) of MAPbI3 film doped with CsPbI3 QDs at various oxygen plasma powers from 0 to 80 W.
Figure 4. Carrier concentration (red) and carrier mobility (black) of MAPbI3 film doped with CsPbI3 QDs at various oxygen plasma powers from 0 to 80 W.
Molecules 26 05133 g004
Molecules 26 05133 g005a 550Molecules 26 05133 g005b 550

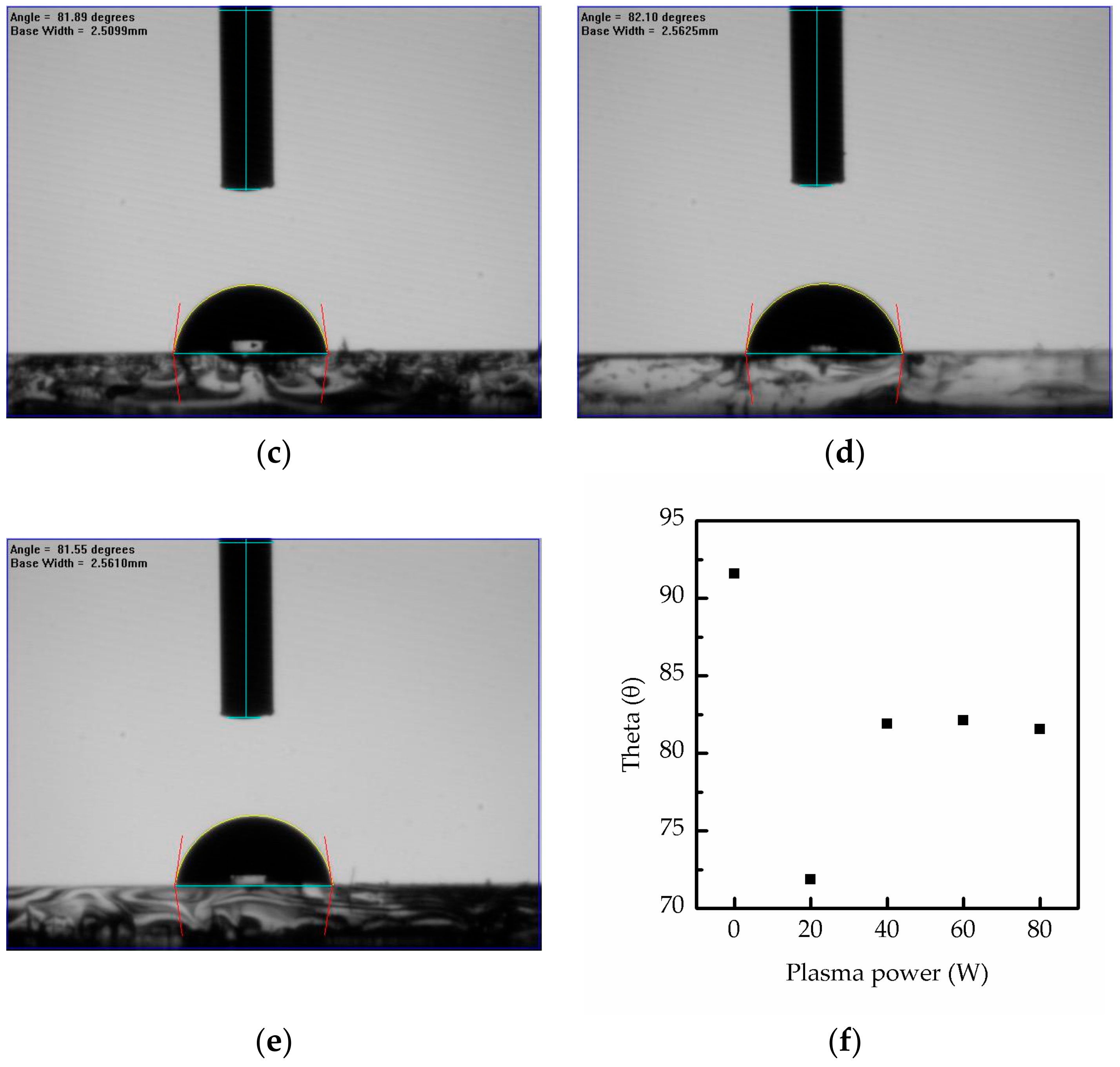

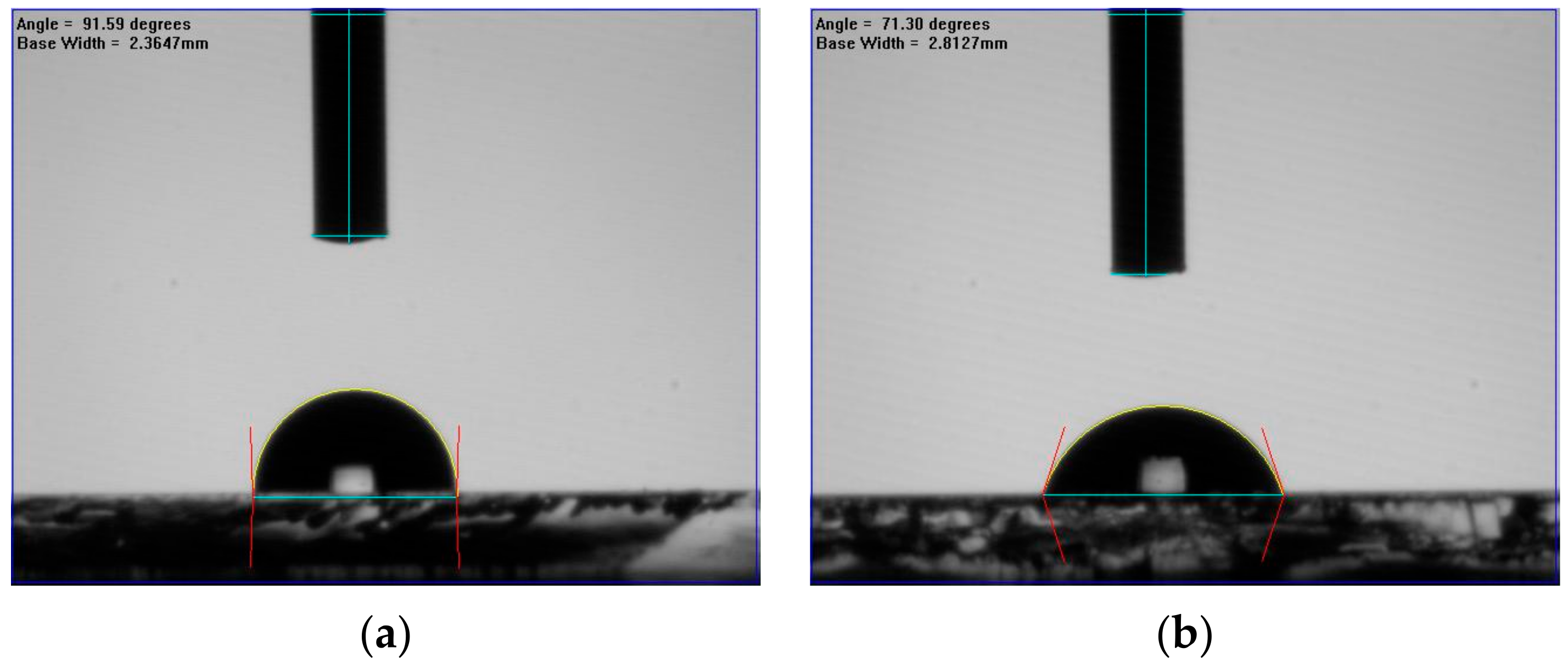

Figure 5. Contact angles of perovskite films composed of MAPbI3 and CsPbI3 QDs after surface treatment at various oxygen plasma powers from 0 to 80 W, (a) 0 W, (b) 20 W, (c) 40 W, (d) 60 W and (e) 80 W. And (f) the contact angles is consolidated in chart.
Figure 5. Contact angles of perovskite films composed of MAPbI3 and CsPbI3 QDs after surface treatment at various oxygen plasma powers from 0 to 80 W, (a) 0 W, (b) 20 W, (c) 40 W, (d) 60 W and (e) 80 W. And (f) the contact angles is consolidated in chart.
Molecules 26 05133 g005aMolecules 26 05133 g005b
Table
Table 1. Hall effect measurement of the pure MAPbI3 film and MAPbI3 film with CsPbI3 QDs treated with oxygen plasma at 0 to 80 W coated onto a glass substrate.
Table 1. Hall effect measurement of the pure MAPbI3 film and MAPbI3 film with CsPbI3 QDs treated with oxygen plasma at 0 to 80 W coated onto a glass substrate.
Mobility (cm2/Vs)Carrier Concentration (cm−2)
Pure MAPbI31.95 × 1033.61 × 106
0 W3.13 × 1033.66 × 106
20 W1.08 × 1044.64 × 106
40 W6.06 × 1033.21 × 106
60 W5.60 × 1032.80 × 106
80 W4.43 × 1032.48 × 106
