# Transforming Lindblad Equations into Systems of Real-Valued Linear Equations: Performance Optimization and Parallelization of an Algorithm

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Expansion over the Basis of $SU\left(N\right)$ Group Generators

## 3. Models

## 4. Algorithm

#### 4.1. Initialization (Sequential; Performed on Every Node of a Cluster)

#### 4.2. Data Preparation and Its Parallelized via Message Passing Interface (MPI)

#### 4.2.1. Computation of Expansion Coefficients ${h}_{j}$ and ${l}_{j}$ for H and L

#### 4.2.2. Computation of Coefficients ${f}_{mns}$, ${d}_{mns}$, ${z}_{mns}$ by Formulas (11) and (12)

#### 4.2.3. Computation of Coefficients ${q}_{sm}$ by Formula (13)

#### 4.2.4. Computation of Coefficients ${k}_{s}$ by Formula (14)

#### 4.2.5. Computation of Coefficients ${r}_{sm}$ by Formula (15)

#### 4.2.6. Computation of the Initial $v\left(0\right)$

#### 4.3. ODE Integration (Paralleled via MPI + OpenMP + SIMD)

## 5. Algorithm Performance

#### 5.1. Data Preparation Step

#### 5.2. The ODE Integration Step

## 6. Discussion

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Jaschke, D.; Carr, L.D. Open source matrix product states: Exact diagonalization and other entanglement-accurate methods revisited in quantum systems. J. Phys. A Math. Theor.
**2018**, 51, 465302. [Google Scholar] [CrossRef] [Green Version] - Brenes, M.; Varma, V.K.; Scardicchio, A.; Girotto, I. Massively parallel implementation and approaches to simulate quantum dynamics using Krylov subspace techniques. Comput. Phys. Commun.
**2019**, 235, 477–488. [Google Scholar] [CrossRef] [Green Version] - Boixo, S.; Isakov, S.V.; Smelyanskiy, V.N.; Babbush, R.; Ding, N.; Jiang, Z.; Bremner, M.J.; Martinis, J.M.; Neven, H. Characterizing Quantum Supremacy in near-term devices. Nat. Phys.
**2018**, 14, 595–600. [Google Scholar] [CrossRef] - Häner, T.; Steiger, D.S. 0.5 petabyte simulation of a 45-qubit quantum circuit. In Proceedings of the International Conference for High Performance Computing, Networking, Storage and Analysis. SC 2017; ACM Press: New York, NY, USA, 2017; Volume 33, pp. 1–10. [Google Scholar]
- Breuer, H.-P.; Petruccione, F. The Theory of Open Quantum Systems; Oxford University Press: Oxford, UK, 2002. [Google Scholar]
- Gorini, V.; Kossakowski, A.; Sudarshan, E.C.G. Completely positive dynamical semigroups of N-level systems. J. Math. Phys.
**1976**, 17, 821. [Google Scholar] [CrossRef] - Lindblad, G. On the generators of quantum dynamical semigroups. Commun. Math. Phys.
**1976**, 48, 119–130. [Google Scholar] [CrossRef] - Carmichael, H.J. An Open Systems Approach to Quantum Optics; Springer: Berlin, Germany, 1993. [Google Scholar]
- Girvin, S.M. Circuit QED: Superconducting qubits coupled to microwave photons. In Quantum Machines: Measurement and Control of Engineered Quantum Systems: Lecture Notes of the Les Houches Summer School; Devoret, M., Huard, B., Schoelkopf, R., Cugliandolo, L.F., Eds.; Oxford University Press: Oxford, UK, 2014; Volume 96. [Google Scholar]
- Bakemeier, L.; Alvermann, A.; Fehske, H. Route to chaos in optomechanics. Phys. Rev. Lett.
**2015**, 114, 013601. [Google Scholar] [CrossRef] [Green Version] - Alicki, R.; Lendi, K. Quantum Dynamical Semigroups and Applications; Lecture Notes in Physics; Springer: Berlin, Germany, 1998; Volume 286. [Google Scholar]
- Chruściński, D.; Pascazio, S. A brief history of the GKLS equation. Open Syst. Inf. Dyn.
**2017**, 24, 1740001. [Google Scholar] [CrossRef] - Gell-Mann, M. Symmetries of baryons and mesons. Phys. Rev.
**1962**, 125, 1067. [Google Scholar] [CrossRef] [Green Version] - Georgi, H. Lie Algebras in Particle Physics; Addison Wesley Publishing Company: Boston, MA, USA, 1982. [Google Scholar]
- Liniov, A.; Meyerov, I.; Kozinov, E.; Volokitin, V.; Yusipov, I.; Ivanchenko, M.; Denisov, S. Unfolding quantum master equation into a system of real-valued equations: Computationally effective expansion over the basis of SU(N) generators. Phys. Rev. E
**2019**, 100, 053305. [Google Scholar] [CrossRef] [Green Version] - Amodio, P.; Brugnano, L. Parallel solution in time of ODEs: Some achievements and perspectives. Appl. Numer. Math.
**2009**, 59, 424–435. [Google Scholar] [CrossRef] - Denisov, S.; Laptyeva, T.; Tarnowski, W.; Chrušciński, D.; Życzkowski, K. Universal spectra of random Lindblad operators. Phys. Rev. Lett.
**2019**, 123, 140403. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Edelman, A.; Rao, N.R. Random matrix theory. Acta Numer.
**2005**, 14, 233. [Google Scholar] [CrossRef] [Green Version] - Kimura, G. The Bloch vector for N-level systems. Phys. Lett. A
**2003**, 314, 339–349. [Google Scholar] [CrossRef] [Green Version] - Weiss, C.; Teichmann, N. Differences between mean-field dynamics and N-particle quantum dynamics as a signature of entanglement. Phys. Rev. Lett
**2008**, 100, 140408. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Vardi, A.; Anglin, J.R. Bose-Einstein condensates beyond mean field theory: Quantum backreaction as decoherence. Phy. Rev. Lett.
**2001**, 86, 568. [Google Scholar] [CrossRef] [Green Version] - Trimborn, F.; Witthaut, D.; Wimberger, S. Mean-field dynamics of a two-mode Bose-Einstein condensate subject to noise and dissipation. J. Phys. B At. Mol. Opt. Phys.
**2008**, 41, 171001. [Google Scholar] [CrossRef] - Poletti, D.; Bernier, J.-S.; Georges, A.; Kollath, C. Interaction-induced impeding of decoherence and anomalous diffusion. Phys. Rev. Lett.
**2012**, 109, 045302. [Google Scholar] [CrossRef] [Green Version] - Tomkovič, J.; Muessel, W.; Strobel, H.; Löck, S.; Schlagheck, P.; Ketzmerick, R.; Oberthaler, M.K. Experimental observation of the Poincaré-Birkhoff scenario in a driven many-body quantum system. Phys. Rev. A
**2017**, 95, 011602(R). [Google Scholar] [CrossRef] [Green Version] - Diehl, S.; Micheli, A.; Kantian, A.; Kraus, B.; Büchler, H.P.; Zoller, P. Quantum states and phases in driven open quantum systems with cold atoms. Nat. Phys.
**2008**, 4, 878–883. [Google Scholar] [CrossRef] [Green Version] - Pastur, L.A.; Shcherbina, M. Eigenvalue Distribution of Large Random Matrices; AMS Press: New York, NY, USA, 2011. [Google Scholar]
- Wang, K.; Piazza, F.; Luitz, D.J. Hierarchy of relaxation timescales in local random Liouvillians. Phys. Rev. Lett.
**2020**, 124, 100604. [Google Scholar] [CrossRef] [Green Version] - Sá, L.; Ribeiro, P.; Prosen, T. Complex spacing ratios: A signature of dissipative quantum chaos. Phys. Rev. X
**2020**, 10, 021019. [Google Scholar] [CrossRef] - Akemann, G.; Kieburg, M.; Mielke, A.; Prosen, T. Universal signature from integrability to chaos in dissipative open quantum systems. Phys. Rev. Lett.
**2019**, 123, 254101. [Google Scholar] [CrossRef] [PubMed] [Green Version]

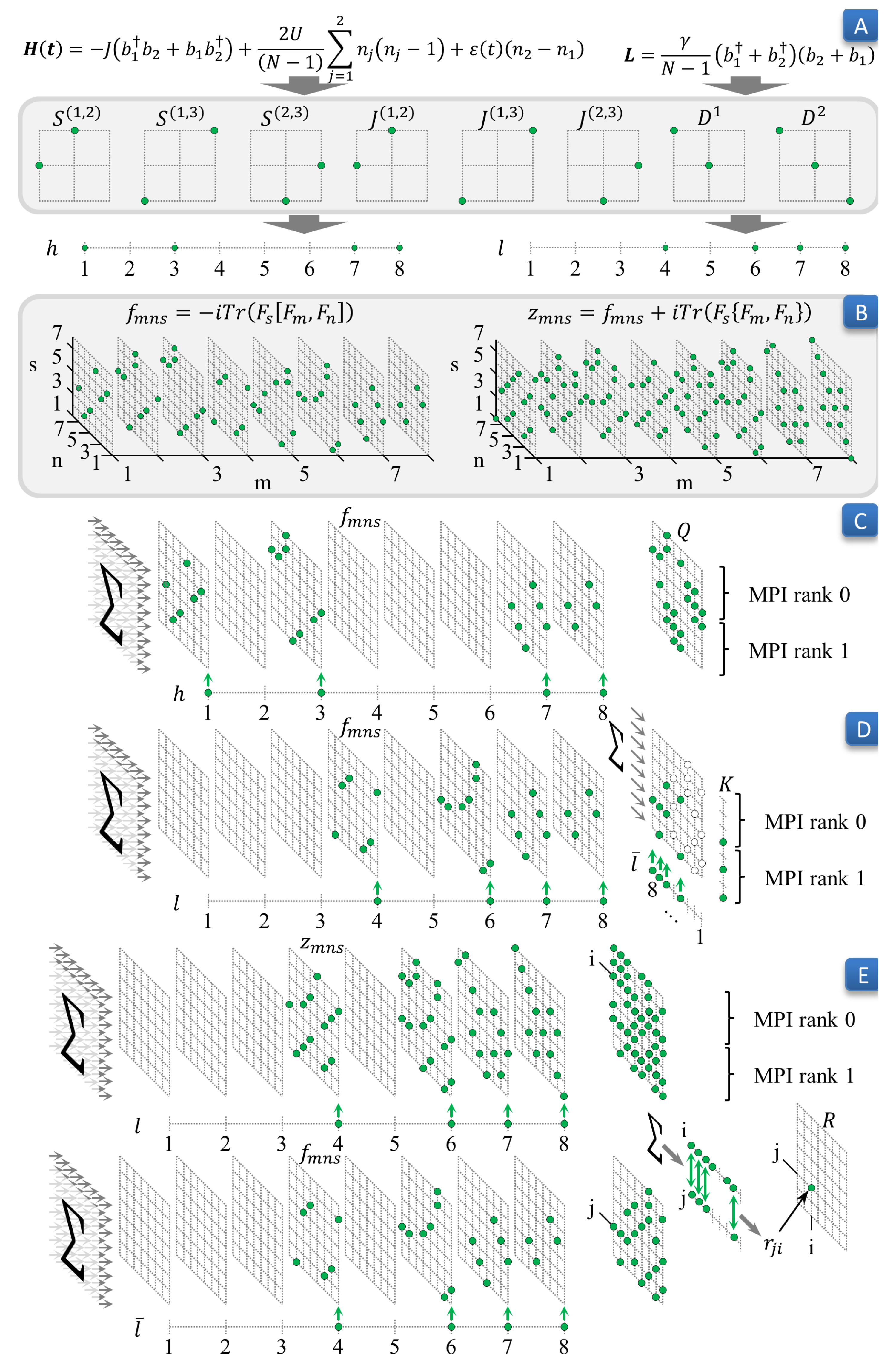

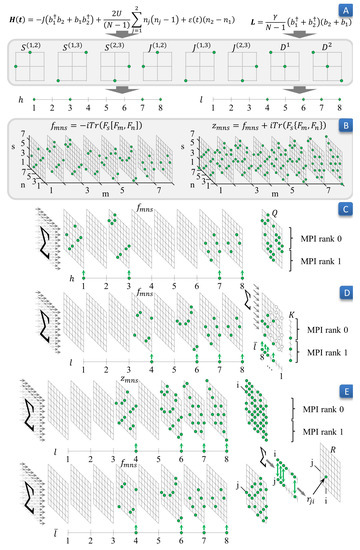

**Figure 1.**The parallel data preparation pipeline for the dimer model. On Panel A, we sketch distribution of nonzero elements of matrices S, J, and D, forming basis $\left\{F\right\}$, Equations (3)–(5), respectively. Panel B depicts locations of nonzero elements in tensors f and d, Equation (11), which are not stored in memory but computed on the fly, during the Data Preparation step. Panels C, D, and E show how matrices Q, Equation (13), K, Equation (14), and R, Equation (15), are computed in parallel by two MPI processes (steps 2.3–2.5 in Table 1).

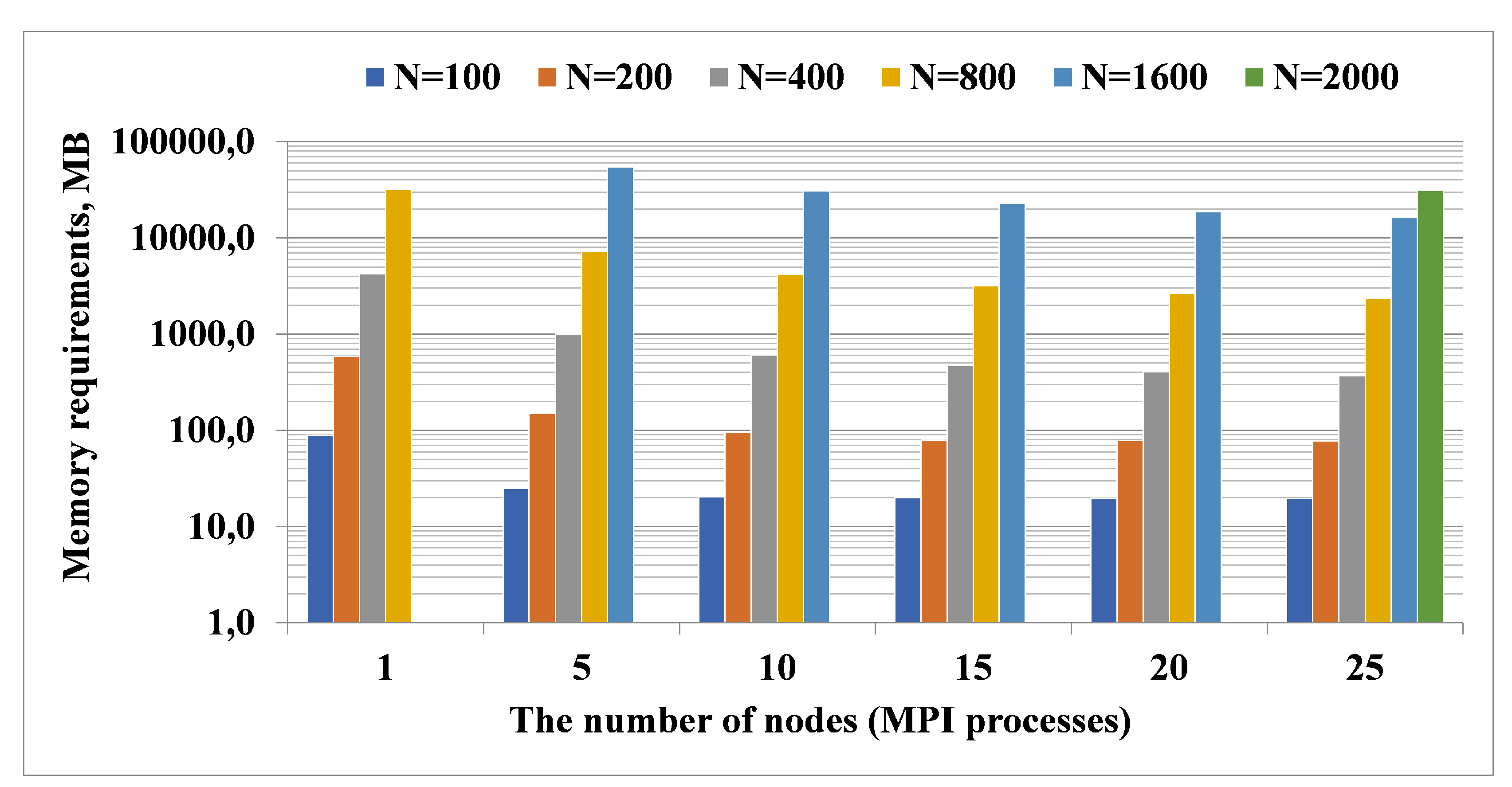

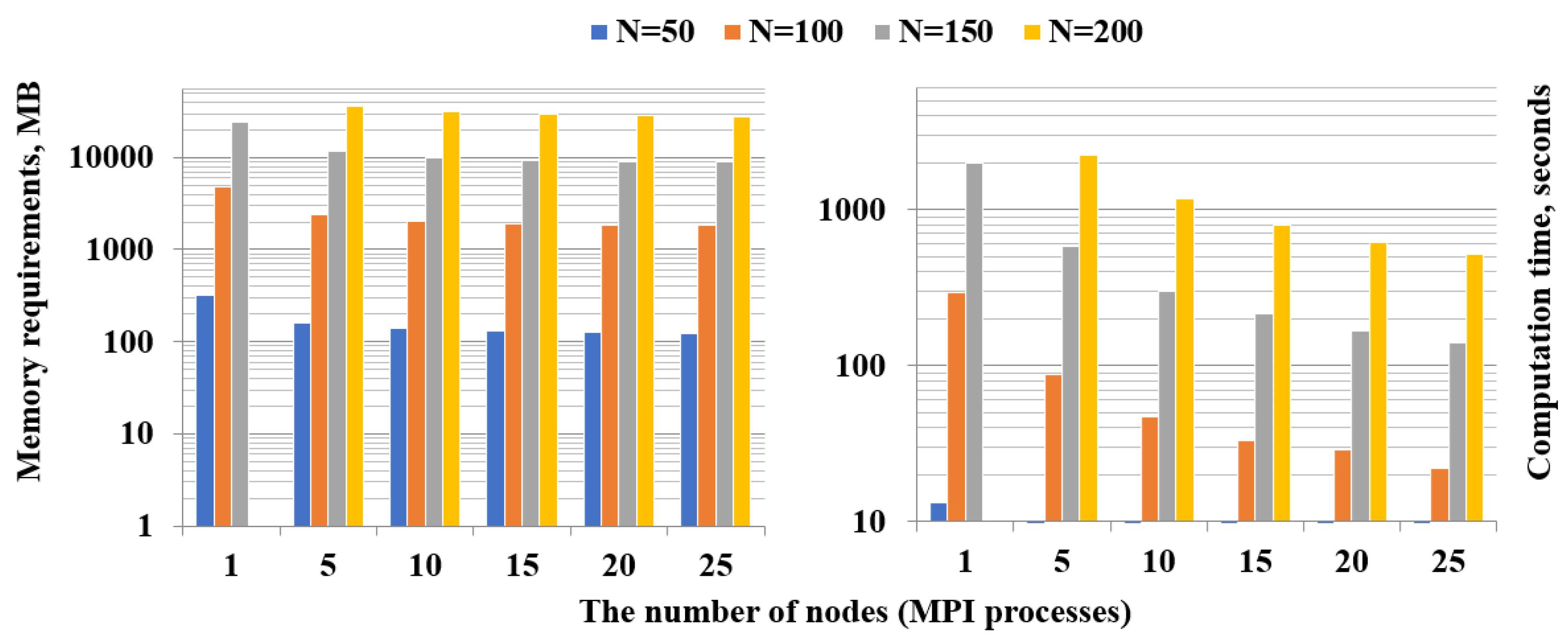

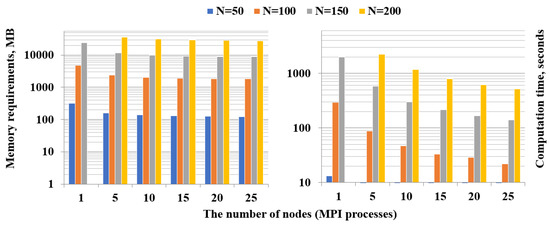

**Figure 3.**Memory consumption per one node (

**left**) and computation time (

**right**) of the Data Preparation step for the dense model.

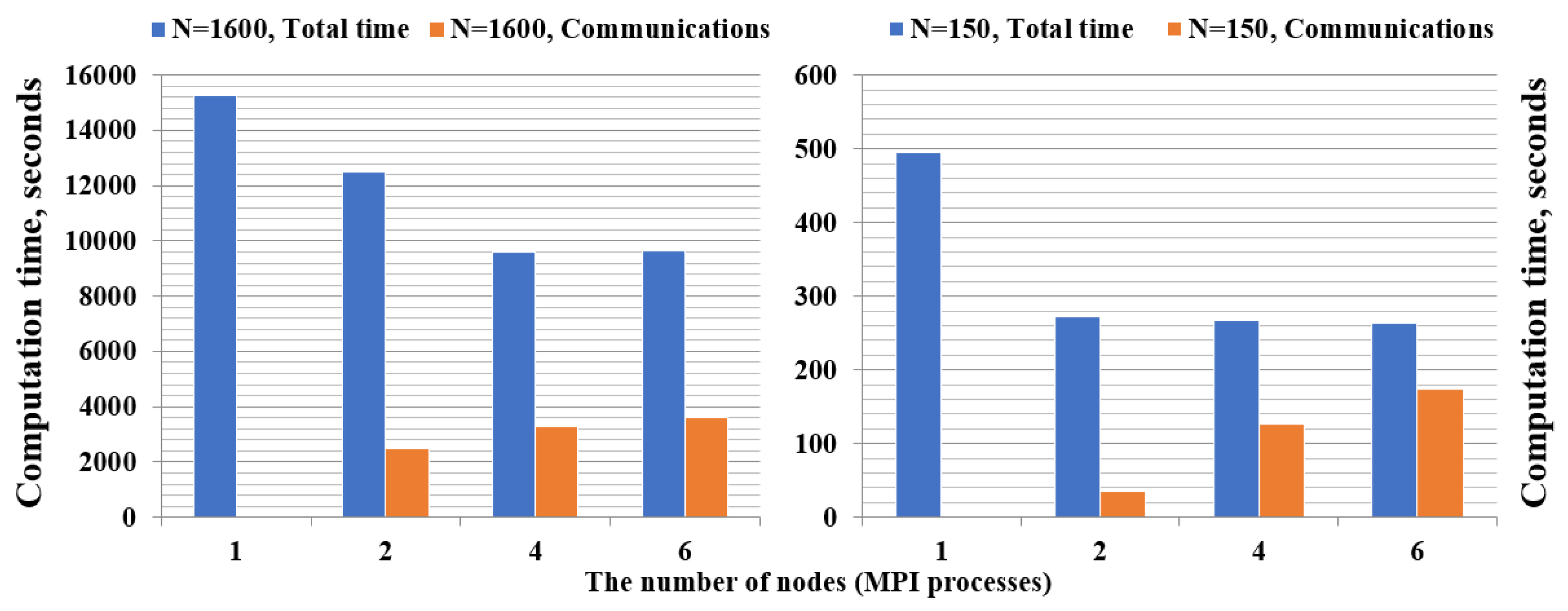

**Figure 4.**Computation time of ODE Integration step for the sparse (

**left**) and dense (

**right**) models. Numerical integration was performed for one period of modulation T, with 20,000 steps per period.

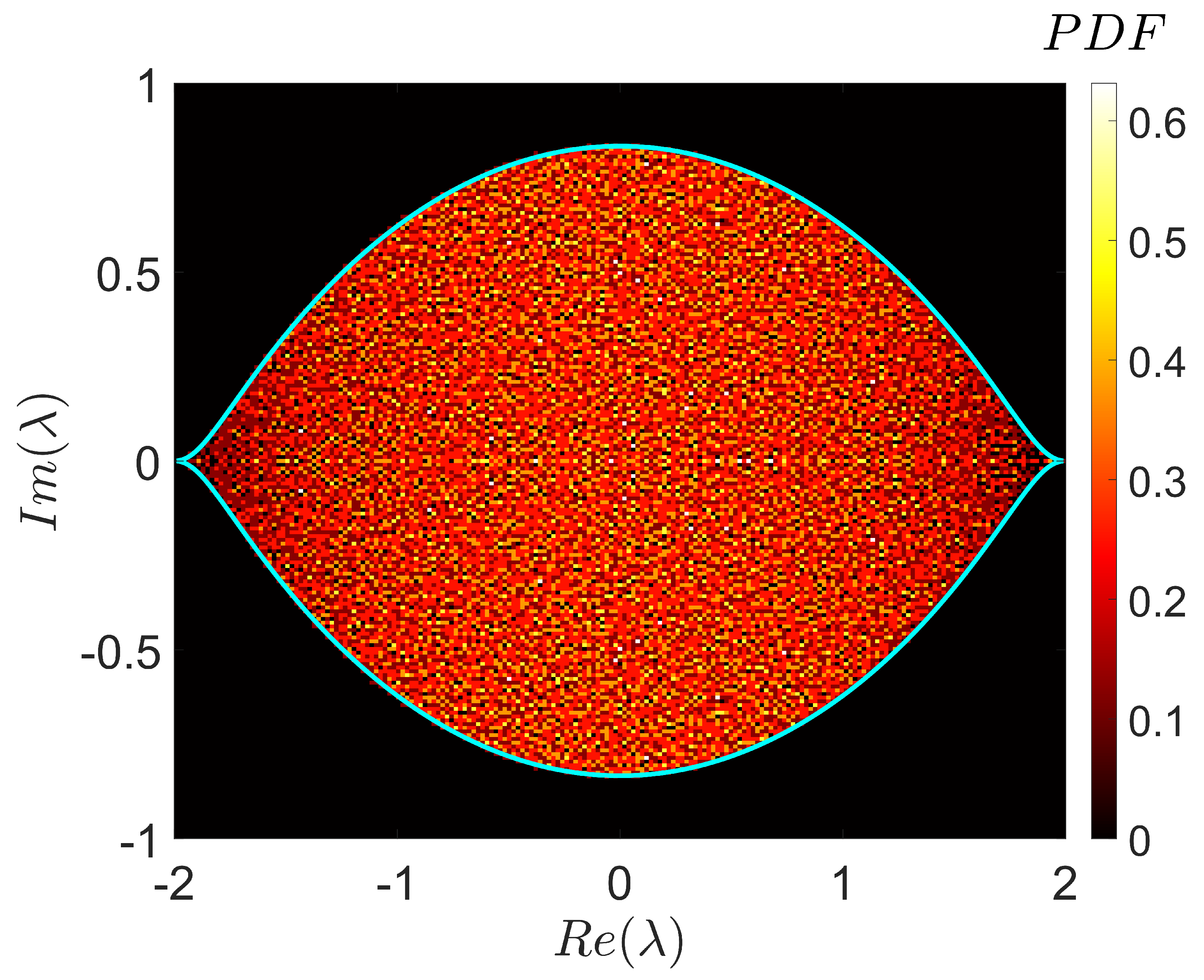

**Figure 5.**Histogram of the complex eigenvalues, ${\lambda}_{i}$, $i=2,3,\dots .,{N}^{2}$, of a single realization of a random Lindbladian (see Section 3) for $N=200$. The shown area was resolved with a grid of $100\times 100$ cells; the number of eigenvalues in every cell was normalized by the cell area. Altogether, ${N}^{2}-1=39999$ eigenvalues are presented (except ${\lambda}_{1}=1$). The bright thick line corresponds to the universal spectral boundary derived analytically in [17].

Step | Substep (the Sequential Algorithm) | Parallelization |
---|---|---|

1. Initialization | 1.1. Read the initial data from configuration files. 1.2. Allocate and initialize memory. | Sequential step, all the operations are performed on every node of a cluster. |

Data Preparation cycle: | This step is parallelized, computation time and memory costs are distributed among cluster nodes via Message Passing Interface (MPI). | |

2.1. Compute the coefficients ${h}_{i}$, ${l}_{i}$ of the expansion of the matrices H and L in the basis $\left\{{F}_{i}\right\}$. | Step 2.1. (Figure 1, Panel A) is not resource demanding and, therefore, is performed on each cluster node independently. | |

2. Data Preparation | 2.2. Compute the coefficients ${f}_{ijk}$, ${d}_{ijk}$, ${z}_{ijk}$ by formulas (11,12). | Step 2.2. (Figure 1, Panel B) is memory demanding in a straightforward implementation. Unlike the sequential algorithm, we compute only nonzero elements of the tensors when they are needed. |

2.3. Compute the coefficients ${q}_{sm}$ by formula (13). 2.4. Compute the coefficients ${k}_{s}$ by formula (14). 2.5. Compute the coefficients ${r}_{sm}$ by formula (15). | Parallel steps 2.3, 2.4, and 2.5 are sketched in Figure 1 (Panels C, D, and E, respectively). These steps are time and memory consuming and are executed in parallel on cluster nodes. | |

2.6. Compute the initial value $v\left(0\right)$. | Step 2.6 is not resource demanding and is realized on each cluster node independently. | |

3. ODE Integration | 3.1. Integrate the ODE (10), over time to $t=T$ by means of the Runge–Kutta method. 3.2. Compute $\rho \left(T\right)$ by formula (7). | This step is parallelized via MPI (among cluster nodes), OpenMP (among CPU cores on every node), and SIMD instructions (on every CPU core). |

4. Finalization | 4.1. Save the results. 4.2. Release memory. | Here we gather results from computational nodes, save the results, and finalize MPI. |
