# A Comprehensive Evaluation of Graph Kernels for Unattributed Graphs

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Graph Kernel

#### 2.1. Graph Definition

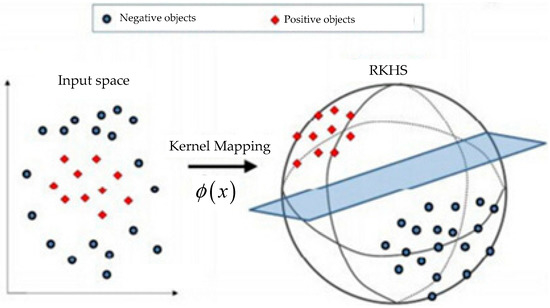

#### 2.2. Kernel Method

- Symmetric. Obviously, for two graphs ${G}_{A}$ and ${G}_{B}$, $k\left({G}_{A},{G}_{B}\right)=k\left({G}_{B},{G}_{A}\right)$.
- p.s.d. For a dataset with $n$ graphs, any finite sequences of graphs ${g}_{1},{g}_{2},\cdots {g}_{n}$ and any choices of arbitrary real numbers ${c}_{1},{c}_{2},\cdots {c}_{n}$, we have $\sum _{i=1}^{n}{\displaystyle \sum _{j=1}^{n}k\left({g}_{i},{g}_{j}\right){c}_{i}{c}_{j}}}\ge 0$, i.e., all the eigenvalues of the kernel matrix ${K}_{n\times n}=\left[k\left({g}_{i},{g}_{j}\right)\right]$ for the dataset are nonnegative.

#### 2.3. Kernel Groups

- Most of these kernels are R-convolution, unaligned and local-pattern kernels.
- All the entropy kernels here utilize quantum walk model to compute the probability distribution.
- All of the information theory kernels here belong to the group of entropy kernels. Meanwhile, some R-convolution kernels which detect the similar substructure via the computation of information entropy also belong to this group.

## 3. Complexity Analysis

## 4. Quantitative Evaluation

#### 4.1. Datasets

**The real-world datasets**. According to the main scope of graph classification, 31 graph datasets from the real world are chosen, including 20 chemical datasets, five image datasets, two social network datasets, three hand-writing datasets and one fingerprint dataset. Among the 31 datasets, some of them are multi-class, such as COIL-DEL and so on. Others are binary class datasets (given in Table A1 in Appendix A). For each object in these datasets, its topological structure is extracted as an unattributed graph, and we try to find the relationship between the natural characteristic and the graph structure. All the datasets can be downloaded from the benchmark website [39].

**The synthetic datasets**. In order to further evaluate the scalability and the applicability of these kernels, some synthetic datasets are chosen or generated, including random graphs, cospectral graphs, regular graphs and strong regular graphs.

#### 4.2. Evaluation Criteria

**Accuracy**. Accuracy is the most important criterion for classification to compare the graph kernels. In this paper, C-SVM [41] is utilized to do the 10-fold cross validation test. In particular, for all the kernels, 10-fold division is the same for every single comparison, and 100 random tests are repeated. Here we use the average probability of the correct-labelled test samples as the accuracy result. Meanwhile, F1 score (macro F1) is used to compute the classification ability for the multi-class problems.**Runtime**. This criterion mainly focuses on the computational cost of a graph kernel for a graph dataset. Because the training procedure belongs to the post-process, we only consider the runtime cost of the computation of the kernel matrix.**Scalability**. To evaluate the runtime cost clearly, scalability is further used to unveil the behavior of the computational time with the increasing number of the graph sizes or graphs in the dataset.**Applicability**. Theoretically, a complete graph kernel is fit for the general graph family, i.e., if graph ${G}_{A}$ is not isomorphic to graph ${G}_{B}$, then $k\left(\text{}\cdot \text{},{G}_{B}\right)\ne k\left(\text{}\cdot \text{},{G}_{A}\right)$. However, inexact graph kernels may fail to distinguish some similar graphs,, especially the cases of cospectral graphs and regular graphs. We utilize the failure rate as the applicability measurement for the graph kernels.

#### 4.3. Results

#### 4.3.1. Accuracy Results

#### 4.3.2. Runtime Results

#### 4.3.3. Scalability Results

#### 4.3.4. Applicability Results

## 5. Discussion

- R-convolution kernels perform better on scalabilities and runtime cost, while the information theory kernels show better abilities on accuracy and applicability. The information theory kernels utilize the global probability distribution diffusion of two graphs to measure the graph similarity. Therefore, compared with local pattern matching of R-convolution kernels, the information theory kernels result in the better accuracy and applicability.
- Aligned kernels have stronger applicability and node-based scalability but are weaker than unaligned kernels on the other criteria. Through graph alignment, the vertex mapping characteristic is found out before kernel computation. Meanwhile, the slight difference of the similar graph pairs can also be located in the alignment procedure. Therefore, after graph alignment, the kernel methods can utilize the vertex mapping directly, which leads to a well node-based scalability.
- Global kernels, quantum kernels and entropy kernels are worse than their counterpart kernel group in all the other criteria except the distinguishing ability (applicability). It unveils that if good applicability is needed, more complex computations are needed in the kernel method, such as the above kinds of graph kernels.

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A. The Real-World Datasets

**Table A1.**The detailed information of the real-world datasets. The dataset density is calculated by the average edges divided by the average nodes.

Dataset Name | Statistics | Description | ||||
---|---|---|---|---|---|---|

#Set | #Class | Avg. #Nodes | Avg. #Edges | Density | ||

Mutagenicity | 4337 | 2 | 30.32 | 30.77 | 1.01 | Chemical Molecule |

PTC_MM | 336 | 2 | 13.97 | 14.32 | 1.03 | Chemical Molecule |

PTC_FM | 349 | 2 | 14.11 | 14.48 | 1.03 | Chemical Molecule |

PTC_MR | 344 | 2 | 14.29 | 14.69 | 1.03 | Chemical Molecule |

PTC_FR | 351 | 2 | 14.56 | 15 | 1.03 | Chemical Molecule |

AIDS | 2000 | 2 | 15.69 | 16.2 | 1.03 | Chemical Molecule |

DHFR | 467 | 2 | 42.43 | 44.54 | 1.05 | Chemical Molecule |

COX2 | 467 | 2 | 41.22 | 43.45 | 1.05 | Chemical Molecule |

FRANKENSTEIN | 4337 | 2 | 16.9 | 17.88 | 1.06 | Chemical Molecule |

BZR | 405 | 2 | 35.75 | 38.36 | 1.07 | Chemical Molecule |

NCI1 | 4110 | 2 | 29.87 | 32.3 | 1.08 | Chemical Molecule |

NCI109 | 4127 | 2 | 29.68 | 32.13 | 1.08 | Chemical Molecule |

MUTAG | 188 | 2 | 17.93 | 19.79 | 1.10 | Chemical Molecule |

PROTEINS | 1113 | 2 | 39.06 | 72.82 | 1.86 | Chemical Molecule |

PROTEINS_full | 1113 | 2 | 39.06 | 72.82 | 1.86 | Chemical Molecule |

ENZYMES | 600 | 6 | 32.63 | 62.14 | 1.90 | Chemical Molecule |

BZR_MD | 306 | 2 | 21.3 | 225.06 | 10.57 | Chemical Molecule |

ER_MD | 446 | 2 | 21.33 | 234.85 | 11.01 | Chemical Molecule |

DHFR_MD | 393 | 2 | 23.87 | 283.01 | 11.86 | Chemical Molecule |

COX2_MD | 303 | 2 | 26.28 | 335.12 | 12.75 | Chemical Molecule |

COIL-RAG | 3900 | 100 | 3.01 | 3.02 | 1.00 | Image |

MSRC_21C | 209 | 20 | 40.28 | 96.6 | 2.40 | Image |

MSRC_9 | 221 | 8 | 40.58 | 97.94 | 2.41 | Image |

COIL-DEL | 3900 | 100 | 21.54 | 54.24 | 2.52 | Image |

MSRC_21 | 563 | 20 | 77.52 | 198.32 | 2.56 | Image |

Letter-low | 2250 | 15 | 4.68 | 3.13 | 0.67 | Handwriting |

Letter-high | 2250 | 15 | 4.67 | 4.5 | 0.96 | Handwriting |

Letter-med | 2250 | 15 | 4.67 | 4.5 | 0.96 | Handwriting |

IMDB-BINARY | 1000 | 2 | 19.77 | 96.53 | 4.88 | Social Network |

IMDB-MULTI | 1500 | 3 | 13 | 65.94 | 5.07 | Social Network |

Fingerprint | 2800 | 4 | 5.42 | 4.42 | 0.82 | Fingerprint |

## Appendix B. The Complete Results of Accuracy Test

**Table A2.**The complete results of the classification accuracy. Every item is comprised of the average accuracy (%) and the standard deviation of 100 repeated tests. The bold numbers are the best result among the ten kernels for each dataset.

Datasets | SPK | WLK | AGK | GHK | RWK | QJSU | LTK | ASK | DQMK | QJSK |
---|---|---|---|---|---|---|---|---|---|---|

AIDS | 99.32 ± 0.59 | 98.75 ± 0.87 | 98.78 ± 0.84 | 99.33 ± 0.58 | 79.99 ± 2.67 | 99.73 ± 0.34 | 99.54 ± 0.46 | 96.79 ± 1.24 | 79.99 ± 2.67 | 79.99 ± 2.67 |

BZR | 79.95 ± 2.31 | 87.75 ± 1.53 | 78.96 ± 2.35 | 83.82 ± 1.86 | 78.61 ± 2.34 | 83.26 ± 2.01 | 79.23 ± 2.26 | 79.29 ± 2.56 | 78.61 ± 2.34 | 78.61 ± 2.34 |

BZR_MD | 60.71 ± 2.51 | 59.25 ± 2.82 | 48.96 ± 0.98 | 60.56 ± 2.36 | 61.49 ± 1.26 | 62.33 ± 2.00 | 60.59 ± 2.41 | 60.87 ± 2.26 | 59.08 ± 1.15 | 55.41 ± 2.36 |

COIL-DEL | 12.04 ± 1.60 | 12.43 ± 1.51 | 8.80 ± 1.41 | 18.11 ± 1.75 | 0.94 ± 0.49 | 7.83 ± 1.23 | 7.70 ± 1.16 | 4.46 ± 1.05 | 6.01 ± 1.10 | 0.84 ± 0.08 |

COIL-RAG | 4.99 ± 1.11 | 5.89 ± 1.14 | 3.34 ± 0.87 | 5.77 ± 1.18 | 0.83 ± 0.05 | 6.16 ± 1.13 | 5.20 ± 1.16 | 2.45 ± 0.76 | 3.76 ± 0.93 | 0.83 ± 0.05 |

COX2 | 78.15 ± 5.64 | 78.87 ± 5.63 | 78.15 ± 5.64 | 78.65 ± 5.74 | 78.15 ± 5.64 | 78.69 ± 5.94 | 78.17 ± 5.57 | 78.15 ± 5.64 | 78.15 ± 5.64 | 78.08 ± 5.69 |

COX2_MD | 47.95 ± 1.12 | 47.51 ± 1.86 | 47.95 ± 1.12 | 48.00 ± 1.14 | 47.00 ± 1.83 | 46.80 ± 2.00 | 47.57 ± 1.19 | 47.44 ± 1.08 | 46.77 ± 1.33 | 47.85 ± 1.01 |

DHFR | 70.09 ± 5.89 | 82.13 ± 4.31 | 61.23 ± 5.48 | 79.77 ± 4.75 | 61.23 ± 5.48 | 79.03 ± 4.09 | 60.91 ± 5.04 | 47.40 ± 4.80 | 76.77 ± 4.96 | 61.23 ± 5.48 |

DHFR_MD | 68.11 ± 3.61 | 67.07 ± 3.57 | 68.11 ± 3.61 | 66.81 ± 3.61 | 67.55 ± 3.57 | 66.88 ± 3.62 | 67.12 ± 3.66 | 67.72 ± 3.68 | 68.11 ± 3.61 | 68.11 ± 3.61 |

ER_MD | 59.65 ± 3.50 | 63.14 ± 3.62 | 59.14 ± 3.07 | 62.62 ± 3.26 | 62.50 ± 3.03 | 61.65 ± 3.31 | 62.78 ± 3.01 | 63.19 ± 3.62 | 59.04 ± 3.05 | 59.14 ± 3.07 |

ENZYMES | 28.70 ± 5.58 | 37.39 ± 6.48 | 26.65 ± 5.78 | 37.34 ± 6.58 | 11.63 ± 3.12 | 31.97 ± 6.21 | 22.89 ± 5.19 | 30.27 ± 5.67 | 28.91 ± 5.71 | 19.56 ± 2.44 |

Fingerprint | 26.62 ± 2.81 | 27.23 ± 2.93 | 29.75 ± 3.04 | 26.68 ± 2.69 | 24.57 ± 2.75 | 30.16 ± 3.12 | 29.56 ± 3.21 | 24.74 ± 2.62 | 30.73 ± 3.00 | 24.14 ± 2.85 |

FRANKENSTEIN | 60.46 ± 2.35 | 72.40 ± 1.89 | 59.46 ± 2.29 | 67.33 ± 2.08 | 57.54 ± 2.67 | 66.91 ± 2.22 | 62.07 ± 2.25 | 63.33 ± 2.00 | 63.77 ± 2.39 | 52.51 ± 3.16 |

IMDB-BINARY | 59.09 ± 5.21 | 72.45 ± 4.33 | 64.92 ± 5.22 | 71.74 ± 4.47 | 67.50 ± 5.14 | 62.10 ± 5.24 | 61.75 ± 5.21 | 63.57 ± 5.03 | 46.40 ± 4.30 | 50.36 ± 5.57 |

IMDB-MULTI | 40.71 ± 4.63 | 50.96 ± 4.37 | 40.11 ± 4.25 | 50.45 ± 3.61 | 46.20 ± 4.52 | 43.24 ± 4.14 | 45.81 ± 3.72 | 42.81 ± 5.15 | 49.02 ± 4.93 | 43.51 ± 4.15 |

Letter-high | 28.99 ± 3.02 | 33.87 ± 2.84 | 32.03 ± 3.09 | 34.20 ± 3.03 | 13.25 ± 2.23 | 46.36 ± 3.13 | 30.71 ± 3.05 | 28.20 ± 3.08 | 32.89 ± 3.50 | 26.90 ± 3.03 |

Letter-low | 32.82 ± 2.87 | 39.30 ± 3.18 | 43.92 ± 3.11 | 37.15 ± 3.31 | 6.86 ± 2.70 | 78.90 ± 2.50 | 33.26 ± 3.03 | 33.03 ± 5.61 | 46.74 ± 3.29 | 27.71 ± 2.09 |

Letter-med | 30.63 ± 2.73 | 36.36 ± 3.40 | 39.70 ± 3.15 | 35.62 ± 3.27 | 7.16 ± 2.64 | 74.02 ± 2.87 | 30.82 ± 3.16 | 28.66 ± 5.28 | 43.72 ± 3.25 | 27.10 ± 2.17 |

Mutagenicity | 63.64 ± 2.18 | 78.48 ± 1.86 | 59.62 ± 2.38 | 69.34 ± 2.11 | 55.32 ± 2.39 | 69.07 ± 2.10 | 60.17 ± 2.17 | 62.44 ± 2.04 | 58.71 ± 2.67 | 55.32 ± 2.39 |

MSRC_9 | 16.53 ± 1.53 | 13.00 ± 2.98 | 8.05 ± 1.10 | 19.29 ± 2.70 | 8.49 ± 1.28 | 15.00 ± 0.37 | 9.82 ± 1.61 | 17.78 ± 3.10 | 14.73 ± 2.02 | 9.38 ± 2.47 |

MSRC_21 | 12.86 ± 0.68 | 7.52 ± 0.77 | 5.66 ± 1.74 | 11.35 ± 1.83 | 4.12 ± 0.49 | 6.92 ± 1.18 | 5.02 ± 1.87 | 7.12 ± 1.22 | 3.54 ± 1.22 | 4.39 ± 2.10 |

MSRC_21C | 19.14 ± 2.90 | 11.82 ± 1.40 | 13.24 ± 1.69 | 14.32 ± 2.44 | 12.26 ± 1.14 | 17.12 ± 1.35 | 15.04 ± 1.41 | 15.52 ± 1.25 | 11.28 ± 1.22 | 11.78 ± 1.27 |

MUTAG | 82.96 ± 3.65 | 81.69 ± 2.31 | 80.84 ± 3.52 | 85.40 ± 2.65 | 77.00 ± 3.41 | 82.67 ± 2.19 | 83.29 ± 2.81 | 84.20 ± 3.46 | 76.42 ± 2.88 | 79.00 ± 3.41 |

NCI1 | 61.76 ± 2.40 | 81.77 ± 1.79 | 62.48 ± 2.29 | 68.02 ± 2.36 | 57.95 ± 1.46 | 66.25 ± 2.21 | 62.84 ± 2.47 | 64.49 ± 2.55 | 65.18 ± 2.33 | 57.82 ± 1.60 |

NCI109 | 62.16 ± 2.33 | 82.29 ± 1.89 | 62.41 ± 2.28 | 67.34 ± 2.51 | 59.80 ± 2.11 | 66.10 ± 2.56 | 62.58 ± 2.44 | 63.22 ± 2.56 | 64.88 ± 2.25 | 59.62 ± 2.18 |

PTC_FM | 59.09 ± 2.23 | 58.64 ± 2.36 | 60.08 ± 2.20 | 59.62 ± 2.11 | 58.75 ± 2.89 | 59.91 ± 2.15 | 61.22 ± 2.06 | 59.39 ± 2.52 | 59.33 ± 1.76 | 58.39 ± 2.00 |

PTC_FR | 65.43 ± 3.58 | 65.30 ± 4.13 | 65.50 ± 3.64 | 65.31 ± 3.62 | 65.66 ± 3.56 | 64.49 ± 3.62 | 65.51 ± 3.35 | 65.10 ± 3.27 | 65.62 ± 3.57 | 65.49 ± 3.57 |

PTC_MM | 60.92 ± 2.69 | 61.98 ± 2.01 | 62.05 ± 2.58 | 61.45 ± 2.59 | 61.27 ± 2.64 | 59.37 ± 2.48 | 59.60 ± 2.63 | 60.99 ± 2.49 | 61.09 ± 2.73 | 61.08 ± 2.76 |

PTC_MR | 56.39 ± 3.51 | 56.68 ± 3.69 | 56.35 ± 4.29 | 55.94 ± 4.34 | 56.05 ± 3.13 | 56.29 ± 4.17 | 56.92 ± 4.14 | 56.22 ± 4.88 | 57.29 ± 4.20 | 55.61 ± 4.23 |

PROTEINS | 72.50 ± 4.38 | 72.77 ± 4.11 | 71.29 ± 4.26 | 74.13 ± 3.97 | 70.13 ± 4.88 | 71.79 ± 4.03 | 71.29 ± 4.15 | 72.00 ± 4.32 | 66.05 ± 4.61 | 70.13 ± 4.88 |

PROTEINS_full | 72.36 ± 3.86 | 72.56 ± 4.19 | 70.88 ± 3.95 | 73.81 ± 3.78 | 69.26 ± 4.31 | 71.62 ± 4.26 | 70.88 ± 3.96 | 71.74 ± 4.01 | 65.25 ± 4.47 | 69.26 ± 4.31 |

Average | 51.44 ± 3.00 | 55.39 ± 2.90 | 50.59 ± 2.94 | 54.49 ± 2.98 | 46.10 ± 2.77 | 55.90 ± 2.83 | 50.64 ± 2.90 | 51.28 ± 3.19 | 50.58 ± 3.00 | 47.07 ± 2.87 |

**Table A3.**The complete result of the F1 score test. Every item shows the average score (%) and the standard deviation of 100 repeated tests. The bold numbers are the best result among the ten kernels for each dataset.

Datasets | SPK | WLK | AGK | GHK | RWK | QJSU | LTK | ASK | DQMK | QJSK |
---|---|---|---|---|---|---|---|---|---|---|

COIL-DEL | 12.55 ± 1.39 | 13.07 ± 1.59 | 10.98 ± 1.6 | 17.59 ± 2.21 | 3.23 ± 0.72 | 11.77 ± 1.67 | 5.01 ± 0.71 | 4.74 ± 0.69 | 6.67 ± 1.74 | 1.02 ± 0.1 |

COIL-RAG | 2.91 ± 0.79 | 4.31 ± 0.72 | 2.3 ± 0.74 | 4.25 ± 1.13 | 1.78 ± 0.77 | 4.63 ± 1.26 | 3.77 ± 0.94 | 2.34 ± 1.14 | 3.40 ± 0.80 | 0.83 ± 0.11 |

ENZYMES | 30.61 ± 3.38 | 37.35 ± 4.5 | 30.04 ± 7.31 | 37.67 ± 4.87 | 11.76 ± 5.06 | 33.98 ± 7.34 | 22.8 ± 6.26 | 30.7 ± 4.77 | 26.94 ± 5.85 | 5.88 ± 0.67 |

Fingerprint | 5.78 ± 1.51 | 6.63 ± 0.54 | 6.54 ± 1.59 | 6.26 ± 0.64 | 4.43 ± 1.01 | 7.14 ± 1.1 | 6.37 ± 1.5 | 3.35 ± 1.13 | 7.17 ± 0.78 | 2.78 ± 0.34 |

IMDB-MULTI | 40.89 ± 3.08 | 51.67 ± 3.09 | 42.5 ± 1.61 | 51.94 ± 3.16 | 48.29 ± 4.23 | 44.1 ± 4.01 | 46.55 ± 3.75 | 46.0 ± 2.57 | 37.76 ± 3.99 | 29.86 ± 4.67 |

Letter-high | 28.98 ± 3.74 | 31.69 ± 2.01 | 31.73 ± 2.02 | 34.28 ± 2.86 | 11.08 ± 1.83 | 47.86 ± 2.37 | 31.53 ± 3.73 | 27.3 ± 2.45 | 38.03 ± 2.77 | 6.09 ± 1.03 |

Letter-low | 32.21 ± 3.66 | 35.84 ± 2.96 | 36.17 ± 1.96 | 33.75 ± 1.83 | 11.91 ± 3.05 | 79.32 ± 1.28 | 32.25 ± 2.46 | 31.82 ± 5.79 | 44.17 ± 1.59 | 6.72 ± 0.89 |

Letter-med | 28.16 ± 2.75 | 32.95 ± 3.75 | 33.67 ± 1.85 | 33.3 ± 2.57 | 12.87 ± 4.46 | 74.1 ± 3.23 | 29.49 ± 4.31 | 26.73 ± 3.13 | 41.3 ± 1.14 | 5.00 ± 0.29 |

MSRC_9 | 22.13 ± 2.52 | 10.23 ± 1.66 | 18.0 ± 1.85 | 13.68 ± 2.34 | 14.28 ± 1.78 | 9.34 ± 1.12 | 9.40 ± 2.60 | 16.47 ± 3.52 | 12.38 ± 2.56 | 1.78 ± 0.19 |

MSRC_21 | 14.02 ± 2.77 | 8.47 ± 1.37 | 6.41 ± 1.16 | 10.85 ± 2.53 | 8.15 ± 1.67 | 5.88 ± 0.14 | 3.43 ± 0.91 | 4.26 ± 1.76 | 0.49 ± 0.16 | 0.74 ± 0.10 |

MSRC_21C | 6.56 ± 0.47 | 2.96 ± 0.29 | 3.81 ± 0.43 | 3.96 ± 0.35 | 1.97 ± 0.2 | 3.94 ± 0.43 | 5.37 ± 0.36 | 5.28 ± 0.31 | 2.11 ± 0.14 | 1.01 ± 0.11 |

Average | 20.4 ± 2.7 | 21.40 ± 2.0 | 20.2 ± 2.0 | 22.5 ± 2.2 | 11.8 ± 2.2 | 29.3 ± 2.2 | 17.8 ± 2.5 | 18.10 ± 2.80 | 20.0 ± 2.00 | 5.6 ± 0.87 |

## References

- Ta, V.T.; Lézoray, O.; Elmoataz, A.; Schüpp, S. Graph-based tools for microscopic cellular image segmentation. Pattern Recognit.
**2009**, 42, 1113–1125. [Google Scholar] [CrossRef][Green Version] - Raymond, J.W.; Willett, P. Maximum common subgraph isomorphism algorithms for the matching of chemical structures. J. Comput.-Aided Mol. Des.
**2002**, 16, 521–533. [Google Scholar] [CrossRef] [PubMed][Green Version] - Fan, W. Graph pattern matching revised for social network analysis. In Proceedings of the International Conference on Database Theory, Berlin, Germany, 26–29 March 2012; pp. 8–21. [Google Scholar]
- Ngomo, A.C.N.; Schumacher, F. BorderFlow: A Local Graph Clustering Algorithm for Natural Language Processing. In Proceedings of the International Conference on Computational Linguistics and Intelligent Text Processing, Mexico City, Mexico, 1–7 March 2009; pp. 547–558. [Google Scholar]
- Mahé, P.; Vert, J.P. Graph kernels based on tree patterns for molecules. Mach. Learn.
**2009**, 75, 3–35. [Google Scholar] [CrossRef] - Aziz, F.; Wilson, R.C.; Hancock, E.R. Backtrackless walks on a graph. IEEE Trans. Neural Netw. Learn. Syst.
**2013**, 24, 977–989. [Google Scholar] [CrossRef] [PubMed] - Neuhaus, M.; Bunke, H. Bridging the Gap between Graph Edit Distance and Kernel Machines; World Scientific: Singapore, 2007. [Google Scholar]
- Torresani, L.; Kolmogorov, V.; Rother, C. Feature correspondence via graph matching: Models and global optimization. In Proceedings of the Computer Vision—ECCV, Marseille, France, 12–18 October 2008; pp. 596–609. [Google Scholar]
- Shervashidze, N.; Schweitzer, P.; Leeuwen, E.J.; Mehlhorn, K.; Borgwardt, K.M. Weisfeiler-lehman graph kernels. J. Mach. Learn. Res.
**2011**, 12, 2539–2561. [Google Scholar] - Shervashidze, N.; Vishwanathan, S.V.; Petri, T.; Mehlhorn, K.; Borgwardt, K. Efficient graphlet kernels for large graph comparison. In Proceedings of the Twelfth International Conference on Artificial Intelligence and Statistics, Clearwater Beach, FL, USA, 16–18 April 2009; pp. 488–495. [Google Scholar]
- Bai, L.; Rossi, L.; Torsello, A.; Hancock, E.R. A quantum Jensen–Shannon graph kernel for unattributed graphs. Pattern Recognit.
**2015**, 48, 344–355. [Google Scholar] [CrossRef][Green Version] - Bai, L.; Rossi, L.; Cui, L.; Zhang, Z.; Ren, P.; Bai, X.; Hancock, E. Quantum kernels for unattributed graphs using discrete-time quantum walks. Pattern Recognit. Lett.
**2017**, 87, 96–103. [Google Scholar] [CrossRef][Green Version] - Orsini, F.; Frasconi, P.; De Raedt, L. Graph invariant kernels. In Proceedings of the 24th International Conference on Artificial Intelligence (AAAI 2015), Austin, TX, USA, 25–30 January 2015; pp. 3756–3762. [Google Scholar]
- Morris, C.; Kriege, N.M.; Kersting, K.; Mutzel, P. Faster kernels for graphs with continuous attributes via hashing. In Proceedings of the IEEE 16th International Conference on Data Mining (ICDM 2016), Barcelona, Spain, 12–15 December 2016; pp. 1095–1100. [Google Scholar]
- Berg, J.; Karp, R.M. Local graph alignment and motif search in biological networks. Proc. Natl. Acad. Sci. USA
**2004**, 101, 14689–14694. [Google Scholar] [CrossRef] [PubMed][Green Version] - Ferreira, J.C.; Menegatto, V.A. Eigenvalues of integral operators defined by smooth positive definite kernels. Integral Equ. Oper. Theory
**2009**, 64, 61–81. [Google Scholar] [CrossRef] - Balcan, M.F.; Blum, A. On a theory of learning with similarity functions. In Proceedings of the International Conference on Machine Learning, Pittsburgh, PA, USA, 25–19 June 2006; pp. 73–80. [Google Scholar]
- Chen, Y.; Gupta, M.R.; Recht, B. Learning kernels from indefinite similarities. In Proceedings of the International Conference on Machine Learning, Montreal, QC, Canada, 14–18 June2009; pp. 145–152. [Google Scholar]
- Haussler, D. Convolution Kernels on Discrete Structures; Department of Computer Science, University of California at Santa Cruz: Santa Cruz, CA, USA, 1999. [Google Scholar]
- Bai, L. Information Theoretic Graph Kernels; University of York: York, UK, 2014. [Google Scholar]
- Bai, L.; Rossi, L.; Zhang, Z.; Hancock, E. An aligned subtree kernel for weighted graphs. In Proceedings of the International Conference on Machine Learning (ICML 2015), Lille, France, 6–11 July 2015; pp. 30–39. [Google Scholar]
- Gärtner, T.; Flach, P.; Wrobel, S. On graph kernels: Hardness results and efficient alternatives. In Proceedings of the Learning Theory and Kernel Machines 16th Annual Conference on Learning Theory and 7th Kernel Workshop (COLT/Kernel 2003), Washington, DC, USA, 24–27 August 2003; pp. 129–143. [Google Scholar]
- Borgwardt, K.M.; Kriegel, H.P. Shortest-path kernels on graphs. In Proceedings of the 5th IEEE International Conference on Data Mining (ICDM 2005), Houston, TX, USA, 27–30 November 2005; pp. 8–16. [Google Scholar]
- Rossi, L.; Torsello, A.; Hancock, E.R. Measuring Graph Similarity through Continuous-Time Quantum Walks and the Quantum Jensen-Shannon Divergence. Phys. Rev. E
**2015**, 91, 022815. [Google Scholar] [CrossRef] [PubMed] - Bai, L.; Rossi, L.; Bunke, H.; Hancock, E.R. Hancock: Attributed Graph Kernels Using the Jensen-Tsallis q-Differences. In Proceedings of the Joint European Conference on Machine Learning and Knowledge Discovery in Databases, Nancy, France, 15–19 September 2014; pp. 99–114. [Google Scholar]
- Bai, L.; Edwin, R. Hancock: Graph Kernels from the Jensen-Shannon Divergence. J. Math. Imaging Vis.
**2013**, 47, 60–69. [Google Scholar] [CrossRef] - Bai, L.; Zhang, Z.; Wang, C.; Bai, X.; Hancock, E.R. Hancock: A Graph Kernel Based on the Jensen-Shannon Representation Alignment. In Proceedings of the IJCAI, Buenos Aires, Argentina, 25–31 July 2015; pp. 3322–3328. [Google Scholar]
- Rossi, L.; Torsello, A.; Hancock, E.R. Unfolding Kernel Embeddings of Graphs: Enhancing Class Separation through Manifold Learning. Pattern Recognit.
**2015**, 48, 3357–3370. [Google Scholar] [CrossRef] - Fröhlich, H.; Wegner, J.K.; Sieker, F.; Zell, A. Optimal assignment kernels for attributed molecular graphs. In Proceedings of the 22nd International Conference on Machine Learning (ICML 2005), Lille, France, 6–11 July 2005; pp. 225–232. [Google Scholar]
- Vert, J.P. The optimal assignment kernel is not positive definite. arXiv, 2008; arXiv:0801.4061. [Google Scholar]
- Kriege, N.M.; Giscard, P.L.; Wilson, R. On valid optimal assignment kernels and applications to graph classification. In Proceedings of the Advances in Neural Information Processing Systems (NIPS 2016), Barcelona, Spain, 5–10 December 2016; pp. 1623–1631. [Google Scholar]
- Johansson, F.; Jethava, V.; Dubhashi, D.; Bhattacharyya, C. Global graph kernels using geometric embeddings. In Proceedings of the 31st International Conference on Machine Learning (ICML 2014), Beijing, China, 21–26 June 2014; pp. 21–26. [Google Scholar]
- Kondor, R.; Pan, H. The multiscale Laplacian graph kernel. In Proceedings of the Advances in Neural Information Processing Systems (NIPS 2016), Barcelona, Spain, 5–10 December 2016; pp. 2990–2998. [Google Scholar]
- Childs, A.M. Universal computation by quantum walk. Phys. Rev. Lett.
**2009**, 102, 180501. [Google Scholar] [CrossRef] [PubMed] - Bai, L.; Zhang, Z.; Ren, P.; Rossi, L.; Hancock, E.R. An edge-based matching kernel through discrete-time quantum walks. In Proceedings of the International Conference on Image Analysis and Processing (ICIAP 2015), Genoa, Italy, 7–11 September 2015; pp. 27–38. [Google Scholar]
- Feragen, A.; Kasenburg, N.; Petersen, J.; de Bruijne, M.; Borgwardt, K. Scalable kernels for graphs with continuous attributes. In Proceedings of the Advances in Neural Information Processing Systems (NIPS 2013), Lake Tahoe, NV, USA, 5–8 December 2013; pp. 216–224. [Google Scholar]
- Costa, F.; de Grave, K. Fast neighborhood subgraph pairwise distance kernel. In Proceedings of the ICML, Haifa, Israel, 21–24 June 2010. [Google Scholar]
- Horváth, T.; Gärtner, T.; Wrobel, S. Cyclic pattern kernels for predictive graph mining. In Proceedings of the KDD, Seattle, WA, USA, 22–25 August 2004. [Google Scholar]
- The Graph Kernel Benchmarks. Available online: https://ls11-www.cs.tu-dortmund.de/staff/morris/graphkerneldatasets (accessed on 15 June 2018).
- The Datasets and the Matlab Codes. Available online: https://github.com/YiZhangNUDT/graph_kernel_test (accessed on 10 September 2018).
- Chang, C.C.; Lin, C.J. LIBSVM: A library for support vector machines. ACM Trans. Intell. Syst. Technol.
**2011**, 2, 27. [Google Scholar] [CrossRef] - Liu, X.; Dou, Y.; Yin, J.; Wang, L.; Zhu, E. Multiple Kernel k-Means Clustering with Matrix-Induced Regularization. In Proceedings of the AAAI 2016, Phoenix, AZ, USA, 12–17 February 2016; pp. 1888–1894. [Google Scholar]

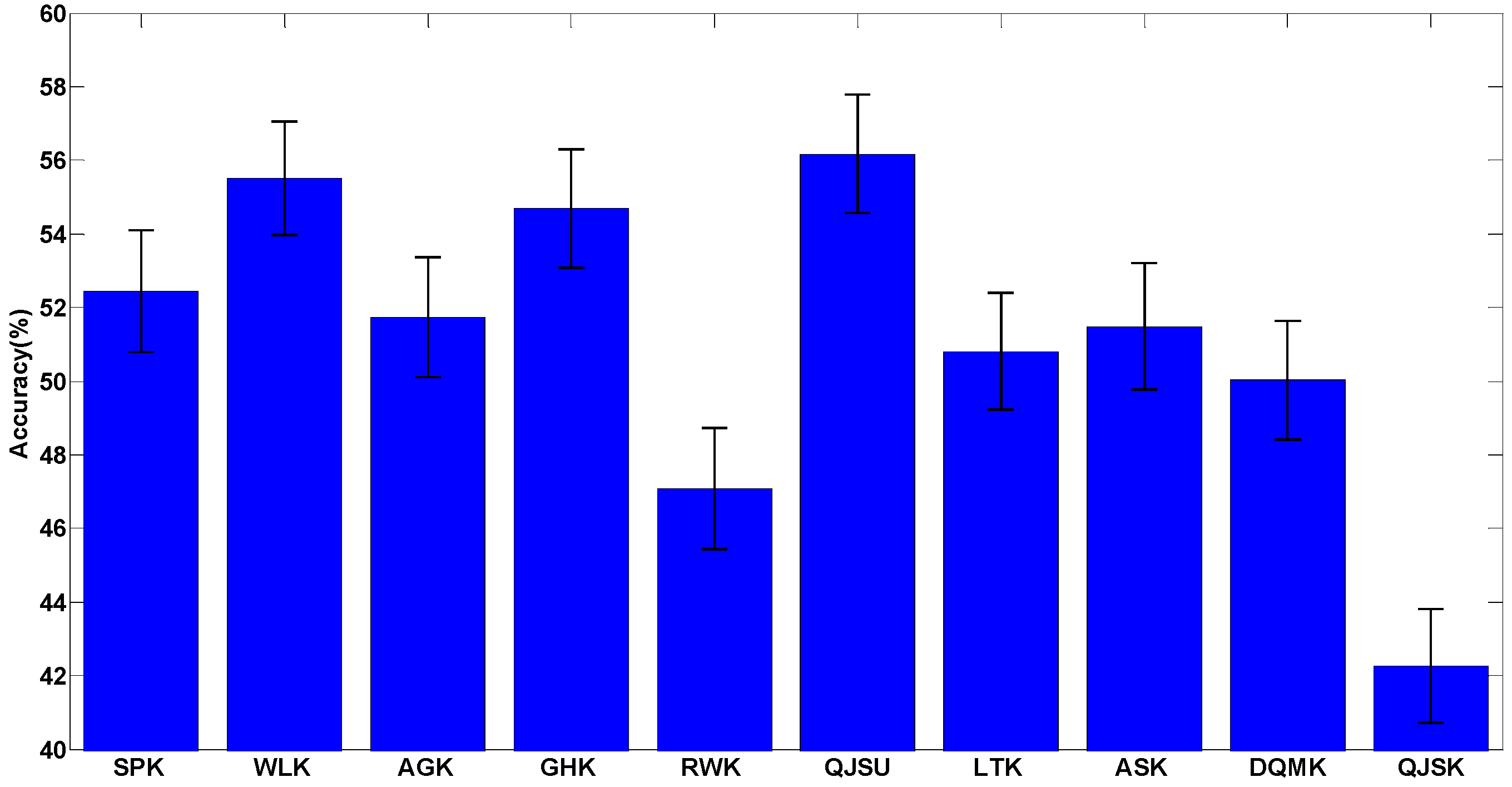

**Figure 2.**The classification accuracies of the 10 mentioned kernels for the real-world datasets. The detailed information about this test is shown in Table A2.

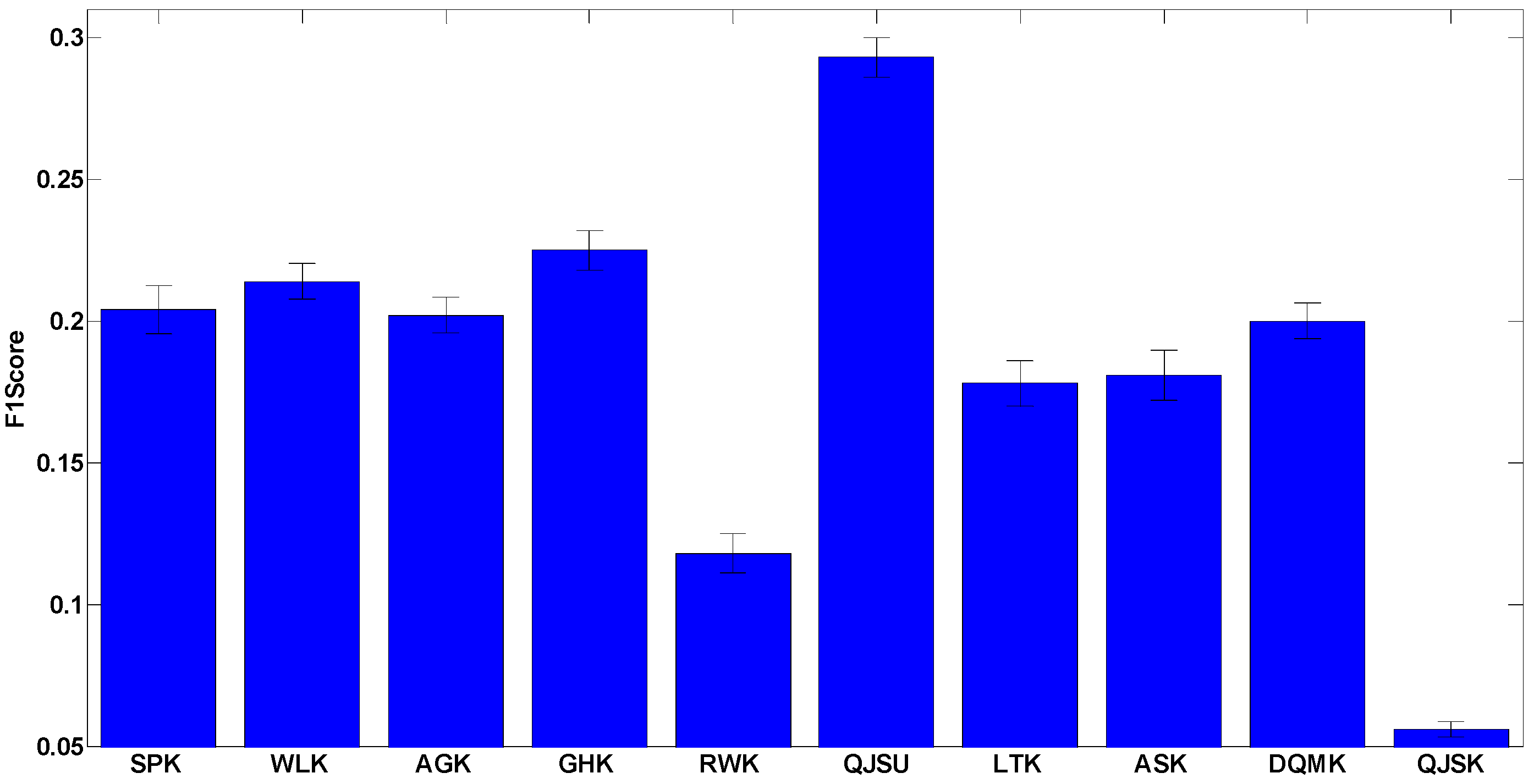

**Figure 3.**The F1 score of the 10 chosen kernels for the multi-class datasets. The detailed result of this test is shown in Table A3.

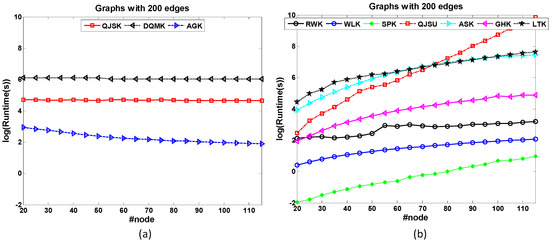

**Figure 4.**The runtime comparison of kernels for node-based scalability test. (

**a**) The runtime costs of QJSK, DQMK and AGK maintain when the graph size increases. (

**b**) the ascending runtime trends of other kernels.

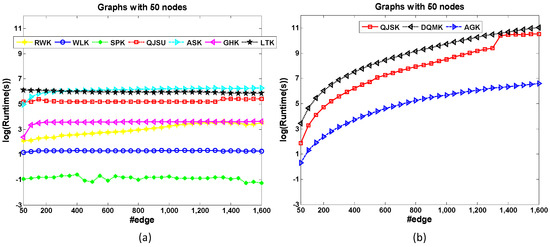

**Figure 5.**The runtime comparison of kernels for edge-based scalability test. Compared with QJSK, DQMK and AGK shown in (

**b**), the kernels in (

**a**) almost maintain the runtime cost when the graph density increases.

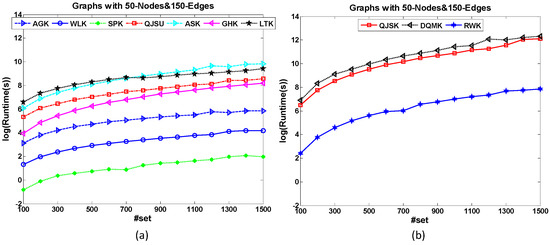

**Figure 6.**The runtime comparison of kernels for set-based scalability test. Compared with QJSK, DQMK and RWK shown in (

**b**), the kernels in (

**a**) show slower increasing trends when the graph set increases.

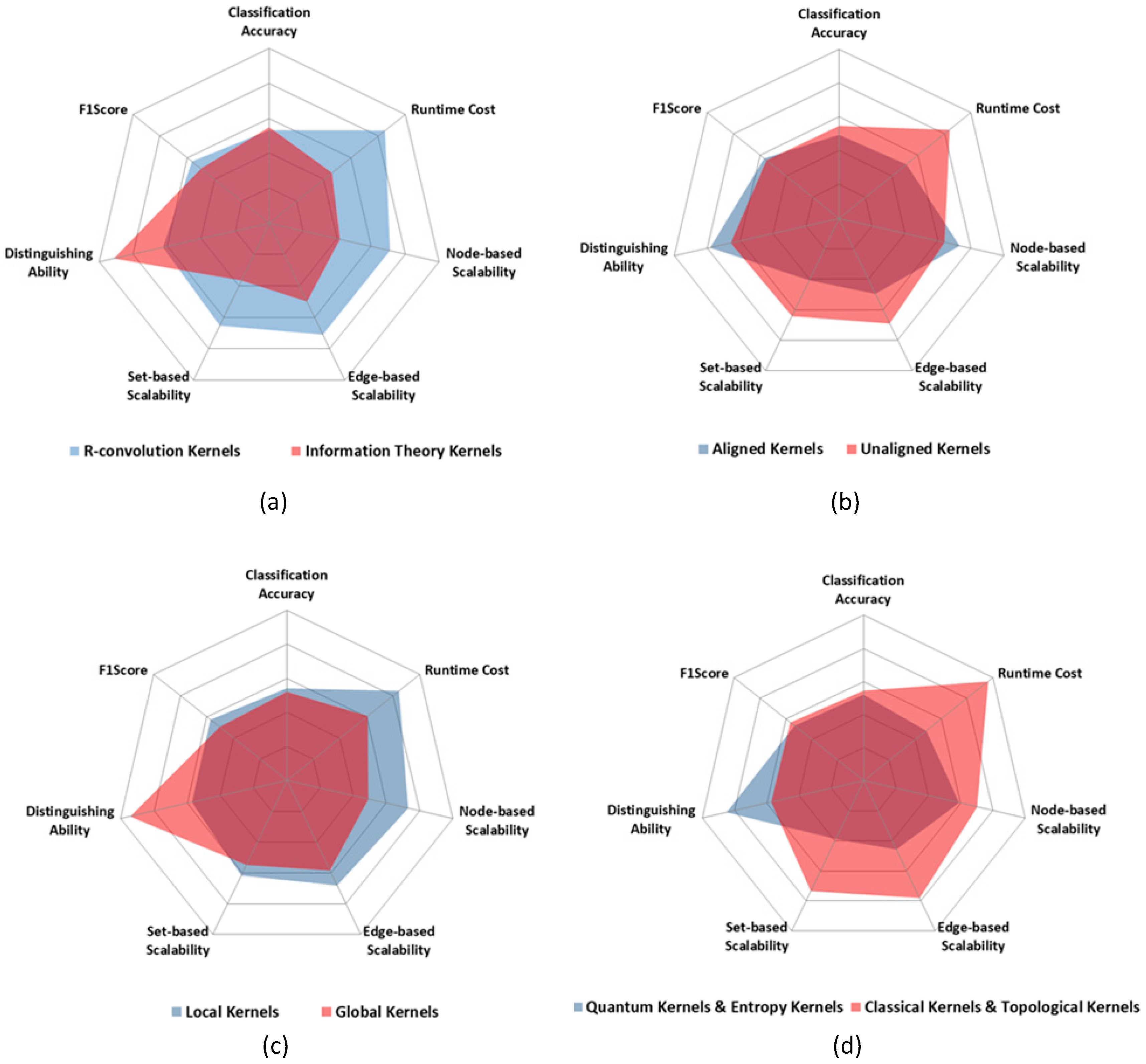

**Figure 7.**The ability comparison of all the 5 graph kernel groups in 7 criteria. (

**a**) R-convolution kernels vs. Information theory kernels. (

**b**) Aligned kernels vs. Unaligned kernels. (

**c**) Local kernels vs. Global kernels. (

**d**) Quantum kernels vs. Classical kernels. Note that for the 10 chosen kernels, the radar figure of Entropy kernels vs. Topological kernels is the same with that of Quantum kernels vs. Classical kernels.

Kernel Name | Framework | Aligned | Matching Pattern | Computing Model | Methodology |
---|---|---|---|---|---|

SPK [23] | R-convolution | No | Local (Path) | Classical | Topology |

WLK [9] | R-convolution | No | Local (Subtree) | Classical | Topology |

AGK [10] | R-convolution | No | Local (Graphlet) | Classical | Topology |

GHK [36] | R-convolution | No | Local (Path) | Classical | Topology |

RWK [22] | R-convolution | No | Local (Walk) | Classical | Topology |

QJSU [11] | Information Theory | No | Global | CTQW | Entropy |

LTK [32] | R-convolution | No | Global | Classical | Topology |

ASK [21] | R-convolution | Yes | Local (Subtree) | CTQW | Entropy |

DQMK [35] | R-convolution | Yes | Local (Edge) | DTQW | Entropy |

QJSK [12] | Information Theory | No | Global | DTQW | Entropy |

BWK [6] | R-convolution | No | Local(Walk) | Classical | Topology |

JTK [25] | Information Theory | No | Global | CTQW | Entropy |

NSPDK [37] | R-convolution | No | Local(Subgraph) | Classical | Topology |

CPK [38] | R-convolution | No | Local(Cycle) | Classical | Topology |

MLGK [33] | Information Theory | No | Mix | Classical | Topology |

Kernel Name | Complexity | P.S. |
---|---|---|

SPK | $O\left(K{N}^{4}+{K}^{3}\right)$ | - |

WLK | $O\left(K{N}^{2}+{K}^{2}{N}^{2}\right)$ | |

AGK | $O\left(K{N}^{4}+{K}^{3}\right)$ | e.g., graphlet size is 4 |

GHK | $O\left({K}^{2}{N}^{2}\left(E+\mathrm{log}N+{N}^{2}\right)\right)$ | |

RWK | $O\left({K}^{2}{N}^{3}\right)$ | - |

QJSU | $O\left({K}^{2}{N}^{3}\right)$ | - |

LTK | $O\left({K}^{2}\left(E{N}^{2}+{N}^{3}\right)\right)$ | Gaussian Kernel as the base kernel |

ASK | $O\left({K}^{2}{N}^{4}\right)$ | |

DQMK | $O\left({K}^{2}N{E}^{3}\right)$ | |

QJSK | $O\left({K}^{2}N{E}^{3}\right)$ | |

BWK | $O\left({K}^{2}{N}^{3}\right)$ | |

JTK | $O\left({K}^{2}{N}^{2}+K{N}^{3}\right)$ | |

NSPDK | $O\left({K}^{2}{N}^{2}E\mathrm{log}E\right)$ | |

CPK | $O\left(K\left({N}^{2}+E\right)\right)$ | |

MLGK | $O\left({K}^{2}{N}^{5}\right)$ |

Dataset Name | Statistics | |||
---|---|---|---|---|

#Set | #Nodes | #Edges | #Class | |

50-Node | 3000 | 50 | 50:50:1500 | 30 |

200-Edge | 2000 | 20:5:115 | 200 | 20 |

50-Node&150-Edge | 100:100:1500 | 50 | 150 | 15 |

**Table 4.**Three similar-graph datasets. In CosGraph, every cospectral graph pair is used as a test. In RegGraph and SRGraph, paired compassions of the graphs in each class are done using kernel methods.

Dataset Name | Statistics | |||
---|---|---|---|---|

#set | #Class | Avg. #Nodes | #Test Pairs | |

CosGraph | 10,096 | 5048 | 10 | 5048 |

RegGraph | 6490 | 31 | 16.34 | 885,128 |

SRGraph | 7303 | 11 | 37.63 | 5,099,490 |

Kernel Name | Minimum Runtime | Maximum Runtime | Average Runtime |
---|---|---|---|

SPK | 0.19 s | 11.81 s | 2.97 s |

WLK | 2.42 s | 2.01 m | 26 s |

AGK | 3.09 s | 6.38 m | 1.50 m |

GHK | 14.02 s | 4.42 h | 27.93 m |

RWK | 22.40 s | 4.27 h | 45.6 m |

QJSU | 18.02 s | 3.95 h | 50.3 m |

LTK | 67.99 s | 4.86 h | 1.05 h |

ASK | 84.82 s | 14.71 h | 2.55 h |

DQMK | 85.50 s | 47.17 h | 7.85 h |

QJSK | 62.54 s | 70.44 h | 10.6 h |

Kernel Name | Node-Based Scalability | Edge-Based Scalability | Set-Based Scalability |
---|---|---|---|

SPK | 1.96 | −0.41 | 1.04 |

WLK | 0.96 | −0.02 | 1.14 |

AGK | −0.58 | 1.96 | 0.98 |

GHK | 1.60 | 0.09 | 1.69 |

RWK | 0.68 | 0.61 | 2.06 |

QJSU | 5.00 | 0.17 | 1.34 |

LTK | 1.82 | −0.12 | 1.10 |

ASK | 1.86 | 0.22 | 1.48 |

DQMK | −0.04 | 2.48 | 2.07 |

QJSK | −0.04 | 3.08 | 2.32 |

Kernel Name | Cospectral Graphs | Regular Graphs | Strong Regular Graphs | Average |
---|---|---|---|---|

SPK | 33.16% | 1.14% | 100% | 44.77% |

WLK | 1.66% | 100% | 100% | 67.22% |

AGK | 5.96% | 4.87% | 3.82% | 4.88% |

GHK | 18.82% | 0.12% | 100% | 39.65% |

RWK | 100% | 100% | 100% | 100% |

QJSU | 0% | 2.79% | 0.65% | 1.15% |

LTK | 0% | 0% | 0% | 0% |

ASK | 33.16% | 1.14% | 95.96% | 43.42% |

DQMK | 0% | 0% | 0% | 0% |

QJSK | 33.16% | 1.14% | 13.60% | 15.97% |

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zhang, Y.; Wang, L.; Wang, L.
A Comprehensive Evaluation of Graph Kernels for Unattributed Graphs. *Entropy* **2018**, *20*, 984.
https://doi.org/10.3390/e20120984

**AMA Style**

Zhang Y, Wang L, Wang L.
A Comprehensive Evaluation of Graph Kernels for Unattributed Graphs. *Entropy*. 2018; 20(12):984.
https://doi.org/10.3390/e20120984

**Chicago/Turabian Style**

Zhang, Yi, Lulu Wang, and Liandong Wang.
2018. "A Comprehensive Evaluation of Graph Kernels for Unattributed Graphs" *Entropy* 20, no. 12: 984.
https://doi.org/10.3390/e20120984
