# Association between Multiscale Entropy Characteristics of Heart Rate Variability and Ischemic Stroke Risk in Patients with Permanent Atrial Fibrillation

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Data and Methods

#### 2.1. Patients and HRV Time Series

#### 2.2. Multiscale Entropy (MSE) Analysis

**s**is represented in units of seconds and not beat number. In the calculation of ${S}_{E}$, we used the same values as in previous studies: $m=2$ and $r=0.15{\mathsf{\sigma}}_{x}$, where ${\sigma}_{x}$ is the standard deviation of the resampled HRV time series [2,7]. Note that ${\sigma}_{x}$ is not the standard deviation of coarse-grained time series {${y}_{j}^{\left(s\right)}$}.

#### 2.3. Multiscale Characterizations of Time Series

^{α}, where F(s) is a square root of mean-square deviations around a polynomial trend averaged over segments with length n of integrated time series. In our study, we analyzed the resampled HRV time series. Thus, the scale

**s**is represented in units of seconds.

#### 2.4. Statistical Analysis

## 3. Results

#### 3.1. Multiscale Characteristics of HRV in Patients with AFib

#### 3.2. Comparison of Predictive Performance for Ischemic Stroke

## 4. Discussion

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Kobayashi, M.; Musha, T. 1/f fluctuation of heartbeat period. IEEE Trans. Biomed. Eng.
**1982**, 6, 456–457. [Google Scholar] [CrossRef] [PubMed] - Costa, M.; Goldberger, A.L.; Peng, C.K. Multiscale entropy analysis of complex physiologic time series. Phys. Rev. Lett.
**2002**, 89, 068102. [Google Scholar] [CrossRef] [PubMed] - Pincus, S.M. Assessing serial irregularity and its implications for health. Ann. N. Y. Acad. Sci.
**2001**, 954, 245–267. [Google Scholar] [CrossRef] [PubMed] - Lipsitz, L.A.; Goldberger, A.L. Loss of “complexity” and aging: Potential applications of fractals and chaos theory to senescence. JAMA
**1992**, 267, 1806–1809. [Google Scholar] [CrossRef] [PubMed] - Richman, J.S.; Moorman, J.R. Physiological time-series analysis using approximate entropy and sample entropy. Am. J. Physiol. Heart Circ. Physiol.
**2000**, 278, H2039–H2049. [Google Scholar] [PubMed] - Costa, M.; Goldberger, A.L.; Peng, C.K. Multiscale entropy analysis of biological signals. Phys. Rev. E
**2005**, 71, 021906. [Google Scholar] [CrossRef] [PubMed] - Watanabe, E.; Kiyono, K.; Hayano, J.; Yamamoto, Y.; Inamasu, J.; Yamamoto, M.; Ichikawa, T.; Sobue, Y.; Harada, M.; Ozaki, Y. Multiscale entropy of the heart rate variability for the prediction of an ischemic stroke in patients with permanent atrial fibrillation. PLoS ONE
**2015**, 10, e0137144. [Google Scholar] [CrossRef] [PubMed] - Marini, C.; De Santis, F.; Sacco, S.; Russo, T.; Olivieri, L.; Totaro, R.; Carolei, A. Contribution of atrial fibrillation to incidence and outcome of ischemic stroke. Stroke
**2005**, 36, 1115–1119. [Google Scholar] [CrossRef] [PubMed] - Hayano, J.; Sakata, S.; Okada, A.; Mukai, S.; Fujinami, T. Circadian rhythms of atrioventricular conduction properties in chronic atrial fibrillation with and without heart failure. J. Am. Coll. Cardiol.
**1998**, 31, 158–166. [Google Scholar] [CrossRef] - Hayano, J.; Ishihara, S.; Fukuta, H.; Sakata, S.; Mukai, S.; Ohte, N.; Kimura, G. Circadian rhythm of atrioventricular conduction predicts long-term survival in patients with chronic atrial fibrillation. Chronobiol. Int.
**2002**, 19, 633–648. [Google Scholar] [CrossRef] [PubMed] - Hayano, J.; Yamasaki, S.; Sakata, S.; Okada, A.; Mukai, S.; Fujinami, T. Spectral characteristics of ventricular response to atrial fibrillation. Am. J. Physiol. Heart Circ. Physiol.
**1997**, 273, H2811–H2816. [Google Scholar] - Ducharme, S.W. Quantifying Gait Adapatablity: Fractality, Complexity, and Stability during Asymmetric Walking. Ph.D. Thesis, University of Massachusetts Amherst, Amherst, MA, USA, 2017. [Google Scholar]
- Goldberger, A.L.; Amaral, L.A.; Hausdorff, J.M.; Ivanov, P.C.; Peng, C.K.; Stanley, H.E. Fractal dynamics in physiology: Alterations with disease and aging. Proc. Natl. Acad. Sci. USA
**2002**, 99, 2466–2472. [Google Scholar] [CrossRef] [PubMed] - Karmakar, C.; Udhayakumar, R.K.; Li, P.; Venkatesh, S.; Palaniswami, M. Stability, consistency and performance of distribution entropy in analyzing short length heart rate variability (HRV) signal. Front. Physiol.
**2017**, 8, 720. [Google Scholar] [CrossRef] [PubMed] - Peng, C.K.; Havlin, S.; Stanley, H.E.; Goldberger, A.L. Quantification of scaling exponents and crossover phenomena in nonstationary heartbeat time series. Chaos
**1995**, 5, 82–87. [Google Scholar] [CrossRef] [PubMed] - Kiyono, K. Establishing a direct connection between detrended fluctuation analysis and Fourier analysis. Phys. Rev. E
**2015**, 92, 042925. [Google Scholar] [CrossRef] [PubMed] - Sassi, R.; Cerutti, S.; Lombardi, F.; Malik, M.; Huikuri, H.V.; Peng, C.K.; Schmidt, G.; Yamamoto, Y. Advances in heart rate variability signal analysis: joint position statement by the e-Cardiology ESC Working Group and the European Heart Rhythm Association co-endorsed by the Asia Pacific Heart Rhythm Society. Europace
**2015**, 17, 1341–1353. [Google Scholar] [CrossRef] [PubMed] - Kiyono, K. Log-amplitude statistics of intermittent and non-Gaussian time series. Phys. Rev. E
**2009**, 79, 031129. [Google Scholar] [CrossRef] [PubMed] - Kiyono, K.; Tsujimoto, Y. Time and frequency domain characteristics of detrending-operation-based scaling analysis: Exact DFA and DMA frequency responses. Phys. Rev. E
**2016**, 94, 012111. [Google Scholar] [CrossRef] [PubMed] - Leonarduzzi, R.; Abry, P.; Wendt, H.; Kiyono, K.; Yamamoto, Y.; Watanabe, E.; Hayano, J. Scattering Transform of Heart Rate Variability for the Prediction of Ischemic Stroke in Patients with Atrial Fibrillation. Methods Inf. Med.
**2016**, in press. [Google Scholar] - Huang, N.; Shen, Z.; Long, S.R.; Wu, M.L.C.; Shih, H.H.; Zheng, Q.; Yen, N.C.; Tung, C.-C.; Liu, H.H. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis. Proc. R. Soc. Lond. A
**1998**, 454, 903. [Google Scholar] [CrossRef] - Goldstein, L.B.; Bushnell, C.D.; Adams, R.J.; Appel, L.J.; Braun, L.T.; Chaturvedi, S.; Creager, M.A.; Culebras, A.; Eckel, R.H.; Hart, R.G.; et al. Guidelines for the primary prevention of stroke: A guideline for healthcare professionals from the American Heart Association/American Stroke Association. Stroke
**2011**, 42, 517–584. [Google Scholar] [CrossRef] [PubMed]

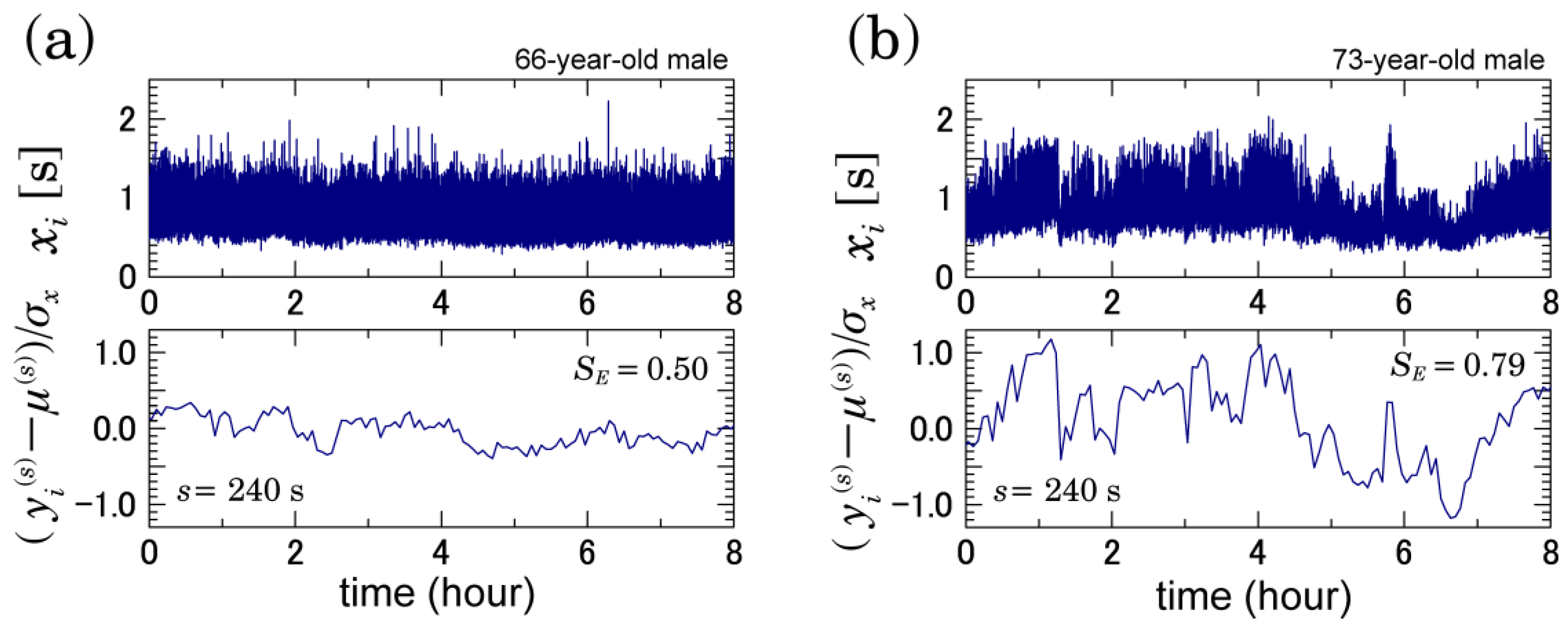

**Figure 1.**RR interval {${x}_{i}$} and coarse-grained time series {${y}_{i}^{\left(s\right)}$} when s = 240 s. The left panels (

**a**) show a patient who did not develop ischemic strokes during the observation period, and the right panels (

**b**) show a patient who did. The coarse-grained time series is rescaled by subtracting its mean ${\mu}^{\left(s\right)}$ and dividing the differences by the standard deviation ${\sigma}_{x}$ of the resampled RR intervals.

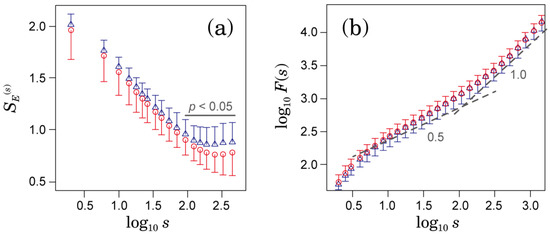

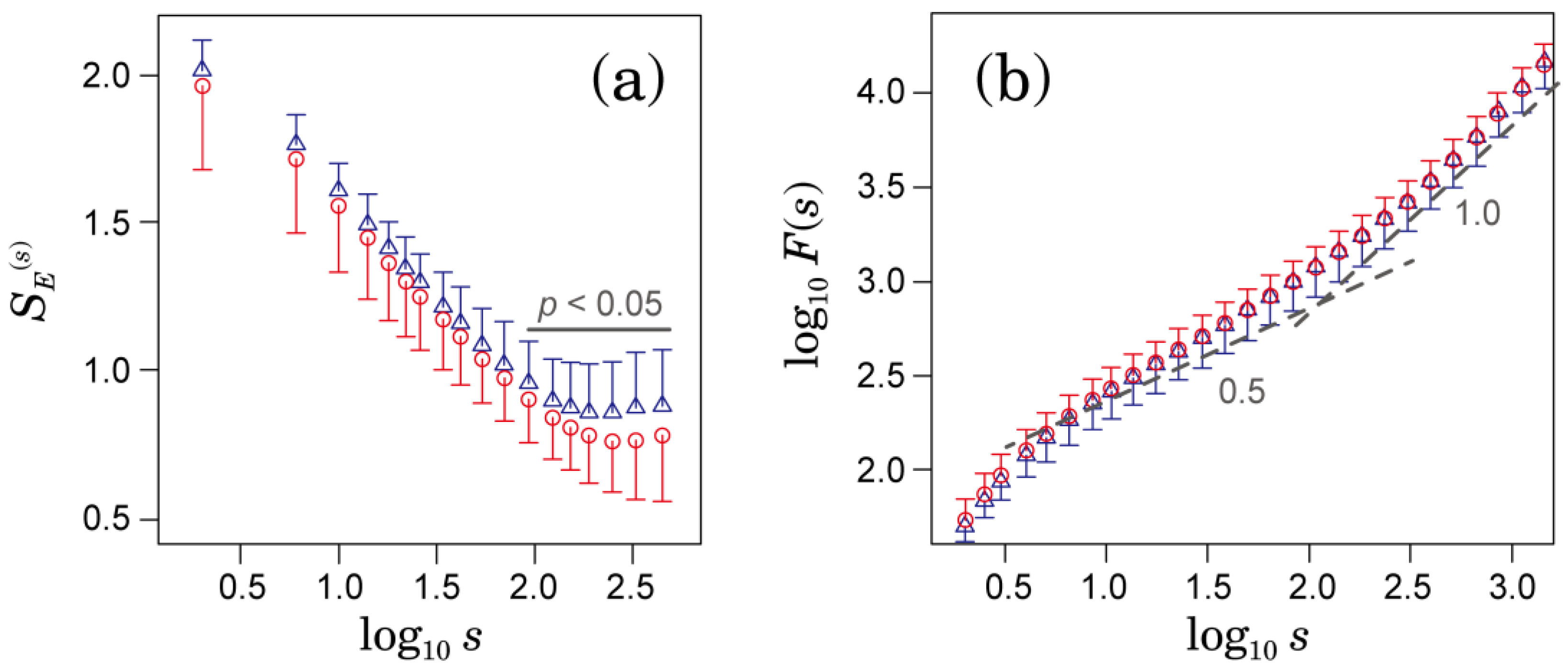

**Figure 2.**Comparison between the groups that developed ischemic strokes (blue triangles) and did not develop ischemic strokes (red circles) during the observation period: (

**a**) Multiscale entropy (MSE) profiles of ${S}_{E}^{\left(s\right)}$; and (

**b**) fluctuation functions $F\left(s\right)$ estimated by detrended fluctuation analysis (DFA). Dashed lines indicate slopes with $\alpha =0.5$ and $\alpha =1.0$. The unit of s is seconds in both panels. Error bars indicate the standard deviation.

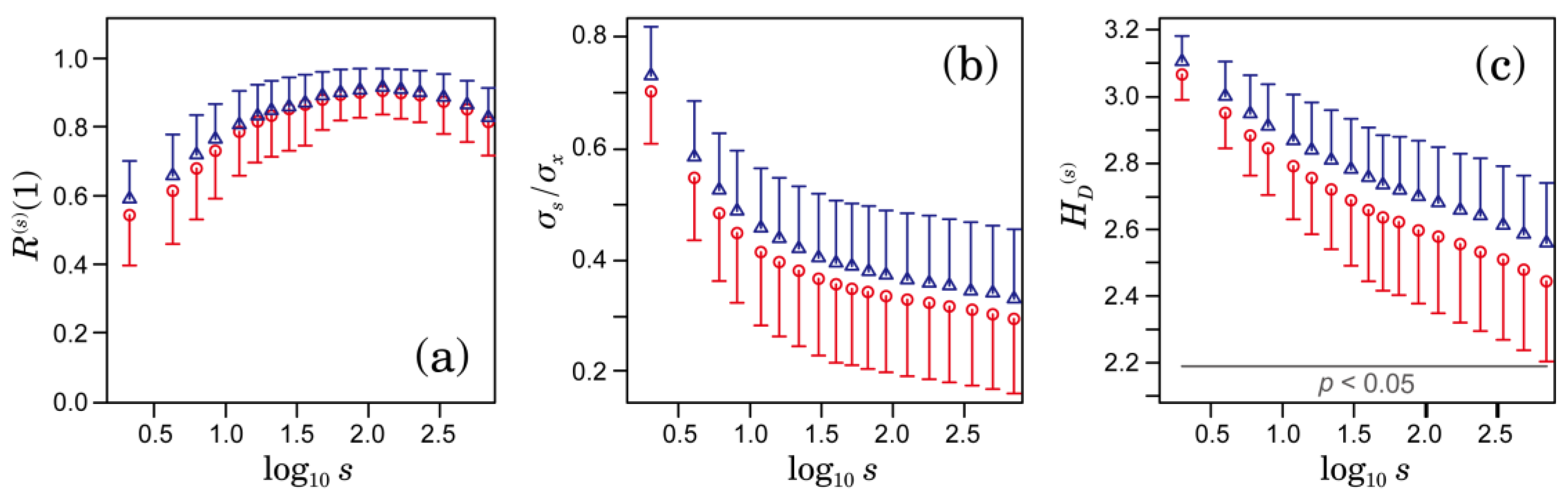

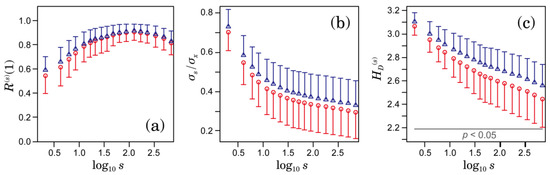

**Figure 3.**Comparison between the groups that developed (blue triangles) and did not develop (red circles) ischemic strokes during the observation period: (

**a**) autocorrelation coefficient at lag 1; (

**b**) variance ratio; and (

**c**) distribution-based entropy. The unit of s is seconds in all panels. Error bars indicate the standard deviation. No significant differences between the two groups were observed in the autocorrelation coefficient at lag 1 and the variance ratio.

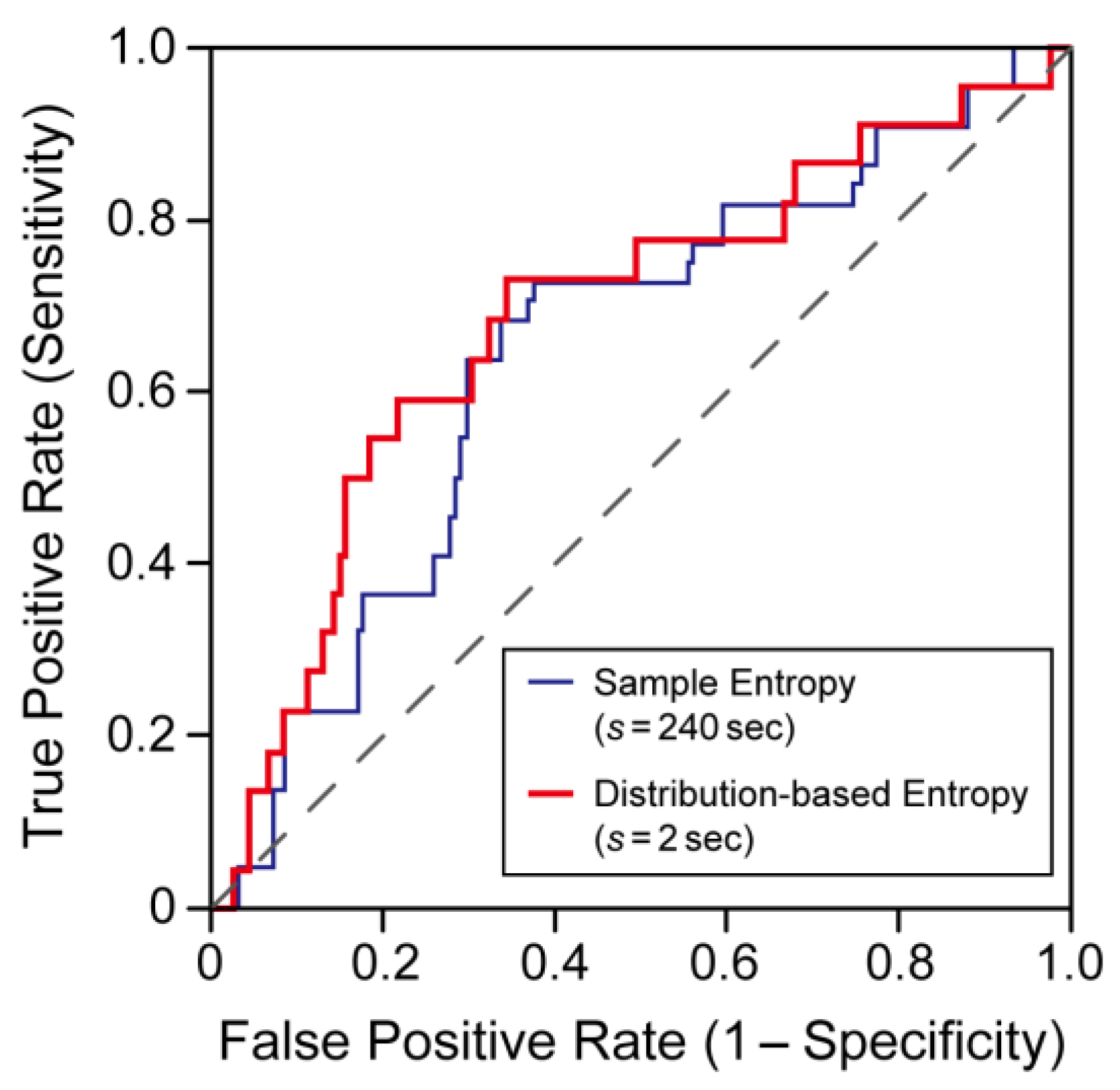

**Figure 4.**Receiver operating characteristic (ROC) curves for the prediction of ischemic stroke occurrence during the observation period. The blue lines represent the ROC curve using the sample entropy ${S}_{E}^{\left(s\right)}$ when s = 240 s and the red lines represent the ROC curve using the distribution-based entropy ${H}_{D}^{\left(s\right)}$ when s = 2 s. The AUCs were 0.65 and 0.68, respectively.

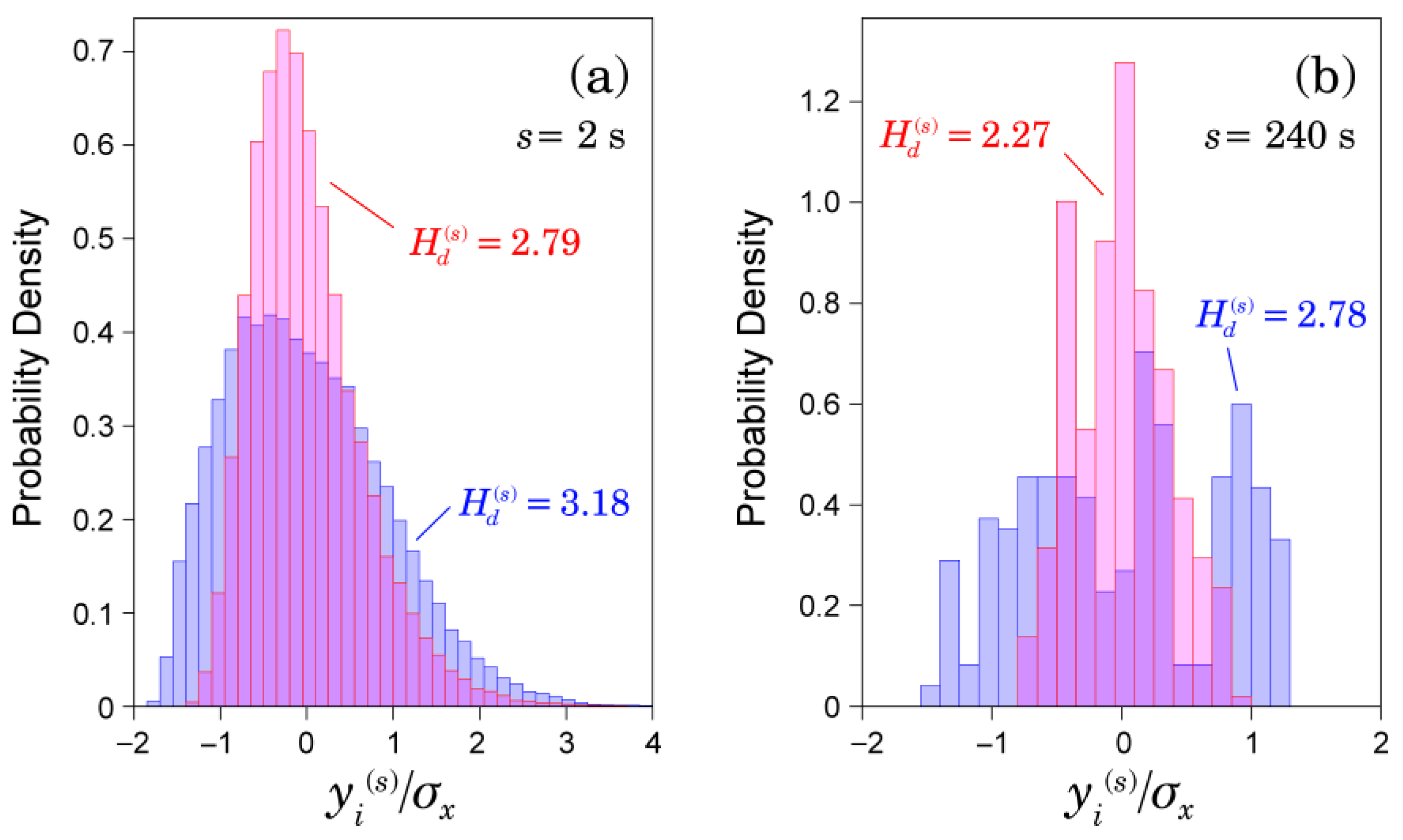

**Figure 5.**Illustrative examples of the estimated probability density functions of coarse-grained time series {${y}_{i}^{\left(s\right)}$} at: (

**a**) s = 2 s; and (

**b**) s = 240 s. The coarse-grained time series is rescaled by the standard deviation ${\sigma}_{x}$ of the resampled RR intervals. Red bar charts represent a patient who did not develop ischemic strokes during the observation period, and blue bar charts represent a patient who did develop ischemic strokes.

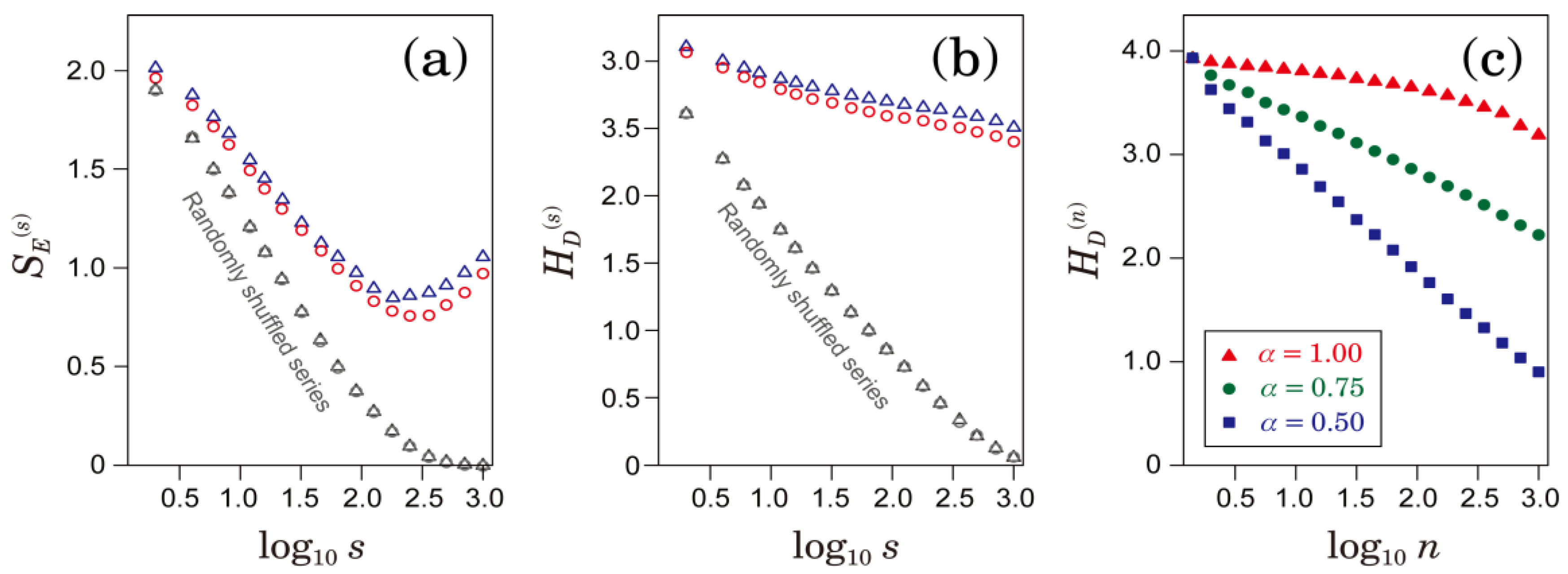

**Figure 6.**(

**a**) Comparison of sample entropy ${S}_{E}^{\left(s\right)}$ between the original and randomly shuffled RR intervals. (

**b**) Comparison of distribution-based entropy ${H}_{D}^{\left(s\right)}$ between the original and randomly shuffled RR intervals. Blue triangles represent patients who developed ischemic strokes and red circles represent patients who did not develop ischemic stroke. The unit of s is seconds. (

**c**) The scale dependence of ${H}_{D}^{\left(s\right)}$ for Gaussian processes characterized by DFA scaling exponent $\alpha $. ${H}_{D}^{\left(s\right)}$ was estimated from the numerically generated time series. The unit of n is the number of data points.

Clinical Characteristics | Ischemic Stroke (n = 22) | Non-Ischemic Stroke (n = 151) | p-Value |
---|---|---|---|

Age | 71 ± 8 | 69 ± 11 | 0.35 |

Female, n (%) | 7 (32) | 43 (28) | 0.26 |

Underlying disease, n (%) | - | - | - |

Congestive heart failure | 9 (41) | 56 (37) | 0.72 |

Hypertension | 15 (68) | 88 (58) | 0.38 |

Diabetes | 1 (5) | 14 (9) | 0.46 |

Stroke or TIA | 9 (41) | 40 (26) | 0.16 |

Vascular disease | 2 (9) | 15 (10) | 0.90 |

Medications, n (%) | - | - | - |

Beta-blocker | 4 (18) | 24 (16) | 0.79 |

Digitalis | 8 (36) | 65 (43) | 0.55 |

Ca-channnel blocker | 7 (32) | 35 (23) | 0.38 |

ACE inhibitor | 9 (41) | 37 (25) | 0.47 |

Diuretics | 5 (23) | 56 (37) | 0.75 |

Warfarin | 10 (45) | 83 (55) | 0.40 |
