# Efficient Algorithms for Electrostatic Interactions Including Dielectric Contrasts

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Planar Interfaces: Image Charges

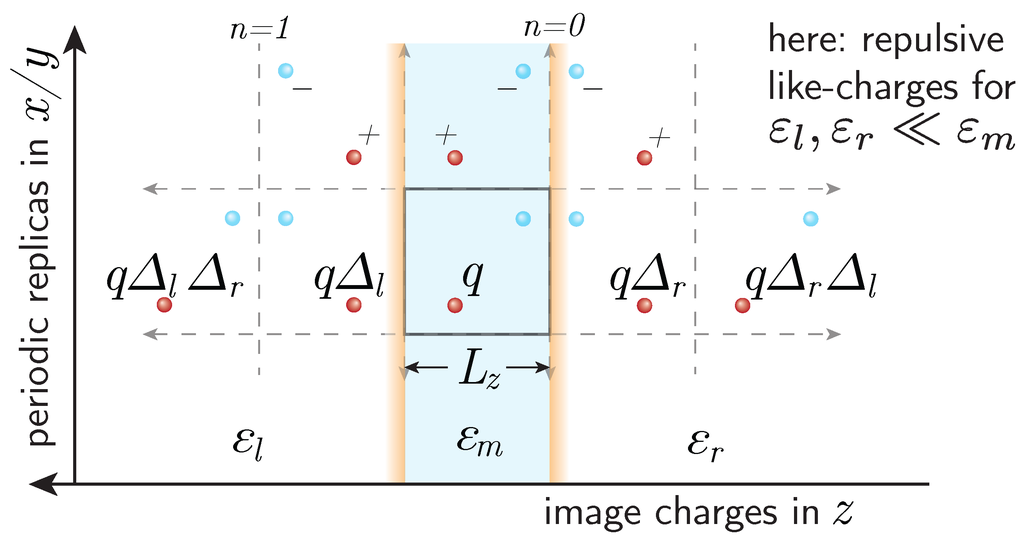

**Figure 1.**Schematic summation scheme for Image Charge MMM2D (ICMMM2D): in order to take into account dielectric boundaries, image charges are introduced outside the dielectric boundaries, to the left and right of the original box. The dielectric contrasts, ${\Delta}_{l}$ and ${\Delta}_{r}$, are computed from the dielectric jump at the left and right boundaries, respectively. Depending on the dielectric contrasts, charges will either be repelled by the surface (as in this sketch) or attracted to it. Note that in usual computer simulations, the system is periodically replicated in the dimensions parallel to the interfaces, as indicated in the figure.

**Figure 2.**(

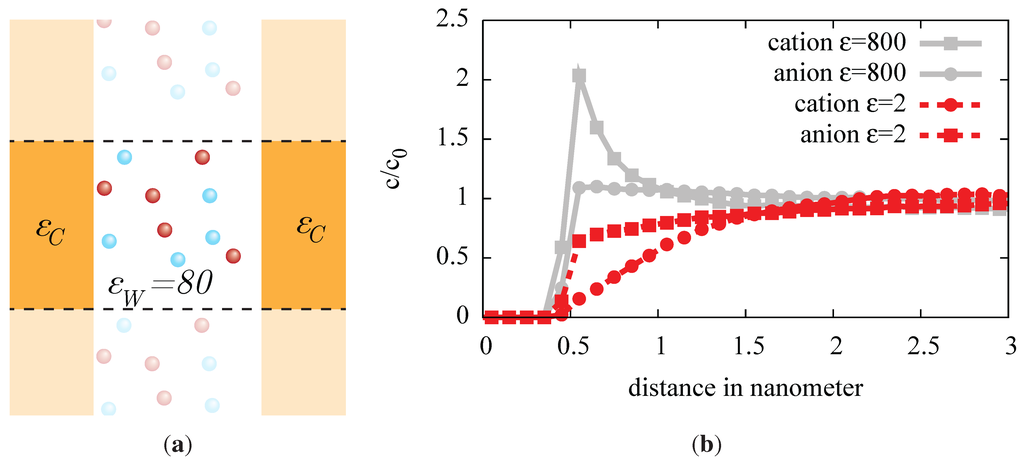

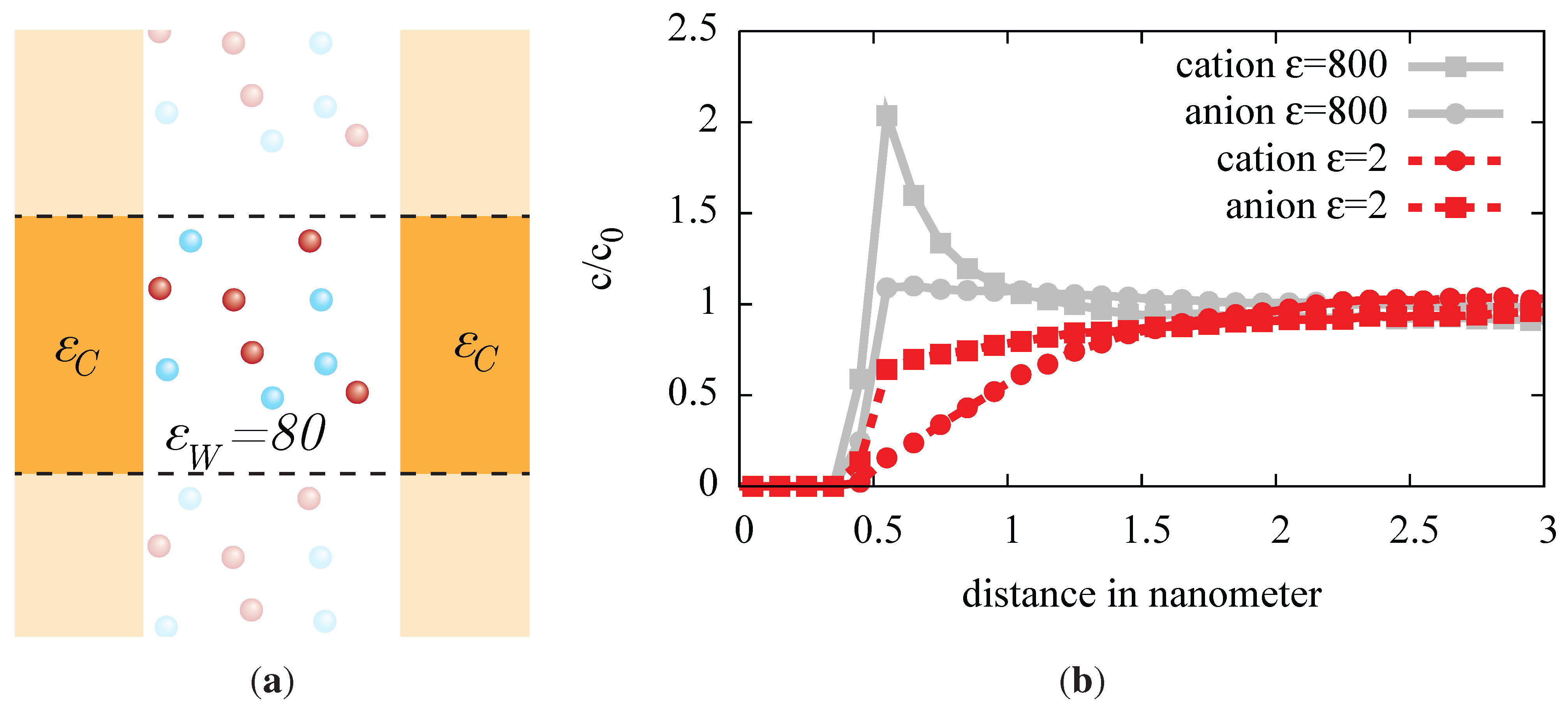

**a**) Sketch of our simulation setup, a 3:1 electrolyte, e.g., AlCl${}_{3}$, between two walls with a dielectric constant different from that of water. The size difference between the ion types is neglected in this simulation. The slab is periodically replicated parallel to the walls, vertical in the sketch. (

**b**) Density distribution of anions and cations of the trivalent electrolyte, near the dielectric interface. The dielectric interfaces is placed at $x=0$, and a repulsive potential maintains a minimum distance of 0.5 nanometers for all ions. A good dielectric ${\epsilon}_{C}=800$, representing conducting material, strongly attracts cations, while anions are less attracted. A bad dielectric ${\epsilon}_{C}=2$, representing a typical biological membrane, repels cations. The univalent anions are much less repelled.

#### 2.1. Example: Electrolyte between Dielectric Walls

## 3. Arbitrarily-Shaped Interfaces: Induced Charges

#### 3.1. Example: Ion Distribution in a Pore

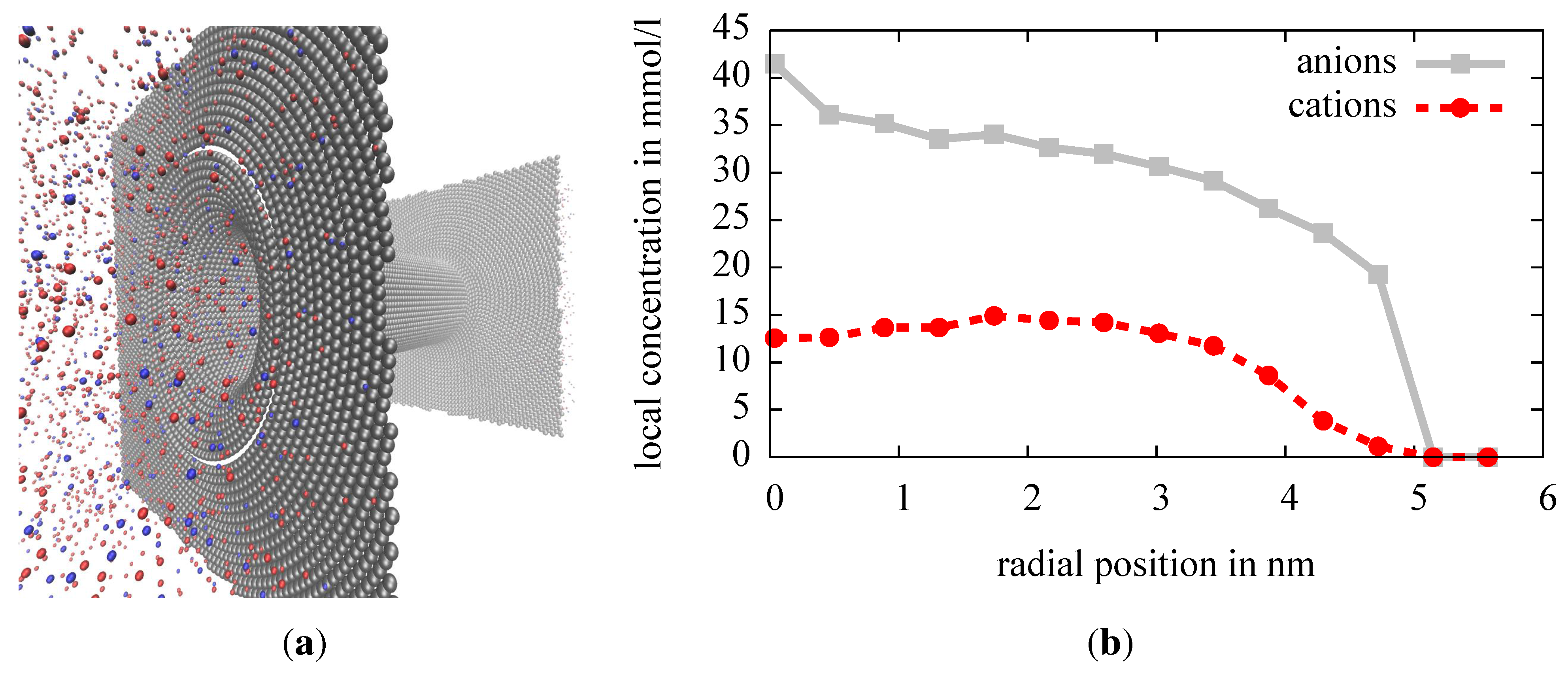

**Figure 3.**(

**a**) The induced charge calculation (ICC*) example system: positive and negative ions are displayed as red and blue spheres, the ICC* discretization points by grey spheres; (

**b**) ion density of both species in the pore measured close to the center of the pore.

## 4. Metallic Interfaces: Corrections

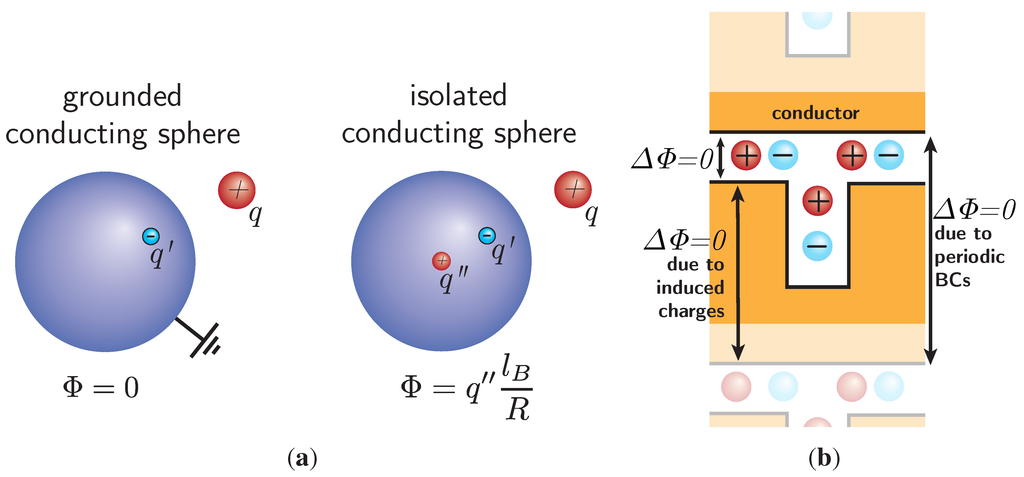

**Figure 4.**(

**a**) Illustration of the dielectric boundary problem of single charge q outside of a grounded conducting sphere. The problem can be solved by assuming an image charge, ${q}^{\prime}$, inside the sphere, leading to zero potential Φ on its surface. If the sphere is assumed to be conducting, but isolated, the excess charge, ${q}^{\prime}$, has to be canceled by adding a second charge, ${q}^{\u2033}$, in the center of the sphere, which leads to a constant surface potential, Φ. (adapted from [25]). (

**b**) A more complex geometry with an upper and lower electrode (yellow). The electrodes are treated with the ICC* algorithm. If a Coulomb solver with periodic boundary conditions (BCs) in the vertical direction is applied, the potential difference between both electrodes is automatically zero. This is because the periodicity yields zero potential difference between an electrode and its periodic image, and the ICC* algorithm ensures that the two electrodes connected over periodic BCs are on equal potential.

#### 4.1. Verification: Field and Potential in Metallic BCs

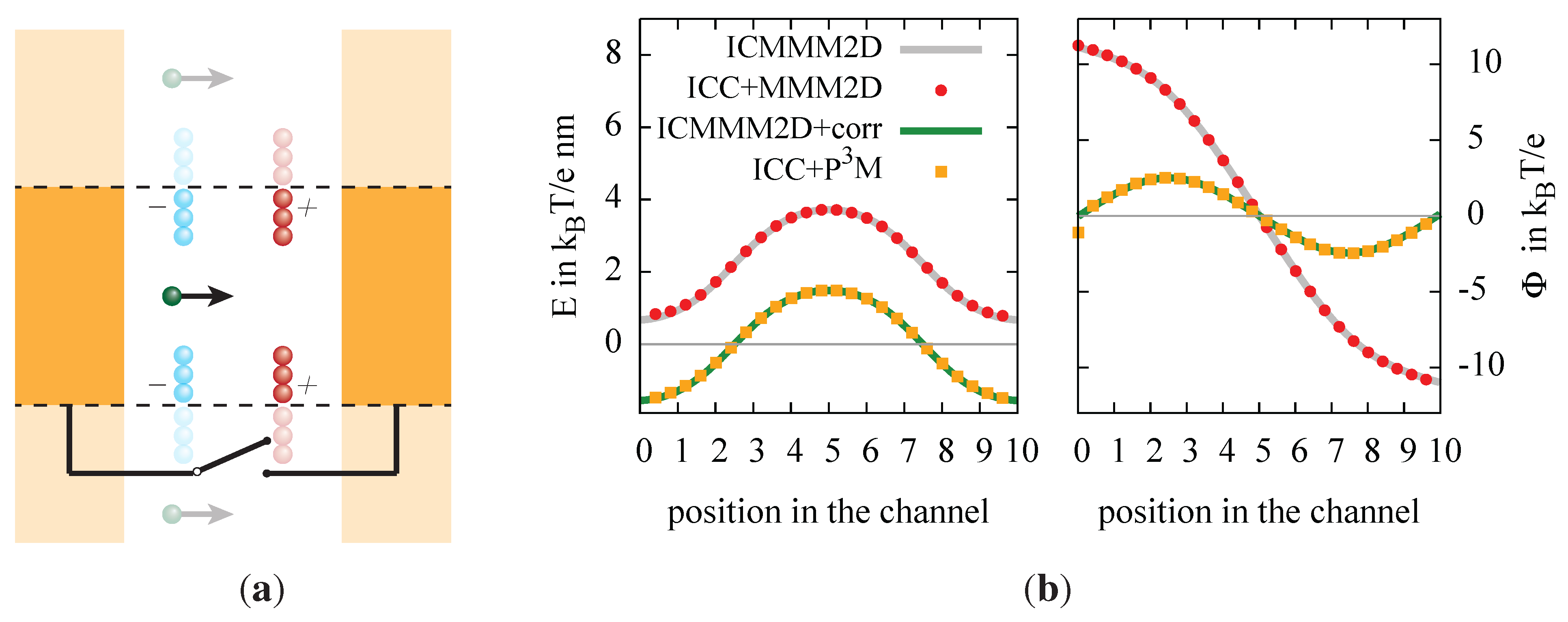

**Figure 5.**(

**a**) Sketch of the model system that was used to probe the influence of grounded and isolated metallic boundary conditions. The two possible setups are depicted by adding a switch to electrically connect the two plates. (

**b**) The resulting electrostatic field, E, perpendicular to the plates and the electrostatic potential in the slab.

## 5. Smooth Variations: Local Method

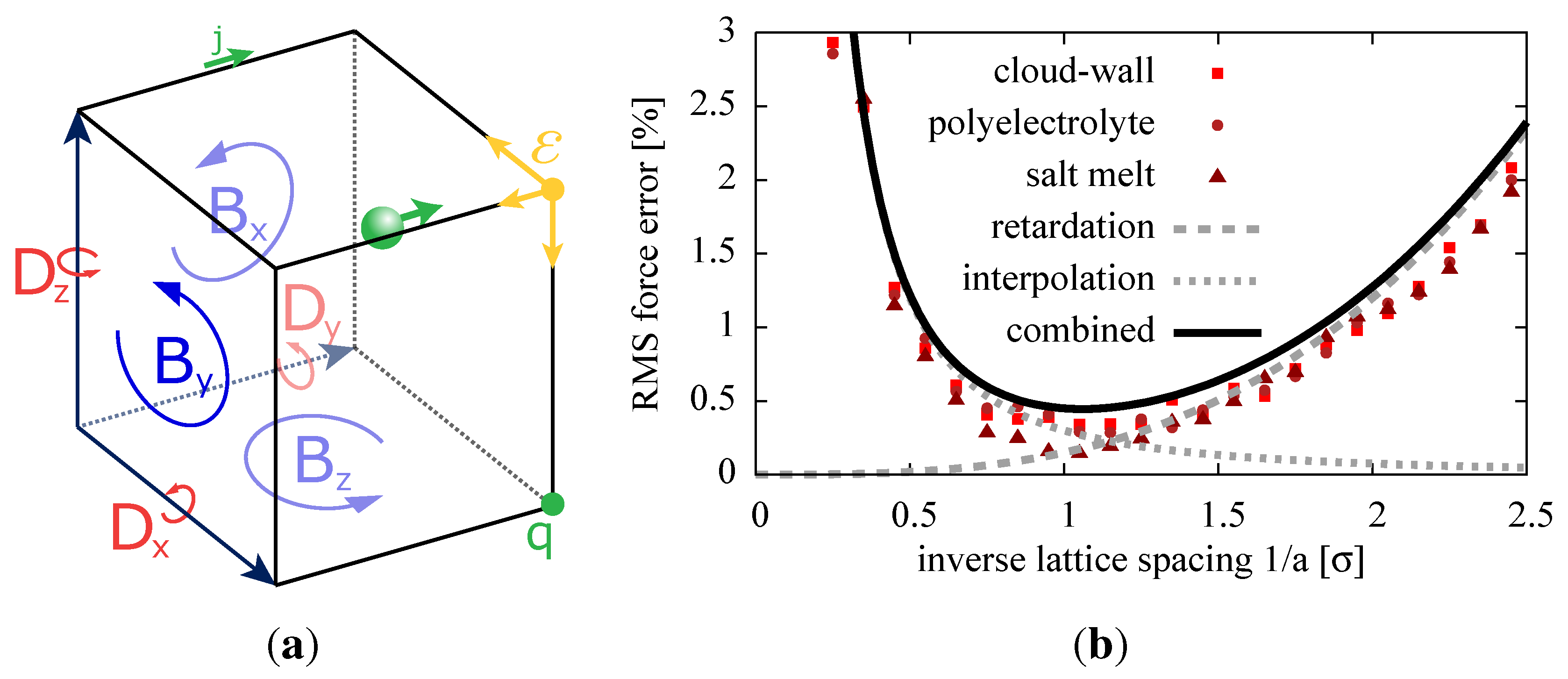

**Figure 6.**Maxwell Equations Molecular Dynamics (MEMD) interpolation of the charges onto the lattice. (

**a**) The electric current, $\mathit{j}$, permittivity ε and electric field $\mathit{D}$ are interpolated to the adjacent lattice links. The magnetic field component, $\mathit{B}$, is placed on the lattice plaquettes via a finite-differences curl $(\nabla \times )$ operator. (

**b**) The numerical error of the algorithm is dependent on the lattice spacing. The error can be reduced by applying a coarser mesh, coming from the right in this graph, and, thereby, increasing the field propagation speed in the system. However, at large lattice spacings a, the interpolation error at small distances dominates and diverges. In a densely-populated system, like the examples seen here, a minimal relative error of ${10}^{-3}$ is achieved at mesh sizes comparable to the minimum distance of two charges, denoted here by σ. For reference, the errors compared to a high precision P3M force calculation are included for three example systems.

#### 5.1. Example: Colloid with Dielectric Jump and Continuous Dielectric Constant

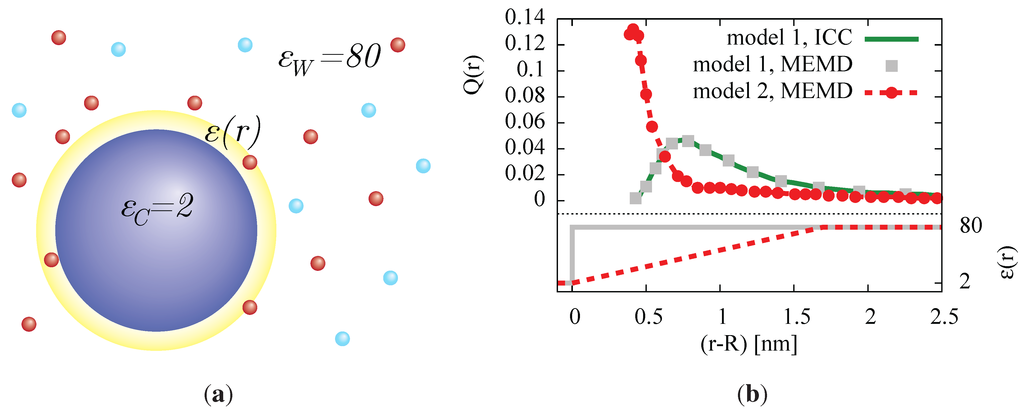

**Figure 7.**(

**a**) A charged colloid (charge $Z=60e$, radius $R=12.75\phantom{\rule{0.166667em}{0ex}}\mathrm{nm}$) is suspended in a salt solution (concentration $c=50\phantom{\rule{0.166667em}{0ex}}\mathrm{mmol}/\text{L}$). The dielectric constant is modeled as an abrupt jump to the bulk water permittivity with the MEMD and ICCP${}^{3}$M algorithms (gray points, green curve) or a linear radial increase within two ion diameters from the colloid surface between the two regimes (red). (

**b**) The resulting radial charge density profiles, which exhibit a drastic difference between the dielectric jump in model 1 and a smooth interpolation in model 2.

## 6. Conclusion

## Acknowledgments

## Conflicts of Interest

## References
