Search Results (1,687)

In this study, a composite powder explosion suppressant (MVTS–NaHCO₃) was prepared via the wet coating method of the solution–crystallization (WCSC) process, using modified vanadium–titanium slag (VTS) as the carrier and NaHCO₃ as the active suppressive component. A 20 L spherical explosion apparatus and a transparent pipeline explosion propagation test system were employed to investigate the effects of the composite powder explosion suppressant with different mass fractions (0%, 10%, 20%, 30%, 40%, 50%) on the explosion pressure and micro-mechanism of polyacrylonitrile (PAN) dust. The experimental results indicated that the MVTS–NaHCO₃ composite powder exhibited a significant suppression effect on PAN dust explosions. In the confined 20 L vessel, complete suppression was achieved when the mass fraction of the composite powder explosion suppressant exceeded 30%, with a maximum explosion pressure reduction of 53.2%. In the semi-open pipeline, 40% composite powder explosion suppressant reduced the maximum explosion pressure to 0.08 MPa (a reduction rate of 82.6%), and complete suppression was achieved at a mass fraction of 50%. Microstructural analysis revealed that the suppression performance of the composite powder explosion suppressant is attributed to the synergetic effects of physical and chemical mechanisms. Physically, NaHCO₃ decomposes endothermically (100 kJ/mol), releasing CO₂ and H₂O and thereby diluting the oxygen concentration, while the porous structure of MVTS enhances dispersibility. Chemically, the hydroxyl groups on the surface of MVTS bond with NaHCO₃, delaying its decomposition, while metal hydroxides (e.g., Al(OH)₃) decompose thermally to form Al₂O₃, which adsorbs and quenches free radicals (e.g., ·OH, ·H), thereby inhibiting chain reactions. This study provides new insights for the resource utilization of VTS and the prevention and control of industrial dust explosions. The findings have important reference value for optimizing explosion suppressant formulations and improving the intrinsic safety. Full article

Background/Objectives: Reconstruction of orbital floor fractures remains surgically challenging due to limited intraoperative visibility and complex anatomy. Inaccurate implant placement often leads to persistent complications and the need for a revision surgery. This study evaluated the clinical accuracy and re-operation rates of a preoperative 3D-printed model-assisted technique compared to the conventional intraoperative free-hand mesh bending method. Methods: A comparative ambispective study was conducted on 74 patients with isolated orbital floor fractures. The control group (n = 34, retrospective) underwent reconstruction using intraoperatively formed titanium meshes. In the study group (n = 40, prospective), patient-specific 3D-printed models, created by mirroring the healthy contralateral orbit, were used for preoperative mesh adaptation. Primary outcomes included the rate of revision surgery due to implant malposition, changes in orbital volume, and postoperative diplopia. Results: The 3D model group demonstrated a significantly lower rate of revision surgery compared to the control group. In the retrospective group, 5 patients (15%) required reoperation due to implant malposition, whereas no patients (0%) in the prospective 3D group required secondary intervention (p = 0.017). While both techniques effectively restored orbital volume, the 3D group showed greater volumetric precision with less variance. The mean volume difference in the affected orbit was 3078 ± 2204 mm³ in the control group, compared to 2390 ± 1893 mm³ in the study 3D group. At the 6-month follow-up, persistent diplopia was observed in 12% of the control group compared to only 3% in the study group. Conclusions: The use of in-house 3D-printed models for preoperative mesh forming significantly enhances surgical precision and eliminates the need for revision surgery due to implant malposition. This workflow offers a cost-effective, predictable, and accessible alternative to expensive patient-specific implants (PSIs) or intraoperative navigation systems, improving patient safety and long-term clinical outcomes. Full article

The selection of deformation mechanisms in hexagonal close-packed (HCP) metals is strongly influenced by both crystallographic orientation and macroscopic deformation constraints. In commercially pure titanium, plastic deformation under constrained loading conditions involves a complex interplay between dislocation slip and deformation twinning, whose respective activation cannot be fully described by classical stress-based criteria. In this study, the mechanical origin of slip and twinning variant selection in commercially pure titanium subjected to plane strain compression is investigated experimentally. Plane strain compression is used as a canonical loading condition representative of constrained deformation paths encountered in sheet metal forming. Interrupted in-situ electron backscatter diffraction is combined with slip trace and twin variant analyses to identify the active deformation mechanisms at the grain scale. Resolved shear stress calculations show that stress-based criteria provide a necessary first-order condition for the activation of both slip and twinning systems. While the Schmid factor reasonably predicts part of the observed slip activity, it fails to uniquely determine the selection of active twinning variants. A kinematic analysis reveals that twinning variant selection is governed by the compatibility between the deformation induced by twinning and the macroscopic strain constraints imposed by plane strain compression. Only variants whose deformation accommodates compression along the loading axis, extension along the free in-plane direction, and minimal strain along the constrained in-plane direction are preferentially activated. These results demonstrate that deformation mechanism selection in HCP titanium under constrained loading conditions results from a combined effect of resolved shear stress and kinematic compatibility. The proposed framework provides a physically grounded basis for interpreting deformation-induced texture evolution and offers clear perspectives for the development of crystal plasticity models incorporating twinning under complex strain paths. Full article

In this paper, we present one-pot methods for synthesizing β- and g-C₃N₄ composites with titanium and copper oxides using underwater plasma and solution combustion techniques. The resulting structures were characterized using a range of complementary analytical methods. Analysis revealed that solution combustion produces composites containing mixed-phase titanium dioxide and Cu₄O₃, whereas plasma incorporation results in the integration of Cu and Ti ions, forming a composite based on copper oxide and copper titanate. These composites were successfully evaluated for the photocatalytic degradation of a mixture of three dyes under both UV and visible light irradiation. Composites synthesized via solution combustion exhibited remarkable photocatalytic activity toward all three dyes. The rates of photodecomposition of dyes in the presence of composites are 1.5–2.5 times higher compared to pure C₃N₄. Furthermore, all composite materials demonstrated high stability in photocatalytic performance after six cycles. Full article

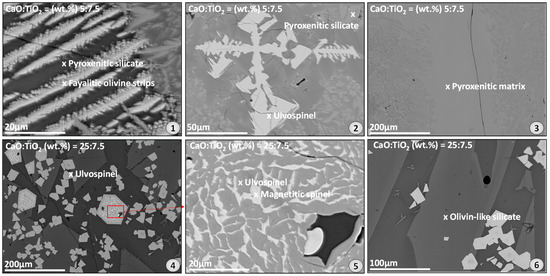

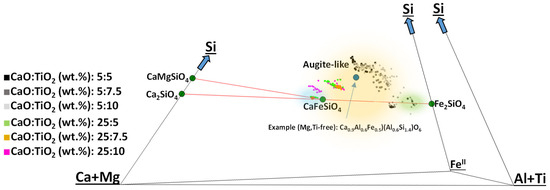

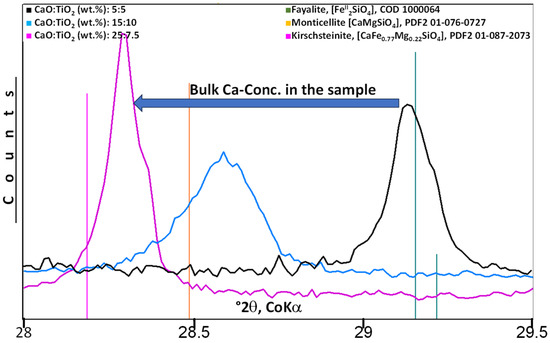

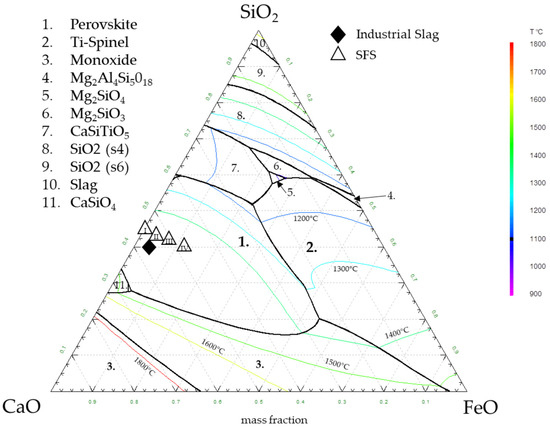

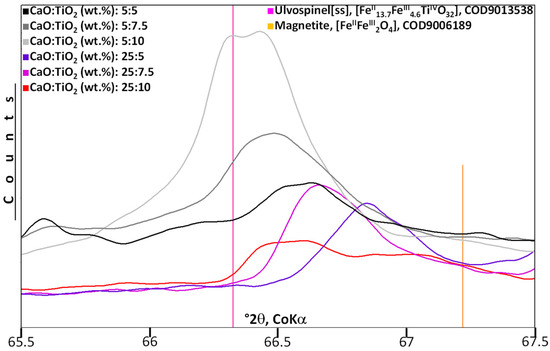

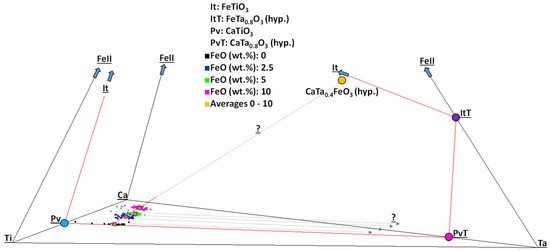

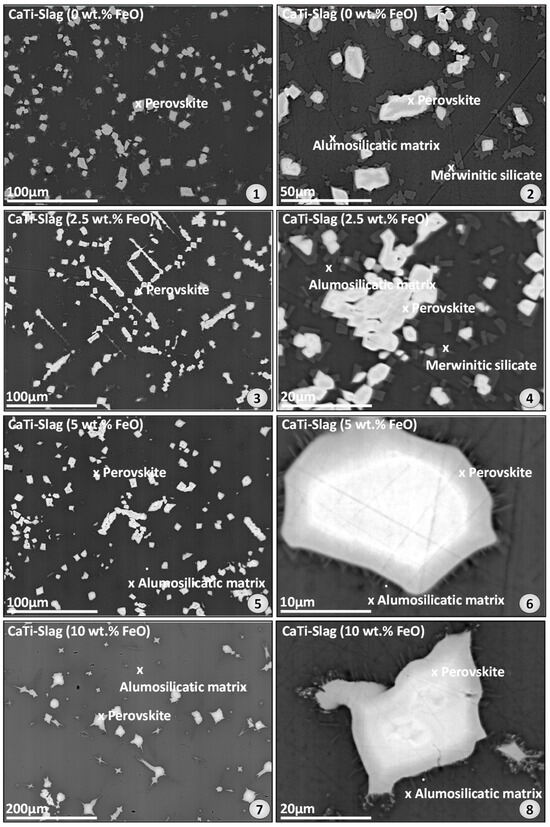

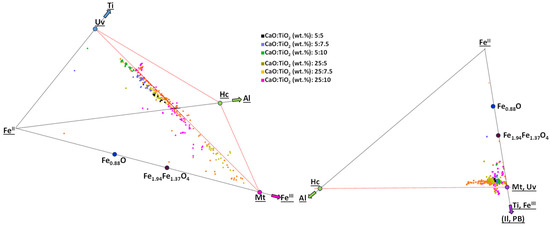

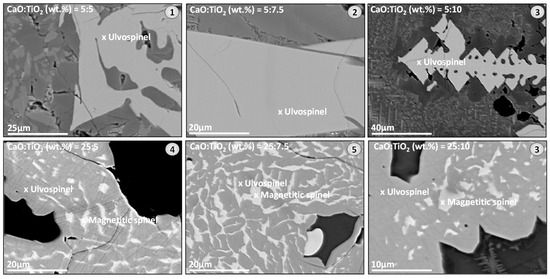

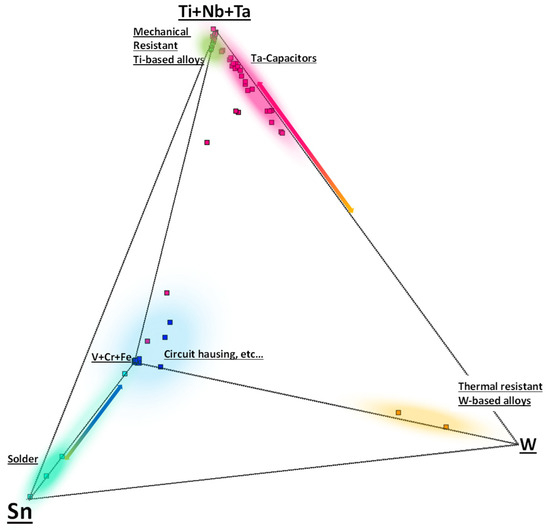

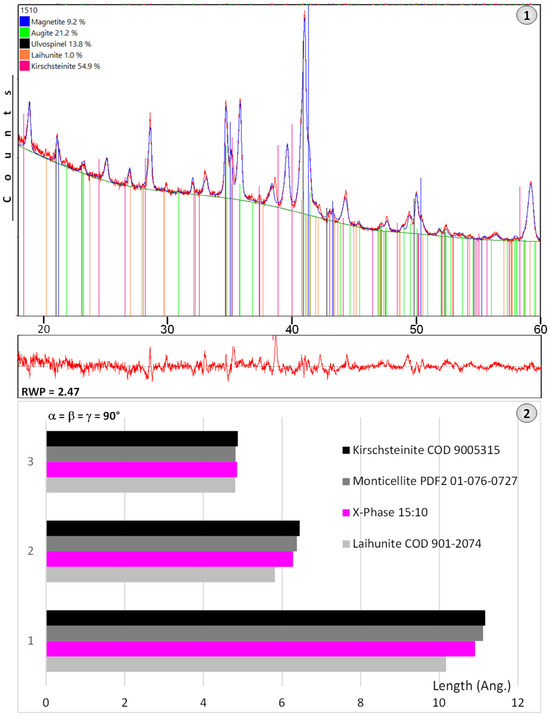

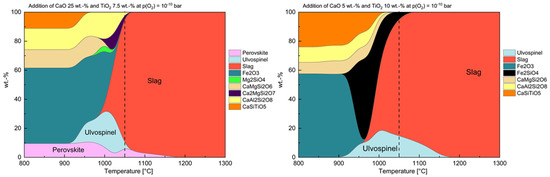

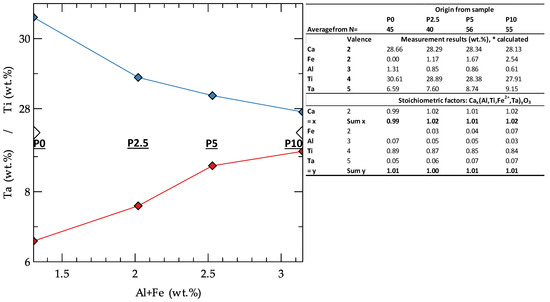

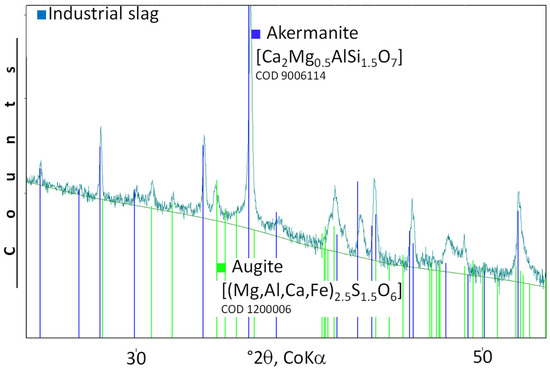

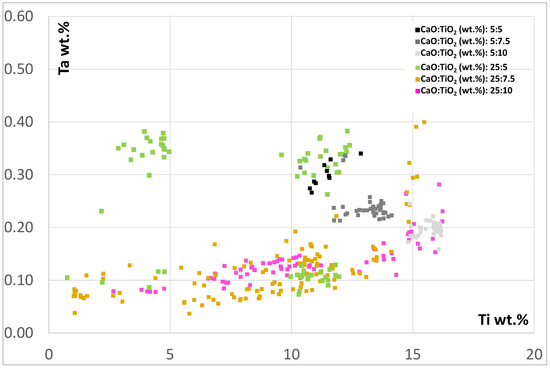

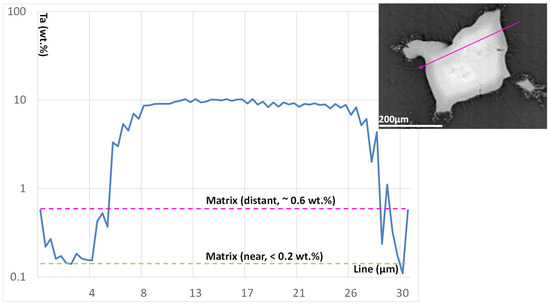

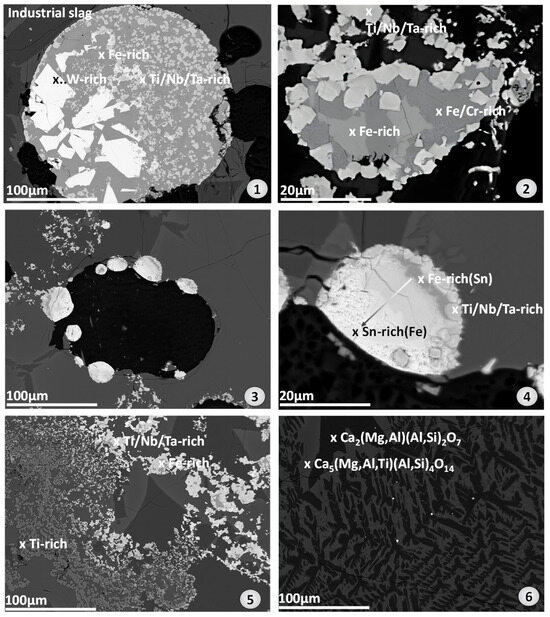

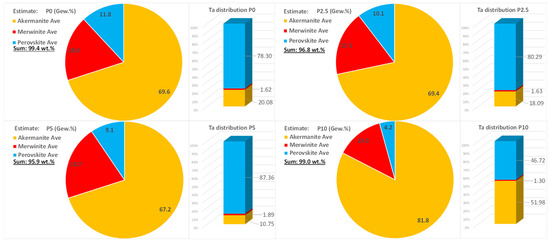

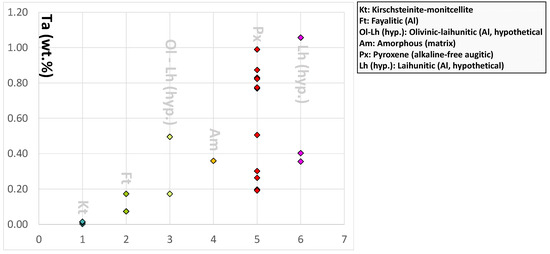

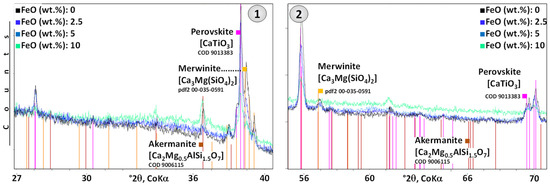

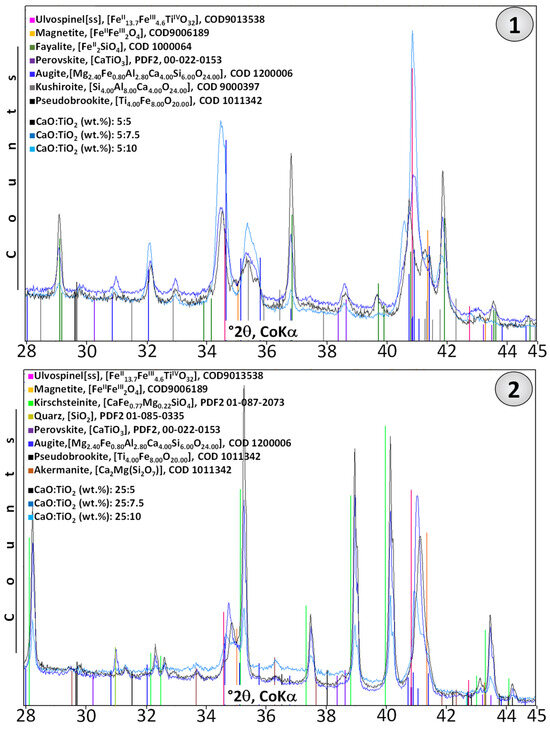

The recovery of oxygen-affine elements such as tantalum (Ta) using pyrometallurgical routes is difficult because this element cannot easily be enriched in a metal alloy, as is the case with battery recycling for the more noble metals Co, Ni, and Cu. A promising procedure, on the other hand, is to enrich this element in simple oxide compounds formed in a silicate melt. This enrichment in tailored mineral compounds is also known as the “Engineered Artificial Minerals” (EnAM) approach. Currently, the Technological Readiness Level (TRL) of this approach is relatively low and limited to understanding the mechanisms involved in the incorporation of target elements and the search for suitable compounds with a high enrichment factor, favorable morphology, and early crystallization during solidification in order to achieve maximum recovery yield of the selected compound (element). Due to its high ion charge (high field strength) and small ion radius for a heavy element, it is plausible that Ta behaves similarly to the abundant element titanium (Ti), whose chemistry is much better known. Ti minerals such as ulvospinel, perovskite, ilmenite, and pseudobrookite are therefore suitable candidates in the search for a suitable tantalum EnAM. A comparison of the solidification of synthetic silicate melts dominated by iron and calcium with Ti as an additive show that Ta is not incorporated into ulvospinel formed in olivine-containing Fe-rich silicate melts (base composition with 57 wt.% FeO). In contrast, the perovskites formed in silicate melts dominated by calcium-alumosilicate (max. 10 wt.% FeO addition) do incorporate Ta. Crystal size and Ta content increase with increasing iron content (up to a maximum of about 10 wt.%). The results indicate a possible solid solution with the well-known compounds CaTiO₃ and FeTiO₃ and the virtual compounds Ca_0.8TiO₃ and Fe_0.8TiO₃. Full article

Introduction and Importance: Colorectal adenocarcinoma typically metastasizes to the liver and lungs, with pleural, breast, or osseous involvement being exceedingly rare. Here, we report an unusual case of rectal adenocarcinoma metastasizing to the chest wall with simultaneous involvement of the lung, pleura, ribs, and subcutaneous breast tissue, forming a dominant giant metastasis (25 × 18 × 16 cm) accompanied by additional satellite lesions between the ribs and pectoral muscles, as well as intrapulmonary nodules. Presentation of case: The patient underwent radical resection including rib excision, followed by hyperthermic intrathoracic chemotherapy (HITHOC) with mitomycin. Chest wall integrity was restored using a synthetic mesh and titanium plating, ensuring both oncologic clearance and structural stability. Multimodal therapy also included neoadjuvant chemotherapy with bevacizumab, which was continued postoperatively. Clinical discussion: This case underscores the critical role of a multidisciplinary strategy in managing rare and aggressive metastatic patterns of colorectal cancer. In selected patients, a combination of systemic therapy, extensive surgical resection, advanced reconstruction, and regional chemotherapy may offer the potential for short-term local disease control. Conclusions: The radical excision of the giant tumour enabled continuation of systemic therapy under the national drug programme, was associated with short-term local control, and improved the patient’s quality of life. Full article

Titanium dioxide (TiO₂) is a versatile material that exhibits a high refractive index, strong light-scattering capability, effective UV-absorption, wide band gap semiconductor behavior (3.0–3.2 eV), and excellent chemical stability. Owing to this unique combination of properties, TiO₂ is widely used in applications such as cosmetic and healthcare products, architectural and automotive coatings, and photocatalytic degradation of environmental pollutants. In photocatalytic applications, the crystal structure, phase composition and electronic properties of TiO₂ play a critical role in determining its performance. In the present study, TiO₂ nanotubes were synthesized by anodization of Ti° coatings deposited via a semi-industrial arc-PVD process. A post-anodization heat treatment was carried out at 430 °C for 1 h to promote the formation of the anatase phase within the TiO₂ nanotube structures. The structural characterization of the synthesized film was performed using X-ray diffraction (XRD) and Rietveld refinement. This methodology enabled the identification of the formed oxide phases, structure, and crystalline, confirming the formation of mixed oxides in the coating. To address the difficulty of refinement of these crystalline phases, the Le Bail method was applied. This refinement strategy allowed the identification of the crystalline phases that are present in the Ti_xO_y coating, including a hexagonal structure characteristic of α-Ti (space group P63/mmc, No. 194), the tetragonal anatase TiO₂ (space group I41/amd, No. 141) phase, and the trigonal Ti₂O₃ phase (space group R-3/c No. 167). Key crystallographic parameters such as lattice constants, bond lengths and angles, crystallite sizes, unit cell distortion and electron density were systematically evaluated for each phase. In addition, the Wyckoff positions and interatomic distances of the constitutive atoms were calculated, providing a comprehensive description of the TiO₂+Ti₂O₃/Ti° crystallographic system. The topographic and surface oxidation states were recorded by using profilometry and X-ray photoelectron spectroscopy, respectively. Full article

Background/Objectives: Staphylococcus epidermidis (RP62A) and Staphylococcus aureus (UAMS-1) are clinically relevant pathogens frequently implicated in implant-associated infections due to their ability to form biofilms. RP62A is typically linked to persistent, chronic, low-grade infections, whereas UAMS-1 is associated with acute, invasive disease. Both strains serve as representative models for chronic and acute periprosthetic joint infections (PJIs). The objective of this study was to examine and compare in vitro biofilm formation by RP62A and UAMS-1 on orthopaedic materials/disc surfaces of defined composition. Methods: In vitro biofilm formation assays were performed using orthopaedic disc surfaces composed of cobalt–chromium alloy (CoCr), titanium alloy (Ti), and polyethylene (PE) after 72 h of incubation. Biofilm biomass was quantified using crystal violet staining, with absorbance measured at OD₅₇₀. A polystyrene (PS) surface served as a control. Additionally, retrieved orthopaedic explant components were used as substrates for in vitro biofilm assays, in which RP62A was incubated for 72 h on the explanted surfaces. Supporting assays on glass slides were conducted to examine strain-specific biofilm-related architecture. Results: In vitro biofilm mass quantification assays showed strong biofilm formation by RP62A across all tested surfaces, with the highest absorbance on CoCr (OD₅₇₀ = 5.80 ± 0.19). Notably, biofilm formation on CoCr was 76% higher compared to PS (p < 0.0001). No significant differences were observed among all three surface discs (p > 0.1). Biofilm formation was highest on PE for UAMS-1 (OD₅₇₀ = 1.29 ± 0.09) and was significantly greater than on Ti (178%, p < 0.001) and CoCr (196%, p < 0.0001). In the in vitro assays performed on retrieved explant components, RP62A showed pronounced biofilm accumulation on polyethylene tibial inserts, particularly in regions of mechanical wear and friction. Supporting assays on glass slides were performed to examine strain-specific surface microstructural, revealing dense network-like structures for RP62A and thinner, discontinuous layers for UAMS-1. Conclusions: RP62A formed dense biofilms in vitro on multiple orthopaedic implant materials and retrieved explant components, consistent with its association with chronic periprosthetic joint infections. Increased biofilm accumulation was observed on mechanically worn polyethylene surfaces. In contrast, UAMS-1 showed lower biofilm formation on metallic disc surfaces, indicating strain- and material-dependent differences. These findings highlight the relevance of implant material selection and surface integrity for strategies targeting biofilm-associated implant infections. Full article

Titanium alloys, particularly β-type Ti-13Nb-13Zr, are promising biomedical materials due to their low elastic modulus and excellent biocompatibility. However, their bioactivity needs improvement for better bone integration. In this study, a calcium-phosphate (Ca/P) coating was prepared on a Ti-13Nb-13Zr alloy via micro-arc oxidation (MAO) in an electrolyte containing calcium acetate and dipotassium hydrogen phosphate. The effect of applied voltage (300 V, 400 V, and 500 V) on the phase composition, surface morphology, and in vitro bioactivity of the coatings was investigated. Surface characterization was performed using scanning electron microscopy (SEM), X-ray diffraction (XRD), and energy-dispersive spectroscopy (EDS). The results show that increasing the voltage increased the surface roughness, average pore size, and rutile TiO₂ content in the coating. The Ca/P ratio in the coating approached 1.67 at 500 V, similar to that of natural bone. After immersion in simulated body fluid (SBF) for 20 days, the coating formed at 500 V induced the highest deposition of hydroxyapatite (HA), completely covering the microporous surface. These findings indicate that MAO treatment at 500 V significantly enhances the bioactivity of the Ti-13Nb-13Zr alloy, making it a promising candidate for orthopedic implants. Full article

Friction stir-welding (FSW) is widely recognized as a modern solid-state technology used to join dissimilar materials by solid-state mechanical mixing. Such mechanical mixing can be exploited to fabricate in situ composite structures through solid-state deformation mechanisms. The present investigation highlights the microstructural evolution and mechanical properties of an in situ composite structure fabricated by FSW of aluminum (Al) to titanium (Ti) incorporating a thin Nickel (Ni) interlayer. A 0.1 mm thick Ni foil was placed across the full butt interface between 4 mm thick Al and Ti plates before friction stir-welding. Properties of the composite were investigated in detail, and the results revealed that fragmented Ti and Ni particles of different sizes were consolidated in the weld nugget. Al, on the other hand, exhibited substantial microstructural refinement and developed an equiaxed microstructure with random grain orientation, mixed grain boundaries and low micro-strain accumulation in the weld nugget. At the processing temperature, Al reacted with both Ti and Ni to form multiple intermetallic compounds. Tensile testing indicated that the tensile properties of the weld were close to those of the base aluminum. This retention of mechanical properties in spite of recrystallization is attributed to the following mechanisms: (1) Ti and Ni undergo severe deformation, forming fine particles with varying sizes and shapes; (2) at particle interfaces, diffusion and chemical reactions produce interlayers and intermetallic compounds; (3) these particles are consolidated within dynamically recrystallized Al, imparting composite characteristics to the weld nugget; and (4) the particles containing intermetallic compounds act as dispersoids in the Al matrix. Quantitatively, the weld retained 98% (104.2 ± 3.3 MPa) UTS and 90% (17.1 ± 1.2) ductility of base aluminum, demonstrating the effectiveness of the Ni interlayer approach in controlling brittle intermetallic formation. Full article

This work focuses on obtaining a titanium nitride coating on the surfaces of titanium and its alloy powders using a novel method, self-shearing reactive milling, under a nitrogen pressure of 50 bar. The Ti, Ti6Al4V, and Ti-5553 spherical powders were milled for up to 10 h at ambient temperature without grinding balls. As a result of the experiments, a thin, brittle TiN coating formed on the powders’ surfaces. The cross-sections of the milled powders reveal that the TiN layer thickness is in the nanometer range (about 500 nm). By analyzing the sequence of X-ray diffraction patterns, it is evident that only for the Ti6Al4V powder milled for 10 h, two peaks are observed that can be attributed to a TiN phase. On the other hand, Raman spectroscopy revealed characteristic TiN spectra even for samples collected at the initial stage of self-shearing reactive milling. An important aspect of the experiment was the preservation of the spherical shape of the milled powders, which makes them a potential feedstock for additive manufacturing of functionally graded biomaterials. Full article

A type of metasurface with a top cross-square nanobrick (CSNB) array is proposed for realizing a highly efficient infrared (IR) radiation absorption across a broad wavelength region covering three traditional atmospheric windows. The metasurface is successfully constructed by integrating a layered CSNB array over a composite dielectric bottom supported by a common silicon substrate. The metasurface sample experimentally exhibits an average radiation absorptivity of more than 86% and a very low transmittance of less than 2% in the 1.28–14 μm wavelength region measured. A polarized absorption sensibility of the incident lightwaves and an average IR absorptivity of more than 80% with an oblique incidence at 40° are also demonstrated. The strong broad IR absorption with a negligible radiation transmission can be attributed to the existence of an obvious electromagnetic shielding action of the nanocavity formed between adjacent titanium films, and further, the near-field lightwave excitation upon the CSNBs of the metasurface charged by incident lightwaves satisfying the resonant condition needed. Full article

This study addressed the poor wear resistance of Ti-7.5Nb-4Mo-2Sn shape memory alloy through the development of Ti-xSn (x = 6, 8, 9, 10, 20 at.%) coatings and laser cladding technology. This β-type titanium alloy is a promising biomaterial for artificial joints and bone fixation implants, and laser cladding is a superior surface modification technology for fabricating metallurgically bonded high-performance coatings. Microstructural characterization revealed that increasing Sn content from 6% to 10% progressively suppressed β-phase formation while enhancing microhardness (peak value: 430.06 HV1) and wear resistance. Conversely, further Sn addition of 20% degraded these properties. The optimal Ti-10Sn alloy was subsequently laser cladded onto a Ti-7.5Nb-4Mo-2Sn substrate in the form of pre-placed thin sheets under varying laser scanning speeds (7–13 mm/s). The results indicated that processing at 10 mm/s produced superior coating features, including complete metallurgical bonding (20 μm transition layer), the maximum surface hardness (494 HV1, 93% increase), and superior wear resistance. Microscopic analysis confirmed a wear mechanism transition from mixed adhesive–abrasive wear (7.5Nb-4Mo-2Sn substrate) to pure abrasive wear (Ti-10Sn coating), resulting in the enhanced wear resistance of the substrate. This study demonstrated that synergistic alloy design combined with a laser cladding approach can significantly enhance biomedical alloy performance. Full article

Titanium and its alloys are widely used in endoprostheses. The naturally formed titanium dioxide film on titanium surfaces improves chemical stability and enhances implant biocompatibility. However, oxidised titanium surfaces may also promote bacterial adhesion and biofilm formation, contributing to implant-associated infections. Therefore, surface modification represents a key strategy for controlling microbial–implant interactions. This article focuses widely used titanium alloy Ti-6Al-4V treated with a laser beam, which induces surface colour changes as a result of oxide formation. Laser processing enables controlled formation of micro- and nanoscale features, structural reconstructions, and defects that may influence the surface electrical charge and, consequently, cell immobilisation. Thus, the surface colour, electrical potential, and cell immobilisation capacity are likely interrelated. From a manufacturing perspective, titanium oxide colouring facilitates quality control and process reproducibility, as surface colour provides a rapid, non-destructive visual indicator of oxide thickness and treatment consistency. This study aims to identify correlations among surface colour, electrical potential, and cell immobilisation capacity on laser-treated titanium alloys. A relationship between the optical properties, electronic structure, and biological response of laser-processed titanium oxide films is established. Specifically, the blue colour saturation of the oxide film is inversely correlated with the electron work function. A more saturated blue corresponds to a lower work function, indicating a higher positive surface charge density. This shift is attributed to changes in electron affinity, likely resulting from laser-induced structural reconstruction and defect formation within the oxide layer. The proposed changes in electronic structure are supported by modifications in the electronic density of states, analysed using near-threshold photoelectron spectroscopy. The biological response is directly linked to these physical changes: enhanced immobilisation of yeast (Saccharomyces cerevisiae) cells on the treated alloy surface correlates with the electron work function. These results may assist in the development of controlled titanium oxide surfaces with enhanced biocompatibility. Full article

The large-scale accumulation of titanium-extraction tailing slag (TS) poses environmental concerns, while its application is constrained by high impurity contents and low hydraulic reactivity, which is further exacerbated by the necessary dechlorination process. This study aims to evaluate the effectiveness of synthetic calcium silicate hydrate (C-S-H) nanocrystals in improving the performance of cement pastes incorporating deeply dechlorinated TS (DD-TS). To ensure uniform dispersion and activity, C-S-H seeds with varying crystallinities (55–94%) were prepared via a dynamic hydrothermal method (180 °C for 1–3 h) and incorporated into the composite binder in a wet-powder form at dosages of 0.5–2.0%. Results indicate that C-S-H-1, with the lowest crystallinity, offered the highest efficiency. At 1.5% dosage, the 1 d compressive strength increased by 64.6% to 18.6 MPa, while the initial setting time decreased by approximately 40%. Microstructural analyses reveal that poorly crystalline C-S-H provides abundant nucleation sites, accelerating early hydration and densifying the matrix to levels comparable to 7 d control pastes. These findings demonstrate the potential of C-S-H seeding for enhancing the utilization of DD-TS in cement-based materials. Full article
