Search Results (39)

The ratchet click mechanism in mechanical watch movements is a micro-component essential to prevent the unwinding of the caliber mainspring, providing secure energy storage during recharging. Despite its geometrical simplicity, the ratchet click undergoes to a complex distribution of stress, elevated strains, and cyclical mechanical deformations, affecting its long-term reliability. Despite being a crucial element in all mechanical watch movements, the non-return system appears to have been overlooked in scientific literature, with no studies available on its design, modeling, and micromachining. In this work, we introduce a novel Finite Element Method (FEM) -based design strategy for the ratchet click, systematically refining its geometry and dimensional parameters to minimize peak stress and improve durability. A mechanical simulation model was created to simulate the boundary conditions, contact interactions, and stress distributions on the part. If compared with the standard component, the optimized design exhibits a decrease in peak stress values. The mechanism was micro-machined, and it was experimentally tested to validate the numerical model outputs. The integrated digital–physical approach not only underscores the scientific contribution of coupling advanced simulation with experimental validation of complex micromechanisms but also provides a generalizable method for enhancing performance of micro-mechanical components while preserving their historical design heritage. Full article

The present study intends to assess the ratcheting response of SA508 and SA333 steel alloys subjected to asymmetric loading cycles at various operating temperatures of 298, 573, and 623K through a hardening framework developed by Ahmadzadeh–Varvani (A-V) and the finite element analysis structured by the Chaboche hardening model (CH) in the ANSYS software program. The dynamic recovery terms in the A-V and CH hardening framework consisted of temperature-dependent parameters and functions to address the dynamic strain aging (DSA) phenomenon at high temperatures of 573 and 623 K. The DSA phenomenon reported at elevated temperatures was attributed to the interactions of solute atoms and dislocations with a certain temperature, resulting in higher material strength and lower ratcheting deformation. The coefficients of these frameworks were analytically determined through stress–strain hysteresis loops obtained from the strain-controlled cyclic tests. The FE analysis was applied to numerically evaluate backstress evolution through use of the CH model. Two popular nonlinear brick and tetrahedron element types were examined to study the convergence of the elemental system with various numbers of elements. This ensured the independence of the simulated results from the number of elements and their convergence. The simulated ratcheting responses for brick and tetrahedron solid elements were compared to those predicted analytically by the A-V hardening rule and experimentally measured values. The predicted and simulated ratcheting data were found to be in good agreement with the measured data. The predicted and simulated ratcheting results generated using the A-V and FEA approaches showed $R^2$ values of 0.96 and 0.85, respectively, when compared with the experimental data. Full article

The parking ratchet is an important safety component of the car. Cracking occurs in the grinding surface during quenching and grinding processes after carburizing; thus, the goal of this research is to clarify the key cracking cause of the parking ratchet. Optical microscopy (OM), scan electronic microscope (SEM), energy dispersive spectroscopy (EDS), X-ray stress analyzer, etc., were used to systematically test and analyze the cracking cause. The results show that the microstructure of the parking ratchet with cracks after carburizing and quenching is normal, the residual stress of the surface is normal, with no oxide and decarburized layer within the crack areas, without burning during grinding, while it was found that oxide inclusions existed on the area of the crack, which is different from the normal specimens. Hence, a conclusion can be drawn that the cracking cause on the surface of the parking ratchet results from the oxide inclusions in the raw material. This study provides a feasible direction for the failure analysis and control of the cracks on parking ratchets during the manufacturing process. Full article

This paper aims to investigate the mechanical behavior of a polycarbonate through cyclic tensile, compression, and torsiontests atstrain rates that reduce viscous effects for this material. Measurements included axial and transverse strains for uniaxial tests and shear strains for torsion. Tensile tests exhibited nonlinear elasticity, ratcheting, and plasticity, accompanied by an increase in volumetric strain. Compression tests revealed nonlinear elasticity, with the surprising result of positive plastic axial and volumetric strains, accompanied by marginal transverse strains. Torsional tests showed an elastic but nonlinear relationship between shear stress and strain. In these latter tests, positive plastic volumetric strains were observed, which suggests that deviatoric stress can also induce volumetric plastic strains. These findings are of great importance for developing mathematical models of glassy amorphous polymers, and the observations contribute to understanding the complex behavior of such materials. Full article

A study was conducted on the mechanical behavi or of the completion string in a 10,000 m ultra-deep well from western China’s oilfields to identify the causes of plastic failure in the string. This article analyzes the interaction between fluid and tubing in high-pressure and high-production gas wells by establishing a fluid structure coupling four-equation model. Through fatigue tests, it was found that P110 tubing material has a stress amplitude related ratchet effect, revealing the softening characteristics of tubing material. Through case analysis, the fatigue of the entire wellbore was analyzed, and it was shown that the fatigue hotspot is concentrated near the neutralization point, and stress concentration under high-production and low-production conditions leads to the degradation of tubing material performance under fatigue load. After continuous service for 30 days under high-production and low-production conditions, the entire wellbore section exhibited a softening phenomenon, and the yield strength began to decrease below 4349 m and 4324 m well depths, respectively. The safety factor of the entire wellbore section decreased. Within 284 days of production, the fatigue damage of the entire wellbore section was less than 5%, and the remaining yield change and material softening of the tubing string were negligible. However, there was an impact load during the lifecycle, which caused severe fluctuations in the wellbore safety factor and was the main cause of tubing string fracture. Subsequent research should integrate diverse well cases exhibiting varying production parameters to establish a statistically robust predictive framework for safety factor variations. Full article

Super duplex SAF2507 stainless steel is widely used in petrochemical piping systems during the transport of substances. The pipelines are subjected to cyclic loads due to road vibration and internal pressure, which causes the ratcheting behavior. In this research project, we conducted a battery of uniaxial ratcheting experiments of super duplex SAF2507 stainless steel under displacement cycling, and the effects of stress amplitude, mean stress, and pre-strain on the ratcheting strain were evaluated. The findings showed that ratcheting strain grew as mean stress and stress amplitude rose under identical stress conditions. Additionally, as pre-strain levels increased, the ratcheting strain was observed to diminish. In addition, a three-dimensional ratcheting boundary graph was created with stress amplitude, mean stress, and ratcheting strain rate. This represented a graphical surface area for the study of ratcheting strain rates for various combinations of mean stress and stress amplitude. A rate-independent model was developed by combining the Armstrong–Frederick (A-F) hardening rule with Ohno–Wang (O-W II) model, called the AF-OW II model. This constitutive model was implemented in the ABAQUS 2021 finite element software to numerically analyze the ratcheting evolution of SAF2507 stainless steel. The results indicated that the calculated results of the AF-OW II model closely aligned with the experimental data. Full article

Ratcheting analysis for cantilever beams subjected to the thermomechanical loads is presented using the finite element method. The cantilever beam is constrained along the vertical direction, and plane stress conditions are assumed according to the bilinear isotropic hardening model. Two points are considered to obtain areas of ratcheting by using linear extrapolation. The results and output diagrams for ratcheting with elastic-perfect plastic behavior are illustrated. It was revealed that the beam behaves elastically after the first considerable plastic strain, which is seen in two shakedown regimes. The numerical results are verified with known and analytical results in the literature. The results indicate a strong correlation between the outcomes from the cyclic ANSYS Parametric Design Language (APDL) model and Bree’s analytical predictions. This consistency between the finite element analysis and the analytical solutions underscores the potential of finite element analysis as a powerful tool for addressing complex engineering challenges, offering a reliable and robust alternative to traditional analytical methods. Full article

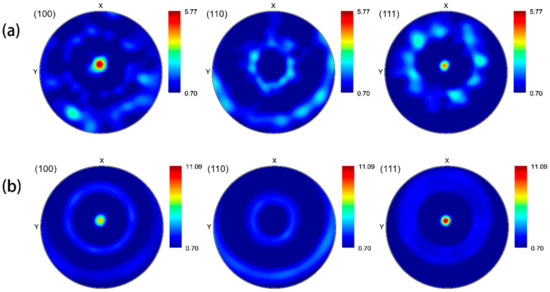

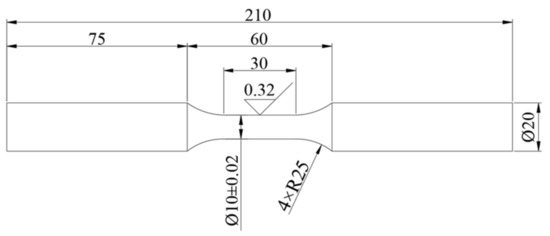

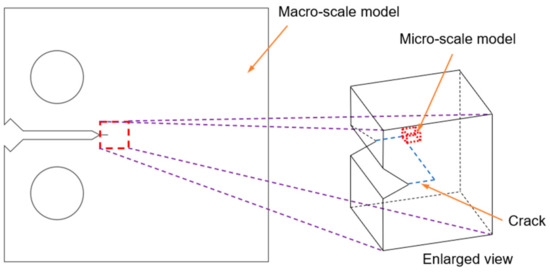

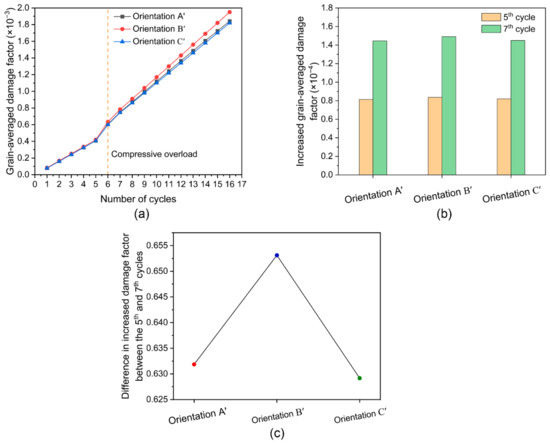

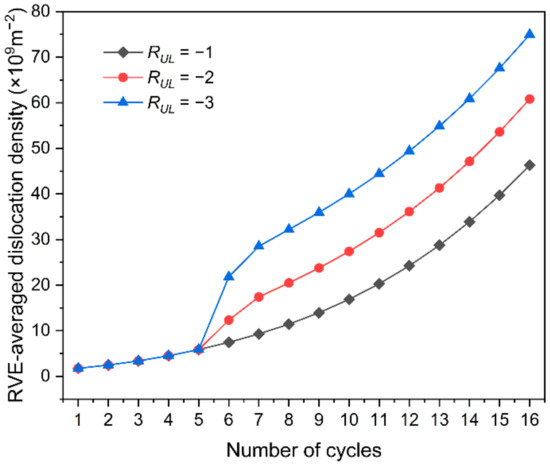

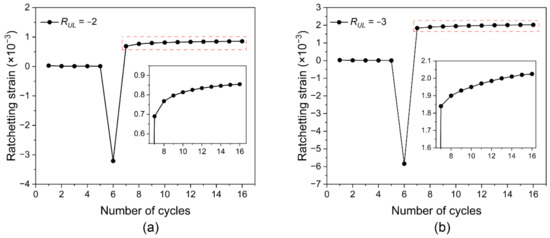

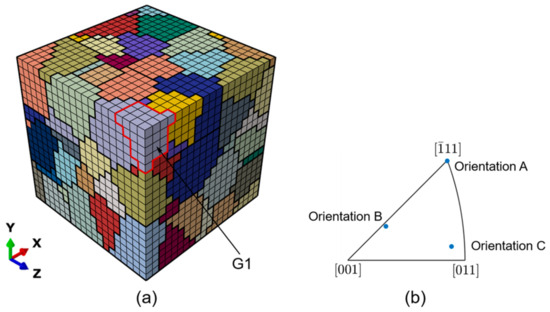

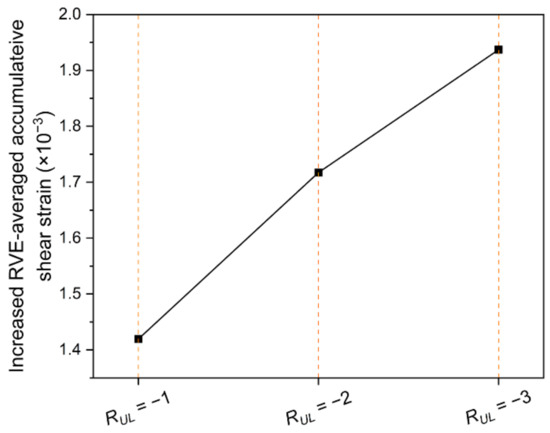

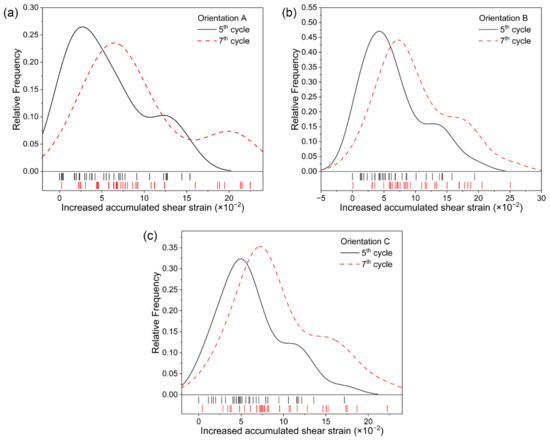

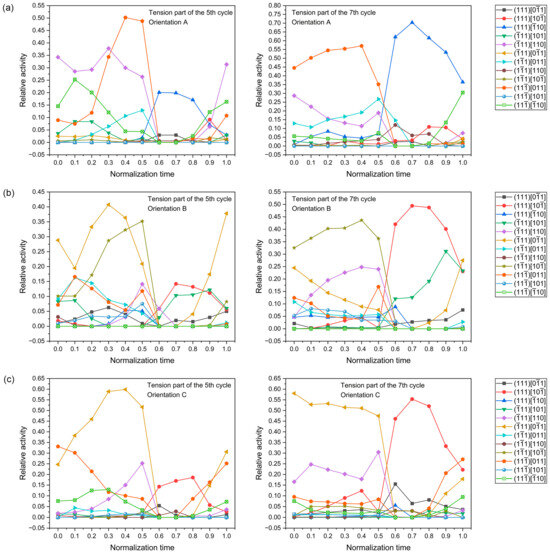

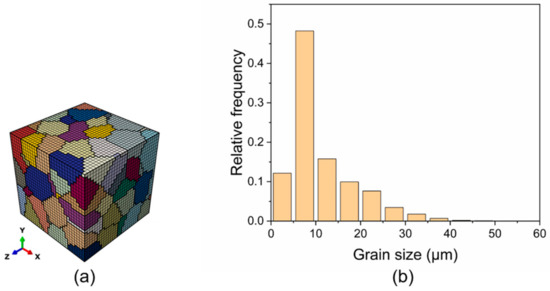

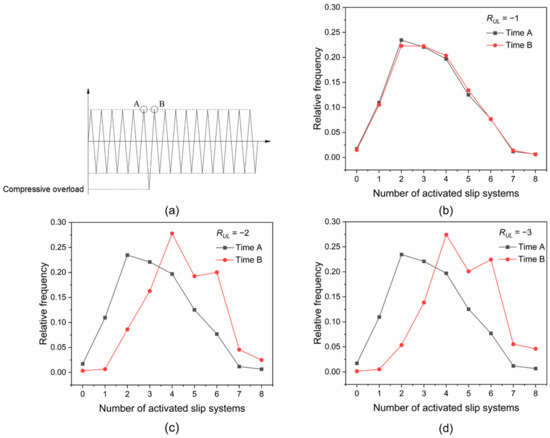

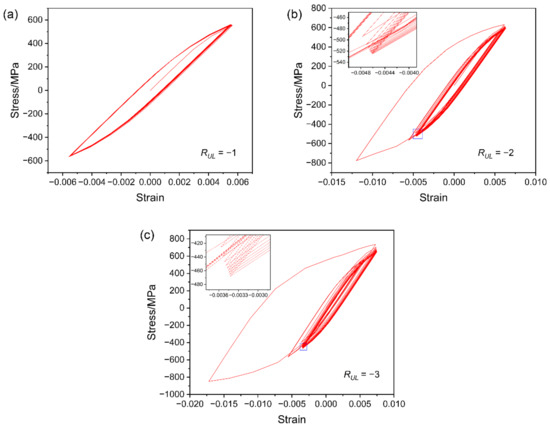

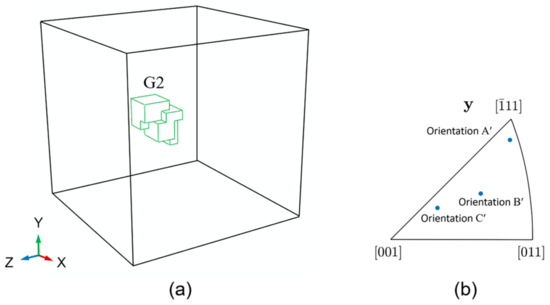

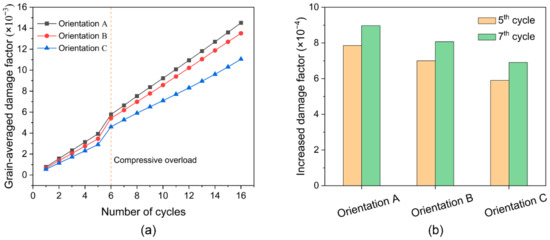

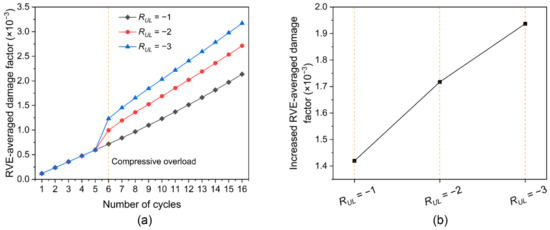

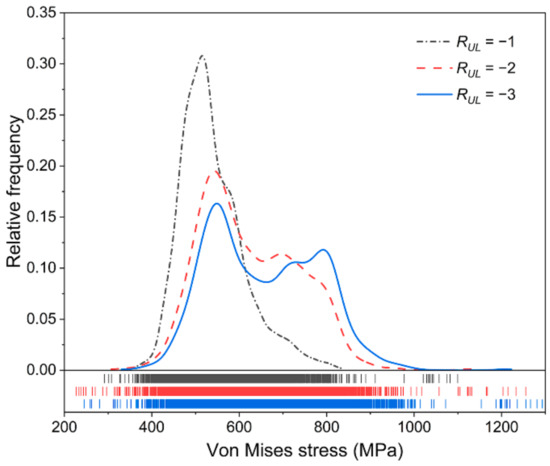

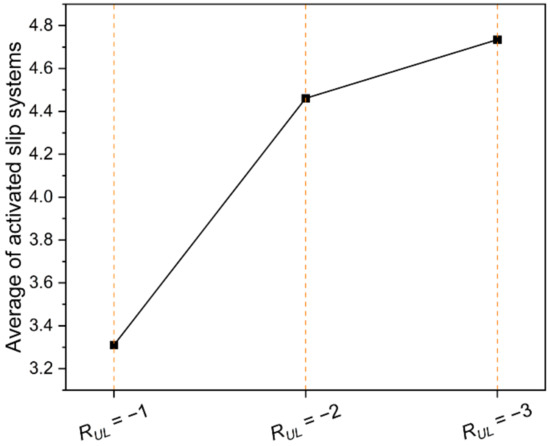

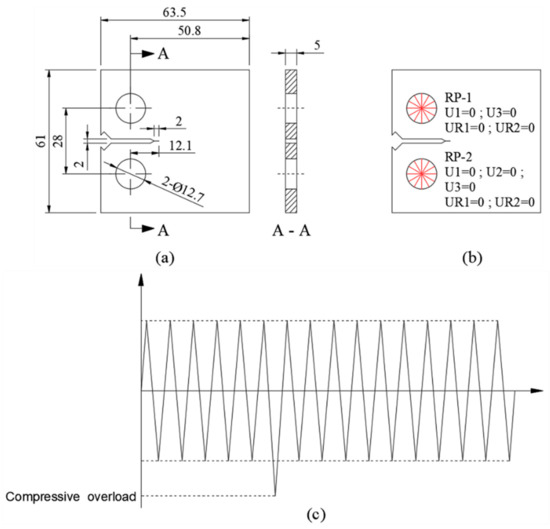

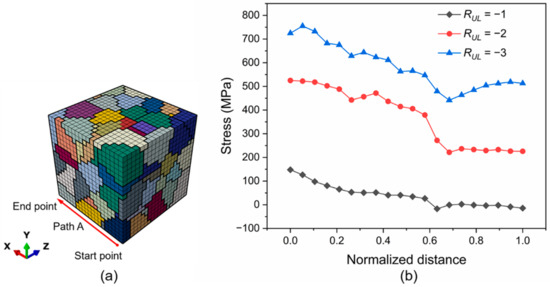

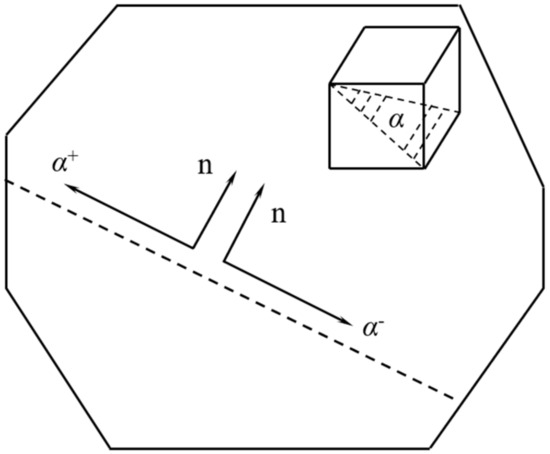

7075 aluminum alloy has been widely used because of its excellent mechanical properties. The fatigue crack acceleration induced by compressive overloading is detrimental to 7075 aluminum alloy in service, and the corresponding mechanisms are complex. To further reveal these mechanisms, the effect of microstructure on fatigue damage response ahead of the crack tip is simulated based on the damage-coupled crystal plasticity model for 7075 aluminum alloy. Results show that the ratchetting strain ahead of the crack tip at the compressive overload ratio of −3 is greater than that at the compressive overload ratio of −2, which is attributed to the fact that higher compressive overloading induces greater tensile residual stress ahead of the crack tip. The proportion of material points with no less than four activated slip systems increases after compressive overloading, indicating the number of activated slip systems ahead of the crack tip increases because of the compressive overload effect. This causes the dislocation multiplication rate to be faster, thereby accelerating the fatigue damage accumulation after compressive overloading. Furthermore, the effect of compressive overload changes the slip system activity, and this change in slip system activity depends on grain orientation. It is also found that for a grain ahead of the crack tip, the acceleration of fatigue damage accumulation caused by the effect of compressive overload is influenced by the orientation of its nearest neighbor grains. The findings provide further insight into the acceleration mechanisms induced by the compressive overload effect from a microscopic perspective. Full article

Ti17 alloy is mainly used to manufacture aero-engine discs due to its excellent properties such as high strength, toughness and hardenability. It is often subjected to creep–fatigue cyclic loading in service environments. Shakedown theory describes the state in which the accumulated plastic strain of the material stabilizes after several cycles of cyclic loading, without affecting its initial function and leading to failure. This theory includes three behaviors: elastic shakedown, plastic shakedown and ratcheting. In this paper, the creep–fatigue tests (CF) were conducted on Ti17 alloy at 300 °C to study its shakedown behavior under creep–fatigue cyclic loading. Based on the plasticity–creep superposition model, a theory model that accurately describes the shakedown behavior of Ti17 alloy was constructed, and ABAQUS finite element software was used to validate the accuracy of the model. TEM analysis was performed to observe the micro-mechanisms of shakedown in Ti17 alloy. The results reveal that the Ti17 alloy specimens exhibit plastic shakedown behavior after three cycles of creep–fatigue loading. The established finite element model can effectively predict the plastic shakedown process of Ti17 alloy, with a relative error between the experimental and simulation results within 4%. TEM results reveal that anelastic recovery controlled by dislocation bending and back stress hardening caused by inhomogeneous deformation are the main mechanisms for the plastic shakedown behavior of Ti17 alloy. Full article

The present study evaluates the ratcheting response of notched cylindrical samples made of 1045 steel alloy subjected to asymmetric loading cycles using the kinematic hardening framework, coupled with Neuber’s rule. Test samples with V-shaped and semi-circular edge notches were first heat-treated under different conditions, resulting in various material hardness values at the notch root region. Local ratcheting at the notch root of samples was found to be highly dependent on the notch shape and the heat treatment conditions. HT1 samples with a lower hardness of 12 RC at the notch region possessed higher values of ratcheting, while ratcheting at the notched region for HT2 samples with 40 RC dropped to half of that in HT1 samples. The higher hardness of 50 RC at the notch edge of HT3 samples promoted the initial yield strength and the yield surface through the kinematic hardening rule with a larger translation into the deviatoric stress space as compared with samples HT1 and HT2 with 12 and 40 RC, respectively. The local ratcheting strain in sample HT1, with semi-circular notches ($K_t=1$.65) at a stress ratio ($S_{max}/S_{ult}$) of 0.965, remained below 1.80% during the first hundred loading cycles. The local ratcheting decreased to 1.2% for sample HT2 and further dropped to 0.9% for sample HT3. The yield surfaces were translated consistent with the magnitude and direction of the backstress increments, as the applied loading excursion exceeded the elastic limit. Through the use of the Ahmadzadeh–Varvani (A–V) hardening rule, the predicted ratcheting values at notch roots were found to be larger in magnitudes as compared with those of experimental data, while the predicted local ratcheting through the Chaboche (CH) hardening rule fell below the experimental data. Results consistently showed that as sample hardness increased, the local ratcheting at notch roots decreased. Full article

A strain isolation pad is a critical connection mechanism that enables deformation coordination between the rigid thermal insulation tile and the primary structure in the thermal protection system of a reusable hypersonic vehicle. An experimental investigation has been conducted to determine the static, loading–unloading, and high-cycle fatigue (HCF) responses of the SIP with 0.2 mm adhesive under through-thickness tension at room temperature. The contributions of the rigid thermal insulation tile and metallic substructure have not been considered so far. The results indicate that the tensile behavior of the SIP joint is highly nonlinear. The static and fatigue tensile failures both initiate from the corner close to the adhesive/SIP interface due to the stress concentration and the edge effect. The uniform breakage of the aramid fiber can be seen on the cross-section. A novel method is proposed to quantify the residual strain due to the short-time ratcheting effect of the SIP joint in the initial loading–unloading tensile response. As the number of fatigue cycles increases, the thickness of the SIP joint continues to increase until failure. An explicit expression associated with the growth of SIP joint thickness, fatigue cycle number, and peak cyclic stress is established. The turning point of the thickness growth rate with the fatigue cycle number is proposed as a new fatigue failure index for the SIP joint under tensile fatigue, and a fatigue life prediction model is developed. Full article

This study presents a finite element-based ratcheting assessment of additively manufactured aluminum 4043 samples undergoing asymmetric loading cycles. The Chaboche material model in ANSYS was utilized and the effects of mesh and element type were examined. Different element numbers were used in a thorough convergence study to obtain independent meshing structures. The coefficients of this model were defined through stress–strain hysteresis loops determined from the strain-controlled tests. The backstress evolution and the corresponding yield surface translation in the deviatoric stress space were discussed as three different mesh elements of linear brick, quadratic tetrahedron, and quadratic brick were adopted. The magnitude of backstress was affected as different element types were employed. The first-order brick elements resulted in the highest backstress increments, while the lowest backstresses were determined when quadratic brick elements were taken. Backstress increments are positioned in an intermediate level with the use of quadratic tetrahedron elements. The choice of the element type, shape, and number influenced material ratcheting response over the loading process. The use of quadratic brick elements elevated the simulated ratcheting curves. The quadratic tetrahedron and linear brick elements, however, suppressed ratcheting level as compared with those of experimental data. The closeness of the simulated ratcheting results to those of the measured values was found to be highly dependent on these finite element variables. Full article

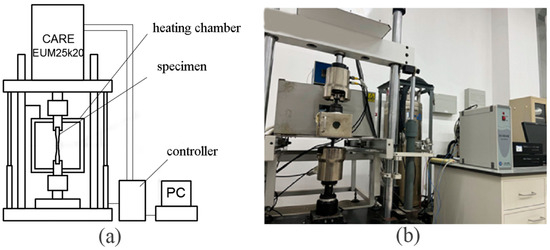

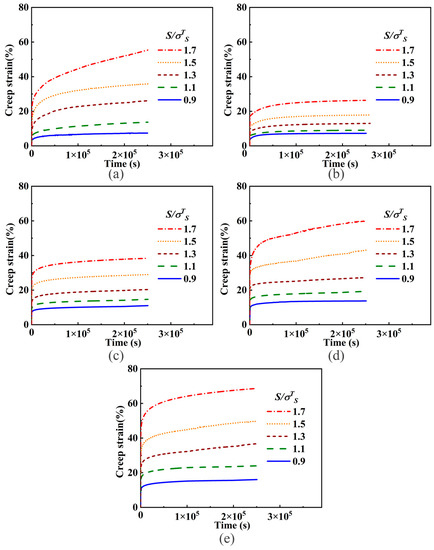

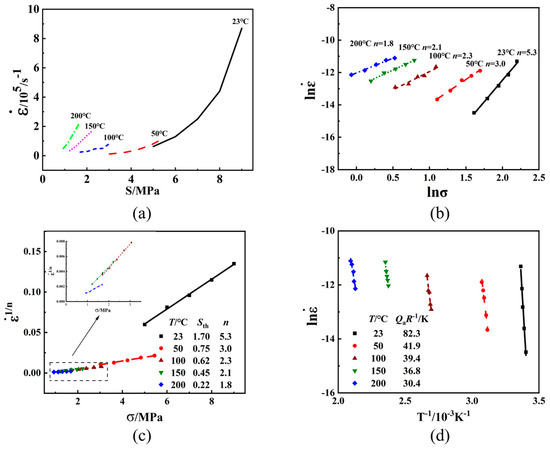

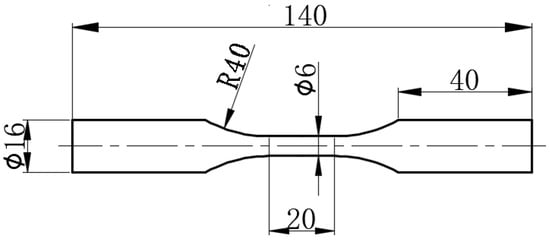

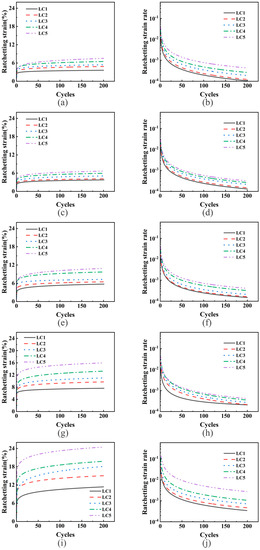

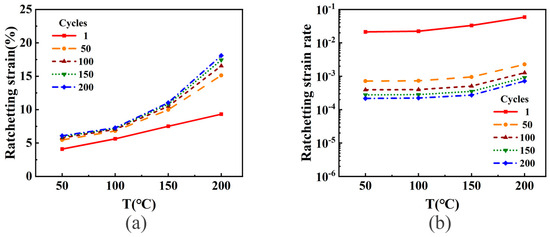

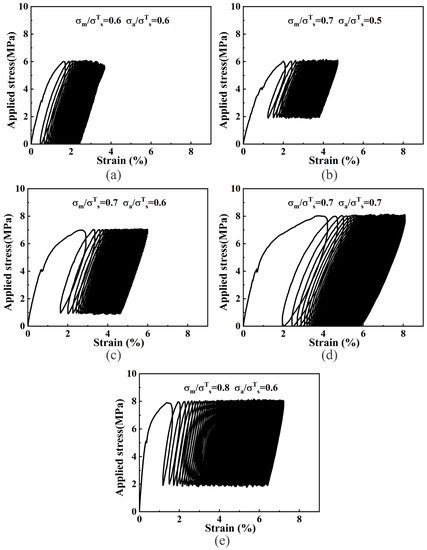

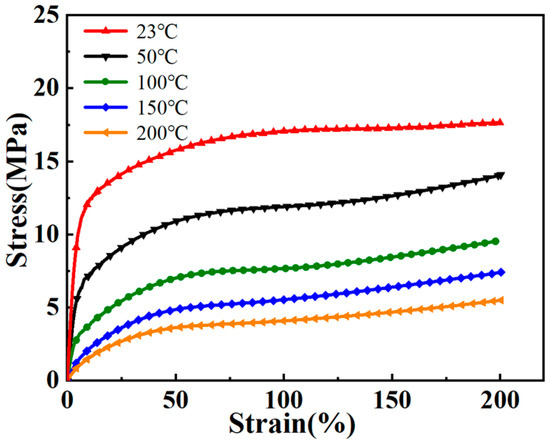

Due to its superior corrosion resistance and low coefficient of friction, polytetrafluoroethylene (PTFE) is extensively used in the aerospace, machinery, chemical, and pharmaceutical industries. However, PTFE components encounter complex alternating stresses, resulting in ratchet and creep, which will affect the component’s reliability. It is therefore necessary to clarify the PTFE’s resistance to ratchet and creep. In this paper, uniaxial ratchet and tensile creep experiments were conducted at five temperatures on a PTFE dog-bone tensile specimen. At various temperatures and stress levels, the effects of average stress and stress amplitude on the cyclic plastic behavior of PTFE were investigated. It is demonstrated that the ratchet strains and strain rates at 23 °C are greater than those at 50 °C. The reason for this is that the PTFE material exhibits different crystal states at these two temperatures. At temperatures above 50 °C, the ratchet strain and ratchet strain rate increase with temperature. At temperatures above 100 °C, the ratchet strain and ratchet strain rate of PTFE materials increase more rapidly due to the glass transition. By analyzing the creep strain and ratchet strain of specimens subjected to varying levels of average and amplitude stress, it was discovered that the creep strain and ratchet strain caused by the average stress under the same stress increment were greater than those caused by the amplitude stress. Full article

The present study evaluated the ratcheting response of notched and press-fitted Al 7075-T6 specimens under stress-controlled asymmetric cycles. The degree of the interference fit (DIF) directly influenced the magnitude and the rate of progressive plastic strain at the notch edge region. Local ratcheting at the hole–pin interference region was analyzed by means of two kinematic-hardening rules—the Ahmadzadeh–Varvani (A–V) rule and the Chaboche rule—coupled with the Neuber rule. Ratcheting strains at the notch root of aluminum samples with DIF = 0 (non-press-fitting samples) were measured and found to be the highest in magnitude. For the press-fitted samples, however, ratcheting strains dropped noticeably as the DIF increased from 1% to 2%. The press-fitting process plastically deformed the perimeter edges of the notches and improved the materials strength locally at the notch edges, resulting in better resistance against ratcheting progress. Local ratcheting strains at distances of 0.5, 1.3, and 3.0 mm from the notch roots were predicted for both pinned and unpinned samples via the hardening rules and were compared with those of measured ratcheting values. The ratcheting curves predicted by means of the A-V and Chaboche hardening rules closely agreed with the experimental data. The predicted ratcheting curves were positioned, respectively, above and below the measured ratcheting data. Full article

The present study aims to investigate the interaction of ratcheting and fatigue phenomena for additively manufactured (AM) samples of SS304L and AlSi10Mg undergoing uniaxial asymmetric stress cycles. Overall damage was accumulated through fatigue and ratcheting on AM samples prepared from three-dimensional-printed plates along vertical and horizontal directions. Fatigue damage was evaluated based on the strain energy density fatigue approach and ratcheting damage was calculated through use of an isotropic–kinematic hardening framework. The isotropic description through the Lee–Zavrel (L–Z) model formed the initial and concentric expansion of yield surfaces while the Ahmadzadeh–Varvani (A–V) kinematic hardening rule translated yield surfaces into the deviatoric stress space. Ratcheting of AM samples was simulated using finite element analysis through use of triangular and quadrilateral elements. Ratcheting values of the AM samples were simulated on the basis of Chaboche’s materials model. The predicted and simulated ratcheting damage curves placed above the experimental fatigue–ratcheting experimental data while predicted fatigue damage curves collapsed below the measured values. The overall damage was formulated to partition damage weights due to fatigue and ratcheting phenomena. Full article
