Search Results (85)

Dicyclopentadiene (DCPD)–poly(methyl methacrylate) (PMMA) core–shell fibers were fabricated via coaxial electrospinning to develop a self-healing polymer composite. A PMMA shell containing a first-generation Grubbs catalyst was co-spun with a DCPD core at 0.5 mL h⁻¹ and 28 kV, yielding smooth, cylindrical fibers. The diameter range of nanofibers was 300–900 nm, with 95% below 800 nm, as confirmed by FESEM image analysis. FTIR spectroscopy monitored shell integrity via the PMMA C=O stretch and core polymerization via the trans-C=C bands. The high presence of the 970 cm⁻¹ band in the healed nanofiber mat and the minor appearance in the uncut core–shell mat demonstrated successful DCPD polymerization mostly where the intended damage was. The optical clarity of PMMA enabled the direct monitoring of healing progress via optical microscopy. The presented findings demonstrate that PMMA can retain a liquid active core and catalyst to form a polymer layer on a damaged site and could be used as a model material for other self-healing systems that require healing monitoring. Full article

Chlorpheniramine maleate (CPM) is a first-generation antihistamine that is frequently used to treat allergic reactions. However, excessive consumption presents potential health risks. Therefore, it is crucial to develop a quick and precise technique for identifying CPM levels. In this study, nickel cobalt phosphide (NiCoP), a binary metal phosphide, was successfully incorporated into carbon nanofibers. This involved creating a pore structure by adding polyvinylpyrrolidone (PVP) as a pore-forming template to a polyacrylonitrile (PAN) substrate via electrostatic spinning. An innovative electrochemiluminescent sensor for CPM detection was constructed using NiCoP/PVP/PAN carbon nanofibers (NiCoP/PVP/PAN/CNFs). Under optimal conditions, the electrochemical behavior of CPM was studied using NiCoP/PVP/PAN/CNF-modified working electrodes. These findings demonstrate that the three-dimensional porous network architecture of NiCoP/PVP/PAN/CNFs enhances the conductive properties of the material. Consequently, an electrochemical optical sensor fabricated using this structure exhibited remarkable performance. The linear detection range of the sensor was 1 × 10⁻⁸–7 × 10⁻⁵ mol/L, and the detection limit was 7.8 × 10⁻¹⁰ mol/L. When human urine and serum samples were examined, the sensor was found to have a high recovery rate (94.35–103.36%), which is promising for practical applications. Full article

Advanced materials including metal–organic frameworks (MOFs) are a critical piece of the puzzle in the search for solutions to various scientific and technological challenges, such as climate change due to the ever-increasing emissions of greenhouse gas. There is intense interest in MOFs due to their potential use for a variety of environmental applications, including catalysis and gas storage. In this work, we specifically focus on the in situ growth of zeolitic imidazolate framework-67 (ZIF-67) on poly(acrylonitrile) (PAN) fibers and its potential application in CO₂ adsorption. Nanofibers were spun from a solution containing PAN and cobalt (II) nitrate hexahydrate using electrospinning. Then, the fibers were immersed in solution with 2-methylimidazole for different time durations. Via the diffusion of the cobalt ions through the fibers and interaction with the ligands in the solution, ZIF-67 was formed. From analysis via SEM, FTIR, PXRD, and CO₂ adsorption, it is evident that varying different parameters—the type of solvent, immersion time, and ligand concentration—affected the morphology of the formed ZIF-67. It was found that immersion for 4 h in 6.0 mg/mL of ligands in methanol created the ZIF-67@PAN best suited for CO₂ adsorption, showing a CO₂ uptake of 0.4 mmol/g at 1.2 bar and 273 K. Full article

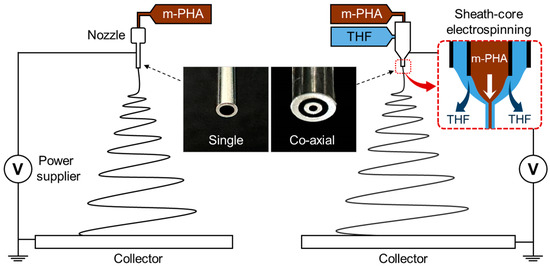

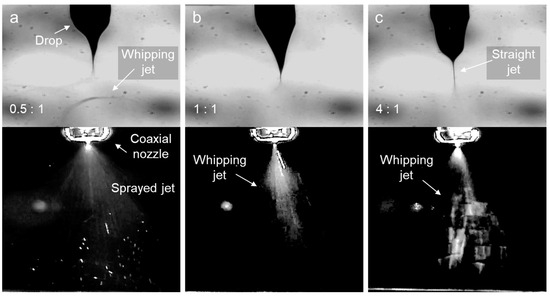

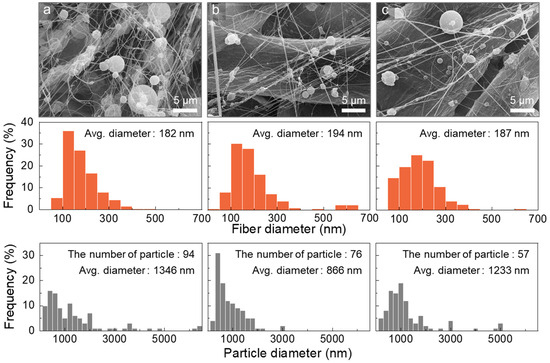

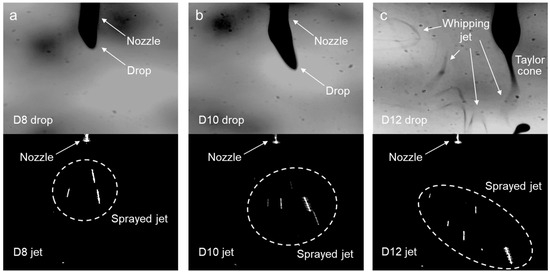

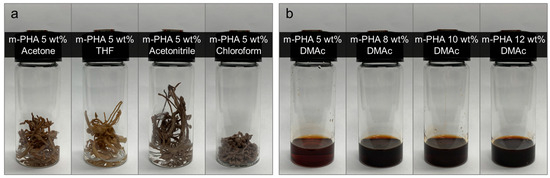

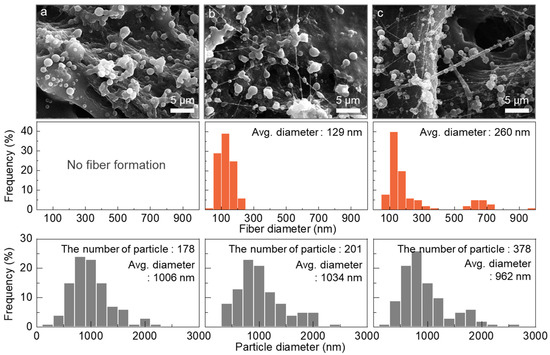

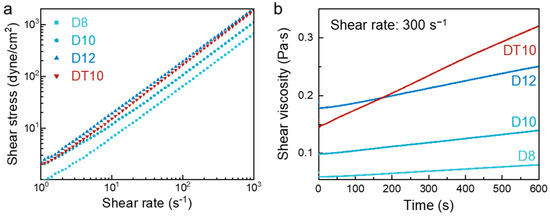

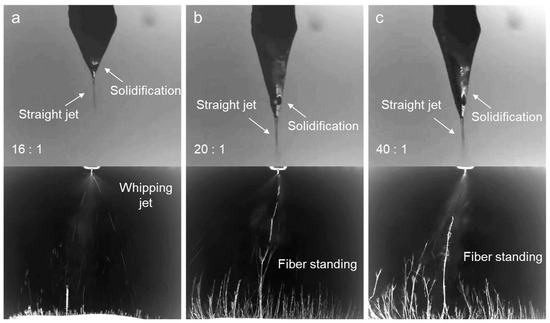

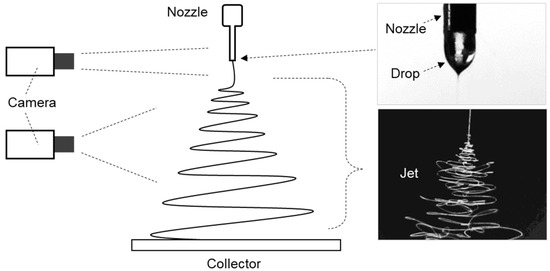

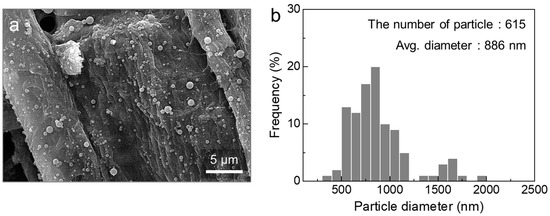

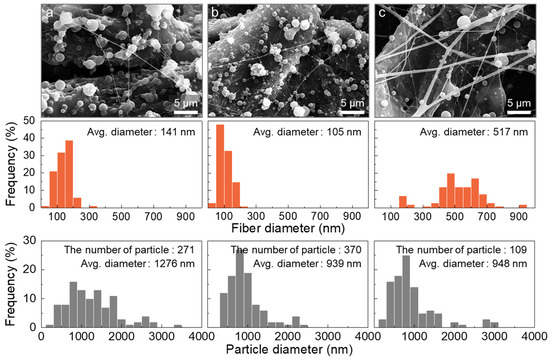

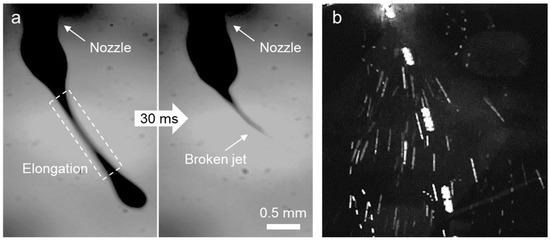

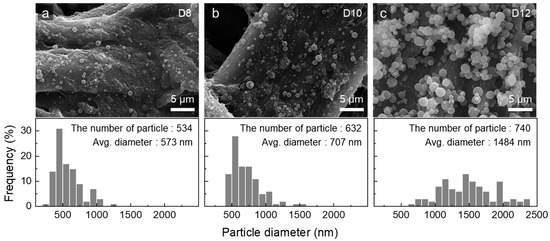

In this study, a transient viscosity adjustment method using a coaxial nozzle was explored to fabricate nanofibers from non-spinnable m-poly(hydroxyamide) (m-PHA). Unlike conventional electrospinning methods that often require additives to induce fiber formation, this approach relies on a sheath-core configuration, introducing tetrahydrofuran (THF) to the sheath to temporarily adjust solution viscosity. The diffusion of THF into the core m-PHA solution resulted in momentary solidification at the interface, promoting nanofiber formation without compromising polymer solubility. SEM and rheological analyses confirmed that optimized sheath-to-core flow ratios yielded nanofibers with significantly reduced particle formation. Notably, increasing the THF flow rate facilitated a faster solidification rate, enhancing jet elongation and resulting in uniform nanofibers with diameters of approximately 180–190 nm. Although complete nanofibers without beads were not achieved in this study, this coaxial electrospinning approach presents a possible pathway for fabricating nanofibers from polymers with limited spinnability, potentially expanding the application scope of electro-spun materials in high-performance fields. Full article

Nanofiber mats with a high surface-to-volume ratio can be prepared by electrospinning. The Porosity is sometimes reported to be tunable by blending different materials, e.g., water-soluble poly(ethylene oxide) (PEO) with not water-soluble poly(acrylonitrile) (PAN). Here, nanofiber mats were electrospun from different PAN:PEO ratios, using a wire-based electrospinning machine “Nanospider Lab”. Investigations of the as-spun nanofiber mats as well as of membranes after washing off the water-soluble PEO by scanning electron microscopy (SEM) revealed severe differences in the nanofiber mat morphologies, such as varying fiber diameters and especially non-fibrous areas in the carbonized nanofiber mats, depending on the amount of PEO in the nanofiber mat as well as the molecular weight of the PEO. Similarly, the ratio and molecular weight of PEO influenced the results of stabilization and carbonization. This paper discusses the possibility of tailoring nanofiber porosity for the potential use of PAN nanofiber mats in tissue engineering, filtration, and other applications. Full article

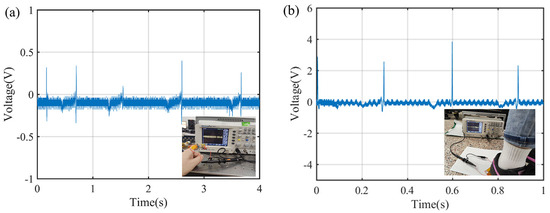

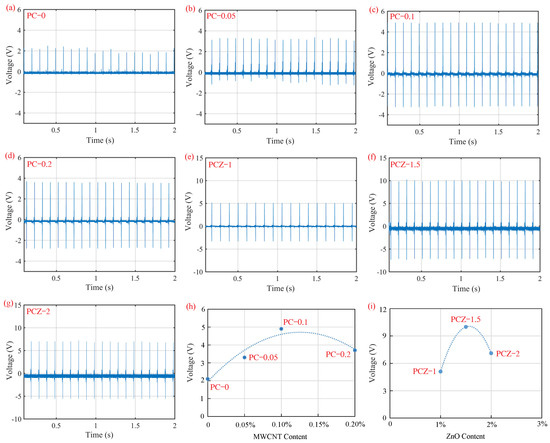

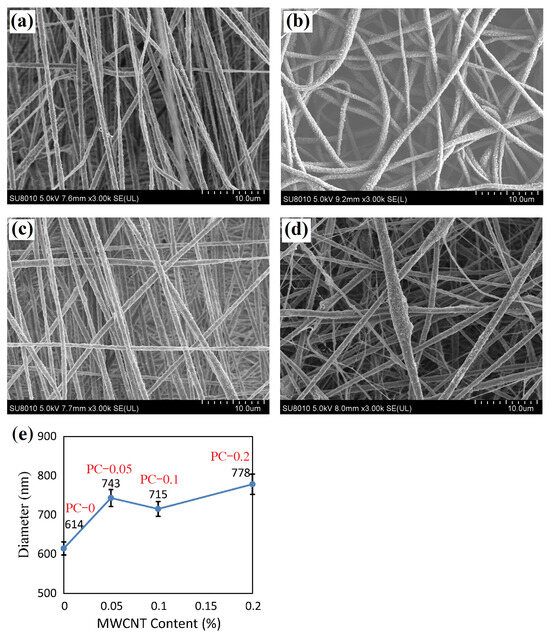

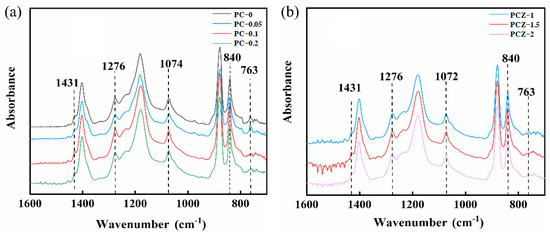

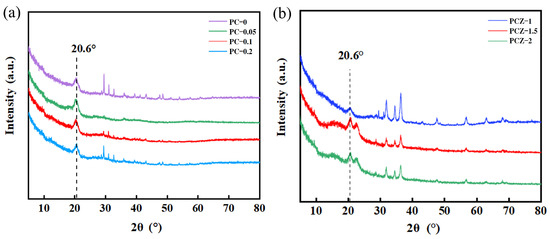

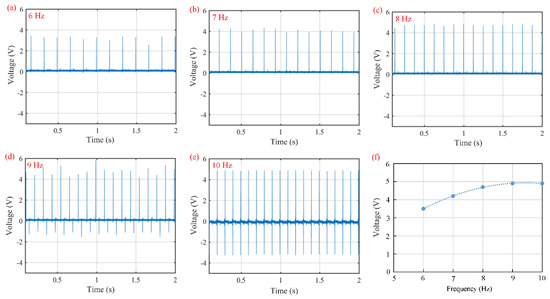

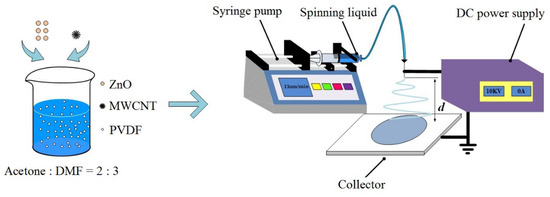

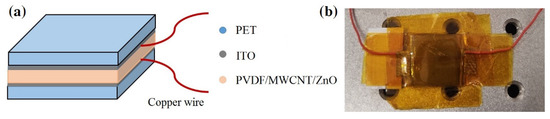

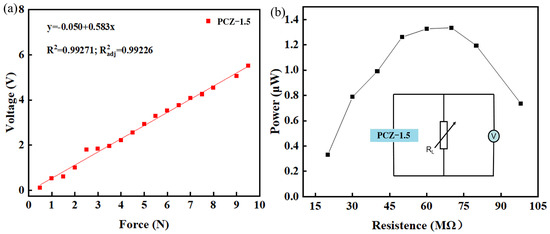

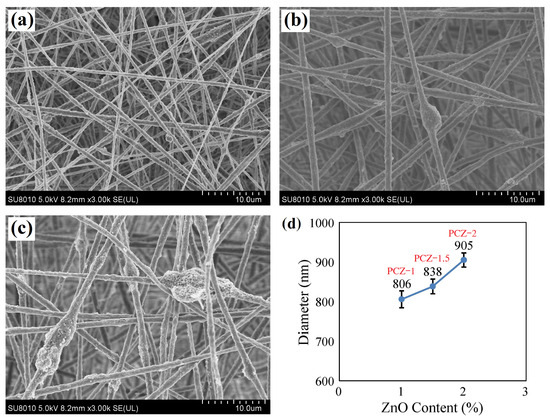

Conductive multi-walled carbon nanotubes (MWCNTs) as well as piezoelectric zinc oxide (ZnO) nanoparticles are frequently used as a single additive and dispersed in polyvinylidene fluoride (PVDF) solutions for the fabrication of piezoelectric composite films. In this study, MWCNT/ZnO binary dispersions are used as spinning liquids to fabricate composite nanofibrous films by electrospinning. Binary additives are conducive to increasing the crystallinity, piezoelectric voltage coefficient, and consequent piezoelectricity of as-spun films owing to the stretch-enhanced polarization of the electrospinning process under an applied electric field. PCZ–1.5 film (10 wt. % PVDF/0.1 wt. % MWCNTs/1.5 wt. % ZnO nanoparticles) contains the maximum β-phase content of 79.0% and the highest crystallinity of 87.9% in nanofibers. A sensor using a PCZ–1.5 film as a functional layer generates an open-circuit voltage of 10 V as it is subjected to impact loads with an amplitude of 6 mm at 10 Hz. The piezoelectric sensor reaches a power density of 0.33 μW/cm² and a force sensitivity of 582 mV/N. In addition, the sensor is successfully applied to test irregular motions of a bending finger and stepping foot. The result indicates that electrospun PVDF/MWCNT/ZnO nanofibrous films are suitable for wearable devices. Full article

The use of electrospun polymeric biodegradable materials for medical applications is becoming increasingly widespread. One of the most important parameters regarding the functionality of nanofiber scaffolds during implantation and the subsequent regeneration of damaged tissues concerns their stability and degradation behavior, both of which are influenced by a wide range of factors (the properties of the polymer and the polymer solution, the technological processing approach, the sterilization method, etc.). This study monitored the degradation of nanofibrous materials fabricated from degradable polyesters as a result of the sterilization method applied (ethylene oxide and gamma irradiation) and the solvent system used to prepare the spun polymer solution. Aliphatic polyesters PCL and PLCL were chosen for this study and selected with respect to the applicability and handling in the surgical setting of these nanofibrous materials for vascular bandaging. The results revealed that the choice of solvent system exerts a significant impact on degradation during sterilization, especially at higher gamma irradiation values. The subsequent enzyme-catalyzed degradation of the materials following sterilization indicated that the choice of the sterilization method influenced the degradation behavior of the materials. Whereas wave-like degradation was evident concerning ethylene oxide sterilization, no such behavior was observed following gamma-irradiation sterilization. With concern for some of the tested materials, the results also indicated the potential for influencing the development of degradation within the bulk versus degradation from the surface of the material. Both the sterilization method and the choice of the spinning solvent system were found to impact degradation, which was observed to be most accelerated in the case of PLCL (L-lactide-co-caprolactone copolymer) electrospun from organic acids and subsequently sterilized using gamma irradiation. Since we planned to use these materials in cardiovascular applications, it was decided that their hemocompatibility would also be tested. The results of these tests revealed that changes in the structures of the materials initiated by sterilization may exert thrombogenic and anticoagulant impacts. Moreover, the microscopic analysis suggested that the solvent system used in the preparation of the materials potentially affects the behavior of erythrocytes; however, no indication of the occurrence of hemolysis was detected. Full article

Choosing suitable wound dressings is crucial for effective wound healing. Spun scaffolds with bioactive molecule functionalization are gaining attention as a promising approach to expedite tissue repair and regeneration. Here, we present the synthesis of novel multifunctional quercetin with morpholine and pyridine functional motifs (QFM) embedded in silk fibroin (SF)-spun fibers (SF-QFM) for preclinical skin repair therapies. The verification of the novel QFM structural arrangement was characterized using ATR-FTIR, NMR, and ESI-MS spectroscopy analysis. Extensive characterization of the spun SF-QFM fibrous mats revealed their excellent antibacterial and antioxidant properties, biocompatibility, biodegradability, and remarkable mechanical and controlled drug release capabilities. SF-QFM mats were studied for drug release in pH 7.4 PBS over 72 h. The QFM-controlled release is mainly driven by diffusion and follows Fickian’s law. Significant QFM release (40%) occurred within the first 6 h, with a total release of 79% at the end of 72 h, which is considered beneficial in effectively reducing bacterial load and helping expedite the healing process. Interestingly, the SF-QFM-spun mat demonstrated significantly improved NIH 3T3 cell proliferation and migration compared to the pure SF mat, as evidenced by the complete migration of NIH 3T3 cells within 24 h in the scratch assay. Furthermore, the in vivo outcome of SF-QFM was demonstrated by the regeneration of fresh fibroblasts and the realignment of collagen fibers deposition at 9 days post-operation in a preclinical rat full-thickness skin defect model. Our findings collectively indicate that the SF-QFM electrospun nanofiber scaffolds hold significant capability as a cost-effective and efficient bioactive spun architecture for use in wound healing applications. Full article

Titanium dioxide (TiO₂) is a widely studied material with many attractive properties such as its photocatalytic features. However, its commercial use is limited due to issues such as deactivation in the visible spectrum caused by its wide bandgap and the short lifetime of photo-excited charge carriers. To overcome these challenges, various modifications could be considered. In this study, we investigated copper doping and electron beam treatment. As-spun TiO₂ nanofibers were fabricated by electrospinning a TiO₂ sol, which obtained viscosity through a polyvinylpyrrolidone (PVP) matrix. Cu-doped TiO₂ nanofibers with varying dopant concentrations were synthesized by adding copper salts. Then, the as-spun nanofibers were calcined for crystallization. To evaluate photocatalytic performance, a photodegradation test of methylene blue aqueous solution was performed for 6 h. Methylene blue concentration was measured over time using UV-Vis spectroscopy. The results showed that Cu doping at an appropriate concentration and electron-beam irradiation showed improved photocatalytic efficiency compared to bare TiO₂ nanofibers. When the molar ratio of Cu/Ti was 0.05%, photodegradation rate was highest, which was 10.39% higher than that of bare TiO₂. As a result of additional electron-beam treatment of this sample, photocatalytic efficiency improved up to 8.93% compared to samples without electron-beam treatment. Full article

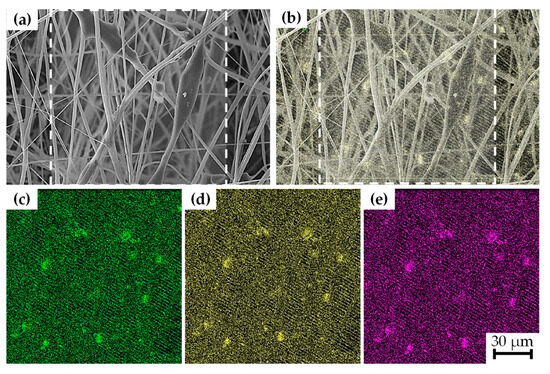

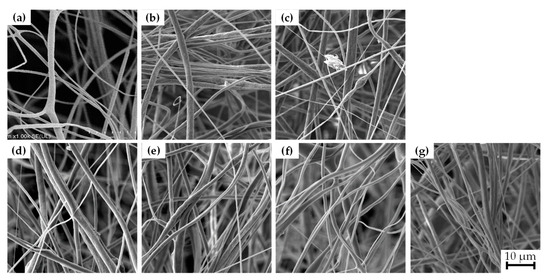

Magnetic nanofibers were prepared by electrospinning polymer/metal solutions of poly(acrylonitrile) (PAN) with magnetite (Fe₃O₄) nanoparticles. At a mass ratio of PAN:magnetite of 2:1, the total solid content in the dimethyl sulfoxide (DMSO) solution was varied between 15 wt.% and 25 wt.%, which represents the limits of the spinnable range. The results show that the most homogeneous nanofiber mats were 21 wt.% solid contents. At 15 wt.% solid contents, a nano-membrane with some fibrous regions was produced. Nanofibers at 25 wt.% had a much larger and more inhomogeneous diameter. Nevertheless, the magnetic properties of all samples were very similar, indicating that the distribution of magnetite nanoparticles in the fibers is comparable in all samples. The results also suggested that the samples spun from solutions with near-ideal solid contents (19–21 wt.%) contain agglomerations of the nanoparticles inside the nanofibers. Full article

This study presents, for the first time, a comprehensive investigation of the influence of pre- and post-fabrication parameters for the electroactive properties of electrospun chitosan/PVA-based micro- and nanofibers. Chitosan/PVA fibers were fabricated using electrospinning, characterized, and tested as electroactive materials. Solutions with different acetic acid contents (50, 60, 70, and 80 v/v%) were used, and the rheological properties of the solutions were analyzed. Characterization techniques, such as rheology, conductivity, optical microscopy, a thermogravimetric analysis, differential scanning calorimetry, a tensile test, and FT-IR spectroscopy, were utilized. Fiber mats from the various solutions were thermally treated, and their electroactive behavior was examined under a constant electric potential (10 V) at different pHs (2–13). The results showed that fibers electrospun from 80% acetic acid had a lower electroactive response and dissolved quickly. However, thermal treatment improved the stability and electroactive response of all fiber samples, particularly the ones spun with 80% acetic acid, which exhibited a significant increase in speed displacement from 0 cm⁻¹ (non-thermally treated) to 1.372 cm⁻¹ (thermally treated) at a pH of 3. This study sheds light on the influence of pre- and post-fabrication parameters on the electroactive properties of chitosan/PVA fibers, offering valuable insights for the development of electroactive materials in various applications. Full article

With the continuous improvement of the standard of living, people are increasingly inclined towards natural, green, and environmentally friendly products. Plant-based products that are safe, natural, non-toxic, and beneficial to human health are often more favored. Poly(lactic acid) (PLA) is a polymer obtained through lactate polymerization using renewable plant resources such as corn and has excellent biocompatibility and biodegradability. It is widely used in the field of food packaging. Wormwood oil (WO) is an oil extracted from the stems and leaves of Artemisia plants, and it has broad-spectrum antibacterial properties. In this article, through electrospinning technology, wormwood oil was directly incorporated into PLA, giving the PLA nanofiber membrane antioxidant and antibacterial functions. Various parameters such as voltage (11 KV, 13 KV, 15 KV), spinning solution concentration (8%, 10%, 12%), distance (15 cm, 17 cm, 19 cm), and feeding rate (0.4 mL/h, 0.5 mL/h, 0.6 mL/h) were explored, and the resulting spun fibers were characterized. Through SEM characterization, it was found that when the spinning voltage was 13 KV, the spinning solution concentration was 10%, the distance was 17 cm, and the feeding rate was 0.5 mL/h, the nanofiber membrane had a smooth morphology without bead formation, with an average diameter of 260 nm. The nanofiber membrane was characterized using FTIR, TG, and SEM, confirming the successful incorporation of artemisia essential oil into PLA. The prepared antimicrobial nanofilm was subjected to antimicrobial testing, and the results showed that as the concentration of the essential oil increased, the inhibition zones also increased. When wormwood oil concentration was 4%, the diameter of the inhibition zone for Staphylococcus aureus increased from 1.0 mm to 3.5 mm, while the diameter of the inhibition zone for Escherichia coli increased from 2.0 mm to 4.5 mm. Full article

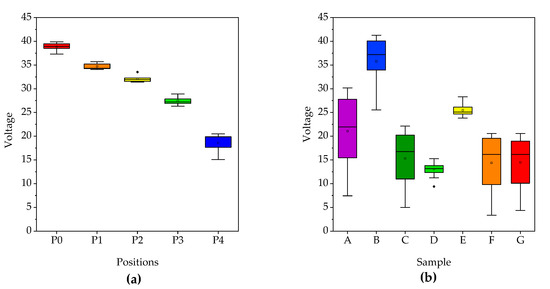

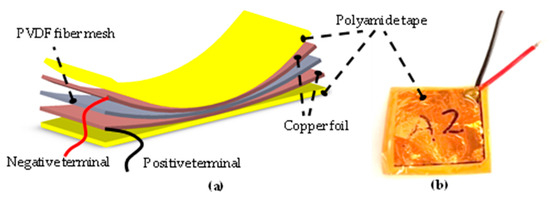

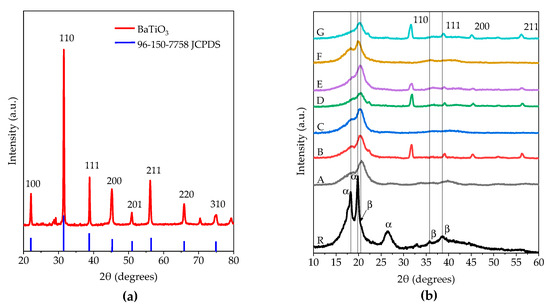

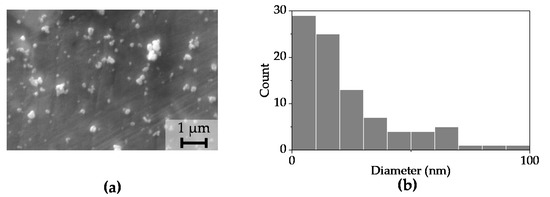

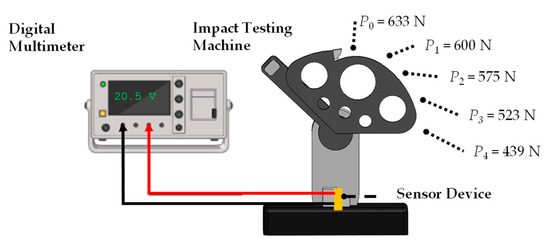

In this study, a piezoelectric harvesting device was developed using polyvinylidene fluoride (PVDF) nanofibers reinforced with either BaTiO₃ nanoparticles or graphene powder. BaTiO₃ nanoparticles were synthesized through the sol-gel method with an average size of approximately 32 nm. The PVDF nanofibers, along with the nanoparticle composites in an acetone-N,N-dimethylformamide mixture, were produced using a centrifugal Forcespinning™ machine, resulting in a heterogeneous arrangement of fiber meshes, with an average diameter of 1.6 μm. Experimental tests revealed that the electrical performance of the fabricated harvester reached a maximum value of 35.8 Voc, demonstrating the potential of BaTiO₃/ PVDF-based piezoelectric devices for designing wearable applications such as body-sensing and energy-harvesting devices. Full article

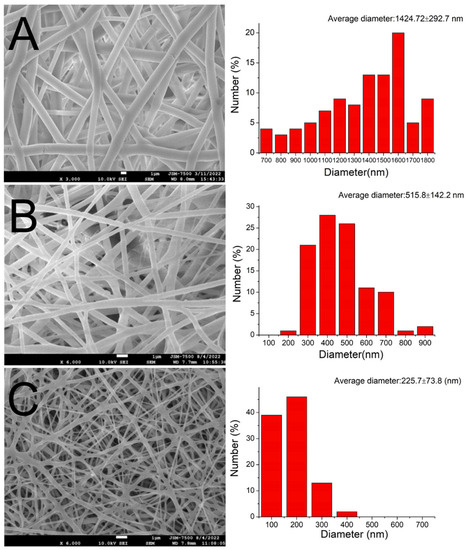

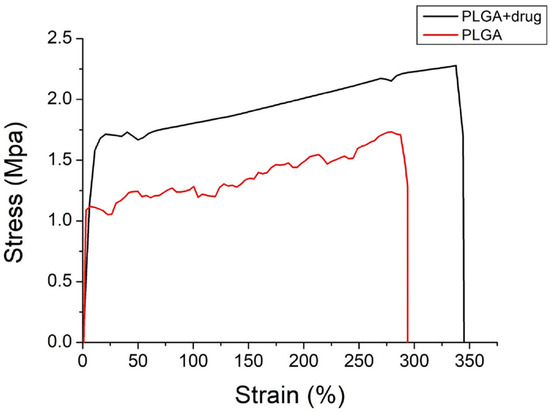

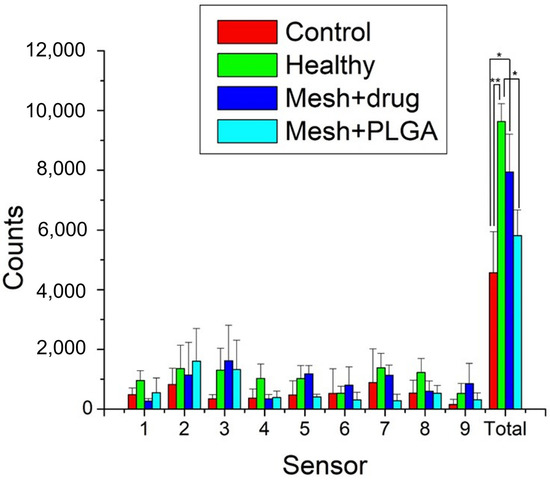

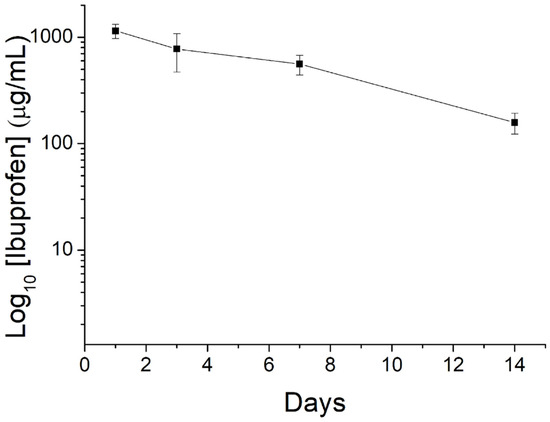

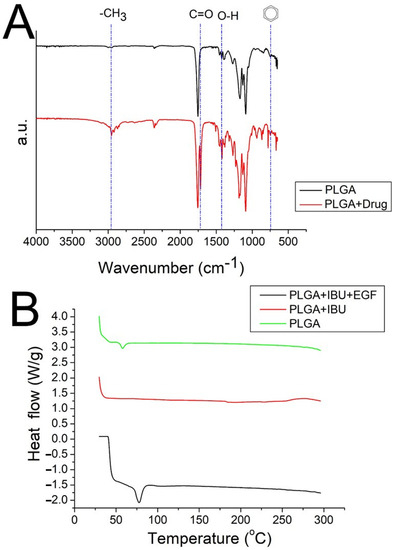

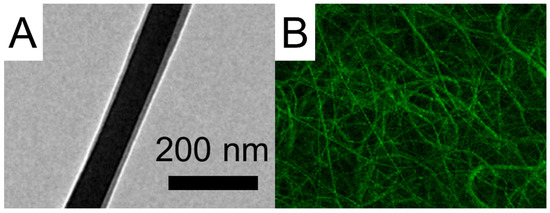

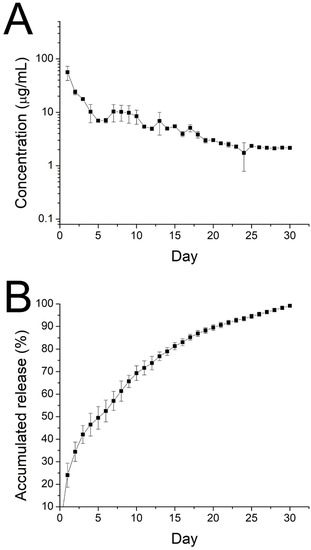

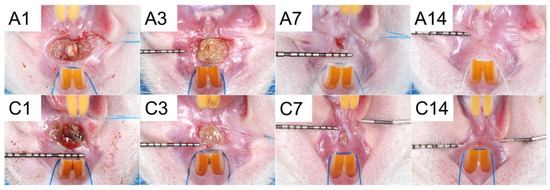

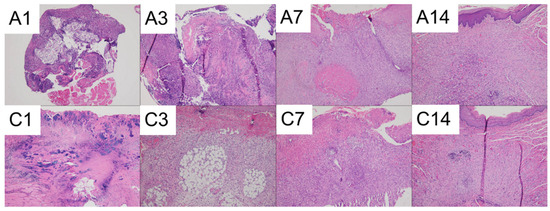

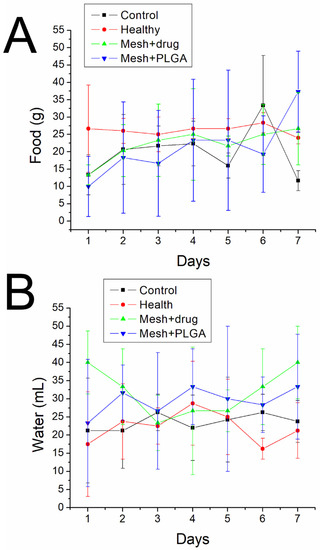

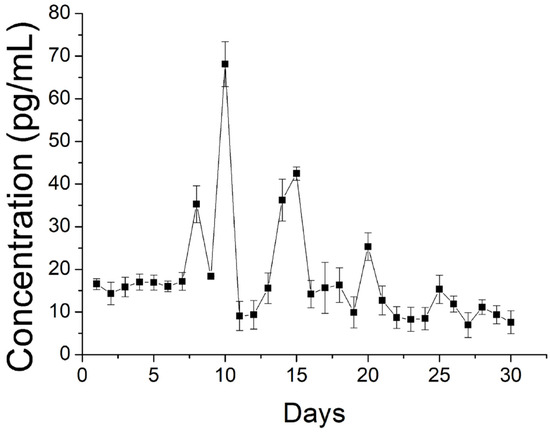

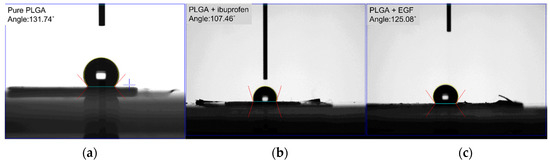

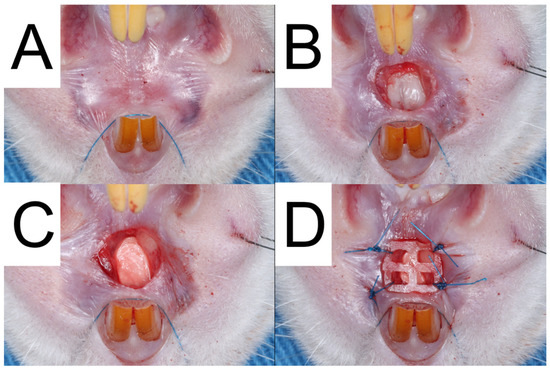

In this research study, we developed hybrid resorbable three-dimensional (3D)-printed mesh/electrospun nanofibrous biomolecule-eluting mats for alveolar ridge preservation. The fabrication process involved the use of 3D printing and coaxial electrospinning technologies. Specifically, we utilized a lab-developed solution-extrusion 3D printer to fabricate polycaprolactone (PCL) meshes. Then, bi-layered poly(lactic-co-glycolic acid) (PLGA) nanofibrous membranes, which embedded ibuprofen and epidermal growth factor (EGF), were prepared utilizing electrospinning and coaxial electrospinning techniques, respectively. To ensure the quality of the produced mesh and spun nanofibers, we carried out a characterization process. Furthermore, we estimated the in vitro and in vivo release characteristics of ibuprofen and EGF, respectively, using high-performance liquid chromatography and enzyme-linked immunosorbent assays. In addition, we assessed the effectiveness of hybrid nanofibrous mats for preserving the alveolar ridge by adopting an animal model and conducting a histology examination. The study findings demonstrate that the nanofibrous mats provided a continuous discharge of ibuprofen and EGF for more than four weeks. Moreover, the animal test carried out in vivo showed that animals implanted with this combination of mesh and drug-eluting mats displayed considerably greater mobility than those without mats. The histological analysis revealed no unfavorable impacts from the drug-eluting mats. Our study demonstrated the successful fabrication of resorbable drug-eluting nanofibrous mats for alveolar ridge preservation by utilizing both 3D printing and coaxial electrospinning technologies. Full article

The aim of this work is to effectively combine the advantages of polymer and ceramic nanoparticles and improve the comprehensive performance of lithium-ion batteries (LIBs) diaphragm. A flexible film composed of electro-spun P(VDF-HFP) nanofibers covered by a layer of mesoporous silica (P(VDF-HFP)@SiO₂) was synthesized via a sol–gel transcription method, then used as a scaffold to absorb organic electrolyte to make gel a electrolyte membrane (P(VDF-HFP)@SiO₂-GE) for LIBs. The P(VDF-HFP)@SiO₂-GE presents high electrolyte uptake (~1000 wt%), thermal stability (up to ~350 °C), ionic conductivity (~2.6 mS cm⁻¹ at room temperature), and excellent compatibility with an active Li metal anode. Meanwhile, F-doping carbon/silica composite nanofibers (F-C@SiO₂) were also produced by carbonizing the P(VDF-HFP)@SiO₂ film under Ar and used to make an electrode. The assembled F-C@SiO₂|P(VDF-HFP)@SiO₂-GE|Li half-cell showed long-cycle stability and a higher discharge specific capacity (340 mAh g⁻¹) than F-C@SiO₂|Celgard 2325|Li half-cell (175 mAh g⁻¹) at a current density of 0.2 A g⁻¹ after 300 cycles, indicating a new way for designing and fabricating safer high-performance LIBs. Full article
