Search Results (15)

Recent archaeological sites dating to the late 19th and early 20th centuries have rarely been studied to date. Among the 500 “glassy” beads excavated from Dohouan (Côte d’Ivoire), elemental analyses reveal that fewer than half contain abnormally high alumina contents, associated with a soda–potash–lime flux (three compositional groups). The remaining beads are typical lead-based glass. The Raman spectra of the alumina-rich beads are quite complex due to their glass–ceramic nature, combining features similar to the vitreous phase of porcelain glaze with the presence of various crystalline phases (quartz, wollastonite, calcium phosphate, calcite). Organic residues are also observed. Colors are primarily produced by transition metal ions, although some specific pigments have also been identified. These characteristics suggest that the alumina-rich beads were manufactured by pressing followed by sintering, as described in patents by Richard Prosser (1840, UK) and Jean Félix Bapterosse (1844, France). A comparison is made with beads from scrap piles at the site of the former Bapterosse factory in Briare, France. This process represents one of the earliest examples of replacing traditional glassmaking with a ceramic process to enhance productivity and reduce costs. Full article

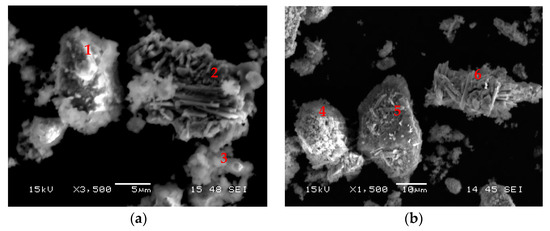

The study object was slag from the Balkhash copper smelter, obtained by re-melting anode mud containing nonferrous metals. The process flow for processing these slags includes sintering with Na₂SO₄, Na₂CO₃, and coal, followed by soda-alkaline leaching of the sinter and extraction of metals from the solution into marketable products. Since sintering is the main operation providing high selectivity, the composition of the products of this process was studied. The main transformations during sintering were determined, and the optimal parameters were identified. The structures of slags and sintered materials obtained during the experiments were studied by electron-probe microanalysis. Sintering was performed at 600–800 °C. The best results for sulphidization of slag components were obtained at 800 °C; a further increase in temperature leads to the smelting of sinter particles and slows down sulphidization. The optimal quantities of additives, based on the weight of the slag, are Na₂SO₄—45%, Na₂CO₃—15%, and reducing agent—41%, with a sintering time of 2 h. These conditions enable the sulphidization of non-ferrous metals in the slag to the entire depth of the polymetallic globules. The distinct concentration of harmful impurities (Ni, As, and Sb) was observed in the fine structure of the polymetallic globules. Full article

The results of research on the processing of ilmenite concentrate from the Obukhovskoye deposit are presented in this article. As the concentrate has a high chromium content, the study involved converting the iron into metal and the titanium into slag through the addition of soda. Positive results were obtained during the smelting of the ilmenite concentrate, and a one-stage smelting mode was established. This mode involved an increase in the temperature up to 1700 °C, with a heating step of 10 °C/min and using an argon supply. The holding time at this temperature was 30 min, followed by cooling to 700 °C in argon. The optimal parameters for sintering the non-magnetic fraction with soda and leaching the sinter with water and hydrochloric acid solution were also determined. Full article

An overview of the composition of wolframite ores of the Akchatau deposit and the technologies for processing concentrates using NaOH and Na₂CO₃ by hydro- and pyrometallurgical methods is given, and the disadvantages associated with both the technology and the equipment are noted. To develop a technology for processing Akchatau wolframite concentrates, samples of ore materials were taken, the chemical and mineralogical composition of the samples was studied, and enrichment was carried out to obtain rich concentrates. The kinetics of the sintering of the wolframite concentrate with soda was investigated, the dependences of the degree of transformation of the tungsten minerals into sodium tungstate were obtained, and the rate constants, the order of the reaction, and the values of the apparent activation energy were calculated. The results of sintering an enlarged sample of wolframite concentrate with soda in a muffle furnace are presented. After the subsequent leaching, studies were carried out to purify the obtained solutions of sodium tungstate from the impurities while eliminating the operations of the neutralizing solutions through the use of electrodialysis with an MK-40 cation-exchange membrane. The scheme of processing the wolframite ores of Akchatau is proposed. Full article

The RecoDust process is a pyrometallurgical process for treating steel mill dusts that cannot be recycled internally due to their zinc content, providing numerous benefits compared to conventional processes. State-of-the-art processes often face the problem of recycling only zinc, but not iron, which is frequently landfilled and withdrawn from a closed loop. Furthermore, these processes are also often limited to a specific zinc content in the feedstock. Within the described RecoDust smelting campaigns, basic oxygen converter dust with about 15 wt.% zinc was taken as feedstock. After high-temperature treatment of the input material, the RecoDust slag (RDS) has a zinc content of 0.4 wt.% and the crude zinc oxide (CZO) has a ZnO content of up to 80 wt.%. The RDS is suitable for use in the sinter plant as a secondary raw material. To investigate the influence of adding RDS to a common sintering mixture, sintering pot tests followed by RDI (reduction disintegration indices) tests were carried out. The influence of the admixture of RDS on the RDI values is not detectable. The CZO was fed into a soda extraction system for halogen removal. The halogen removal of this two-stage leaching was highly efficient with over 90% for chlorine. Full article

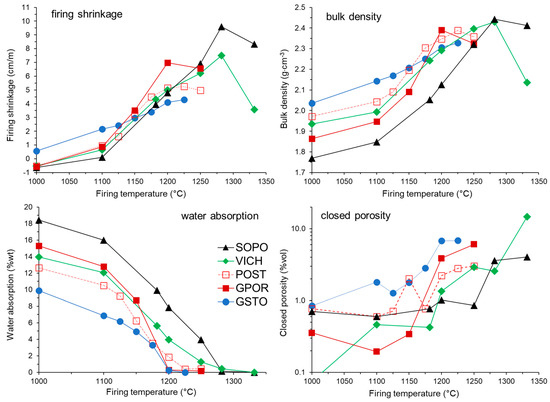

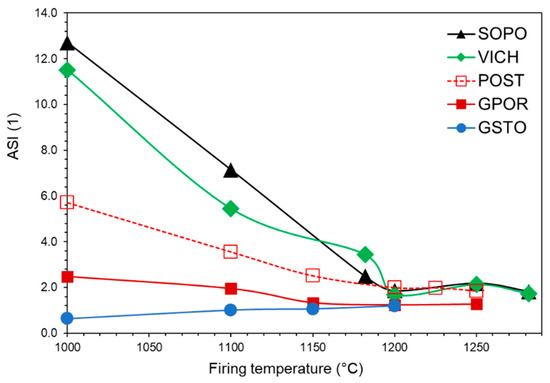

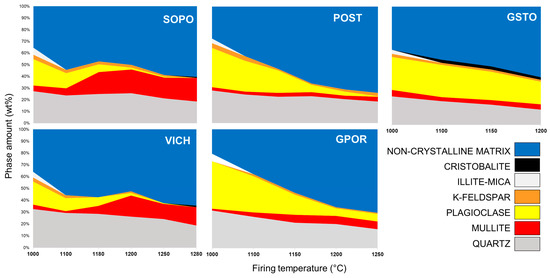

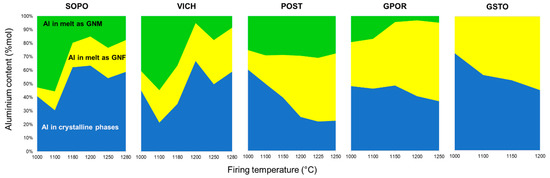

Five porcelain and porcelain stoneware bodies were investigated to compare sintering mechanisms and kinetics, phase and microstructure evolution, and high temperature stability. All batches were designed with the same raw materials and processing conditions, and characterized by optical dilatometry, XRF, XRPD-Rietveld, FEG-SEM and technological properties. Porcelain and porcelain stoneware behave distinctly during sintering, with the convolution of completely different phase evolution and melt composition/structure. The firing behavior of porcelain is essentially controlled by microstructural features. Changes in mullitization create conditions for a relatively fast densification rate at lower temperature (depolymerized melt, lower solid load) then to contrast deformations at high temperature (enhanced effective viscosity by increasing solid load, mullite aspect ratio, and melt polymerization). In porcelain stoneware, the sintering behavior is basically governed by physical and chemical properties of the melt, which depend on the stability of quartz and mullite at high temperature. A buffering effect ensures adequate effective viscosity to counteract deformation, either by preserving a sufficient skeleton or by increasing melt viscosity if quartz is melted. When a large amount of soda–lime glass is used, no buffering effect occurs with melting of feldspars, as both solid load and melt viscosity decrease. In this batch, the persistence of a feldspathic skeleton plays a key role to control pyroplasticity. Full article

This study investigates the technological, thermal, mechanical, and technological properties of glass foams produced with soda-lime glass residues and rice husk ash sintered at 850–950 °C. The results for apparent density (0.28–0.30 g/cm³), porosity (82–87 ± 4%), compressive strength (1.18 ± 0.03–1.25 ± 0.03 MPa), and thermal conductivity (0.283–0.326 W/mK) are within the limits for commercial foams. The volumetric expansion potential and low thermal conductivity of the glass foams produced favor their use as thermal insulating materials in coat walls, thus improving thermal comfort in the construction sector. The results of X-ray fluorescence show that the foam glass is of the soda-lime type (SiO₂, Na₂O, and CaO), the rice husk ash is rich in SiO₂, CaO, Na₂O, Al₂O₃, K₂O and Fe₂O₃, and the calcium carbonate is rich in CaO. The glass foams produced in this study are promising because they present more economical and efficient manufacturing, resulting in lightweight materials with thermal insulating properties that can be used in the construction sector. These glass foams also reduce the consumption of natural and synthetic raw materials, adding value to the waste used in this study by transforming them into co-products, thus favoring the economic circulation of the region. Full article

The present work shows the path towards the industrial production of ceramic tiles containing a high amount of recycling materials in the substitution of natural raw materials. Starting from the applied research at laboratory scale, which is able to demonstrate the work feasibility, other important milestones consist of pilot scale production until the proper industrial production. Finally, when all these steps are positively achieved, the practice is consolidated and it is possible to reach the concrete sustainability benefits (social, environmental and economic). The results of an industry driven project that aimed to produce porcelain stoneware tiles containing 85% of recycled materials were selected to show this path. This innovative ceramic product—containing soda-lime scrap glass from urban-separated collection (post-consumer waste) and unfired scrap tiles from industrial ceramic process (pre-consumer waste)—was sintered about 200 °C lower than a traditional porcelain stoneware tile. It maintains high technical performances belonging to class BIa of the International Standard of ceramic tile classification (EN ISO 14411). Moreover, this product fulfils the standard requirements for dry-pressed ceramic tiles with low water absorption (≤0.5%), and it obtained the certification UNI Keymark. The LCA study was also performed and the results showed a significantly lower environmental impact of this innovative product compared to a traditional porcelain stoneware tile. Full article

The need for sustainable solutions to reduce the carbon footprint of the ceramics and glass industry leads towards the development of new electric current-assisted technologies. Flash sintering-like processes in glasses allow a reduction of the softening temperature and could pave the way for new shaping technologies. Herein, we investigated the flash transition in soda-lime silicate glass using two different electrode materials, silver, and platinum. The high dielectric strength registered on samples tested with platinum electrodes undergoes a significant reduction when silver is used. In other words, in the case of silver electrodes, the flash ignition takes place at a lower onset field. Moreover, the Joule heating developed during the process can be turned from being highly inhomogeneous with Pt electrodes to homogeneous when Ag electrodes are used. Full article

In this study an integrated process is presented as a suitable method to transform Fe³⁺ oxides present in bauxite residue into magnetic oxides and metallic iron through a microwave roasting reduction, avoiding the formation of hercynite (FeAl₂O₄). In the first step, all the alumina phases were transformed into sodium aluminates by adding sodium carbonate as a flux to BR and then leached out through alkali-leaching to recover alumina. Subsequently, the leaching residue was mixed with carbon and roasted by using a microwave furnace at the optimum conditions. The iron oxide present in the sinter was converted into metallic iron (98%). In addition, hercynite was not detected. The produced cinder was subjected to a wet high intensity magnetic separation process to separate iron from the other elements. Full article

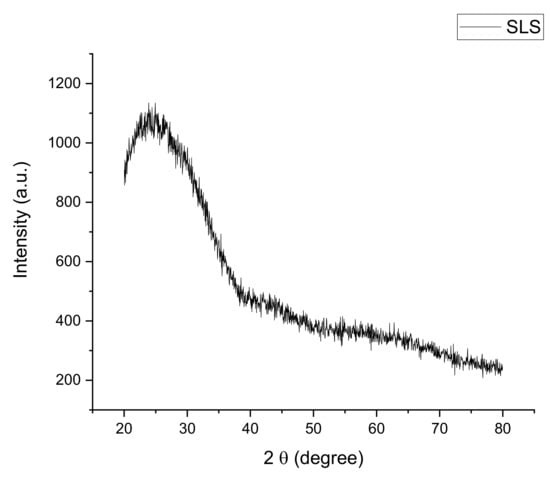

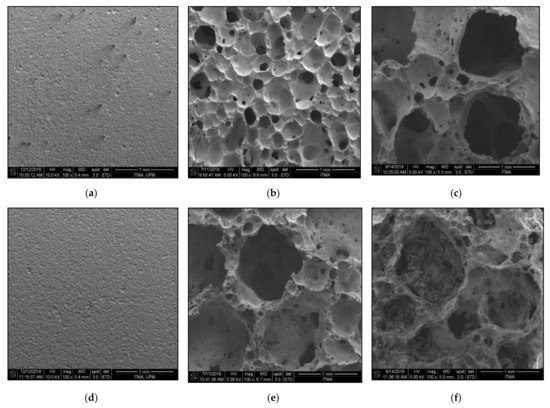

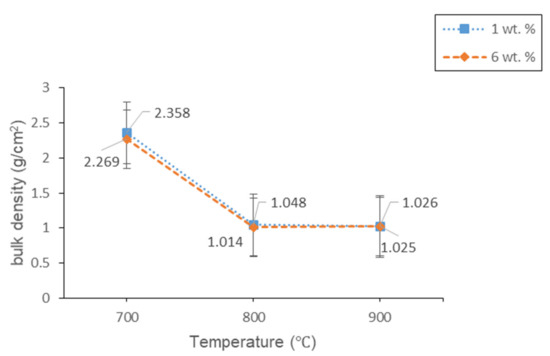

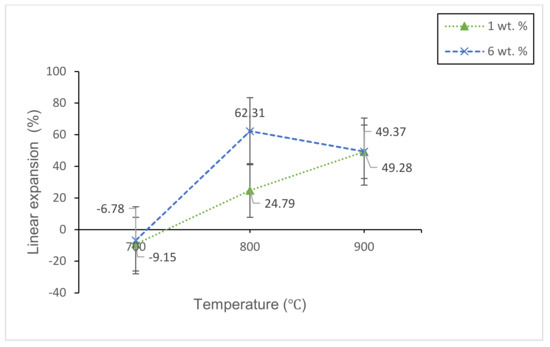

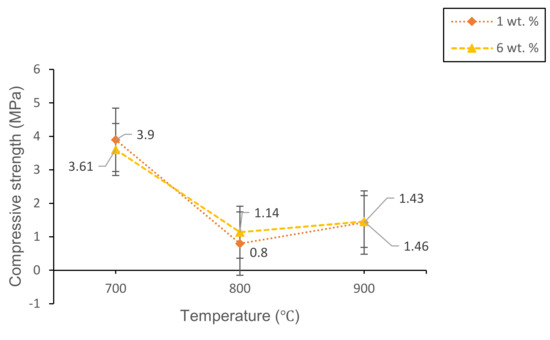

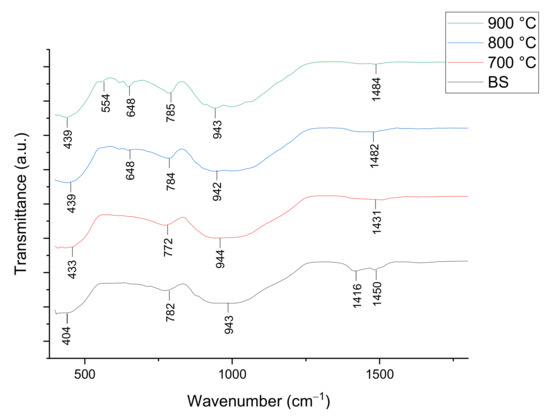

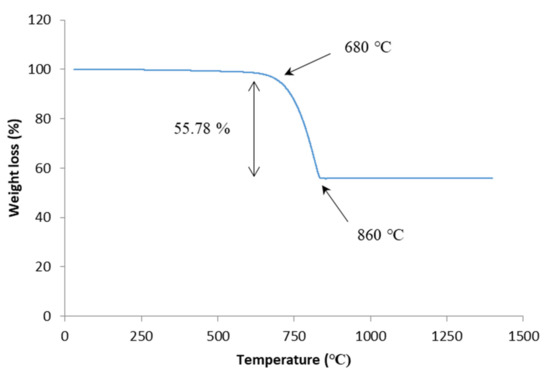

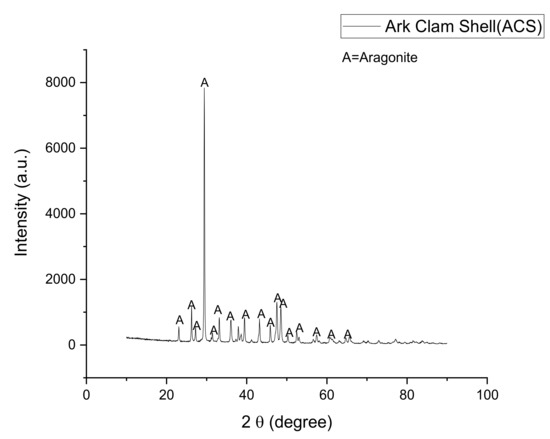

Soda lime silica (SLS) waste as the source of silica (SiO₂) and ark clamshell (ACS) as the foaming agent has been utilized to fabricate the low-cost and lightweight foam glass-ceramics. A series of 1 and 6 wt% foam glass-ceramics were successfully prepared by the conventional solid-state sintering method at various sintering temperatures for 60 min. The bulk density of the samples has achieved minimum density (1.014 g/cm³) with maximum expansion (62.31%) at 6 wt% of the ACS content sintered at 800 °C for 60 min. The bulk density increases while the linear shrinkage and total porosity decrease with the progression of ACS contents and sintering temperature, where the results correspond with the FESEM micrograph. The result of XRD and FTIR transmittance spectra have shown that the formation of wollastonite crystal has occurred starting at 6 wt% of the ACS content sintered at 800 °C for 30 min. The highest mechanical performance (3.90 MPa) with an average total porosity (8.04%) is observed for the sample containing 1 wt% of ACS. It can be concluded that the composition of foam glass-ceramics (1 and 6 wt%) and sintering temperatures give significant results to the structural, physical, and mechanical properties of the fabricated foam glass-ceramics. Full article

Material from the electric arc furnace smelting of municipal solid waste incineration (MSWI) bottom ash was easily converted into highly porous glass-ceramics by a combination of inorganic gel casting and sinter-crystallization at 1000 °C. In particular, the gelation of aqueous suspensions of fine glass powders, transformed into “green” foams by intensive mechanical stirring, occurred with a limited addition of alkali activator (1 M NaOH). The products coupled the stabilization of pollutants with good mechanical properties (e.g., compressive strength approaching 4 MPa). Interestingly, they could be used also as raw material for new glass-ceramic foams, obtained by the same gel casting and sintering method, with no degradation of chemical stability. Limitations in the crushing strength, derived from the limited viscous flow densification of semi-crystalline powders, were overcome by mixing powders from recycled foams with 30 wt% soda-lime glass. The new products finally featured an even higher strength-to-density ratio than the foams from the first cycle. Full article

Both vitrified bottom ashes (VBAs) and waste glasses are forms of inorganic waste material that are widely landfilled, despite having some economic potential. Building on previous studies, we prepared glass-ceramic foams by the combination of VBA with either soda-lime glass (SLG) or borosilicate glass (BSG). Suspensions of fine powders in weakly alkaline solution underwent gelation, followed by frothing at nearly room temperature. Hardened “green” foams were sintered, with concurrent crystallization, at 850–1000 °C. All foams were highly porous (>70%), with mostly open porosity. The glass addition was fundamental in both gelation (promoting the formation of carbonate and silicate hydrated phases) and firing steps. While SLG addition enhanced the viscous flow sintering, without a significant impact on the crystallization of gehlenite, the main crystalline phase from the devitrification of VBA, BSG addition caused a reactive sintering, with remarkable changes in the phase assemblage. The glass addition generally also allowed lower sintering temperatures and yielded products with excellent crushing strength. However, only specific conditions resulted in the complete immobilization of pollutants (e.g., Cr³⁺ ions). Full article

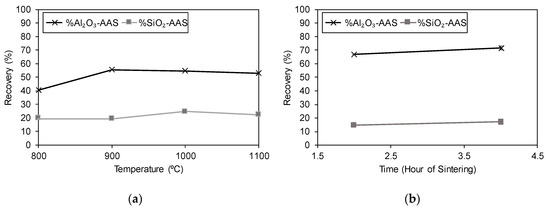

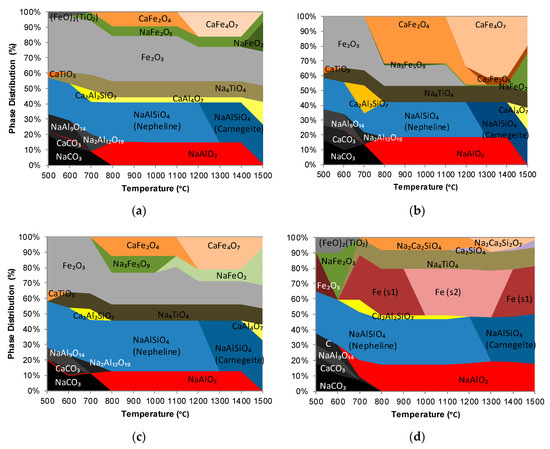

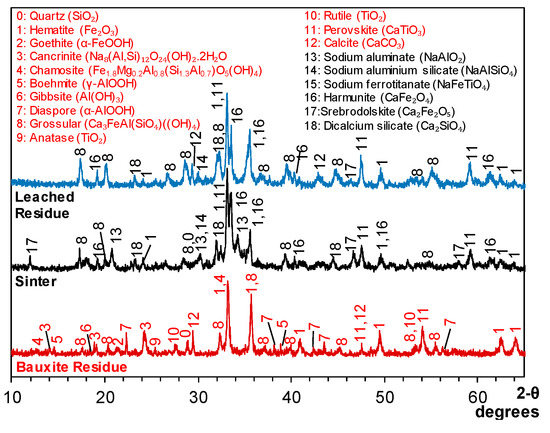

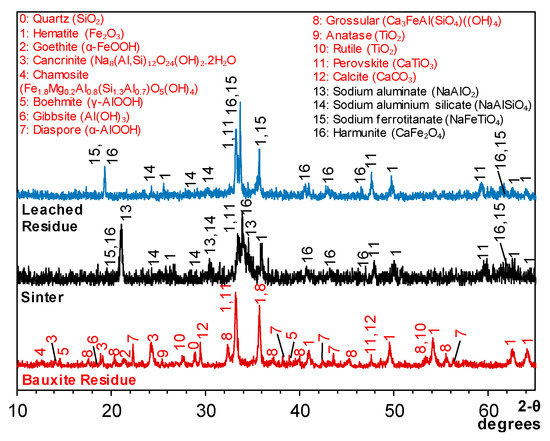

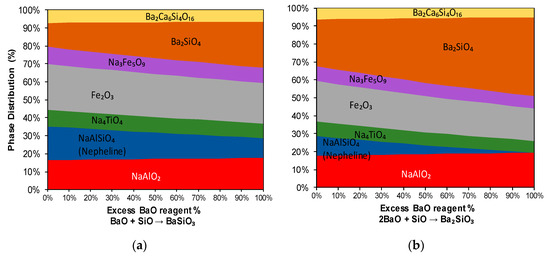

Bauxite residue is treated for the recovery of aluminum and sodium by sintering with the addition of soda, metallurgical coke and other reagents such as CaO, MgO and BaO. A thorough thermodynamic analysis using Factsage 7.0™ software was completed together with XRD mineralogy of sinters with different fluxes and reagents additions. Through both thermodynamic interpretation and mineralogical confirmations, it was observed that the type of desilication product in bauxite residue influences the total aluminum recovery through the sintering process and formation of sodium aluminum silicate exists in equilibrium with sodium aluminate, unless silica is consumed by additives (such as CaO, MgO, BaO etc.) forming other more thermodynamically favorable species and liberating alumina. Addition of barium oxide improves the aluminum and sodium recovery to 75% and 94% respectively. Complex sinter product formation that are triggered due to high calcium content in the Greek bauxite residue reduces aluminum recovery efficiency. Optimised and feasible recovery of aluminum and sodium for Greek bauxite residue was proved to be 70% and 85% respectively, when sintered with 50% excess stoichiometric soda. It was observed that stoichiometric carbon addition in inert atmosphere only assisted recovery up to 75% of aluminum and 83% of sodium, though there are benefits gained from pre-reducing iron from hematite for downstream recovery. Full article

A new technique for the production of glass foams, based on alkali activation and gel casting, previously applied to soda-lime glass, was successfully extended to boro-alumino-silicate glass, recovered from the recycling of pharmaceutical vials. A weak alkali activation (2.5 M NaOH or NaOH/KOH aqueous solutions) of fine glass powders (below 70 µm) allowed for the obtainment of well-dispersed concentrated aqueous suspensions, undergoing gelation by treatment at low temperature (75 °C). Unlike soda-lime glass, the progressive hardening could not be attributed to the formation of calcium-rich silicate hydrates. The gelation was provided considering the chemical formulation of pharmaceutical glass (CaO-free) to the formation of hydrated sodium alumino-silicate (N-A-S-H) gel. An extensive direct foaming was achieved by vigorous mechanical stirring of partially gelified suspensions, comprising also a surfactant. A sintering treatment at 700 °C, was finally applied to stabilize the cellular structures. Full article
