Search Results (20)

Addressing the limitations of poor piezoelectric photocatalytic activity and insufficient magnetic recovery in pure BiFeO₃ nanoparticles, Gd and Zr co-doped BiFeO₃ nanoparticles were synthesized via the sol-gel method. The structural characterization revealed a rhombohedral-to-orthorhombic phase transition with reduced grain size (~35 nm) and lattice distortion due to dopant incorporation. An XPS analysis confirmed Fe³⁺ dominance and oxygen vacancy enrichment, while optimized BGFZ9 exhibited enhanced remanent magnetization (0.1753 emu/g, 14.14 increase) compared to undoped BFO. The synergistic piezo-photocatalytic system achieved 81.08% Ofloxacin degradation within 120 min (rate constant: 0.0136 min⁻¹, 1.26 higher than BFO) through stress-induced piezoelectric fields that promoted electron transfer for ·O₂⁻/·OH radical generation via O₂ reduction. The Ofloxacin degradation efficiency decreased to 24.36% after four cycles, with structural integrity confirmed by XRD phase stability. This work demonstrates a triple-optimization mechanism (crystal phase engineering, defect modulation, and magnetic enhancement) for designing magnetically recoverable multiferroic catalysts in pharmaceutical wastewater treatment. Full article

The excessive use of ciprofloxacin, an antibiotic, has led to environmental challenges such as drug resistance and severe water pollution, necessitating effective mitigation strategies. Piezo-photocatalytic technology offers a sustainable solution. In this study, BiVO₄, recognized for its exceptional visible light absorption and conductivity, was embedded within polyvinylidene fluoride (PVDF) nanofibers to address issues of secondary water pollution and enhance material recovery. The addition of peroxymonosulfate (PMS) further improved the degradation process by generating highly reactive sulfate radicals (•SO₄⁻), which acted synergistically with piezoelectric effects to enhance pollutant breakdown. Under the combined effects of stir, illumination, and PMS activation, BiVO₄ achieved a 40% higher ciprofloxacin degradation efficiency compared to mechanical stir alone. This improvement is attributed to the generation of polarization charges at both ends of the material and the •SO₄⁻, which promoted efficient electron-hole separation and oxidative degradation. This study introduces a novel approach to piezo-photocatalytic water treatment using flexible BiVO₄ membrane materials with PMS enhancement. Full article

Piezo-photocatalysis is a promising solution to address both water pollution and the energy crisis. However, the recombination of electron–hole pairs often leads to poor performance, rendering current piezoelectric photocatalysts unsuitable for industrial water treatment. To overcome this issue, oxygen vacancies (V) and Ag nanoparticles (NPs) are introduced into Bi₄Ti₃O₁₂ (BTO) nanosheets, forming Schottky junctions (BTO-V/Ag). These 2D/3D structures offer more exposed active sites, shorter carrier separation distances, and improved piezo-photocatalytic performance. Additionally, the photothermal effect of Ag NPs supplies additional energy to counteract adsorption changes caused by active species, promoting the generation of more active species. The rate constant of the optimized BTO-V/Ag-2 in the piezo-photocatalytic degradation of nizatidine (NZTD) was 4.62 × 10⁻² min⁻¹ (with a removal rate of 98.34%), which was 4.32 times that of the initial BTO. Moreover, the composite catalyst also showed good temperature and pH response. This study offers new insights into the regulatory mechanisms of piezo-photocatalysis at the Schottky junction. Full article

In this work, Er-doped BiVO₄/BiFeO₃ composites are prepared using the sonochemical process with a difference of rare earth loading compositions. The crystallinity and chemical and morphological structure of as-synthesized samples were investigated via X-ray diffraction, Raman scattering, and electron microscopy, respectively. The diffuse reflectance technique was used to extract the optical property and calculate the optical band gap of the composite sample. The piezo-photocatalytic performance was evaluated according to the decomposition of a Rhodamine B organic compound. The decomposition of the organic compound was achieved under ultrasonic bath irradiation combined with light exposure. The Er-doped BiVO₄/BiFeO₃ composite heterojunction material exhibited significant enhancement of the piezo-photocatalytic activity under both ultrasonic and light irradiation due to the improvement in charge generation and separation. The result indicates that Er dopant strongly affects the phase transformation, change in morphology, and alternation in optical band gap of the BiVO₄ matrix. The incorporation of BiFeO₃ in the composite form with BiVO₄ doped with 1%Er can improve the photocatalytic performance of BiVO₄ via piezo-induced charge separation and charge recombination retardment. Full article

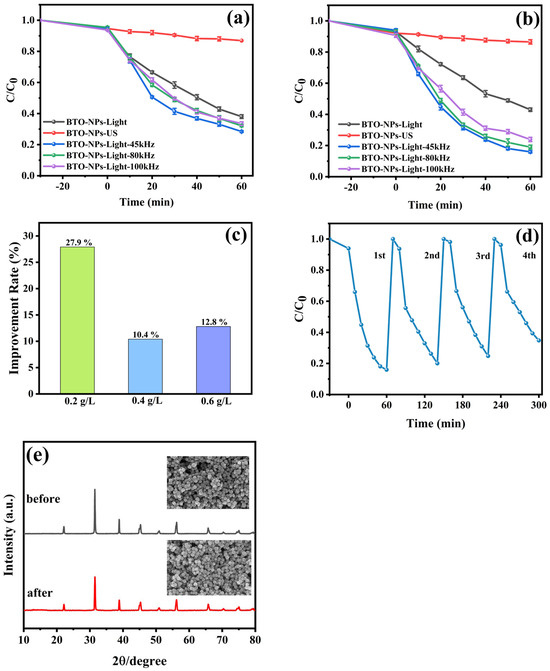

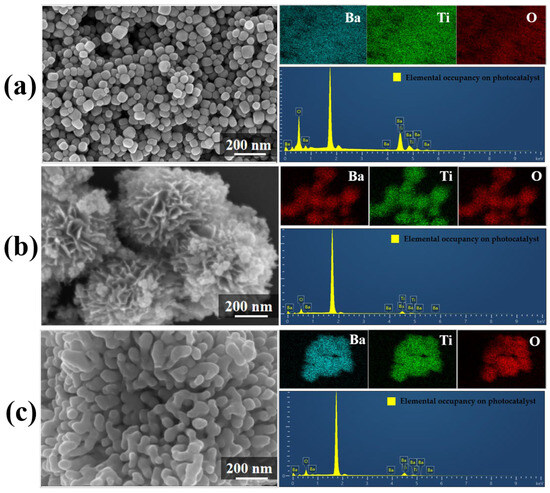

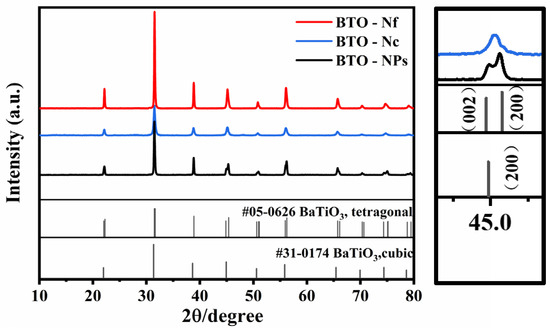

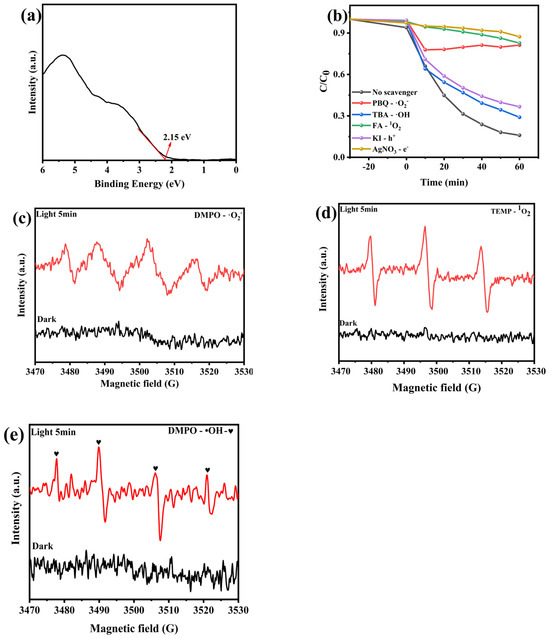

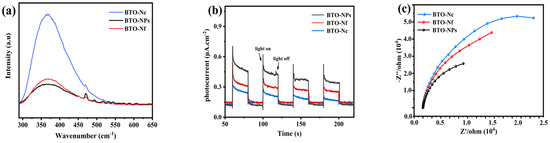

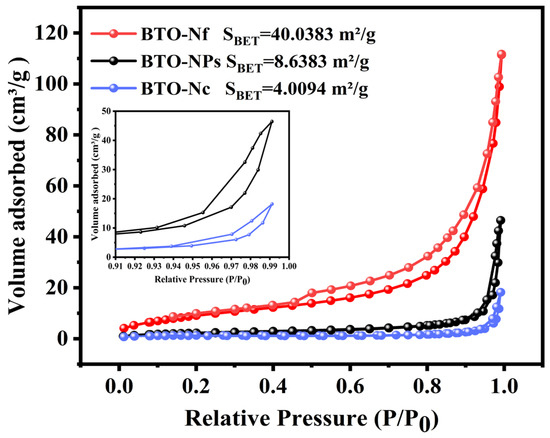

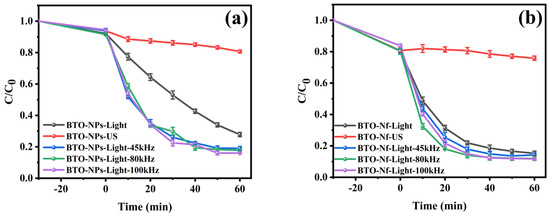

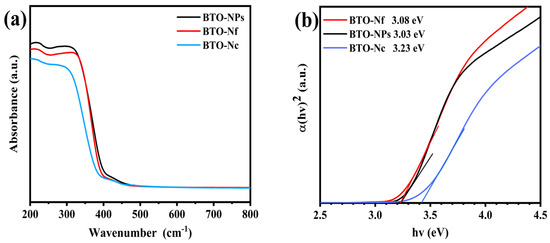

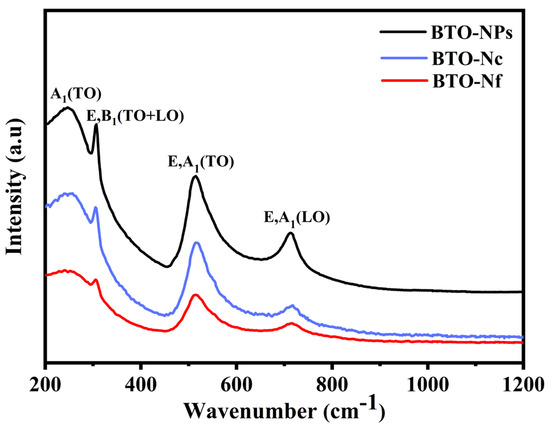

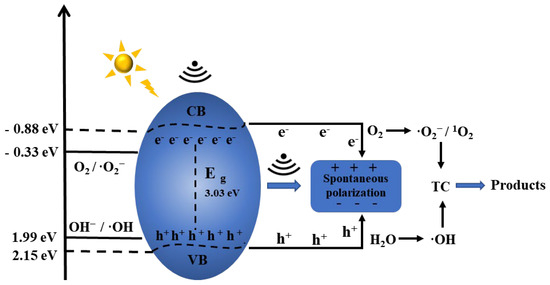

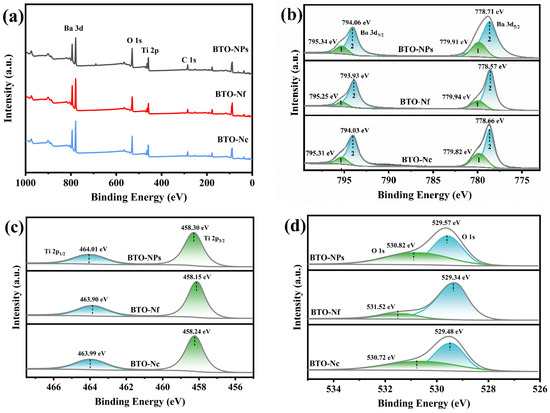

Piezoelectric photocatalysis improves catalytic activity by preventing photogenerated carrier recombination. Hence, three morphologies of BaTiO₃ (BTO) were successfully prepared for the piezoelectric photocatalytic degradation of tetracycline (TC, C_(TC) = 40 mg/L). The tetragonal-phase BaTiO₃ nanoparticles (BTO-NPs) showed the best performance in comparison with cubic-phase nanoflowers (BTO-Nf) and cubic-phase coral-like structures (BTO-Nc) under the same conditions (C_(BTO) = 0.6 g/L). When the loading of BTO-NPs was reduced to 0.2 g/L, the photocatalytic degradation efficiency was lowered from 64.2% to 50.1%. However, the 0.6 g/L BTO-NPs increased by only 12.8% after piezoelectricity induction. On the contrary, the BTO-NPs’ degradation effect of 0.2 g/L with the piezoelectric effect was greatly improved from 50.1% to 78.0%, with an increase rate of 27.9%. As the quantity of catalyst was decreased, the increased inter-particle voids made the lattice more susceptible to deformation by external forces, producing a more pronounced piezoelectric effect. These findings indicate that crystal structure and catalyst loading are critical factors in increasing piezoelectric photocatalytic performance. This article emphasizes the application value of piezoelectric photocatalysis in degrading organic pollutants, and provides practical guidelines for optimizing its performance. Full article

In light of external bias potential separating charge carriers on the photocatalyst surface, piezo materials’ built-in electric field plays a comparable role in enhancing photocatalyst performance. The synergistic effect provided by combining piezo materials assures the future of photocatalysis in practical applications. This paper discusses the principles and mechanisms of piezo-photocatalysis and various materials and structures used for piezo-photocatalytic processes. In piezo-photocatalyst composites, the built-in electric field introduced by the piezo component provides bias potential and extracts photocatalytically generated charge carriers for their subsequent reaction to form reactive oxygen species, which crucially affects the catalytic performance. In the composites, the shape and structure of substrate materials particularly matter. The potential of this technology in other applications, such as energy generation and environmental remediation, are discussed. To shed light on the practical application and future direction of the technique, this review gives opinions on moving the technique forward in terms of material development, process optimization, pilot-scale studies, comprehensive assessment of the technology, and regulatory frameworks to advance practical applications, and by analyzing its principles, applications, and challenges, we hope to inspire further research and development in this field and promote the adoption of piezo-photocatalysis as a viable treatment method for treating emerging pollutants in wastewater. Full article

This study is the first to report the high performance of calcined natural sphalerite as a heterogeneous catalyst (Catalyst) in the piezo- and photocatalytic degradation of pharmaceuticals (bezafibrate and ceftriaxone) using high-frequency ultrasound (US, 1.7 MHz) and ultraviolet-light-emitting diodes (LED, 365 nm). The kinetic comparison showed that piezo-photocatalysis (LED + US + Catalyst) was more efficient than photocatalysis (LED + Catalyst) for degrading both contaminants in deionized water as well as in surface river water at natural pH (7.9). Despite reducing degradation rates (~1.7 times) in river water due to the scavenging effect of its constituents, ceftriaxone and bezafibrate were degraded by 77% and 48% after 1 h of exposure, respectively. Adding H₂O₂ increased the corresponding pseudo-first-order rate constants, and the complete degradation of ceftriaxone was achieved. However, the contribution of ultrasound at a given intensity was hidden, which resulted in a similar performance of piezo-photocatalysis and photocatalysis for treating river water. No pronounced synergy between the piezo- and photocatalytic processes was observed in the experimental conditions used. Nevertheless, the H₂O₂-assisted piezo-photocatalysis using high-frequency US, LED, and natural catalysts can be considered a novel and effective strategy for eliminating pharmaceuticals from real water without pH adjustment. Full article

This work addresses the global sustainable development concerns by investigating the enhancement of piezo-photocatalytic efficiency in bismuth ferrite-based thin films synthesized using reactive high-power impulse magnetron sputtering. The influence of substrate type and Cr addition on structural, optical and ferroelectric properties of bismuth ferrite (BFO) based thin films was investigated. X-ray diffraction measurements showed the formation of different phases depending on the substrate used for sample growth. Compared to the BFO film deposited on FTO (F-SnO₂), the Cr-doped BFO (BFCO) sample on SrTiO₃ (STO) exhibits higher photodegradation efficiency (52.3% vs. 27.8%). The enhanced photocatalytic activity of BFCO is associated with a lower energy band gap (1.62 eV vs. 1.77 eV). The application of ultrasonic-wave vibrations simultaneously with visible light improved 2.85 times and 1.86 times the photocatalytic degradation efficiencies of BFO/FTO and BFCO/STO catalysts, respectively. The piezoresponse force microscopy (PFM) measurements showed that both catalysts exhibit ferroelectric behavior, but a higher piezoelectric potential was evidenced in the case of the BFO/FTO thin film. The enhancement of piezo-photodegradation efficiency was mainly attributed to the piezoelectric-driven separation and transport of photo-generated carriers toward the surface of the photocatalyst. Full article

In this study, polyvinylidene fluoride (PVDF) fibers doped with hydrated calcium nitrate were prepared using electrospinning. The samples were analyzed using scanning electron microscopy (SEM), X-ray diffraction (XRD), optical spectroscopy, X-ray photoelectron spectroscopy (XPS), Fourier transform infrared (FTIR), Raman, and photoluminescence (PL) spectroscopy. The results are complementary and confirm the presence of chemical hydrogen bonding between the polymer and the dopant. Additionally, there was a significant increase in the proportion of the electroactive polar beta phase from 72 to 86%. It was shown that hydrogen bonds acted as a transport pathway for electron capture by the conjugated salt, leading to more than a three-fold quenching of photoluminescence. Furthermore, the optical bandgap of the composite material narrowed to the range of visible light energies. For the first time, it the addition of the salt reduced the energy of the PVDF exciton by a factor of 17.3, initiating photocatalytic activity. The calcium nitrate-doped PVDF exhibited high photocatalytic activity in the degradation of methylene blue (MB) under both UV and visible light (89 and 44%, respectively). The reaction rate increased by a factor of 2.4 under UV and 3.3 under visible light during piezophotocatalysis. The catalysis experiments proved the efficiency of the membrane design and mechanisms of catalysis are suggested. This study offers insight into the nature of chemical bonds in piezopolymer composites and potential opportunities for their use. Full article

The internal electric field within a piezoelectric material can effectively inhibit the recombination of photogenerated electron–hole pairs, thus serving as a means to enhance photocatalytic efficiency. Herein, we synthesized a Na_0.5Bi_4.5Ti₄O₁₅ (NBT) catalyst by the hydrothermal method and optimized its catalytic performance by simple high-voltage poling. When applying light and mechanical stirring on a 2 kV mm⁻¹ poled NBT sample, almost 100% of Rhodamine B solution could be degraded in 120 min, and the reaction rate constant reached as high as 28.36 × 10⁻³ min⁻¹, which was 4.2 times higher than that of the unpoled NBT sample. The enhanced piezo-photocatalytic activity is attributed to the poling-enhanced internal electric field, which facilitates the efficient separation and transfer of photogenerated carriers. Our work provides a new option and idea for the development of piezo-photocatalysts for environmental remediation and pollutant treatment. Full article

The creation of multi-stimuli-sensitive composite polymer–inorganic materials is a practical scientific task. The combination of photoactive magneto-piezoelectric nanomaterials and ferroelectric polymers offers new properties that can help solve environmental and energy problems. Using the doctor blade casting method with the thermally induced phase separation (TIPS) technique, we synthesized a hybrid polymer–inorganic nanocomposite porous membrane based on polyvinylidene fluoride (PVDF) and bismuth ferrite (BiFeO₃/BFO). We studied the samples using transmission and scanning electron microscopy (TEM/SEM), infrared Fourier spectroscopy (FTIR), total transmission and diffuse reflection, fluorescence microscopy, photoluminescence (PL), differential scanning calorimetry (DSC), thermogravimetric analysis (TGA), vibrating-sample magnetometer (VSM), and piezopotential measurements. Our results demonstrate that the addition of BFO increases the proportion of the polar phase from 76.2% to 93.8% due to surface ion–dipole interaction. We also found that the sample exhibits laser-induced fluorescence, with maxima at 475 and 665 nm depending on the presence of nanoparticles in the polymer matrix. Furthermore, our piezo-photocatalytic experiments showed that under the combined actions of ultrasonic treatment and UV–visible light irradiation, the reaction rate increased by factors of 68, 13, 4.2, and 1.6 compared to sonolysis, photolysis, piezocatalysis, and photocatalysis, respectively. This behavior is explained by the piezoelectric potential and the narrowing of the band gap of the composite due to the mechanical stress caused by ultrasound. Full article

In this study, ferroelectric Bi₄Ti₃O₁₂ and Au-Bi₄Ti₃O₁₂ nanofibers were synthesized by electrospinning and ion sputtering. The piezoelectric effect of Bi₄Ti₃O₁₂ and the surface plasmon effect of Au were used to improve the photogenerated electron–hole separation and optical absorption. The results of the characterization showed successful preparation of the orthorhombic Bi₄Ti₃O₁₂ nanofibers, in which the absorption band edge was 426 nm with a 2.91 eV band gap. The piezo-photocatalytic activity of the Bi₄Ti₃O₁₂ was tested through the degradation of the antibiotic ciprofloxacin under three different experimental conditions: light, vibration, and light plus vibration. All of the ciprofloxacin was degraded after 80 min in piezo-photocatalytic conditions, with a piezo-photocatalytic degradation rate of 0.03141 min⁻¹, which is 1.56 and 3.88 times, respectively, that of photocatalysis and piezo-catalysis. After loading Au on the Bi₄Ti₃O₁₂, the degradation efficiency was improved under all three conditions, and the piezoelectric photocatalytic efficiency of Au-Bi₄Ti₃O₁₂ for ciprofloxacin degradation was able to reach 100% in 60 min with a piezo-photocatalytic degradation rate of 0.06157 min⁻¹. The results of the photocurrent and impedance tests indicated that the photocurrent density of Bi₄Ti₃O₁₂ nanofibers loaded with Au is increased from 5.08 × 10⁻⁷ A/cm² to 8.17 × 10⁻⁶ A/cm², which is 16.08 times higher than without loading the Au. This work provides an effective way to improve the conversion efficiency of photocatalysis to degrade organic pollutants by combining the plasmon effect and the piezoelectric effect. Full article

Creating stimulus-sensitive smart catalysts capable of decomposing organic dyes with high efficiency is a critical task in ecology. Combining the advantages of photoactive piezoelectric nanomaterials and ferroelectric polymers can effectively solve this problem by collecting mechanical vibrations and light energy. Using the electrospinning method, we synthesized hybrid polymer-inorganic nanocomposite fiber membranes based on polyvinylidene fluoride (PVDF) and bismuth ferrite (BFO). The samples were studied by scanning electron microscope (SEM), Fourier-transform infrared spectroscopy (FTIR), total transmittance and diffuse reflectance, X-ray photoelectron spectroscopy (XPS), differential scanning calorimetry (DSC), thermogravimetric analysis (TGA), vibrating-sample magnetometer (VSM), and piezopotential measurements. It has been demonstrated that the addition of BFO leads to an increase in the proportion of the polar phase from 86.5% to 96.1% due to the surface ion–dipole interaction. It is shown that the composite exhibits anisotropy of magnetic properties depending on the orientation of the magnetic field. The results of piezo-photocatalytic experiments showed that under the combined action of ultrasonic treatment and irradiation with both visible and UV light, the reaction rate increased in comparison with photolysis, sonolysis, and piezocatalysis. Moreover, for PVDF/BFO, which does not exhibit photocatalytic activity, under the combined action of light and ultrasound, the reaction rate increases by about 3× under UV irradiation and by about 6× under visible light irradiation. This behavior is explained by the piezoelectric potential and the narrowing of the band gap of the composite due to mechanical stress caused by the ultrasound. Full article

Revealing the charge transfer path is very important for studying the photocatalytic mechanism and improving photocatalytic performance. In this work, the charge transfer path turned by the piezoelectricity in Ag-BaTiO₃ nanofibers is discussed through degrading methyl orange. The piezo-photocatalytic degradation rate of Ag-BaTiO₃ is much higher than the photocatalysis of Ag-BaTiO₃ and piezo-photocatalysis of BaTiO₃, implying the coupling effect between Ag nanoparticle-induced localized surface plasmon resonance (LSPR), photoexcited electron-hole pairs, and deformation-induced piezoelectric field. With the distribution density of Ag nanoparticles doubling, the LSPR field increases by one order of magnitude. Combined with charge separation driven by the piezoelectric field, more electrons in BaTiO₃ nanofibers are excited by plasmon-induced resonance energy transfer to improve the photocatalytic property. Full article

Novel Pt/Bi_3.4Gd_0.6Ti₃O₁₂ heterojunction was synthesized by a decoration of Pt nanoparticles (PtNPs) on the surface of piezoelectric Bi_3.4Gd_0.6Ti₃O₁₂ (BGTO) through an impregnation process. The photocatalytic, piezo-catalytic, and piezo-photocatalytic activities of the Pt/BGTO heterojunction for methyl orange (MO) degradation were investigated under ultrasonic excitation and whole spectrum light irradiation. The internal piezoelectric field of BGTO and a plasmonic effect have been proven important for the photocatalytic activity of the heterojunctions. Pt/BGTO exhibited an optimum photocatalytic degradation performance of 92% for MO in 70 min under irradiation of whole light spectrum and ultrasonic coexcitation, and this value was about 1.41 times higher than the degradation rate under whole spectrum light irradiation alone. The PtNPs in Pt/BGTO heterojunction can absorb the incident light intensively, and induce the collective oscillation of surface electrons due to the surface plasmon resonance (SPR) effect, thus generating “hot” electron–hole pairs. The internal piezoelectric field produced in BGTO by ultrasonic can promote the separation of SPR-induced “hot” charge carriers and facilitate the production of highly reactive oxidation radicals, thus enhancing Pt/BGTO heterojunction′s photocatalytic activity for oxidizing organic dyes. Full article
