Search Results (9)

We report the synthesis and multifunctional characterization of copper-reinforced Ba_0.85Sr_0.15TiO₃ (BST) ceramic composites with Cu contents ranging from 0 to 40 wt%, prepared by a sol–gel route and densified using spark plasma sintering (SPS). X-ray diffraction and FT-IR analyses confirm the coexistence of cubic and tetragonal BST phases, while Cu remains as a chemically separate metallic phase without detectable interfacial reaction products. Microstructural observations reveal abnormal grain growth induced by localized liquid-phase-assisted sintering and progressive Cu agglomeration at higher loadings. Scanning electron microscopy reveals abnormal grain growth, with the average BST grain size increasing from approximately 3.1 µm in pure BST to about 5.2 µm in BST–Cu40% composites. Optical measurements show a continuous reduction in the effective optical bandgap (apparent absorption edge) from 3.10 eV for pure BST to 2.01 eV for BST–Cu40%, attributed to interfacial electronic states, defect-related absorption, and enhanced scattering rather than Cu lattice substitution. Electrical characterization reveals a percolation threshold at approximately 30 wt% Cu, where AC conductivity and dielectric permittivity reach their maximum values. Impedance spectroscopy and equivalent-circuit analysis demonstrate strong Maxwell–Wagner interfacial polarization, yielding a maximum permittivity of ~1.2 × 10⁵ at 1 kHz for BST–Cu30%. At higher Cu contents, conductivity and permittivity decrease due to disrupted Cu connectivity and increased porosity. These findings establish BST–Cu composites as tunable ceramic–metal systems with enhanced dielectric and optical responses, demonstrating potential for specialized high-capacitance decoupling applications where giant permittivity is prioritized over low dielectric loss. Full article

This work reviews percolation-related phenomena in porous organosilica glass (OSG) low-k dielectrics and their critical impact on mass transport, electrical conductivity, mechanical integrity, and dielectric breakdown. We discuss how leakage current arises from the formation of minimal percolating conductive paths along pores and defect chains, while dielectric breakdown requires system-spanning pore connectivity, resulting in a higher effective percolation threshold. Mechanical properties similarly degrade when pores coalesce into a connected network, exhibiting multiple percolation thresholds due to both chemical network modifications and porosity. Experimental trends demonstrate that leakage current increases sharply at low porosity, whereas breakdown voltage and mechanical stiffness collapse at higher porosity levels (~20%–30%). We highlight that distinct percolation classes govern transport, mechanical, and nonlinear phenomena, with correlation length and diffusion timescales providing a unified framework for understanding these effects. The analysis underscores the fundamental role of network connectivity in determining the performance of organosilicate glass-based ultra-low-k dielectrics and offers guidance for material design strategies aimed at simultaneously improving electrical, mechanical, and chemical robustness. Full article

Special calculation methods are presented for critical indices and amplitudes for the permeability of thin wavy channels dependent on the waviness. The effective permeability and wetted perimeter of the two-dimensional random percolating media are considered as well. A special mathematical framework is developed to characterize the dependencies on porosities, critical points, and indices. Various approximation techniques are applied without involving popular lubrication approximation in any sense. In particular, the Borel summation technique is applied to the effective polynomial approximations with or without optimization. Minimal difference and minimal derivative optimal conditions are adapted to calculations of critical indices and amplitudes for the effective permeability of thin wavy channels. Critical indices, amplitudes, and thresholds are obtained for the effective permeability and wetted perimeter of the two-dimensional percolating random media. Closed-form expressions for all porosities, critical points, and indices are calculated from the polynomial approximations for the first time. Full article

Permeability is a key transport property of porous materials, and its accurate evaluation is relevant when studying applied tasks, such as CO₂ injection into reservoirs and investigating groundwater quality. This study examines the dependence of permeability on total and connected porosity, hydraulic tortuosity, specific surface area, and mean pore radius based on the data of 408 cubic sub-volumes extracted from heterogeneous and naturally fractured cylindrical carbonate samples, before and after injection of HCl solutions. These parameters were computed using pore-scale modeling of fluid flow. Our results show that permeability correlates well with porosity and mean pore radius, with correlation coefficients of $R^2\approx 0.65-0.79$ for heterogeneous samples. It was found that the presence of natural fractures significantly influenced the relationship between permeability and other parameters. The relationship between permeability $k$, tortuosity $\tau$, and specific surface area $S$ is described by the power laws $k~{\tau }^{-\alpha }$ and $k~S^{-\beta }$, with coefficients $\alpha$ and $\beta$ substantially exceeding those in the Kozeny–Carman equation. It was also found that there is a parabolic relationship between connected and total porosities, both before and after rock dissolution with $R^2\approx 0.96-0.99$. This allowed for an estimation of percolation threshold porosity in accordance with the literature data. Full article

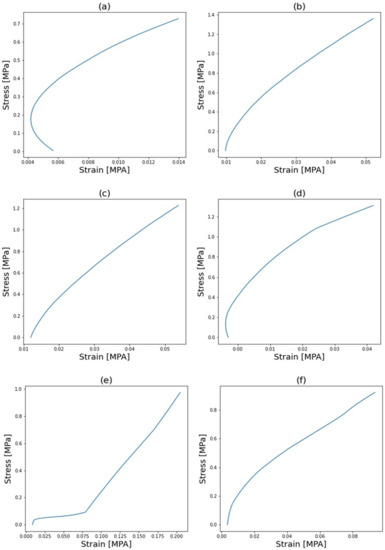

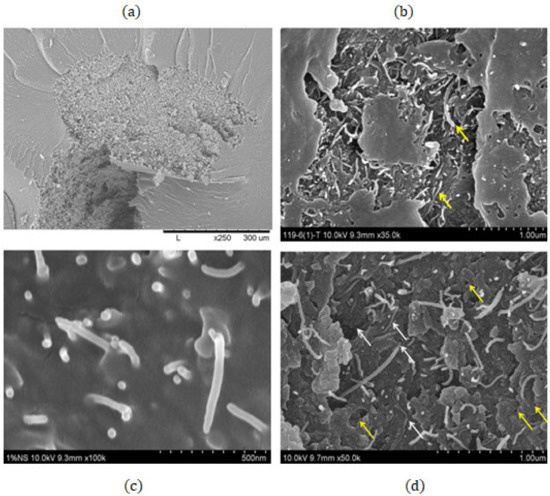

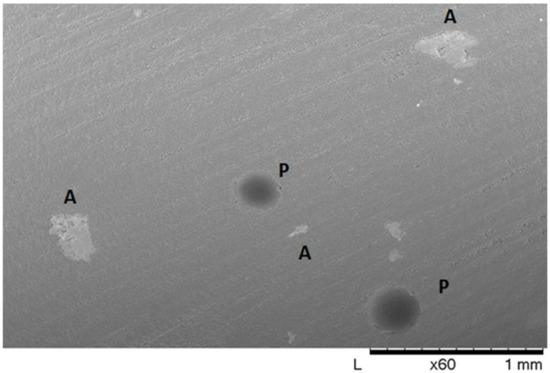

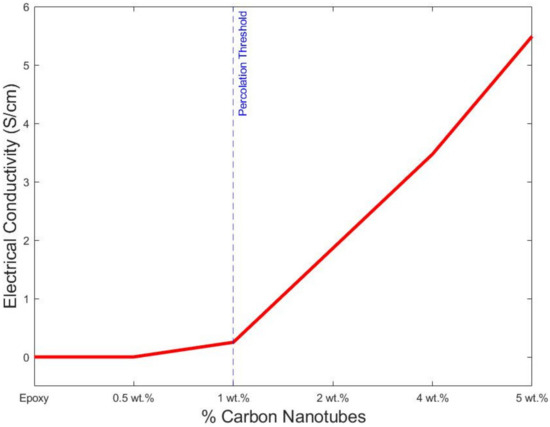

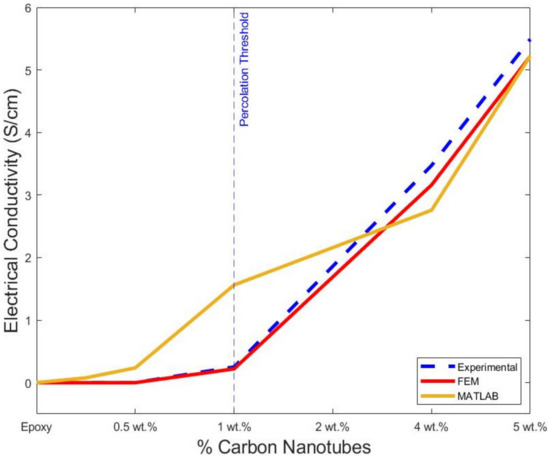

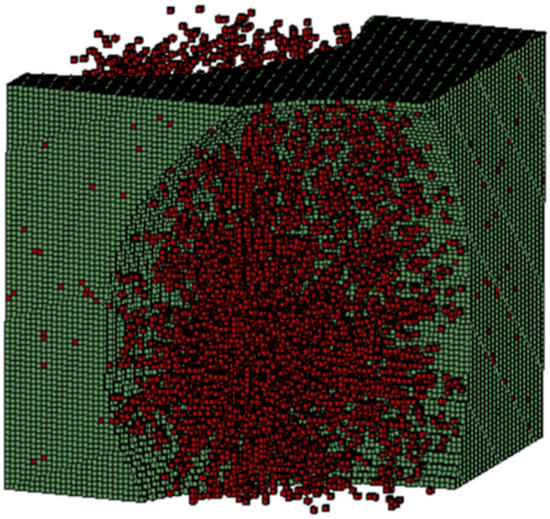

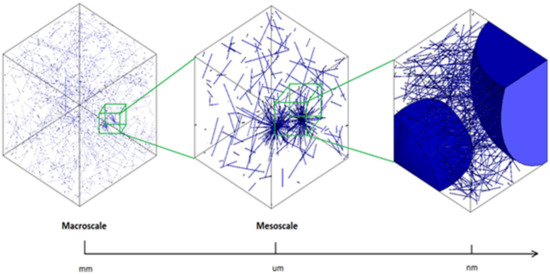

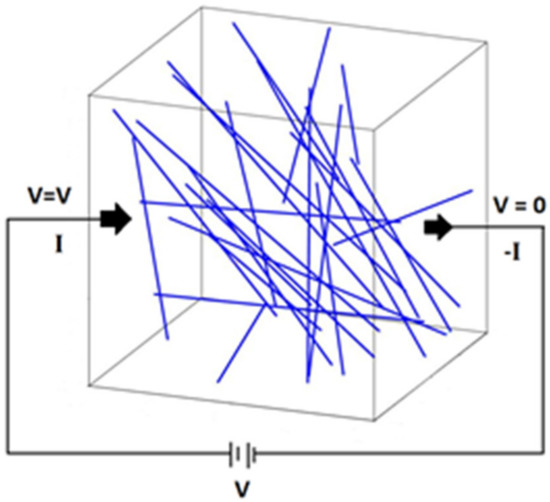

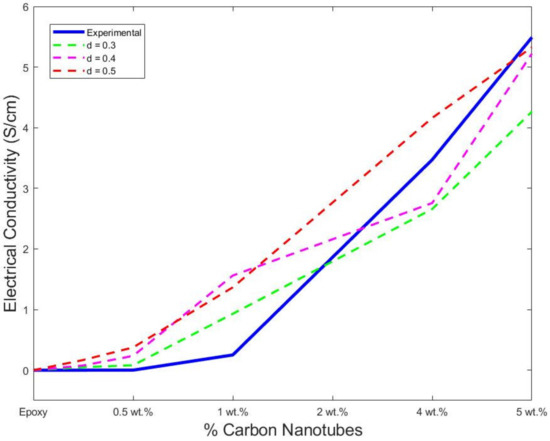

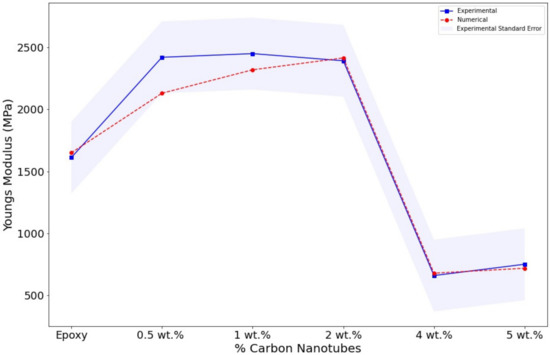

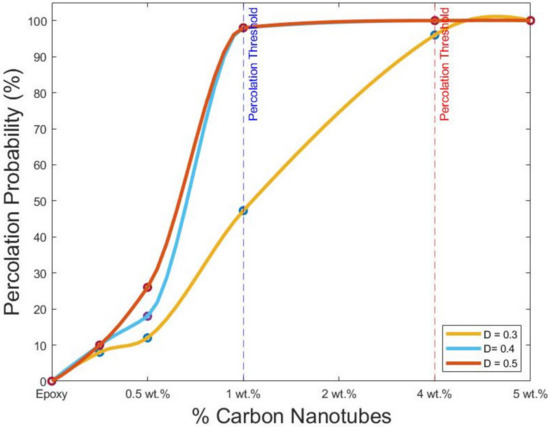

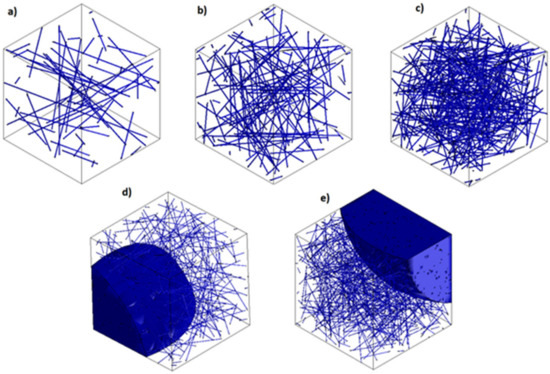

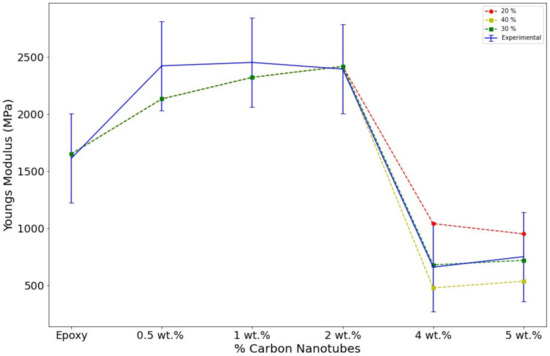

In this work, we investigated the effect of carbon nanotubes addition and agglomeration formation on the mechanical and electrical properties of CNT–polymer-based nanocomposites. Six specimens with carbon nanotubes (CNTs) fractions of 0%, 0.5%, 1%, 2%, 4% and 5% were manufactured and characterized by dynamic mechanical analysis (DMA) and four-probe method. The stress–strain curves and electrical conductivity properties were obtained. Scanning electron microscopy (SEM) was used to characterize both agglomeration and porosity formation. By employing micromechanics, through representative volume element (RVE), finite element analysis (FEA) and resistor network model (RNM), the Young’s modulus and electrical conductivity values were calculated. The samples’ elastic moduli showed an increment, reaching the maximum value at a CNTs fraction of 2%, thereafter an adverse effect was caused in the high CNT percentage samples. The final electrical conductivity seemed greatly altered with the addition of CNTs, reaching the percolation threshold at 2%. The unavoidable formation of CNT agglomerates appeared to influence the final physical properties. The CNT agglomerates adversely affect the mechanical performance of high-CNT-percentage samples. Conversely, an exponential increment in the electrical conductivity was presented as the agglomerates formed networks allowing the transport of electrons through the tunnelling effect. These phenomena were experimentally and numerically confirmed, showing a good correlation. Full article

Titanium dioxide (TiO₂) is an excellent photocatalytic material that imparts biocidal, self-cleaning and smog-abating functionalities when added to cement-based materials. The presence of TiO₂ influences the hydration process of cement and the development of its internal structure. In this article, the hydration process and development of a pore network of cement pastes containing different ratios of TiO₂ were studied using two noninvasive techniques (ultrasonic and NMR). Ultrasonic results show that the addition of TiO₂ enhances the mechanical properties of cement paste during early-age hydration, while an opposite behavior is observed at later hydration stages. Calorimetry and NMR spin–lattice relaxation time T₁ results indicated an enhancement of the early hydration reaction. Two pore size distributions were identified to evolve separately from each other during hydration: small gel pores exhibiting short T₁ values and large capillary pores with long T₁ values. During early hydration times, TiO₂ is shown to accelerate the formation of cement gel and reduce capillary porosity. At late hydration times, TiO₂ appears to hamper hydration, presumably by hindering the transfer of water molecules to access unhydrated cement grains. The percolation thresholds were calculated from both NMR and ultrasonic data with a good agreement between both results. Full article

The study investigates the effect of carbon nanotubes on chloride penetration in nano-modified mortars and reports on the physical, electrical, and mechanical performance of the material. Mortars were artificially corroded and their surface electrical surface conductivity as well as flexural and compressive strength were measured. The influence of variable nanotube concentration in accelerated corrosion damage was evaluated. Nanotube concentration was found to significantly affect the permeability of the mortars; improvements in flexural and compressive response of mortars exposed to salt spray fog, compared to virgin specimens, were rationalized upon decreases in the apparent porosity of the materials due to filling of the pores with sodium chloride. Electrical resistivity was found to increase up to two orders of magnitude with respect to the surface value; above the percolation threshold, the property impressively increased up to five orders of magnitude. Full article

Numerous laboratory and field experiments suggest that electrical properties of fractured rocks may provide critical information regarding the topological properties of the underlying fracture networks. However, a lack of numerical studies dedicated to realistic fractured media prevents us from assessing, in a systematic manner, the relationships between electrical and topological properties in complex domains for which a representative elementary volume may not exist. To address this issue, we conduct an extended numerical analysis over a large range of realistic fractured porous media with an explicit description of the fractures that takes into account the fracture–matrix interactions. Our work shows that the fracture density determines the suitability of Archie’s law for describing effective electrical properties with complex behavior associated with small fracture densities. In particular, for fracture networks at the percolation threshold surrounded by a low-porosity matrix, the effective petrophysical relationships are impacted by the assumed fracture-length distribution and the exchange of electric current between the fractures and surrounding matrix. These results help in understanding experimental observations that were difficult to explain so far, suggesting that the effective electrical properties of fractured rock may be used to obtain insights into the properties of their geological structures. Full article

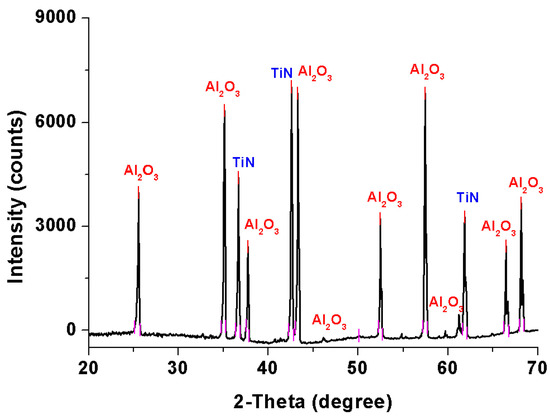

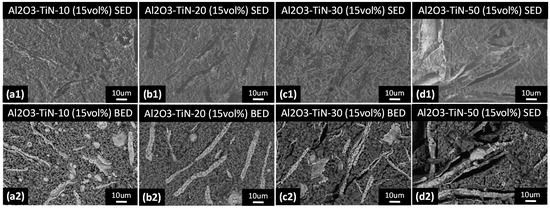

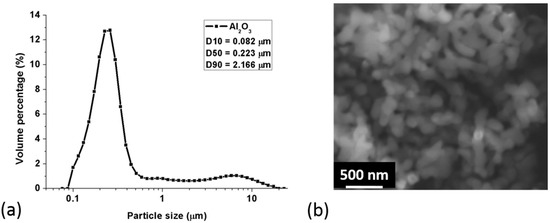

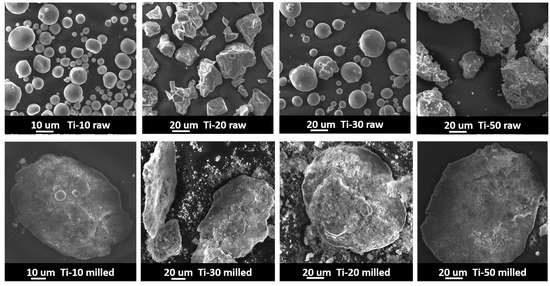

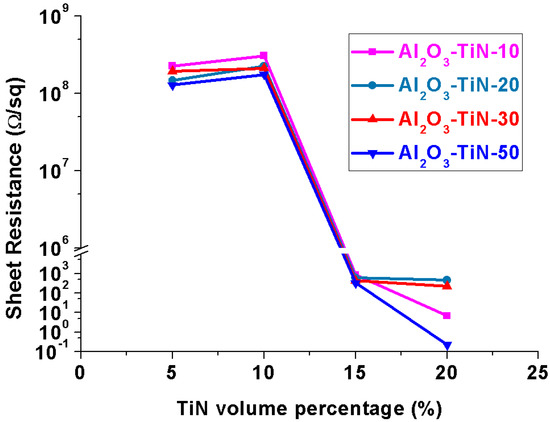

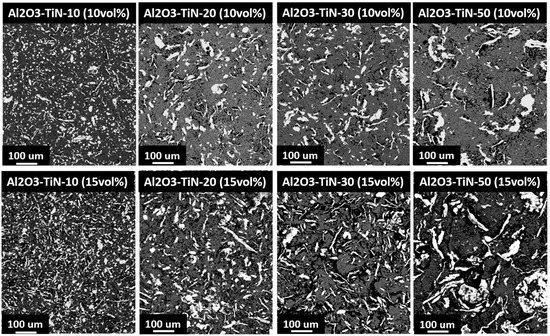

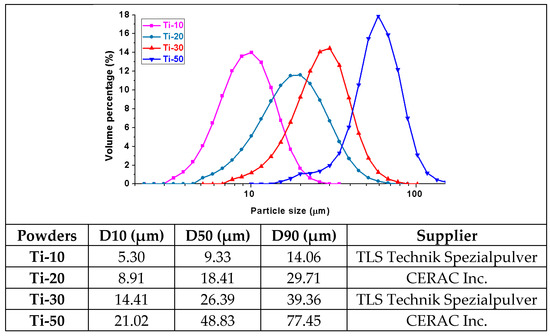

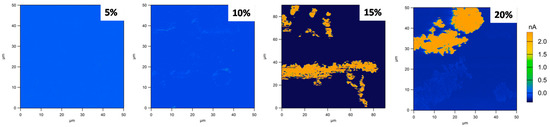

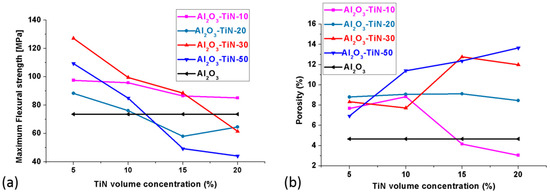

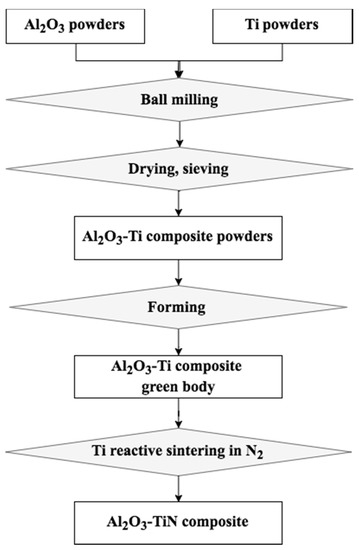

In the current study, Al₂O₃–TiN composites were successfully fabricated with various particle sizes (10, 20, 30, and 50 μm) and concentrations (5, 10, 15, and 20 vol %) via a novel ball milling + Ti reactive sintering process. By applying the reactive sintering, Ti powders will transform into TiN particles, which act as mechanical reinforcements and electrical conductors in the Al₂O₃ matrix. The ball milling process alters the Ti powder morphology from a low-aspect-ratio sphere into a high-aspect-ratio disc, which reduces the electrical percolation threshold value from 29% to 15% in the current setup. However, such a threshold value is insensitive to the particle size. Meanwhile, the Ti particle size has a significant influence on the material’s mechanical properties. A small particle size results in less porosity and hence higher flexural strength of the composite. Full article
