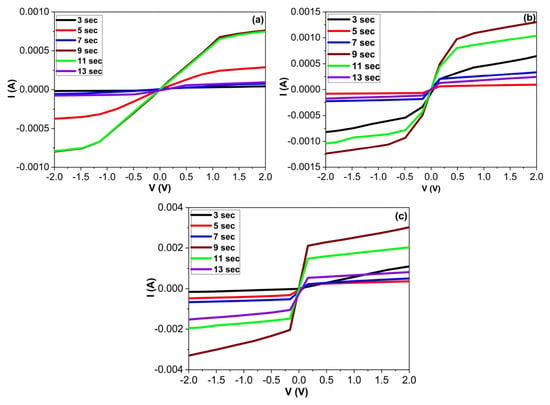

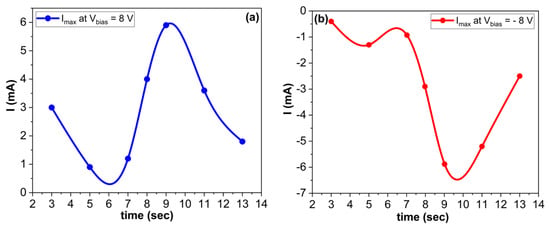

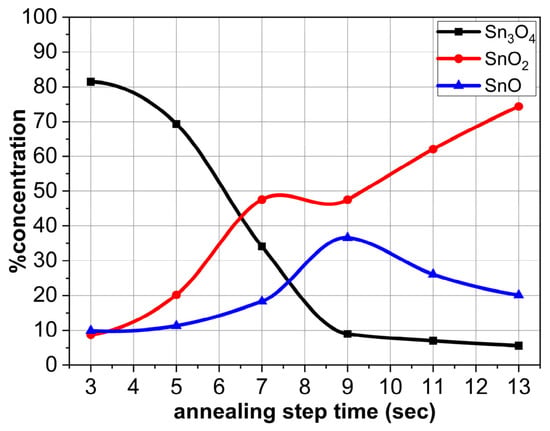

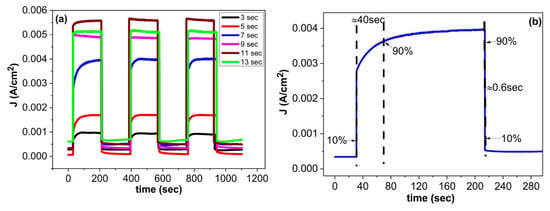

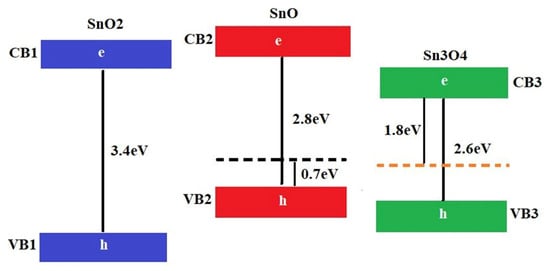

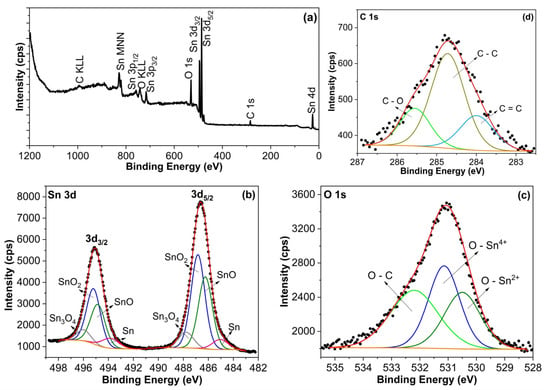

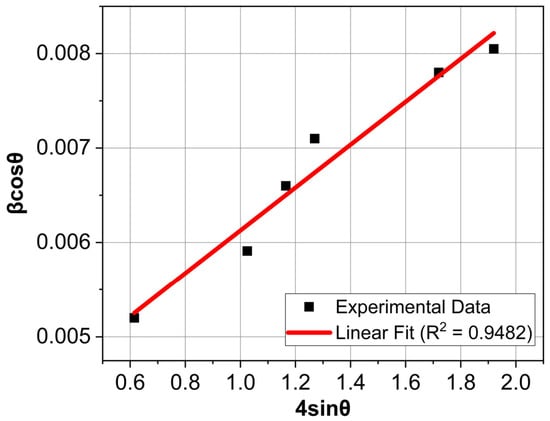

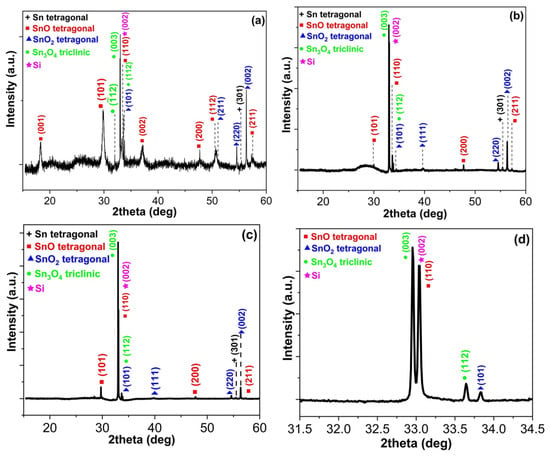

We report on results referring to the growth and characterization of Sn-oxide-semiconductor thin films (SnO₂, SnO and intermediate Sn₃O₄) on silicon substrates forming Type II heterojunction band alignment. The samples were produced by a two-step procedure: (a) growth of a metallic Sn layer by RF magnetron sputtering deposition followed by (b) post-growth treatment of the Sn films with oxygen plasma etching for the formation of the oxides in various time steps. Various annealing steps were considered. The structural and chemical properties of the prepared thin films were determined by means of X-Ray Diffraction (XRD) and X-Ray Photoelectron Spectroscopy (XPS). The results demonstrated the presence of SnO₂ and SnO in a tetragonal structure and the intermediate Sn₃O₄ in a triclinic structure. The electric properties of thin films were investigated with four-probe I–V characteristics under various conditions. The evaluation of their photo-sensing properties was performed by means of photocurrent J–t curves using a solar simulator. We found that the sample with equal concentrations of SnO₂ and SnO exhibited superior responsivity and detectivity values as well as a responsivity of 12.5 A/W and detectivity of 1.1 × 10¹⁰ Jones for V = 0 under yellow light illumination and an intensity of 2 mW/cm². These excellent values, in combination with the low-cost manufacturing, indicate that the method is promising for future applications. Full article

Transition metal oxides constitute an important materials platform for chromic phenomena because their optical response is strongly coupled to the changes in electronic structure, phase state, carrier concentration, and defect chemistry. This review discusses selected transition metal oxide thin films, with emphasis on VO₂ and other vanadium oxides, WO₃, NiO, and TiO₂. The review summarizes the structural and electronic characteristics of these representative oxide systems and highlights the role of phase composition, crystal structure, oxygen non-stoichiometry, and defect chemistry in determining their optical response. The main thin film preparation routes, including pulsed laser deposition, magnetron sputtering, sol–gel and aerosol spray methods, atomic layer deposition, chemical vapor deposition, electrochemical routes, and molecular beam epitaxy, are reviewed with respect their influence on obtained thin films. Particular attention is given to applications in thermochromic VO₂-and electrochromic WO₃/NiO-based smart windows, and transition metal oxide-based gasochromic hydrogen sensors. Key challenges related to transition temperature tuning, luminous transmittance, solar modulation, optical contrast, cycling stability, ion transport and large-area integration are also discussed. Overall this review provides a comparative overview of selected transition metal oxide thin films by connecting material chemistry and physics, thin film preparation technology and functionality. Full article

Building-integrated photovoltaics (BIPV) require front-glass materials that satisfy both aesthetic and functional requirements. In this study, colored glass for BIPV applications was fabricated on indium tin oxide (ITO)-coated glass substrates using Radio-Frequency (RF) magnetron sputtering with various ceramic targets, including metal oxides (MoO₃, WO₃, and SiO₂), a nitride (TiN), and Si. The fabricated samples were classified into red, yellow, and blue color families and evaluated in terms of optical transmittance, sheet resistance, and colorimetric properties. The color characteristics were quantitatively analyzed using CIELAB coordinates (L^*, a^*, and b^*) and CIE 1931 chromaticity coordinates (x, y). The results showed that the chromaticity distributions followed continuous material-dependent trajectories rather than random dispersion. Oxide-based coatings generally shifted toward the yellow region with relatively high lightness, whereas TiN-based coatings shifted toward the blue region with reduced lightness. In addition, transmittance analysis in the photovoltaic-relevant spectral range indicated that Si-based coatings exhibited relatively high optical transparency. The observed color variations are consistent with thin-film interference and the optical properties of the coating materials. This study focuses on the comparative evaluation of optical, electrical, and colorimetric characteristics. This study provides a comparative framework for color realization analysis and offers practical guidance for material selection in colored BIPV glass design. Full article

This review covers literature published up to June 2026. Detecting various water pollutants quickly and reliably remains a challenge. Boron-doped diamond (BDD) electrodes, particularly when fabricated as nanostructured thin films such as nanocones or nanowalls, offer a wide electrochemical window, low background current, and excellent chemical stability, making them promising tools for electrochemical sensing. However, unmodified BDD electrodes face an inherent trade-off among conductivity, active site density, and interfacial stability, a phenomenon termed herein the “sensitivity-selectivity-stability triangle bottleneck”, which severely limits practical performance. In this review, we demonstrate how multi-scale structural regulation can circumvent this bottleneck. Specifically, a triple strategy comprising boron doping, surface modification, and post-annealing treatment is proposed and evaluated. First, the effect of boron doping level on conductivity and active site density is discussed. Second, two common surface modification approaches are examined: carbon nanomaterials (which increase surface area and form conductive networks) and metal nanoparticles (which enhance catalytic activity and interfacial charge transfer). Third, post-annealing is highlighted as a key synergistic step that locks the modified layer and stabilizes the interface. Together, these three components form an integrated framework. To provide concrete guidance, the performance of each strategy is compared for representative water pollutants, including heavy metal ions, phenolic compounds, and emerging contaminants such as antibiotics and pesticides, with emphasis on sensitivity, selectivity, and stability. Representative detection limits achieved include 0.01 μg/L for Pb²⁺, 5 nM for acetaminophen, and 0.32 fM for PCB-77, demonstrating the effectiveness of the triple structural regulation strategy. Finally, in line with the theme of this Nanomaterials Special Issue on nanostructured thin films, current challenges in structural regulation are summarized, and future directions, including multi-parameter optimization, AI-assisted high-throughput screening, and real-world testing, are outlined. The goal is to offer practical structure-performance guidelines for designing BDD-based electrochemical sensors that are both high-performing and durable. Full article

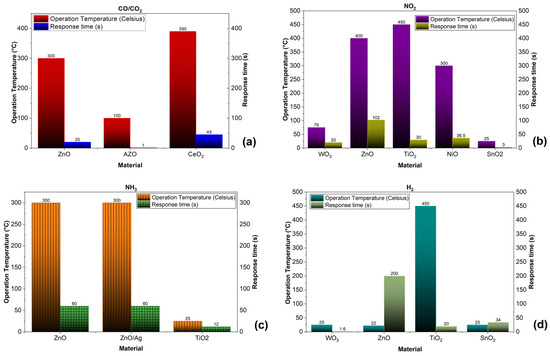

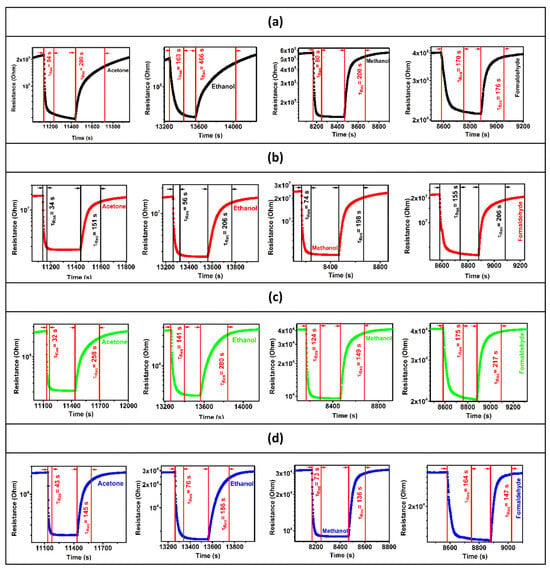

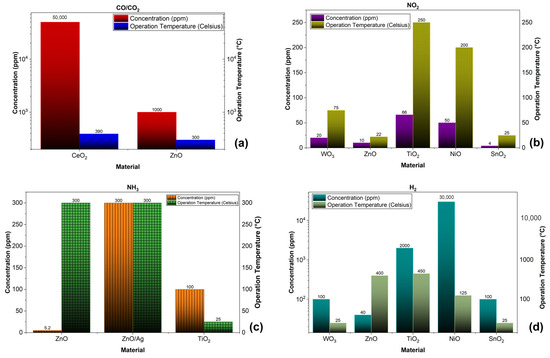

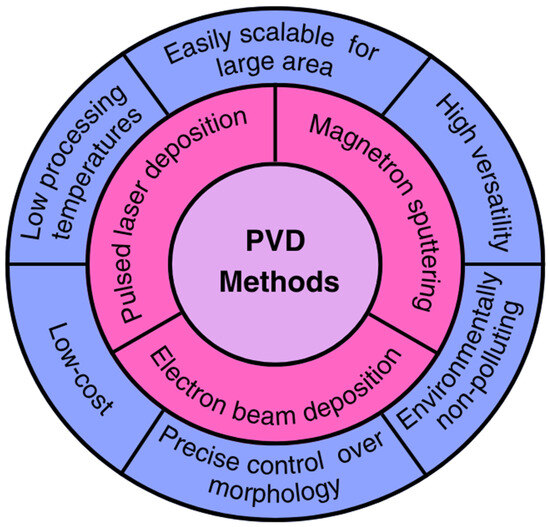

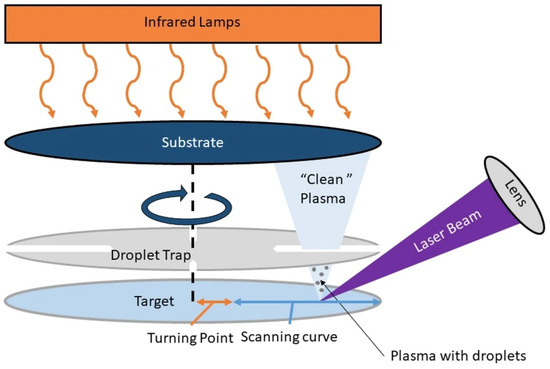

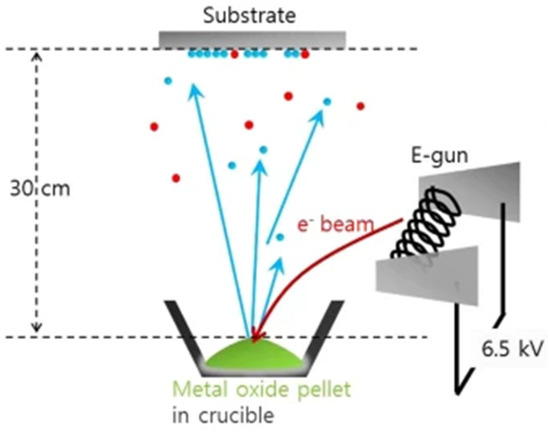

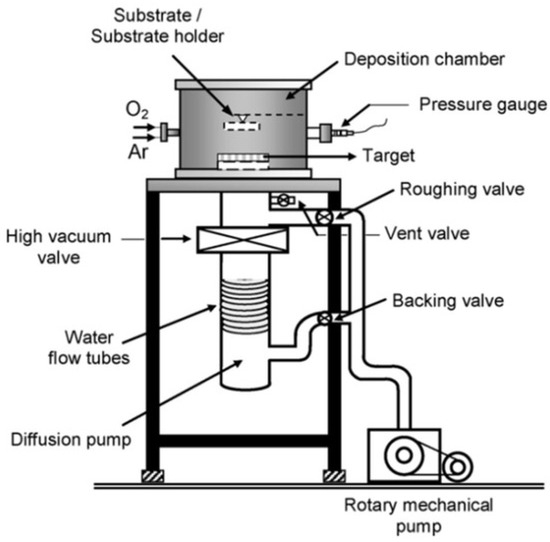

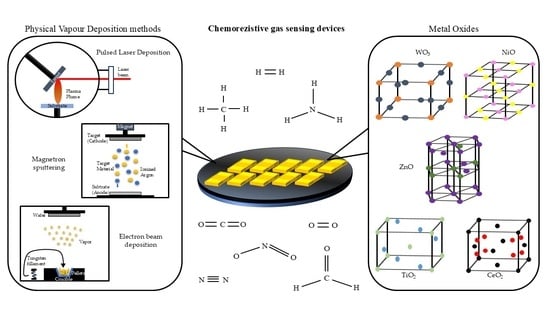

In our day-to-day lives, we are regularly exposed to a wide spectrum of dangerous gases. Their origins vary, ranging from industrial activities to objects found within our very homes. Naturally, there is an interest in developing cost-efficient and durable devices that can successfully track these gases within our environment. One such candidate is represented by chemoresistive gas sensors based on metal oxides. This is due to their simple architecture and the possibility of scaling down their size, making them valid contenders for future advancements in portable gas sensors. This review focuses on chemoresistive gas sensors that have been obtained through different Physical Vapor Deposition (PVD) methods, which are easily scalable for potential technological transfer towards commercialization or are already exploited at the industrial level, and how varying different deposition parameters impacts the structure of the active material, thus modifying the gas sensing properties of the device. In this review, we report results obtained for different metal oxides: WO₃, ZnO, CeO₂, TiO₂, NiO, and SnO₂. The main findings of these studies revealed that the sensor’s response was highly impacted by oxygen deficiencies within the deposited material, the specific surface area, and the thickness of the film. Moreover, this study also delves into different strategies of functionalization that result in improved gas sensing properties. Thus, we herein report how tailoring functional properties modifies the gas sensing performance of different metal oxides. Full article

This review analyzes electrochemically deposited polyaniline (PANI) nanocomposite thin films containing metallic, semiconducting, and dielectric fillers, including Ag/PANI, Mo/MoO_x/PANI, CeO₂/PANI, Fe₂O₃/PANI, Al₂O₃/PANI, CuO/PANI, Co₃O₄/PANI, and CoFe₂O₄/PANI. The work examines how filler chemistry and loading influence optical-gap evolution, Urbach disorder, dielectric dispersion, nonlinear optical response, structural coherence, and dc conductivity under comparable electrochemical growth conditions. The comparative analysis shows that optical-gap narrowing and conductivity enhancement are not necessarily coupled. Ag/PANI exhibits simultaneous optical softening and improved conductivity, consistent with metallic bridging, dielectric screening, and enhanced charge connectivity. In contrast, Mo/MoO_x/PANI shows strong optical-gap reduction but reduced conductivity, indicating that optically active interfacial states may remain localized or mobility-limiting. Oxide fillers produce additional regimes: CeO₂/PANI can suppress Urbach disorder and microstrain through order stabilization, whereas Al₂O₃/PANI may widen higher-energy transitions and reduce transport through wide-gap barrier effects. Based on these contrasts, a unified framework is proposed that separates the interfacial electronic function from the transport-connectivity function. This approach classifies PANI nanocomposites into transport-assisted metallic, mobility-limiting interfacial, order-stabilized oxide, and barrier-dominated dielectric regimes, providing practical criteria for selecting filler type and loading windows in optoelectronic, sensing, and photonic applications. Full article

The high-voltage spinel ${\mathrm{LiNi}}_{0.5}{\mathrm{Mn}}_{1.5}{\mathrm{O}}_4$ (LNMO) is a promising cobalt-free cathode material for lithium-ion batteries, yet its integration as a binder-free thin film on metallic current collectors via simple solution routes remains underexplored. Here, LNMO films were synthesized on 304 stainless steel (SS304) by metal–organic decomposition (MOD) from metal–acetate precursors in ethanol, followed by spin-coating and annealing at 500, 600, and 700 °C under flowing ${\mathrm{O}}_2$. The films were characterized by XRD, FESEM–FIB cross-sectioning, EDS, and XPS, and tested as binder-free cathodes by cyclic voltammetry and galvanostatic charge/discharge. All samples are dense, approximately 1.9 μm thick, and crystallize in the disordered spinel phase. The LNMO crystallite size increases from 21.9 to 43.8 nm between 500 and 700 °C, while the grain size also shows a temperature dependence, increasing the average size from 25 up to 56 nm in diameter. XPS confirms ${\mathrm{Mn}}^{4+}$ as the dominant manganese surface species (45–49%) across all samples. The films deliver reversible discharge capacities of 92, 92, and 70 mAh ${\mathrm{g}}^{-1}$ at 0.1 C for LNMO500, LNMO600, and LNMO700, respectively, with well-defined ${\mathrm{Ni}}^{2+}{\mathrm{/Ni}}^{3+}$ and ${\mathrm{Ni}}^{3+}{\mathrm{/Ni}}^{4+}$ redox peaks at 4.7 and 4.8 V. DFT calculations independently predict a voltage plateau at ∼4.7 V for $0.2\le x\le 1$, in agreement with the experimental profiles. These findings establish MOD as a viable, vacuum-free route to the synthesis of nanostructured LNMO cathodes. Full article

The formation of carbon nanostructures and silicon carbide (SiC) using a single-source precursor offers a simplified route for material synthesis; however, the factors governing the transition between CNT-like structure formation and SiC growth remain unclear. In this study, the growth behavior of carbon-related structures using vinylsilane was systematically investigated by hot-wall chemical vapor deposition (CVD) on various substrates, including Fe bulk substrates and Fe thin films on SiO₂/Si. CNT-like structures were preferentially formed on Fe bulk substrates, whereas Fe thin-film substrates exhibited CNT-like growth at the initial stage followed by increased Si–C-related phase formation with increasing growth temperature and growth time. In contrast, on Fe thin films with limited catalyst amounts, CNT-like growth occurred initially, followed by increased Si–C-related phase formation with increasing growth temperature and growth time. These observations are consistent with a growth transition associated with the balance between Si uptake into the metal and surface SiC formation processes. By controlling catalyst amount, growth temperature, and growth time, the relative formation of CNT-like structures, SiC-rich coatings, and intermediate morphologies could be tuned within a single process. Furthermore, a SiC/CNT-like composite structure was directly formed on a conductive Fe substrate in a one-step CVD process. Electrochemical measurements showed an enhanced current response compared with a bare Fe substrate, indicating preliminary electrochemical activity and suggesting potential applicability as a high-surface-area electrode platform. Full article

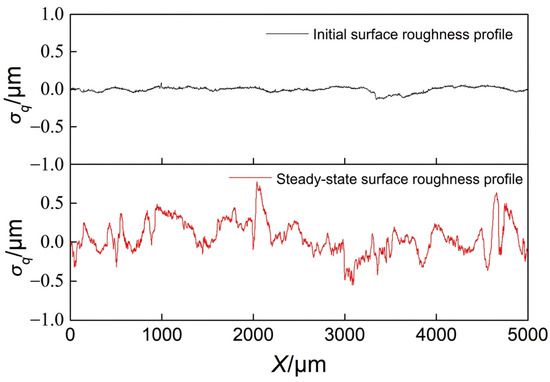

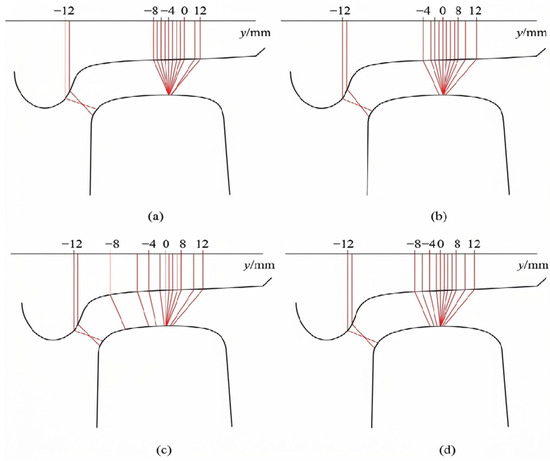

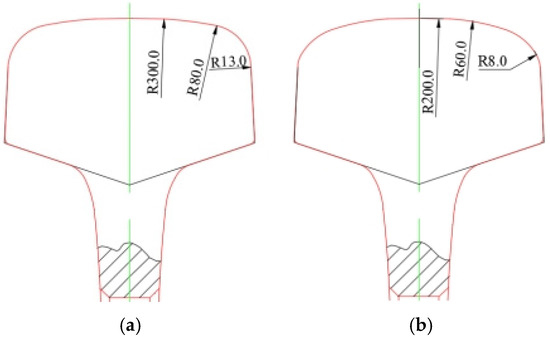

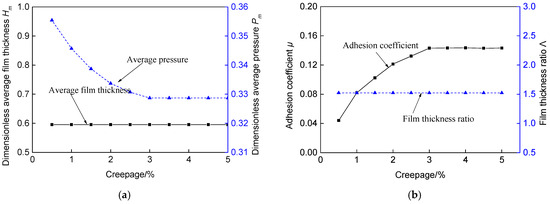

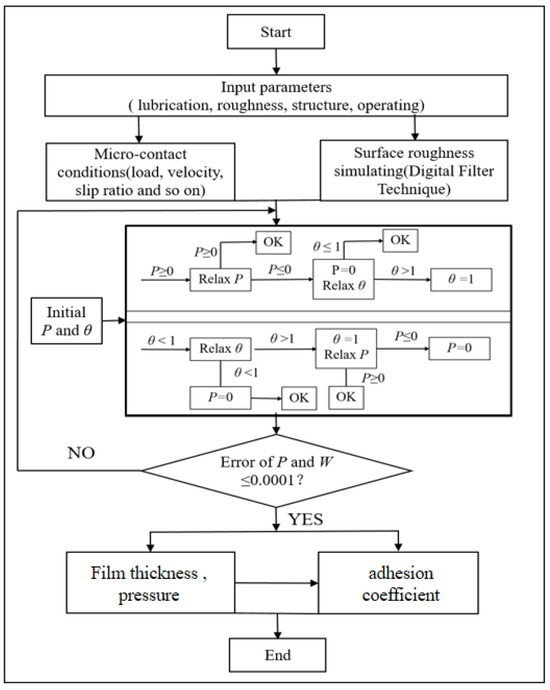

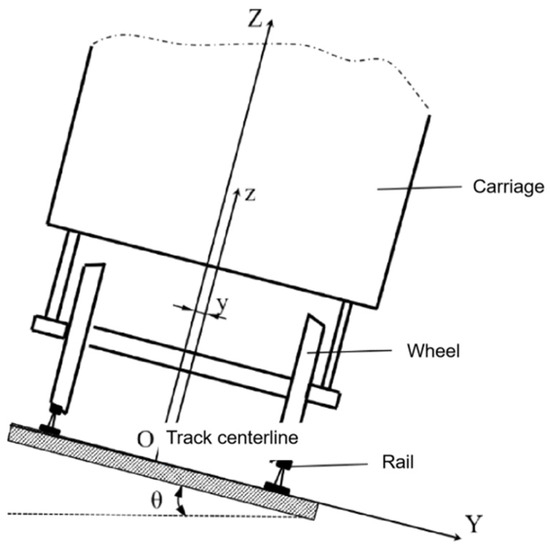

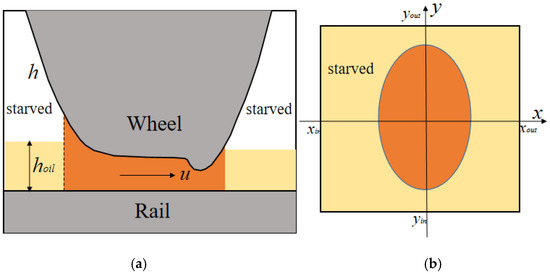

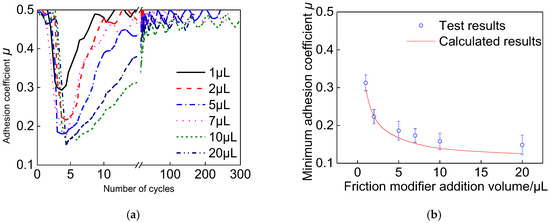

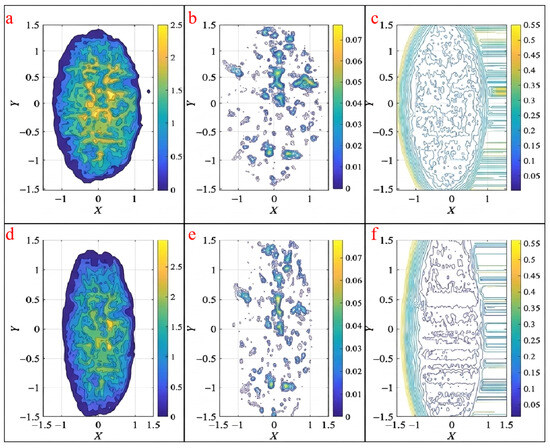

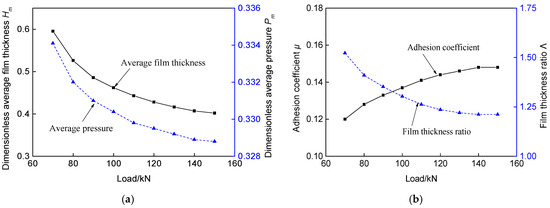

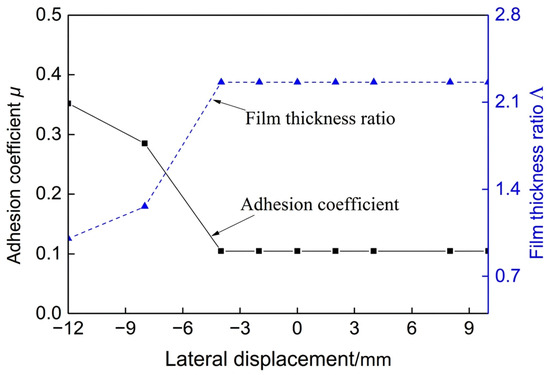

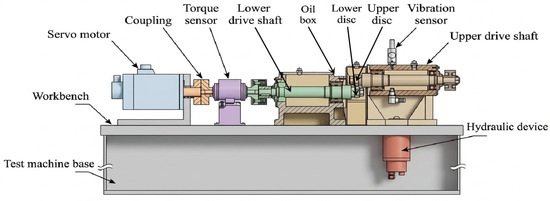

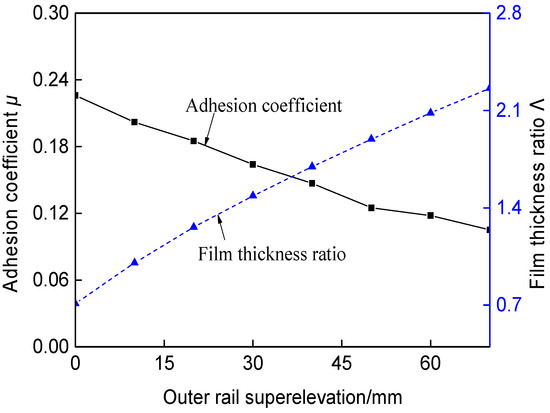

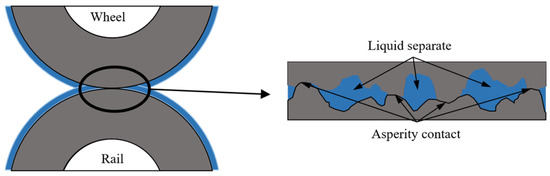

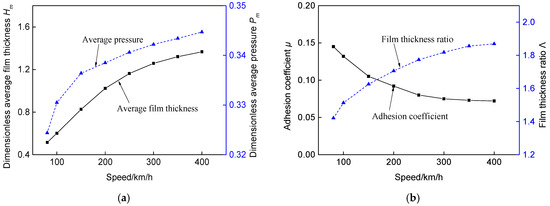

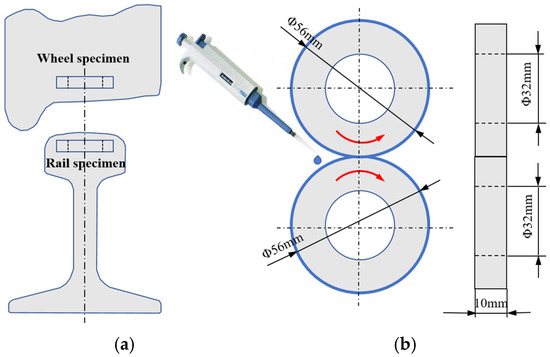

To address the complex and highly variable wheel–rail adhesion behavior on high-speed railway curves, this study establishes a numerical wheel–rail rolling contact model based on starved elastohydrodynamic lubrication (EHL) theory and Herschel–Bulkley rheological characteristics. The model validation yielded RMSE = 0.0228, MAE = 0.0217, MAPE = 11.80%, R² = 0.828, and a 95% confidence interval of the mean residual of −0.0298 to −0.0136. The study focuses on the initial operational phase after application, systematically quantifying the fluid-dynamic regulation mechanisms of water-based friction modifiers once a thin, starved lubricating film has been formed on the rail surface under curving conditions. By analyzing rail profiles (CHN60 and CHN60N), operating parameters, and track geometry, this study shows how adhesion behavior on curved track sections is governed by the coupled effects of contact mechanics and lubrication. As the outer rail superelevation increases from 0 to 70 mm, the adhesion coefficient decreases by approximately 15–25%, mainly because the reduced normal force shifts the wheel–rail interface toward the Stribeck transition regime. Increasing axle load from 14 t to 30 t reduces the dimensionless film thickness, but the enlarged contact area contributes to a more stable adhesion level, with an increase of about 12%. Compared with the CHN60 profile, the CHN60N profile exhibits better geometric conformity, producing a lubricating film that is 10–15% thicker and leading to a lower and more stable adhesion coefficient, decreasing from approximately 0.35 to 0.1. The results also identify a critical lateral displacement of around −4 mm, beyond which the contact radius becomes stable and the adhesion coefficient reaches a minimum plateau. These findings clarify the competing effects of fluid entrainment and metallic asperity contact, and provide quantitative guidance for friction management and friction modifier application on curved track sections. Full article

In this work, ternary Mo–Ni–X (X = Al, Co, Cr, Cu, Fe, W) thin films with nominal composition Mo₈₀Ni₁₀X₁₀ (at. %) were prepared by magnetron sputtering and evaluated as electrocatalysts for the hydrogen evolution reaction (HER) in alkaline media. The influence of alloy composition, substrate type, and deposition temperature on catalytic performance was systematically investigated. Electrochemical screening revealed a strong dependence of HER activity on both substrate conductivity and ternary alloying, with Al-, Cr-, and W-containing systems showing the best performance on glassy carbon substrates. This highlights the importance of interfacial charge-transfer efficiency in determining catalytic behavior. The Mo₈₀Ni₁₀Cr₁₀/GC system was selected for detailed analysis. Deposition temperatures ≥ 500 °C resulted in enhanced HER activity, reaching an overpotential of η₁₀ = −222 mV at j = −10 mA cm⁻². The improved performance is attributed to temperature-induced microstructural optimization and electrochemically driven surface reconstruction, leading to the formation of a Ni-enriched active interface. AFM analysis confirmed surface restructuring during operation, with roughness increasing from ~1 to ~3 nm, indicating the formation of additional electrochemically accessible active sites. XPS results suggest partial depletion of Mo during cycling, while Cr mainly contributes to structural stabilization of the evolving thin film. Overall, the results demonstrate that HER performance is governed by the coupled effects of alloy composition, substrate-dependent charge transport, and in situ surface reconstruction. This work highlights magnetron sputtering as a scalable approach for designing homogeneous noble-metal-free thin-film electrocatalysts with tunable activity. Full article

Electrical measurements of emerging materials such as thin films, two-dimensional materials, and fragile porous systems are often hindered by damage and contamination caused by conventional contact methods, including metal electrode deposition. In this study, we demonstrate the novelty and advantages of a mechanically compliant “soft probe” over conventional methods and conductive AFM. The non-destructive soft probe achieves stable electrical contact in the repulsive-force regime using a hairpin-shaped spring structure, allowing consistent measurements without active force control nor electrode fabrication. Case studies demonstrate that the soft probe prevents metal penetration and preserves intrinsic properties, as demonstrated in NiO resistive switching devices, and improves interface quality compared to deposited electrodes in ferroelectric measurements. It also enables electrical characterization of fragile materials such as metal–organic frameworks without inducing structural degradation. Furthermore, its mechanical compliance ensures stable operation under vibration and thermal stress, enabling measurements in vacuum and low-temperature environments. These results indicate that the soft probe provides a simple, versatile, and contamination-free platform for reliable electrical measurements, and represents a promising approach for the characterization of a wide range of emerging material systems. Full article

Copper oxide (CuO) is a narrow-bandgap p-type semiconductor promising for visible-light photocatalysis, yet it suffers from rapid charge recombination and low carrier transfer efficiency. In this study, two distinct CuO photocatalysts were fabricated via different routes: two-dimensional CuO nanosheets derived from annealing a CuBDC metal–organic framework (MOF) precursor, and oriented one-dimensional CuO nanoflower arrays prepared by electrochemical deposition, followed by annealing. The crystal structure, morphology, optical absorption, and photoelectrochemical properties were systematically characterized by XRD, SEM, XPS, UV-Vis spectroscopy, transient photocurrent response, EIS, and PL spectroscopy. The CuO nanoflower thin film exhibits a broad visible-light absorption, a markedly higher photocurrent density (42.25 μA cm⁻²), and lower charge-transfer resistance compared to CuO nanosheets. When evaluated for visible-light photocatalytic degradation of methylene blue (MB), rhodamine B (RhB), and malachite green (MG), the CuO thin film completely degraded MB within 15 min, with an apparent rate constant of 20.15 h⁻¹—approximately three times that of CuO nanosheets. It also showed 1.2- and 1.28-fold higher activity for RhB and MG, respectively. The enhanced performance is attributed to the oriented nanoflower architecture that provides continuous charge transport pathways, suppresses carrier recombination, and extends light propagation via multiple reflections. This work demonstrates that microstructural engineering is an effective strategy to overcome the intrinsic limitations of CuO photocatalysts for wastewater treatment. Full article

Although optical fiber-based surface plasmon resonance (SPR) sensors have revolutionized real-time, label-free biosensing, conventional designs suffer from limited multi-analyte detection capabilities. This study utilizes the novel Pi (π)-configured dual SPR optical fiber sensor with two opposing side-polished surfaces, enabling plasmonic excitation for simultaneous multi-analyte detection. The proposed sensor leverages asymmetric metallic thin films such as Ag, Au, Cu, and hybrid configurations (metal + TiO₂) to generate two distinct resonance peaks, significantly enhancing detection versatility. Numerical simulations using the finite element method in COMSOL Multiphysics v6.3 demonstrate that the π-configuration achieves dual resonance dips at 982 nm and 1276 nm for Ag and Ag–TiO₂ films, 1040 nm and 1317 nm for Au and Au–TiO₂ films, and 977 nm and 1249 nm for Cu and Cu–TiO₂ films, respectively, for an analyte refractive index of 1.42. A peak spectral separation >125 nm was achieved for all the sensors for a refractive index range of 1.37–1.42, ensuring that the two dips are resolvable since the change in SPR wavelength is greater than or equal to the full width at half maximum, preserving dual-analyte capability and minimizing potential crosstalk. The results indicate that the π-configured dual SPR sensor utilizing silver and silver–TiO₂ sensing layers had the highest wavelength sensitivity of 12,600 nmRIU⁻¹ and 20,000 nmRIU⁻¹, respectively, slightly outperforming its gold and copper counterpart. The optimized metallic and hybrid nanostructured films ensure dual distinct peaks with high sensitivity, while maximizing refractive index resolution. This work presents the design of a π-configured SPR-based optical fiber sensor utilizing dielectric and multi-metallic thin films, thereby offering a breakthrough in multiplexed biosensing for applications in medical diagnostics, environmental monitoring, and chemical detection. Full article

Chromic materials exhibiting reversible changes in optical properties under external stimuli represent an important class of smart materials with applications in smart windows, sensors, and optoelectronic devices. Transition-metal oxides (TMOs) provide a versatile platform for chromic functionality due to their coupled structural, electronic, and optical properties. In this review, the chromic response of selected TMO thin films is analyzed using both microscopic and phenomenological approaches. The microscopic description is based on many-body theory, including Green’s function methods and correlation effects, while the macroscopic optical response is described using Drude–Lorentz and Tauc–Lorentz models within the effective medium approximation. Chromic behavior in TMOs is shown to originate from two principal mechanisms: (i) electronic and structural reconstruction driven by Peierls–Mott metal–insulator phase transitions, leading to thermochromism (notably in VO₂ and V₂O₃), and (ii) formation of localized states driven by small-polaron injection, giving rise to electrochromism, gasochromism, and photochromism. The models are applied to representative systems, including VO₂, WO₃, NiO, and TiO₂, demonstrating the chromic changes in the dielectric function spectra. These results highlight chromism in TMOs as a multiscale phenomenon linking microscopic interactions with macroscopic optical response. Full article

Copper (Cu) thin films and meshes on polyethylene terephthalate (PET) substrates are promising flexible transparent conductive electrodes (TCEs), yet their practical use is limited by insufficient interfacial adhesion and poor oxidative stability on inert polymer substrates. This work addresses these issues via a synergistic strategy of interfacial layer engineering and maskless laser lithography-based aperiodic mesh patterning, systematically comparing ceramic (Al₂O₃) and metallic (NiCr) interfacial layers for PET-supported Cu films and fabricating Linear/Sinusoidal aperiodic Cu meshes with tailored performance. Magnetron sputtering shows that Ar plasma-activated NiCr interfacial layers form a gradient-alloyed interface with Cu via interdiffusion, achieving 5B-level adhesion, mitigating bending-induced stress concentration, and enhancing damp-heat resistance (85 °C/85% RH) by suppressing oxidation—outperforming brittle Al₂O₃ layers. Patterning the optimized Cu/NiCr/PET structure into micrometer-scale meshes yields a Linear design with superior optoelectronic performance (~10.8 Ω/sq sheet resistance, >87% transmittance at 550 nm) and a Sinusoidal design with enhanced bending robustness via stress delocalization. Microstructural and elemental analyses clarify the NiCr layer’s interfacial toughening and anti-oxidation mechanisms. Practical validation in flexible transparent heaters demonstrates rapid thermal response and >20 h continuous operational stability. This study provides a scalable design strategy for high-performance PET-supported Cu meshes, offering insights for interface and structural optimization of flexible metallic TCEs for next-generation optoelectronics. Full article
