Search Results (26)

Electroconductive textiles (e-Textiles) are vital in developing wearable sensors that preserve the comfort and characteristics of textiles. Among two-dimensional (2D) transition metal dichalcogenides (TMDs), considered a promising option for sensor applications, tungsten di-selenide (WSe₂) homostructures have been used as humidity- and temperature-sensing materials for developing e-textiles, as mentioned in a first-of-its-kind report. Exfoliated chemical vapor deposition (CVD)-grown 2H-WSe₂ nanosheets were dispersed in hydroalcoholic solutions using an amino-functionalized silane to improve dispersion. Acrylic thickener was added to create 2H-WSe₂-based pastes, which were applied onto cotton using the knife-over-roll technique to obtain thin, flexible electroconductive coatings on textiles. Various characterization techniques confirmed the even distribution of 2D-WSe₂-based coatings on fabrics and the maintenance of textile comfort and wearability. The conductivity of coated fabrics was measured at room temperature and ranged between 2.9 × 10⁸ and 1.6 × 10⁹ Ω sq⁻¹. The WSe₂-based textile sensors functioned well as resistance humidity detectors within 30–90% relative humidity (RH), revealing good repeatability and sensitivity after multiple exposure cycles. To a lesser extent, WSe₂-based textile sensors act as temperature detectors within 20–60 °C with limited repeatability. The 2D-based textiles exhibited a quadratic dependence of resistance on temperature and a characteristic thermal hysteresis. This proposed strategy marks a significant milestone in developing scalable and flexible 2D TMD-based detectors with great potential for wearable sensing devices. Full article

Waste production is a worldwide concern due to its adverse impact on the environment, as well as on the health of living beings. Sustainable development states the urgent need to implement actions to gradually replace fossil resources, including the use of renewable raw materials such as residues and secondary raw materials from other industries as a promising alternative to replace fossil resources. This research explores an approach focused on the design of renewable materials by developing a bio-based textile coating with the use of sawdust from radiata pine, which is the result of industrial wood transformation processes. The methodology adopted a transdisciplinary approach, integrating knowledge from design, engineering, and sociology disciplines. A perceived sawdust quality study was carried out in its original format, while two different coated textile substrates were developed, using knife-over-roller and spray coating processes, which were evaluated from user acceptance and functional performance points of views. Finally, a clothing prototype for workwear, using the bio-based coatings, was developed, employing a mono-material design concept (i.e., using the same material in all its forms). The results obtained from users and laboratory studies favour the knife-over-roller coating and the removable clothing design, which provides improved usability performance. The obtained conclusions highlight that transdisciplinary collaboration is essential to address complex challenges in the development of solutions, placing the design of material as a necessary prior action in the design process of final products. Full article

The growing interest in developing antibacterial textiles using natural functional agents is largely driven by their sustainable and eco-friendly attributes. Lignin, a highly available biopolymer with a polyphenolic structure, has drawn attention due to its potential as a bioactive antibacterial agent. However, its inherent heterogeneity poses challenges, particularly regarding its antibacterial efficacy. In this study, unmodified kraft lignin sourced directly from the paper industry was applied to cotton and polyester fabrics, using a knife-coating technique with varying concentrations (0%, 5%, 10%, 20%, and 30% w/v), to assess its potential as an antibacterial coating. The lignin-coated fabrics demonstrated hydrophobic properties, with water contact angles reaching up to 110.3° and 112.6°, for polyester and cotton fabrics, respectively, alongside significantly reduced air permeability and water vapor permeability indexes, regardless of lignin concentration. Antibacterial evaluations also revealed that lignin-based coatings, with at least 10% w/v concentration, allowed cotton fabrics with a bacterial reduction surpassing 96%, according to ASTM E2149-2013, particularly for Gram-positive S. aureus, highlighting the potential of lignin as an antibacterial agent. Despite their limited resistance to domestic washing, the lignin-coated fabrics demonstrated exceptional stability under hot-pressing conditions. Therefore, this stability, combined with the hydrophobic and antibacterial properties observed, particularly on coated cotton fabrics, highlights the potential application of lignin-based coatings for the development of antibacterial and water-repellent textiles, with these coatings being particularly suited for single-use applications or scenarios where washing resistance is not a requirement. This approach offers a sustainable and efficient method for producing functional textiles while enabling value-added utilization of lignin, showcasing its potential as an eco-friendly solution in textile functionalization. Full article

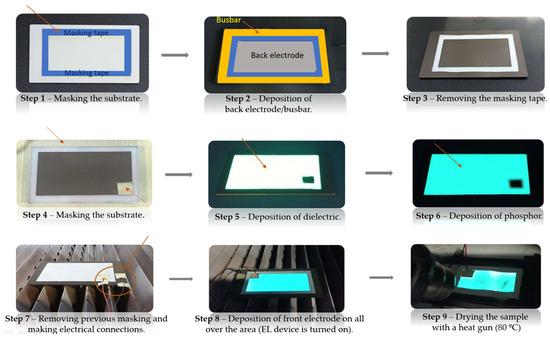

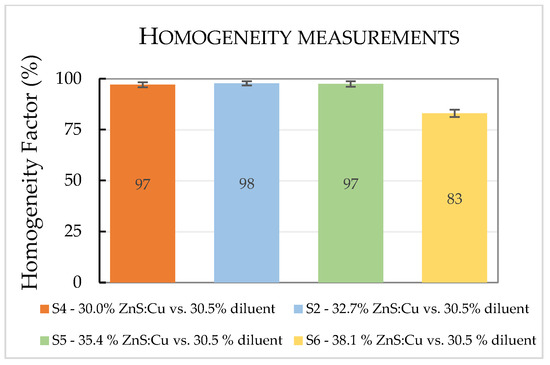

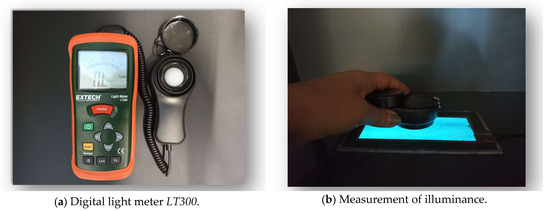

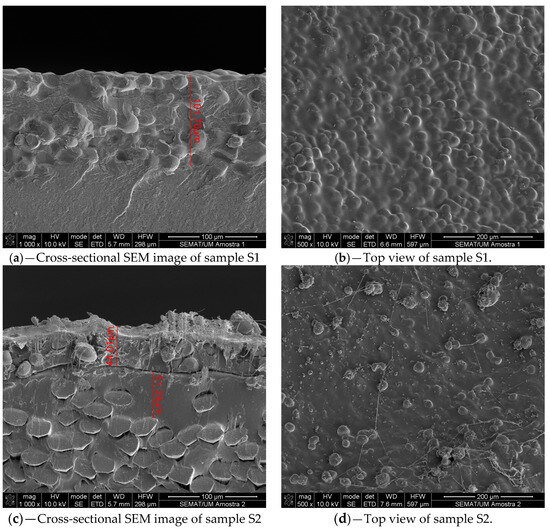

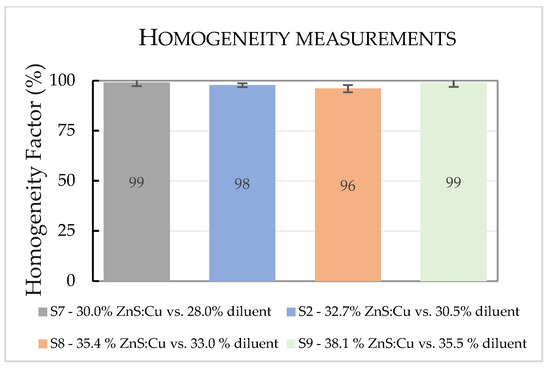

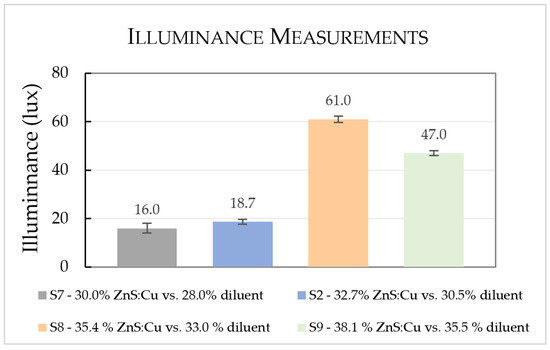

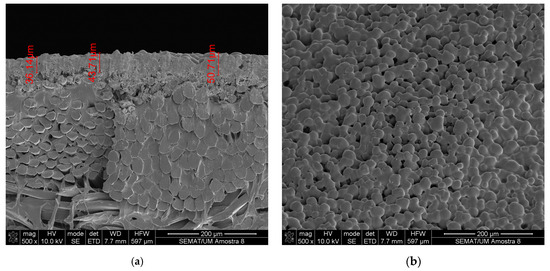

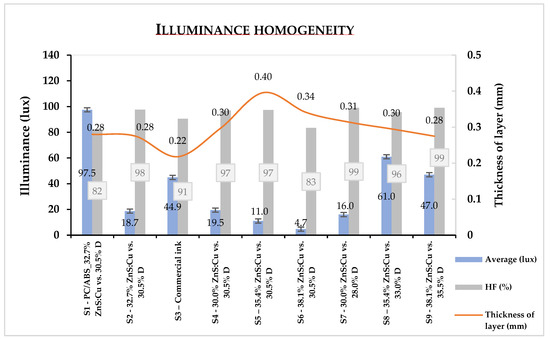

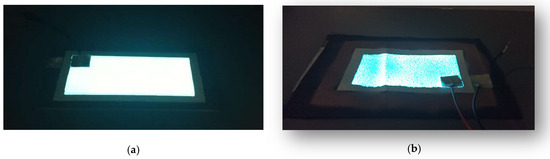

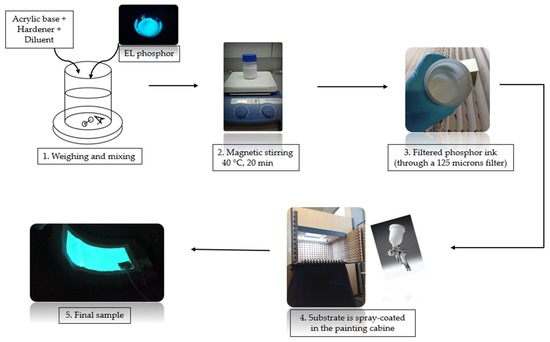

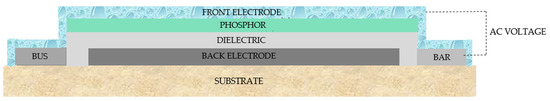

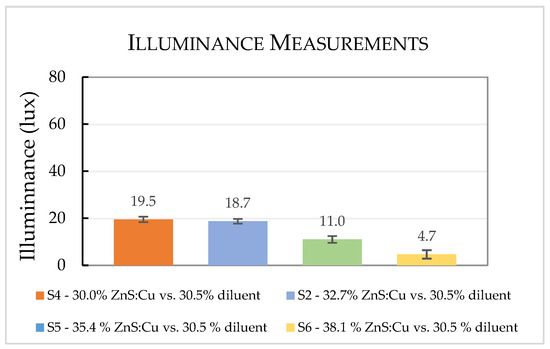

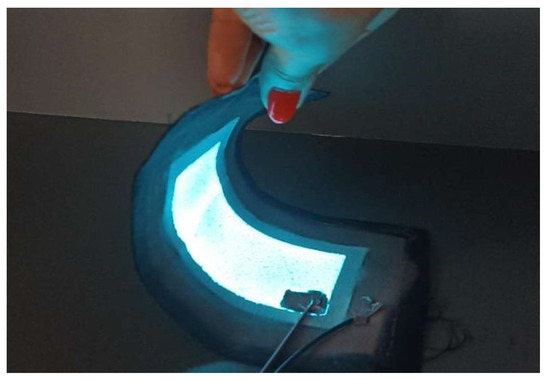

Electroluminescence (EL) is an innovative technology in the lighting area. EL devices’ main structure consists of a phosphor layer sandwiched between two electrodes. In this work, several alternating-current EL devices were developed by applying a set of sequential layers with combinations of in-house prepared inks and a commercially available ink as the phosphor layer. A flexible polyester textile substrate was functionalized with the inks by spray coating, after knife coating an interfacial layer directly on the surface. A thorough study was carried out on the phosphor layer composition to optimize the EL device performance, more precisely, illuminance intensity and illuminance homogeneity. The developed phosphor layer was composed of zinc sulfide doped with copper (between 30.0 and 38.1 wt%) and diluted by using a diluent at different concentrations (from 28.0 to 35.5 wt%). The best peak illuminance intensity of 61 lux was obtained when the phosphor ink presented a 35.4% ZnS:Cu ratio and was diluted with 33.0% diluent. This study aimed to determine the best formulation of the phosphor layer, which can be highly useful for further developments of EL devices, taking into account different applications in the market. Full article

Recently, the need for a thermo-regulating fabric in the textile industry has motivated both researchers and scientists to explore this new type of smart fabric. This study aimed to develop a smart textile using a polyester fabric coated with microencapsulated trimethylolethane (TME) hydrate as the phase change material. The TME microcapsules were produced via in situ polymerization of melamine-urea-formaldehyde (MUF) at varying emulsification times, stirring rates, and TME hydrate concentrations. A knife-over-roll coating method was incorporated, using polyester resin as the binder for the production of the smart fabric. Fourier Transform Infrared Spectroscopy (FT-IR) analysis, Scanning Electron Microscopy (SEM), and Differential Scanning Calorimetry (DSC) were conducted to examine the chemical, morphological, and thermal characteristics of the microcapsules and the smart fabric, respectively. Results showed that the highest amount of microencapsulated TME phase change material obtained was 18.883 mg. FT-IR results confirmed the presence of TME hydrate and MUF resin in the microcapsule at 3300, 2870, 1148, and 1390 cm⁻¹. The SEM results revealed an amorphous and rough surface of microcapsules. Furthermore, the DSC results demonstrated favorable thermal characteristics, measuring the latent heat storage capacities of the microcapsules before and after application to the fabric as 205.1674 J/g and 224.7318 J/g, respectively. Finally, the encapsulation efficiency was calculated as 64.715%, indicating potential fabric thermal storage applications. Full article

Minimizing the impact of electromagnetic radiation (EMR) holds paramount importance in safeguarding individuals who frequently utilize electrical and electronic devices. Electrically conductive textiles, which possess specialized EMR shielding features, present a promising solution to mitigate the risks related to EMR. Furthermore, these textile-based shielding materials could find application as radar-absorbing materials in stealth technology, emphasizing the need for substantial absorption capabilities in shielding mechanisms. In this study, various textile-based materials with an electrically conductive coating that contain the conjugated polymer system poly(3,4-ethylene-dioxythiophene)-polystyrene sulfonate (PEDOT:PSS) were prepared and investigated. The influence of the textile substrate structural parameters, coating deposit, and coating method on their microwave properties—transmission, reflection, and absorption—was investigated. Reflection and transmission measurements were conducted within a frequency range of 2 to 18 GHz. These measurements revealed that, for the tested samples, the shielding properties are determined by the combined effect of reflection and absorption. However, the role of these two parameters varies across the tested frequency range. It was defined that for fabrics coated on one side, better reflection reduction is obtained when the shielding effectiveness (SE) is below |20| dB. It was found that by controlling the coating deposition on the fabric, it is possible to fine-tune the electrical properties to a certain extent, thereby influencing the microwave properties of the coated fabrics. The studies of prepared samples have shown that reflection and transmission parameters depend not only on the type and quantity of conductive paste applied to the fabric but also on the fabric’s construction parameters and the coating technique used. It was found that the denser the substrate used for coating, the more conductive paste solidifies on the surface, forming a thicker coat on the top. For conductive fabrics with the same substrate to achieve a particular SE value using the knife-over-roll coating technology, the required coating deposit amount is considerably lower as compared with the deposit necessary in the case of screen printing: for the knife-over-roll-coated sample to reach SE 15 dB, the required deposit is approximately 14 g/m²; meanwhile, for a sample coated via screen printing, this amount rises to 23 g/m². Full article

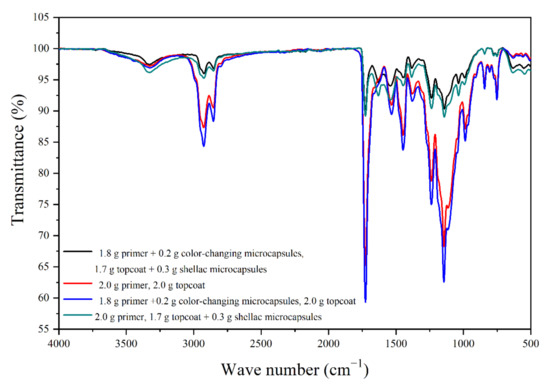

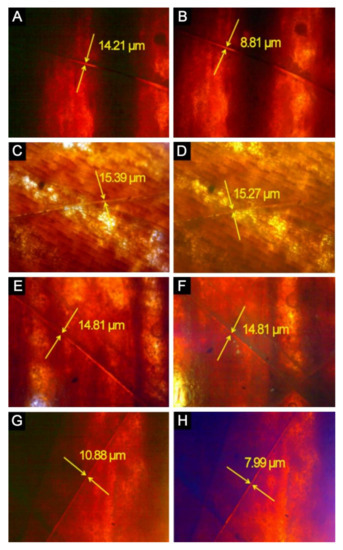

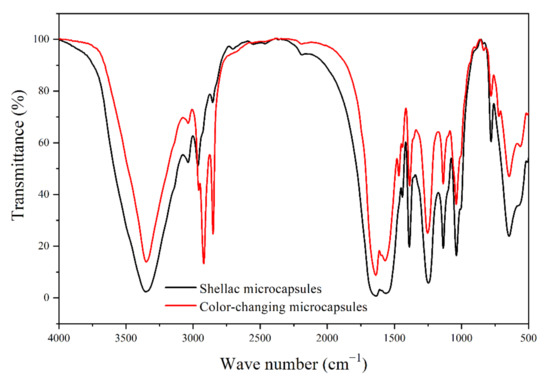

In order to protect the wood surface and improve the properties of coatings, microcapsules with healable and discoloration functions are produced, and their healable function is obtained using shellac, which can be cured at room temperature, as the repairing agent. In this paper, self-made shellac microcapsules and color-changing microcapsules were added to varnish in different proportions to form the composite coating on a wood board, and the color difference of the coating was measured at different temperatures to study the influence of microcapsules on the degree of surface color on the substrate. The effect of microcapsules on the healable performance of coatings on a wood board was studied by scratching the surface of the coating with a utility knife and observing the process of repair. The optimal sample was selected from the orthogonal experiment for the independent experiment. The surface roughness, hardness, infrared spectrum, and scanning electron microscopy of the optimal sample were tested, and the content in the optimal sample was further investigated. The results show that color-changing microcapsules have a color-changing effect on surface coatings based on wood boards, and shellac microcapsules inhibit the color-changing effect of color-changing microcapsules. Composite microcapsules can repair the cracks on the surface coatings of wood boards. In cases where shellac microcapsules can self-repair the coating, the color-changing effect is best when the content of color-changing powder is 15.0%. Full article

Cork, the bark of Quercus suber L., in addition to presenting several notable physical-mechanical properties, possesses a distinctive look and feel that make it attractive for interior surfaces, such as in furniture, wall paneling, or flooring. This work envisaged the development of a coating based on cork granules, a subproduct from the wine stopper industry, capable of creating a smooth surface similar to natural cork. In order to avoid the high rugosity that characterizes surfaces coated with paints that incorporate cork granules, a new solution was developed, based on a foamed acrylic binder, applied by knife coating. The foam formulation was successfully optimized, using appropriate additives and resorting to mechanical agitation to promote the generation of air bubbles. The addition of cork granules did not hinder foam stability, and the final coating displayed the intended visual and sensory characteristics. Dynamic Mechanical Analysis was performed on the pristine acrylic foam and on the composite foam showed a stiffening effect associated with the presence of cork granules, and a thermal transition centered at around −10 °C, associated with the acrylic binder’s glass transition. The surface has hardness slightly lower than cork, depending on the amount of particles incorporated. Pull-off testing consistently resulted in substrate failure, indicating that the coating’s cohesion and adhesion are excellent. The developed coating showed to have the intended functionality while being easily applicable on flat panel surfaces. The fact that a foam is used as a binder system allows for a smooth and soft surface, having excellent opacity with minimal usage of cork. Full article

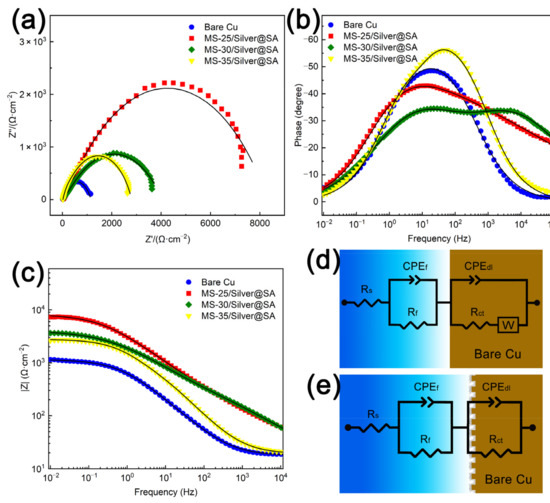

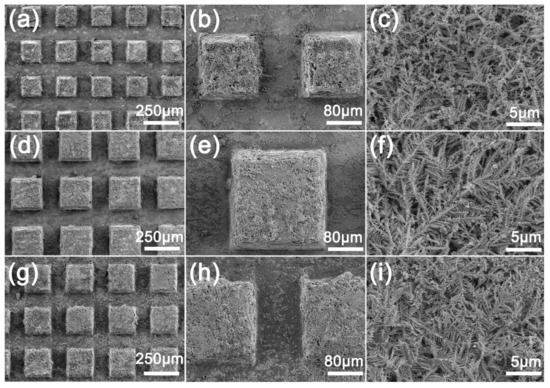

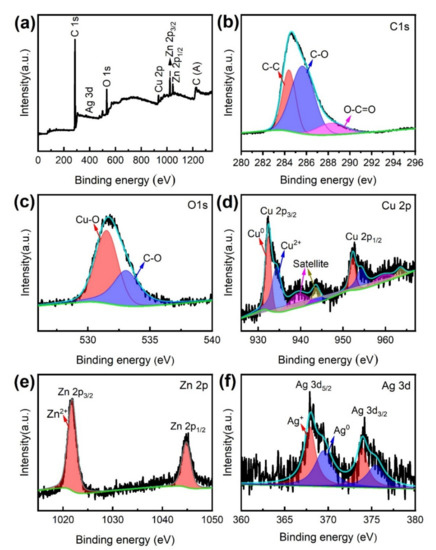

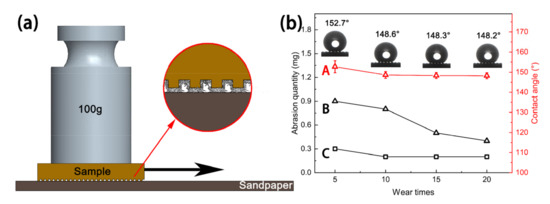

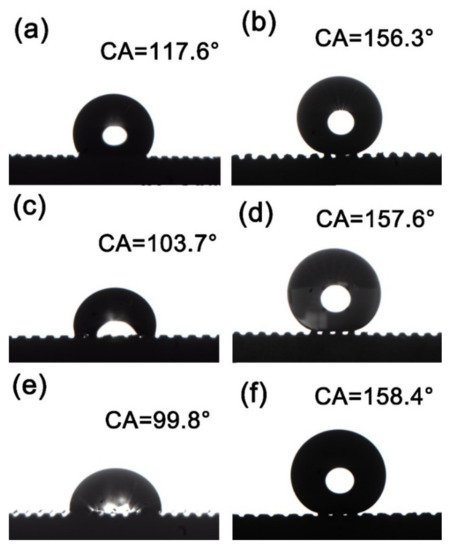

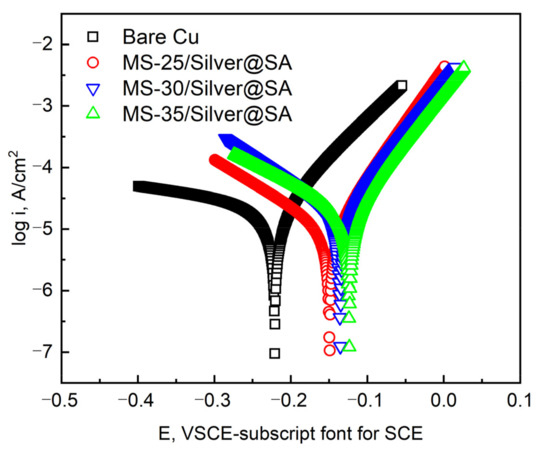

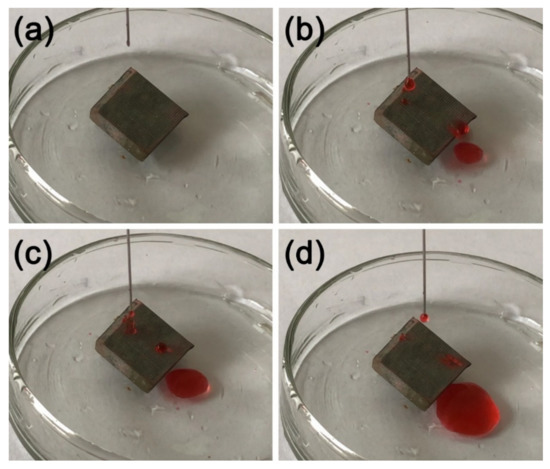

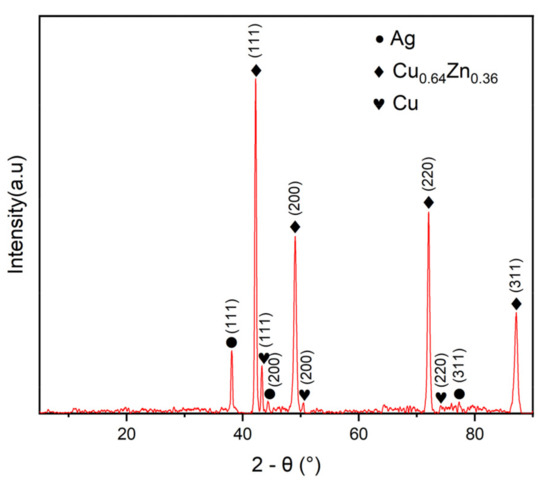

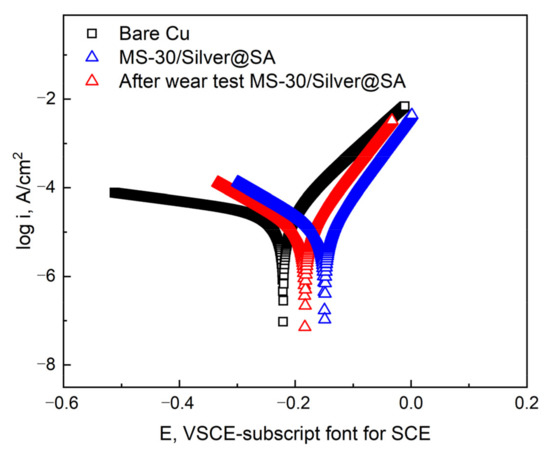

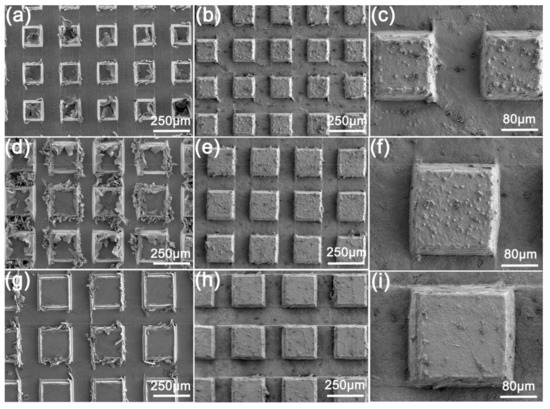

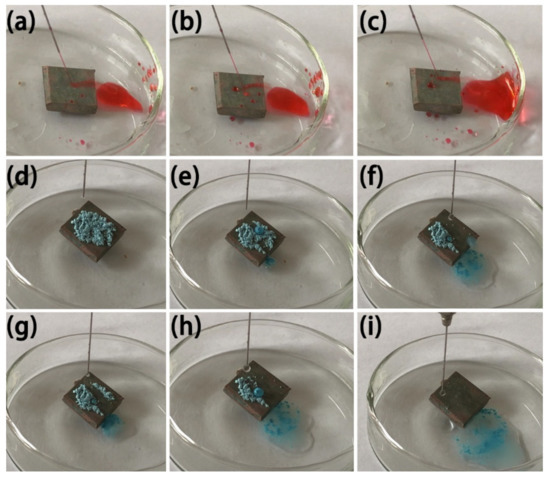

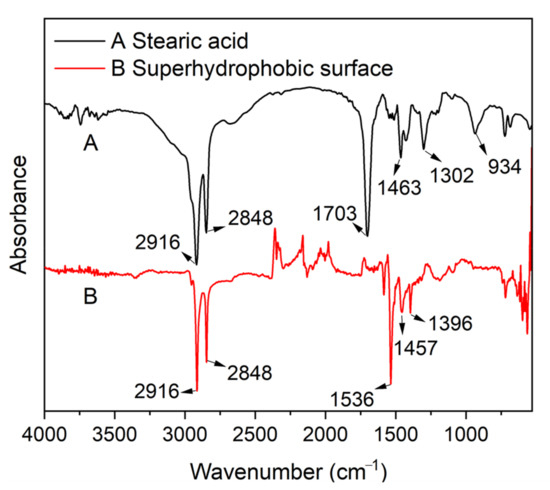

The development of anticorrosion coatings on copper has raised tremendous interest in material science. Using a milling method, regular rough structures were fabricated, and after chemical deposition with AgNO₃ solution and the modification of stearic acid, a superhydrophobic copper substrate could be obtained. The surface morphological study showed a dendritic microstructure, and a rectangular surface bulge produced by milling was distributed on the copper substrate. The coatings showed the surface water contact angle could be as high as 158.4°. The best anti-corrosion coating was the sample milled with the cutter tip distance of 0.30 mm. The as-prepared superhydrophobic sample has a good self-cleaning effect. Scratched with a knife and abraded by friction, the copper substrate still maintained good superhydrophobic nature. The coating was mechanically stable and possessed good corrosion resistance. Full article

Polyurethane (PU) coatings are often applied on high added value technical textiles. Key factor to success of PU coatings is its versatility and durability. Up to today most PU textile coatings are solvent-based or water-based. Recent advances are made in applying bio-based PU on textiles. Currently, polymers made from renewable raw materials are experiencing a renaissance, owing to the trend to reduce CO₂ emissions, the switch to CO₂-neutral renewable products and the depletion of fossil resources. However, the application of bio-based coatings on textiles is limited. The present paper discusses the potential of a bio-based anionic PU dispersion as an environment friendly alternative for petroleum-based PU in textile coating. Coatings were applied on textile via knife over roll. The chemical, thermal and mechanical properties of the bio-based PU coating were characterised via FT-IR, thermogravimetric analysis, differential scanning calorimetry and tensile test. The performance of the coating was studied by evaluating antimicrobial properties, fire retardancy, the resistance to hydrostatic pressure initially and after washing, QUV ageing and hydrolysis test. The developed bio-based PUD coating complied to the fire retardancy test ISO 15025 and exhibited excellent hydrostatic pressure, QUV ageing resistance, hydrolysis resistance, wash fastness at 40 °C. Full article

The working environment of agricultural cutting tools is poor, and the operational quality and efficiency are reduced after they become blunt. This study aimed to develop a high wear-resistant agriculture knife with a long life. A Ni–WC alloy, wear-resistant layer was prepared using laser cladding technology on one side of the cutting edge of a 65 Mn silage knife. A self-grinding edge was formed when the cladded knife was used, which improved the cutting quality and service life of the knife. The microstructure, phase, composition, and hardness distribution of the cladding layer were detected and analyzed. The impact toughness and wear resistance of the laser-cladded samples were analyzed, and the cladded knife was tested in the field. The results show that a cladded layer with a dense microstructure formed metallurgical bonds with the substrate. The microhardness was uniform across the cladded layer, and the average hardness of the micro Vickers was approximately 1000 HV(0.2), which was approximately three times the hardness of the substrate. The impact toughness and wear resistance of the coated knife were obviously higher than those of uncoated knives. The field tests showed that compared with a conventional 65 Mn knife, the self-grinding knife with laser cladding could maintain its sharp cutting shape after operation for 76 h, which greatly extended the service life of the knife. This study improved the service life of an agricultural cutting tool, which enhanced the cutting performance and efficiency at the same time. Full article

Waterborne polyurethane-urea dispersions (WPUD), which are based on fully biobased amorphous polyester polyol and isophorone diisocyanate (IPDI), have been successfully synthesized obtaining a finishing agent that provides textiles with an enhanced hydrophobicity and water column. Grafting of trans-cyclohexanediol isobutyl POSS (POSS-OH) to the biobased polymer backbone has also been investigated for the first time and its properties compared to a standard chain extender, 1,3-propanediol (PDO). The chemical structure of WPUD has been characterized by Fourier-transform infrared spectroscopy (FTIR) and nuclear magnetic resonance (NMR). The thermal properties have been evaluated by differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA). Mechanical properties have been studied by tensile stress–strain analysis. Moreover, the particle size, particle size distribution (PSD), and stability of developed waterborne dispersions have been assessed by dynamic light scattering (DLS), Z-potential, storage aging tests, and accelerated aging tests by analytical centrifuge (LUM). Subsequently, selected fabrics have been face-coated by the WPUD using the knife coating method and their properties have been assessed by measuring the water contact angle (WCA), oil contact angle (OCA), water column, fabric stiffness, air permeability, and water vapor resistance (breathability). Finally, the surface morphology and elemental composition of uncoated and coated fabrics have been studied by scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDS), respectively. All of the synthesized polyurethane-ureas provided the coated substrates with a remarkable hydrophobicity and water column, resulting in a more sustainable alternative to waterproof coatings based on fluoropolymers, such as PTFE. Grafting POSS-OH to the polymeric backbone has led to textile coatings with enhanced hydrophobicity, maintaining thermal, mechanical, and water column properties, giving rise to multifunctional coatings that are highly demanded in protective workwear and technical textiles. Full article

Technical clothing with light-responsive features for outdoor sports practiced in environments with low visibility is extremely important for athletes’ safety. Lack of signaling by users and visibility for drivers is one of accidents causes, namely run overs, which can leave serious consequences. The products available on the market lack efficiency and their design is not appealing which makes the development of these new materials a compelling need. Therefore, fluorescent and phosphorescent functional finishings with ability to provide illuminant signalization without compromising the design and/or color of clothing as well as comfort and ergonomics, were developed and applied in the textile structure by knife over roll coating technology. The greatest challenge is to integrate the high visibility materials without compromising the design of the garment and accomplish the European Standard of Protective clothing: Enhanced visibility equipment for medium risk situations and test methods and requirements—EN 17353 (that supersedes EN1150:1999 and allows more freedom in the design of the apparel) published in 2020. Phosphorescent materials were evaluated by luminance decay according to DIN 67510, before and after fastness to wash tests. Results obtained regarding high visibility functional finishings and the integration of the materials developed in the final sports collection will be presented. Full article

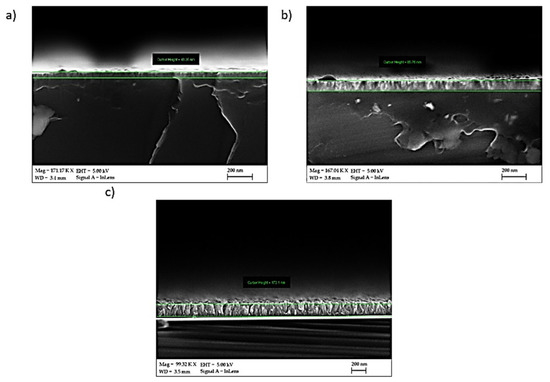

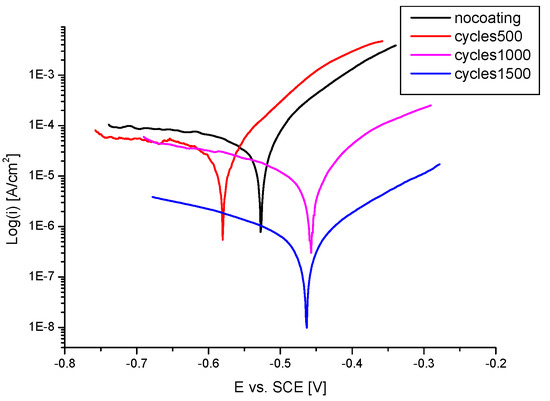

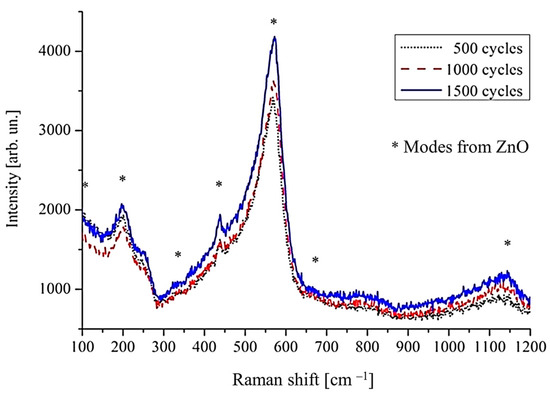

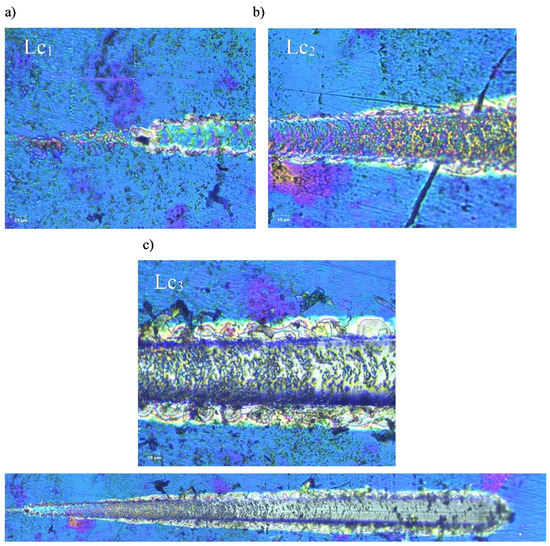

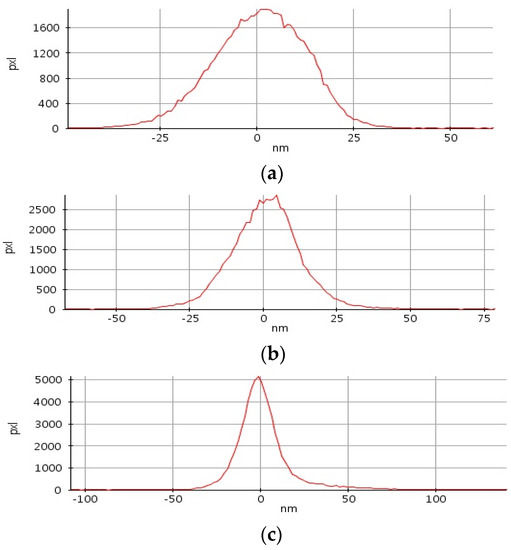

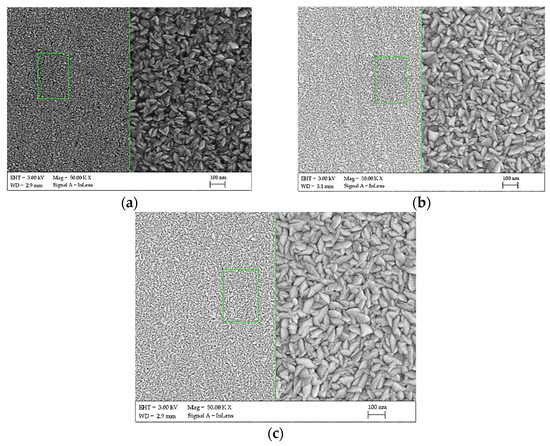

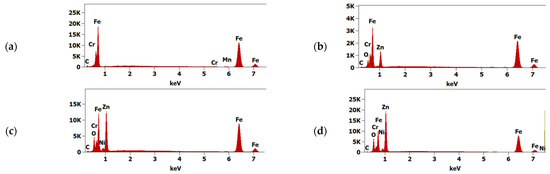

The article describes biomaterials and surgical instruments, in particular surgical cutting tools. In addition, the functions of coatings and the layer vapor deposition methods are described. In the experimental component of the study, zinc oxide thin film was deposited on the surgical knife blades by the atomic layer deposition (ALD) method with a varying number of cycles. The structures of the deposited thin films were investigated using a Raman spectrometer and the surface topography of the samples was examined using atomic force microscopy and scanning electron microscopy. The adhesion of the thin films was tested using the micro-scratch method. The corrosion resistance was also tested. Surgical instruments coated with non-allergenic metal oxide coatings, containing metal structures that reduce the growth of bacteria, could significantly decrease the risk of undesirable reactions of the body during and after surgery. Full article
