Self-Grinding Silage Knife Strengthened with Ni–WC Alloy Prepared by Laser Cladding
Abstract
:1. Introduction
2. Materials and Methods
2.1. Experimental Materials

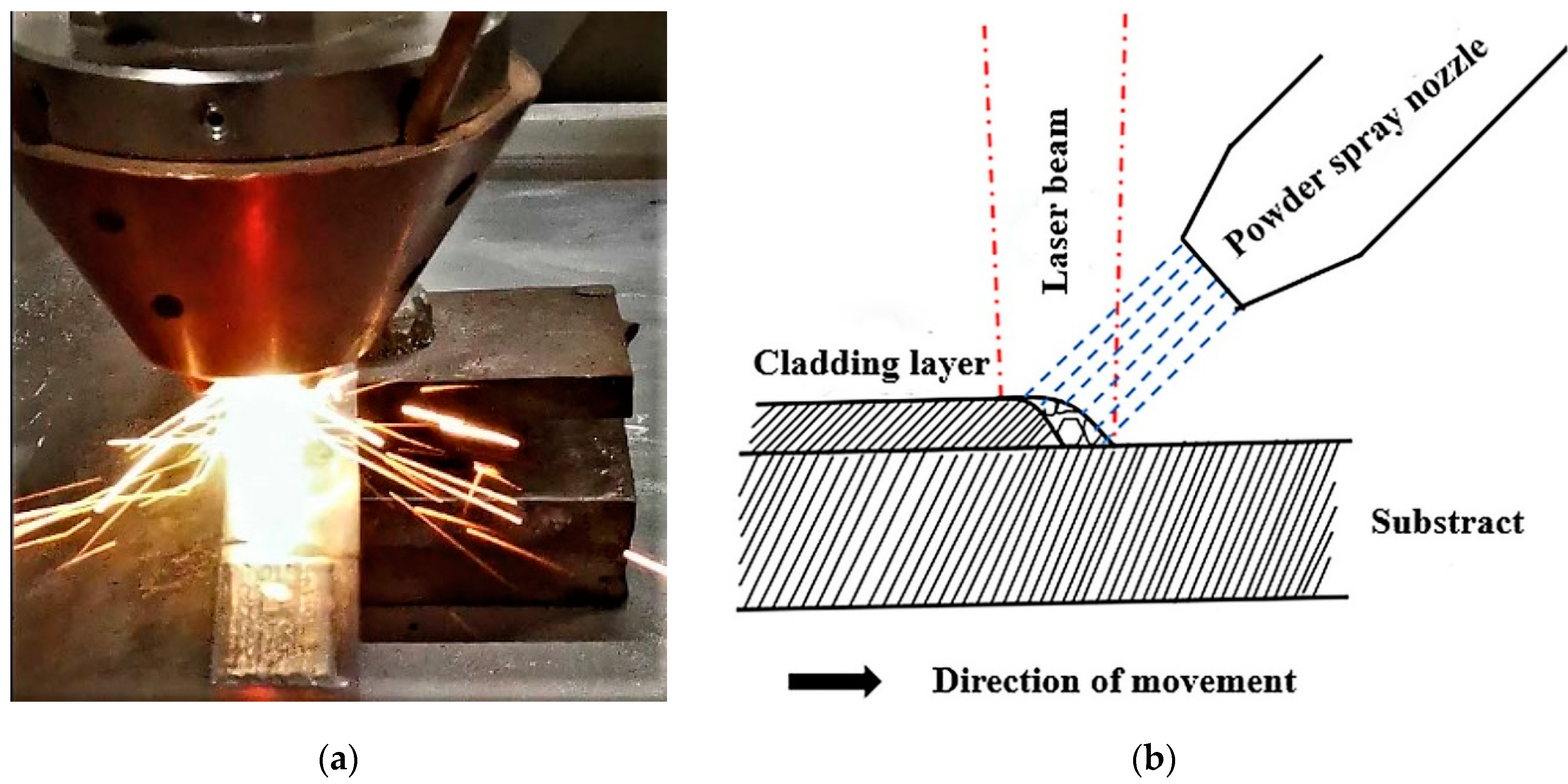

2.2. Laser Cladding
2.3. Organizational Structure Observation

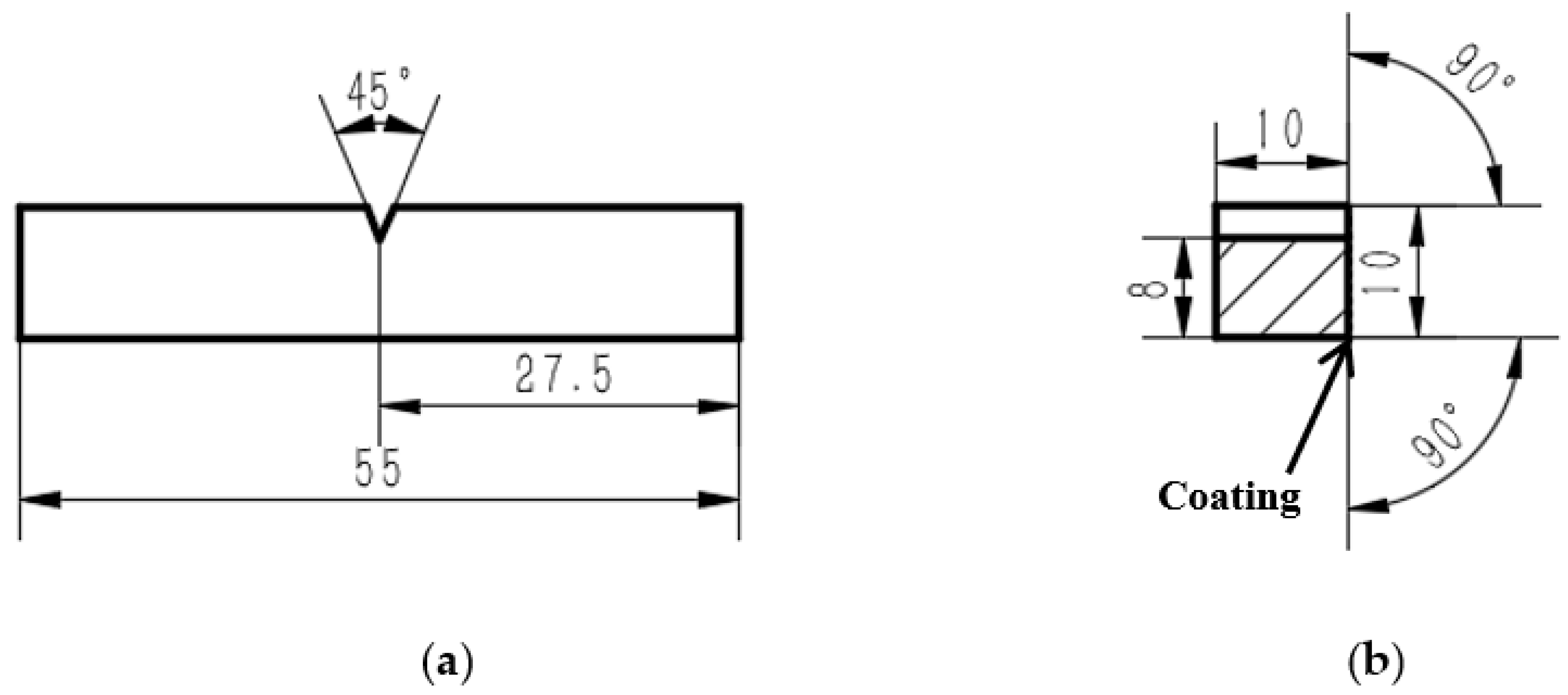

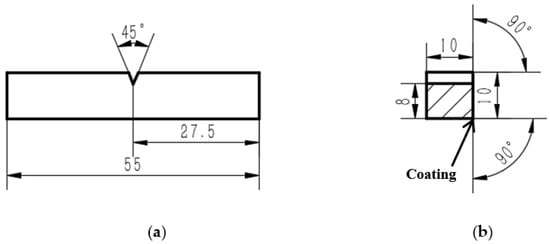

2.4. Charpy Test
2.5. Test of Wear Resistance and Analysis
2.6. Field Test
3. Test Results and Discussion

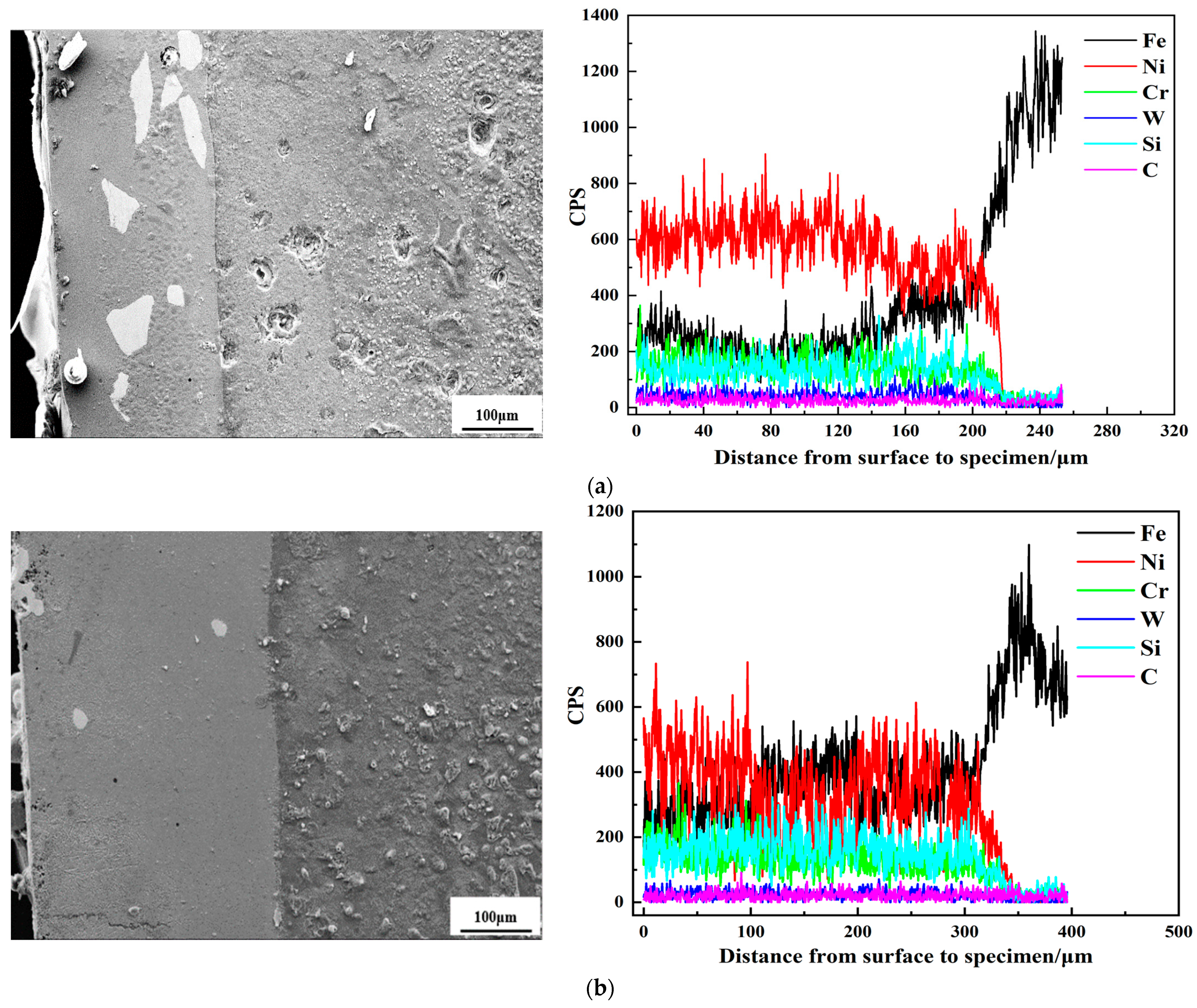

3.1. Microstructure of the Cladding Layer

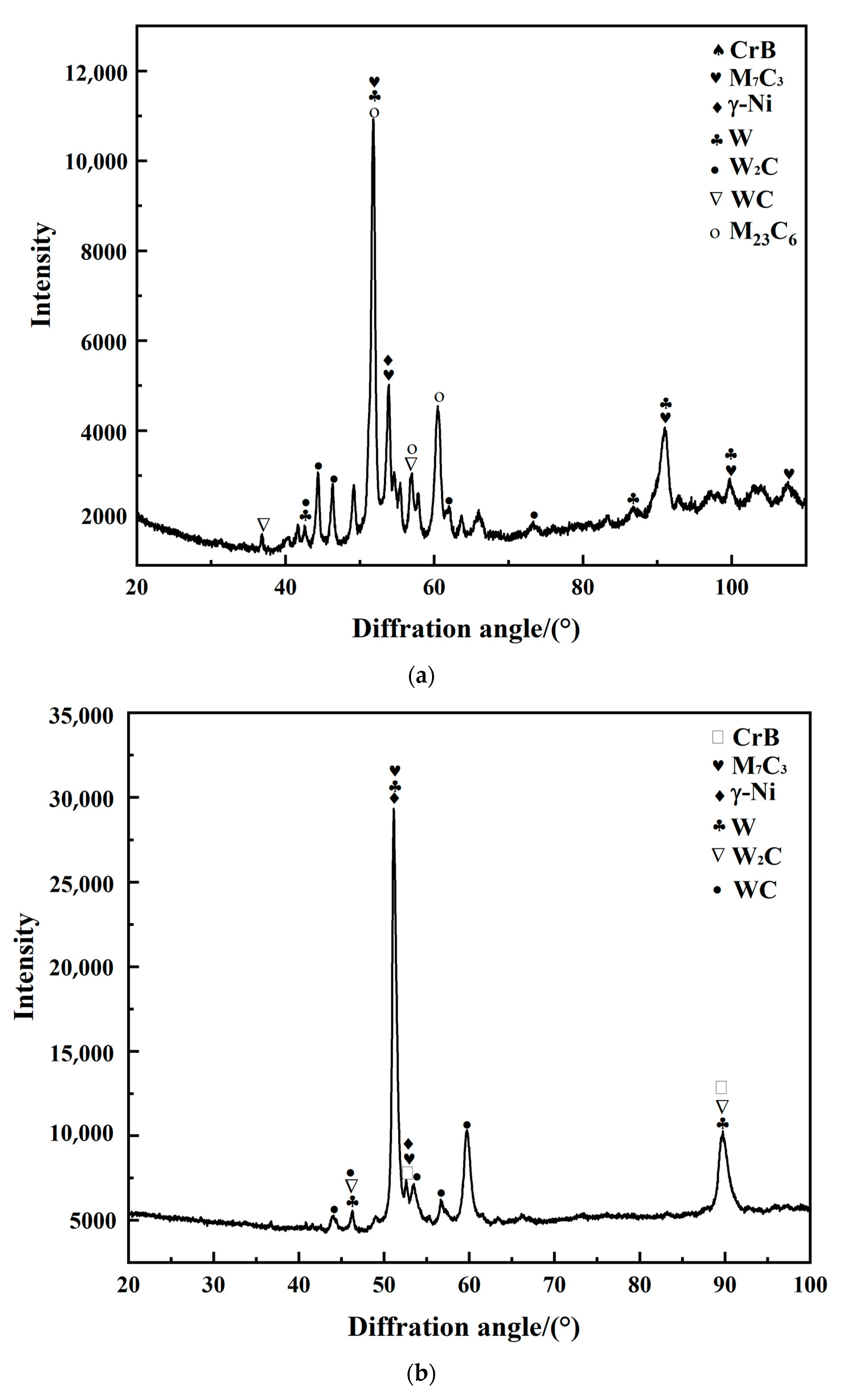

3.2. Phase Analysis of the Cladding Layer
3.3. Laser Cladding Hardness Testing

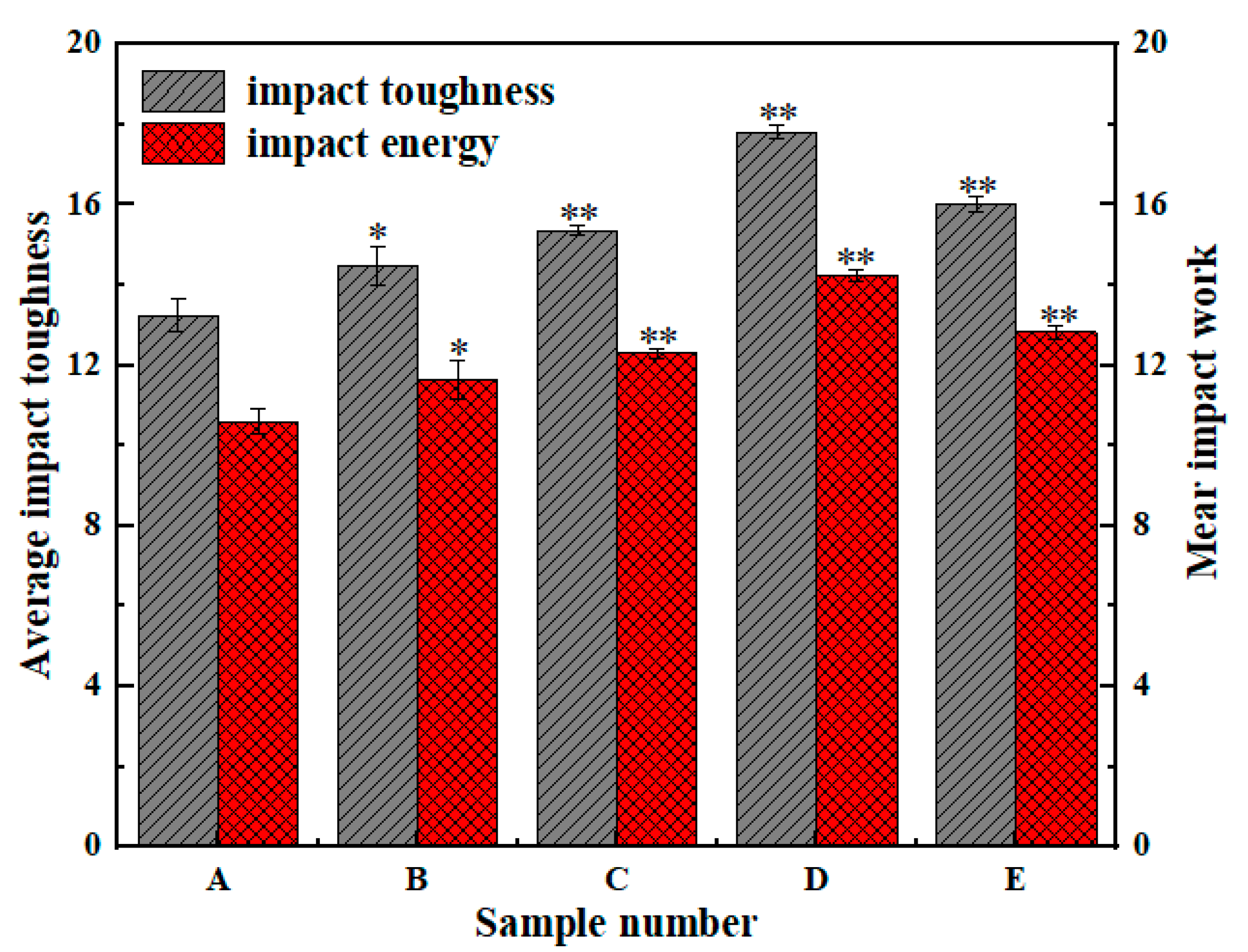

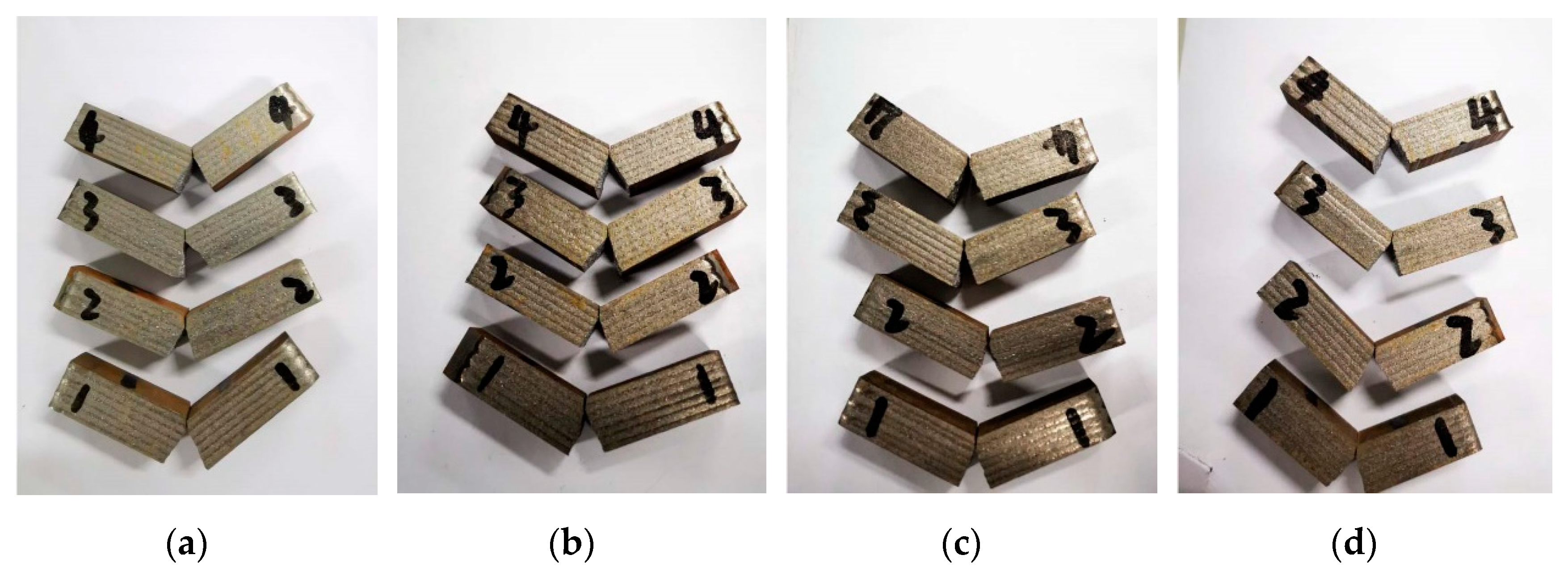

3.4. Impact Toughness Test
- ak—Impact toughness, J/cm2;
- Ak—Impact absorption energy, J;
- S—Standard fracture surface area of the impact test, cm2.

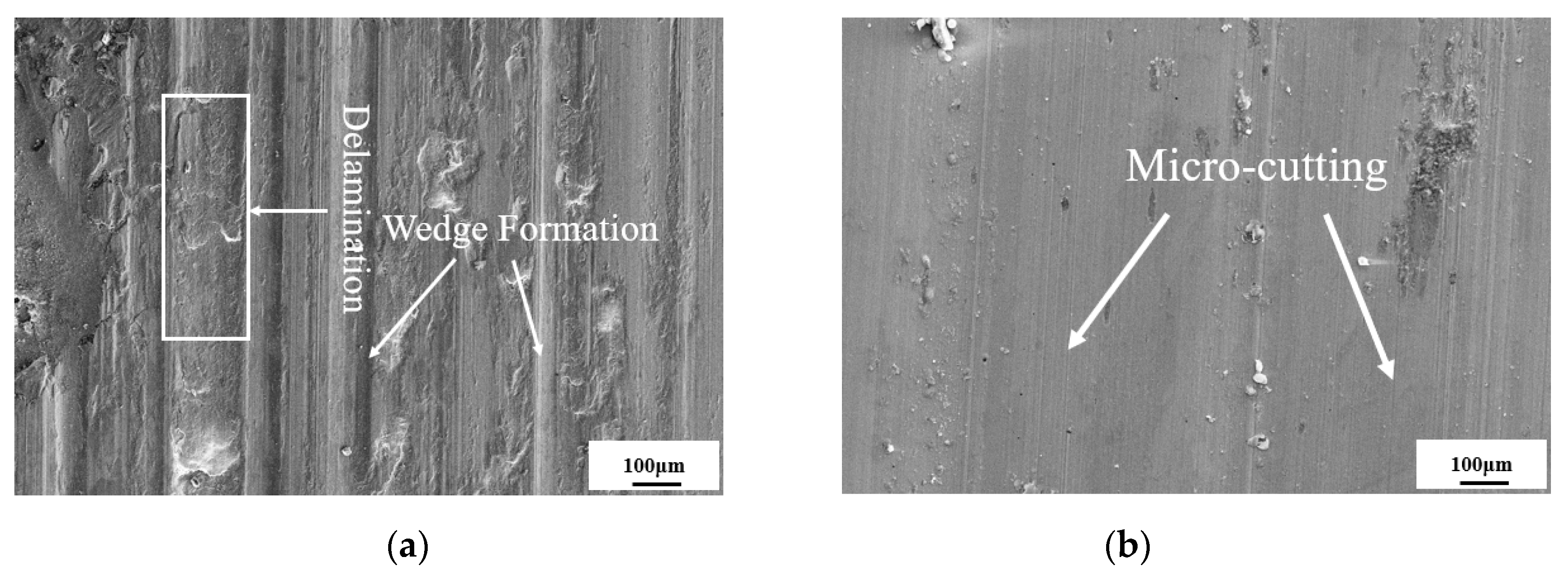

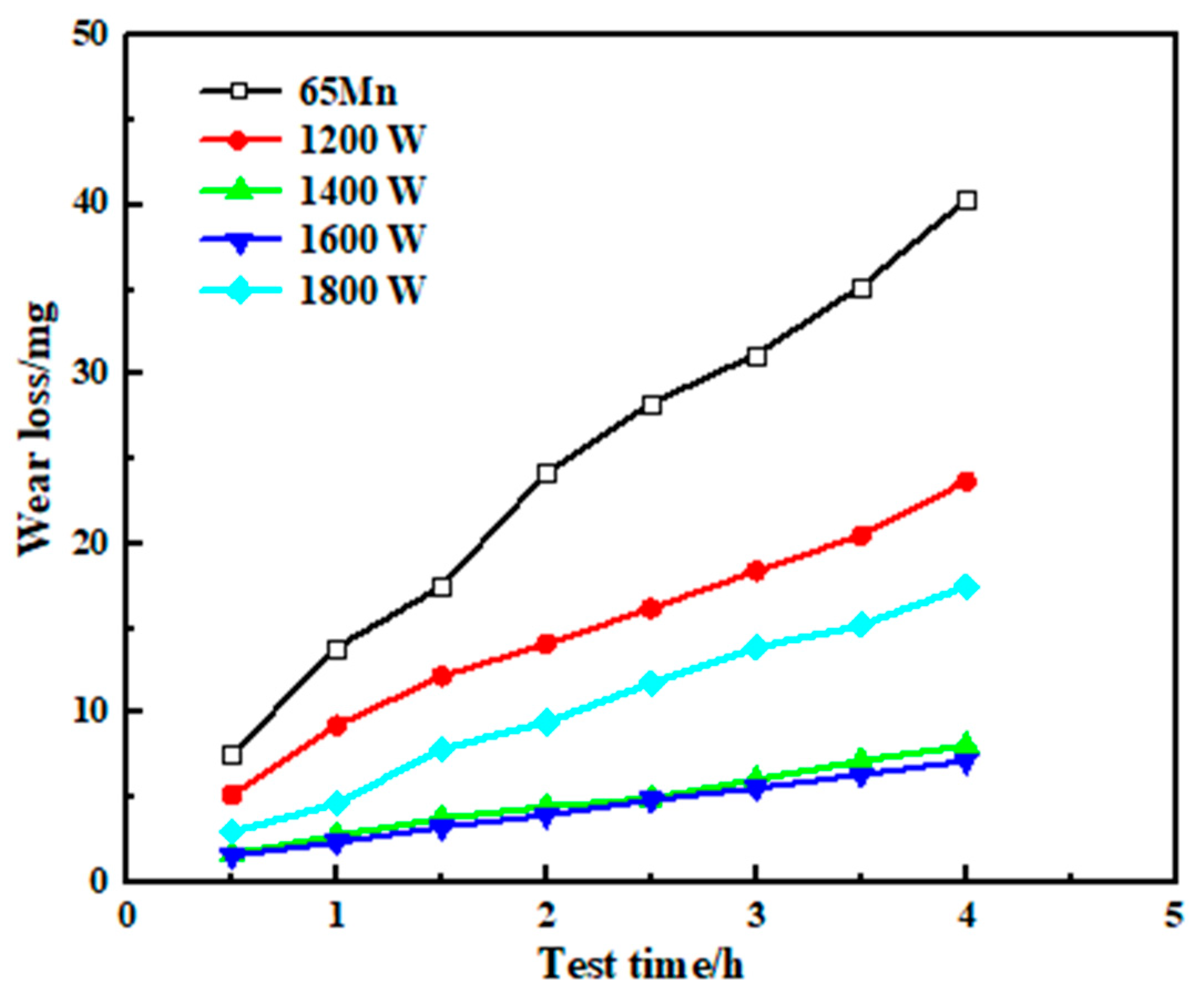

3.5. Wear Resistance Analysis
- —fracture toughness;
- H—hardness;
- C—coefficient of friction.

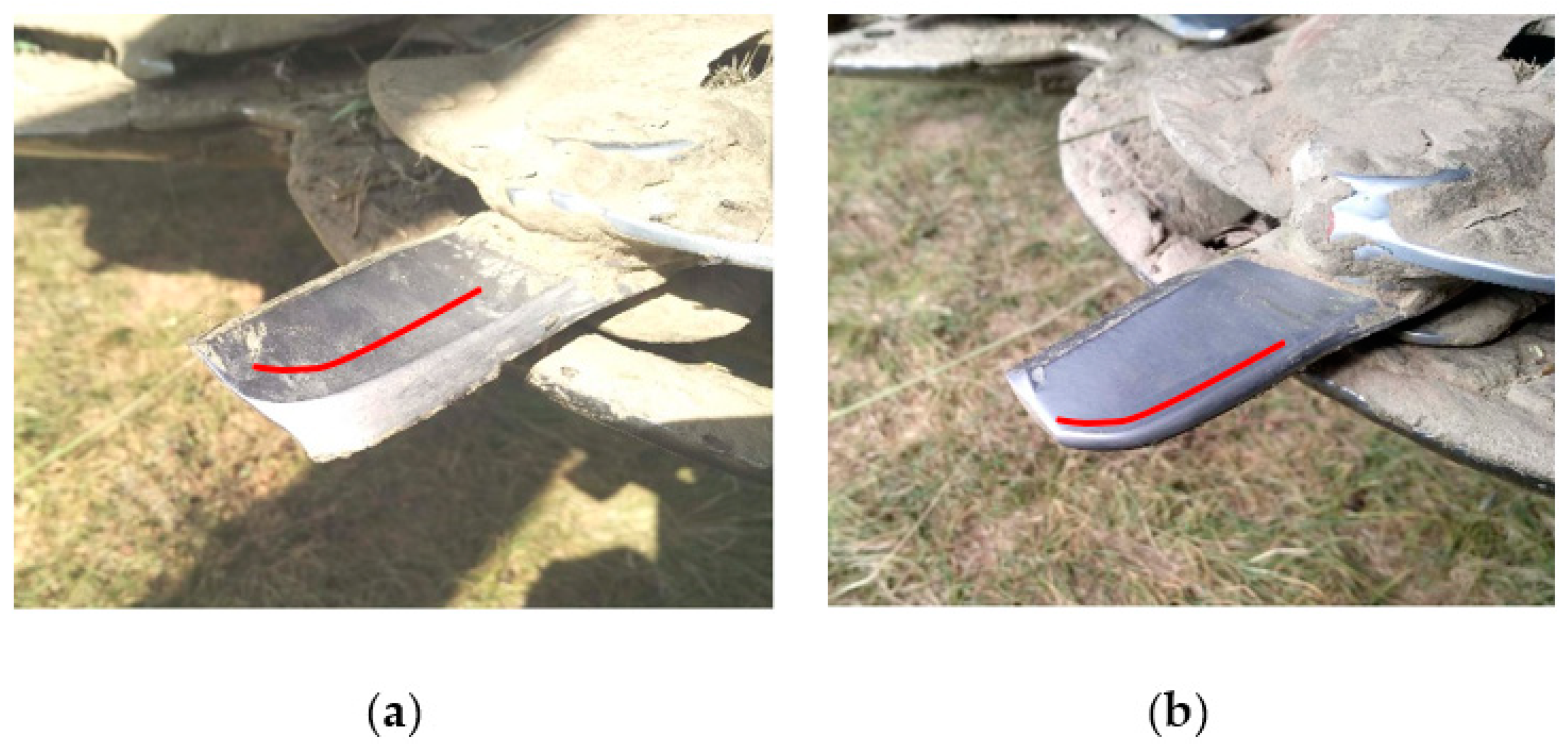

4. Field Experiments on a Laser Cladding Self-Sharpening Cutter
5. Conclusions
- (1)

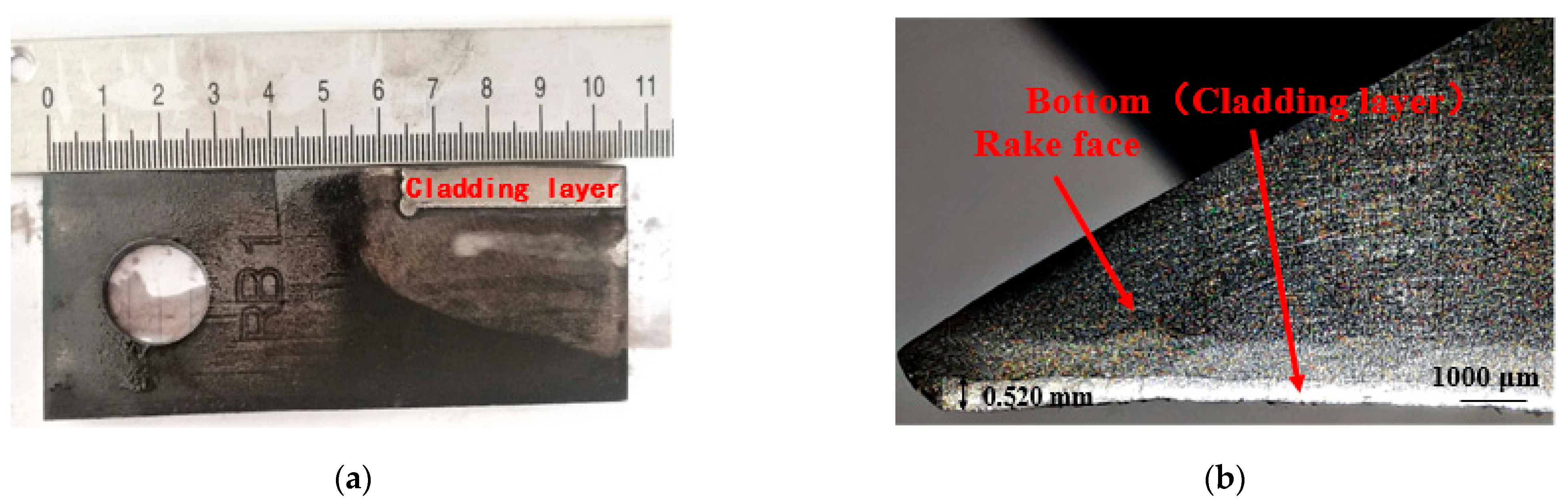

- In this study, a Ni–WC alloy layer was made at the surface of the cutting edge by laser cladding. A microstructure of typical rapid directional solidification was formed in the cladding layer that was dense and without defects such as cracks and gas holes. A metallurgical combination was formed between the substrate and cladding layer. Obvious composition dilution did not take place at the cladding layer;
- (2)

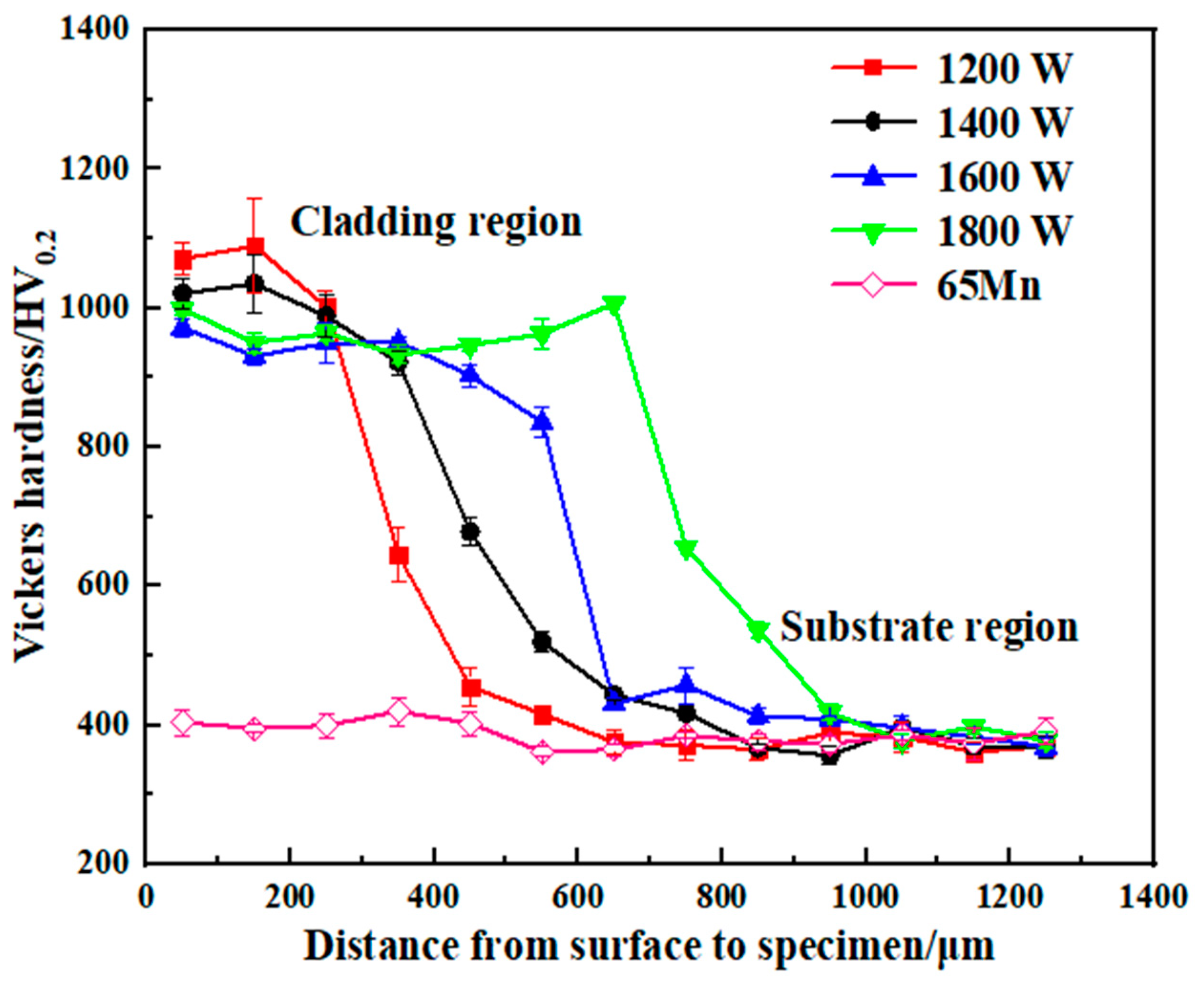

- A large number of hard phases formed during the laser cladding, increasing the hardness of the cladding layer. The chosen hardness value of the cladding layer was approximately 1100 HV(0.2), and the average hardness value was approximately 1000 HV(0.2). The hardness of the cladding layer was obviously higher than that of the substrate, but there was a good hard gradient between the cladding layer and the substrate;
- (3)

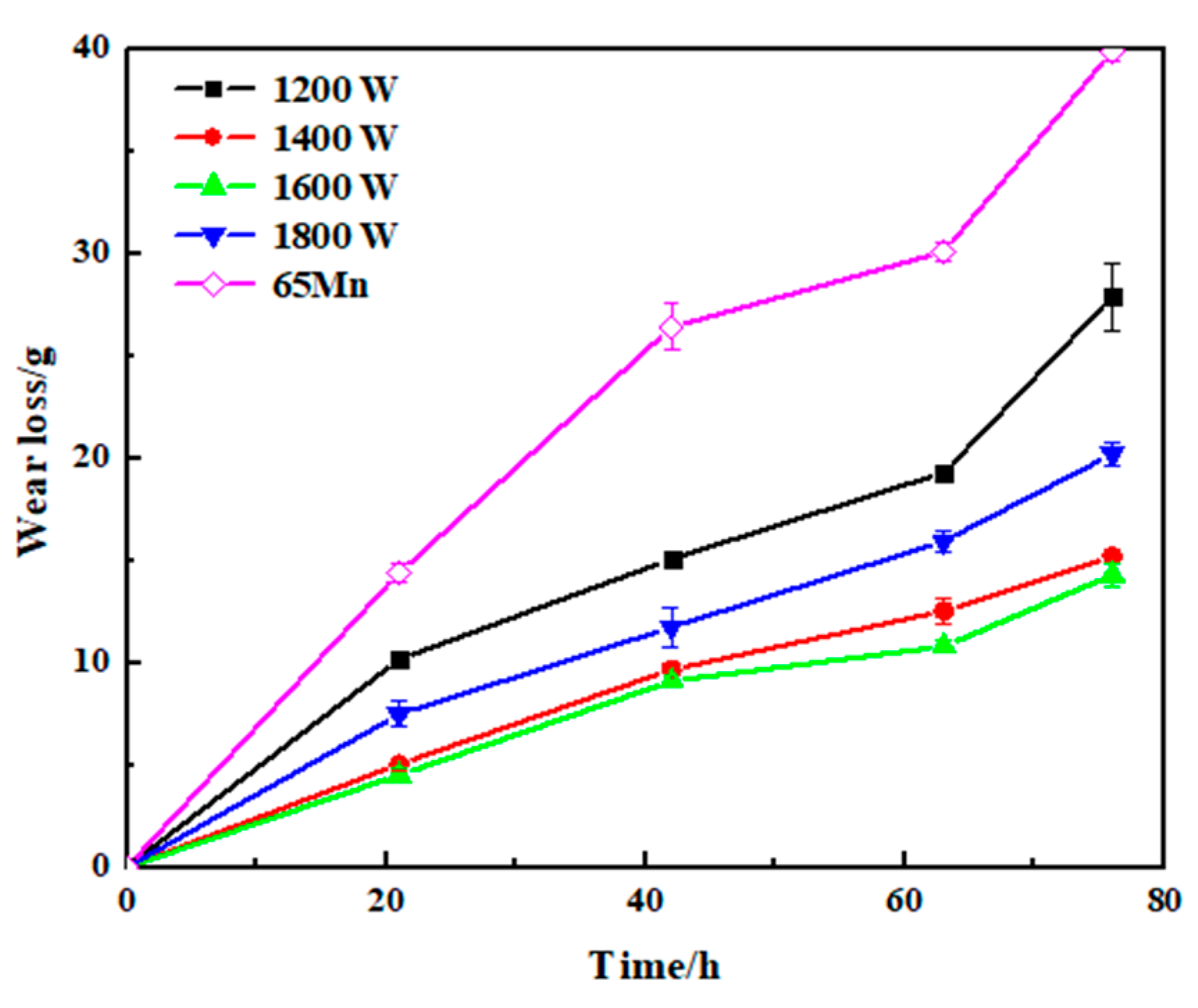

- The laser cladding increased the impact toughness of the knife to a large degree. When the laser power was 1600 W, the cladding layer had a combined high hardness and toughness and the best wear resistance. The friction mass loss of the 65 Mn steel was approximately four times that of the cladding layer;
- (4)
- Contrasting with common knives made with 65 Mn steel, a self-sharpening edge was formed during operation for the knives after laser cladding with the Ni–WC alloy. The sharp cutting edge of the laser cladding knives was still kept after usage for 76 h. The wear resistance and cutting performance increased sharply due to the laser cladding;
- (5)
- The successful manufacturing the self-grinding knife using laser cladding increased the working performance and cost effectiveness, while ensuring excellent work efficiency. The tool’s life increased by more than double, with only a 30% cost increase. This product has a large market and strong application in agricultural machinery.
Author Contributions
Funding
Conflicts of Interest
References
- Zhang, J.B.; Wang, C.C.; Wang, Y.; Ge, Y.Y. Research on soil abrasive wear of soil touching parts of agricultural tillage machinery. J. Mod. Agric. 2015, 1, 52–53. [Google Scholar]
- Wild, K.J.; Walther, V.; Schueller, J. Optimizing Fuel Consumption and Knife Wear in a Self-Propelled Forage Chopper by Improving the Grinding Strategy. J. ASABE Annu. Int. Meet. 2009, 6, 1–18. [Google Scholar]
- Victor, A.; Warouma, A.; Lysenko, S.; Kuzyk, A. Improving of the wear resistance of working parts agricultural machinery by the implementation of the effect of self-sharpening. Int. J. Eng. Technol. 2016, 5, 126–130. [Google Scholar]
- Xu, L.F.; Tian, C.; Liu, T.; Li, F.D.; Song, Z.H.; Cao, C.M.; Yuan, H.T. Preparation of knife with self-sharp edge by laser caldding Ni-based WC composite coating. J. Agric. Eng. 2020, 10, 72–78. [Google Scholar]
- Guo, L.; Shen, Q.T. Hay cutter blade chemical heat treatment deformation strengthening research, agricultural mechanization research. J. Agric. Mech. Res. 2013, 35, 67–69 and 73. [Google Scholar]
- Hao, J.J.; Yang, Z.Y.; Ma, L.P.; Zhao, J.G.; Liu, J.C. Fe-Cr-C-V plasma surfacing layer improving wear resistance and impact toughness of rotary blade. J. J. Agric. Eng. 2019, 35, 24–30. [Google Scholar]
- Pan, Z.; Dong, X.P.; Cao, H.T.; Huang, Q.W. The Role of Distribution Forms of Fe–Cr–C Cladding Layer in the Impact Abrasive Wear Performance of Hadfield steel. J. Mater. 2020, 13, 1818. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wang, W.; Song, Y.P.; Xu, L.F.; Gao, D.S.; Li, F.D.; Song, Z.H.; Geng, X.Y. Microstructure and hardness distribution of hardness gradient materials via vacuum composite rolling process. J. Trans. Mater. Heat Treat. 2018, 39, 87–92. [Google Scholar]
- Zhang, J.C.; Shi, S.H.; Gong, Y.Q.; Yu, S.Q.; Shi, T.; Fu, G.Y. Research Progress of Laser Cladding Technology. J. Surf. Technol. 2020, 49, 1–11. [Google Scholar]
- Rostek, T.; Homberg, W. Locally Graded Steel Materials for Self-Sharpening Cutting Blades. J. Procedia Eng. 2017, 207, 2185–2190. [Google Scholar] [CrossRef]
- Yan, L.J.; Zhang, P.X.; Wang, S.P.; Li, Z.X.; Wang, P.; Li, H.; Yang, H.Y. Microstructure and Wear Behavior of Hard Ni60 and Soft WC-12Co/Ni25 Coatings Prepared by Laser Cladding on W1813N Non-magnetic Stainless Steel. J. Rare Met. Mater. Eng. 2019, 48, 3441–3447. [Google Scholar]
- Zhang, K.; Wang, D.G.; Wang, Z.Q.; Li, Y.; Zhou, Q.; Liu, B.L.; Wang, Z.Q. Effect of Ni content and maceration metal on the microstructure and properties of WC based diamond composites. Int. J. Refract. Met. Hard Mater. 2020, 88, 105196. [Google Scholar] [CrossRef]
- LI, J.Z.; Ma, J.T.; Zhang, X.P. Effect of heat treatment process on mechanical properties of 65Mn ploughshare. Hot Work. Technol. 2017, 46, 215–217. [Google Scholar]
- Wu, P.; Du, H.M.; Chen, X.L.; Li, Z.Q.; Bai, H.L.; Jiang, E.Y. Influence of WC particle behavior on the wear resistance properties of Ni–WC composite coatings. J. Wear. 2004, 257, 142–147. [Google Scholar] [CrossRef]
- Zhang, H.M.; Hao, S.; Ma, K.X. Impact test of metal material charpy pendulum. Heavy Truck 2011, 6, 25–26. [Google Scholar]
- Wu, X.Q.; Yan, H.; Xin, Y.; Yu, B.B.; Hu, Z.; Sun, Y.H. Microstructure and Wear Properties of Ni-based Composite Coatings on Aluminum Alloy Prepared by Laser Cladding. Rare Met. Mater. Eng. 2020, 49, 2574–2582. [Google Scholar]
- He, B.; Zhuang, J.L.; Lan, J.J.; Chu, S.S. Microstructure and wear-resistance properties of tungsten carbide/cobalt-based alloys composite coating by laser cladding. J. Laser Appl. 2017, 37, 105–110. [Google Scholar]
- Wang, K.M.; Lei, Y.P.; Wei, S.Z.; Fu, H.G.; Yang, Y.W.; Li, Y.L.; Su, Z.Q. Effects of WC content on microstructure and properties of Ni based WC composite coatings for laser cladding. J. Mater. Heat Treat. 2016, 37, 172–179. [Google Scholar]
- Zhang, D.Q.; Zhang, J.Q.; Guo, Z.J. Study of the Process Parameters of Laser Cladding Ni-Based WC Powder. J. Mach. Des. Manuf. 2016, 12, 108–110. [Google Scholar]
- Lu, Q.; Zeng, X.Q.; Ding, W.J. The Hall-Petch relationship. J. Light Met. 2008, 8, 59–64. [Google Scholar]
- Cao, H.T.; Dong, X.P.; Chen, S.Q.; Dutka, M.; Pei, Y.T. Microstructure evolutions of graded high-vanadium tool steel composite coating in-situ fabricated via atmospheric plasma beam alloying. J. Alloy. Compd. 2017, 720, 169–181. [Google Scholar] [CrossRef]
- Ren, J.H.; Fu, X.Z.; FU, Y.M.; Xiang, L.; Zheng, L.J. Mechanical properties of laser cladding 45 steel composites. J. Plast. Eng. 2012, 19, 99–102. [Google Scholar]
- Lei, S.; Ren, J.M.; Shi, C.; Zhu, S.F.; Liu, N.; Chen, X. Impact Toughness and Fracture Mechanism of the Surface Laser Hardened Components of 45 Steel. J. Laser Optoelectron. Prog. 2015, 52, 011408. [Google Scholar]
- Evans, A.G.; Wilshaw, T.R. Quasi-static solid particle damage in brittle solids I. Observations, analysis and implications. J. Acta Met. 1976, 24, 939–956. [Google Scholar] [CrossRef]
- Wayne, S.F.; Buljan, S.T. Microstructure and Wear Resistance of Silicon Nitride Composites; Elsevier Press: New York, NY, USA, 1994. [Google Scholar]
- Liu, P.L.; Yang, S.Q.; Bai, L.L.; Li, Z.; Li, D.X. Wear model of disc hob cutter rings based on abrasive wear. J. China Mech. Eng. 2019, 30, 1782–1789. [Google Scholar]
- Niranatlumpong, P.; Sukhonket, C.; Nakngoenthong, J. Wear resistant surface treatment of pulverizer blades. J. Wear. 2013, 302, 878–881. [Google Scholar] [CrossRef]
- Gan, H.; Mathanker, S.; Momin, M.A.; Kuhns, B.; Stoffel, N.; Hansen, A.; Grift, T. Effects of three cutting blade designs on energy consumption during mowing-conditioning of Miscanthus Giganteus. J. Biomass Bioenergy 2018, 109, 166–171. [Google Scholar] [CrossRef]
- Song, Y.P.; Wang, Z.; Wu, K.; Li, F.D.; Song, Z.H.; Yang, X. Fabrication of Self-Sharpening Blades with Metalloceramics Materials and Low-damaged Cutting Mechanism of Alfalfa. J. Trans. Chin. Soc. Agric. Mach. 2020, 51, 309 and 421–426. [Google Scholar]
Material | C | Si | Cr | Mn | S | P | Ni | Fe | B |
---|---|---|---|---|---|---|---|---|---|
65 Mn knife (wt%) | 0.64 | 0.23 | 0.23 | 1.15 | 0.028 | 0.032 | 0.15 | ||
Nickle alloy (wt%) | 0.4 | 4 | 15 | 69.4 | 8 | 3.2 |
