Search Results (12)

This study explored the innovative foaming behavior of a novel biodegradable polymer blend consisting of polylactic acid/poly(butylene succinate)/poly(butylene adipate-co-terephthalate) (PLA/PBS/PBAT) enhanced with nanohydroxyapatite (nHA), using supercritical carbon dioxide (SCCO₂) as an environmentally friendly physical foaming agent. The aim was to investigate the effects of various foaming strategies on the resulting cell structure, aiming for potential applications in tissue engineering. Eight foaming strategies were examined, starting with a basic saturation process at high temperature and pressure, followed by rapid decompression to ambient conditions, referred to as the (1T-1P) strategy. Intermediate temperature and pressure variations were introduced before the final decompression to evaluate the impact of operating parameters further. These strategies included intermediate-temperature cooling (2T-1P), intermediate-temperature cooling with rapid intermediate decompression (2T-2P), and intermediate-temperature cooling with gradual intermediate decompression (2T-2P, stepwise ΔP). SEM imaging revealed that the (2T-2P, stepwise ΔP) strategy produced a bimodal cell structure featuring small cells ranging from 105 to 164 μm and large cells between 476 and 889 μm. This study demonstrated that cell size was influenced by the regulation of intermediate pressure reduction and the change in intermediate temperature. The results were interpreted based on classical nucleation theory, the gas solubility principle, and the effect of polymer melt strength. Foaming results of average cell size, cell density, expansion ratio, porosity, and opening cell content are reported. The hydrophilicity of various foamed polymer blends was evaluated by measuring the water contact angle. Typical compressive stress–strain curves obtained using DMA showed a consistent trend reflecting the effect of foam stiffness. Full article

Over the past few decades, polymer composites have received significant interest and become protagonists due to their enhanced properties and wide range of applications. Herein, we examined the impact of filler and flame retardants in hemp seed oil-based rigid polyurethane foam (RPUF) composites’ performance. Firstly, the hemp seed oil (HSO) was converted to a corresponding epoxy analog, followed by a ring-opening reaction to synthesize hemp bio-polyols. The hemp polyol was then reacted with diisocyanate in the presence of commercial polyols and other foaming components to produce RPUF in a single step. In addition, different fillers like microcrystalline cellulose, alkaline lignin, titanium dioxide, and melamine (as a flame retardant) were used in different wt.% ratios to fabricate composite foam. The mechanical characteristics, thermal degradation behavior, cellular morphology, apparent density, flammability, and closed-cell contents of the generated composite foams were examined. An initial screening of different fillers revealed that microcrystalline cellulose significantly improves the mechanical strength up to 318 kPa. The effect of melamine as a flame retardant in composite foam was also examined, which shows the highest compression strength of 447 kPa. Significantly better anti-flaming qualities than those of neat foam based on HSO have been reflected using 22.15 wt.% of melamine, with the lowest burning time of 4.1 s and weight loss of 1.88 wt.%. All the composite foams showed about 90% closed-cell content. The present work illustrates the assembly of a filler-based polyurethane foam composite with anti-flaming properties from bio-based feedstocks with high-performance applications. Full article

Natural oils from watermelon, cherry, black currant, grape and pomegranate fruit seeds were applied in the synthesis of biopolyols using the transesterification reaction. In this manuscript, the preparation possibility of open-cell foams from a polyurethane system in which petrochemical polyol was fully replaced with biopolyols is analyzed. Firstly, polyurethane foam systems were developed on a laboratory scale, and they were next tested under industrial conditions. It was shown that the foaming method has a significant impact on the foaming process and the cell structure of obtained foams as well as their thermal insulation properties. Based on the conducted research, it was found that the method of processing the polyurethane system has a significant impact on the properties of open-cell spray foams. Foams produced under industrial conditions have a much higher cell density, which has a positive effect on their selected physical–mechanical properties compared to foams produced on a laboratory scale. The open-cell biofoams obtained using a high-pressure machine had apparent densities 12–17 kg/m³, thermal conductivity coefficients 35–37 mW/m·K, closed-cell contents < 10% and were dimensionally stable at low and high temperatures. Full article

Soil erosion, a global problem, degrades land quality and increases pollution and sedimentation in bodies of water. This study propounds a new material to mitigate soil erosion using rice straw-based polyurethane foam (RSPF) blocks as a potential replacement for commercially available expanded polystyrene (EPS) foam in slope stabilization. RSPF was synthesized via a conventional one-shot foaming method with 15% rice straw-based polyol content. The RSPF blocks have an average density of 43.29 kg/m³, average compressive strength of 184.55 kPa, closed cell content of 88.4%, and water absorption capacity of 262% that can effectively reduce water runoff. These properties are comparable to EPS foams according to ASTM D6817, except for the high absorption capacity of RSPF. This added feature allows the foam to act as topsoil protection by reducing runoff. In slope stabilization and topsoil protection applications, the effectiveness of the RSPF blocks in reducing soil loss was tested in both simulated and natural rainfall events with different land slope degrees, rain intensities, and soil covers. Results show that the use of RSPF in the simulated setup with a heavy rain intensity of 80 mm/h reduced the soil loss by 61.5%, 22.7%, and 4.3% in 5°, 10°, and 20° of land slope, respectively. There was also a higher degree of soil loss reduction when the RSPF block was coupled with a natural vegetation soil cover by 79.6%, 70%, and 19.3% in 5°, 10°, and 20° land slopes, respectively. Moreover, in the natural rainfall events in an open field with a land slope of 20°, the recorded soil loss reduction reached 93.6–98.8% at an average rainfall intensity of 16.26 mm/h. Additionally, the relationship between soil loss and land slope was investigated to produce a best fit model that predicts the soil loss up to a 20° land slope. An interesting observation was made wherein the erosion rate increased using linear regression modeling in the simulated setup for bare soil (BS), soil with vegetation (SV), soil with RSPF (SF), and soil with RSPF and vegetation (FV), with high coefficient of determination (R²) values between 0.92 and 0.99. These findings suggest that the RSPF block is a promising alternative and sustainable material for EPS foams in mitigating soil erosion, especially under heavy rainfall conditions. Full article

Open-cell spray polyurethane foams are widely used as highly efficient thermal insulation materials with vapor permeability and soundproofing properties. Unfortunately, for the production of commercial foams, mainly non-renewable petrochemical raw materials are used. The aim of this study was to determine the possibility of completely replacing petrochemical polyols (the main raw material used in the synthesis of polyurethanes, alongside isocyanates) with bio-polyols obtained from used cooking oils, classified as waste materials. The research consisted of three stages: the synthesis of bio-polyols, the development of polyurethane foam systems under laboratory conditions, and the testing of developed polyurethane spray systems under industrial conditions. The synthesis of the bio-polyols was carried out by using two different methods: a one-step transesterification process using triethanolamine and a two-step process of epoxidation and opening oxirane rings with diethylene glycol. The obtained bio-polyols were analyzed using gel chromatography and nuclear magnetic resonance spectroscopy. The developed polyurethane foam formulations included two types of fire retardants: halogenated tris(1-chloro-2-propyl) phosphate (TCPP) and halogen-free triethyl phosphate (TEP). In the formulations of polyurethane systems, reactive amine catalysts were employed, which become incorporated into the polymer matrix during foaming, significantly reducing their emission after application. The foams were manufactured on both a laboratory and industrial scale using high-pressure spray machines under conditions recommended by commercial system manufacturers: spray pressure 80–100 bar, component temperature 45–52 °C, and component volumetric ratio 1:1. The open-cell foams had apparent densities 14–21.5 kg/m³, thermal conductivity coefficients 35–38 mW/m∙K, closed-cell contents <5%, water vapor diffusion resistance factors (μ) <6, and limiting oxygen indexes 21.3–21.5%. The properties of the obtained foams were comparable to commercial materials. The developed polyurethane spray systems can be used as thermal insulation materials for insulating interior walls, attics, and ceilings. Full article

This study propounds a sustainable alternative to petroleum-based polyurethane (PU) foams, aiming to curtail this nonrenewable resource’s continued and uncontrolled use. Coconut fatty acid distillate (CFAD) and crude glycerol (CG), both wastes generated from vegetable oil processes, were utilized for bio-based polyol production for rigid PU foam application. The raw materials were subjected to catalyzed glycerolysis with alkaline-alcohol neutralization and bleaching. The resulting polyol possessed properties suitable for rigid foam application, with an average OH number of 215 mg KOH/g, an acid number of 7.2983 mg KOH/g, and a Gardner color value of 18. The polyol was used to prepare rigid PU foam, and its properties were determined using Fourier transform infrared spectroscopy (FTIR), thermogravimetric analysis/derivative thermogravimetric (TGA/DTA), and universal testing machine (UTM). Additionally, the cell foam morphology was investigated by scanning electron microscope (SEM), in which most of its structure revealed an open-celled network and quantified at 92.71% open-cell content using pycnometric testing. The PU foam thermal and mechanical analyses results showed an average compressive strength of 210.43 kPa, a thermal conductivity of 32.10 mW·m⁻¹K⁻¹, and a density of 44.65 kg·m⁻³. These properties showed its applicability as a type I structural sandwich panel core material, thus demonstrating the potential use of CFAD and CG in commercial polyol and PU foam production. Full article

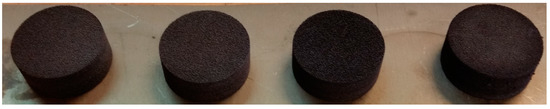

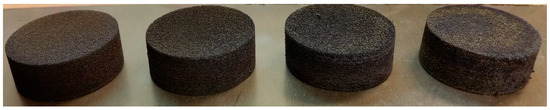

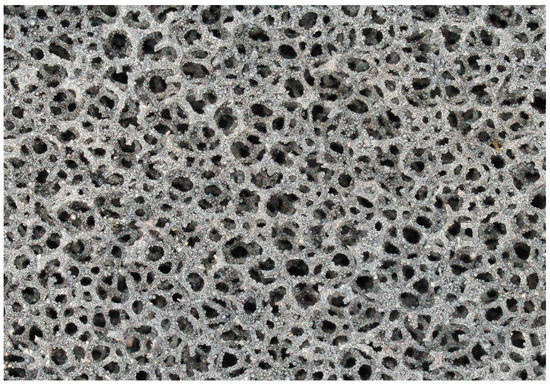

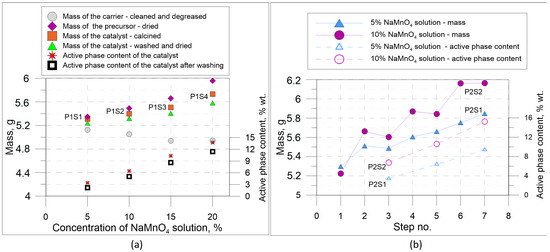

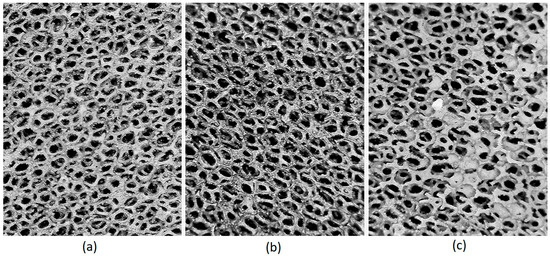

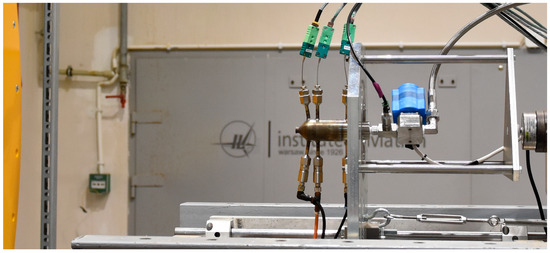

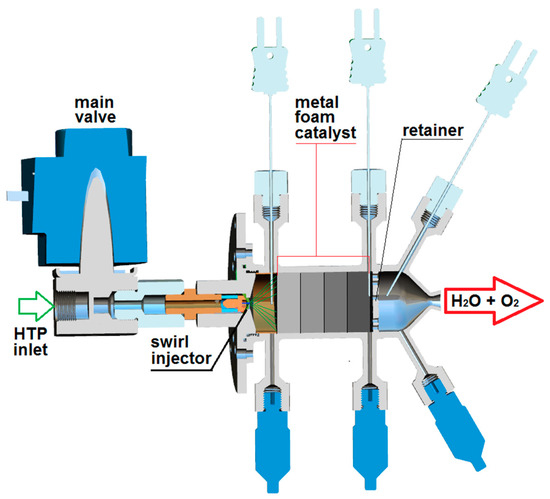

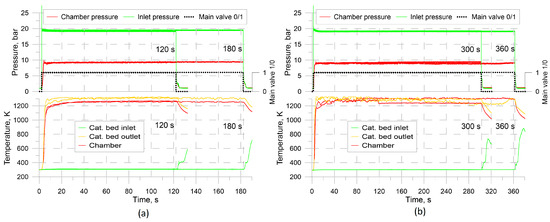

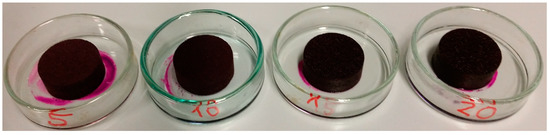

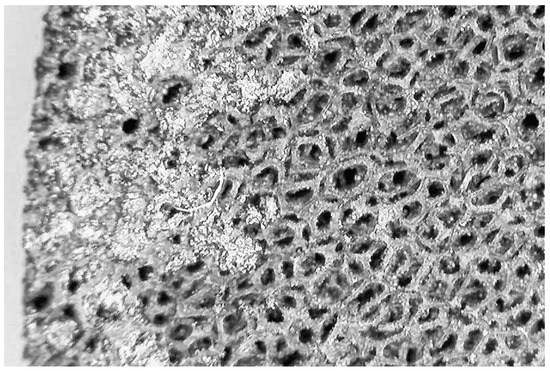

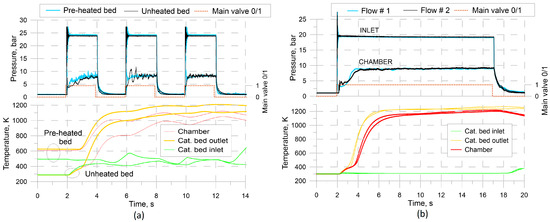

The article presents alternative metal-supported catalysts for decomposition of the highest-class hydrogen peroxide: 98%+ (Type 98 HP, according to MIL-PRF-16005F). The aim of this study was the experimental investigation of an alternative solution for decomposition of 98%+ hydrogen peroxide, strictly for chemical propulsion. High-porosity open cell metal foams have been identified as structures with great potential. Low density, good mechanical and thermal properties, availability of various materials and alloys as well as new technologies of manufacturing, make metal foam a potential solution for many different propellants, not only hydrogen peroxide. Open cell NiCrAl foam has been processed to prepare several catalysts, with different content and dispersion of the active phase. Cleaning and drying were performed to prepare carriers for further processing: wet impregnation, slow drying, and calcination. Simple drop tests with 98% hydrogen peroxide have been conducted to estimate activity level of catalysts, in a simplified scale: low, medium, high. Then, real-environment tests have been performed in a catalyst bed. Temperature, pressure along the bed and propellant mass flow rate were measured while testing. The analysis of the test results provided a general conclusion that metal foam supported manganese oxide catalyst is a promising solution for hydrogen peroxide propulsion. Full article

We report on the development of open-cell polyurethane foams based on bio-polyols from vegetable oils: hemp seed oil, oilseed radish oil, rapeseed oil and used rapeseed cooking oil. The crude oils were pressed from seeds and subjected to an optimal solvent-free epoxidation process. Bio-polyols were obtained by a ring-opening reaction using diethylene glycol and tetrafluoroboric acid as catalysts. The resultant foams were analysed in terms of their apparent density, thermal conductivity coefficient, mechanical strength, closed cell content, short-term water absorption and water vapour permeability, while their morphology was examined using scanning electron microscopy. It was found that regardless of the properties of the oils, especially the content of unsaturated bonds, it was possible to obtain bio-polyols with very similar properties. The foams were characterized by apparent densities ranging from 11.2 to 12.1 kg/m³, thermal conductivity of <39 mW/m∙K, open cell contents of >97% and high water vapour permeability. Full article

A new protein foaming–consolidation method for preparing porous zinc was developed using three proteins (egg white protein (EWP), bovine bone collagen protein (BBCP), and fish bone collagen protein (FBCP)) as both consolidating and foaming agents. The preparation route utilized powder mixing and sintering processing, which could be divided into three steps: slurry preparation, low-temperature foaming, and high-temperature sintering. The morphological characteristics of the pore structures revealed that the porous zinc had an interconnected open-cell structure. Compared to the porous zinc prepared with EWP or BBCP, the porous zinc prepared with FBCP possessed the largest average pore size and the highest compressive properties. The porosity of the porous zinc increased with the stirring time, the content of protein and sucrose, and higher sintering temperatures. Moreover, a compression test and immersion test were performed to investigate the stress–strain behavior and corrosion properties of the resulting porous zinc. A fluctuated stress plateau could be found due to the brittle fracture of the porous cells. The porous zinc prepared with FBCP showed the highest compressive strength and elastic modulus. The corrosion rate of the porous zinc obtained through an immersion test in vitro using simulated bodily fluids on the thirty-second day was close to 0.02 mm/year. The corresponding corrosion mechanism of porous zinc was also discussed. Full article

Different percentages of an elastomeric phase of styrene-ethylene-butylene-styrene (SEBS) were added to a polystyrene (PS) matrix to evaluate its nucleating effect in PS foams. It has been demonstrated that a minimum quantity of SEBS produces a high nucleation effect on the cellular materials that are produced. In particular, the results show that by adding 2% of SEBS, it is possible to reduce the cell size by 10 times while maintaining the density and open cell content of the foamed materials. The influence of this polymeric phase on the glass transition temperature (Tg) and the shear and extensional rheological properties has been studied to understand the foaming behavior. The results indicate a slight increase in the Tg and a decrease of the shear viscosity, extensional viscosity, and strain hardening coefficient as the percentage of SEBS increases. Consequently, an increase in the density and a deterioration of the cellular structure is detected for SEBS amounts higher than 3%. Full article

This work was designed to determine the mechanical properties and static cushioning performance of polyvinyl alcohol (PVA)/bagasse fibre foam composites with a multiple-factor experiment. Scanning electron microscopy (SEM) analysis and static cushioning tests were performed on the foamed composites and the results were compared with those of commonly used expanded polystyrene (EPS). The results were as follows: the materials had a mainly open cell structure, and bagasse fibre had good compatibility with PVA foam. With increasing PVA content, the mechanical properties of the system improved. The mechanical properties and static cushioning properties of the foam composite almost approached those of EPS. In addition, a small amount of sodium tetraborate obviously regulated the foaming ratio of foamed composites. With increasing sodium tetraborate content, the mechanical properties of foamed composites were enhanced. The yield strength and Young’s modulus of the material prepared by reducing the water content to 80.19 wt% were too high and not suitable for cushioned packaging of light and fragile products. Full article

Pd-based membrane reformers have been substantially studied in the past as a promising reformer to produce high-purity H₂ from thermochemical conversion of methane (CH₄). A variety of research approaches have been taken in the experimental and theoretical fields. The main objective of this work is a theoretical modelling to describe the process variables of the Steam Reforming of Methane (SRM) method on the Pd-based membrane reformer. These process variables describe the specific aims of each equation of the mathematical model characterizing the performance from reformer. The simulated results of the mole fractions of components (MFCs) at the outlet of the Fixed Bed Reformer (FBR) and Packed-Bed Membrane Reformer (PBMR) have been validated. When the H₂O/CH₄ ratio decreases in PBMR, the Endothermic Reaction Temperature (ERT) is notably increased (998.32 K) at the outlet of the PBMR’s reaction zone. On the other hand, when the H₂O/CH₄ ratio increases in PBMR, the ERT is remarkably decreased (827.83 K) at the outlet of the PBMR’s reaction zone. An increase of the spatial velocity (S_sp) indicates a reduction in the residence time of reactant molecules inside PBMR and, thus, a decrease of the ERT and conversion of CH₄. In contrast, a reduction of the S_sp shows an increase of the residence time of reactant molecules within PBMR and, therefore, a rise of the ERT and conversion of CH₄. An increase of the H₂O/CH₄ ratio raises the conversion rate (CR) of CH₄ due to the reduction of the coke content on the catalyst particles. Conversely, a reduction of the H₂O/CH₄ ratio decreases the CR of CH₄ owing to the increase of the coke content on the catalyst particles. Contrary to the CR of CH₄, the consumption-based yield (CBY) of H₂ sharply decreases with the increase of the H₂O/CH₄ ratio. An increase of the ERT raises the thermochemical energy storage efficiency (η_tese) from 68.96% (ERT = 1023 K), 63.21% (ERT = 973 K), and 48.12% (ERT = 723 K). The chemical energy, sensible heat, and heat loss reached values of 384.96 W, 151.68 W, and 249.73 W at 973 K. The selectivity of H₂ presents higher amounts in the gaseous mixture that varies from 60.98 to 73.18 while CH₄ showed lower values ranging from 1.41 to 2.06. Our work is limited to the SRM method. In terms of future uses of this method, new works can be undertaken using novel materials (open-cell foams) and the physical-mathematical model (two-dimensional and three-dimensional) to evaluate the concentration polarization inside membrane reactors. Full article
