Search Results (11)

The temperature resistance of glued timber, which is crucial for glued wood construction, represents a significant assessment criterion. To gain insights into this aspect, this study utilized methods such as a shear strength test in accordance with EN 302-1:2013-06 under thermal loading (from 20 °C to 200 °C), and Differential Scanning Calorimetry (DSC) to determine the glass transition temperature (Tg). An increase in thermal load resulted in a decrease in shear strength and an increase in wood breakage. A hierarchy of adhesive groups was established based on strength performance and wood failure percentage (WFP) at 200 °C. Thermoset adhesives (MF: Melamine Formaldehyde, PRF: Phenol Resorcinol Formaldehyde) led the ranking, followed by elastomer adhesives (1C-PUR: One-Component Polyurethane, EPI: Emulsion Polymer Isocyanate), with thermoplastic adhesive (PVAc: Polyvinyl Acetate) last. Thermoset adhesives further cured under heat. PUR adhesives exhibited higher strength performance at 150 °C and lower temperatures. Full article

Poly(butylene adipate-co-terephthalate) (PBAT), a biodegradable flexible, and tough polymer is herein used, for the first time, to encapsulate and protect isocyanate derivatives. Isocyanates are essential building blocks widely employed in the chemical industry for the production of high-performing materials. Microencapsulation of isocyanates eliminates the risks associated with their direct handling and protects them from moisture. In light of this, and having in mind eco-innovative products and sustainability, we present a straightforward process to encapsulate isophorone diisocyanate (IPDI) using this biodegradable polymer. Spherical and core-shell microcapsules (MCs) were produced by an emulsion system combined with the solvent evaporation method. The MCs present a regular surface, without holes or cracks, with a thin shell and high isocyanate loadings, up to 79 wt%. Additionally, the MCs showed very good isocyanate protection if not dispersed in organic or aqueous solutions. Effects of various process parameters were systematically studied, showing that a higher stirring speed (1000 rpm) and emulsifier amount (2.5 g), as well as a smaller PBAT amount (1.60 g), lead to smaller MCs and narrower size distribution. Full article

The differences of physical and mechanical properties of different laminations, such as softwood, hardwood or other structural composite lumber, in hybrid cross-laminated timber (HCLT), lead to their dimensional stability and bonding performance more complex than generic cross-laminated timber (CLT). In this paper, the spruce-pine-fir (SPF) dimension lumber and construction oriented strand board (COSB) were employed to fabricate HCLT. The effects of four configurations and three adhesives on the dimensional stability and bonding performance of CLT and HCLT were evaluated in term of the water absorption (WA), thickness swelling (TS), block shear strength (BSS), wood failure percentage (WFP) and rate of delamination (RD). The results showed that with the increase of the COSB laminations, the WA of HCLT specimens decreased, and the values of TS, BBS and WFP increased. The configuration had a significant influence on the dimensional stability, BBS and WFP of the specimen. The adhesive had a significant influence on the dimensional stability and some bonding performances of the specimen. The phenol resorcinol formaldehyde (PRF) specimens had the lowest average RD value compared with the one-component polyurethane (PUR) and emulsion polymer isocyanate (EPI) specimens. Failures were prone to occur in the middle of the thickness of COSB lamination during block shear and delamination tests. The outcome of this paper could help the engineering application of HLCT. Full article

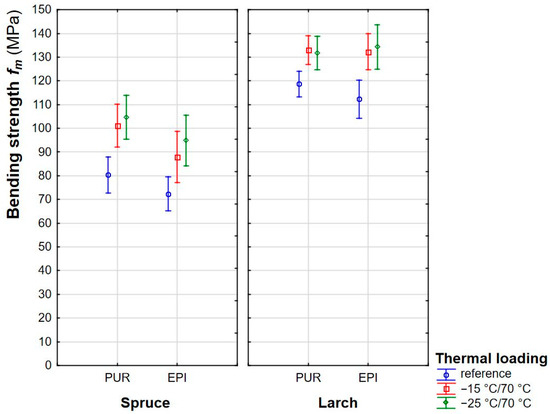

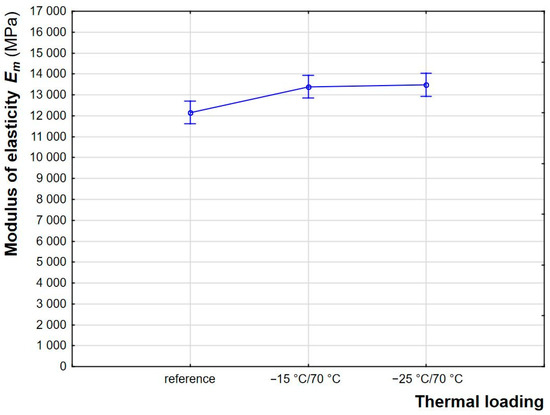

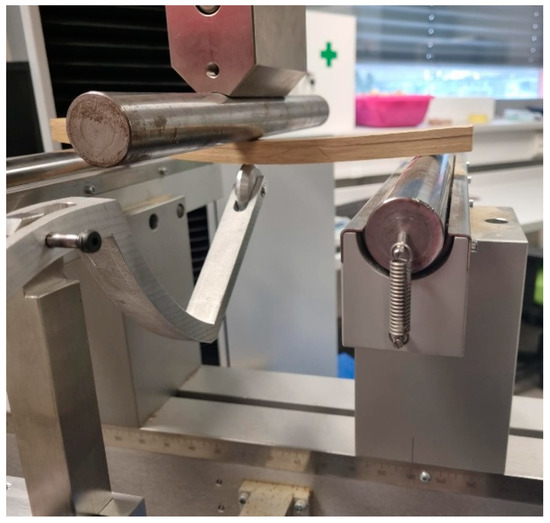

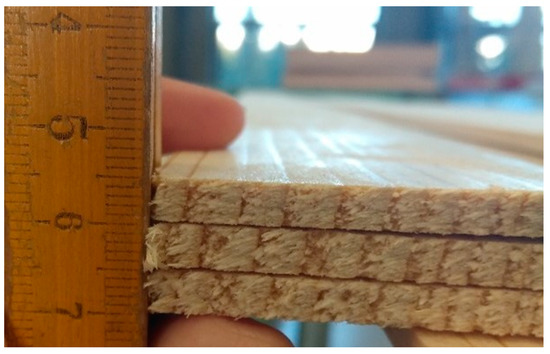

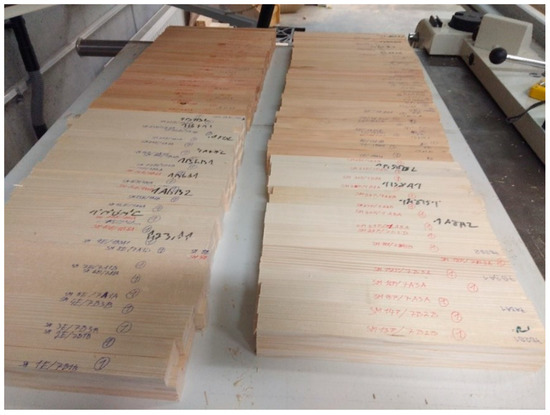

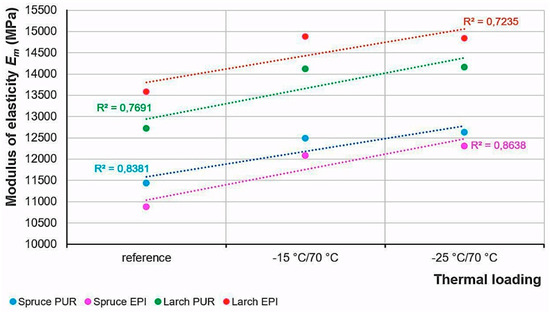

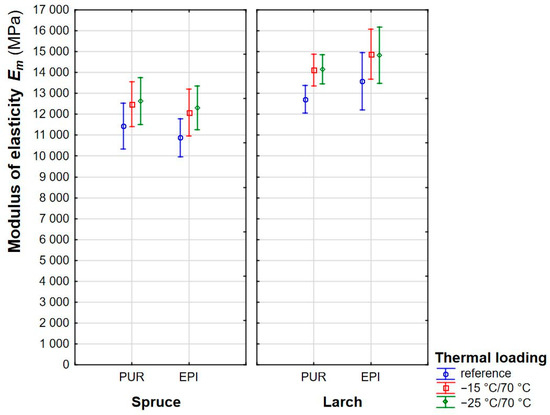

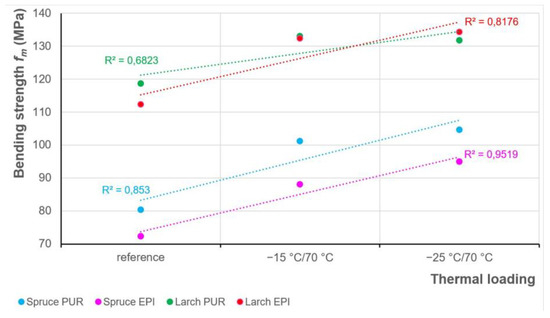

This article deals with the effect of alternating lower (freezing) and higher (heating) temperatures on the static bending characteristics of glued Norway spruce (Picea abies (L.) H. Karst.) and European larch (Larix decidua Mill.) wood. Two types of wood, PUR (polyurethane), and EPI (emulsion polymer isocyanate), were used for the experiment. The thermal loading of glued wood was carried out at temperatures −15 °C/70 °C and −25 °C/70 °C. Static bending characteristics were determined on glued wood samples and compared with the reference samples. Freezing causes an increase in the bending properties of both glued spruce and larch wood. The highest in bending strength was obtained for EPI-glued larch wood subjected to −25 °C/70 °C loading temperature, which is by as much as 20% increase from the reference value. The maximum improvement in the modulus of elasticity was achieved for EPI-glued larch with around 11% increase, although the increased values of bending strength and modulus of elasticity were not significant. The different densities, anatomical structures, and properties of spruce and larch wood can induce varying results between the two wood species. Full article

A rapid and one-pot synthesis of poly 3-thiopheneacetic acid (PTAA) functionalized polyurea polymer dots (Pdots) using polyethyleneimine and isophorone diisocyanate is reported. The one-pot mini-emulsion polymerization technique yielded Pdots with an average diameter of ~20 nm. The size, shape, and concentration of the surface functional groups could be controlled by altering the synthesis parameters such as ultrasonication time, concentration of the surfactant, and crosslinking agent, and the types of isocyanates utilized for the synthesis. Colloidal properties of Pdots were characterized using dynamic light scattering and zeta potential measurements. The spherical geometry of Pdots was confirmed by scanning electron microscopy. The Pdots were post-functionalized by 1,4,7,10 tetraazacyclododecane-1,4,7,10-tetraacetic acid for chelating gadolinium nanoparticles (Gd³⁺) that provide magnetic properties to the Pdots. Thus, the synthesized Pdots possess fluorescent and magnetic properties, imparted by PTAA and Gd³⁺, respectively. Fluorescence spectroscopy and microscopy revealed that the synthesized dual-functional Gd³⁺-Pdots exhibited detectable fluorescent signals even at lower concentrations. Magnetic levitation experiments indicated that the Gd³⁺-Pdots could be easily manipulated via an external magnetic field. These findings illustrate that the dua- functional Gd³⁺-Pdots could be potentially utilized as fluorescent reporters that can be magnetically manipulated for bioimaging applications. Full article

The O/W isocyanate emulsion can be used as a sizing agent to improve the waterproof performance of paper. However, the -NCO content in the emulsion diminishes with the prolongation of standing time. What is happening to this seemingly stable emulsion, especially concerning its microstructure evolution? We propose to monitor the emulsions deteriorative process by combining freeze-drying technique and SEM. Thus, the emulsion containing -NCO active group was obtained by the synthetic polymer emulsification of HDI trimers. The results of SEM demonstrate that the emulsion deteriorative process actually represents the collapsing and fusion of stable honeycomb structure with the prolongation of standing time and increasing temperature. This is possibly due to the fact that the inner aggregative HDI trimers are reacting with outside water to form urethane macromolecules, and this results in the collapsing and fusion of the honeycomb structure, as observed in SEM images. Moreover, the measurement results of -NCO content and FT-IR spectroscopy present the -NCO content as reducing with increasing standing time and temperature. This conclusion further proves our hypotheses. Additionally, the emulsions are used to treat the paper by site-directed reaction. The results show that the with the increase of the standing time and temperature, the contact angles and surface free energy show a decrease and an increase, respectively, whereas surface free energy appeared at a minimum of 29.19 mJ·m⁻² when the standing time and temperature was 1 h and 25 °C. Full article

Determining adhesive bond performance for chemically modified wood is important not only for its commercial utility but also for understanding wood bond durability. Bulking modifications occupy space inside the cell wall, limiting the space available for water. We used two bulking modifications on yellow poplar (Liriodendron tulipifera L.): acetylation (Ac), which bulks and converts a wood hydroxyl group to an ester, while butylene oxide (BO) also bulks the wood but preserves a hydroxyl group. Both result in lower water uptake; however, the loss of the hydroxyl group with Ac reduces the wood’s ability to form hydrogen and other polar bonds with the adhesives. On the other hand, the BO reaction replaces a hydroxyl group with another one along a hydrocarbon chain; thus, this product may not be harder to bond than the unmodified wood. We investigated how these chemical modifications of wood affect bond performance with four adhesives: resorcinol-formaldehyde (RF), melamine-formaldehyde (MF), emulsion polymer isocyanate (EPI), and epoxy. The ASTM D 905 bond shear strength for both dry and wet samples showed that the BO results were quite similar to the unmodified wood, but the MF and EPI performed poorly on Ac-modified wood, in contrast to the results with RF and epoxy. Full article

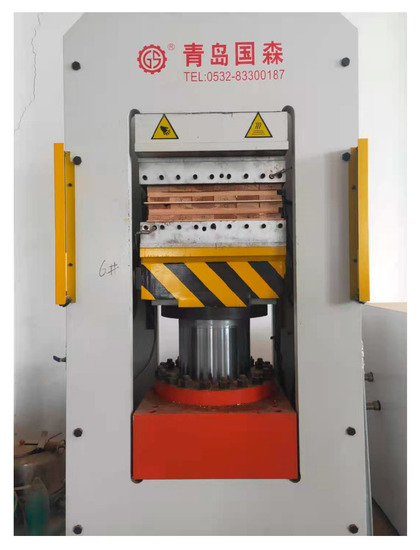

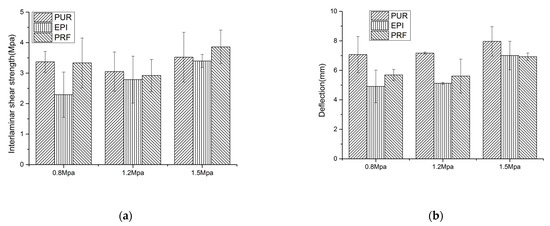

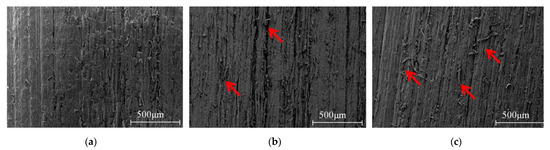

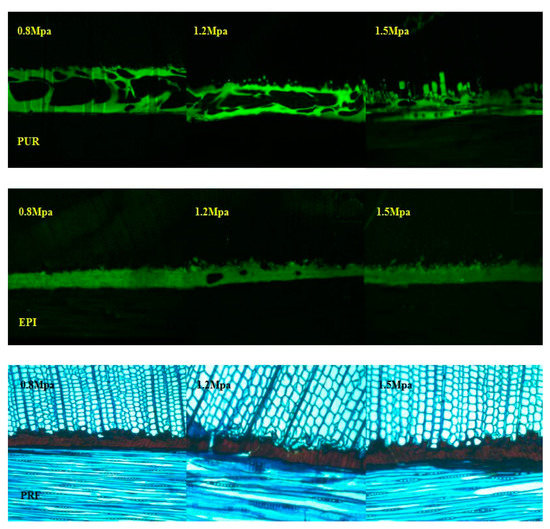

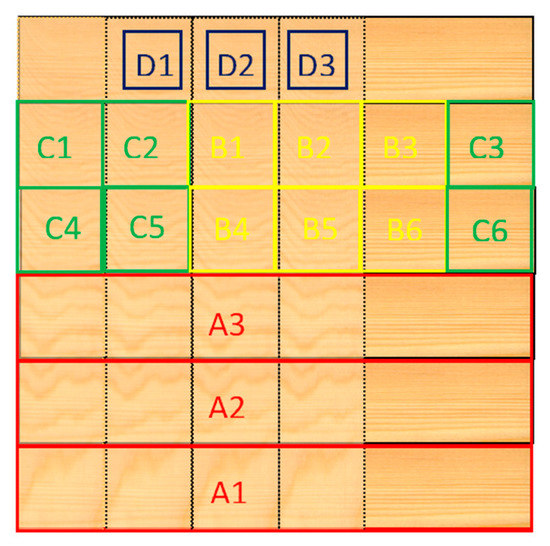

Previous studies have proved that Larix kaempferi is a good material for preparing cross-laminated timber (CLT), but under bending shear stress, CLT made by Larix kaempferi is prone to the phenomenon of bonding face cracking, which seriously affects the shear performance of CLT. To solve this problem, this paper took Larix kaempferi as raw material, conducted experiments on the surface sanding conditions, gluing pressure and adhesive types of sawing timber, and explored the influence of these three factors on the bonding quality of CLT. The microscopic characteristics of the bonding layer were further studied. The results showed that for Larix kaempferi with a density of 0.68 g/cm³ used in this experiment, a high bonding pressure is required. Among the three cold curing adhesives selected in the experiment, emulsion polymer isocyanate (EPI) adhesive needs 1.5 MPa bonding pressure to ensure the bonding quality, while for polyurethane (PUR) and phenol resorcinol formaldehyde (PRF), 1.2 MPa can meet the need of adhesive pressure. This is concerned with the permeability of different adhesives under different pressures. The microscopic results of the bonding layer show that EPI adhesives have poor permeability, so it requires high bonding pressure. The influence of sanding surface of different sand-belt on block shear strength (BSS) and wood failure percentage (WFP) is not obvious, while the durability of bonding layer is better when sanding mesh number is 100. Hence, a high pressure should be used for CLT industrial production when the laminate density is higher, especially when the adhesive has poor permeability. Reasonable sanding surface treatment can be used in laminate surface treatment to improve the durability of CLT. Full article

Information of the relaxation behaviors of polymer film is crucial to judge the durability of emulsion polymer isocyanate (EPI) as a structural adhesive for bonding timber-based products. A sequence of tensile creep tests and free volume evaluation of the cured EPI adhesive films during isothermal condition were carried out by dynamic mechanical analysis and positron annihilation lifetime spectroscopy, respectively. It is the first time to explore the creep response and physical aging of the EPI film, as well as associated microstructural evolution. The results indicate that the creep characteristics of the glassy EPI coating intimately depend upon the crosslinker and elapsed time, and the ideal momentary creep master curve can be constructed in terms of modified horizontal shifting method. Furthermore, the relaxation process is found to be dominated by vacancy diffusion mechanism. In addition, increasing the polymeric isocyanate content can significantly enhance the resistance to creep deformation of EPI films, but also accelerate the physical aging process. Due to a higher packing degree of pure polymer films, the EPI films with aqueous emulsified isocyanate exhibit much better relaxation resistance compared to that with general isocyanate crosslinker. Full article

Knowledge of the mechanical behaviors of polymer film in humid environments is of great significance for predicting the long-term performance of emulsion polymer isocyanate (EPI) as a high-performance wood adhesive. A tri-copolymer latex was cross-linked by the general polymeric methylene diisocyanate (p-MDI) and aqueous emulsified isocyanate (EMDI) at different loadings for preparing EPI. Furthermore, a series of uniaxial tension tests under different relative humidity (RH) were carried out on cured EPI samples before and after post-curing treatment, and the corresponding chemical structure, as well as the microstructure of polymers, was investigated in detail. In addition, a constitutive equation was formulated to calculate the viscoelastic characteristics of the adhesive layer. The results indicate that the EPI films reveal various kinds of intrinsic deformation as RH increases, and the tensile rupture stress and stiffness would obviously decrease, even at cross-linker weight ratios of up to 20%. Furthermore, the moisture resistance could be markedly improved by increasing the isocyanate content and post-cure. Importantly, EMDI-cross-linked film not only exhibits much better mechanical properties than that containing p-MDI at 0–80% RH, but is also more sensitive to post-cure. Finally, the derived viscoelastic model could efficiently track moisture-dependent stress-strain curves of EPI films, and the obtained relaxation time further reveals the influence mechanism of isocyanate and post-cure on the mechanical response of the cured polymer under moist conditions. Full article

Acetylation of wood imparts moisture durability, decay resistance, and dimensional stability to wood; however, making durable adhesive bonds with acetylated wood can be more difficult than with unmodified wood. The usual explanation is that the acetylated surface has fewer hydroxyl groups, resulting in a harder-to-wet surface and in fewer hydrogen bonds between wood and adhesive. This concept was evaluated using four different adhesives (resorcinol–formaldehyde, emulsion polymer isocyanate, epoxy, and melamine–formaldehyde) with unmodified wood, acetylated wood, and acetylated wood that had been planed. Strikingly, acetylation did not hinder adhesive bonds with a waterborne resorcinol–formaldehyde adhesive that bonded equally well to both unmodified and acetylated yellow poplar. An epoxy adhesive bonded better to the acetylated wood than to the unmodified wood, in contrast to an emulsion polymer isocyanate, which gave less durable bonds to acetylated than to unmodified wood. Planing of the acetylated wood surface prior to bonding reduced bond durability for the epoxy adhesive and increased the amount of surface hydroxyl groups, as measured using X-ray photoelectron spectroscopic analysis of the trifluoroacetic anhydride-treated wood. These experiments showed that wood modification is useful in understanding wood-adhesive interactions, in addition to determining how to develop adhesives for acetylated woods. Full article
