Search Results (24)

The microstructure of polyacrylonitrile (PAN) precursor fibers has a profound influence on the performance of carbon fibers and depends on the spinning processes and processing conditions. This study compared the evolution of the microstructures and performance of PAN fibers between the wet-spinning and dry-jet wet-spinning processes, utilizing scanning electron microscopy, small/wide-angle X-ray scattering, dynamic mechanical analysis, and single-fiber tensile testing. Both spinning processes promoted the oriented alignment of microfibrils and fibrils, improved the crystal arrangement and molecular regularity, and facilitated the transition from a two-phase (crystalline/amorphous) structure to a single-phase structure, thereby gradually improving the fibers’ elastic character and mechanical properties. However, wet-spun fibers exhibited inherent defects (skin-core structure and large voids), which caused surface grooves, radial mechanical heterogeneity, and low breaking elongation during post-spinning. In contrast, dry-jet wet-spun fibers initially had a smooth surface and a homogeneous radial structure, which evolved into well-oriented, radially homogeneous structures during post-spinning. Furthermore, the dry-jet wet-spinning process produced greater increases in crystallinity (46%), crystal size (258%), and orientation index (146%) than the wet-spinning process did. The dry-jet wet-spinning process’s superiority in forming and optimizing the fiber microstructure gives it greater potential for producing high-quality PAN precursor fibers. Full article

Sutures provide mechanical support for wound closure after various traumas and surgical operations. Absorbable sutures are increasingly favored as they eliminate the need for secondary procedures and minimize additional damage to the wound site. In this study, chitosan sutures were produced using the dry jet–wet spinning method, achieving number 7-0 sutures (approximately 76 μm diameter) with a homogeneous surface. FTIR analysis demonstrated molecular interactions between chitosan and TiO₂ or curcumin, confirming successful incorporation. The addition of 3% TiO₂ increased the tensile strength of chitosan sutures by 12.32%, reaching 189.41 MPa. Morphological analysis revealed smooth surfaces free of pores and bubbles, confirming the production of high-quality sutures. Radical scavenging activity analysis showed that curcumin-loaded sutures exhibited 43% scavenging ability after 125 h, which was significantly higher compared to pure chitosan sutures. In vitro antibacterial tests demonstrated that curcumin-loaded sutures provided 98.87% bacterial inactivation against S. aureus within 24 h. Additionally, curcumin release analysis showed a cumulative release of 77% over 25 h. The bioactivity of the sutures was verified by hydroxyapatite layer formation after incubation in simulated body fluid, supporting their potential for tissue regeneration. These findings demonstrate that TiO₂ reinforcement and curcumin loading significantly enhance the functional properties of chitosan sutures, making them strong candidates for biocompatible and absorbable surgical applications. Full article

Both annual (cotton, flax, hemp, etc.) and perennial (trees and grasses) plants can serve as a source of cellulose for fiber production. In recent years, the perennial herbaceous plant miscanthus has attracted particular interest as a popular industrial plant with enormous potential. This industrial crop, which contains up to 57% cellulose, serves as a raw material in the chemical and biotechnology sectors. This study proposes for the first time the utilization of miscanthus, namely Miscanthus Giganteus “KAMIS”, to generate spinning solutions in N-methylmorpholine-N-oxide. Miscanthus cellulose’s properties were identified using standard methods for determining the constituent composition, including also IR and atomic emission spectroscopy. The dry-jet wet method was used to make fibers from cellulose solutions with an appropriate viscosity/elasticity ratio. The structural characteristics of the fibers were studied using IR and scanning electron microscopy, as well as via X-ray structural analysis. The mechanical and thermal properties of the novel type of hydrated cellulose fibers demonstrated the possibility of producing high-quality fibers from miscanthus. Full article

This paper investigates the effects of pre-gelation on cellulose dissolved in LiCl/DMAc solutions to enhance the properties of regenerated cellulose materials. This study focuses on characterizing the crystallinity, molecular orientation, and mechanical performance of cellulose fibers and hydrogels prepared with and without pre-gelation treatment. X-ray diffraction (XRD) analysis reveals that crystallinity improvement from 55% in untreated fibers to 59% in fibers pre-gelled for 3 and 7 days, indicating a more ordered arrangement of cellulose chains post-regeneration. Additionally, XRD patterns show improved chain alignment in pre-gelled fibers, as indicated by reduced full width at half the maximum of Azimuthal scans. Mechanical testing demonstrates a 30% increase in tensile strength and a doubling of the compression modulus for pre-gelled fibers compared to untreated fibers. These findings underscore the role of pre-gelation in optimizing cellulose material properties for applications ranging from advanced textiles to biomaterials and sustainable packaging. Future research directions include further exploration of the structural and functional benefits of pre-gelation in cellulose processing and its broader implications in material science and engineering. Full article

Recent advances in biomedical research, particularly in optical applications, have sparked a transformative movement towards replacing synthetic polymers with more biocompatible and sustainable alternatives. Most often made from plastics or glass, these materials ignite immune responses from the body, and their production is based on environmentally harsh oil-based processes. Biopolymers, including both polysaccharides and proteins, have emerged as a potential candidate for optical biomaterials due to their inherent biocompatibility, biodegradability, and sustainability, derived from their existence in nature and being recognized by the immune system. Current extraction and fabrication methods for these biomaterials, including thermal drawing, extrusion and printing, mold casting, dry-jet wet spinning, hydrogel formations, and nanoparticles, aim to create optical materials in cost-effective and environmentally friendly manners for a wide range of applications. Present and future applications include optical waveguides and sensors, imaging and diagnostics, optical fibers, and waveguides, as well as ocular implants using biopolymers, which will revolutionize these fields, specifically their uses in the healthcare industry. Full article

Bacterial cellulose, as an important renewable bioresource, exhibits excellent mechanical properties along with intrinsic biodegradability. It is expected to replace non-degradable plastics and reduce severe environmental pollution. In this study, using dry jet-wet spinning and stretching methods, we fabricate cellulose composite macrofibers using nanofibrillated bacterial cellulose (BCNFs) which were obtained by agitated fermentation. Ionic liquid (IL) was used as a solvent to perform wet spinning. In this process, force-induced alignment of BCNFs was applied to enhance the mechanical properties of the macrofibers. The results of scanning electron microscopy revealed the well-aligned structure of BCNF along the fiber axis. The fiber prepared with an extrusion rate of 30 m min⁻¹ and a stretching ratio of 46% exhibited a strength of 174 MPa and a Young’s modulus of 13.7 GPa. In addition, we investigated the co-spinning of carboxymethyl cellulose-containing BCNF with chitosan using IL as a “container”, which indicated the compatibility of BCNFs with other polysaccharides. Recycling of the ionic liquid was also verified to validate the sustainability of our strategy. This study provides a scalable method to fabricate bacterial cellulose composite fibers, which can be applied in the textile or biomaterial industries with further functionalization. Full article

Fiber demand of cellulosic fibers is rapidly increasing; however, these fibers are mainly based on the use of wood pulp (WP), which often have long transport times and, consequently, a high CO₂ footprint. So, alternative pulps based on non-wood, annual fast-growing plants are an option to cover the demand for raw materials and resources. Herein, we report on the use of a novel developed hemp pulp (HP) for man-made cellulosic fiber filament spinning. Commercial WP was used as a reference material. While HP could be used and directly spun as received without any further pretreatment, an additional step to adjust the degree of polymerization (DP) was needed to use the wood pulp. Continuous filaments were spun using a novel dry-jet wet spinning (HighPerCell^® process) technique, which is based on the use of 1-ethyl-3-methylimidazolium octanoate ([C₂C₁im][Oc]) as a solvent. Via this approach, several thousand meters (12,000 m–15,000 m) of continuous multifilament filaments were spun. The HP pulps showed excellent spinning performance. The novel approach allows the preparation of cellulosic fibers for either technical—with high tensile strength—or textile—possessing a low fibrillation tendency—applications. Textile hemp-based filaments were used for first weaving trials, resulting in a flawless fabric. Full article

Morphological transformations in emulsions of cellulose and polyacrylonitrile (PAN) ternary copolymers containing acrylonitrile, methyl acrylate, and methylsulfonate comonomers in N-methylmorpholine-N-oxide were studied over the entire range of concentrations depending on temperature and intensity of the deformation action. Based on the morphological and rheological features of the system, the temperature-concentration range of spinnability of mixed solutions was determined, and composite fibers were spun. The fibers are characterized by a heterogeneous fibrillar texture. Studies of the structure of the fibers, carried out using X-ray diffraction analysis, revealed a decrease in cellulose crystallinity with an increase in the content of PAN. The study of the thermal properties of the obtained fibers, carried out using DSC, and chemical transformations in them in a wide temperature range by high-temperature diffuse reflection IR spectroscopy made it possible to reveal a new intense exothermic peak on the thermograms at 360 °C, which according to the IR spectra corresponds to the transformation of intermacromolecular physical interactions of the PAN and cellulose into covalent bonds between polymers. In addition, the ester groups found during the thermal treatment of the PAN part of the composite fibers in the pyrolysis zone can have a key effect on the process of their further carbonization. Full article

The combination of polyethylene terephthalate (PET), one of the most used polymers in the textile industry, with graphene, one of the most outstanding conductive materials in recent years, represents a promising strategy for the preparation of conductive textiles. This study focuses on the preparation of mechanically stable and conductive polymer textiles and describes the preparation of PET/graphene fibers by the dry-jet wet-spinning method from nanocomposite solutions in trifluoroacetic acid. Nanoindentation results show that the addition of a small amount of graphene (2 wt.%) to the glassy PET fibers produces a significant modulus and hardness enhancement (≈10%) that can be partly attributed to the intrinsic mechanical properties of graphene but also to the promotion of crystallinity. Higher graphene loadings up to 5 wt.% are found to produce additional mechanical improvements up to ≈20% that can be merely attributed to the superior properties of the filler. Moreover, the nanocomposite fibers display an electrical conductivity percolation threshold over 2 wt.% approaching ≈0.2 S/cm for the largest graphene loading. Finally, bending tests on the nanocomposite fibers show that the good electrical conductivity can be preserved under cyclic mechanical loading. Full article

To improve the physical strength of regenerated cellulose fibers, cellulose dissolution was analyzed with a conductor-like screening model for real solvents in which 1-allyl-3-methylimidazolium chloride (AMIMCl) worked only as a hydrogen bond acceptor while dissolving the cellulose. This process could be promoted by the addition of urea, glycerol, and choline chloride. The dissolution and regeneration of cellulose was achieved through dry-jet and wet-spinning. The results demonstrated that the addition of hydrogen bond donors and acceptors either on their own or in combination can enhance the tensile strength, but their effects on the crystallinity of the regenerated fibers were quite limited. Compared with the regenerated fibers without any additives, the tensile strength was improved from 54.43 MPa to 139.62 MPa after introducing the choline chloride and glycerol, while related the crystallinity was only changed from 60.06% to 62.97%. By contrast, a more compact structure and fewer pores on the fiber surface were identified in samples with additives along with well-preserved cellulose frameworks. Besides, it should be noted that an optimization in the overall thermal stability was obtained in samples with additives. The significant effect of regenerated cellulose with the addition of glycerol was attributed to the reduction of cellulose damage by slowing down the dissolution and cross-linking in the cellulose viscose. The enhancement of the physical strength of regenerated cellulose fiber can be realized by the appropriate adjustment of the hydrogen bond distribution in the ionic liquid system with additives. Full article

The flexible SERS substrate were prepared base on regenerated cellulose fibers, in which the Au nanoparticles were controllably assembled on fiber through electrostatic interaction. The cellulose fiber was regenerated from waste paper through the dry-jet wet spinning method, an eco-friendly and convenient approach by using ionic liquid. The Au NPs could be controllably distributed on the surface of fiber by adjusting the conditions during the process of assembling. Finite-difference time-domain theoretical simulations verified the intense local electromagnetic fields of plasmonic composites. The flexible SERS fibers show excellent SERS sensitivity and adsorption capability. A typical Raman probe molecule, 4-Mercaptobenzoicacid (4-MBA), was used to verify the SERS cellulose fibers, the sensitivity could achieve to 10⁻⁹ M. The flexible SERS fibers were successfully used for identifying dimetridazole (DMZ) from aqueous solution. Furthermore, the flexible SERS fibers were used for detecting DMZ from the surface of fish by simply swabbing process. It is clear that the fabricated plasmonic composite can be applied for the identifying toxins and chemicals. Full article

The CO₂ separation from flue gas based on membrane technology has drawn great attention in the last few decades. In this work, polyetherimide (PEI) hollow fibers were fabricated by using a dry-jet-wet spinning technique. Subsequently, the composite hollow fiber membranes were prepared by dip coating of polydimethylsiloxane (PDMS) selective layer on the outer surface of PEI hollow fibers. The hollow fibers spun from various spinning conditions were fully characterized. The influence of hollow fiber substrates on the CO₂/N₂ separation performance of PDMS/PEI composite membranes was estimated by gas permeance and ideal selectivity. The prepared composite membrane where the hollow fiber substrate was spun from 20 wt% of dope solution, 12 mL/min of bore fluid (water) flow rate exhibited the highest ideal selectivity equal to 21.3 with CO₂ permeance of 59 GPU. It was found that the dope concentration, bore fluid flow rate and bore fluid composition affect the porous structure, surface morphology and dimension of hollow fibers. The bore fluid composition significantly influenced the gas permeance and ideal selectivity of the PDMS/PEI composite membrane. The prepared PDMS/PEI composite membranes possess comparable CO₂/N₂ separation performance to literature ones. Full article

The objective of this article is to provide an overview on the current development of micro- and nanoporous fiber processing and manufacturing technologies. Various methods for making micro- and nanoporous fibers including co-electrospinning, melt spinning, dry jet-wet quenching spinning, vapor deposition, template assisted deposition, electrochemical oxidization, and hydrothermal oxidization are presented. Comparison is made in terms of advantages and disadvantages of different routes for porous fiber processing. Characterization of the pore size, porosity, and specific area is introduced as well. Applications of porous fibers in various fields are discussed. The emphasis is put on their uses for energy storage components and devices including rechargeable batteries and supercapacitors. Full article

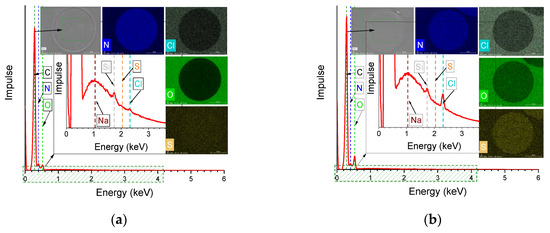

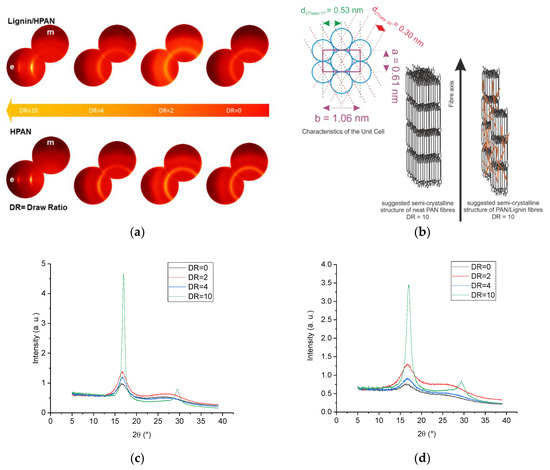

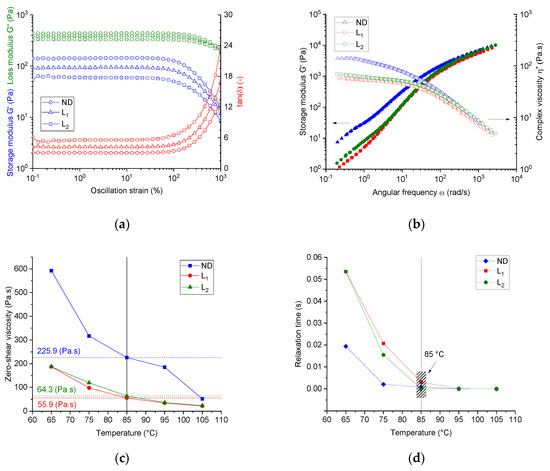

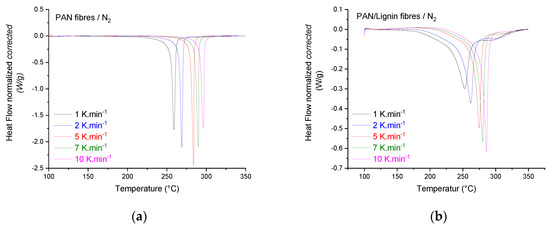

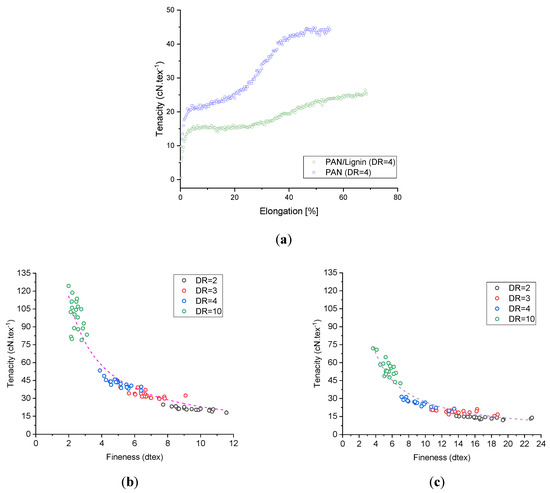

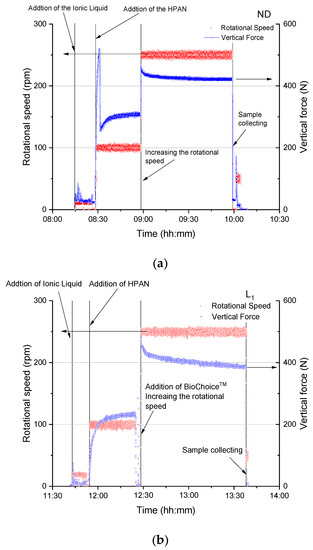

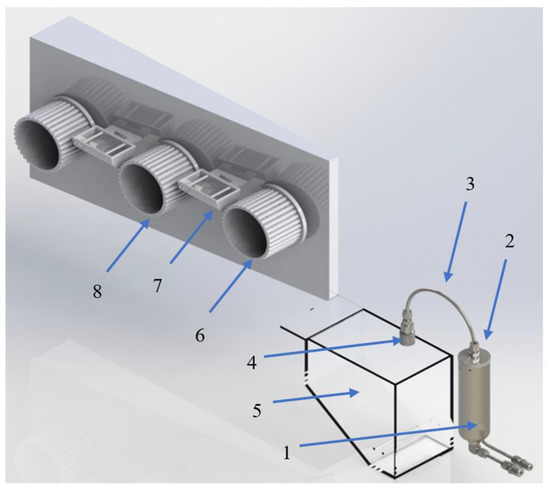

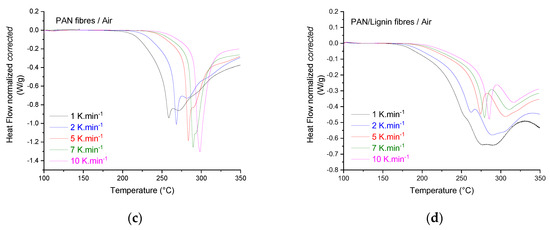

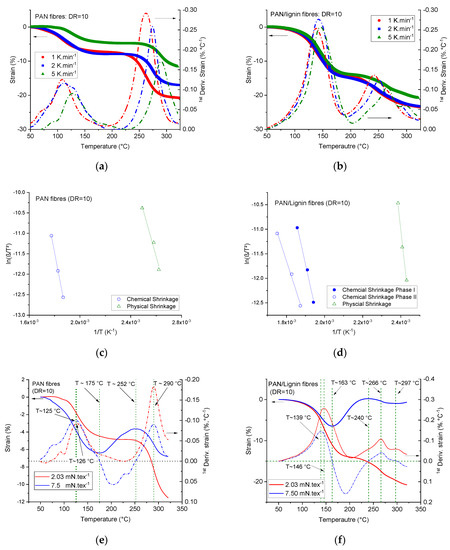

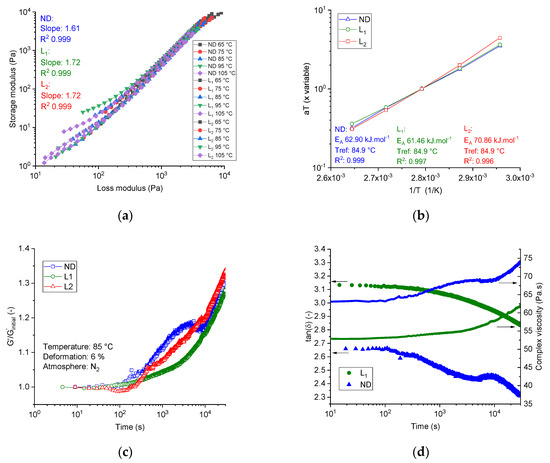

In this paper, we report on the use of amorphous lignin, a waste by-product of the paper industry, for the production of high performance carbon fibers (CF) as precursor with improved thermal stability and thermo-mechanical properties. The precursor was prepared by blending of lignin with polyacrylonitrile (PAN), which was previously dissolved in an ionic liquid. The fibers thus produced offered very high thermal stability as compared with the fiber consisting of pure PAN. The molecular compatibility, miscibility, and thermal stability of the system were studied by means of shear rheological measurements. The achieved mechanical properties were found to be related to the temperature-dependent relaxation time (consistence parameter) of the spinning dope and the diffusion kinetics of the ionic liquids from the fibers into the coagulation bath. Furthermore, thermogravimetric analysis (TGA), differential scanning calorimetry (DSC), and dynamic mechanical tests (DMA) were utilized to understand in-depth the thermal and the stabilization kinetics of the developed fibers and the impact of lignin on the stabilization process of the fibers. Low molecular weight lignin increased the thermally induced physical shrinkage, suggesting disturbing effects on the semi-crystalline domains of the PAN matrix, and suppressed the chemically induced shrinkage of the fibers. The knowledge gained throughout the present paper allows summarizing a novel avenue to develop lignin-based CF designed with adjusted thermal stability. Full article

The creation of a liver tissue that recapitulates the micro-architecture and functional complexity of a human organ is still one of the main challenges of liver tissue engineering. Here we report on the development of a 3D vascularized hepatic tissue based on biodegradable hollow fiber (HF) membranes of poly(ε-caprolactone) (PCL) that compartmentalize human hepatocytes on the external surface and between the fibers, and endothelial cells into the fiber lumen. To this purpose, PCL HF membranes were prepared by a dry-jet wet phase inversion spinning technique tailoring the operational parameters in order to obtain fibers with suitable properties. After characterization, the fibers were applied to generate a human vascularized hepatic unit by loading endothelial cells in their inner surface and hepatocytes on the external surface. The unit was connected to a perfusion system, and the morpho-functional behavior was evaluated. The results demonstrated the large integration of endothelial cells with the internal surface of individual PCL fibers forming vascular-like structures, and hepatocytes covered completely the external surface and the space between fibers. The perfused 3D hepatic unit retained its functional activity at high levels up to 18 days. This bottom-up tissue engineering approach represents a rational strategy to create relatively 3D vascularized tissues and organs. Full article
