Search Results (31)

In order to improve the microwave-absorption performance of barium ferrite and broaden its microwave-absorption band, BaFe₁₂O₁₉, Ba_0.95Ca_0.05Fe₁₂O₁₉, and Ba_0.95Ca_0.05Fe_12−xCo_xO₁₉ (x = 0.1, 0.2, 0.3 and 0.4, respectively) hexaferrites were synthesized by the solid-state reaction method, and the influence of Co ion substitution on the phase composition, microstructure, magnetic properties, and microwave-absorption ability of the ferrites in this system was studied. Introducing minor Co ions (x < 0.2) facilitated sintering and grain growth. At x ≥ 0.2, XRD revealed the emergence of the Co₂X phase alongside the BaM phase. Increasing Co ion concentration and the secondary X-phase led to slight reductions in saturation magnetization (69 to 63.5 emu/g) and substantial decline in coercivity (2107.02 to 111.21 Oe), attributed to grain size growth and Co₂X’s soft magnetic nature. Notably, Co₂X incorporation significantly enhanced the microwave absorption and provided a tunable absorption band from the Ku to the C band. For a sample with a thickness of 2.0 mm and a doping level of x = 0.2, a minimum reflection loss of −59.5 dB was achieved at 8.92 GHz, with an effective absorption bandwidth of 3.31 GHz (7.07–10.38 GHz). The simple preparation method and good performance make Ba_0.95Ca_0.05Fe_12−xCo_xO₁₉ (x = 0.1, 0.2, 0.3 and 0.4, respectively) hexaferrites promising microwave-absorbing materials. Full article

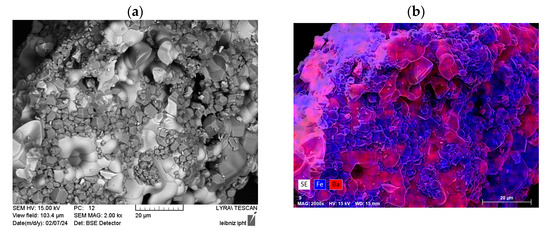

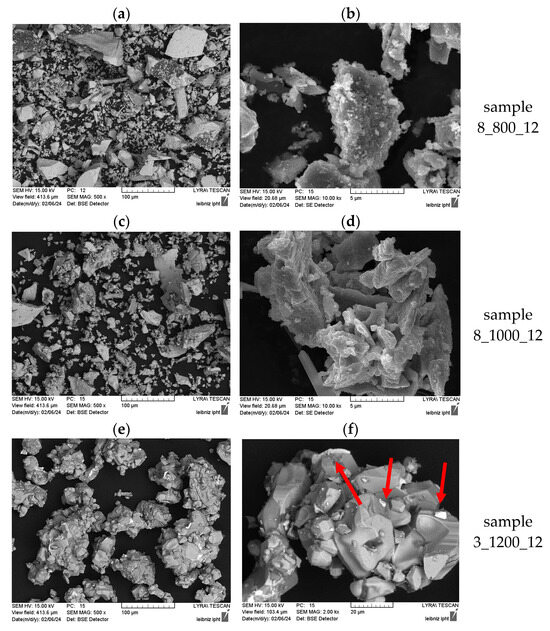

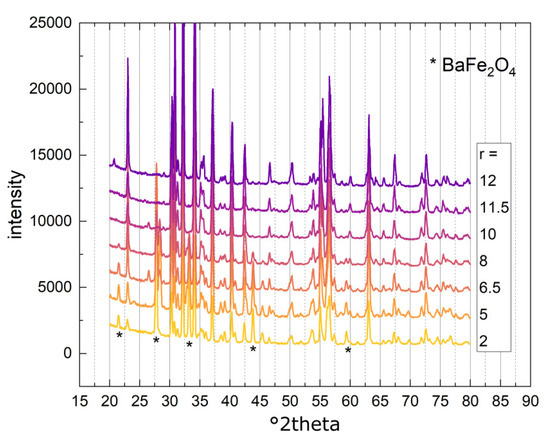

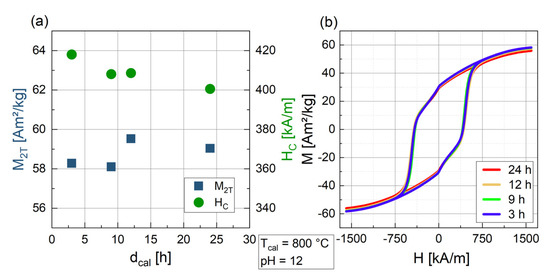

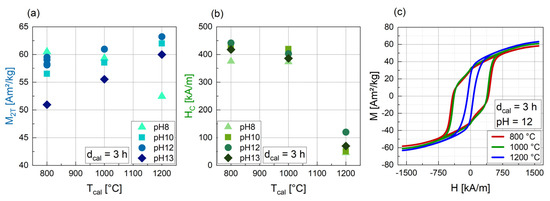

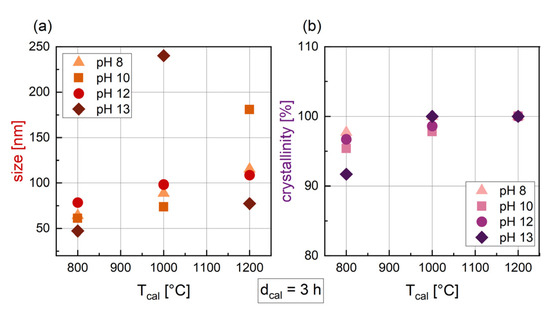

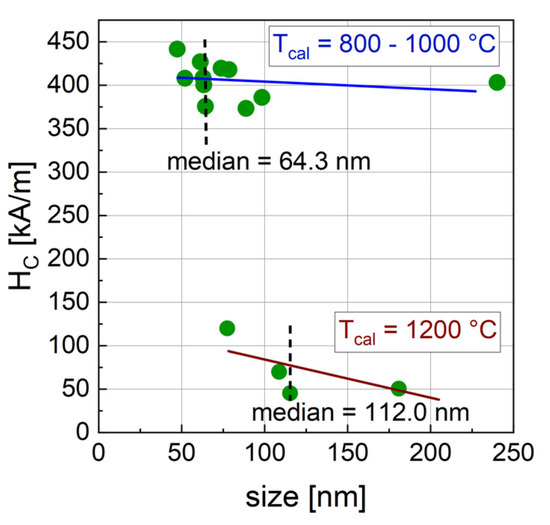

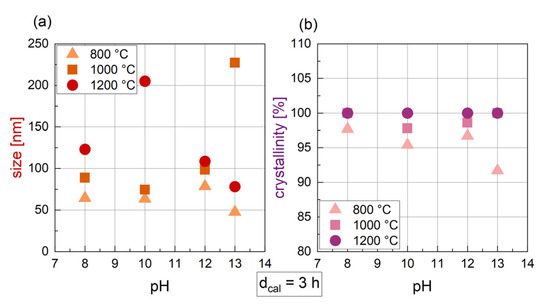

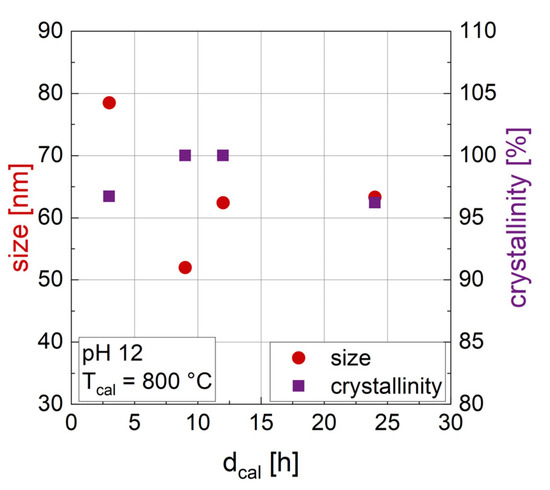

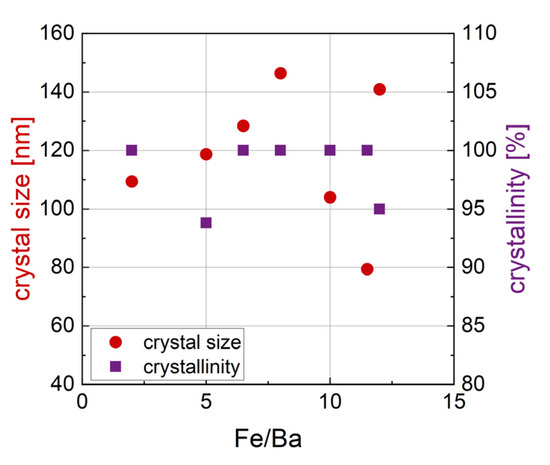

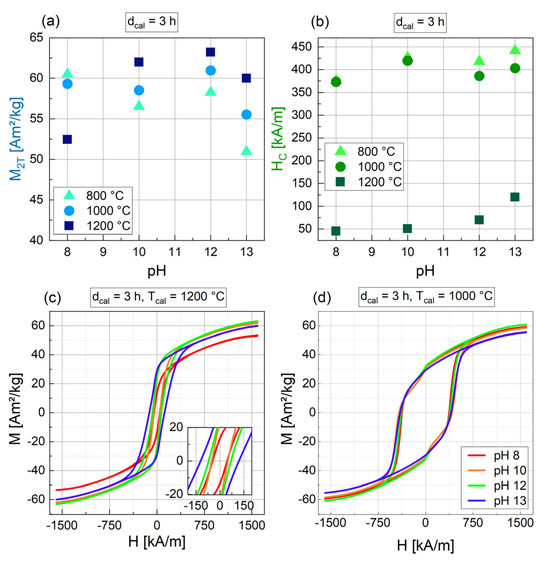

Using magnetic nanoparticles (MNPs) for extracorporeal heating applications results in higher field strength and, therefore, particles of higher coercivity can be used, compared to intracorporeal applications. In this study, we report the synthesis and characterization of barium hexa-ferrite (BaFe₁₂O₁₉) nanoparticles as potential particles for magnetic heating. Using a precipitation method followed by high-temperature calcination, we first studied the influence of varied synthesis parameters on the particles’ properties. Second, the iron-to-barium ratio (Fe/Ba = r) was varied between 2 and 12. Vibrating sample magnetometry, scanning electron microscopy and X-ray diffraction were used for characterization. A considerable influence of the calcination temperature (T_cal) was found on the resulting magnetic properties, with a decrease in coercivity (H_C) from values above 370 kA/m for T_cal = 800–1000 °C to H_C = 45–70 kA/m for T_cal = 1200 °C. We attribute this drop in H_C mainly to the formation of entirely multi-domain particles at high T_cal. For the varying Fe/Ba ratios, increasing amounts of BaFe₂O₄ as an additional phase were detected by XRD in the small r (barium surplus) samples, lowering the particles’ magnetization. A decrease in H_C was found in the increased r samples. Crystal size ranged from 47 nm to 240 nm and large agglomerates were seen in SEM images. The reported particles, due to their controllable coercivity, can be a candidate for extracorporeal heating applications in the biomedical or biotechnological field. Full article

M-type barium hexaferrites, BaFe_(12−x)La_xO₁₉ (x = 0.0, 0.05, 0.1, 0.15, and 0.2), were prepared by a low-cost solid-state reaction method. The specimens crystallized in a non-centrosymmetric hexagonal magnetoplumbite structure that belonged to the P6₃/mmc space group. Morphologically, the samples were dense with hexagonal plate-like grains and size variations of around 1.19–1.70 μm. The optical band gap of the system was reduced in the wide band-gap region from 1.78 to 1.74 eV. The band-gap values would be useful in photocatalysis and photovoltaics. The AC conductivity was enhanced with La³⁺ substitution, following Jonscher’s power law. Maxwell–Wagner-type polarization was observed in the specimen, and tangent loss decreased with La³⁺ substitution. The values of the tangent loss were in the appropriate range for electromagnetic shielding applications. Full article

The magnetoelectric effect (ME) is an important strain mediated-phenomenon in a ferromagnetic-piezoelectric composite for a variety of sensors and signal processing devices. A bias magnetic field, in general, is essential to realize a strong ME coupling in most composites. Magnetic phases with (i) high magnetostriction for strong piezomagnetic coupling and (ii) large anisotropy field that acts as a built-in bias field are preferred so that miniature, ME composite-based devices can operate without the need for an external magnetic field. We are able to realize such a magnetic phase with a composite of (i) barium hexaferrite (BaM) with high magnetocrystalline anisotropy field and (ii) nickel ferrite (NFO) with high magnetostriction. The BNx composites, with (100 − x) wt.% of BaM and x wt.% NFO, for x = 0–100, were prepared. X-ray diffraction analysis shows that the composites did not contain any impurity phases. Scanning electron microscopy images revealed that, with an increase in NFO content, hexagonal BaM grains become prominent, leading to a large anisotropy field. The room temperature saturation magnetization showed a general increase with increasing BaM content in the composites. NFO rich composites with x ≥ 60 were found to have a large magnetostriction value of around −23 ppm, comparable to pure NFO. The anisotropy field H_A of the composites, determined from magnetization and ferromagnetic resonance (FMR) measurements, increased with increasing NFO content and reached a maximum of 7.77 kOe for x = 75. The BNx composite was cut into rectangular platelets and bonded with PZT to form the bilayers. ME voltage coefficient (MEVC) measurements at low frequencies and at mechanical resonance showed strong coupling at zero bias for samples with x ≥ 33. This large in-plane H_A acted as a built-in field for strong ME effects under zero external bias in the bilayers. The highest zero-bias MEVC of ~22 mV/cm Oe was obtained for BN75-PZT bilayers wherein BN75 also has the highest H_A. The Bilayer of BN95-PZT showed a maximum MEVC ~992 mV/cm Oe at electromechanical resonance at 59 kHz. The use of hexaferrite–spinel ferrite composite to achieve strong zero-bias ME coupling in bilayers with PZT is significant for applications related to energy harvesting, sensors, and high frequency devices. Full article

The M-type barium hexaferrite substituted with titanium, BaFe${}_{12-x}$Ti${}_x$O${}_{19}$, was synthesized from sodium carbonate flux and the obtained single crystals with a maximum degree of substitution of up to about x = 0.9 were characterized. XPS measurements were carried out for the identification of side products and in particular in order to assign the valence states of the transition-metal constituents. Due to the aliovalent exchange of iron(III) with titanium(IV), an additional charge balance needs to occur. No titanium(III) was detected, while the amount of iron(II) increased in the same order of magnitude as the amount of titanium(IV); thus, the major charge balancing is attributed to the reduction of iron(III) to iron(II). According to the XPS data, the amount of titanium(IV) typically is slightly higher than that of iron(II). This is in line with a tendency to a minor formation of vacancies on the transition-metal sites becoming more important at higher substitution levels according to PXRD and WDS measurements, completing the picture of the charge-balance mechanism. XRD taken on single crystals indicates the distribution of titanium and vacancies over three of the five transition-metal sites. Full article

The manufacture and study of the properties of magnetic materials requires the development of new automated devices for measuring their magnetic properties. To obtain nanosized materials with a pure phase, it is necessary to modernize former methods and develop new methods for synthesizing materials. As part of this study, a pulse magnetometer was made to study magnetic hysteresis loops. An exceptional feature of this device is the ability to conduct studies of the full cycle of the hysteresis loop using pulsed magnetic fields. M-type BaFe₁₂O₁₉ hexagonal ferrites were synthesized by standard ceramic, mechanochemical, and sol–gel methods. The structural, phase, and magnetic characteristics of the barium hexaferrites were studied. Methods for the synthesis of BaFe₁₂O₁₉ hexagonal ferrites were estimated and compared. Their structural and magnetic properties essentially depend on the method of synthesis. The mechanochemical technology makes it possible to obtain materials without impurity phases through the use of hydrated reagents in the synthesis. The use of sol–gel technology allows the synthesis to be carried out at much lower temperatures. Full article

This study is aimed at the manufacture and the magnetic properties of polycrystalline M-type hexaferrites BaFe₁₂O₁₉ (barium ferrite, or BaM) materials of different magnetic texturing grades, going from a random distribution of the BaM crystallites to their almost complete stacking. Our target is to optimize the value of reduced-remanence magnetization M_R/M_S, which is among the most significant features of the self-polarized materials. In this study, we focus on the role played by the precursors hematite (isotropic spherical shape) and goethite (anisotropic lath shape). Therefore, 11 samples with a flat cylinder shape are fabricated, with an increasing hematite to goethite ratio. We demonstrate that this ratio drives the texturization of the samples by producing self-polarized materials with different M_R/M_S from the simple green compaction of the precursors, followed by a heat treatment. Most importantly, our study reveals the orientation of BaM particles after compaction; therefore, M_R/M_S, is strongly influenced by the aspect ratio of the lath-shaped goethite crystallites. Additionally, we show that finer goethite crystallites yield higher-value M_R/M_S. We optimize the aspect ratio of the goethite crystallites for an improved BaM texture. The optimization of the morphology of the goethite crystallites leads to an increase in the BaM particles’ orientation and stacking. The salient outcome of this work, which distinguishes it significantly from recent works, is that the particles stacking increases with the value of the shape factor η (defined as the ratio of the diameter of the laths to their length) of the goethite, evidenced by XRD results. The Rietveld refinements of powder diffractograms and the measured magnetic properties reveal a particle-stacking enhancement caused by not only the ratio of hematite: goethite but mainly by an optimal aspect ratio of the goethite crystallites. Based on this study, the BaM materials are further manufactured with a controlled magnetic texture; thus, they are partly self-polarized. They show reduced-remanence magnetization M_R/M_S varying from 0.5 and 0.81, while the angular dispersion of the BaM particles’ easy axis of magnetization varies from 60° to 10°. The magnetic properties of the samples are further studied in microwave experiments, from which the value of the magnetocrystalline anisotropy field H_K = 16.6 kOe is deduced. The first magnetization curves of each sample are obtained using a VSM. A law of approach to the saturation suitable for the case of the uniaxial polycrystalline materials, and for which the particle stacking is only partial, is proposed for the fitting of the magnetization process. It is suggested that by using the proposed law with a known magnetocrystalline anisotropy constant K₁, the angular grain-dispersion can be found. Full article

Three-dimensional printing is one of the most promising areas of additive manufacturing with a constantly growing range of applications. One of the current tasks is the development of new functional materials that would allow the manufacture of objects with defined magnetic, electrical, and other properties. In this work, composite magnetic filaments for 3D printing with tunable magnetic properties were produced from polylactic acid thermoplastic polymer with the addition of magnetic ferrite particles of different size and chemical composition. The used magnetic particles were cobalt ferrite CoFe₂O₄ nanoparticles, a mixture of CoFe₂O₄ and zinc-substituted cobalt ferrite Zn_0.3Co_0.7Fe₂O₄ nanoparticles (~20 nm), and barium hexaferrite BaFe₁₂O₁₉ microparticles (<40 µm). The maximum coercivity field H_C = 1.6 ± 0.1 kOe was found for the filament sample with the inclusion of 5 wt.% barium hexaferrite microparticles, and the minimum H_C was for a filament with a mixture of cobalt and zinc–cobalt spinel ferrites. Capabilities of the FDM 3D printing method to produce parts having simple (ring) and complex geometric shapes (honeycomb structures) with the magnetic composite filament were demonstrated. Full article

Using the multifunctional material barium hexaferrite as an example, the prospects for treatment at a quasi-equilibrium low temperature in an open atmosphere to form superhydrophobic magnetic coatings with pronounced crystalline and magnetic anisotropy have been demonstrated for the first time. The relationship between plasma treatment conditions, structural-phase composition, morphology, and superhydrophobic properties of (0001) films of barium hexaferrite BaFe₁₂O₁₉ on C-sapphire is studied. X-ray photoelectron spectroscopy (XPS), X-ray diffractometry (XRD), scanning electron microscopy (SEM), atomic force microscopy (AFM), as well as magnetometry and moisture resistance analysis, were used as research methods. During plasma treatment with a mass-average temperature of 8–10 kK, intense evaporation and surface melting were observed, and texturing of the deposit along (0001) is found. When the treatment temperature was reduced to 4–5 kK, the evaporation of the material was minimized and magnetic and crystal anisotropy increased. However, the increase in the size of crystallites was accompanied by the transition of oxygen atoms from lattice nodes to interstitial positions. All samples exhibited low coercive fields below 500 Oe, associated with the frustration of the magnetic subsystem. Features of growth of materials with a wurtzite structure were used to form a superhydrophobic coating of barium hexaferrite. Plasma treatment regimes for obtaining self-cleaning coatings are proposed. The use of magnetically hard barium hexaferrite to radically change the properties of a coating is demonstrated herein as an example. Full article

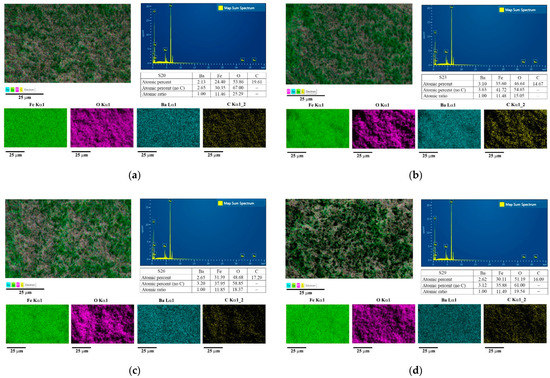

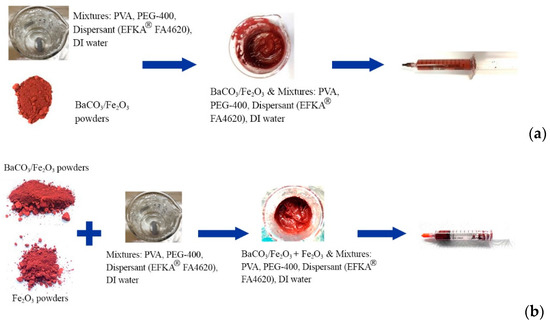

Permanent magnets of varying shapes and sizes are increasingly produced. For hexaferrite magnets, it is challenging to incorporate polymers and a soft magnetic phase in the form of paste before injection molding or extrusion free-forming. In this study, hard magnetic barium hexaferrite/soft magnetic iron composites with a density of 2.28–2.34 g/cm³ are obtained after paste-injection molding and subsequent sintering at 1150 °C for 5 h. Variations of the binder (143.5–287.0 mg poly(vinyl alcohol), PVA) and the plasticizer (75–150 mg poly(ethylene glycol), PEG-400) in the ceramic–polymer paste give rise to comparable remanent magnetization (33.10–33.63 emu/g) and coercivity (3854–3857 Oe). Unlike all-ferrite systems, the presence of a soft magnetic metal phase is not detrimental to the coercivity. However, the remanent and saturation magnetizations are not substantially increased. The addition of 1% and 5% of iron oxide in the ceramic–polymer paste gives rise to hard/soft composites with lower densities of 2.11 and 2.14 g/cm³. The coercivity is increased to 3942–3945 Oe; however, the maximum energy product is reduced. Full article

Electromagnetic waves show rapid development in electronics, telecommunications, and the military. One of the efforts to overcome the effects of electromagnetic interference is by developing microwave-absorbing materials. Barium hexaferrite is the best candidate for development as an absorber material. Microwave absorption in barium hexaferrite can be increased through Mg-Al doping and reducing the particle size. This study aimed to analyze sonication parameters to reduce the particle size by combining destruction methods using mechanical alloying followed by high-power ultrasonic irradiation. Barium hexaferrite was synthesized through mechanical alloying by mixing stoichiometric BaCO₃, Fe₂O₃, Al₂O₃, and MgO (Sigma-Aldrich p.a 99%) (Mg-Al 0.4%wt). The samples continued the sintering process at 1200 °C for 2 h to grow crystal embryos. The optimal parameters for ultrasonic destruction were using a transducer:reactor diameter ratio of 1:10, a particle density of 5 g/250 mL, and adding a non-ionic surfactant of 0.01% at an amplitude of 55% and a sonication time of 8 h. These methods resulted in the saturation magnetization of 18.50 emu/g and a coercivity of 0.08 Tesla. The reduction in the particle size of BHF doped with Mg-Al was successfully up to 21 nm, resulting in a reflection loss of up to −40.8697 dB at 11.896 GHz (x-band, 8–12 GHz). The BHF nanoparticles doped with Mg-Al effectively absorbed up to 99.99% electromagnetic waves. Full article

Magnetic nanoplatelets (NPLs) based on barium hexaferrite (BaFe₁₂O₁₉) are suitable for many applications because of their uniaxial magneto-crystalline anisotropy. Novel materials, such as ferroic liquids, magneto-optic composites, and contrast agents for medical diagnostics, were developed by specific surface functionalization of the barium hexaferrite NPLs. Our aim was to amino-functionalize the NPLs’ surfaces towards new materials and applications. The amino-functionalization of oxide surfaces is challenging and has not yet been reported for barium hexaferrite NPLs. We selected two amine ligands with two different anchoring groups: an amino-silane and an amino-phosphonate. We studied the effect of the anchoring group, backbone structure, and processing conditions on the formation of the respective surface coatings. The core and coated NPLs were examined with transmission electron microscopy, and their room-temperature magnetic properties were measured. The formation of coatings was followed by electrokinetic measurements, infrared and mass spectroscopies, and thermogravimetric analysis. The most efficient amino-functionalization was enabled by (i) amino-silanization of the NPLs precoated with amorphous silica with (3-aminopropyl)triethoxysilane and (ii) slow addition of amino-phosphonate (i.e., sodium alendronate) to the acidified NPL suspension at 80 °C. Full article

Ceramic–polymer paste-injection molding is demonstrated as a facile fabrication route for barium hexaferrite magnets. Interestingly, these low-density (1.90–2.35 g/cm³) magnets exhibit substantial coercivity of 3868–4002 Oe. When ceramic paste without polymeric additives is used, reduced coercivity and slightly increased magnetizations are obtained from a magnet with the density of 2.55 g/cm³. Their magnetizations are also higher than those obtained from compactions of sol–gel-derived powders. For compact magnets (3.46–3.77 g/cm³), the DI water addition results in a slightly higher magnetization but lower coercivity than dry-pressed magnets. Compactions into disk and bar magnets give rise to comparable magnetic properties. The morphological characterizations reveal smaller barium hexaferrite particles leading to larger coercivity, and the density and shape of magnets have a less pronounced effect. Full article

This study used substituted barium hexaferrites, which were previously prepared and reported by the authors, to detect acetaminophen by the modification of a conventional glassy carbon electrode (GCE), which led to promising results. The synthesis of this electrode-modifying material was conducted using a citrate sol gel process. A test synthesis using glycerin and propylene glycol revealed that glycerin produced a better result, while less positive anodic potential values were associated with the electrooxidation of N-acetyl-p-aminophenol (NAP). Excellent electroactivity was exhibited by the cobalt-substituted barium-hexaferrite-nanomaterial-modified electrode. A good linear relationship between the concentration and the current response of acetaminophen (paracetamol) was obtained with a detection limit of (0.255 ± 0.005) µM for the Ba_1.0Co_1.22Fe_11.41O_18.11 GCE, (0.577 ± 0.007) µM for the Ba_1.14Cu_0.82Fe_11.65O_18.02 GCE, and (0.595 ± 0.008) µM for the bare GCE. The levels of NAP in a real sample of urine were quantitatively analyzed using the proposed method, with recovery ranges from 96.6% to 101.0% and 93.9% to 98.4% for the modified electrode with Cobalt-substituted barium hexaferrites (CoF_M) and Copper-substituted barium hexaferrites (CuF_M), respectively. These results confirm the high electrochemical activity of Ba_1.0Co_1.22Fe_11.41O_18.11 nanoparticles and thus their potential for use in the development of sensing devices for substances of pharmaceutical interest, such as acetaminophen (NAP). Full article

The microwave properties of epoxy composites filled with 30 wt.% of BaFe_12–xGa_xO₁₉ (0.1 ≤ x ≤ 1.2) and with 1 wt.% of multi-walled carbon nanotubes (CNTs) were investigated in the frequency range 36–55 GHz. A sufficient increase in the microwave shielding efficiency was found for ternary 1 wt.%CNT/30 wt.% BaFe_12–xGa_xO₁₉/epoxy composites compared with binary 1% CNT/epoxy and 30 wt.% BaFe_12–xGa_xO₁₉/epoxy due to the complementary contributions of dielectric and magnetic losses. Thus, the addition of only 1 wt.% of CNTs along with 30 wt.% of barium hexaferrite into epoxy resin increased the frequency range where electromagnetic radiation is intensely attenuated. A correlation between the cation Ga³⁺ concentration in the BaFe_12–xGa_xO₁₉ filler and amplitude–frequency characteristics of the natural ferromagnetic resonance (NFMR) in 1 wt.%CNT/30 wt.% BaFe_12–xGa_xO₁₉/epoxy composites was determined. Higher values of the resonance frequency $f_{res}$ (51.8–52.4 GHz) and weaker dependence of $f_{res}$ on the Ga³⁺ concentration were observed compared with pressed polycrystalline BaFe_12–xGa_xO₁₉ ($f_{res}$ = 49.6–50.4 GHz). An increase in the NFMR amplitude on the applied magnetic field for both random and aligned 1 wt.% CNT/30 wt.% BaFe_12–xGa_xO₁₉/epoxy composites was found. The frequency of NFMR was approximately constant in the range of the applied magnetic field, H = 0–5 kOe, for the random 1 wt.% CNT/30 wt.% BaFe_12–xGa_xO₁₉/epoxy composite, and it slightly increased for the aligned 1 wt.% CNT/30 wt.% BaFe_12–xGa_xO₁₉/epoxy composite. Full article
