This study focuses on the optimization of valve assemblies in downhole rod pumping units (DRPUs), which remain the predominant artificial lift technology in oil production worldwide. The research addresses the critical issue of premature failures in DRPUs caused by leakage in valve pairs, i.e., a problem that accounts for approximately 15% of all failures, as identified in a statistical analysis of the 2022 operational data from the Uzen oilfield in Kazakhstan. The leakage is primarily attributed to the accumulation of mechanical impurities and paraffin deposits between the valve ball and seat, leading to concentrated surface wear and compromised sealing. To mitigate this issue, a novel valve assembly design was developed featuring a flow turbulizer positioned beneath the valve seat. The turbulizer generates controlled vortex motion in the fluid flow, which increases the rotational frequency of the valve ball during operation. This motion promotes more uniform wear across the contact surfaces and reduces the risk of localized degradation. The turbulizers were manufactured using additive FDM technology, and several design variants were tested in a full-scale laboratory setup simulating downhole conditions. Experimental results revealed that the most effective configuration was a spiral plate turbulizer with a 7.5 mm width, installed without axis deviation from the vertical, which achieved the highest ball rotation frequency and enhanced lapping effect between the ball and the seat. Subsequent field trials using valves with duralumin-based turbulizers demonstrated increased operational lifespans compared to standard valves, confirming the viability of the proposed solution. However, cases of abrasive wear were observed under conditions of high mechanical impurity concentration, indicating the need for more durable materials. To address this, the study recommends transitioning to 316 L stainless steel for turbulizer fabrication due to its superior tensile strength, corrosion resistance, and wear resistance. Implementing this design improvement can significantly reduce maintenance intervals, improve pump reliability, and lower operating costs in mature oilfields with high water cut and solid content. The findings of this research contribute to the broader efforts in petroleum engineering to enhance the longevity and performance of artificial lift systems through targeted mechanical design improvements and material innovation. Full article

Natural gas hydrate is widely distributed, shallow-buried, clean, and pollution-free and has enormous reserves, it is regarded as the alternative clean energy source in the oil and gas field with the most potential. Pressure coring is the only way to drill for gas hydrate core on the surface under in situ conditions, which is of great value for analyzing its occurrence conditions and reserves comprehensively. Based on this, a new wireline pressure coring system (WPCS) with a ball valve seal was designed and developed in this paper; it was applied in the deep sea for the first time in the South China Sea hydrate survey voyage of the Guangzhou Marine Geological Survey (GMGS). A total of 15 runs of deep-sea gas hydrate drilling and coring applications were carried out, and they tested well. The experimental water depth was 1700–1800 m, and the coring depth below the seafloor was about 100–150 m. The formation consisted of sandy hydrate and argillaceous hydrate. The results showed the following. (1) The success rate of ball valve turn-over could reach almost 100% in the argillaceous hydrate reservoir, although there are some isolated cases of pressure relief. Meanwhile, drilling in the sandy hydrate reservoir, the success rate was only 54.55%. (2) When drilling in the argillaceous hydrate reservoir, the core recovery rate could reach 80%, while in the sandy hydrate reservoir, it was almost 0%. In practice, the sandy formation with gas hydrate is stiff to drill compared to the performance in argillaceous formations. After our analysis, it was believed that the ball valve and core tube could be easily plugged by sand debris during the sampling of sandy hydrate formation. Moreover, the sandy core is easily plugged into the core liner because of the high friction of sand grains in clearance. (3) The pressure-holding effect of the core drilling tool was related to the formation of hydrate, the sealing form of the ball valve, and the environmental pressure. Sandy hydrate formations often caused the ball valve to jam, while the muddy hydrate formation did not. The research results of this paper have reference value for the further optimization of the WPCS structure, the optimization of drilling parameters, and the design parameters of the ball valve structure, which could be better used for the pressure coring of gas hydrate and subsequent research work in the future. Full article

Natural gas pipeline networks used for long-distance transportation are expanding quickly, and the construction of special valves with large diameters has especially increased since 2022. The design and manufacturing of the flow control equipment is carried out on a case-by-case basis, in accordance with the parameters required by the beneficiary. In this paper, results obtained by fluid flow simulation with SolidWorks2023 software for a 500 mm diameter trunnion ball valve lead to important information regarding how the fluid flow develops in the intermediary and fully closed positions. The large inner space of the ball allows the development of high-amplitude vortices; thus, the simulation demonstrates that the shut-on/off operation of large-diameter ball valves is mandatory to avoid fast destruction following partial opening. This paper also demonstrates why the metal–metal (MM) sealing with a double-piston effect (DPE) design for seats produces low leakage rates, including for the shut-off position; the pressure field reveals that few gas particles succeed in crossing the upstream sealing zone, and even fewer cross the downstream sealing zone. Additionally, the interpretation of the results explains and highlights the importance of using seats with a DPE design to achieve fire safety, which is required for natural gas pipeline applications. Full article

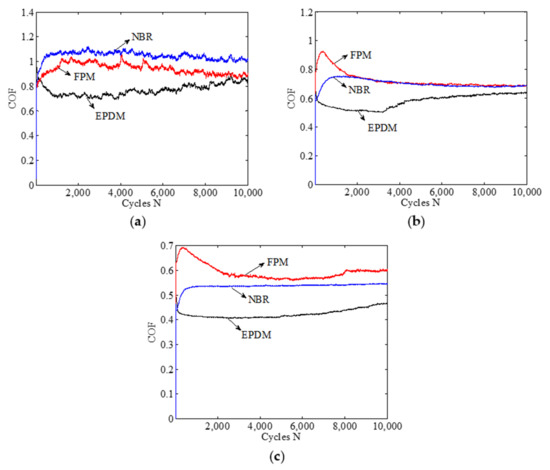

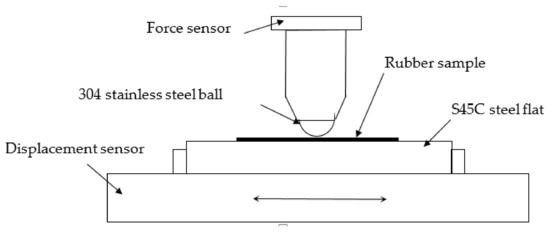

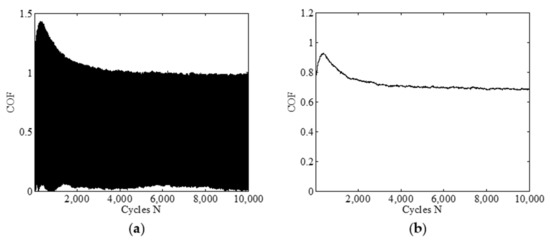

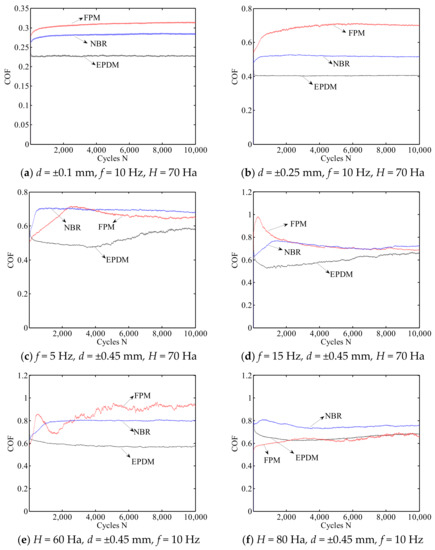

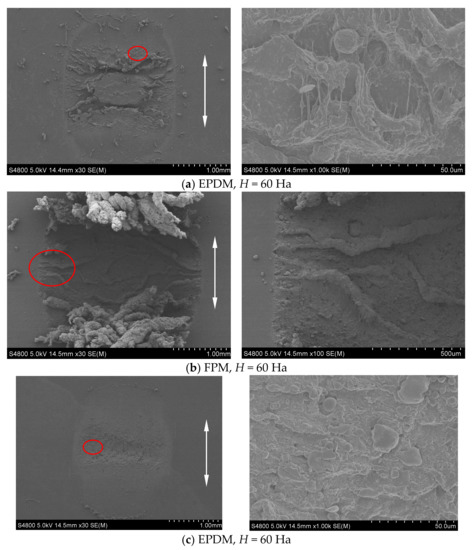

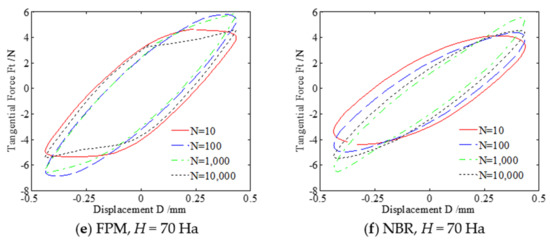

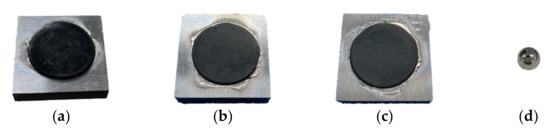

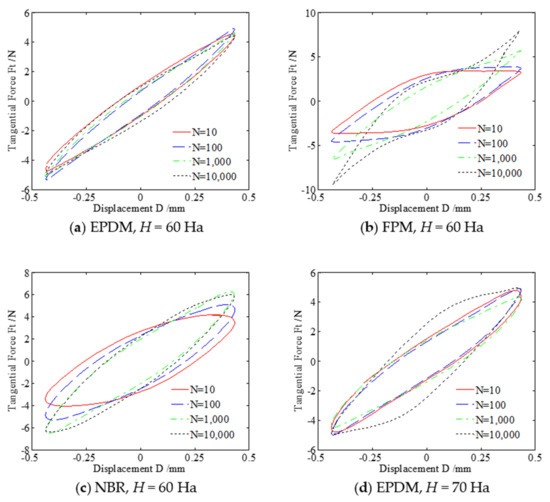

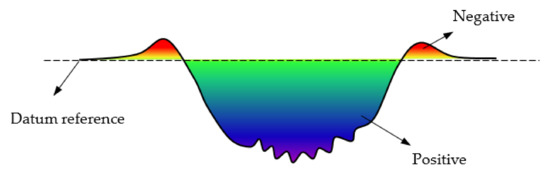

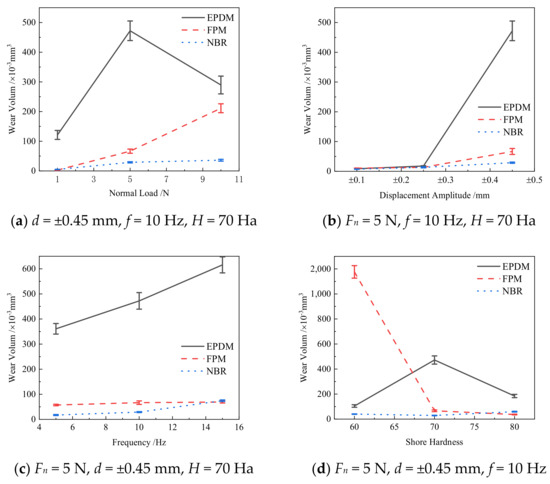

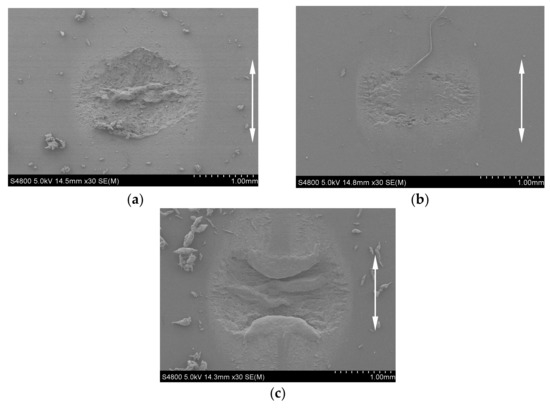

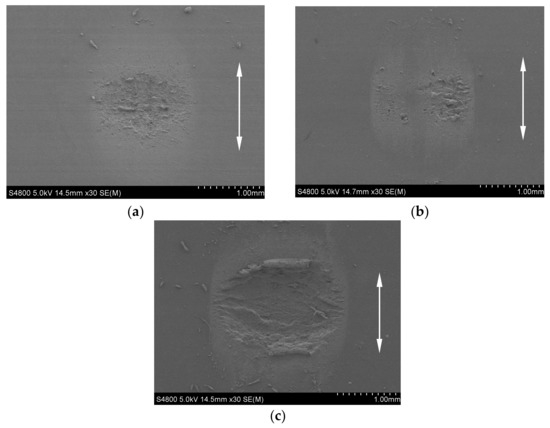

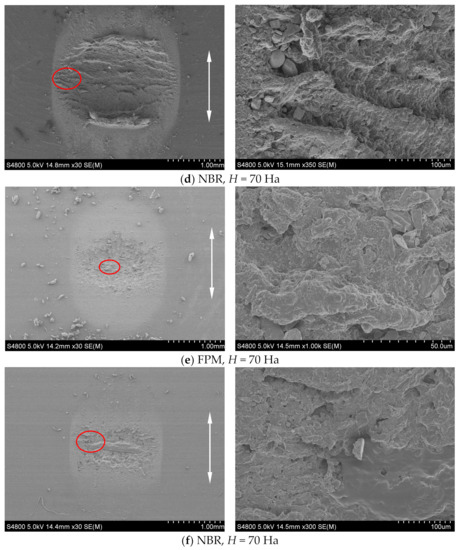

Rubbers are widely used in various fields as the important sealing materials, such as window seal, door seal, valve, pump seal, etc. The fretting wear behavior of rubbers has an important effect on their sealing performance. This paper presents an experimental study on the fretting wear behavior of rubbers against the steel ball under air conditions (room temperature at 20 ± 2 °C and humidity at 40%). Three kinds of rubbers, including EPDM (ethylene propylene diene monomer), FPM (fluororubber), and NBR (nitrile–butadiene rubber), are considered in experiments. The sphere-on-flat contact pattern is used as the contact model. The influences of the displacement amplitude, normal force, frequency, and rubber hardness on the fretting wear behavior are discussed in detail. White light profiler and scanning electron microscope (SEM) are used to analyze the wear mechanism of the rubber surface. The fretting wear performances of three rubbers are compared by considering the effect of the displacement amplitude, normal force, frequency, and rubber hardness. The results show that NBR has the most stable friction coefficient and the best wear resistance among the three rubbers. Full article

The ball valve is an essential piece of equipment in an oil and gas pipeline. The sand particles transported through the pipeline can cause erosion and wear to the ball valve, thus causing it to fail, leading to serious safety hazards. In this paper, the self-designed erosion experiment method was combined with computational fluid dynamics (CFD), while the Euler-Lagrange method was also introduced to optimize the Oka erosion model and Ford particle-wall rebound model. The erosion mechanism and characteristics of the ball valve sealing surface in gas-solid two-phase flow were simulated, while the erosion condition of the specimen was analyzed and compared when exposed to different factors, such as different particle velocities, impact angle, particle size, and specimen materials. The experimental data conformed well to the CFD erosion simulation data, verifying the accuracy of the CFD simulation analysis. The results indicated that the worn surface was caused by various wear mechanisms, while a “stagnation zone” was identified at the center of the specimen. The maximum erosion area, which was U-shaped, was also located at the center. The erosion rate increased in conjunction with an increase in the particle velocity and size, both of which failed to affect the erosion pattern. The erosion rate initially increased, after which it decreased with the impact angle, reaching the maximum value at an impact angle of 30°. This paper summarizes the erosion failure mechanism and characteristics in gas–solid two-phase flow and provides both technical support and a theoretical basis for the on-site maintenance of essential vulnerable parts in the pipeline, such as ball valves. Full article

The ecosystem of the abyss is one of the fields that humans hardly know. The ultra-high hydrostatic pressure makes it very difficult to obtain abyssal organisms. Samples are often severely broken during recovery due to changes in environmental pressure, temperature, and other factors. Currently, there are no macro-organism samplers suitable for the abyss. The development of a pressure-maintaining sampler for the abyss is a prerequisite for abyssal ecosystem research. This paper mainly proposed a pressure-maintaining trapping instrument (PMTI) designed to work at a depth above 10,000 m. Unlike typical deep-sea equipment, this instrument is lightweight (about 65 kg in water). The instrument adopts a new structure, using a hollow piston as the sampling space and sealing the mechanism with O-rings at both ends of the piston, thus avoiding sealing methods such as ball valves and greatly reducing the weight of the equipment. The structure and working process of the instrument are described in detail in this paper. Meanwhile, in this paper, the movement resistance of the piston (mainly the resistance of the O-ring) is analyzed using a dynamic explicit method in Abaqus. The factors affecting the friction of the O-rings are analyzed via the method of orthogonal tests and ANOVA. In addition, high-pressure tests were conducted on key parts of the instrument, and the results showed that the instrument works well at 100 MPa. Full article

Presented here is the fabrication and characterization of a tunable microfluidic check valve for use in marine nutrient sensing. The ball-style valve makes use of a rare-earth permanent magnet, which exerts a pulling force to ensure it remains passively sealed until the prescribed cracking pressure is met. By adjusting the position of the magnet, the cracking pressure is shown to be customizable to meet design requirements. Further applicability is shown by integrating the valve into a poly(methyl methacrylate) (PMMA) lab-on-chip device with an integrated optical absorbance cell for nitrite detection in seawater. Micro-milling is used to manufacture both the valve and the micro-channel structures. The valve is characterized up to a flow rate of 14 mL min⁻¹ and exhibits low leakage rates at high back pressures (<2 µL min⁻¹ at ~350 kPa). It is low cost, requires no power, and is easily implemented on microfluidic platforms. Full article

Hydroelectric power plants are used worldwide to cover varying electricity demands. The Salime hydroelectric power plant, which is located at Asturias, Spain, has four hydro turbines with a total design capacity of 128 MW. Each turbine has a ball valve with two maintenance seals to ensure a closure as complete as possible when the group ceases to operate. Unfortunately, at some occasions the seals did not really perform their sealing function properly, but started to develop periodic vibrations of indefinite duration. This phenomenon generates periodic leakage flow as well as high amplitude pressure fluctuations in the penstocks, which are not acceptable. This phenomenon corresponds to the field of flow-induced vibrations, in particular to the type of self-excited vibrations. The purpose of the research now reported was to develop a simplified theoretical model that can explain the excitation mechanism for the seal vibrations and that can estimate the behavior of the hydro-mechanical system depending on the relevant geometrical and physical parameters. In order to calculate the pressure and flow rate fluctuations, the energy equation for unsteady, unidirectional, incompressible and viscous flow has been applied along each pipe of the hydraulic system, together with continuity considerations at each pipe junction and the seal equation of motion. The perturbation technique has been used to solve the system variables. The mathematical model was solved by means of a specially designed MATLAB code, which allows simulating the time evolution of the annular seal vibration as well as the unsteady flow and pressure induced throughout the system for different system configurations. The results show that the system stability depends on the behavior of the hydraulic pressure force acting on the seal and the gap flow rate after system disturbance. Besides, the results obtained support that, at standing group situation, seal vibrations are less prone to occur when operating at either low reservoir energy level or very large reservoir energy level. Full article
