Search Results (20)

The combined use of laser beam and electric arc for welding thick clad steel plates in a single pass has been developed to solve the issues concerning the individual applications of the heat sources, such as the low filling efficiency of conventional electric arc methods and the drawbacks concerning laser beam defects due to rapid cooling and solidification. This work was addressed to the weldability assessment of ferritic steel plates, clad with austenitic stainless steel, under the laser-leading configuration, testing the effects of two different values of the inter-distance between the laser beam and the electric arc. Specimens of the welded zone were investigated by metallographic observations and EDS measurements; mechanical properties were characterized by the Vickers microhardness test and by the FIMEC instrumented indentation test to obtain the local values of the yield strength. Welding simulations by theoretical modelling were also carried out to outline the differences in the thermal fields generated by the two heat sources, their interaction, and their effect on the configurations of the weld pool and the thermal profiles to which the materials are subjected. The welding setup with higher inter-distance was more suitable for joining clad steel plates, since the action of the deep keyhole mode is substantially separated from that of the shallower electric arc. In this way, the addition of alloying elements, performed by melting the filler wire, concentrated in the cladding layer, helping maintain the austenitic microstructure, while the laser beam acts in depth along the thickness, autogenously welding the base steel. Full article

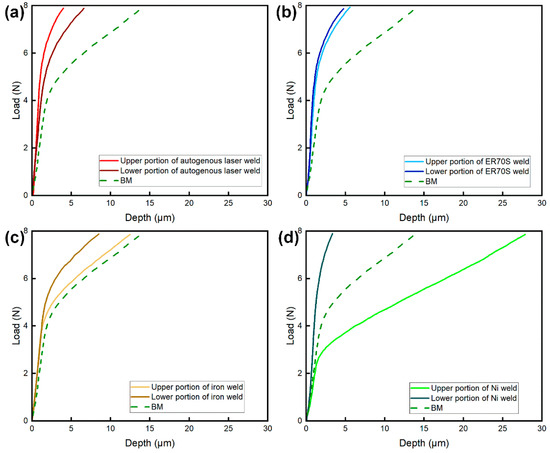

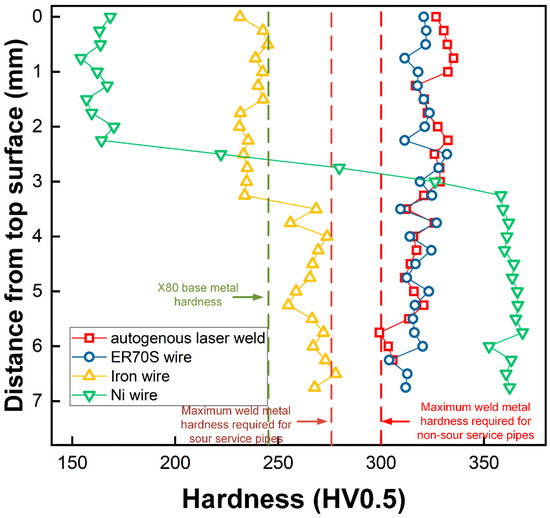

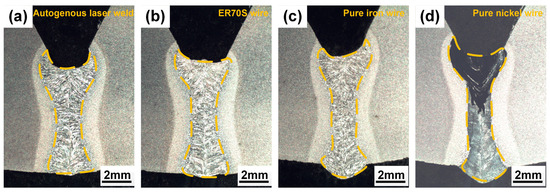

Laser welding was performed using different filler wires, ER70S steel, commercially pure iron, and pure nickel filler, in the context of welding X80 pipeline steel to assess the microstructure and mechanical properties of the weld metal. Introducing an ER70S wire promoted acicular ferrite formation in the fusion zone, compared to a bainitic microstructure in an autogenous laser weld. The use of pure iron wire was considered as a potential strategy for reducing hardenability, as it led to the dilution of alloying elements in the fusion zone, increasing ferrite content and reducing weld metal hardness to a level compliant with API pipeline standards. The addition of pure nickel wire was used to reveal the degree of weld metal mixing imposed by the laser (thus providing an unambiguous tracer element) when it is combined with filler material dilution in the fusion zone, revealing that the upper region contained 38% wire material and the lower region only 12%. This accounts for the differences observed between the upper versus lower portions of the weld metal when other wires are used, and the use of hardness mapping and micro-indentation demonstrates the correlation between the variations in mechanical properties and microstructural differences introduced by incomplete mixing of the filler wire elements. Full article

Titanium and titanium alloys with a medium thickness of 5 to 12 mm are widely used for ocean platforms, military equipment and in other fields because of their light weight, appropriate strength and corrosion resistance. In this study, autogenous laser welding and narrow-gap laser welding processes were researched and compared, and the welding characteristics, weld microstructure and joint strength were analyzed. The results showed that autogenous laser welding had higher efficiency, narrower weld width and higher microstructure uniformity. Autogenous laser welding can achieve the single pass weld penetration at laser keyhole mode. The weld width of narrow-gap laser welded joint was 12.5 mm, which was nearly three times than that of autogenous laser welding. The grain size of autogenous laser welding was obviously smaller and more uniform in depth than that of narrow-gap laser welding. In the weld zone, the coarse columnar α grains grew from the fusion line, while in the heat-affected zone, equiaxed α grains with needle and sawtooth α morphologies were presented. The microhardness of the heat-affected zone was higher than in the weld zone and the base metal due to the denser needle microstructure. The tensile samples all fractured at the base metal, indicating the welded joint strength efficiency was greater than 1. Full article

Thermally characterizing high-thermal conductivity materials is challenging, especially considering high temperatures. However, the modeling of heat transfer processes requires specific material information. The present study addresses an inverse approach to estimate the thermal conductivity of SAE 1020 relative to temperature during an autogenous LASER Beam Welding (LBW) experiment. The temperature profile during LBW is computed with the aid of an in-house CUDA-C algorithm. Here, the governing three-dimensional heat diffusion equation is discretized through the Finite Volume Method (FVM) and solved using the Successive Over-Relaxation (SOR) parallelized iterative solver. With temperature information, one may employ a minimization procedure to assess thermal properties or process parameters. In this work, the Quadrilateral Optimization Method (QOM) is applied to perform estimations because it allows for the simultaneous optimization of variables with no quantity restriction and renders the assessment of parameters in unsteady states valid, thereby preventing the requirement for steady-state experiments. We extended QOM’s prior applicability to account for more parameters concurrently. In Case I, the optimization of the three parameters that compose the second-degree polynomial function model of thermal conductivity is performed. In Case II, the heat distribution model’s gross heat rate (Ω) is also estimated in addition to the previous parameters. Ω [W] quantifies the power the sample receives and is related to the process’s efficiency. The method’s suitability for estimating the parameters was confirmed by investigating the reduced sensitivity coefficients, while the method’s stability was corroborated by performing the estimates with noisy data. There is a good agreement between the reference and estimated values. Hence, this study introduces a proper methodology for estimating a temperature-dependent thermal property and an LBW parameter. As the performance of the present algorithm is increased using parallel computation, a pondered solution between estimation reliability and computational cost is achieved. Full article

Nowadays, vehicle electrification is growing at a fast pace due to stringent environmental regulations on carbon emissions in North America. The manufacturing of E-mobility battery components such as enclosures evolves at the same trend and many new design concepts are put in place. As health and safety in electric vehicles are taken very seriously by OEMs, the enclosures are still heavy but are likely to become more lightweight in years to come, using high-strength aluminium alloys as one of the potential solutions, as weight directly affects the admissible range. In this paper, four (4) different aluminium wrought alloys (AA6061, AA6010, AA7020 S and AA7075) were autogenously laser-welded using various parameters and inspected through 2D X-ray tomography. A hot crack index (HCI), using optical microscopy, was defined in order to quantify the internal extent of hot cracks. Static mechanical butt joint tensile tests were provided to dictate a mechanical property criterion regarding the extent of HCI. This revealed that uniform elongation is a good predictor of the extent of HCI in terms of static mechanical behavior. These findings could eventually be used to define a threshold value toward a safe number of hot cracks in laser welds. Full article

Implementing input parameters that match the experimental weld shape is challenging in LASER beam welding (LBW) simulation because the computed heat input and spot for temperature acquisition strongly affect the outcomes. Therefore, this study focuses on investigating the autogenous LBW of AISI 1020 using a three-dimensional heat transfer model that assumes a modified Gaussian heat flux distribution depending on LASER power (Q_w), radius (R), and penetration (h_p). The influence of such variables on the simulated weld bead was assessed through analysis of variance (ANOVA). The ANOVA returns reliable results as long as the data is normally distributed. The input radius exerts the most prominent influence. Taguchi’s design defined the studied data reducing about 65% of the simulations compared to a full factorial design. The optimum values to match the computed outcomes to lab-controlled experiments were 2400 W for power (80% efficiency), 0.50 mm for radius, and 1.64 mm for penetration. Moreover, the experimental errors regarding thermocouples positioning were corrected using linear interpolation. A parallel computing algorithm to obtain the temperature field reduces computational costs and may be applied in real-world scenarios to determine parameters that achieve the expected joint quality. The proposed methodology could reduce the required time to optimize a welding process, saving development and experimental costs. Full article

Welding and the behavior of the weldments are important, since welding of high strength low alloy (HSLA) steels is a conventional method for manufacturing industrial parts. This work conducts a comparative investigation of microstructural characteristics and mechanical properties for joints of 16-mm-thick HSLA Q890 steel produced by multi-layer multi-pass shielded metal arc welding (SMAW) with filler wire and single-layer autogenous laser beam welding (LBW). The mechanical properties of the welded joints were assessed in terms of tensile and impact using butt joints. The results show that tensile failure occurred in the base metal during the tensile tests for most of the trials. The ultimate tensile strength and percent elongation of the LBW welded joint (973.5 MPa and 10%) are higher than those of the SMAW joint (951 MPa and 2.9%) due to the filler filling process of the SMAW process. The Charpy impact energy of the weld metal (16.4 J and 15.1 J) is lower than that of the heat-affected zone (18.5 J and 19.5 J) in the LBW joint and the SMAW joint. Full article

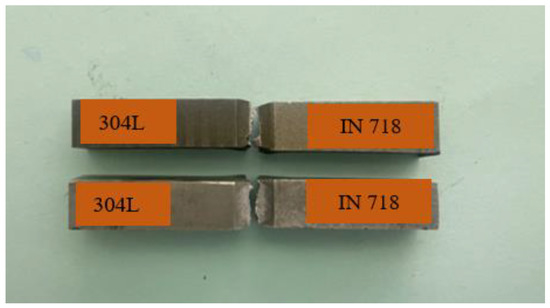

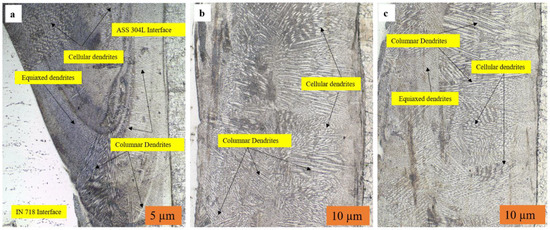

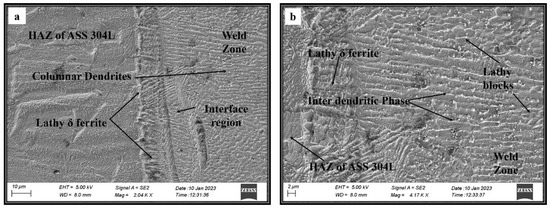

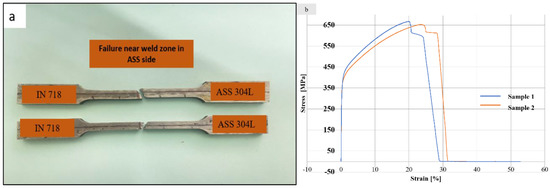

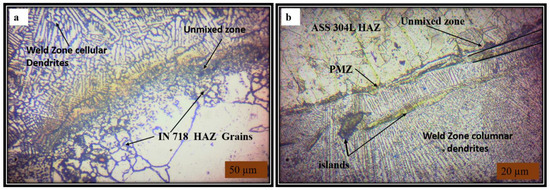

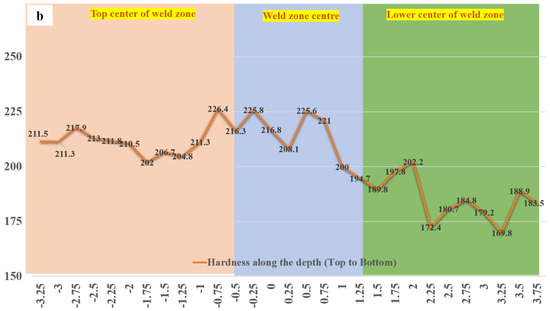

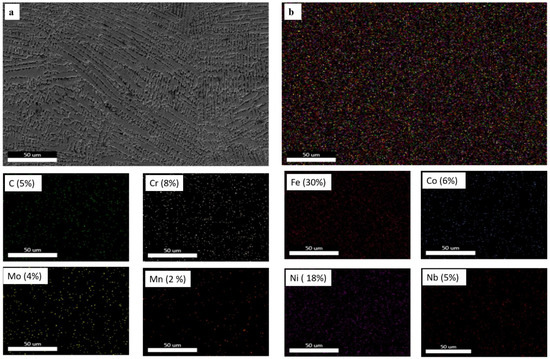

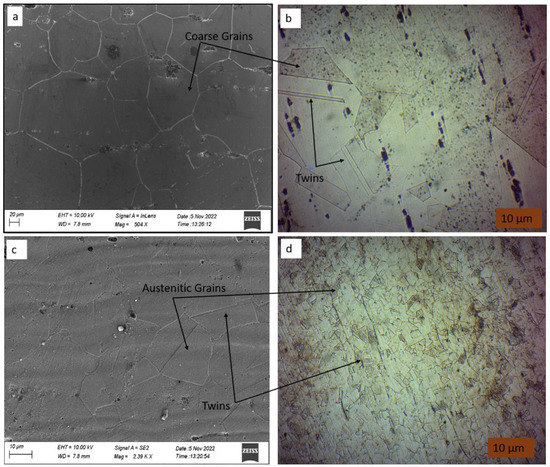

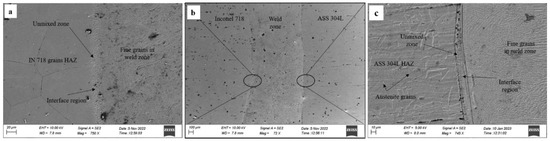

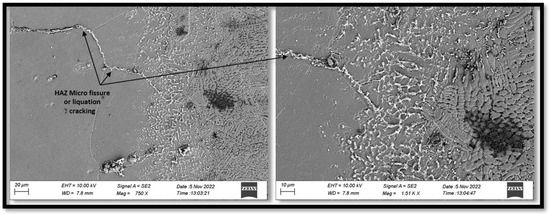

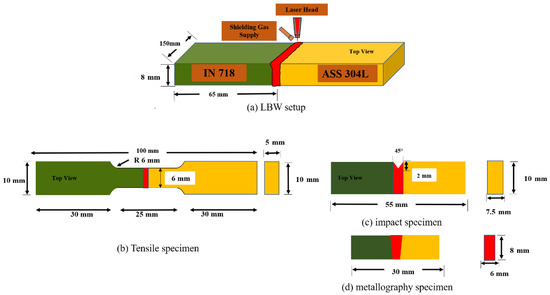

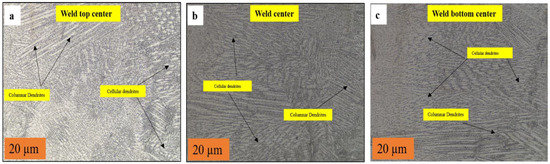

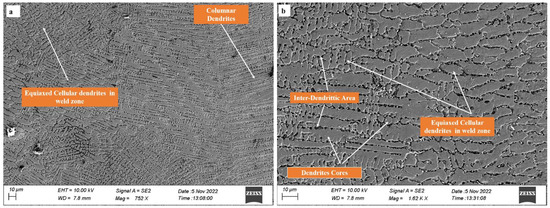

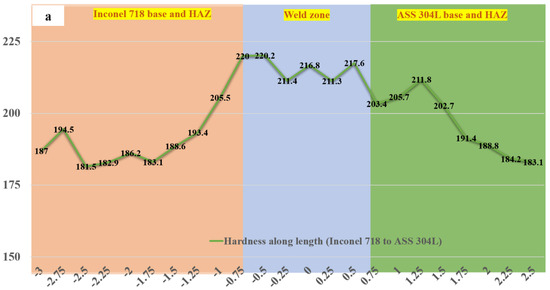

For high-temperature industries operating at nearly 750 °C (advanced ultra-super critical boilers), dissimilar welding between Inconel alloys and austenitic stainless steel (ASS) are commonly adopted. The high-temperature resistive properties of Inconel and ASS alloys are highly qualified for high-temperature applications. In this experimental study, dissimilar autogenous laser beam welding (LBW) between Inconel 718 and ASS 304L is investigated. This paper explains the detailed study on the microstructural and mechanical behavior of the LBW dissimilar joint. The microstructural study indicates the presence of laves phases in the weld zone. Additionally, the weld zone shows heterogeneous microstructural formation, owing to the non-uniform welding heat in the different areas of the weld zone. The optical images show the presence of mixed dendrites, i.e., equiaxed, cellular, and columnar morphology, in the weld zone and in the fusion zones of either side. The energy-dispersive spectroscopy (EDS) results show the presence of segregated elements (Nb, Mo, Cr, and Ti) at the weld center. These segregated elements are the reason for the occurrence of the laves phases in the weld zone. The presence of Nb and Mo may form the laves phase (Fe, Ni, Cr)₂ (Nb, Mo, Ti) along with Fe, Ni and Cr. The presence of an unmixed zone is observed in the HAZ of the Inconel 718, whereas the HAZ of the ASS 304L shows the presence of an unmixed zone (UZ) and a partially mixed zone (PMZ), as observed on the optical and SEM images. To obtain the mechanical properties of the laser weld, the tensile test, microhardness test, and impact test were measured at room temperature. The tensile specimens show a brittle failure at the ASS 304L side, which was initiated from the weld top, with average tensile stress of 658.225 MPa. The reason for the ASS 304L fracture is because of the presence of UZ and PMZ, and the lower hardness value of the ASS side. The UZ and PMZ lead to the fracture of the tensile specimen along the ASS 304L side’s HAZ. The measurement of microhardness carried out along the transverse length indicates an average microhardness of 214.4 HV, and the value is 202.9 HV along the weld depth. The mixed morphology of the microstructure promotes the variation in hardness in both directions. The hardness along the length shows a high hardness value in the weld zone and uniformly decreases along the base materials. The Charpy impact test of the weld zone shows the brittle fracture of the impact specimens. From the microstructural and mechanical results, the LBW dissimilar weld between Inconel 718 and ASS 304L is qualified for safe use in high-temperature end applications, such as AUSC power plants. Full article

Root pass is a fundamental step in multi-pass welding. In gas metal arc welding (GMAW), the weld bead qualities depend on the process parameters, filler materials, and welder abilities. This work investigates the effect of a Nd: YAG pulsed laser as a first pass to reduce the welders’ reliance on the AH36 low-alloy steel with 5.5 mm thickness. This autogenous automatable process delivers reduced thermal impact due to the concentrated high-energy source, pulse overlap, and higher penetration depth-to-power ratio than continuous lasers. The outcomes indicate that the PL as a root welding generated a small HAZ compared to the GMAW condition. In addition, the subsequent arc passes positively affected the microstructure, reducing the hardness from around 500 to 230 HV. The PL + GMAW achieved similar strength results to the GMAW, although its Charpy impact values at −50 °C were around 15% lower than the arc condition. Full article

The results disclosed that both the microstructure and mechanical properties of AA7075-T6 laser welds are considerably influenced by the heat input. In comparison with high heat input (arc welding), a smaller weld fusion zone with a finer dendrite arm spacing, limited loss of alloying elements, less intergranular segregation, and reduced residual tensile stress was obtained using low heat input. This resulted in a lower tendency of porosity and hot cracking, which improved the welded metal’s soundness. Subsequently, higher hardness as well as higher tensile strength for the welded joint was obtained with lower heat input. A welded joint with better mechanical properties and less mechanical discrepancy is important for better productivity. The implemented high-power fiber laser has enabled the production of a low heat input welded joint using a high welding speed, which is of considerable importance for minimizing not only the fusion zone size but also the deterioration of its properties. In other words, high-power fiber laser welding is a viable solution for recovering the mechanical properties of the high-strength AA 7075-T6 welds. These results are encouraging to build upon for further improvement of the mechanical properties to be comparable with the base metal. Full article

This paper builds an infinity shaped (“∞”-shaped) laser scanning welding test platform based on a self-developed motion controller and galvanometer scanner control gateway, takes the autogenous bead-on-plate welding of 304SS with 3 mm thick specimens as the experimental objects, designs the experimental parameters by the Latin hypercube sampling method for obtaining different penetration depth welded joints, and presents a methodology based on the neuroevolution of augmenting topologies for predicting the penetration depth of “∞”-shaped laser scanning welding. Laser power, welding speed, scanning frequency, and scanning amplitude are set as the input parameters of the model, and welding depth (WD) as the output parameter of the model. The model can accurately reflect the nonlinear relationship between the main welding parameters and WD by validation. Moreover, the normalized root mean square error (NRMSE) of the welding depth is about 6.2%. On the whole, the proposed methodology and model can be employed for guiding the actual work in the main process parameters’ preliminary selection and lay the foundation for the study of penetration morphology control of “∞”-shaped laser scanning welding. Full article

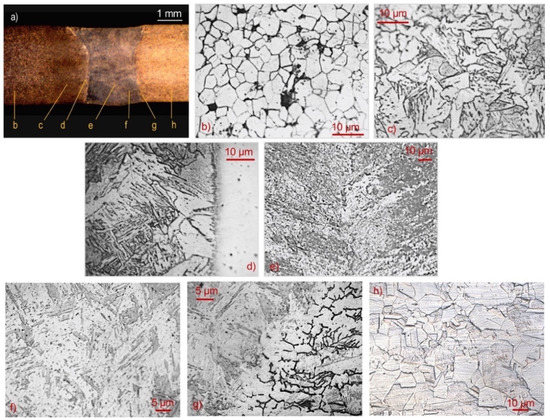

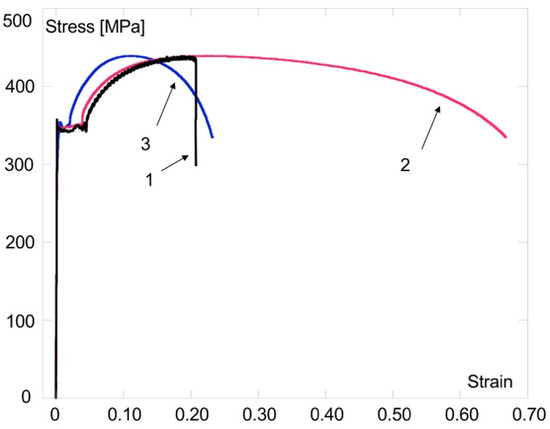

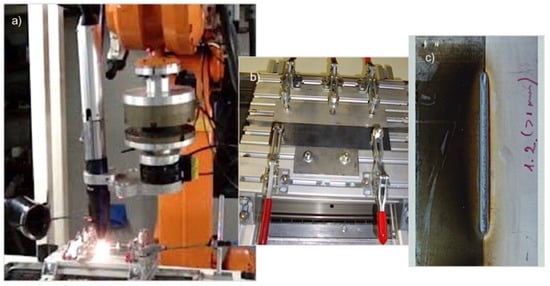

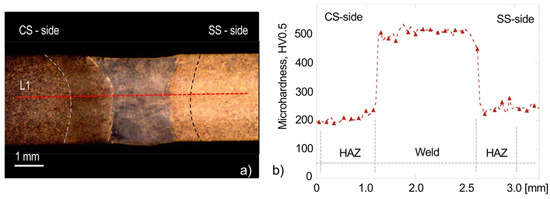

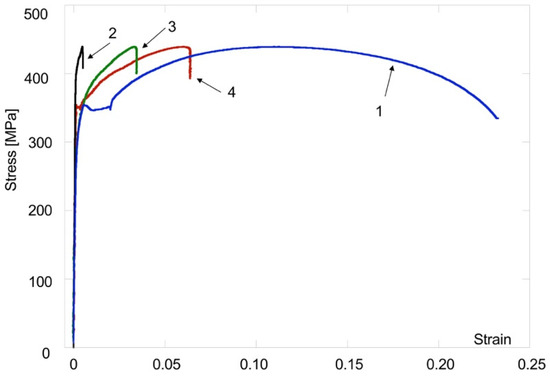

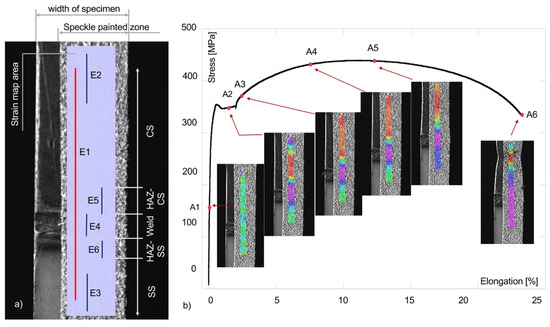

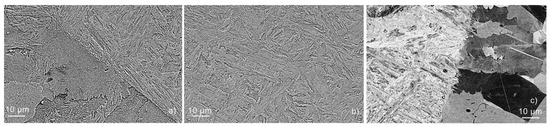

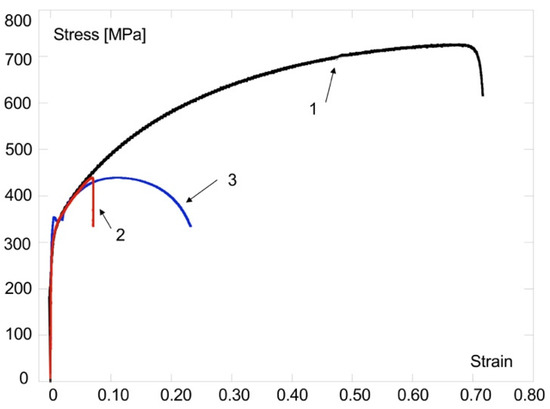

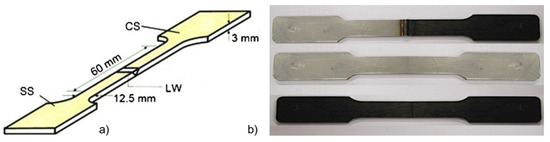

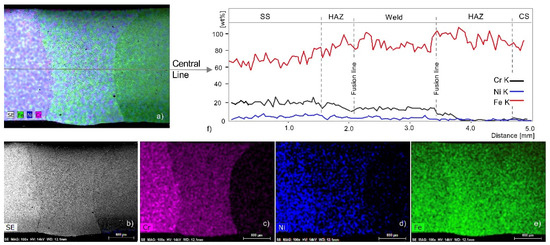

This paper addresses the metallurgical and mechanical characterization of dissimilar joints made by laser autogenous welding between thin sheets of low-carbon steel (CS) and austenitic stainless steel (SS). The welding technology applied, previously optimized to produce sound dissimilar joints, is based on the heat source displacement from the weld gap centerline towards CS, in order to reduce the SS overheating. The research includes optical microscopy observations, energy dispersive X-ray analysis (EDX) to assess the wt% of Cr, Ni, and Fe in all regions of the dissimilar welded joint, hardness measurements, and tensile tests of transverse-welded flat specimens. In comparison with classical determination of the joint overall mechanical characteristics, the novelty of this research consists of experimental assessment of the local mechanical behavior of the fusion and heat affected zones by using a digital image correlation technique (VIC-2D). This is an efficient tool for determining the constitutive properties of the joint, useful for modelling the mechanical behavior of materials and for verifying the engineering predictions. The results show that the positive difference in yielding between the weld metal and the base materials protects the joint from being plastically deformed. As a consequence, the tensile loading of flat transverse specimens generates the strain localization and failure in CS, far away from the weld. Full article

A dissimilar autogenous laser welded joint of AISI 430F (X12CrMoS17) martensitic stainless steel and AISI 304 (X5CrNi18-10) austenitic stainless steel was manufactured. The welded joint was examined by non-destructive visual testing and destructive testing by macro- and microscopic examination and hardness measurements. With reference to the ISO 13919-1 standard the welded joint was characterized by C level, due to the gas pores detected. Microscopic observations of AISI 430F steel revealed a mixture of ferrite and carbides with many type II sulfide inclusions. Detailed analysis showed that they were Cr-rich manganese sulfides. AISI 304 steel was characterized by the expected austenitic microstructure with banded δ-ferrite. Martensitic microstructure with fine, globular sulfide inclusions was observed in the weld metal. The hardness in the heat-affected zone was increased in the martensitic steel in relation to the base metal and decreased in the austenitic steel. The hardness range in the weld metal, caused by chemical inhomogeneity, was 184–416 HV0.3. Full article

This study presents results of experimental tests on quality of dissimilar welded joints between 316L austenitic and 2304 lean duplex stainless steels, welded without ceramic backing. Fiber laser welded butt joints at a thickness of 8 mm were subjected to non-destructive testing (visual and penetrant), destructive testing (static tensile test, bending test, and microhardness measurements) and structure observations (macro- and microscopic examinations, SEM, element distribution characteristics, and ferrite content measurements). Non-destructive tests and metallographic examinations showed that the welded joints meet the acceptance criteria for B level in accordance with EN ISO 13919–1 standard. Also the results of the destructive tests confirmed the high quality of the joints: specimens were fractured in base material with lower strength—316L austenitic stainless steel and a 180° bending angle was obtained confirming the high plasticity of the joints. Microscopic examination, SEM and EDS analysis showed the distribution of alloying elements in joints. The microhardness of the autogenous weld metal was higher by about 20 HV0.2 than that of the lean duplex steel. Ferrite content in the root was about 37% higher than in the face of the weld. The Schaeffler phase diagram was used to predict the phase composition of the welded joints and sufficient compliance with the magnetic method was found. The presented procedure can be used for welding of 316L–2304 stainless steels dissimilar welded joints of 8 mm thickness without ceramic backing. Full article

In this research, the microstructures and mechanical properties of similar and dissimilar autogenous joints of 3 mm thick commercially pure titanium (CP-Ti) and Ti-6Al-4V welded by ytterbium fiber laser (Yb:YAG) were investigated. Two sets of laser power and welding speed were selected in such a way that the heat input remained constant. Microstructural characterization of the joints was investigated by an optical microscope, and mechanical properties were determined by hardness and tensile tests. The only defects found were porosity and underfill, and no signs of lack of penetration and solidification cracks were observed in any of the joints. Microstructural evaluation of the fusion zone (FZ) showed that in similar Ti-6Al-4V joint, a supersaturated nonequilibrium α′ martensite was formed due to rapid cooling associated with laser welding. In similar CP-Ti, coarse equiaxed grains were observed in the FZ. Unlike the similar joints, a clear interface was observed between the heat-affected zone (HAZ) and the FZ in both the CP-Ti and Ti-6Al-4V sides in dissimilar joints. Among all the joints with different weld parameters, similar Ti-6Al-4V showed the highest strength and the lowest ductility. In similar CP-Ti and dissimilar joints, fractures took place in the CP-Ti base metal, but all the Ti-6Al-4V similar joints failed in the FZ. Significant changes in the strength and hardness with varying laser power and welding speed implied that the mechanical properties of the weld fusion zones were not entirely governed by the heat input but were also affected by individual welding parameters. Full article
