Search Results (1,775)

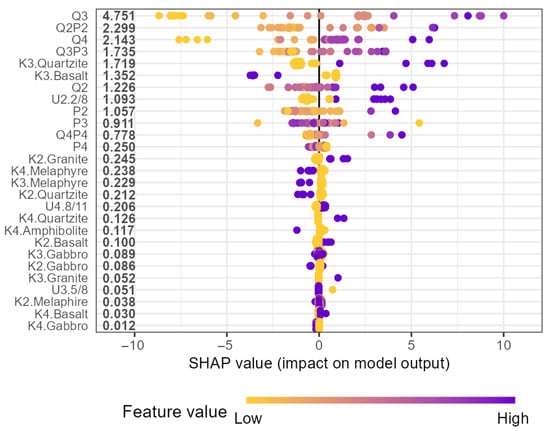

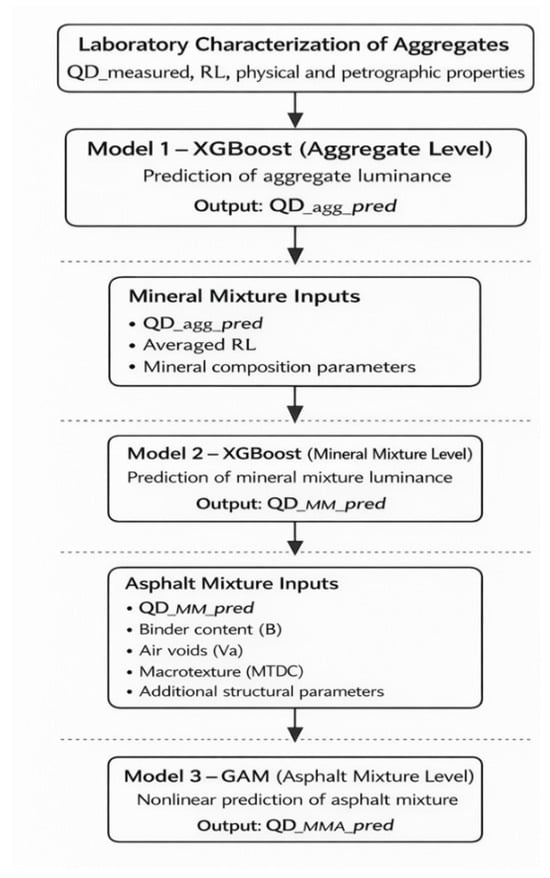

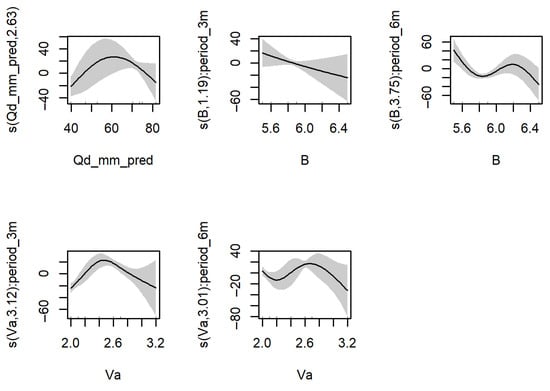

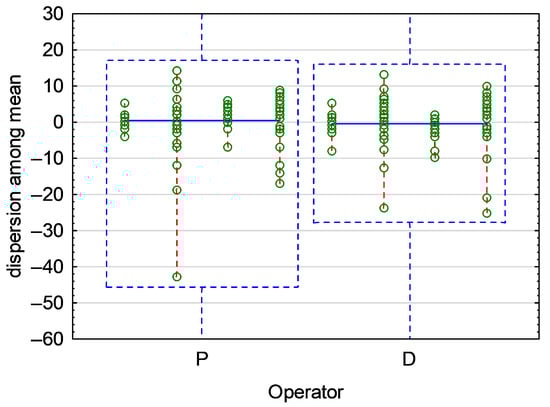

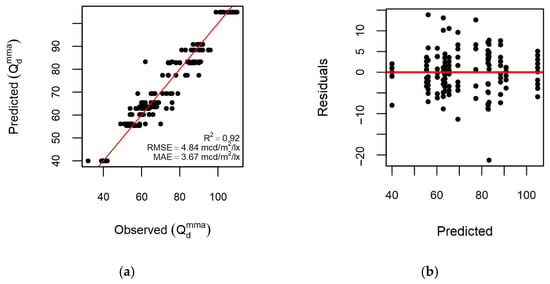

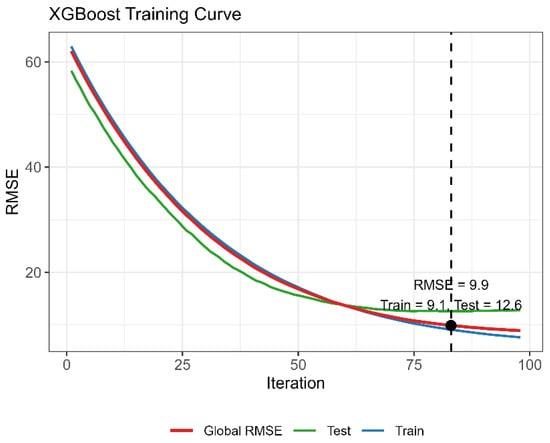

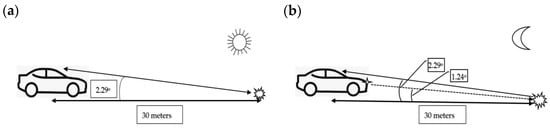

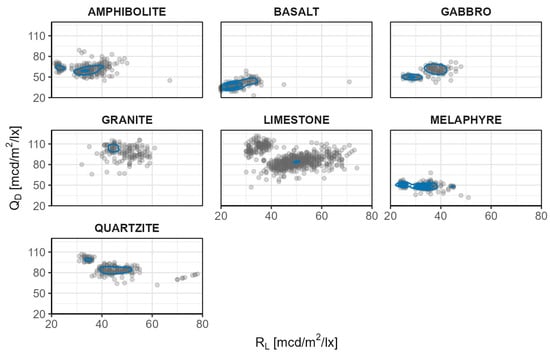

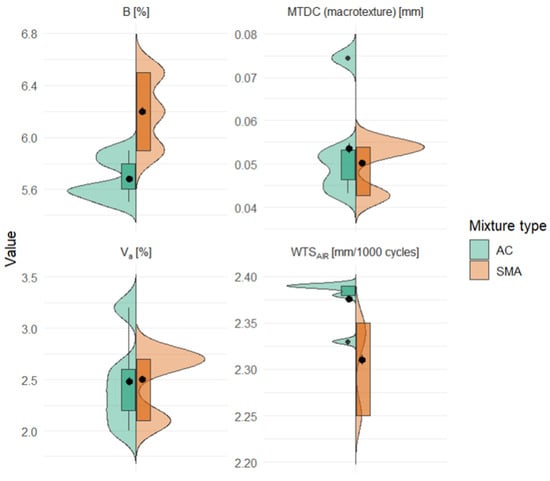

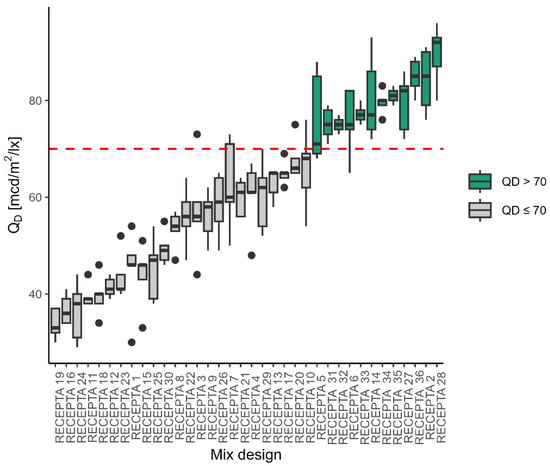

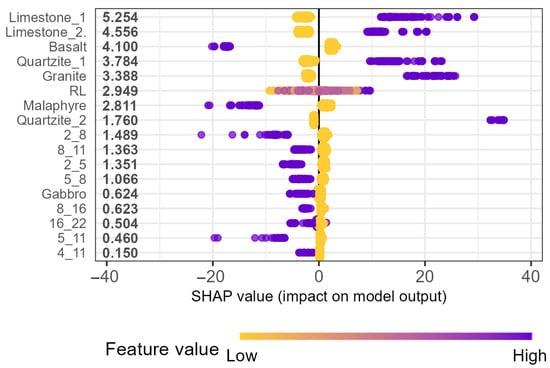

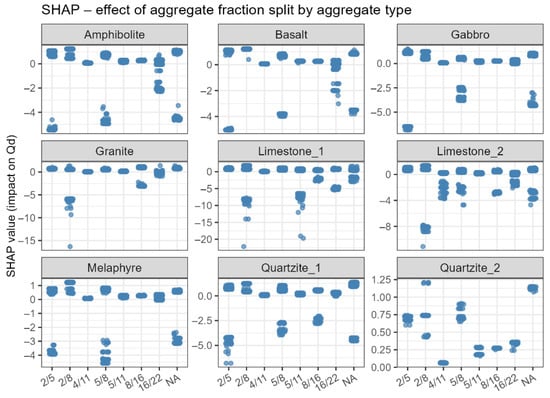

The paper introduces a non-linear method for modeling the luminance coefficient (Qd) of asphalt (bituminous) mixtures using a Generalized Additive Model (GAM). Developed from observations after three and six months of service, the model accounts for the effects of aggregate luminance, binder content, and air voids, as well as temporal and non-linear dependencies. It showed a high goodness-of-fit (R² = 0.91) and strong predictive accuracy (RMSE = 4.8 mcd/m²/lx). The analysis revealed that the service period significantly influences luminance, with values after six months being, on average, 12.6 mcd/m²/lx higher than at three months. The impact of aggregate luminance was non-linear, displaying a saturation effect, while asphalt content and air voids varied in their influence over time. Results indicate that the factors affecting bituminous mixture luminance are complex and vary over time; moreover, high aggregate luminance alone does not guarantee a high Qd. Applying the additive model confirms the importance of accounting for non-linear effects and temporal interactions when assessing road surface optical properties. Full article

Semi-circular bending tests were conducted on high-elasticity asphalt concrete under different aging conditions to investigate the effects of rubber particles and polyester fiber contents on its fracture properties. Results showed that the incorporation of approximately 3% rubber particles increased the fracture energy by 15%, whereas the addition of 1.2% polyester fibers increased the fracture toughness and fracture energy by 4% and 19%, respectively. Aging-induced oxidative hardening enhanced the overall elastic modulus and interfacial constraint effect of the asphalt mixture, thereby improving the stress transfer efficiency among the rubber particles, polyester fibers, and the surrounding matrix. As a result, both the peak load and fracture toughness increased. However, compared with the unaged state, aged asphalt concrete became more susceptible to brittle fracture, with a decrease in fracture energy and a change in the crack propagation path from a curved to a straight trajectory. Full article

Rapid urbanization has intensified challenges regarding urban waterlogging and vehicle exhaust pollution. While permeable asphalt mixtures mitigate waterlogging and nano-TiO₂ offers photocatalytic exhaust degradation capabilities, the direct application of nano-TiO₂ is hindered by agglomeration and low photocatalytic efficiency. This study developed a composite modified nano-TiO₂ via metal ion doping and support treatment to enhance its performance in asphalt pavements. Specifically, nano-TiO₂ was doped with Fe³⁺, Ag⁺, and La³⁺ via the sol–gel method, and supported on activated carbon (AC) or Al₂O₃. The exhaust degradation performance was evaluated using a custom-built system, while dispersion properties were assessed via fluorescence microscopy and UV-Vis spectrophotometry. Furthermore, X-ray diffraction (XRD) and Fourier-transform infrared (FTIR) spectroscopy were conducted to investigate the microstructural mechanisms underlying the doping modification and support treatment. Photocatalytic permeable asphalt mixtures were prepared by partially replacing mineral powder with the composite modified nano-TiO₂ to validate exhaust degradation and pavement performance. The results indicated that metal doping substituted Ti⁴⁺ in the lattice, inducing defects and reducing crystallite size to boost photocatalytic activity. The optimal doping concentrations are determined to be 1.0% for Fe³⁺, 1.5% for Ag⁺, and 1.0% for La³⁺. Among these, Fe³⁺-doped nano-TiO₂ at 1.0% content exhibits superior exhaust degradation, achieving 46.7% efficiency for hydrocarbons (HC) and 33.5% for nitrogen oxides (NO). Regarding dispersion, while AC performs better at low support content, Al₂O₃ at 40% content provides superior dispersion properties by increasing active sites and surface hydroxyl groups. For photocatalytic permeable asphalt mixtures, replacing 40–50% of mineral filler with the composite modifier is recommended. The optimized mixture demonstrates superior exhaust degradation performance while maintaining the required high-temperature stability, low-temperature cracking resistance, water stability, and fatigue life. Specifically, compared to the control group, these indicators for the mixture with 50% of the mineral filler replaced by the composite modifier increases by 7.0%, 12.5%, 13.4%, and 22.9%, respectively. This study presents a viable technical solution for developing multifunctional asphalt mixtures with photocatalytic functionality as the core innovation and mechanical performance as the application baseline. Full article

To address the issues of high energy consumption and unstable construction quality caused by high-temperature heating during the preparation of traditional hot-mixed/grouted semi-flexible pavement (SFP) mixtures, a cold-mixed integrated (CMI) process was proposed. In addition, the material composition of the mixtures was optimized. The effects of the preparation process and binder type on the high- and low-temperature performance, water stability, and fatigue performance were then analyzed. Furthermore, the microstructural characteristics of the semi-flexible mixture were also investigated. The results indicated that the CMI process facilitated the formation and uniform distribution of calcium silicate hydrate (C-S-H), enhanced the binder’s ability to encapsulate aggregates and fill skeletal voids, significantly reduced the mixture’s void ratio, and improved its pavement performance. The proposed procedure was a means of enhancing high-temperature stability and fatigue life (an increase of 80% and 200 times compared to the hot-mixed/grouted (HMG) process, and 5 times and 300 times compared to AC-13, respectively). Compared with the HMG process, the CMI process offered greater advantages in enhancing the high-temperature stability and fatigue resistance of the mixture, particularly when using SBS-modified asphalt, where fatigue performance exhibited an order-of-magnitude improvement. Furthermore, while SBS modification could improve the road performance of SFP materials, mixtures prepared with SBS-modified emulsified asphalt demonstrated more significant enhancements in high-temperature stability and fatigue resistance, approximately 2 times and 10 times higher than SBS-modified mixtures, respectively. The addition of styrene–acrylic emulsion (SAE) could further enhance the low-temperature crack resistance by approximately 7%. The research results can provide a reference for the development and application of preparation processes for semi-flexible mixtures. Full article

The disposal of waste tyres presents a significant environmental challenge, necessitating sustainable, high-value recycling solutions. This study explores the incorporation of waste tyre metal fibre (WTMF) into hot mix asphalt (HMA) to enhance mechanical performance while reducing its electrical resistivity as well as the landfill burden. The primary goal of this research is to apply response surface methodology (RSM) to experimental data for modelling and optimizing WTMF-modified HMA mixes by capturing the coupled effects of fibre reinforcement and binder content on mechanical and functional performance. The microstructural characteristics of WTMF were examined using scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDS), and X-ray diffraction (XRD). WTMF-modified mixes containing five WTMF dosages (from 0% to 1.50%) and bitumen contents from 4% to 6% were prepared and tested in the laboratory. The resulting dataset was used for RSM modelling, with WTMF and bitumen contents as input factors and Marshall stability, flow, porosity, and electrical resistivity as response variables. The central composite design (CCD) technique was employed to quantify interaction effects and to identify statistically significant trends. The developed models were validated using statistical indicators, and optimal mixture compositions were determined and experimentally verified. Microstructural analysis revealed WTMF’s irregular, rough surface with microcracks and pits, aiding crack-bridging and stress transfer. RSM results indicated 0.71% WTMF and 5.1% bitumen as an optimal combination of factors. Furthermore, high R² (>0.80) and adequate precision (>4.0) values from analysis of variance (ANOVA) underscore the significance of the proposed models, revealing a robust correlation between experimental and predicted data. This study demonstrated WTMF’s potential to be used in conventional HMA mixes, offering a sustainable recycling pathway for waste tyres. Full article

Asphalt pavement on rigid base (cement concrete) differs significantly from traditional granular base pavement. To investigate its mechanical behavior, a viscoelastic–viscoplastic damage constitutive model for asphalt mixtures is proposed and verified. A user-material subroutine (UMAT) is developed to implement the model, and a three-dimensional finite element model is established to analyze pavement responses under various working conditions. Key numerical results include the following: the asphalt layer primarily experiences compressive–shear failure, with peak shear stress (τ₁₂) reaching 141.6 kPa under rigid base conditions; emergency braking increases τ₁₂ to approximately 270.3 kPa, a 91% increase; increasing vehicle speed from 15 m/s to 35 m/s raises τ₁₂ by 36.7%; based on stress analysis alone, the recommended asphalt layer thickness is between 0.10 m and 0.14 m, as thickness beyond 0.10 m yields diminishing stress reduction. The findings provide references for performance prediction, structural design, and material development of asphalt pavement on a rigid base. Full article

Warm-mix asphalt (WMA) technology and basalt fiber modification have been increasingly applied in road engineering. However, conventional basalt fibers often disperse unevenly and tend to agglomerate. In this study, basalt fiber powder (BFP) was incorporated into a Sasobit-based WMA system and systematically compared with matrix asphalt, Sasobit-modified WMA, conventional basalt fiber-modified WMA, and styrene butadiene styrene (SBS)-modified asphalt. Multiscale characterization—including dynamic shear rheometry (DSR), bending beam rheometry (BBR), scanning electron microscopy (SEM), and nanoindentation—was conducted to elucidate rheological behavior and interfacial micromechanical responses. The corresponding Asphalt Concrete-13 (AC-13) mixtures were further evaluated through rutting tests, low-temperature bending tests, and moisture susceptibility tests. Results demonstrate that micronized BFP achieves more homogeneous dispersion within the asphalt matrix and may promote a more effective reinforcing morphology, significantly enhancing high-temperature deformation resistance while partially mitigating the low-temperature stiffness increase induced by Sasobit. Compared with conventional basalt fiber systems, BFP shows better stress relaxation capacity and interfacial mechanical response under the tested conditions. At the mixture level, the BFP–Sasobit system showed the best overall performance, with the dynamic stability increasing by 242.2% relative to the base asphalt mixture and the residual Marshall stability reaching 92.3%, while the low-temperature flexural strain increased by 33.3%. Overall, the findings suggest that morphology-controlled micronization provides a morphology-guided enhancement strategy for Sasobit-based warm-mix asphalt by promoting coordinated improvements across the rheological, micromechanical, and mixture scales. Full article

To address high-temperature stability demands and promote resource utilization, this study investigates coal–oil co-processing residue (COCR) as an asphalt modifier. Penetration, softening point, ductility, rheological, and aging/storage evaluations were conducted on asphalt with varying COCR contents. Modification mechanisms were analyzed using FTIR, GPC, and SARA fractionation. The results revealed that COCR significantly enhanced high-temperature performance while slightly reducing low-temperature performance, showing good storage stability. At a 10% COCR content, the rutting factors of 70# and 90# asphalt increased by 44.8% and 46.2%, respectively, at 52 °C. Increased asphaltene content indicated that COCR reinforced the colloidal structure, thus improving the deformation resistance. At a 15% COCR content in mixture, the dynamic stability of asphalt mixtures increased by approximately 53.5% and 59.7% for 70# and 90# base asphalt, respectively. Considering overall performance balance, 10% COCR in 90# base asphalt would be recommended for regions with hot summers and warm winters. Full article

Road pavement rehabilitation increasingly incorporates innovative surface technologies aimed at improving pavement performance while reducing environmental impacts. In addition to conventional recycled asphalt pavement (RAP) maintenance strategies, advanced pavement surface systems such as reflective coatings, rejuvenator-based self-healing mixtures, and thin low-noise asphalt layers have been developed to enhance durability and functional performance. This study presents a comparative Life Cycle Assessment (LCA) of four pavement surface technologies using primary inventory data obtained from full-scale road sections. The systems evaluated include a conventional maintenance mixture and three alternative surface solutions: reflective pavement coatings, RAP mixtures incorporating rejuvenator-based self-healing systems, and thin low-noise asphalt layers. The assessment follows ISO 14040 and ISO 14044 standards and applies the ILCD 2011 midpoint+ (EF 2.0) method. To enable comparability between technologies with different durability, the functional unit was defined as 1 m² of rehabilitated pavement per year of service life. The results indicate that thin low-noise asphalt layers provide the highest environmental benefits across most impact categories due to significant material savings associated with reduced layer thickness. Reflective pavement coatings decrease several impacts, particularly fossil resource depletion and atmospheric emissions, although higher burdens are observed in some categories due to synthetic binder production. RAP mixtures incorporating rejuvenator-based self-healing systems improve resource efficiency and extend pavement durability but may increase impacts associated with binder manufacturing. Overall, the findings highlight relevant environmental trade-offs between different pavement surface technologies and demonstrate that parameters such as layer thickness, binder composition, recycled material content, and service life strongly influence environmental performance. The study illustrates how comparative Life Cycle Assessment supports the development and selection of more sustainable pavement surface systems. Full article

Under long-term heavy load and complex service environments, polyurethane-modified asphalt (PUMA) struggles to simultaneously satisfy the requirements of rutting and cracking resistance of asphalt pavements, as cyclic stress loading reduces the elastic recovery and low-temperature toughness of polyurethane (PU). To address this issue, this study employed hydroxylated crumb rubber (HCR), which is obtained by activating the surface of crumb rubber (CR) and can chemically crosslink with PU in asphalt to form a crosslinked network structure. The aim was to enhance the rutting and cracking resistance of PUMA by utilizing the elasticity and low-temperature toughness of CR. An orthogonal design was employed to systematically design a modified asphalt formulation with PU and HCR (PU/HCRMA) by controlling the isocyanate index and the contents of PU and HCR. The basic properties, rheological properties, and viscoelastic properties of PU/HCRMA were systematically investigated. The results demonstrate that the rutting and cracking resistance of PU/HCRMA are substantially enhanced, with an improvement of 28.91% in the rutting factor at 64 °C compared to PUMA and a reduction of 49.93 MPa in the stiffness modulus at −24 °C. Simultaneously, incorporating HCR in PUMA enhances its viscosity and flow resistance while reducing temperature susceptibility. Furthermore, by providing load-bearing sites, HCR endows PU/HCRMA with exceptional elastic recovery and deformation resistance. Results from FTIR and FM confirm the reaction between isocyanate groups in the PU prepolymer and the hydroxyl groups on the surface of HCR and the formation of HCR-PU crosslinked networks. Finally, PU/HCRMA asphalt mixtures demonstrate significant improvements in both rutting and cracking resistance. This research outcome provides a new direction for the development of high-performance road asphalt materials. Full article

The fast drainage of surface water from road pavements is essential to ensure both driving safety and adequate infrastructure service life. For close-graded asphalt mixtures, surface runoff relies on sufficient longitudinal and transverse slopes that convey water toward hydraulic drainage devices. However, construction defects, surface distress, or inadequate placement of drainage systems may compromise this process and reduce pavement durability. When water infiltrates beneath the wearing course and saturates the underlying layers, heavy traffic loads can accelerate deterioration through erosion, pumping, interlayer delamination, and subgrade overstress. This work investigates the joint use of Ground Penetrating Radar (GPR) and Mobile Laser Scanning (MLS) to evaluate drainage deficiencies and detect signs of layer delamination in bituminous pavements. A highway section in Salerno (Italy) was selected as a case study due to known hydraulic-related issues. MLS data were used to reconstruct pavement geometry and model surface runoff patterns, while GPR surveys assessed the condition of the bonding between asphalt and base layers. The results revealed ineffective runoff management and identified multiple areas affected by delamination, confirming a relationship between surface drainage behaviour and subsurface damage. These findings highlight the broader potential of the integrated GPR–MLS framework as a scalable and transferable approach for proactive drainage assessment and structural monitoring in pavement management practices. Full article

To address the growing demand for sustainable road infrastructure development and resolve technical bottlenecks in reclaimed asphalt pavement (RAP) recycling, this study optimized the performance of recycled asphalt mixtures (RAMs) and validated their engineering applicability for field construction. RAM specimens were prepared using 5-year and 10-year aged RAP from Ningxia, with a constant RAP content of 30%. Laboratory tests including high-temperature rutting, moisture susceptibility, low-temperature cracking, dynamic modulus, and four-point bending fatigue were performed to determine the optimal mix proportion. Fourier Transform Infrared Spectroscopy (FTIR) and Thin-Layer Chromatography-Flame Ionization Detection (TLC-FID) were employed to reveal the regeneration mechanism of waste engine oil (WEO). Results showed that WEO modified the functional groups and four fractions of asphalt, optimizing its colloidal structure, while excessive WEO compromised high-temperature stability. The optimal WEO contents were 4% for RAP (5Y) and 8% for RAP (10Y), which significantly enhanced the overall performance of RAM to adapt to Ningxia’s climate. This study provides technical support for sustainable road infrastructure in arid and semi-arid regions. Full article

This paper proposes an interpretable machine learning approach for predicting the splitting strength of asphalt concrete and supporting data-driven mixture design. A database consisting of 296 samples was constructed, and 14 input variables related to asphalt properties, aggregate gradation, and fiber characteristics were selected for modeling. Eight machine learning models, namely TabPFN, ANN, SVR, RF, XGBoost, LightGBM, FLAML, and FT-Transformer, were developed and compared. The results show that all eight models achieved satisfactory predictive capability, whereas TabPFN overall achieved the best performance in the Monte Carlo cross-validation, with the lowest average RMSE of 0.34 ± 0.10, the lowest average MAE of 0.21 ± 0.02, a relatively low average MAD of 0.14 ± 0.03, the highest average R² of 0.85 ± 0.08, and the highest composite score of 0.81. SHAP analysis further indicated that splitting strength prediction was mainly governed by a limited number of dominant variables, among which Ag9.5, AC, Du, FT, and Ag4.75 were the most effective parameters. In addition, favorable parameter ranges for improving splitting strength were quantified, such as Ag9.5 < 66.8%, AC < 5.4 wt.%, Du > 134.7 cm and Ag4.75 < 45.0%. Finally, a graphic user interface platform integrating prediction and SHapley Additive exPlanations-based interpretation was developed to improve the accessibility and practical applicability of the proposed framework. Full article

This paper develops a shock-absorbing asphalt mixture for pedestrian pavements that mitigates the impact of normal walking on pedestrians’ bodies by incorporating crumb rubber from recycled tires to produce a soft mixture. This aims to reduce injuries to vulnerable road users, enable the rethinking of urban pavement designs, and address the major challenges facing societies, ultimately achieving more sustainable, resilient, and safer cities. To promote land sustainability, the designed asphalt mixture should be pervious, allowing water to infiltrate into the underlying soil. The development of the asphalt mixture followed an experimental methodology that involved formulating asphalt mixtures with conventional bitumen, polymer-modified bitumen, and bituminous emulsion. The shock-absorbing capability was evaluated by measuring the deformation of the asphalt mixture over time in response to a falling weight from a Light Falling Weight Deflectometer. Permeability capabilities were assessed through the permeability test. Subsequently, the asphalt mixture was characterized according to its macrotexture, friction, air void content, rutting resistance, and stiffness to assess its suitability as a walking surface material. Results indicate that increasing rubber content enhances deformation capacity and improves cushioning but reduces stiffness. Among the solutions, mixtures with polymer-modified bitumen and intermediate rubber content achieved the balance between impact attenuation and mechanical performance. Full article
