Search Results (12)

The theta projection method has been used to predict uniaxial creep curve shapes for a wide range of materials. However, one of the criticisms of the existing method is that the multilinear approach, commonly used to correlate theta parameters to applied test conditions, does not extrapolate well over a full range of creep conditions, due to not accounting for changes in creep mechanisms. This is particularly important for evaluating the creep behaviour of structural engineering components that operate in an environment in which a wide range of stress and/or temperatures exist during their service life. This study uses the theta projection method to evaluate creep curves for the nickel-based superalloy, Waspaloy, over a range of test conditions, considering changes in observed dominant creep mechanisms. A clear break in the trend of ${\theta }_3$ and ${\theta }_4$ with respect to stress is observed, indicating that a change in mechanism is important for tertiary creep. Using a power law approach along with optimisation algorithms, the residual error between predicted and experimentally observed creep curves is reduced. With more accurate prediction of creep curves, creep rates throughout the duration of creep can be more accurately calculated, providing the basis of more accurate computational creep models. Full article

Nickel-based superalloys find their main use in missile engines, atomic devices, investigational aircraft, aerospace engineering, industrial applications, and automotive gas turbines, spacecraft petrochemical tools, steam power, submarines, and broader heating applications. These superalloys impose certain difficulties during the process fabrication owing to their levels of higher hardness. In the current study, the precise machining of Waspaloy was attempted through the wire electrical discharge machining (WEDM) technique. A multi-objective optimization has been performed, and the influence of multi-walled carbon nanotubes (MWCNTs) has been assessed using the passing vehicle search (PVS) algorithm. The effects of machining variables like current, T_off, and T_on were studied using the output measures of material removal rate (MRR), recast layer thickness (RLT), and surface roughness (SR). The Box–Behnken design was applied to generate the experimental matrix. Empirical models were generated which show the interrelationship among the process variables and output measures. The analysis of variance (ANOVA) method was used to check the adequacy, and suitability of the models and to understand the significance of the parameters. The PVS technique was executed for the optimization of MRR, SR, and RLT. Pareto fronts were derived which gives a choice to the user to select any point on the front as per the requirement. To enhance the machining performance, MWCNTs mixed dielectric fluid was utilized, and the effect of these MWCNTs was also analyzed on the surface defects. The use of MWCNTs at 1 g/L enhanced the performance of MRR, SR, and RLT by 65.70%, 50.68%, and 40.96%, respectively. Also, the addition of MWCNTs has shown that the machined surface largely reduces the surface defects. Full article

Alloys meeting the requirements of “700 °C and above” advanced ultra-super-critical technology, with higher thermal efficiency, have been developed in recent years. Here, a new wrought Ni-based superalloy with excellent high-temperature creep strength based on Waspaloy has been developed and is proposed as a candidate material for application in 700 °C class advanced ultra-super-critical steam turbine blades. In this new alloy, the Molybdenum (Mo) in Waspaloy is partially replaced by Tungsten (W). Creep tests have shown that this new Ni-based alloy has a 70 MPa higher creep-rupture strength than that of Waspaloy at 700 °C by extrapolating the experimental data. Detailed creep-rupture mechanisms have been analyzed by means of scanning electron microscopy, transmission electron microscopy, and chemical phase analysis with a view to devising potential approaches for performance improvements. The results showed that the partial replacement of Mo by W had negligible effect on the composition of carbides precipitated in the alloy. Instead, the amount of the γ′ phase was significantly increased, and mismatch between the γ and γ′ phases was reduced. In this way, the stability of the γ′ phase was increased, its coarsening rate was reduced, and its critical shear stress was increased. As a result, the high-temperature creep-fracture strength of the new alloy was increased. Full article

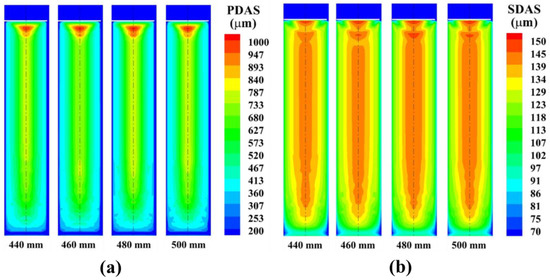

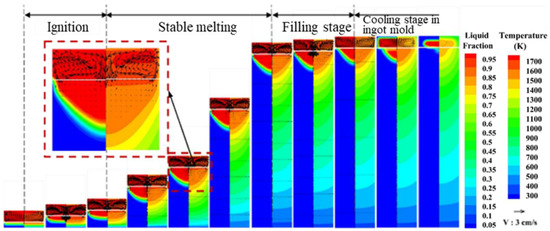

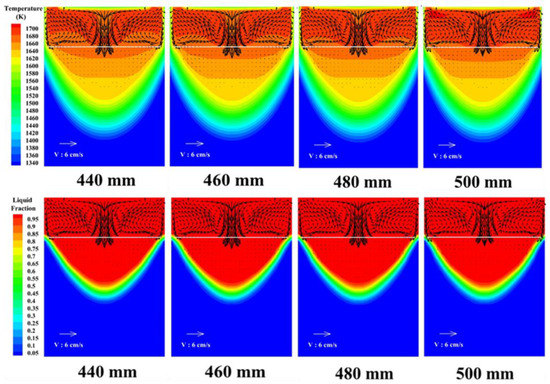

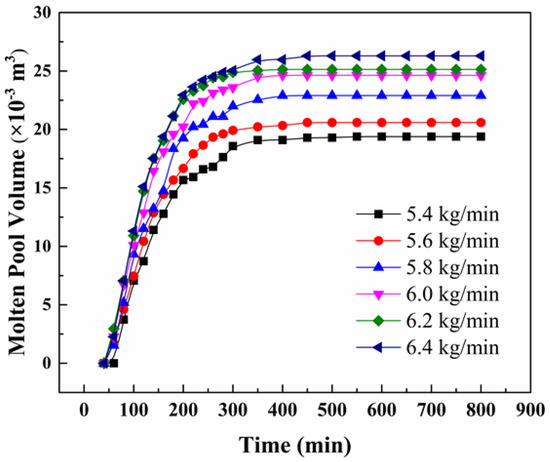

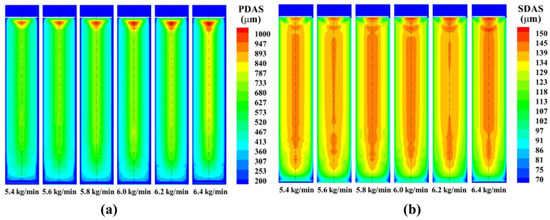

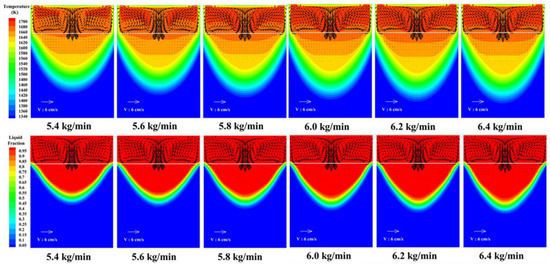

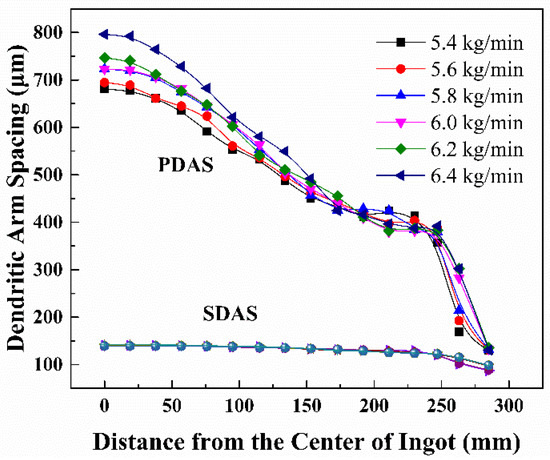

A transient numerical simulation method is used to investigate the temperature field, velocity field, and solidified field of large-size Waspaloy superalloy during the electroslag remelting (ESR) process. The effects of melting rate, filling rate, and thickness of the slag layer on the molten pool shape and dendrite arm spacing evolution have been discussed. The temperature in the slag pool is high and relatively uniformly distributed, the temperature range is 1690–1830 K. The highest temperature of the melt pool appears in the center of the slag–metal interface, 1686 K. There are two pairs of circulating vortices in the slag pool, the side vortices are caused by the density difference caused by the buoyancy of the slag, the center vortices are the result of the combined action of electromagnetic force and the momentum of the falling metal droplets. The molten pool depth and dendrite arm spacing increase with the increase of melting rate, but the slag layer thickness and electrode filling rate have little effect on the molten pool morphology and dendrite arm spacing if the droplet effect is not taken into account. Considering the morphology and depth of the molten pool as well as the size and distribution uniformity of the dendrite arm spacing, it is appropriate to maintain the melting rate at 5.8 kg/min for the industrial scale ESR process with the ingot diameter of 580 mm. Full article

The formation of the irregular γ′ precipitates in the nickel-based superalloy Waspaloy was investigated during the continuous cooling, which is relevant to the cooling rates and interrupted temperature. The morphology of the γ′ precipitates was observed to change from a dispersed sphere to the flower-like one with the decreasing of the cooling rates. It was found that there are three modes of transportation of the solute atoms involved in relation to the γ′ precipitates: dissolution from the small γ′ precipitates to the γ matrix, diffusion to the large γ′ precipitates from the matrix, and the short distance among γ′ precipitates close to each other. Meanwhile, the slower cooling rates tend to result in the serrated grain boundaries, and the wavelength between successive peaks (λ) and the maximum amplitude (A) are larger with the decreasing of the cooling rates. The content of the low ΣCSL boundaries increases with the decreasing of the cooling rates, which is of great benefit in improving the creep property of the Waspaloy. Full article

Nickel or Cobalt-based superalloys represent an important class of engineering materials, finding widespread application in critical components within the gas turbine engines used for jet propulsion and electricity generation. This research aimed at the frequency analysis of transients in electrochemical noise of Waspaloy and Ultimet superalloys, immersed in 3.5 wt.% in H₂SO₄ and NaCl solutions at two different temperatures, 25 and 60 °C. Localized corrosion behavior of superalloys was assessed using the electrochemical noise technique (EN) according to ASTM-G199 standard. Three different statistical methods filtered the EN signal, and the polynomial method was employed to obtain the noise resistance (R_n), the localization index (LI), skew and kurtosis, and the power spectral density analysis (PSD). Results indicate that the current and potential noise transients have a better behavior with better clarity when a polynomial is used to show a localized corrosion kurtosis for both superalloys. Full article

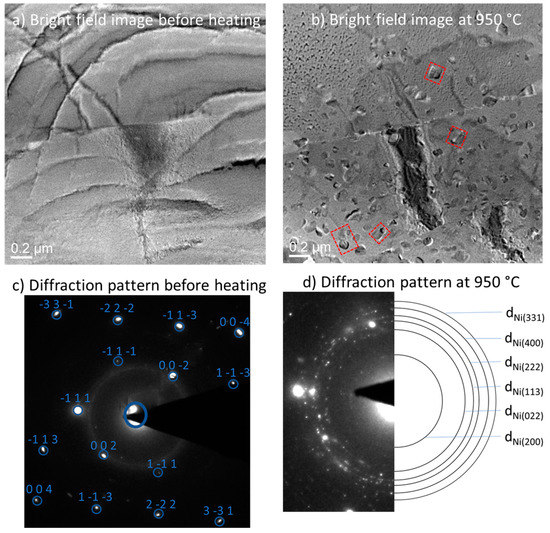

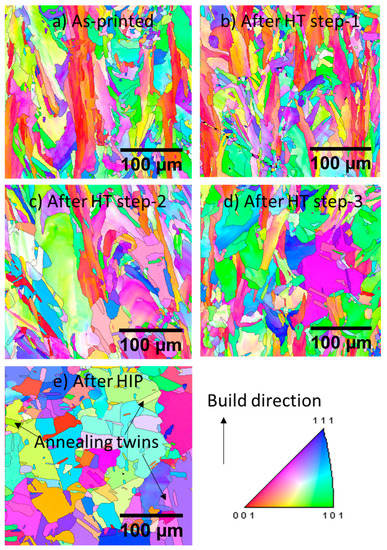

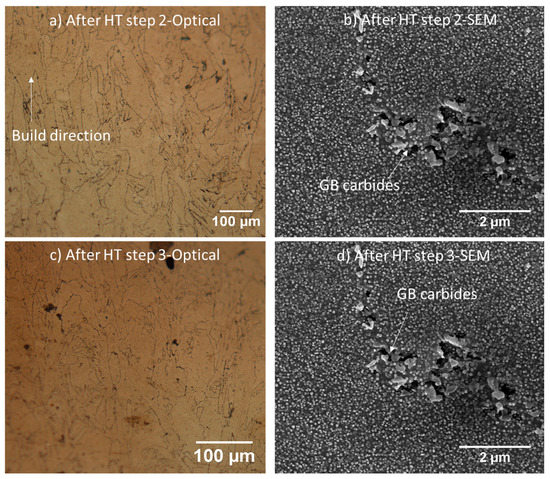

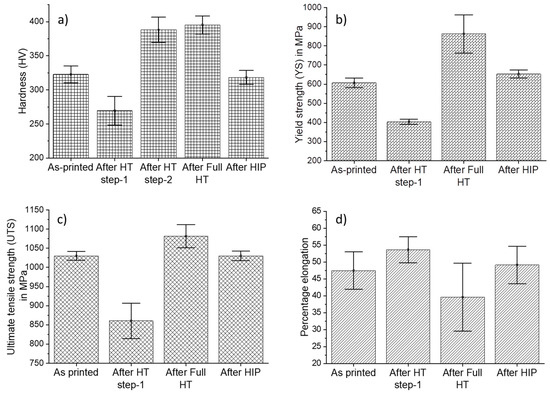

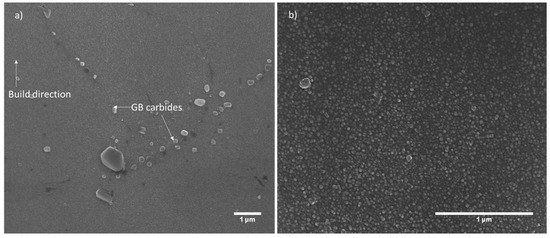

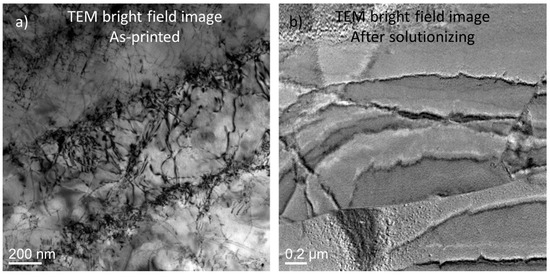

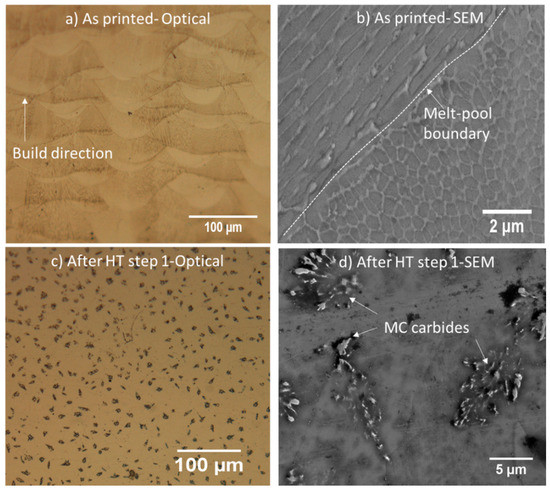

Selective laser melting (SLM) is one of the most widely used additive manufacturing technologies. Fabricating nickel-based superalloys with SLM has garnered significant interest from the industry and the research community alike due to the excellent high temperature properties and thermal stability exhibited by the alloys. Haynes-282 alloy, a γ′-phase strengthened Ni-based superalloy, has shown good high temperature mechanical properties comparable to alloys like R-41, Waspaloy, and 263 alloy but with better fabricability. A study and comparison of the effect of different heat-treatment routes on microstructure and mechanical property evolution of Haynes-282 fabricated with SLM is lacking in the literature. Hence, in this manuscript, a thorough investigation of microstructure and mechanical properties after a three-step heat treatment and hot isostatic pressing (HIP) has been conducted. In-situ heat-treatment experiments were conducted in a transmission electron microscopy (TEM) to study γ′ precipitate evolution. γ′ precipitation was found to start at 950 °C during in-situ heat-treatment. Insights from the in-situ heat-treatment were used to decide the aging heat-treatment for the alloy. The three-step heat-treatment was found to increase yield strength (YS) and ultimate tensile strength (UTS). HIP process enabled γ′ precipitation and recrystallization of grains of the as-printed samples in one single step. Full article

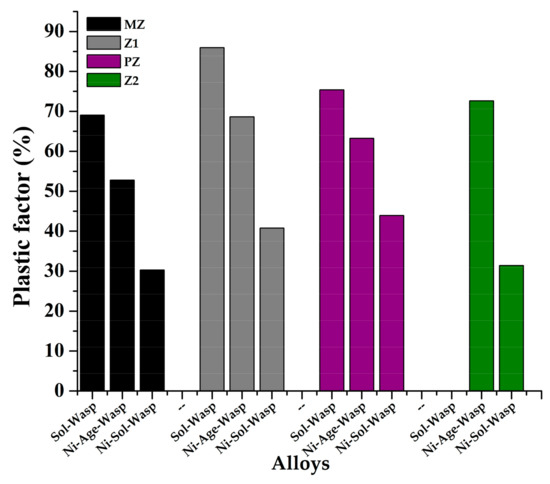

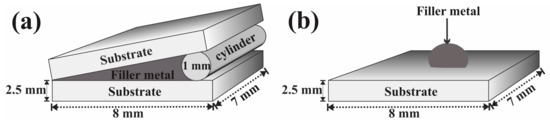

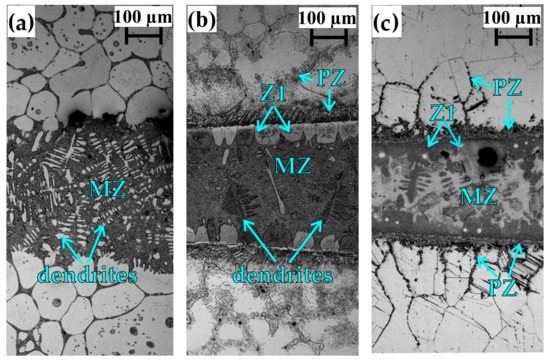

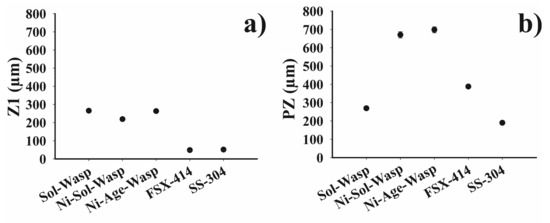

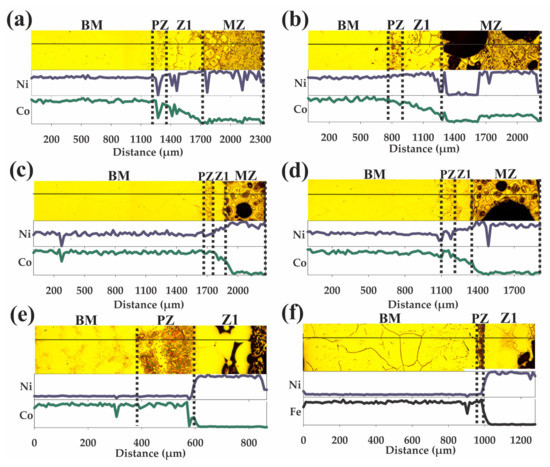

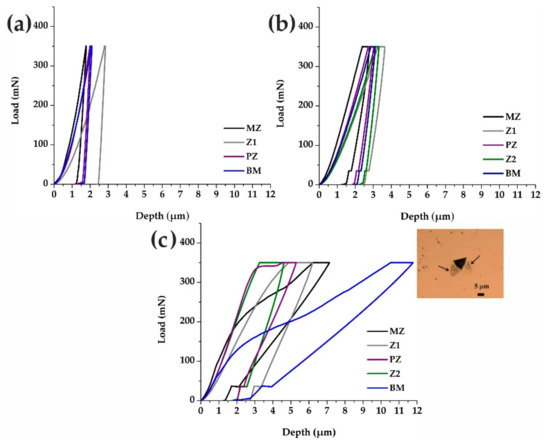

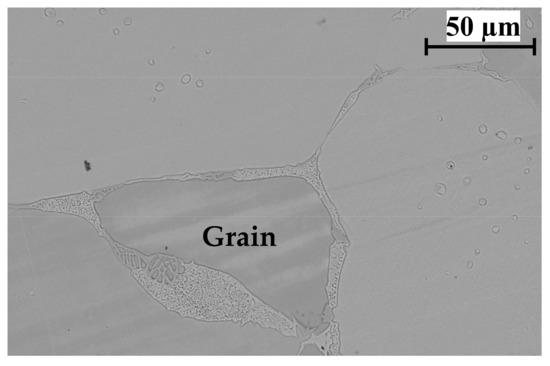

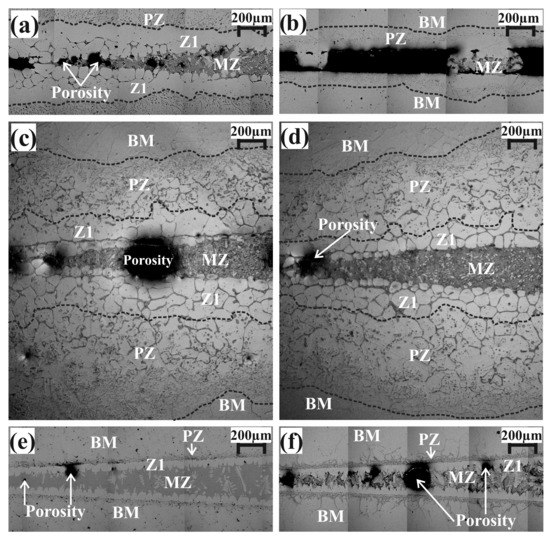

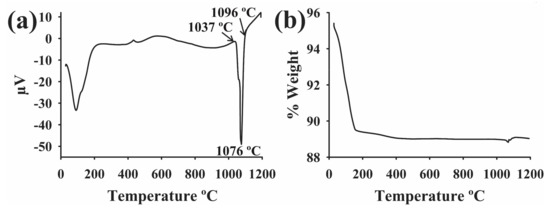

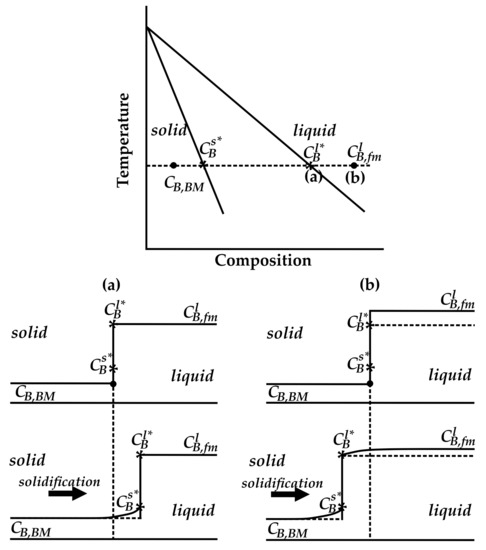

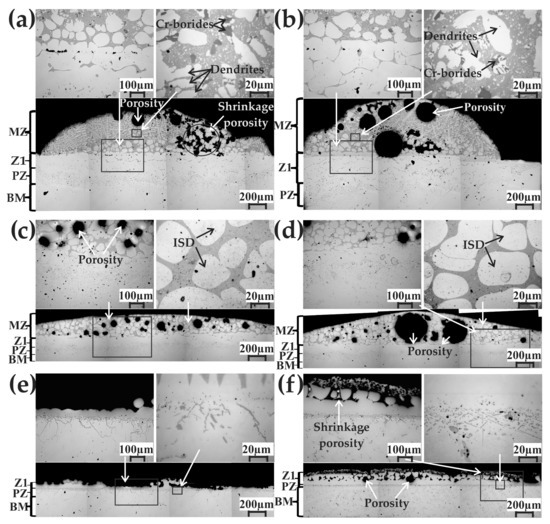

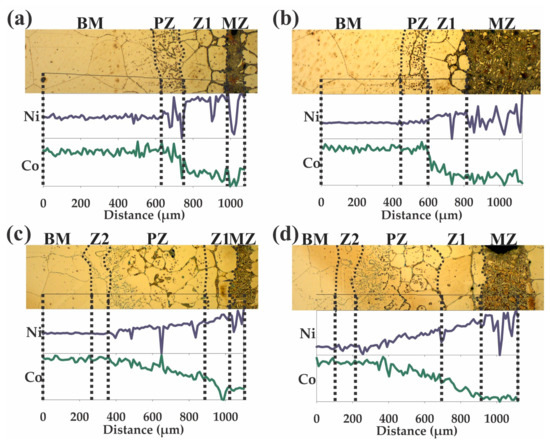

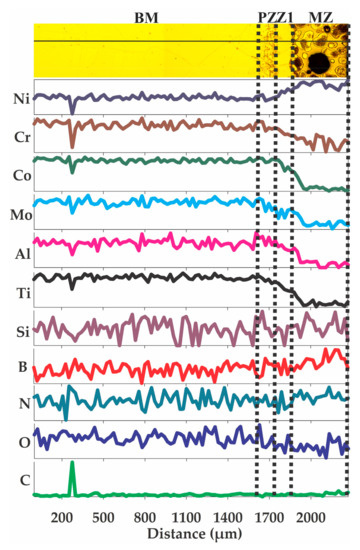

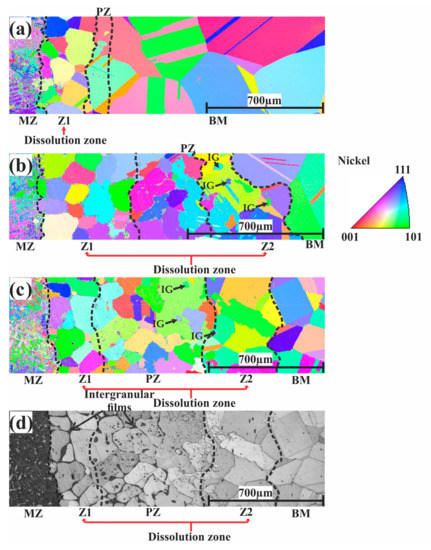

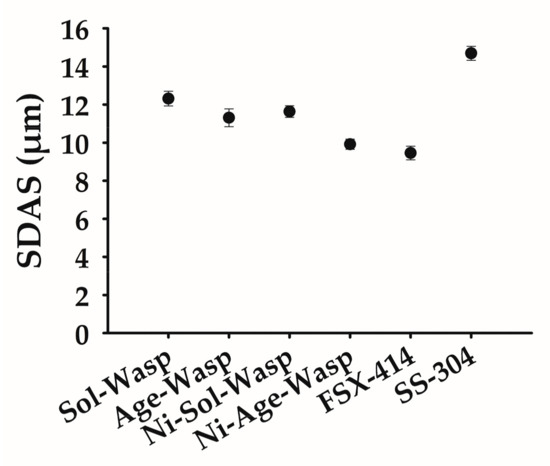

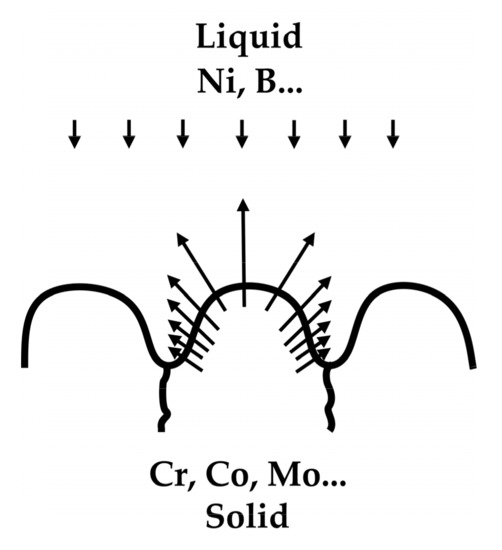

The metallurgical interaction of BNi-9 filler metal paste with Waspaloy, Ni-coated Waspaloy, FSX-414, and 304-SS is studied in a brazing treatment under an argon atmosphere with an isothermal hold for one hour at 1150 °C. The Waspaloy alloys were brazed under both solubilized and aging conditions. Before brazing, some Waspaloy samples were electrochemically coated with an Ni layer 35-40 μm thick. The microstructures of the FSX-414 and 304-SS alloys showed that the thickness of the isothermal solidification zones was approximately 50 μm, while this thickness was not well defined in the Waspaloy samples. The Ni-coated solubilized Waspaloy showed a wider diffusive zone, which was associated with an increase in the penetration extension of the liquid films. The analysis of grain orientation in all brazed zones of the Waspaloy samples showed aleatory characteristics. Plastic factors in the different brazed zones were also obtained by nanoindentation under 350 mN loads. It was observed that the plastic factor was low when the width of the diffusive zone increased. The plastic factor in the Ni-coated Waspaloy was the lowest, while the diffusive zone in this sample had the largest width. The BNi-9 wettability is better in FSX-414, and 304-SS than in Waspaloy. Ni coating in Waspaloy improves BNi-9 wettability. Full article

Nickel-based superalloys exhibit an exceptional combination of corrosion resistance, enhanced mechanical properties at high temperatures, and thermal stability. The mechanical behavior of nickel-based superalloys depends on the grain size and the precipitation state after aging. Haynes 282 was developed in order to improve the creep behavior, formability, and strain-age cracking of the other commonly used nickel-based superalloys. Nevertheless, taking into account the interest of the industry in the machinability of Haynes 282 because of its great mechanical properties, which is not found in other superalloys like Inconel 718 or Waspaloy, more research on this alloy is necessary. Cutting tools suffer extreme thermomechanical loading because of the high pressure and temperature localized in the cutting zone. The consequence is material adhesion during machining and strong abrasion due to the hard carbides included in the material. The main recommendations for finishing turning in Haynes 282 include the use of carbide tools, low cutting speeds, low depth of pass, and the use of cutting fluids. However, because of the growing interest in sustainable processes and cost reduction, dry machining is considered to be one of the best techniques for material removal. During the machining of Haynes 282, at both the finishing and roughing turning, cemented carbide inserts are most commonly used and are recommended all over the industry. This paper deals with the machining of Haynes 282 by means of coated carbide tools cutting fluids (dry condition). Different cutting speeds and feeds were tested to quantify the cutting forces, quality of surface, wear progression, and end of tool life. Tool life values similar to those obtained with a lubricant under similar conditions in other studies have been obtained for the most favorable conditions in dry environments. Full article

The isothermal compression tests of the nickel-based superalloy Waspaloy were carried out under various temperatures from 1040 to 1120 °C and strain rates from 0.01 to 10 s⁻¹ with the height reduction of 60% and the flow stress curves were obtained. The curves show that the flow stress is greatly affected by the temperature and strain rates. Regression analysis of the experimental results was carried out to learn about the deformation behavior through the Arrhenius equation and came to the conclusion that the activation energy of Waspaloy is 669.7 kJ/mol. The constitutive equation of the Waspaloy was constructed. Meanwhile, the processing maps of the Waspaloy for the power dissipation and the flow instability were constructed. The processing map of the power dissipation and the flow instability depicts that the strain plays a major role in the processing maps. The instability zone is prone to appear at higher strain rates with the increasing strains. According to the instability processing map, there are three unsafe regimes around 1040–1120 °C/1.5–10 s⁻¹, 1040–1080 °C/0.02–0.1 s⁻¹ and 1110–1120 °C/0.02–0.3 s⁻¹ that should be avoided during deformation process. The power dissipation maps show that the maximum dissipation is prone to appear at low strain rates (0.01 s⁻¹) when the strain is about 0.1~0.6 while at middle strain rates (0.1–1 s⁻¹) when the strain is over 0.6, and when the true strain is 0.9, the optimum processing condition is around 1060–1120 °C/0.1–1 s⁻¹. The dynamic microstructures under different temperatures and strain rates were also obtained. We concluded that lower strain rates and higher temperatures are more applicable to obtain fully-recrystallized microstructures. Based on the instability maps and the power dissipation maps and the dynamic microstructures, the optimum deformation conditions are determined to be around 1080–1100 °C/0.1–1 s⁻¹ and 1040–1120 °C/0.01 s⁻¹. Full article

Ni-based superalloys are extensively used in high-responsibility applications in components of aerospace engines and gas turbines with high temperature service lives. The wrought, γ’-strengthened superalloy Haynes 282 has been recently developed for applications similar to other common superalloys, such as Waspaloy or Inconel 718, with improved creep behavior, thermal stability, and fabrication ability. Despite the potential of Haynes 282, there are still important gaps in the knowledge of the mechanical behavior of this alloy. In fact, it was not possible to find information concerning the mechanical behavior of the alloy under impulsive loading. This paper focuses on the mechanical characterization of the Haynes 282 at strain rates ranging from 0.1 to 2800 s⁻¹ and high temperatures ranging from 293 to 523 K using Hopkinson bar compression tests. The experimental results from the thermo-mechanical characterization allowed for calibration of the Johnson–Cook model widely used in modeling metallic alloy’s responses under dynamic loading. Moreover, the behavior of Haynes 282 was compared to that reported for Inconel 718, and the results were used to successfully model the orthogonal cutting of Haynes 282, being a typical case of dynamic loading requiring previous characterization of the alloy. Full article

Creep tests of the polycrystalline nickel alloy Waspaloy have been conducted at Swansea University, for varying stress conditions at 700 °C. Investigation through use of Transmission Electron Microscopy at Cambridge University has examined the dislocation networks formed under these conditions, with particular attention paid to comparing tests performed above and below the yield stress. This paper highlights how the dislocation structures vary throughout creep and proposes a dislocation mechanism theory for creep in Waspaloy. Activation energies are calculated through approaches developed in the use of the recently formulated Wilshire Equations, and are found to differ above and below the yield stress. Low activation energies are found to be related to dislocation interaction with γ′ precipitates below the yield stress. However, significantly increased dislocation densities at stresses above yield cause an increase in the activation energy values as forest hardening becomes the primary mechanism controlling dislocation movement. It is proposed that the activation energy change is related to the stress increment provided by work hardening, as can be observed from Ti, Ni and steel results. Full article
