Search Results (15)

The thermionic vacuum discharge method is very effective in that the films obtained using this technology are characterised by a very high degree of adhesion, density and purity because the deposition technique is carried out in high, very high or, if possible, in ultra-very high vacuum conditions with no gas present. When the substrate is placed in vacuum, no heat transfer particles are present, the substrate being heated only by the ion incident on the surface. This advantage recommends the TVD method for deposits on plastics or other thermally sensitive materials. Additionally, this slow heat transfer reduces energy loss, making the deposition method industrially competitive. The paper aims to present theoretical aspects of this type of discharge, compared to typical or more popular plasmas but also to present the achievements of this method and its utility in the thin films production, layers that have specific imposed properties. The practical depositions and applications presented are in the nuclear fusion-related material science and also for obtaining materials for granular structures, used as magneto-resistive coatings. Full article

Removable dental prostheses are commonly fabricated using polymethylmethacrylate, a material that does not have favorable mechanical properties and needs reinforcement with particles such as graphene. The aim of this study was to evaluate the flexural strength (FS) and Vickers microhardness of a heat-polymerized polymethylmethacrylate coated with graphene-doped stannic oxide (SnO₂) thin films using a thermionic vacuum arc method after thermocycling. Forty bar-shaped specimens (65 × 10 × 3 mm) were fabricated using a heat-polymerized denture base resin and divided into four groups according to the graphene-doped SnO₂ thin film surface coating performed: No-coat (uncoated), Coat-15 s (coating duration of 15 s), Coat-20 s (coating duration of 20 s), and Coat-30 s (coating duration of 30 s) (n = 10). The thermionic vacuum arc method was used to coat both surfaces of the specimens of each test group with varying durations, and surface coating was verified using Fourier Transform Infrared Spectroscopy. Specimens were subjected to 10,000 cycles of thermocycling. Atomic force microscopy was used to evaluate the surfaces of all specimens before and after thermocycling. Microhardness values were measured five times and averaged. Then, each specimen was subjected to a three-point bending test, and FS values were calculated. Data were analyzed using one-way analysis of variance and Bonferroni tests (α = 0.05). Differences among test groups were nonsignificant when FS data were considered (p = 0.605). However, significant differences were observed among test groups when Vickers microhardness data were considered (p < 0.001). Coat-30 s had the highest hardness (p ≤ 0.003), while the difference among remaining groups were nonsignificant (p ≥ 0.166). Graphene-doped SnO₂ thin film surface coatings did not significantly affect the FS of tested heat-polymerized denture base resin but increased the Vickers microhardness when the coating duration was 30 s. Full article

Laser Induced-Thermionic Vacuum Arc (LTVA) technology was used for depositing uniform intermetallic CoNi thin films of 100 nm thickness. LTVA is an original deposition method using a combination of the typical Thermionic Vacuum Arc (TVA) system and a laser beam provided by a QUANTEL Q-Smart 850 Nd:YAG compact Q-switched laser with a second harmonic module. The novelty is related to the simultaneous deposition of a bi-component metallic thin film using photonic processes of the laser over the plasma deposition, which improves the roughness but also triggers the composition of the deposited thin film. Structural analysis of the deposited thin films confirms the formation of face-centered cubic (fcc) as the main phase CoNi and hexagonal Co₃Ni as the minority phase, observed mainly using high-resolution transmission electron microscopy. The magneto-optical measurements suggest an isotropic distribution of the CoNi alloy thin films for the in-plan angular rotation. From the low coercive field of H_c = 40 Oe and a saturation field at 900 Oe, the CoNi thin films obtained by LTVA are considered semi-hard magnetic materials. Magnetic force microscopy reveals spherical magnetic nanoparticles with mean size of about 40–50 nm. The resistivity was estimated at $\rho$ = 34.16 μΩ cm, which is higher than the values for bulk Co and Ni. Full article

To obtain highly homogeneous cobalt–nickel aluminate spinels with small crystallite sizes, CoNiAl alloy thin films were primarily deposited using Laser-induced Thermionic Vacuum Arc (LTVA) as a versatile method for performing processing of multiple materials, such as alloy/composite thin films, at a nanometric scale. Following thermal annealing in air, the CoNiAl metallic thin films were transformed into ceramic oxidic (Co,Ni)Al₂O₄ with controlled composition and crystallinity suitable for thermal stability and chemical resistance devices. Structural analysis revealed the formation of (Co,Ni)Al₂O₄ from the amorphous CoNiAl alloys. The mean crystallite size of the spinels was around 15 nm. Thermal annealing induces a densification process, increasing the film thickness together with the migration process of the aluminum toward the surface of the samples. The sheet resistance changed drastically from 200–240 Ω/sq to more than 10⁶ Ω/sq, revealing a step-by-step conversion of the metallic character of the thin film to a dielectric oxidic structure. These cermet materials can be used as inert anodes for the solid oxide fuel cells (SOFCs), which require not only high stability with respect to oxidizing gases such as oxygen, but also good electrical conductivity. These combination metal–ceramics are known as bi-layer anodes. By controlling the crystallite size and the interplay between the oxide/metal composite, a balance between stability and electrical conductivity can be achieved. Full article

Fe-B based compounds are of high interest due to their special properties and the wide range of involved applications. While B is the element that facilitates the increase in the hardness and the degree of wear resistance, it is also an effective glass former, controlling the formation of a much-desired amorphous structure with specific magnetic properties. Major difficulties related to the proper engineering of Fe-B thin films lay especially in their preparation under well-defined compositions, which in turn, should be accurately determined. The present study closely analyzes the morpho-structural and magnetic properties of thin coatings of Fe-B of approximately 100 nm thickness and with the nominal B content ranging from 5 at. % to 50 at. %. The comparison between films obtained by two preparation methods, namely, the thermionic vacuum arc and the magnetron sputtering is envisaged. Morpho-structural properties were highlighted using X-ray diffraction supplemented with X-ray reflectometry and scanning electron microscopy, whereas the elemental investigations were performed by X-ray dispersive spectroscopy and Rutherford back-scattering spectroscopy. The magnetic properties of the Fe-B layers were carefully investigated by the vectorial magneto-optic Kerr effect and conversion electron Mössbauer spectroscopy. The high capability of Mössbauer Spectroscopy to provide the phase composition and the B content in the formed Fe-B intermetallic films was proven, in correlation to Rutherford back-scattering techniques, and to explain their magnetic properties, including the magnetic texture of interest in many applications, in correlation with longitudinal magneto-optic-Kerr-effect-based techniques. Full article

The paper’s aim is the assessment of corrosion behaviour of a CrN_x-coated 310 H stainless steel under simulated supercritical water conditions (550 °C and 25 MPa) for up to 2160 h. The CrN_x coating was obtained by the thermionic vacuum arc (TVA) method. The oxides grown on this coating were characterized using metallographic and gravimetric analysis, SEM with EDS, and grazing incidence X-ray diffraction (GIXRD). A diffusion mechanism drives oxidation kinetics because it follows a parabolic law. By XRD analysis, the presence of Cr₂O₃ and Fe₃O₄ on the surface of the autoclaved CrN_x-coated 310 H samples were highlighted. Corrosion susceptibility assessment was performed by electrochemical impedance spectroscopy (EIS) and linear potentiodynamic polarization. EIS impedance spectra show the presence of two capacitive semicircles in the Nyquist diagram, highlighting both the presence of the CrN_x coating and the oxide film formed during autoclaving on the 310 H stainless steel. Very low corrosion rates, with values up to 11 nm × year⁻¹, obtained in the case of autoclaved for 2160 h, CrN_x-coated samples indicated that the oxides formed on these samples are protective and provide better corrosion resistance. The determination of micro hardness Vickers completed the above investigation. Full article

Flower-like ZnO architectures assembled with many nanorods were successfully synthesized through Thermionic Vacuum Arc, operated both in direct current (DC-TVA) and a pulsed mode (PTVA), and coupled with annealing in an oxygen atmosphere. The prepared coatings were analysed by scanning-electron microscopy with energy-dispersive X-ray-spectroscopy (SEM-EDX), X-ray-diffraction (XRD), and photoluminescence (PL) measurements. By simply modifying the TVA operation mode, the morphology and uniformity of ZnO nanorods can be tuned. The photocatalytic performance of synthesized nanostructured ZnO coatings was measured by the degradation of methylene-blue (MB) dye and ciprofloxacin (Cipro) antibiotic. The ZnO (PTVA) showed enhancing results regarding the photodegradation of target contaminants. About 96% of MB molecules were removed within 60 min of UV irradiation, with a rate constant of 0.058 min⁻¹, which is almost nine times higher than the value of ZnO (DC-TVA). As well, ZnO (PTVA) presented superior photocatalytic activity towards the decomposition of Cipro, after 240 min of irradiation, yielding 96% degradation efficiency. Moreover, the agar-well diffusion assay performance against both Gram-positive and Gram-negative bacteria confirms the degradation of antibiotic molecules by the UV/ZnO (PTVA) approach, without the formation of secondary hazardous products during the photocatalysis process. Repeated cyclic usage of coatings revealed excellent reusability and operational stability. Full article

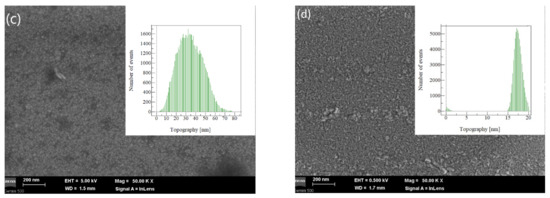

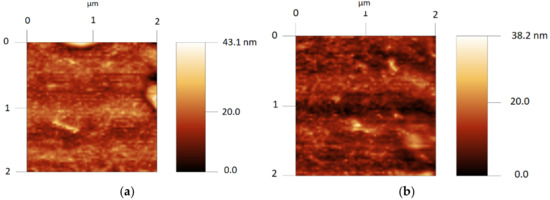

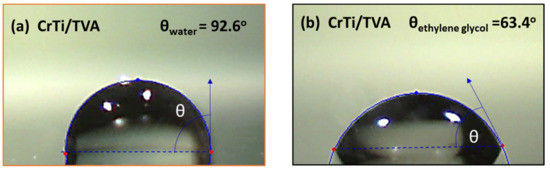

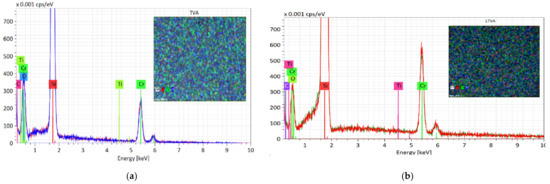

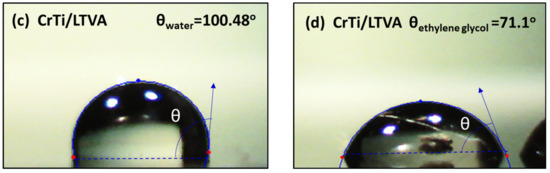

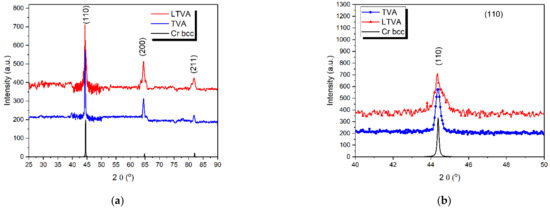

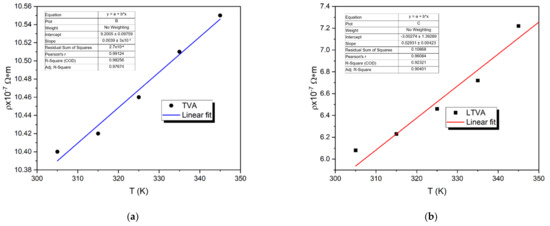

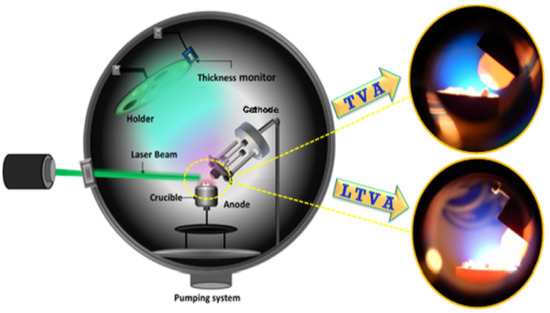

Laser-Induced Thermionic Vacuum Arc (LTVA) provides a better way to produce uniform metallic thin films than the classical Thermionic Vacuum Arc (TVA) method. In Ti-doped chromium thin films produced using LTVA, the amorphous chromium is superimposed with small bcc chromium nanoparticles. These amorphous/crystalline structures with small crystallites induce lower roughness and electrical resistivity, reducing electron–phonon scattering and increasing charge transport across LTVA thin films. A significant shift in resistivity for the LTVA samples is observed due to electron scattering on the phonon–crystalline structures in the TVA samples which exhibit larger crystallites. Meanwhile, the wettability measurements reveal a higher contact angle, resulting in a lower surface free energy and consecutively lower dissociation energy for the LTVA-produced thin films than the TVA samples. Full article

The manuscript is focused on corrosion behavior of a Cr coating under CANada Deuterium Uranium(CANDU) primary circuit conditions. The Cr coating is obtained via the thermionic vacuum arc procedure on Zircaloy -4 cladding. The surface coating characterization was performed using metallographic analysis and scanning electron microscopy (SEM) with an energy dispersive spectra detector (EDS), X-ray diffraction (XRD), and X-ray photoelectron spectroscopy (XPS) investigations. The thickness of the Cr coating determined from SEM images is around 500 nm layers After the autoclaving period, the thickness of the samples increased in time slowly. The kinetic of oxidation established a logarithmic oxidation law. The corrosion tests for various autoclaving periods of time include electrochemical impedance spectroscopy (EIS) and potentiodynamic tests, permitting computing porosity and efficiency of protection. All surface investigations sustain electrochemical results and promote the Cr coating on Zircaloy-4 alloy autoclaved for 3024 h as the best corrosion resistance based on decrease in corrosion current density values simultaneously with the increase of the time spent in autoclave. A slow increase of Vickers micro hardness was observed as a function of the autoclaved period as well. The value reached for 3024 h being 219 Kgf/mm² compared with 210 Kgf/mm² value before autoclaving. Full article

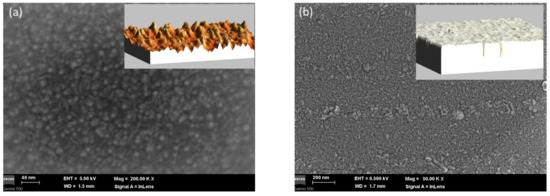

The current work aimed to characterize the morphology, chemical, and mechanical properties of Pt and PtTi thin films deposited via thermionic vacuum arc (TVA) method on glass and silicon substrates. The deposited thin films were characterized by means of a scanning electron microscope technique (SEM). The quantitative elemental microanalysis was done using energy-dispersive X-ray spectroscopy (EDS). The tribological properties were studied by a ball-on-disc tribometer, and the mechanical properties were measured using nanoindentation tests. The roughness, as well as the micro and nanoscale features, were characterized using atomic force microscopy (AFM) and transmission electron microscopy (TEM). The wettability of the deposited Pt and PtTi thin films was investigated by the surface free energy evaluation (SFE) method. The purpose of our study was to prove the potential applications of Pt-based thin films in fields, such as nanoelectronics, fuel cells, medicine, and materials science. Full article

Autonomous smart natural ventilation systems (SVS) attached to the glass façade of living quarters and office buildings can help reducing the carbon footprint of city buildings in the future, especially during warm seasons and can represent an alternative to the conventional mechanical ventilation systems. The work performed in this manuscript focuses on the investigation of bacteria trapping and killing efficiency of stainless steel grids coated with a mixed layer of Cu-Ag. These grids are to be employed as decontamination filters for a smart natural ventilation prototype that we are currently building in our laboratory. The tested grids were coated with a mixed Cu-Ag layer using thermionic vacuum arc plasma processing technology. The fixed deposition geometry allowed the variation of Cu and Ag atomic concentration in coated layers as a function of substrate position in relation to plasma sources. The test conducted with air contaminated with a pathogen strain of staphylococcus aureus indicated that the filtering efficiency is influenced by two parameters: the pore size dimension and the coating layer composition. The results show that the highest filtering efficiency of 100% was obtained for fine pore (0.5 × 0.5 mm) grids coated with a mixed metallic layer composed of 65 at% Cu and 35 at% Ag. The second test performed only on reference grids and Cu-Ag (65–35 at%) under working conditions, confirm a similar filtering efficiency for the relevant microbiological markers. This particular sample was investigated from morphological, structural, and compositional point of view. The results show that the layer has a high surface roughness with good wear resistance and adhesion to the substrate. The depth profiles presented a uniform composition of Cu and Ag in the layer with small variations caused by changes in deposition rates during the coating process. Identification of the two metallic phases of the Cu and Ag in the layers evidences their crystalline nature. The calculated grain size of the nanocrystalline was in the range 14–21 nm. Full article

This review summarizes the more-than-25-years of development of the so-called thermionic vacuum arc (TVA). TVA is an anodic arc discharge in vapors of the material to be deposited; the energy for its melting is delivered by means of a focused electron beam. The resulting material ions fall at the substrate where they form a well-adhesive layer; the ion energy is controllable. The deposited layers are, as a rule, free from droplets typical for cathodic arc deposition systems and the thermal stress of the substrates being coated is low. TVA is especially suitable for processing refractory metals, e.g., carbon or tungsten, however, in the course of time, various useful applications of this system originated. They include layers for fusion application, hard coatings, low-friction coatings, biomedical-applicable films, materials for optoelectronics, and for solid-state batteries. Apart from the diagnostic of the film properties, also the diagnostic of the TVA discharge itself as well as of the by TVA generated plasma was performed. The research and application of the TVA proceeds in broad international collaboration. At present, the TVA technology has found its firm place among the different procedures for thin film deposition. Full article

Titanium-based composites—titanium and silver (TiAg) and titanium and carbon (TiC)—were synthesized by the Thermionic Vacuum Arc (TVA) method on substrates especially for gear wheels and camshaft coating as mechanical components of irrigation pumps. The films were characterized by surface morphology, microstructure, and roughness through X-ray Diffraction (XRD), Atomic Force Microscopy (AFM), Scanning Electron Microscopy (SEM), Transmission Electron Microscopy (TEM), and Small-Angle Neutron Scattering (SANS). The silver (Ag) films crystallized into a cubic system with lattice a = 4.0833 Å at room temperature, indexed as cubic Ag group Fm3m. The crystallites were oriented in the [111] direction, and mean grain size was <D>₁₁₁ = 265 Å. The TiC structure revealed a predominant cubic TiC phase, with a = 0.4098 as a lattice parameter determined by Cohen’s method. Average roughness (Ra) was 8 nm for the as-grown 170 nm thick TiAg film, and 1.8 nm for the as-grown 120 nm thick TiC film. Characteristic SANS contribution was detected from the TiAg layer deposited on a substrate of high-quality stainless steel with 0.45% carbon (OLC45) in the range of 0.015 Å⁻¹ ≤ Q ≤ 0.4 Å⁻¹, revealing the presence of sharp surfaces and an averaged triaxial ellipsoidal core-shell object. Full article

Reduced activation ferritic and martensitic steel like EUROFER (9Cr-1W) are considered as potential structural materials for the first wall of the future next-generation DEMOnstration Power Station (DEMO) fusion reactor and as a reference material for the International Thermonuclear Experimental Reactor (ITER) test blanket module. The primary motivation of this work is to study the re-deposition of the main constituent materials of EUROFER, namely tungsten (W), iron (Fe), and chromium (Cr), in a DEMO type reactor by producing and analyzing complex W_xCr_yFe_1−x−y layers. The composite layers were produced in laboratory using the thermionic vacuum arc (TVA) method, and the morphology, crystalline structure, elemental composition, and mechanical properties were studied using scanning electron microscopy (SEM), X-ray diffraction (XRD), micro-X-ray fluorescence (micro-XRF), and glow discharge optical emission spectrometry (GDOES), as well as nanoindentation and tribology measurements. The results show that the layer morphology is textured and is highly dependent on sample positioning during the deposition process. The formation of polycrystalline W_xCr_yFe_1−x−y was observed for all samples with the exception of the sample positioned closer to Fe anode during deposition. The crystalline grain size dimension varied between 10 and 20 nm. The composition and thickness of the layers were strongly influenced by the in-situ coating position, and the elemental depth profiles show a non-uniform distribution of Fe and Cr in the layers. The highest hardness was measured for the sample positioned near the Cr anode, 6.84 GPa, and the lowest was 4.84 GPa, measured for the sample positioned near the W anode. The tribology measurements showed an abrasive sliding wear behavior for most of the samples with a reduction of the friction coefficient with the increase of the normal load. Full article

A series of the multicomponent thin films (binary: Ti-C; Ti-Ag and ternary: Ti-C-Ag; Ti-C-Al) were fabricated by Thermionic Vacuum Arc (TVA) technology in order to study the wear resistance and the anticorrosion properties. The effects of Ti amount on the microstructure, tribological and morphological properties were subsequently investigated. TVA is an original deposition method using a combination of anodic arc and electron gun systems for the growth of films. The samples were characterized using scanning electron microscope (SEM) and a transmission electron microscope (TEM) accompanied by selected area electron diffraction (SAED). Tribological properties were studied by a ball-on-disc tribometer in the dry regime and the wettability was assessed by measuring the contact angle with the See System apparatus. Wear Rate results indicate an improved sliding wear behavior for Ti-C-Ag: 1.31 × 10⁻⁷ mm³/N m (F = 2 N) compared to Ti-C-Al coating wear rate: 4.24 × 10⁻⁷ mm³/N m. On the other hand, by increasing the normal load to 3 N an increase to the wear rate was observed for Ti-C-Ag: 2.58 × 10⁻⁵ mm³ compared to 2.33 × 10⁻⁶ mm³ for Ti-C-Al coating. Full article
