The study of cellular structures and their properties represents big potential for their future applications in real practice. The article aims to study the effect of input parameters on the quality and manufacturability of cellular samples 3D-printed from Nylon 12 CF in synergy with testing their bending behavior. Three types of structures (Schwarz Diamond, Shoen Gyroid, and Schwarz Primitive) were selected for investigation that were made via the fused deposition modeling technique. As part of the research focused on the settings of input parameters in terms of the quality and manufacturability of the samples, input parameters such as volume fraction, temperature of the working space, filament feeding method and positioning of the sample on the printing pad were specified for the combination of the used material and 3D printer. During the experimental investigation of the bending properties of the samples, a three-point bending test was performed. The dependences of force on deflection were mathematically described and the amount of absorbed energy and ductility were evaluated. The results show that among the investigated structures, the Schwarz Diamond structure appears to be the most suitable for bending stress applications. Full article

Anatomical and functional tissue loss is one of the most debilitating problems and involves a great cost to the international health-care sector. In the field of bone tissue, the use of scaffolds to promote tissue regeneration is a topic of great interest. In this study, a combination of additive manufacturing and computational methods led to creating porous scaffolds with complex microstructure and mechanical behavior comparable to those of cancellous bone. Specifically, some representative models of triply periodic minimal surfaces (TPMSs) were 3D-printed through a stereolithographic technique using a dental resin. Schwarz primitive and gyroid surfaces were created computationally: they are characterized by a complex geometry and a high pore interconnectivity, which play a key role in the mechanism of cell proliferation. Several design parameters can be varied in these structures that can affect the performance of the scaffold: for example, the larger the wall thickness, the lower the elastic modulus and compressive strength. Morphological and mechanical analyses were performed to experimentally assess the properties of the scaffolds. The relationship between relative density and elastic modulus has been analyzed by applying different models, and a power-law equation was found suitable to describe the trend in both structures. Full article

In designing porous scaffolds, permeability is essential to consider as a function of cell migration and bone tissue regeneration. Good permeability has been achieved by mimicking the complexity of natural cancellous bone. In this study, a porous scaffold was developed according to the morphological indices of cancellous bone (porosity, specific surface area, thickness, and tortuosity). The computational fluid dynamics method analyzes the fluid flow through the scaffold. The permeability values of natural cancellous bone and three types of scaffolds (cubic, octahedron pillar, and Schoen’s gyroid) were compared. The results showed that the permeability of the Negative Schwarz Primitive (NSP) scaffold model was similar to that of natural cancellous bone, which was in the range of 2.0 × 10⁻¹¹ m² to 4.0 × 10⁻¹⁰ m². In addition, it was observed that the tortuosity parameter significantly affected the scaffold’s permeability and shear stress values. The tortuosity value of the NSP scaffold was in the range of 1.5–2.8. Therefore, tortuosity can be manipulated by changing the curvature of the surface scaffold radius to obtain a superior bone tissue engineering construction supporting cell migration and tissue regeneration. This parameter should be considered when making new scaffolds, such as our NSP. Such efforts will produce a scaffold architecturally and functionally close to the natural cancellous bone, as demonstrated in this study. Full article

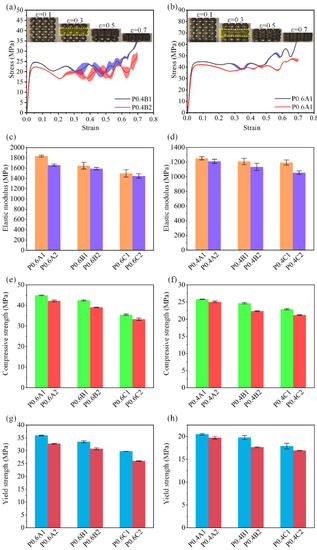

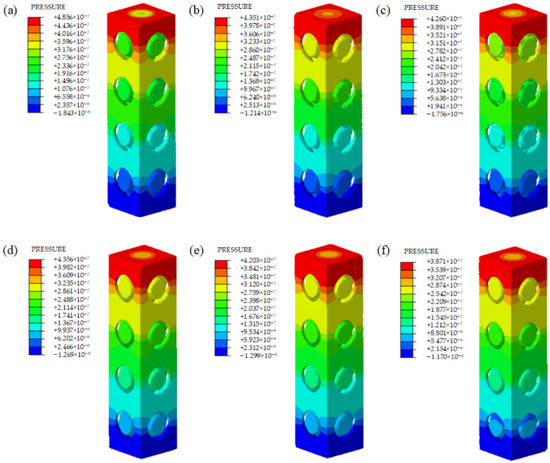

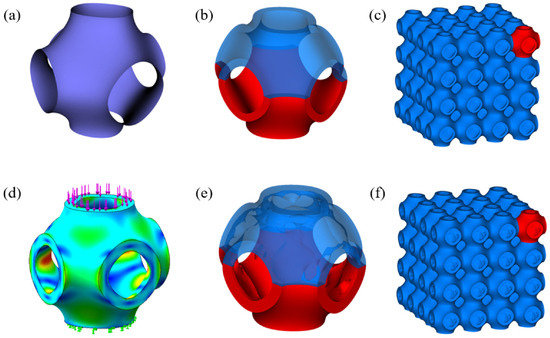

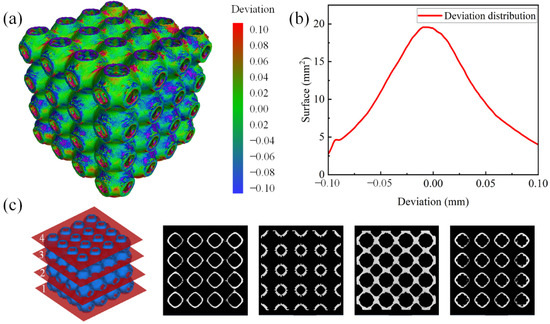

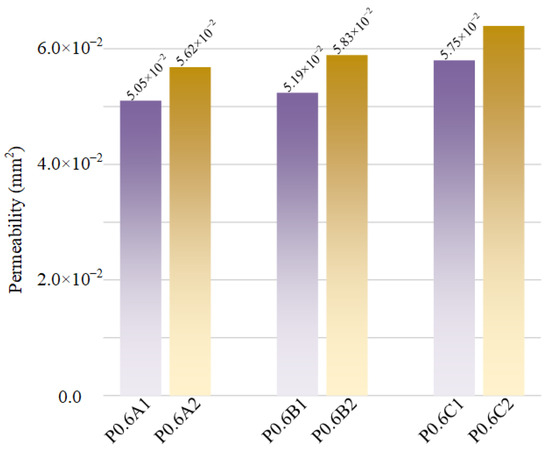

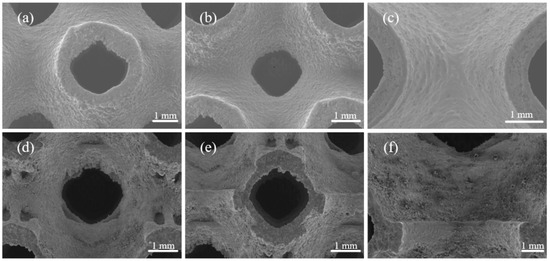

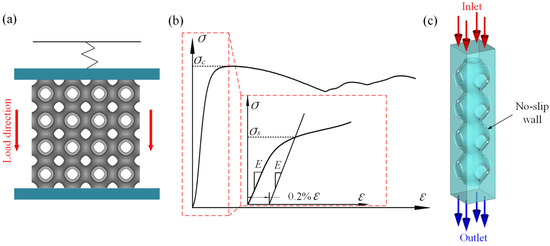

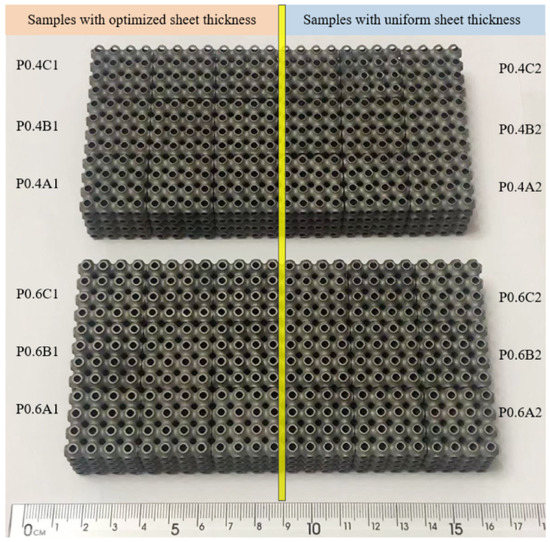

Triply periodic minimal surfaces (TPMS) became an effective method to design porous scaffolds in recent years due to their superior mechanical and other engineering properties. Since the advent of additive manufacturing (AM), different TPMS-based scaffolds are designed and fabricated for a wide range of applications. In this study, Schwarz Primitive triply periodic minimal surface (P-TPMS) is adopted to design a novel porous scaffold according to the distribution of the scaffold stress under a fixed load with optimized thickness to tune both the mechanical and biological properties. The designed scaffolds are then additively manufactured through selective laser melting (SLM). The micro-features of the scaffolds are studied through scanning electron microscopy (SEM) and micro-computed tomography (CT) images, and the results confirm that morphological features of printed samples are identical to the designed ones. Afterwards, the quasi-static uniaxial compression tests are carried out to observe the stress–strain curves and the deformation behavior. The results indicate that the mechanical properties of the porous scaffolds with optimized thickness were significantly improved. Since the mass transport capability is important for the transport of nutrients within the bone scaffolds, computational fluid dynamics (CFD) are used to calculate the permeability under laminar flow conditions. The results reveal that the scaffolds with optimized structures possess lower permeability due to the rougher inner surface. In summary, the proposed method is effective to tailor both the mechanical properties and permeability, and thus offers a means for the selection and design of porous scaffolds in biomedical fields. Full article

The layer-by-layer process of additive manufacturing (AM) is known to give rise to high thermal gradients in the built body resulting in the accumulation of high residual stresses. In the current study, a numerical investigation is conducted on the effect of residual stresses on the mechanical properties of IN718 triply periodic minimal surface (TPMS) lattices fabricated using the selective laser melting (SLM) process for different relative densities. The AM simulation of four different sheet- and ligament-based TPMS topologies, namely, Schwarz Primitive, Schoen Gyroid, Schoen IWP-S, and IWP-L, are performed using a sequentially coupled thermomechanical finite element model to evaluate the thermal histories and residual stress evolution throughout the SLM process. The finite element results are utilized to obtain the effective mechanical properties, such as elastic modulus, yield strength, and specific energy absorption (SEA), of the TPMS lattices while accounting for the residual stress field arising from the SLM process. The mechanical properties are correlated to relative density using the Gibson–Ashby power laws and reveal that the effect of the residual stresses on the elastic modulus of the as-built TPMS samples can be significant, especially for the Schwarz Primitive and Schoen-IWP-L TPMS topologies, when compared to the results without accounting for residual stresses. However, the effect of the residual stresses is less significant on yield strength and SEA of the TPMS samples. The work demonstrates a methodology for numerical simulations of the SLM process to quantify the influence of inherited residual stresses on the effective mechanical properties of complex TPMS topologies. Full article

Sandwich panel structures (SPSs) with lattice cores can considerably lower material consumption while simultaneously maintaining adequate mechanical properties. Compared with extruded lattice types, triply periodic minimal surface (TPMS) lattices have light weight but better controllable mechanical properties. In this study, the different types of TPMS lattices inside an SPS were analysed comprehensively. Each SPS comprised two face sheets and a core filled with $20\times 5\times 1$ TPMS lattices. The types of TPMS lattices considered included the Schwarz primitive (SP), Scherk’s surface type 2 (S2), Schoen I-graph-wrapped package (I-WP), and Schoen face-centred cubic rhombic dodecahedron (F-RD). The finite element method was applied to determine the mechanical performance of different TPMS lattices at different relative densities inside the SPS under a three-point bending test, and the results were compared with the values calculated from analytical equations. The results showed a difference of less than 21% between the analytical and numerical results for the deformation. SP had the smallest deformation among the TPMS lattices, and F-RD can withstand the highest allowable load. Different failure modes were proposed to predict potential failure mechanisms. The results indicated that the mechanical performances of the TPMS lattices were mainly influenced by the lattice geometry and relative density. Full article

This paper investigates the mechanical behavior of additive manufactured Triply Periodic Minimal Surface (TPMS) structures, such as Gyroid, Schwarz Diamond and Schwarz Primitive. Fused Filament Fabrication (FFF) technique was utilized in order to fabricate lattice structures with different relative densities, at 10%, 20% and 30%, using Polylactic acid (PLA). The test specimens were formed by structural TPMS unit cells and they were tested under quasi-static compression. A finite element analysis (FEA) was performed in order to predict their stress-strain behavior and compare with the experimental results. The results revealed that each architecture influences the mechanical properties of the structure differently depending on the impact of size effect. The structures were designed as sandwich structures (with a top and bottom plate) to avoid significant deterioration of the mechanical behavior, due to the size effect and this was achieved at high relative densities. The Schwarz Diamond structure demonstrated the highest mechanical strength compared with the other architectures, while the Gyroid structure also revealed a similar mechanical performance. In addition, Schwarz Primitive structure showed increased energy absorption especially during plastic deformation. The overall results revealed that the integrity of the mechanical properties of the studied TPMS FFF printed structures deteriorates, as the relative density of the structures decreases. Full article

Lattice-based workpieces contain patterned repetition of individuals of a basic topology (Schwarz, ortho-walls, gyroid, etc.) with each individual having distinct geometric grading. In the context of the design, analysis and manufacturing of lattice workpieces, the problem of rapidly assessing the mechanical behavior of large domains is relevant for pre-evaluation of designs. In this realm, two approaches can be identified: (1) numerical simulations which usually bring accuracy but limit the size of the domains that can be studied due to intractable data sizes, and (2) material homogenization strategies that sacrifice precision to favor efficiency and allow for simulations of large domains. Material homogenization synthesizes diluted material properties in a lattice, according to the volume occupancy factor of such a lattice. Preliminary publications show that material homogenization is reasonable in predicting displacements, but is not in predicting stresses (highly sensitive to local geometry). As a response to such shortcomings, this paper presents a methodology that systematically uses design of experiments (DOE) to produce simple mathematical expressions (meta-models) that relate the stress–strain behavior of the lattice domain and the displacements of the homogeneous domain. The implementation in this paper estimates the von Mises stress in large Schwarz primitive lattice domains under compressive loads. The results of our experiments show that (1) material homogenization can efficiently and accurately approximate the displacements field, even in complex lattice domains, and (2) material homogenization and DOE can produce rough estimations of the von Mises stress in large domains (more than 100 cells). The errors in the von Mises stress estimations reach $42\%$ for domains of up to 24 cells. This result means that coarse stress–strain estimations may be possible in lattice domains by combining DOE and homogenized material properties. This option is not suitable for precise stress prediction in sensitive contexts wherein high accuracy is needed. Future work is required to refine the meta-models to improve the accuracies of the estimations. Full article

In the context of lattice-based design and manufacturing, the problem of physical realization of density maps into lattices of a particular family is central. Density maps are prescribed by design optimization algorithms, which seek to fulfill structural demands on a workpiece, while saving material. These density maps cannot be directly manufactured since local graded densities cannot be achieved using the bulk solid material. Because of this reason, existing topology optimization approaches bias the local voxel relative density to either 0 (void) or 1 (filled). Additive manufacturing opens possibilities to produce graded density individuals belonging to different lattice families. However, voxel-level sampled boundary representations of the individuals produce rough and possibly disconnected shells. In response to this limitation, this article uses sub-voxel sampling (largely unexploited in the literature) to generate lattices of graded densities. This sub-voxel sampling eliminates the risk of shell disconnections and renders better surface continuity. The manuscript devises a function to produce Schwarz cells that materialize a given relative density. This article illustrates a correlation of continuity against stress concentration by simulating ${\mathrm{C}}^0$ and ${\mathrm{C}}^1$ inter-lattice continuity. The implemented algorithm produces implicit functions and thus lattice designs which are suitable for metal additive manufacturing and able to achieve the target material savings. The resulting workpieces, produced by outsource manufacturers, are presented. Additional work is required in the modeling of the mechanical response (stress/strain/deformation) and response of large lattice sets (with arbitrary geometry and topology) under working loads. Full article

In tissue engineering, biocompatible porous scaffolds that try to mimic the features and function of the bone are of great relevance. In this paper, an effective method for the design of 3D porous scaffolds is applied to the modelling of structures with variable architectures. These structures are of interest since they are more similar to the stochastic configuration of real bone with respect to architectures made of a unit cell replicated in three orthogonal directions, which are usually considered for this kind of applications. This property configures them as, potentially, more suitable to satisfy simultaneously the biological requirements and those relative to the mechanical strength. The procedure implemented is based on the implicit surface modelling method and the use of a triply periodic minimal surface (TPMS), specifically, the Schwarz’s Primitive (P) minimal surface, whose geometry was considered for the development of scaffolds with different configurations. The representative structures modelled were numerically analysed by means of finite element analysis (FEA), considering them made of a biocompatible titanium alloy. The architectures considered were thus assessed in terms of the relationship between the geometrical configuration and the mechanical response to compression loading. Full article
