Search Results (16)

Ladle furnace slag (LFS), a by-product of steel refining, shows a promising reuse pathway as an alternative additive or substitute for Portland cement due to its high alkalinity and similar chemical composition to clinkers. However, LFS is often stored in large, open surface areas, leading to many environmental issues. To tackle waste management challenges, LFS can be recycled as supplementary cementitious material (SCM) in many cementitious composites. However, LFS contains some mineral phases that hinder its reactivity (dicalcium silicate (γ-C₂S)) and pose long-term durability issues in the cured cemented final product (free lime (f-CaO) and free magnesia (f-MgO)). Therefore, LFS needs to be adequately treated to enhance its reactivity and ensure long-term durability in the structures of the cementitious materials. This literature review assesses possible LFS treatments to enhance its suitability for valorization. Traditional reviews are often multidisciplinary and explore all types of iron and steel slags, sometimes including the recycling of LFS in the steel industry. As the reuse of industrial by-products requires a knowledge of their characteristics, this paper focuses first on LFS characterization, then on the obstacles to its use, and finally compiles an exhaustive inventory of previously investigated treatments. The main parameters for treatment evaluation are the mineralogical composition of treated LFS and the unconfined compressive strength (UCS) of the final geo-composite in the short and long term. This review indicates that the treatment of LFS using rapid air/water quenching at the end-of-refining process is most appropriate, allowing a nearly amorphous slag to be obtained, which is therefore suitable for use as a SCM. Moreover, the open-air watering treatment leads to an optimal content of treated LFS. Recycling LFS in this manner can reduce OPC consumption, solve the problem of limited availability of blast furnace slag (GGBFS) by partially replacing this material, conserve natural resources, and reduce the carbon footprint of cementitious material operations. Full article

To address SDG12 (ensure sustainable consumption and production patterns), and to provide technical evidence for alternative concrete constituents to traditional natural river sand, stone fine aggregate (SFA), brick fine aggregate (BFA), ladle-refined furnace slag aggregate (LFS), recycled brick fine aggregate (RBFA), and washed waste fine aggregate (WWF), ready-mix concrete plants were investigated. Concrete and mortar specimens were made with different variables, such as replacement volume of natural sand with different alternative fine aggregates, water-to-cement ratio (W/C), and sand-to-aggregate volume ratio (s/a). The concrete and mortar specimens were tested for workability, compressive strength, tensile strength, and Young’s modulus (for concrete) at 7, 28, and 90 days. The experimental results show that the compressive strength of concrete increases when natural sand is replaced with BFA, SFA, and LFS. The optimum replacement amounts are 30%, 30%, and 20% for BFA, SFA, and LFS, respectively. For RBFA, the compressive strength of concrete is increased even at 100% replacement of natural sand by RBFA. For WWF, the compressive strength of concrete increases up to a replacement of 20%. Utilizing these alternative fine aggregates can be utilized to ensure a circular economy in construction industries and reduce the consumption of around 30% of natural river sand. Full article

In this experiment, a quaternary fluorine-free refining slag system of CaO-SiO₂-Al₂O₃-MgO was selected, with basicity ratios of 2, 4, and 6 and calcium-aluminum ratios of 1.5, 2.1, and 3. High-temperature “slag-steel equilibrium” experiments were conducted to investigate the influence of different basicity ratios and calcium–aluminum ratios on the morphologies, compositions, sizes, and quantities of the inclusions in H13 steel, aiming to improve the cleanliness of H13 steel to meet practical industrial requirements. The experimental results showed that with the increase in the basicity ratio and the calcium–aluminum ratio, the morphologies of the inclusions changed from elliptical to regular circular, with more regular edges. As the basicity ratio increased from 2 to 6, the densities of the inclusions showed a decreasing trend, with values of 40, 35, 30, 25, 32, and 30 inclusions/mm². When the basicity ratio remained the same, the average size of the inclusions in the steel decreased first and then increased with the increases in the calcium–aluminum ratios, with sizes of 1.59 μm, 1.23 μm, and 1.38 μm, respectively. Among these, when the basicity ratio was 6 and the calcium–aluminum ratio was 2.1, the control effect on the densities and sizes of the inclusions was the best, yielding an inclusion density of 25 inclusions/mm² and a size of 1.15 μm. Additionally, reducing the Al₂O₃ content in the slag could reduce the Al₂O₃ contents in the inclusions, which also promoted improvements in the elastic deformation capacities of the inclusions. With increases in the calcium–aluminum ratios in the slag system, the masses of the inclusions decreased due to the reduced Al contents in the steel. The Al contents in the steel also had an impact on the compositions of the inclusions. Full article

To investigate the evolution law of inclusions in 42CrMo-S steel, this paper samples and analyzes the steel during its refining process as well as the head and tail billets. An oxygen and nitrogen analyzer, a scanning electron microscope (SEM) equipped with energy-dispersive X-ray spectrometry (EDS), and an ASPEX automatic inclusion scanning electron microscope are employed to analyze the cleanliness level of the molten steel in the refining stage and the head and tail billets. The results demonstrate that the total oxygen content at the end of LF slagging is 10.2 ppm, indicating that the refining slag has an excellent deoxygenation effect. During the RH refining process, the total oxygen content of the molten steel diminishes to less than 10 ppm and reaches 6.3 ppm at end-RH. The nitrogen content in the molten steel gradually increases during the smelting process and attains 65 ppm at end-RH. Upon arrival at LF, pure Al₂O₃ plays the role of the primary inclusions in the molten steel. Afterwards, the pure Al₂O₃ inclusions transform into Mg-Al spinel-type inclusions, Al₂O₃-MgO-CaO inclusions, and Al₂O₃-CaO inclusions. The number of CaS-type inclusions in the steel reaches the maximum after feeding the S wire. In the RH refining stage, the percentage of inclusions with a size less than 5 μm is maintained above 90%. Finally, the cleanliness level of the head and tail billets (the start and end of a casting sequence) is analyzed, and it is recommended that the cut scrap length for the head billet is 0.3 m and the reasonable cutting scrap length for the tail billet is 1 m. Full article

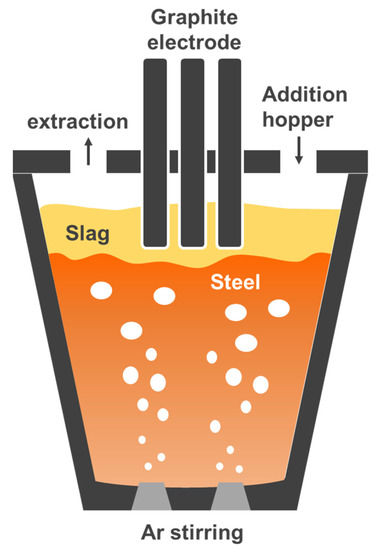

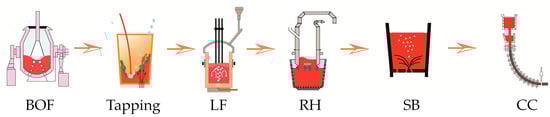

In the LF refining process, argon blowing at the bottom of ladle can play an important role in unifying the composition and temperature of molten steel and removing inclusions. However, unreasonable bottom argon blowing process can also cause many problems. Slag entrapment and slag surface exposure may occur, affecting the steel quality. Since the working conditions of different enterprises are very different, corresponding optimization is required for specific parameters. There were some problems in 70t ladle of a steel plant, such as unclear control of bottom argon blowing system in different refining periods, unobvious floating removal effect of inclusions in ladle, high total oxygen content and large fluctuation, etc. In this study, a 1:3 physical model was established according to the similarity principle. Then, on this basis, the experimental schemes with different blowing hole positions and argon flow rates were designed for simulation experiments. By means of mixing time measurement, flow field display and oil film measurement, the optimal argon blowing position was double holes 6, 12 (2/3R), and the included angle between them was 135°. The optimal argon flow rate for wire feeding and soft blowing should be 7.6 L/min (corresponding to the actual production of 180 L/min) and 0.6 L/min (corresponding to the actual production of 15 L/min), respectively. According to this scheme, the industrial experiments showed that the contents of total oxygen and nitrogen in the whole process were reduced, the surface density of inclusions in billet was reduced by 11.81% on average, and calcium sulfide and various inclusions containing aluminum were reduced to varying degrees. Full article

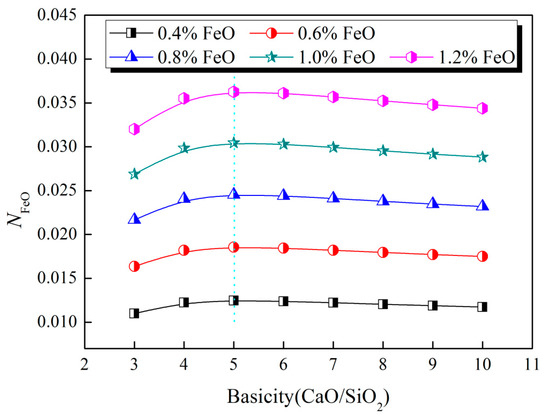

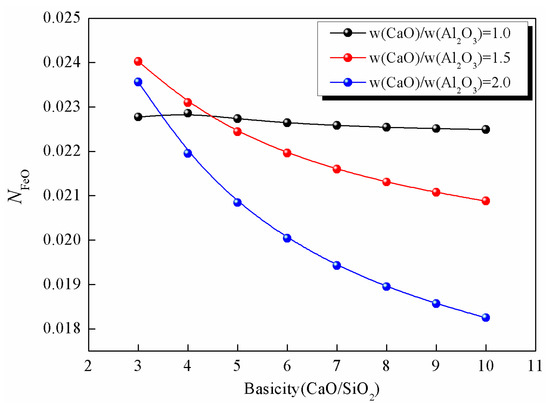

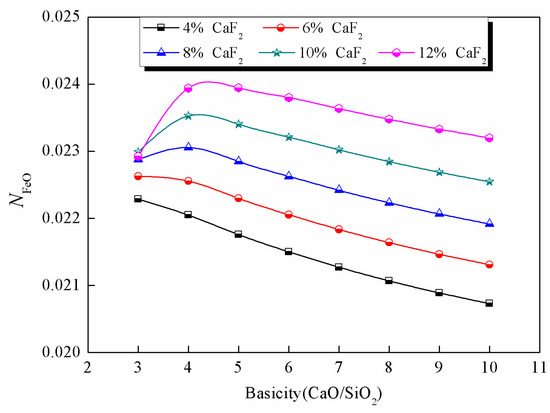

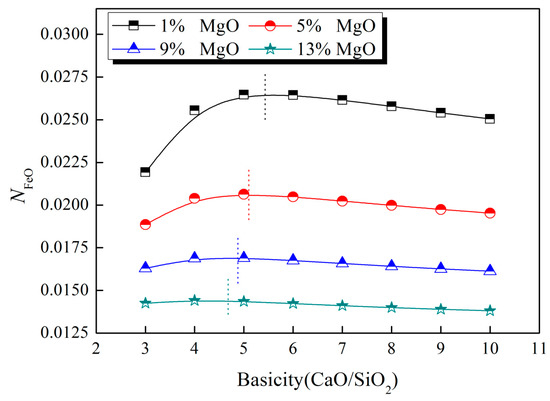

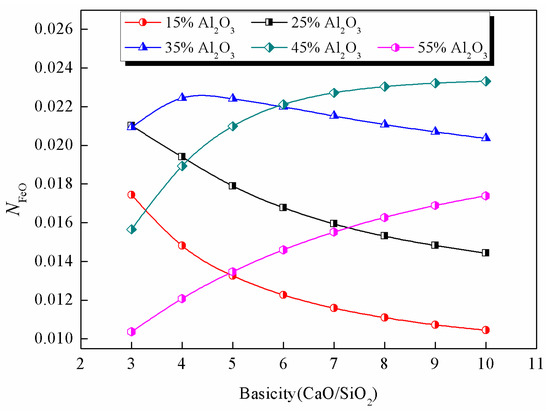

The fatigue life of bearing steel is closely related to the total oxygen content (T(O)) of the liquid steel. In order to stably and effectively control the T(O) during the ladle furnace (LF) refining process, we established a calculation model of optimal alkalinity for the refining slag CaO–SiO₂–Al₂O₃–MgO–FeO–CaF₂ at 1853 K based on ion–molecule coexistence theory (IMCT). Here, the influencing factors are discussed. The results show that the maximum value of $N_{\mathrm{FeO}}$ occurred when the optimal alkalinity was around five at varied FeO contents, and that the optimal alkalinity basically remained the same with changes in FeO content. With the increase of MgO content, the optimal alkalinity decreased. However, the change in the value of $N_{\mathrm{FeO}}$ against the higher alkalinity was not obvious at a given MgO content. The effect of Al₂O₃ content on the optimal alkalinity was opposite to that of MgO. With the increasing Al₂O₃ content, the optimal alkalinity obviously increased, while the maximum value of $N_{\mathrm{FeO}}$ occurred when the Al₂O₃ content varied from 35 wt% to 45 wt% at higher alkalinity. The higher w(CaO)/w(Al₂O₃) mass ratio had a distinct effect on the value of $N_{\mathrm{FeO}}$ against alkalinity, while the effect of alkalinity on the value of $N_{\mathrm{FeO}}$ was not obvious at a fixed CaF₂ level. This optimal alkalinity model based on IMCT can provide a certain guiding role in the process of refining slag composition optimization and is conducive to effectively controlling total oxygen content in the refining process. Full article

Nonmetallic inclusions are harmful to the quality of 42CrMo4 steel. Therefore, the formation and removal mechanism of inclusions in 42CrMo4 steel during the steelmaking process is investigated by industrial trials. The characteristics of inclusions in specimens were analyzed by scanning electron microscopy and energy dispersive spectroscopy. The main type of inclusions in molten steel in the early stage of ladle furnace (LF) refining is MgO-Al₂O₃ inclusions of irregular shape. CaO begins to appear in MgO-Al₂O₃ inclusions in the middle and late stages of LF. In the vacuum degassing (VD) refining stage, the inclusions in molten steel completely change into low-melting-point CaO-MgO-Al₂O₃ inclusions. The existence of [Mg] in molten steel is the fundamental reason for the formation of a large number of MgO-Al₂O₃ inclusions. Thermodynamic calculation shows that the refractory mainly transfers [Mg] to the liquid steel in the LF refining stage, whereas the slag mainly transfers [Mg] to the liquid steel in the VD refining stage. Kinetic calculation indicates that MgO-Al₂O₃ inclusions could be removed from molten steel faster than low-melting-point CaO-MgO-Al₂O₃ inclusions. The fundamental reason for the different removal behavior of the two types of inclusions is that the interfacial tension between the low-melting-point CaO-MgO-Al₂O₃ inclusions and the liquid steel is 50% lower than that of the MgO-Al₂O₃ inclusions. Full article

Non-deformable inclusions are detrimental to the surface quality and mechanical properties of stainless-steel plates. Plant trials were conducted to investigate the effect of different ferrosilicon alloys and calcium treatment during argon oxygen decarburization (AOD) and ladle furnace (LF) refining on inclusions in Si-killed 304 stainless steel. The inclusions were examined by scanning electron microscope with energy dispersive spectrometer. The results show that both the contents of soluble aluminum in molten steel and Al₂O₃ in slag increase with the increase of aluminum content in FeSi alloy. The content of soluble aluminum in liquid steel could be limited to lower than 0.004% when using ultra-purity FeSi alloy. When the calcium wire addition is 2 m/t, inclusions are located in the low-melting-temperature region, and the inclusion rating of hot rolled plates is mainly C-class. Industrial application shows that, by decreasing the soluble aluminum content in liquid steel, decreasing the MgO and Al₂O₃ in slag in AOD, and applying low basicity refining slag as well as calcium treatment, the inclusions are low melting point silicates. The inclusion rating of hot rolled plates is mainly fine C-type with a small amount of class-A, and surface polishing qualification rate is increased from 17.8% to more than 88.7%. Full article

The origin, evolution, and formation mechanism of MgO-based inclusions in Si-Mn-killed steel were studied in industrial trials with systematical samplings of the refining ladle, casting tundish, and as-cast bloom. In the present study, there were large numbers of MgO-based non-metallic inclusions, which started to form in the LF final process, and the MgO content in the lime-silicate slag increases from LF to VD process. The reason for the formation of MgO-based inclusions in refining process was analyzed using FactSage8.1 software. It was found that MgO-based inclusions were caused by the violent reaction between the slag and steel and the serious erosion of MgO-C refractory. The MgO solubility decreased in the lime-silicate slag and precipitated the periclase phase with basicity increasing. The solubility of MgO increased with an increase in the temperature. Measures were taken to optimize the refining process based on the above result. By increasing the slag basicity and increasing the content of MgO in the slag, erosion of the MgO-C refractory was reduced and the number of MgO-based non-metallic inclusions decreased from 0.2 to 0.04 per square millimeter. Full article

In order to consider both the refining efficiency of the ladle furnace (LF) and the quality of molten steel, the water model experiment is carried out. In this study, the single factor analysis, central composite design principle, response surface methodology, visual analysis of response surface, and multiobjective optimization are used to obtain the optimal arrangement scheme of argon blowing of LF, design the experimental scheme, establish the prediction models of mixing time (MT) and slag eye area (SEA), analyze the comprehensive effects of different factors on MT and SEA, and obtain the optimal process parameters, respectively. The results show that when the identical porous plug radial position is 0.6R and the separation angle is 135°, the mixing behavior is the best. Moreover, the optimized parameter combination is obtained based on the response surface model to simultaneously meet the requirements of short MT and small SEA in the LF refining process. Meanwhile, compared with the predicted values, the errors of MT and SEA for different conditions from the experimental values are 1.3% and 2.1%, 1.3% and 4.2%, 2.5% and 3.4%, respectively, which is beneficial to realizing the modeling of argon bottom blowing in the LF refining process and reducing the interference of human factors. Full article

To understand and clarify the formation mechanisms and evolution of complex inclusions in Ti-Ca deoxidized offshore structural steel, inclusions in industrial steel were systematically investigated. The number density of total inclusions generally decreased from Ladle Furnace (LF), Vacuum Degassing (VD), Tundish to the final product except for Ti and Ca addition. The major inclusions during the refining process were CaO-Al₂O₃-SiO₂-(MgO)-TiO_x and CaO-Al₂O₃-SiO₂. CaO-Al₂O₃-SiO₂-(MgO)-TiO_x inclusion initially originated from the combination of CaO-SiO₂-(MgO) in refining slag or refractory and deoxidization product Al₂O₃ and TiO₂. With the refining process proceeding and Ca addition, the Al₂O₃ concentration in the CaO-Al₂O₃-SiO₂-(MgO)-TiO_x inclusions gradually dropped while the CaO and TiO₂ concentrations gradually increased. The CaO-Al₂O₃-SiO₂ inclusions originally came from refining slag, existing as 2CaO∙ Al₂O₃∙ SiO₂, and maintained a liquid state during the early stage of LF. After Ca treatment, it was gradually transferred to 2CaO∙ SiO₂ due to Al₂O₃ continuously being reduced by Ca. The liquidus of 2CaO∙ SiO₂ inclusion was higher than that of molten steel, so they presented as a solid-state during the refining process. After welding thermal simulation, CaO-Al₂O₃-SiO₂-(MgO)-TiO_x inclusions were proven effective for inducing intragranular acicular ferrite (IAF) while CaO-Al₂O₃-SiO₂ was inert for IAF promotion. Additionally, Al₂O₃-MgO spinel in multiphase CaO-Al₂O₃-SiO₂-(MgO)-TiO_x inclusion has different formation mechanisms: (1) initial formation as individual Al₂O₃-MgO spinel as a solid-state in molten steel; (2) and it presented as a part of liquid inclusion CaO-Al₂O₃-SiO₂-(MgO)-TiO_x and firstly precipitated due to its low solubility. Full article

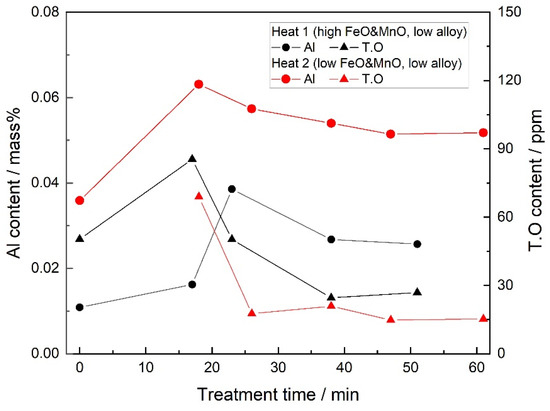

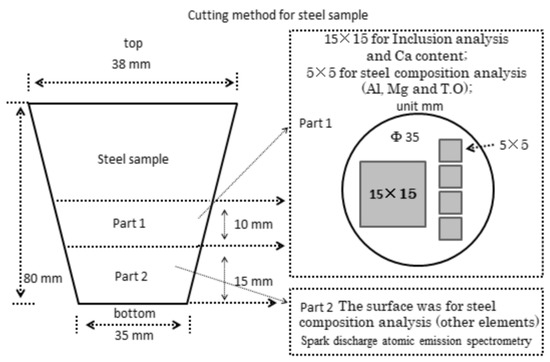

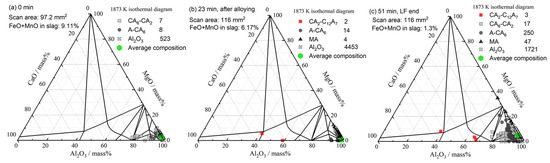

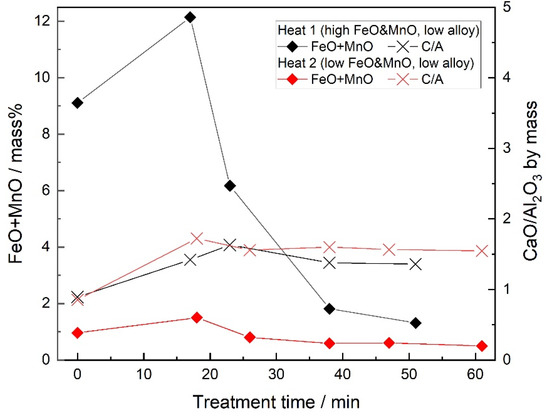

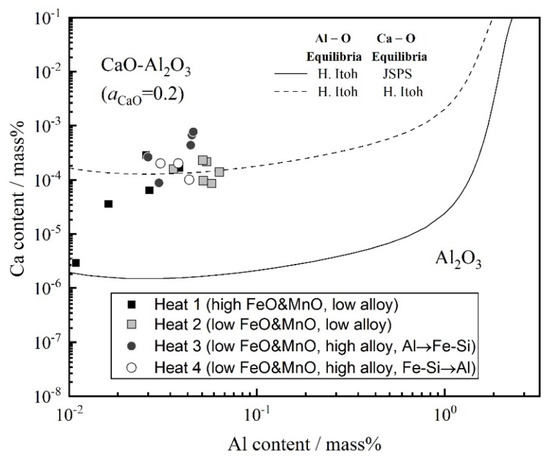

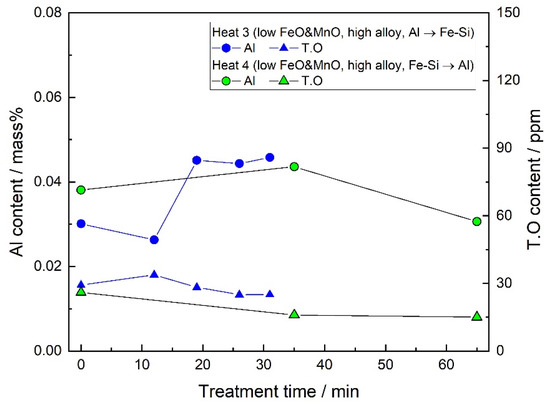

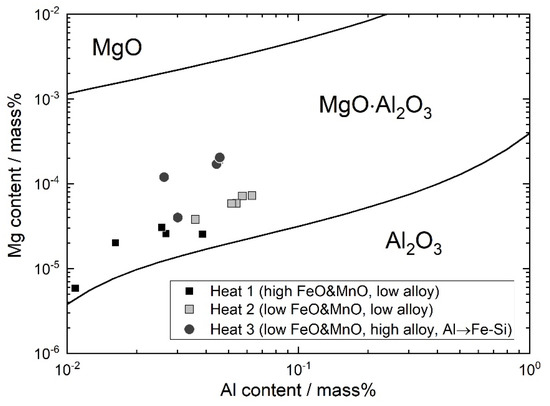

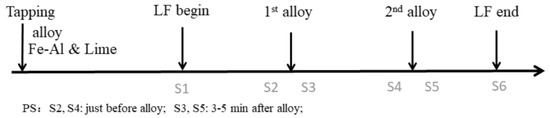

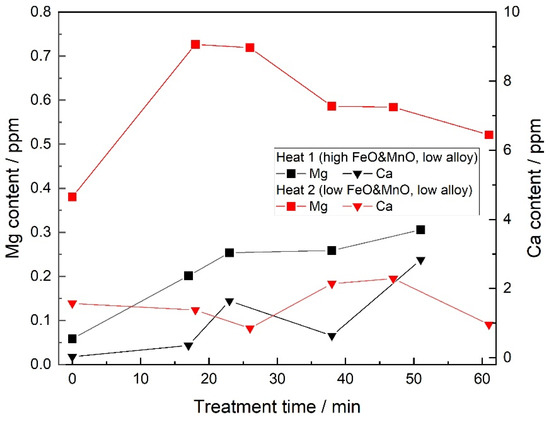

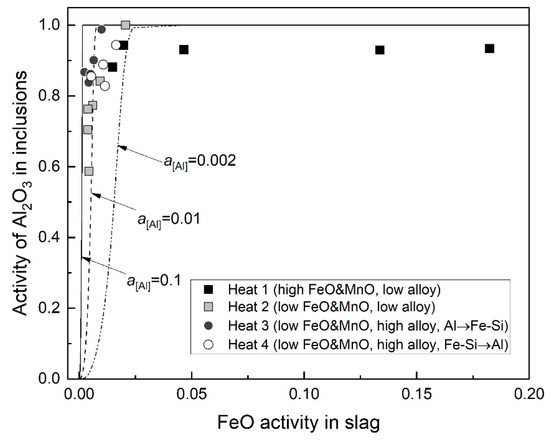

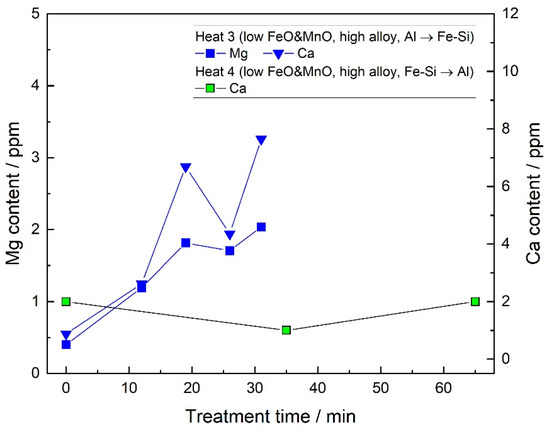

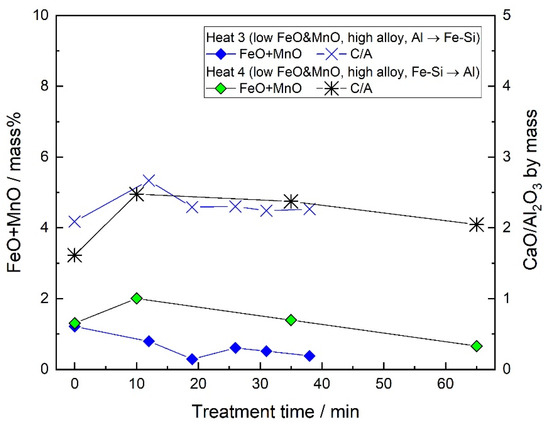

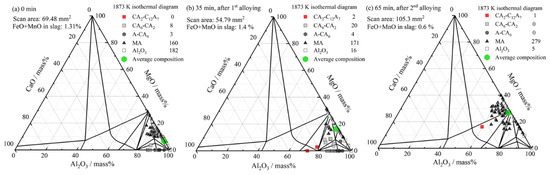

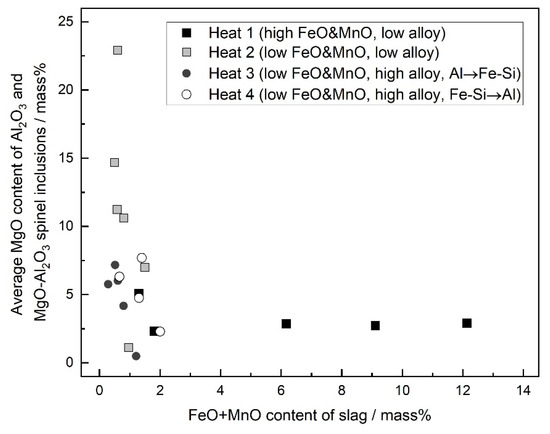

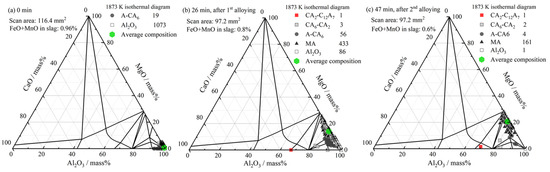

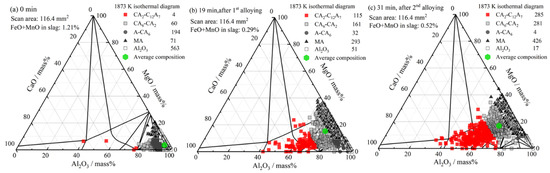

The inclusion of the MgO·Al₂O₃ (MA) spinel and CaO–Al₂O₃ are occasionally observed during the refining of Al–killed steel, even without the intentional additions of Ca and Mg. Many studies have focused on the source of Mg and Ca; however, especially for the formation of CaO–Al₂O₃–type inclusions, some recent results showed that Ca was difficult to dissolve from refining slag, even when the Al content in molten steel was high. To confirm these differences, industrial experiments were designed in this study, and the effects of the FeO and MnO contents, as well as the impurities of the alloying materials, were discussed. The results showed that, when the FeO and MnO contents in slag were high (about 10 mass%) at the start of LF (ladle furnace), all inclusions remained as Al₂O₃, despite alloying. Using the slag with low FeO + MnO content (<1~2 mass%), the Al₂O₃ inclusions changed to the MA spinel, but CaO–Al₂O₃ inclusions were not observed, indicating that CaO–Al₂O₃ inclusions were difficult to form by the steel/slag reactions under the current conditions. Only for the molten steel that contained a low level of dissolved oxygen and a large amount of Fe–Si, which contained Ca as the impurity was added, CaO–Al₂O₃ inclusions were generated. Full article

High-strength tire cord steel is mainly used in radial ply tires, but the presence of brittle Ti inclusions can cause failure of the wires and jeopardize their performance in production. In order to control the titanium content during steel production, a thermodynamic model for predicting the titanium distribution ratio between CaO–SiO₂–Al₂O₃–MgO–FeO–MnO–TiO₂ slags during the ladle furnace (LF) refining process at 1853 K has been established based on the ion–molecule coexistence theory (IMCT), combined with industrial measurements, and the effect of basicity on the titanium distribution ratio was discussed. The results showed that the titanium distribution ratio predicted by the developed IMCT exhibited a dependable agreement with the measurements, and the optical basicity is suggested to reflect the correlation between basicity and the titanium distribution ratio. Furthermore, quantitative titanium distribution ratios of TiO₂, CaO·TiO₂, MgO·TiO₂, FeO·TiO₂, and MnO·TiO₂ were acquired by the IMCT model, respectively. Calculation results revealed that the structural unit CaO plays a pivotal role in the slags in the de-titanium process. Full article

The inclusions formed in 304L stainless steel for nuclear power produced by the electric arc furnace (EAF)-argon oxygen decarburization furnace (AOD)-ladle furnace (LF)-continuous casting (CC) process were investigated by thermodynamics calculations and experimental results. The results showed that the inclusions after AOD and LF refining were almost the same as the slag composition. The types of inclusions (sizes larger than 5 µm) were mainly CaSiO₃ with high SiO₂ content at the end of AOD, and Ca₂SiO₄ with high CaO content at the end of LF. The Al₂O₃ and MgO content of inclusions increased from AOD to LF. There were two types of inclusions in the tundish: CaO-SiO₂-Al₂O₃-MgO and CaO-SiO₂-Al₂O₃-MgO-MnO inclusions with MgO·Al₂O₃ spinel precipitation. The content of Al₂O₃ in the inclusions increased rapidly with the decrease in temperature from the end of LF refining to continuous casting, as calculated using FactSage6.3 software. The rapid increase of Al₂O₃ in the CaO-SiO₂-Al₂O₃-MgO-(MnO) inclusions promoted the precipitation of MgO·Al₂O₃ spinel in continuous casting tundish, suggesting mechanisms for the formation of inclusions in the 304L stainless steel. Full article
