Oxide-Inclusion Evolution in the Steelmaking Process of 304L Stainless Steel for Nuclear Power

1
State Key Laboratory of Advanced Metallurgy, University of Science and Technology Beijing, Beijing 10083, China
2
Hongxing Iron & Steel Co. Ltd., Jiuquan Iron and Steel Group Corporation, Jiayuguan 735100, Gansu, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(2), 257; https://doi.org/10.3390/met9020257
Submission received: 6 January 2019 / Revised: 16 February 2019 / Accepted: 18 February 2019 / Published: 21 February 2019

Abstract

:
The inclusions formed in 304L stainless steel for nuclear power produced by the electric arc furnace (EAF)-argon oxygen decarburization furnace (AOD)-ladle furnace (LF)-continuous casting (CC) process were investigated by thermodynamics calculations and experimental results. The results showed that the inclusions after AOD and LF refining were almost the same as the slag composition. The types of inclusions (sizes larger than 5 µm) were mainly CaSiO3 with high SiO2 content at the end of AOD, and Ca2SiO4 with high CaO content at the end of LF. The Al2O3 and MgO content of inclusions increased from AOD to LF. There were two types of inclusions in the tundish: CaO-SiO2-Al2O3-MgO and CaO-SiO2-Al2O3-MgO-MnO inclusions with MgO·Al2O3 spinel precipitation. The content of Al2O3 in the inclusions increased rapidly with the decrease in temperature from the end of LF refining to continuous casting, as calculated using FactSage6.3 software. The rapid increase of Al2O3 in the CaO-SiO2-Al2O3-MgO-(MnO) inclusions promoted the precipitation of MgO·Al2O3 spinel in continuous casting tundish, suggesting mechanisms for the formation of inclusions in the 304L stainless steel.

1. Introduction

With good corrosion resistance, favorable mechanical properties, and excellent cold and hot processing properties, austenitic stainless steel is used in the petroleum, chemical, aerospace, and nuclear industries [1,2]. As a typical austenitic stainless steel, 304L stainless steel is widely used in harsh environments, including nuclear power plants and storage and transportation containers for cryogenic liquid [3,4,5,6,7]. For safe use in these harsh application environments, the purity and content of carbon and nitrogen, and the impurity elements of 304L austenitic stainless steel must be strictly controlled. Non-metallic inclusions in 304L stainless steel must be removed if it is to be used for nuclear power applications, since the presence of these inclusions can cause deterioration of mechanical properties, promote surface defects, and serve as initiation sites for corrosion-fatigue cracks, potentially leading to operational complications [8,9,10,11]. Therefore, the effective control of non-metallic inclusions is very important for the production of 304L stainless steels for nuclear power applications.
The evolution mechanism of inclusions in austenitic stainless steel has been widely studied [12,13,14,15,16,17,18,19,20]. Inclusion evolution during refining and continuous casting of 316L stainless steel was described by Yin et al. [15]. The authors reported precipitation of harmful crystals of MgO/Al2O3 spinel within the steel melt and within the calcium silicate matrix of existing inclusions occurred as the temperature decreased from the tundish until solidification. The compositional evolution of oxide inclusions in austenitic stainless steel during continuous casting was reported by Choi et al. [16]. The authors found that the basicity (%CaO/%SiO2) of the inclusions decreased with decreasing inclusion size, and the manganese oxide content (%MnO) increased as inclusion size decreased. Park and Todoroki [17] reported that for Si deoxidation, most actions resulted in the formation of silicate type inclusions with lower melting temperatures. Lowering MgO and Al2O3 in the slag helped to eliminate the most influential oxides. Yan et al. [18] found that in the slag-steel-inclusions reaction system, the top slag-steel reaction affected the molten steel chemistry, consequently influencing the compositional evolution of inclusions during the ladle treatment. Similar results were presented by Ren et al. [19], who found that a low basicity slag resulted in lower [Al]s in stainless steel, which helped to avoid the formation of Al2O3-rich inclusions and improve the deformability of inclusions.
However, the oxide-inclusion evolution of 304L stainless steel produced for nuclear power applications remains poorly understood. Although previous investigations have described the crystallization behavior of the spinel phase during the stainless steelmaking process, there has been no comprehensive study of the evolution of inclusions, including their detailed characteristics, and no examination of the thermodynamic parameters of the formation mechanism of spinel inclusions in 304L stainless steel for nuclear power. In this study, the inclusions in 304L stainless steel produced by a 100ton electric arc furnace(EAF)-110 ton argon oxygen decarburization furnace (AOD)-110 ton ladle furnace (LF)-continuous casting (CC) process were systematically investigated by microanalysis and thermodynamic analysis.

2. Experiments

2.1. Experimental Procedure and Sampling

In this work, 304L stainless steel materials were produced by the EAF-AOD-LF-CC process. First, waste steel, nickel iron, and ferrochrome were melted in an electric arc furnace, and then poured into the AOD converter. After decarburization in the AOD converter, ferrosilicon was added for reduction when the content of carbon reached the target value, allowing the desulphurization process after reduction. The aluminum content of the ferrosilicon was 1.3%. After completion of the AOD process, the liquid steel was transferred to LF (the refractory material is magnesia-calcium) for refining. Lime and fluorite were added for secondary refining, with a target value of basicity of 2.20. When the composition and temperature reached the target value, the molten steel was transported to the continuous casting platform for casting. The main component of tundish fluxes was 85 wt% MgO, 1.27 wt% CaO, 2.65 wt% SiO2, 0.01wt% Al2O3, and 0.59 wt% C.
Separate steel samples were removed after the AOD treatment, LF refining, and casting process, and the inclusions were analyzed. Additionally, slag samples were removed after AOD treatment and LF refining. The composition of the molten steel, composition of the slag, and size and composition of the inclusions were measured and the results were presented as the mean values of measurements from 18 samples.

2.2. Analysis of Samples

The steel samples (Ф 30 mm × 10 mm) were cleaned by machining the surface before chemical analysis. The chemical composition of the steel samples was determined by the direct reading spectrum (ARL4460, Thermo Fisher Scientific, MA, USA). Cylinders (Ф 5 mm × 5 mm) were machined to measure the C, S, O and N contents. The contents of C and S were analyzed by a C/S analyzer (CS-800, ELTRA, Haan, Germany). The contents of O and N were analyzed by an O/N analyzer (EMGA-620W, Horiba, Kyoto, Japan). The Al and Ca contents in the steel were determined by inductively coupled plasma-optical emission spectroscopy (ICP-OES). The composition of 5 g slag samples was analyzed using an X-ray fluorescence spectrometer (ARL PERFORM’X, Thermo Fisher Scientific, MA, USA).
The 15 mm × 15 mm × 10 mm samples for scanning electron microscopy (SEM; Merlin Compact, Zeiss, Gottingen, Germany) were made by cutting, grinding and polishing. The morphology and composition of nonmetallic inclusions of the steel specimens were analyzed by SEM with an energy dispersive spectrometer (EDS; X-Max 80, Oxford Instruments, High Wycombe, UK). The element maps of inclusions were analyzed by electron probe microanalysis (JXA8230, JEOL, Tokyo, Japan) (EPMA) with wavelength dispersive spectrometer (WDS). Inclusions smaller than 5 µm did not affect the properties of the steel. Additionally, the interaction volume could spread into the steel and excite electrons from the surrounding environment for inclusions smaller than 5µm. Therefore, for more accurate analysis of inclusions, only inclusions larger than 5 µm in size were studied.

3. Results

3.1. Composition of the Molten Steel and Slag

The average chemical compositions of molten steel and slag at various stages were determined and are listed in Table 1 and Table 2, respectively. The binary basicity (CaO/SiO2) of AOD slag is 1.85, whereas that of LF slag is 2.20. The levels of Cr2O3 and FeO in slag after LF refining were much lower than those after AOD treatment. The total oxygen (T.O) content decreased during the steelmaking process. The levels of Mg and Al increased in the steel from the AOD to LF stages and the MgO and Al2O3 content also increased in the slag.

3.2. Type of Inclusions in the Smelting Process

Nearly 20 inclusions were selected for characterization with samples taken at different stages. The morphology of the inclusions in molten steel during the AOD-LF-CC process was characterized, as shown in Figure 1. WDS element maps of typical CaO-SiO2-Al2O3-MgO inclusions in molten steel during the AOD-LF-CC process are shown in Figure 2. The main inclusion was spherical CaO-SiO2-Al2O3-MgO, with the size ranging from several to tens of microns at the end of AOD smelting (Figure 1a). These inclusions contained a small amount of magnesium and aluminum (Figure 2a). At the end of LF, the types of inclusions less than 20 µm in size were essentially the same as that of AOD, as shown in Figure 1b. WDS element maps of typical homogeneous CaO-SiO2-Al2O3-MgO inclusions are shown in Figure 2b. In Figure 1c, in addition to the spherical CaO-SiO2-Al2O3-MgO, there were CaO-SiO2-Al2O3-MgO-MnO inclusions in continuous casting tundish, with an average size less than 10 µm. WDS element maps of typical inclusions are shown in Figure 2c. The results indicated that the spinel phase can be crystallized in the CaO-SiO2-Al2O3-MgO-MnO and CaO-SiO2-Al2O3-MgO inclusions in the tundish.

3.3. Number Density and Size of Inclusions in the Smelting Process

The variations of the number density and the size of inclusions during the AOD-LF-CC production process were determined and are shown in Figure 3. Small inclusions (≤10 μm) were dominant in all the samples. Larger inclusions (≥10 μm) decreased in number density during the different stages of steelmaking. Large inclusions with a size larger than 20 µm were present in liquid steel after AOD treatment, but were all adsorbed by the slag after LF refining, so there were no large inclusions from LF refining to the continuous casting tundish. Most inclusions were smaller than 10 µm at each stage, and their number density decreased throughout the process.

3.4. The Composition of Inclusions

The composition of inclusions in the 304L stainless steel in the AOD-LF-CC process was determined and is shown in Figure 4. The composition of inclusions was mainly CaO-SiO2, with a small amount of Al2O3 and MgO in the AOD stage. The basicity and (Al2O3 + MgO) content of inclusions in LF were higher than for inclusions in AOD. In the tundish, there was a significantly higher content of (Al2O3 + MgO) in inclusions than that at the LF refining stage.

4. Discussion

4.1. Oxide-Inclusion Evolution in the Steelmaking Process

To determine the characteristics of the inclusions of the AOD and LF stages, the compositions of inclusions in steel specimens were converted into the mass percentages of CaO, SiO2, MgO, and Al2O3, and then were plotted using CaO–SiO2–Al2O3 ternary system phase diagrams, as shown in Figure 5 and Figure 6. The phase diagram of the CaO–SiO2–Al2O3 system at 1 873 K was calculated using FactSage 6.3 (Thermfact/CRCT & GTT-Technologies, Aachen, Germany) software. It can be clearly seen that the composition of the inclusions was in good agreement with the slag composition. The inclusions are mostly made up of slag components, resulting from slag entrapment. During the cooling process, additional inclusions were formed, such as CaSiO3, containing a higher content of SiO2, and Ca2SiO4, containing a higher content of CaO precipitate. In addition, the Al2O3 content, MgO content, and the basicity of the LF slag were higher than those in AOD. Additionally, the Al2O3 content, MgO content, and the basicity of inclusions in LF were also higher than those in AOD, which is generally consistent with the change of slag composition. Overall, most inclusions during the AOD process were CaSiO3 with a high SiO2 content, and most inclusions during LF were Ca2SiO4, with a high CaO content. At the same time, the amounts of Al2O3 and MgO in inclusions in the AOD and LF stages were lower, similar to those in the slag. Therefore, it can be concluded that the inclusions formed in 304L stainless steel during the AOD and LF processes are mainly derived from the entrapment of the top slag. The strong argon stirring during AOD smelting and LF refining eventually allows inclusions to eventually reach equilibrium after action between the molten steel and slag. Thus, effective control of inclusions can be achieved by the careful control of the slag composition. The content of MgO in the slag in LF is higher than that in AOD (an increase from 4.5% to 6%), suggesting that slag and molten steel corrode the lining in the LF refining process. The erosion from the molten steel is more obvious, and results in a significant increase in the content of MgO in inclusions, so a key control strategy will be to inhibit the erosion of the lining during the refining process. It is worth noting that the Al content comes from the ferrosilicon present in the reaction, so lowering the Al content in the ferrosilicon will limit the formation of Al2O3 inclusions.
To elucidate the characteristics of the inclusions of the tundish, the compositions of the analyzed were converted into mass percentages of CaO, SiO2, MgO and Al2O3 and were plotted on CaO–SiO2–Al2O3 and CaO–Al2O3-MgO ternary system phase diagrams, as shown in Figure 7 and Figure 8. As above, the phase diagrams of the CaO–SiO2–Al2O3 and CaO–Al2O3-MgO systems at 1 873 K were calculated using the FactSage6.3 software. The content of Al2O3 increased significantly in the tundish, showing obvious deviation from the composition of the slag at the end of LF. In the tundish, due to the decreased temperature, inclusions contained the Ca2Al2SiO7 and MgAl2O4 spinel phase with a high content of Al2O3 precipitate, so the content of Al2O3 increased significantly [21].

4.2. The Effect of Slag on the Als and Mg Content in Steel during the AOD-LF Process

It can be seen from the above results that the levels of Al2O3 and MgO in the LF slag were higher than those in the AOD, and the levels of Al and Mg in the LF were also higher than those in the AOD. The MgO content in the slag is derived from refractory material according to reaction (1), and the Mg content in the steel originates from slag and refractory material, according to reactions (2)-(3). The Al content in steel comes from the ferrosilicon, and the increase in the Al content during refining results from an increase in slag basicity. The effect of slag on the Als and Mg content in steel during the AOD-LF process was calculated using the Factsage 6.3 software. The FTmisc and FToxid databases were used, and the calculation module was equilibrated with 100 g of molten steel. Figure 9 shows the effect of the slag on the Als content when the temperature varied from 1550 °C to 1650 °C. The Als content in steel increased from AOD to LF at the same temperature. After the LF stage, the Als content increased as the temperature decreased. Figure 10 shows the effect of the slag on the Mg content in steel when the temperature varied from 1550 °C to 1650 °C. The Mg content in the steel also increased from AOD to LF at the same temperature. During the AOD-LF process, the Mg content decreased as the temperature decreased.
MgO refractory = MgO slag
3 ( MgO ) slag + 2 Al = ( Al 2 O 3 ) slag + 3 Mg
3 MgO refractory + 2 Al = ( Al 2 O 3 ) slag + 3 Mg

4.3. The Effect of Temperature on the Inclusion Contents in the Tundish

It can be seen from the above analysis that the compositions of the inclusions present in the continuous casting tundish are quite different from those present after LF refining. No external elements were added to the molten steel from the end of LF refining to the continuous casting process, so it can be concluded that the reduction of temperature plays a leading role in the composition change of inclusions. Figure 11 shows the influence of temperature on the equilibrium composition of liquid inclusions as calculated by the Factsage 6.3 software. The FTmisc and FToxid databases were used, and the calculation module was equilibrated with 100 g of molten steel. With the decrease of temperature from the end of LF refining to continuous casting, the content of Al2O3 in the inclusion increased rapidly, while the content of CaO, SiO2, and MgO decreased, but the content of MnO increased slightly. The rapid increase of the amount of Al2O3 in the CaO-SiO2-Al2O3-MgO inclusions provides favorable conditions for the precipitation of the MgO·Al2O3 spinel phase in the continuous casting tundish.
The above results and analysis were used to describe the evolution of the inclusions and the formation mechanism of the inclusions during the smelting process of 304L stainless steel, as shown in Figure 12. There are two main types of inclusions: CaO-SiO2-Al2O3-MgO-MnO and CaO-SiO2-Al2O3-MgO.
The CaO-SiO2-Al2O3-MgO inclusions are mainly slag inclusions after AOD treatment and LF refining. During smelting, the size of the inclusions decreased, and the Al2O3 and MgO content of inclusions increased. The increase in the Al2O3 and MgO content in inclusions is attributed to enhanced formation of Al2O3 and MgO caused by the reaction between Als, Mg, and O. The content of Al2O3 increased rapidly as the temperature decreased from LF to the tundish of continuous casting, resulting in MgO·Al2O3 spinel precipitates. The reaction is shown in Equation (4).
( MgO ) in   inclusions + ( Al 2 O 3 ) in   inclusions = ( MgO · Al 2 O 3 ) in   inclusions
Evolution of the CaO-SiO2-Al2O3-MgO-MnO inclusions is similar with the first inclusion. The Mg and Al content in steel increases from AOD to LF, and the levels of Al2O3 and MgO of inclusions in LF are also higher than those in AOD. With the decrease of temperature, from the end of LF refining to continuous casting, the MnO content of inclusions increases slightly, and some CaO-SiO2-Al2O3-MgO inclusions change into CaO-SiO2-Al2O3-MgO-MnO inclusions. These inclusions containing MnO mainly appear in the tundish. This is because the mass fraction of manganese in 304L stainless steel is high (about 1.60%), and the binding ability of manganese with oxygen is lower than that of silicon, so inclusions containing MnO do not typically form during the AOD and LF refining processes. The appearance of CaO-SiO2-Al2O3-MgO-MnO spherical inclusions is mainly related to the decrease in temperature that occurs in the transition from LF to the tundish. The rapid increase of Al2O3 content in the CaO-SiO2-Al2O3-MgO-MnO inclusions provides favorable conditions for the precipitation of the MgO·Al2O3 spinel phase in the continuous casting tundish, resulting in MgO·Al2O3 spinel precipitates.

5. Conclusions

In this study, the inclusions formed in 304L stainless steel prepared for nuclear power applications using the EAF-AOD-LF-CC process were systematically investigated by microanalysis and thermodynamic analysis. The results were as follows:
1) The size of inclusions is mainly ≤10 μm at various stages during the smelting process, and their number density is decreased in turn during the process of smelting.
2) The inclusions at the end of AOD and LF refining were very similar to the slag composition. The types of inclusions (size larger than 5 µm) were mainly CaSiO3 with high SiO2 content at the end of AOD, and Ca2SiO4 with high CaO content at the end of LF. The Al2O3 and MgO levels of inclusions increased from AOD to LF.
3) The Als and Mg content in steel increased from AOD to LF refining, as calculated using FactSage6.3 software. The increased Al2O3 and MgO content in inclusions is attributed to increased formation of Al2O3 and MgO caused by the reaction between Als, Mg and O.
4) In the tundish, the inclusions are mainly spherical CaO-SiO2-Al2O3-MgO-MnO and CaO-SiO2-Al2O3-MgO with MgO·Al2O3 spinel precipitation. The content of Al2O3 in the inclusions increased rapidly with the decrease in temperature from the end of LF refining to continuous casting, as calculated using FactSage6.3 software. The rapid increase of Al2O3 in CaO-SiO2-Al2O3-MgO inclusions provides favorable conditions for the precipitation of MgO·Al2O3 spinel in the continuous casting tundish.

Author Contributions

Conceptualization, G.C.; Methodology, X.C. and Y.H.; Software, J.L. and Y.H.; Validation, X.C., J.L. and Y.H.; Formal Analysis, X.C.; Investigation, X.C.; Resources, X.C.; Data Curation, X.C.; Writing—Original Draft Preparation, X.C.; Writing—Review & Editing, Y.H.; Visualization, X.C.; Supervision, G.C.; Project Administration, X.C.

Funding

This research received no external funding.

Acknowledgments

The authors gratefully express their appreciation to the National Natural Science Foundation of China (Grant No. 51374020), the State Key Laboratory of Advanced Metallurgy at University of Science and Technology Beijing (USTB), and Jiuquan Iron and Steel Group Corporation for supporting this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Momeni, A.; Abbasi, S.M. Repetitive thermomechanical processing towards ultra-fine grain structure in 301, 304 and 304L stainless steels. J. Mater. Sci. Technol. 2011, 27, 338–343. [Google Scholar] [CrossRef]
  2. Zhao, R.; Zhang, Z.; Shi, J.-B.; Tao, L.; Song, S.-Z. Characterization of stress corrosion crack growth of 304 stainless steel by electrochemical noise and scanning kelvin probe. J. Cent. South Univ. T. 2010, 17, 13–18. [Google Scholar] [CrossRef]
  3. Jiao, Z.; Hesterberg, J.; Was, G.S. Effect of post-irradiation annealing on the irradiated microstructure of neutron-irradiated 304L stainless steel. J. Nucl. Mater. 2018, 500, 220–234. [Google Scholar] [CrossRef]
  4. Chikhi, N.; Fouquart, P.; Delacroix, J.; Piluso, P. Measurement of type 304L stainless steel and 16MND5 ferritic steel density and surface tension: possible impact for stratified molten pool. Nucl. Technol. 2019, 205, 200–212. [Google Scholar] [CrossRef]
  5. Gupta, J.; Hure, J.; Tanguy, B.; Laffont, L.; Lafont, M.C.; Andrieu, E. Evaluation of stress corrosion cracking of irradiated 304L stainless steel in PWR environment using heavy ion irradiation. J. Nucl. Mater. 2016, 476, 82–92. [Google Scholar] [CrossRef] [Green Version]
  6. Chandra, K.; Kain, V.; Raja, V.S.; Tewari, R.; Dey, G.K. Low temperature thermal ageing embrittlement of austenitic stainless steel welds and its electrochemical assessment. Corros. Sci. 2012, 54, 278–290. [Google Scholar] [CrossRef]
  7. Garnier, J.; Bréchet, Y.; Delnondedieu, M.; Pokor, C.; Dubuisson, P.; Renault, A.; Averty, X.; Massoud, J.P. Irradiation creep of SA 304L and CW 316 stainless steels: Mechanical behaviour and microstructural aspects. Part i: Experimental results. J. Nucl. Mater. 2011, 413, 63–69. [Google Scholar] [CrossRef]
  8. Yin, X.; Sun, Y.; Yang, Y.; Deng, X.; Barati, M.; McLean, A. Effect of alloy addition on inclusion evolution in stainless steels. Ironmak. Steelmak. 2017, 44, 152–158. [Google Scholar] [CrossRef]
  9. Yoshioka, T.; Nakahata, K.; Kawamura, T.; Ohba, Y. Factors to determine inclusion compositions in molten steel during the secondary refining process of case-hardening steel. ISIJ Int. 2016, 56, 1973–1981. [Google Scholar] [CrossRef]
  10. Kaushik, P.; Lehmann, J.; Nadif, M. State of the art in control of inclusions, their characterization, and future requirements. Metall. Mater. Trans. B 2012, 43, 710–725. [Google Scholar] [CrossRef]
  11. Kaushik, P.; Pielet, H.; Yin, H. Inclusion characterisation – tool for measurement of steel cleanliness and process control: Part 1. Ironmak. Steelmak. 2009, 36, 561–571. [Google Scholar] [CrossRef]
  12. Bi, Y.; Karasev, A.V.; Jönsson, P.G. Evolution of different inclusions during ladle treatment and continuous casting of stainless steel. ISIJ Int. 2013, 53, 2099–2109. [Google Scholar] [CrossRef]
  13. Ehara, Y.; Yokoyama, S.; Kawakami, M. Formation mechanism of inclusions containing MgO-Al2O3 spinel in type 304 stainless steel. Tetsu-to-Hagane 2007, 93, 208–214. [Google Scholar] [CrossRef]
  14. Park, J.H. Thermodynamic investigation on the formation of inclusions containing MgAl2O4 spinel during 16Cr–14Ni austenitic stainless steel manufacturing processes. Mater. Sci. Eng. A 2008, 472, 43–51. [Google Scholar] [CrossRef]
  15. Yin, X.; Sun, Y.H.; Yang, Y.D.; Bai, X.F.; Deng, X.X.; Barati, M.; McLean, A. Inclusion evolution during refining and continuous casting of 316L stainless steel. Ironmak. Steelmak. 2016, 43, 533–540. [Google Scholar] [CrossRef]
  16. Choi, J.-Y.; Kim, S.-K.; Kang, Y.-B.; Lee, H.-G. Compositional evolution of oxide inclusions in austenitic stainless steel during continuous casting. Steel Res. Int. 2015, 86, 284–292. [Google Scholar] [CrossRef]
  17. Park, J.H.; Todoroki, H. Control of MgO·Al2O3 spinel inclusions in stainless steels. ISIJ Int. 2010, 50, 1333–1346. [Google Scholar] [CrossRef]
  18. Yan, P.; Huang, S.; Van dyck, J.; Guo, M.; Blanpain, B. Desulphurisation and inclusion behaviour of stainless steel refining by using CaO-Al2O3 based slag at low sulphur levels. ISIJ Int. 2014, 54, 72–81. [Google Scholar] [CrossRef]
  19. Ren, Y.; Zhang, L.; Fang, W.; Shao, S.; Yang, J.; Mao, W. Effect of slag composition on inclusions in Si-deoxidized 18Cr-8Ni stainless steels. Metall. Mater. Trans. B 2016, 47, 1024–1034. [Google Scholar] [CrossRef]
  20. Sakata, K. Technology for production of austenite type clean stainless steel. ISIJ Int. 2006, 46, 1795–1799. [Google Scholar] [CrossRef]
  21. Park, J.H. Formation mechanism of spinel-type inclusions in high-alloyed stainless steel melts. Metall. Mater. Trans. B 2007, 38, 657–663. [Google Scholar] [CrossRef]

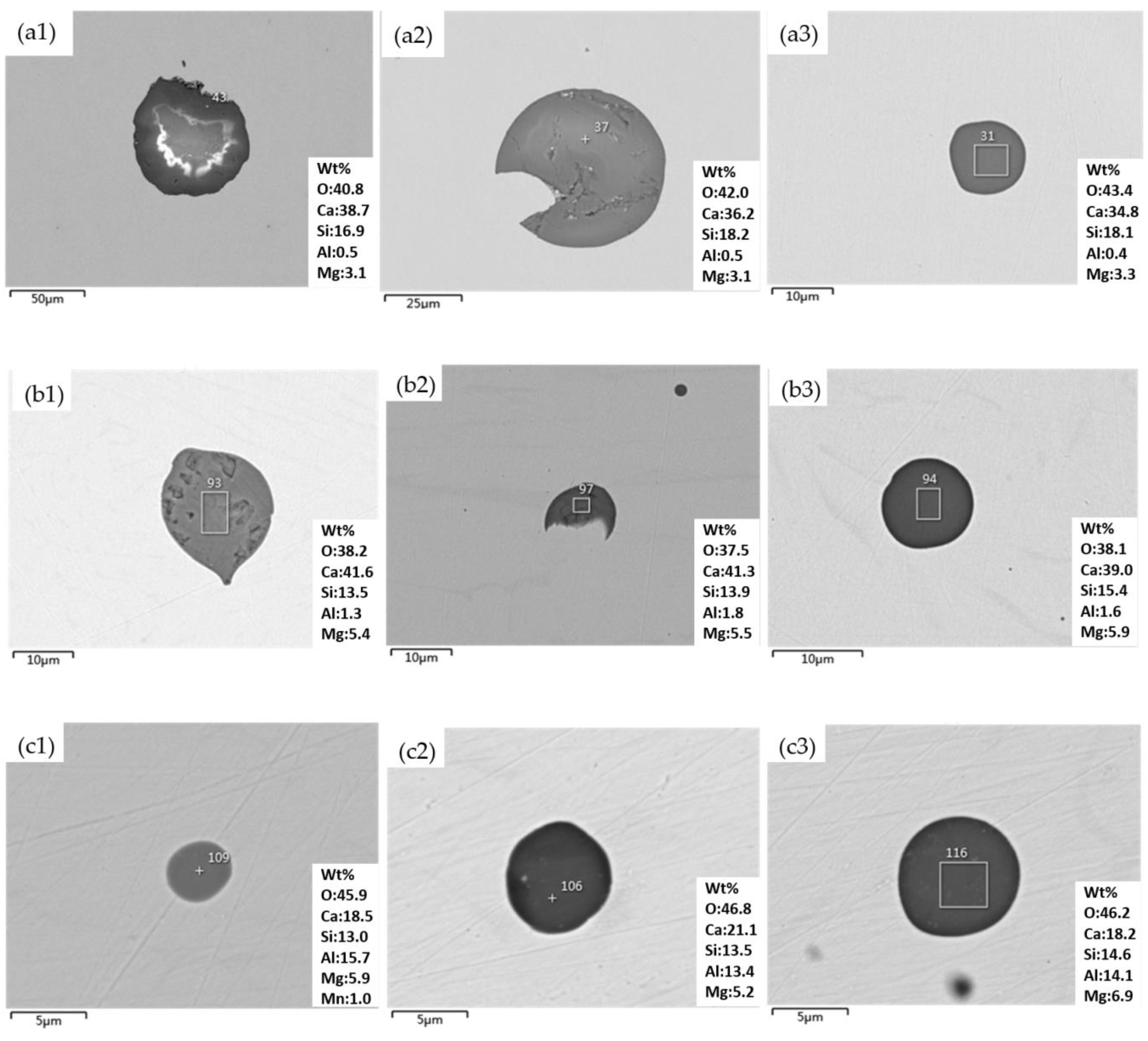

Figure 1. Morphology and composition of typical inclusions in samples: (a) typical inclusions at the end of AOD; (b) typical inclusions at the end of LF refining; (c) typical inclusions in the tundish.
Figure 1. Morphology and composition of typical inclusions in samples: (a) typical inclusions at the end of AOD; (b) typical inclusions at the end of LF refining; (c) typical inclusions in the tundish.
Metals 09 00257 g001

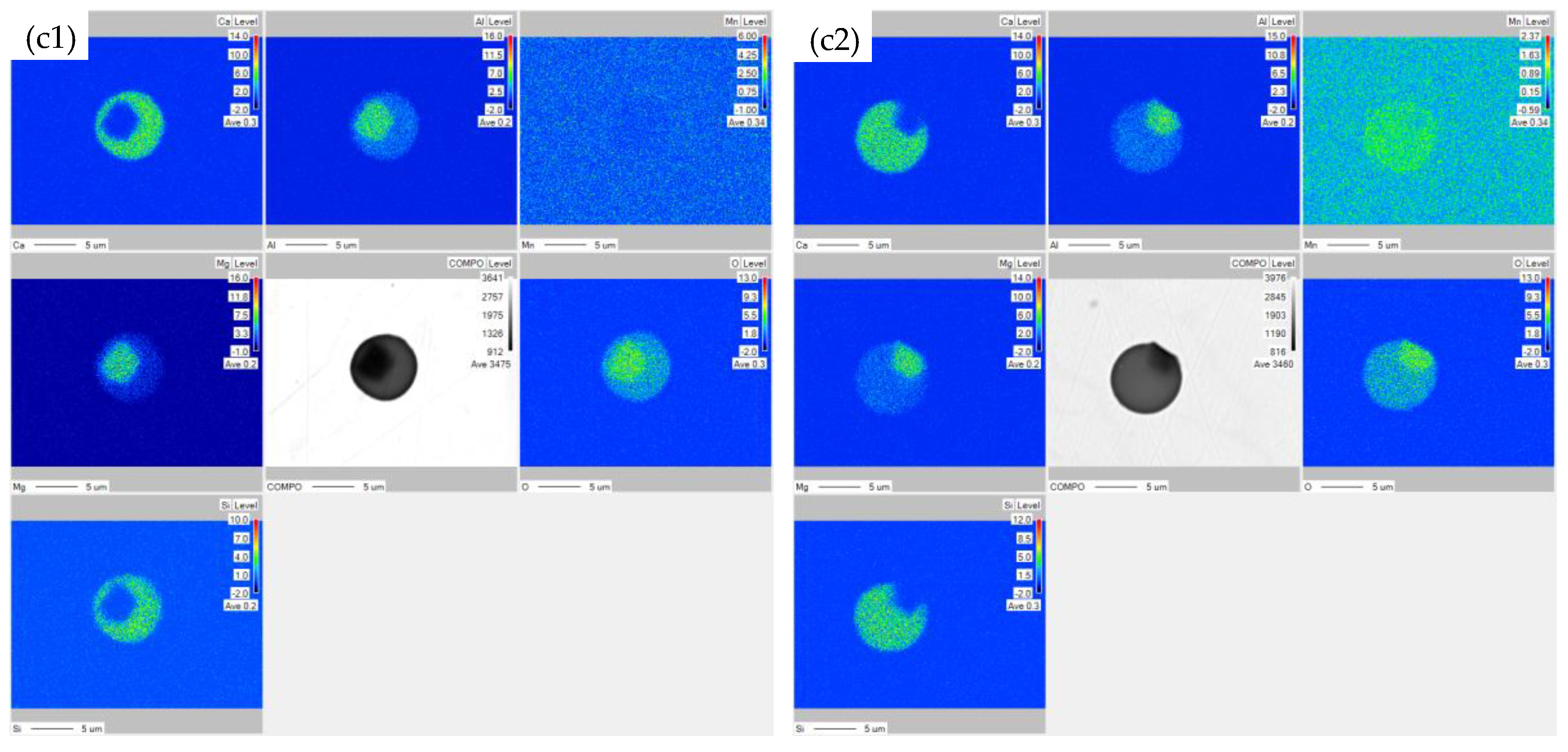

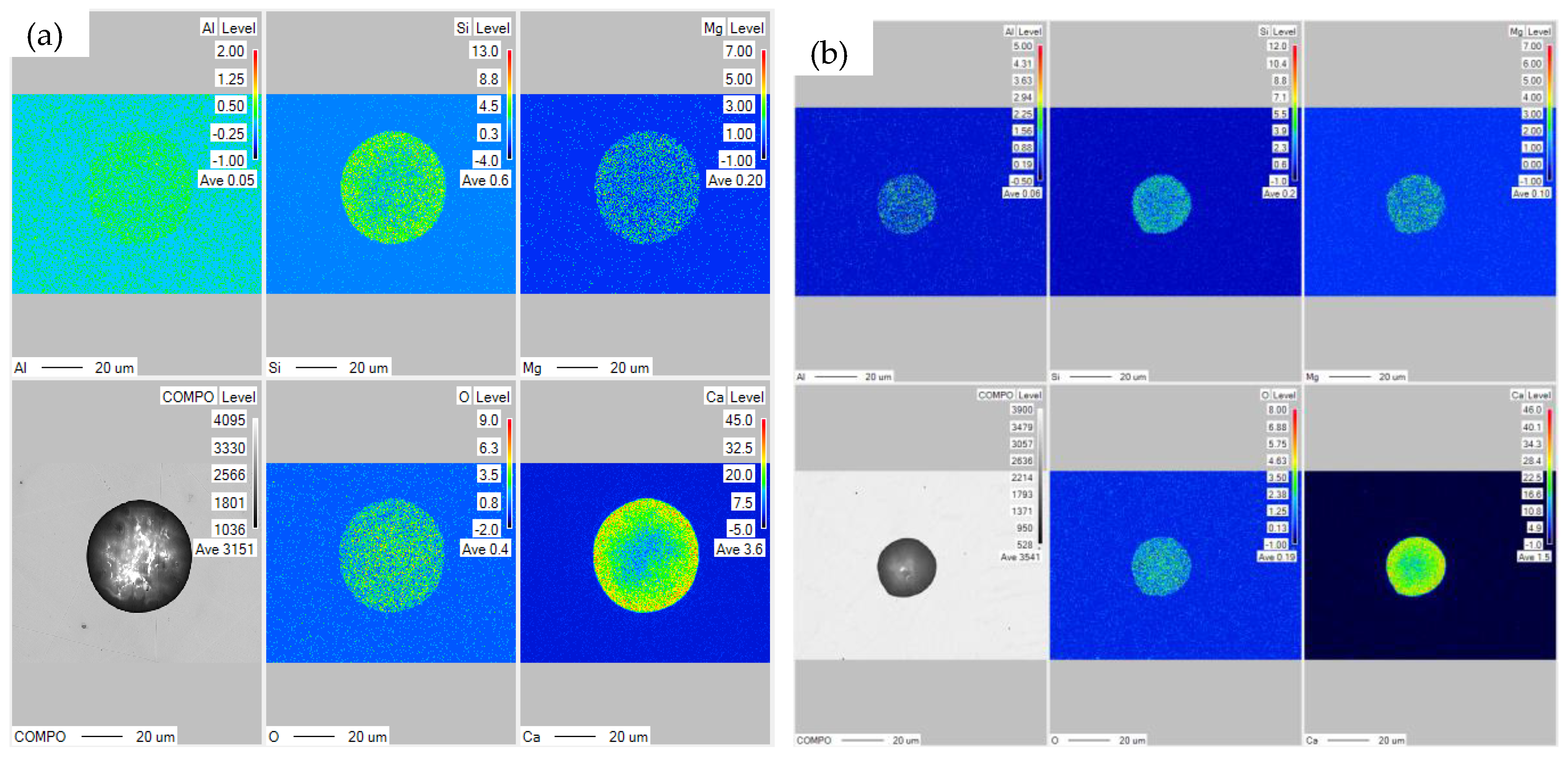

Figure 2. The WDS element maps of typical inclusions in samples: (a) typical inclusions at the end of AOD; (b) typical inclusions at the end of LF refining; (c) typical inclusions in the tundish.
Figure 2. The WDS element maps of typical inclusions in samples: (a) typical inclusions at the end of AOD; (b) typical inclusions at the end of LF refining; (c) typical inclusions in the tundish.
Metals 09 00257 g002aMetals 09 00257 g002b

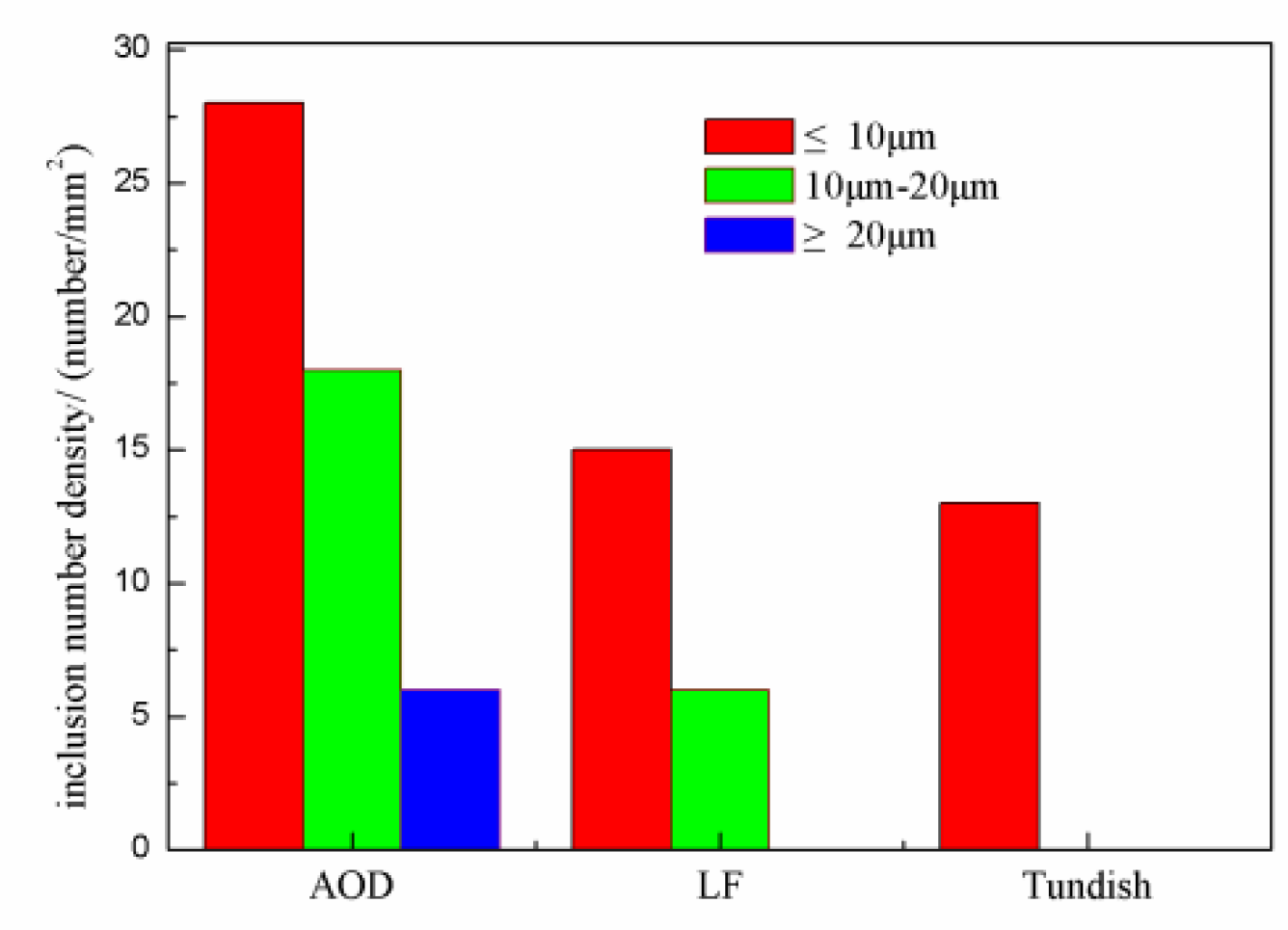

Figure 3. Size distribution of inclusions at different sampling locations.
Figure 3. Size distribution of inclusions at different sampling locations.
Metals 09 00257 g003

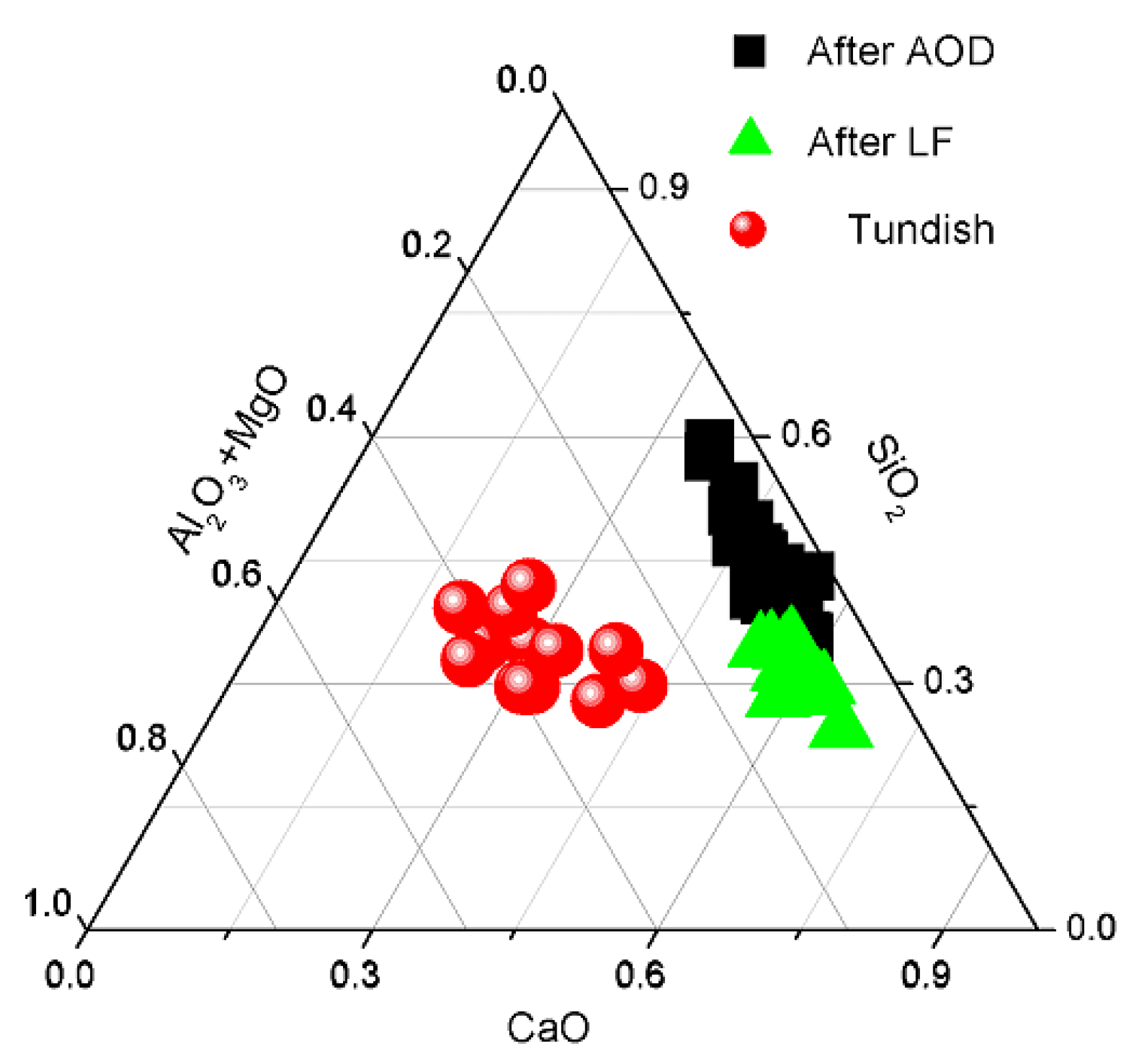

Figure 4. Composition distributions of inclusions (size larger than 5 μm) at the different stages.
Figure 4. Composition distributions of inclusions (size larger than 5 μm) at the different stages.
Metals 09 00257 g004

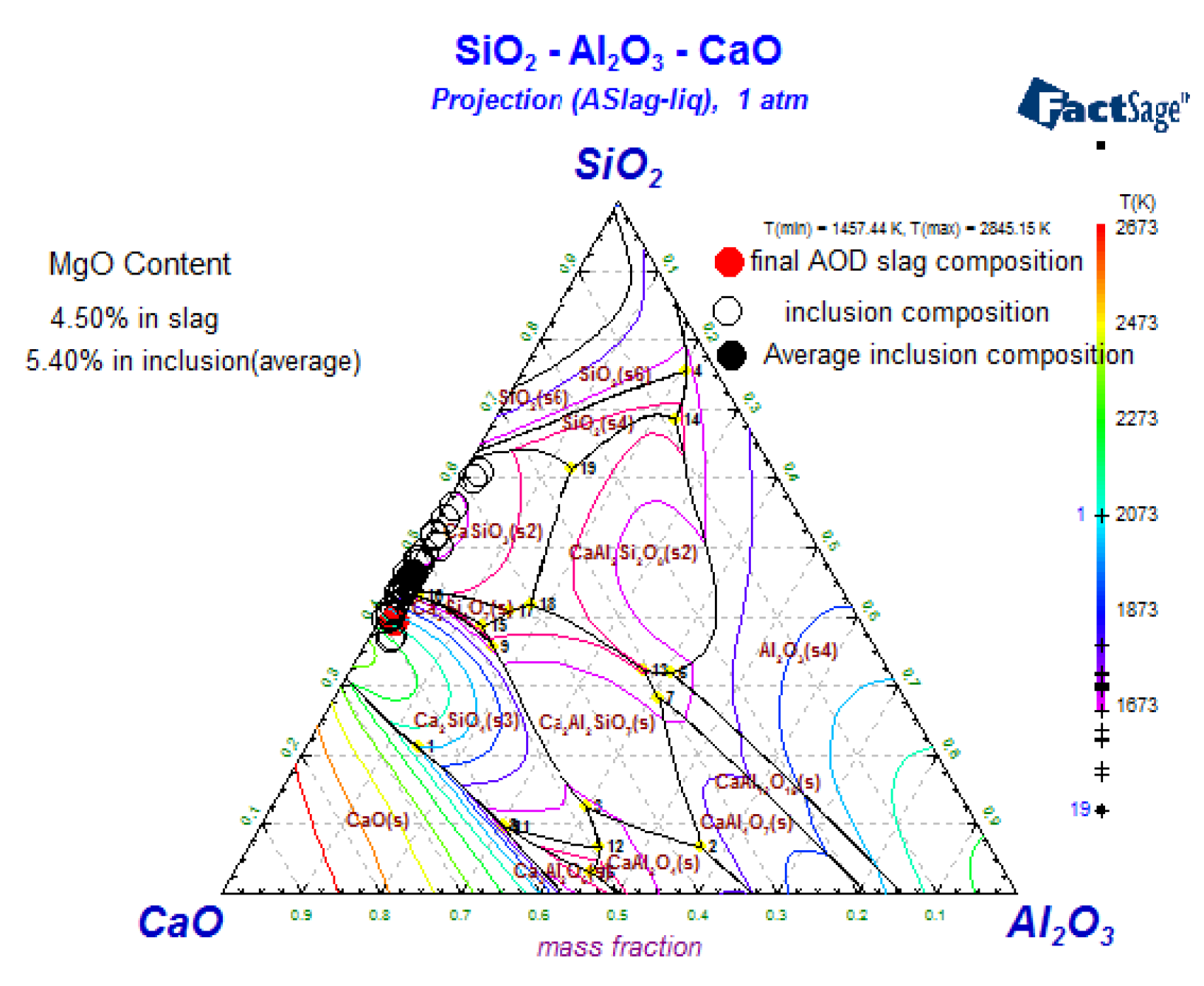

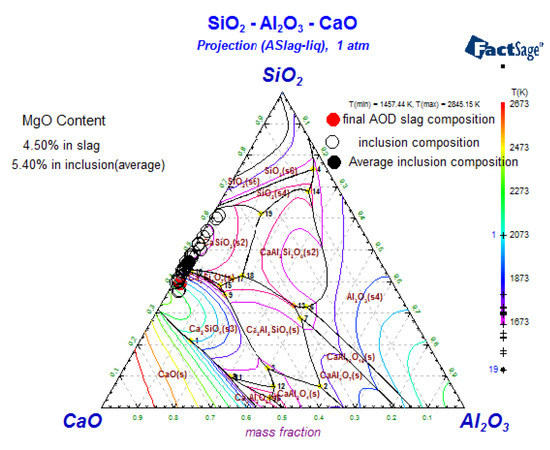

Figure 5. Chemical composition of inclusions and slag at the final stage of the AOD process.
Figure 5. Chemical composition of inclusions and slag at the final stage of the AOD process.
Metals 09 00257 g005

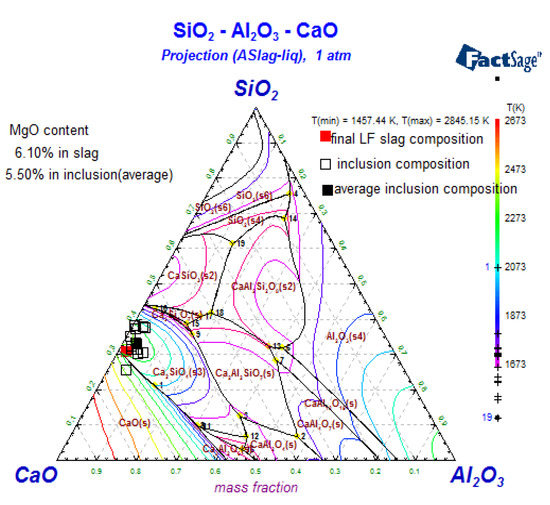

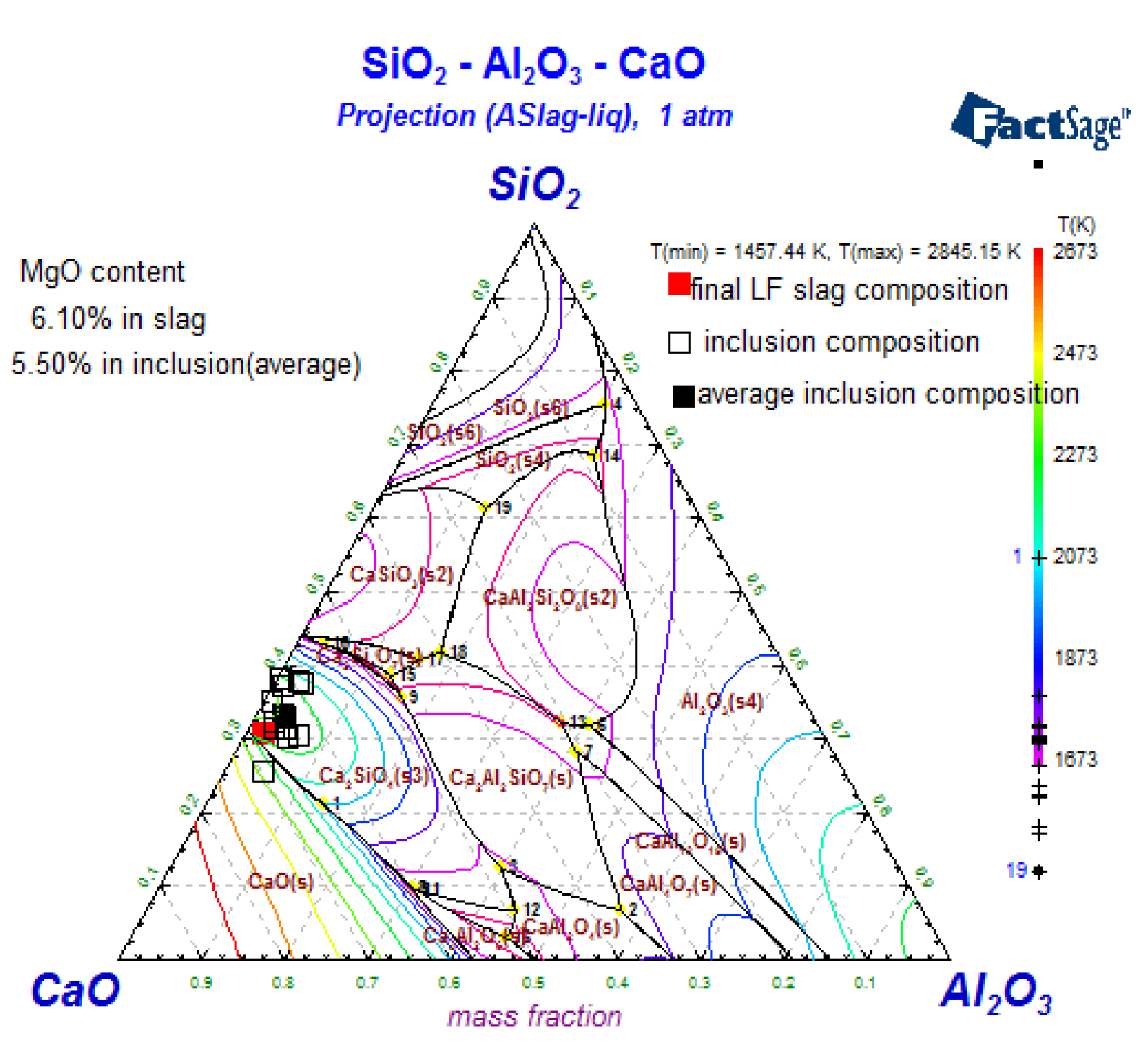

Figure 6. Chemical composition of inclusions and slag at the final stage of the LF process.
Figure 6. Chemical composition of inclusions and slag at the final stage of the LF process.
Metals 09 00257 g006

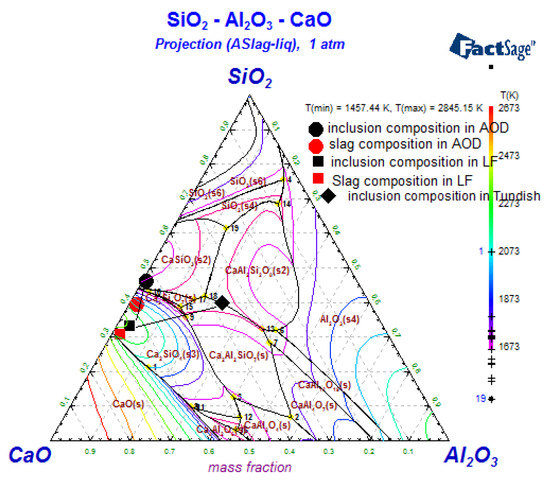

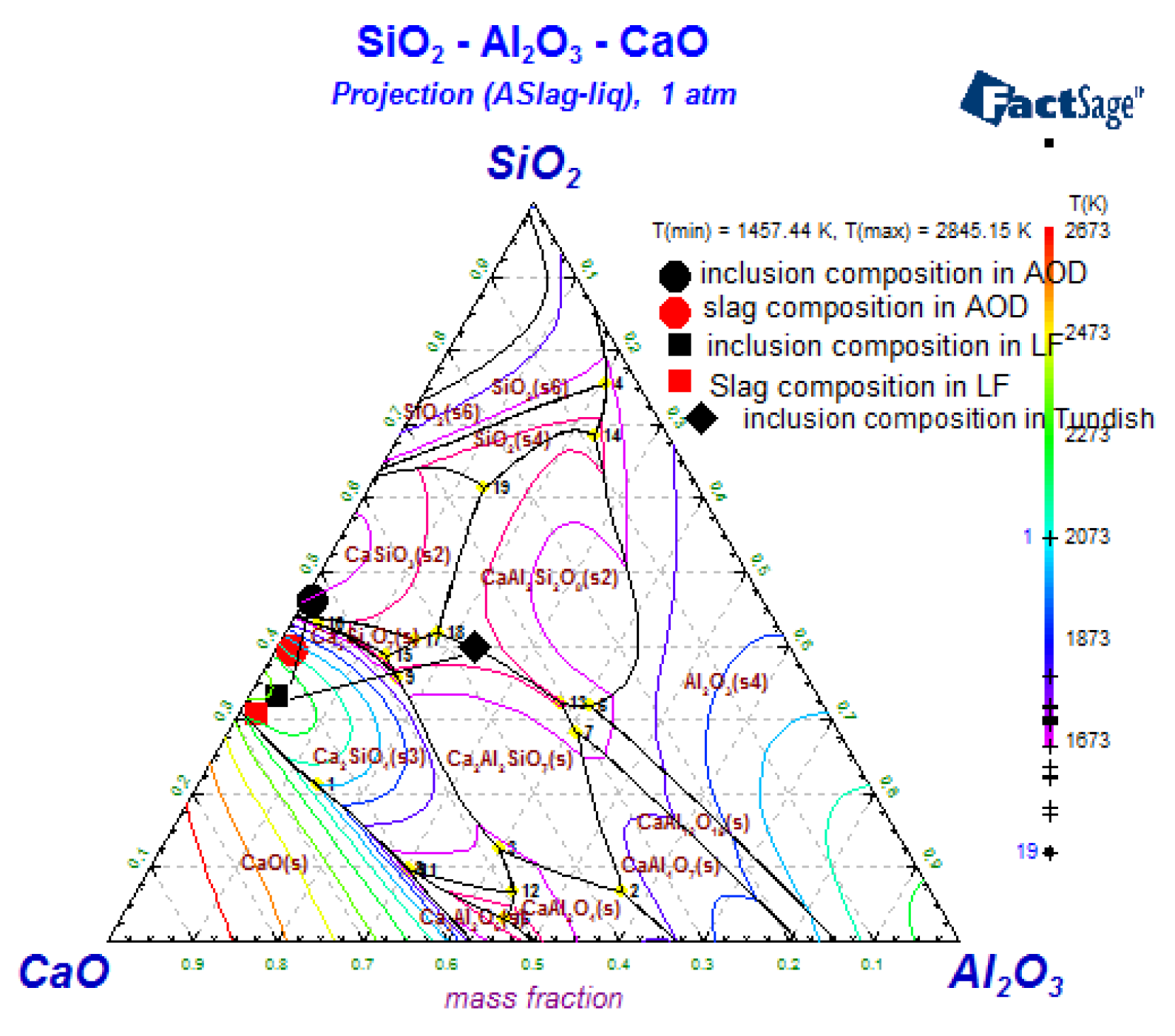

Figure 7. Chemical composition of the inclusions during the AOD-LF-CC process.
Figure 7. Chemical composition of the inclusions during the AOD-LF-CC process.
Metals 09 00257 g007

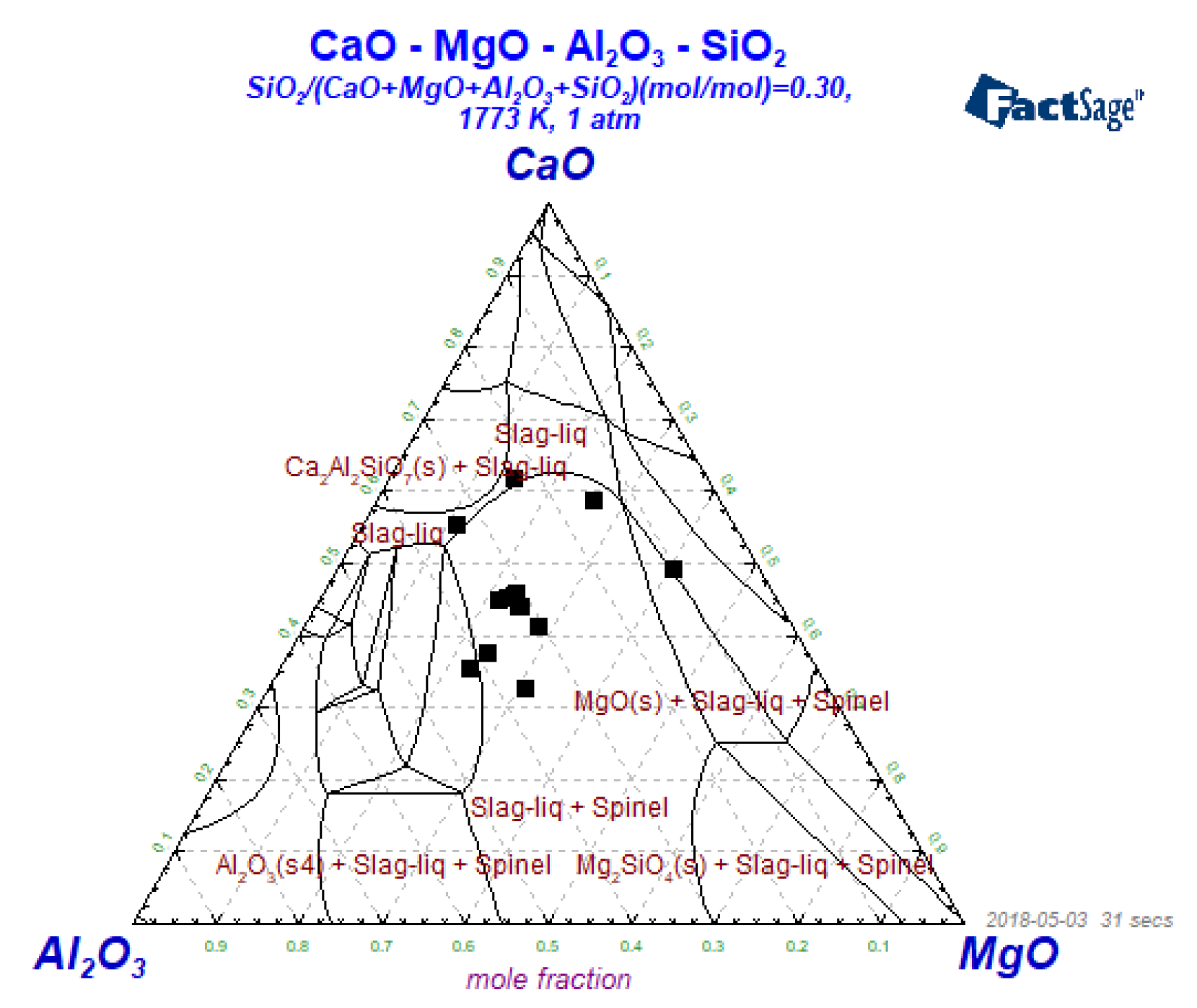

Figure 8. Chemical composition of inclusions in the tundish.
Figure 8. Chemical composition of inclusions in the tundish.
Metals 09 00257 g008

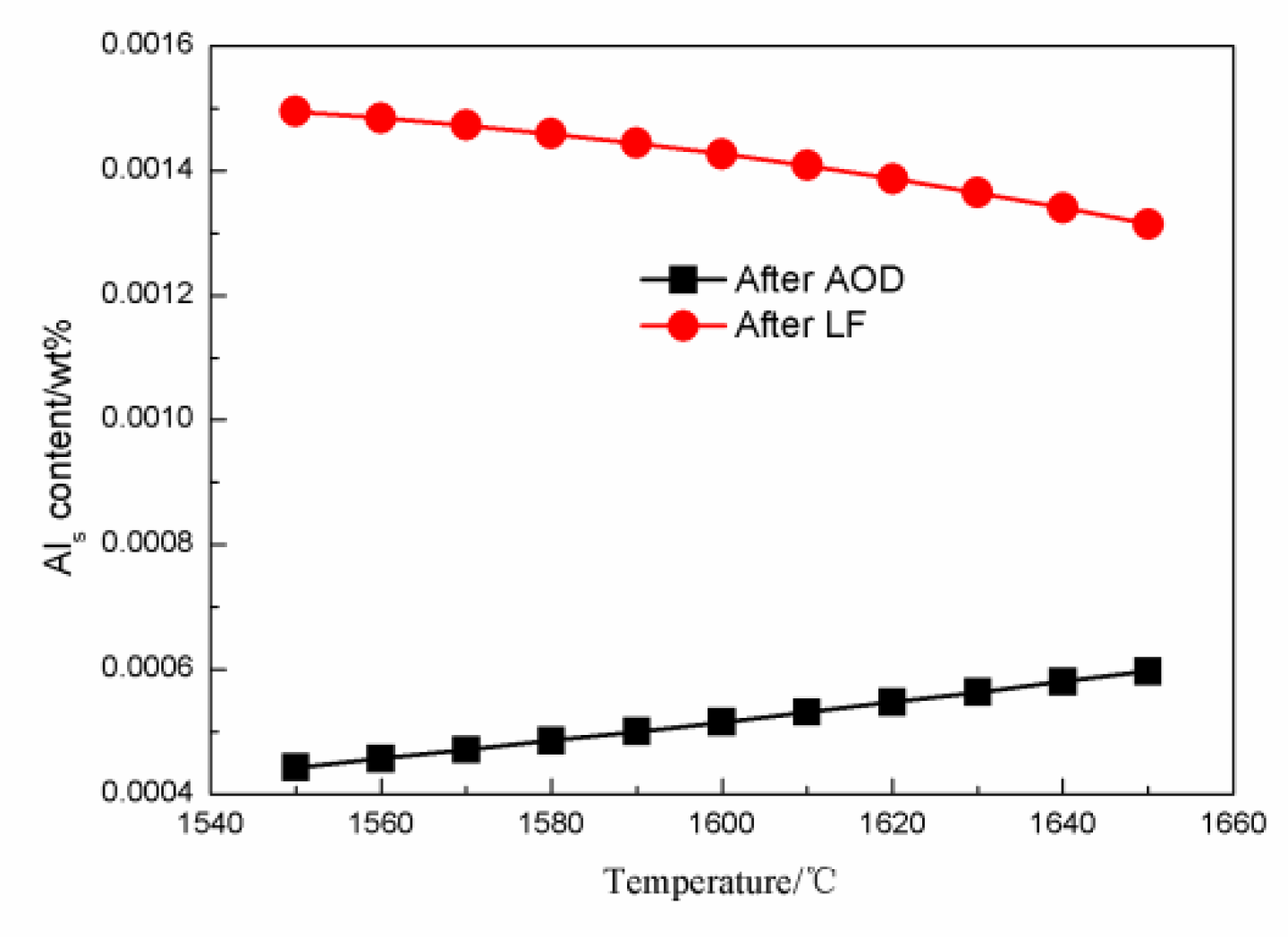

Figure 9. Effect of the slag on the content of Als in steel.
Figure 9. Effect of the slag on the content of Als in steel.
Metals 09 00257 g009

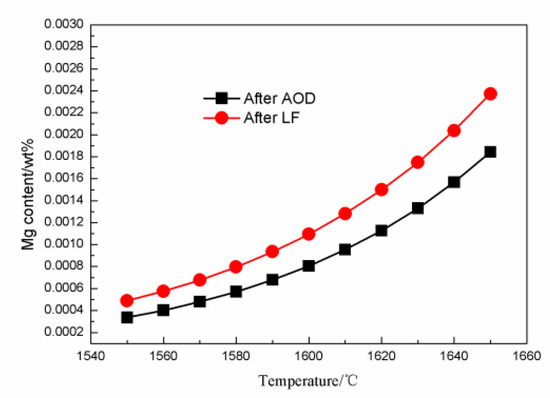

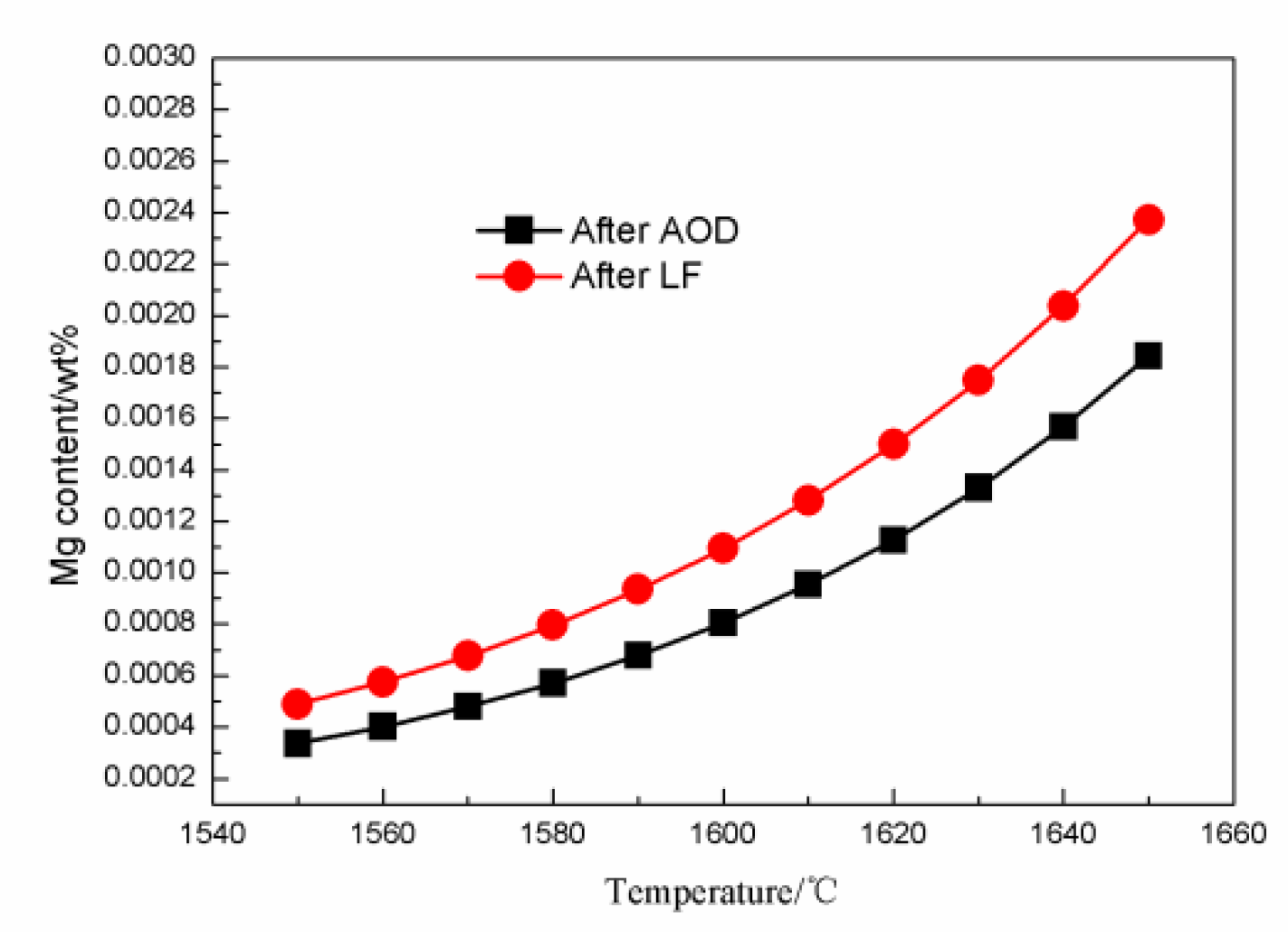

Figure 10. Effect of the slag on the content of Mg in steel.
Figure 10. Effect of the slag on the content of Mg in steel.
Metals 09 00257 g010

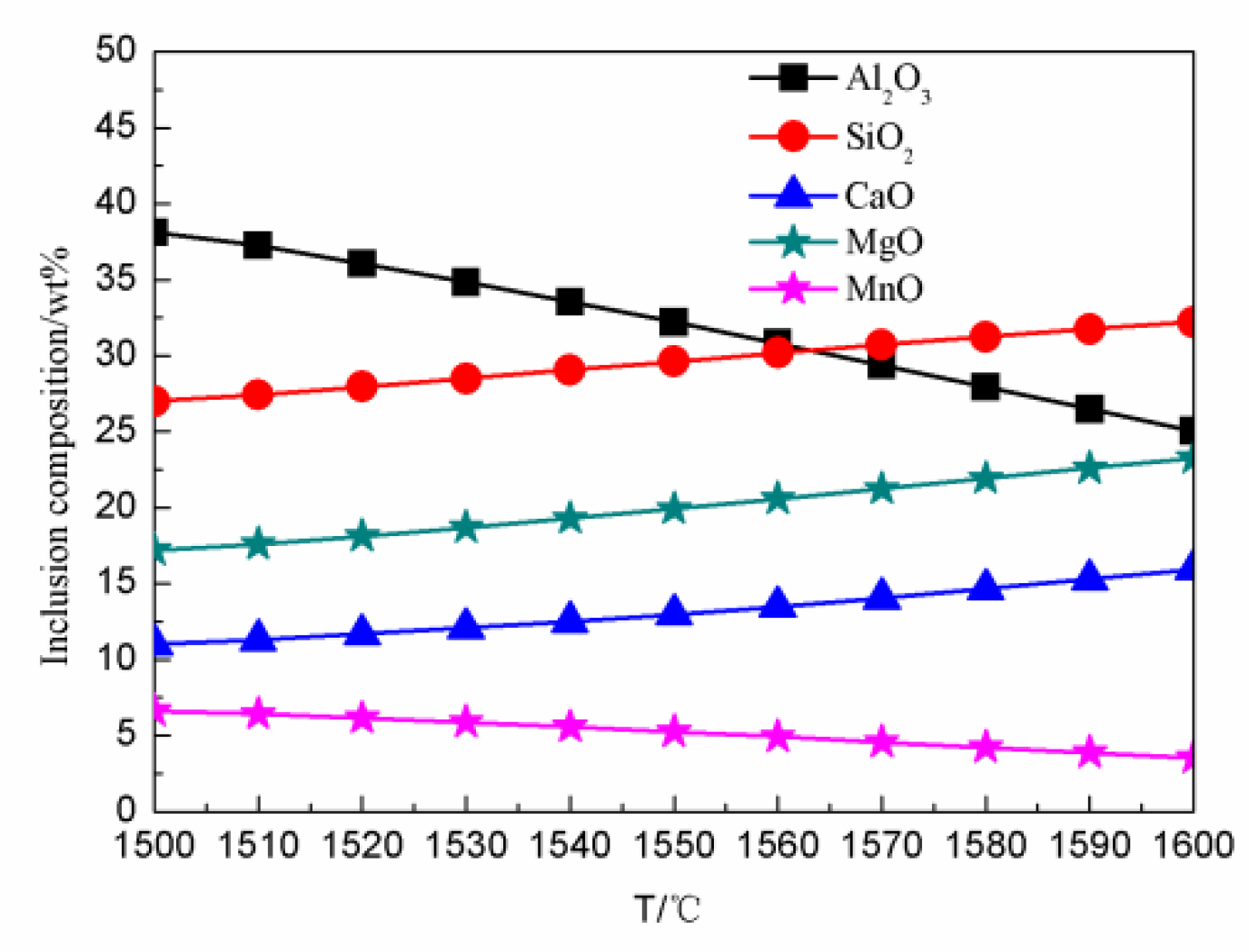

Figure 11. Effect of temperature on the inclusion composition.
Figure 11. Effect of temperature on the inclusion composition.
Metals 09 00257 g011

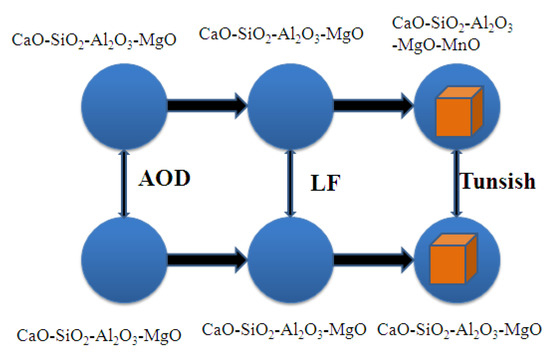

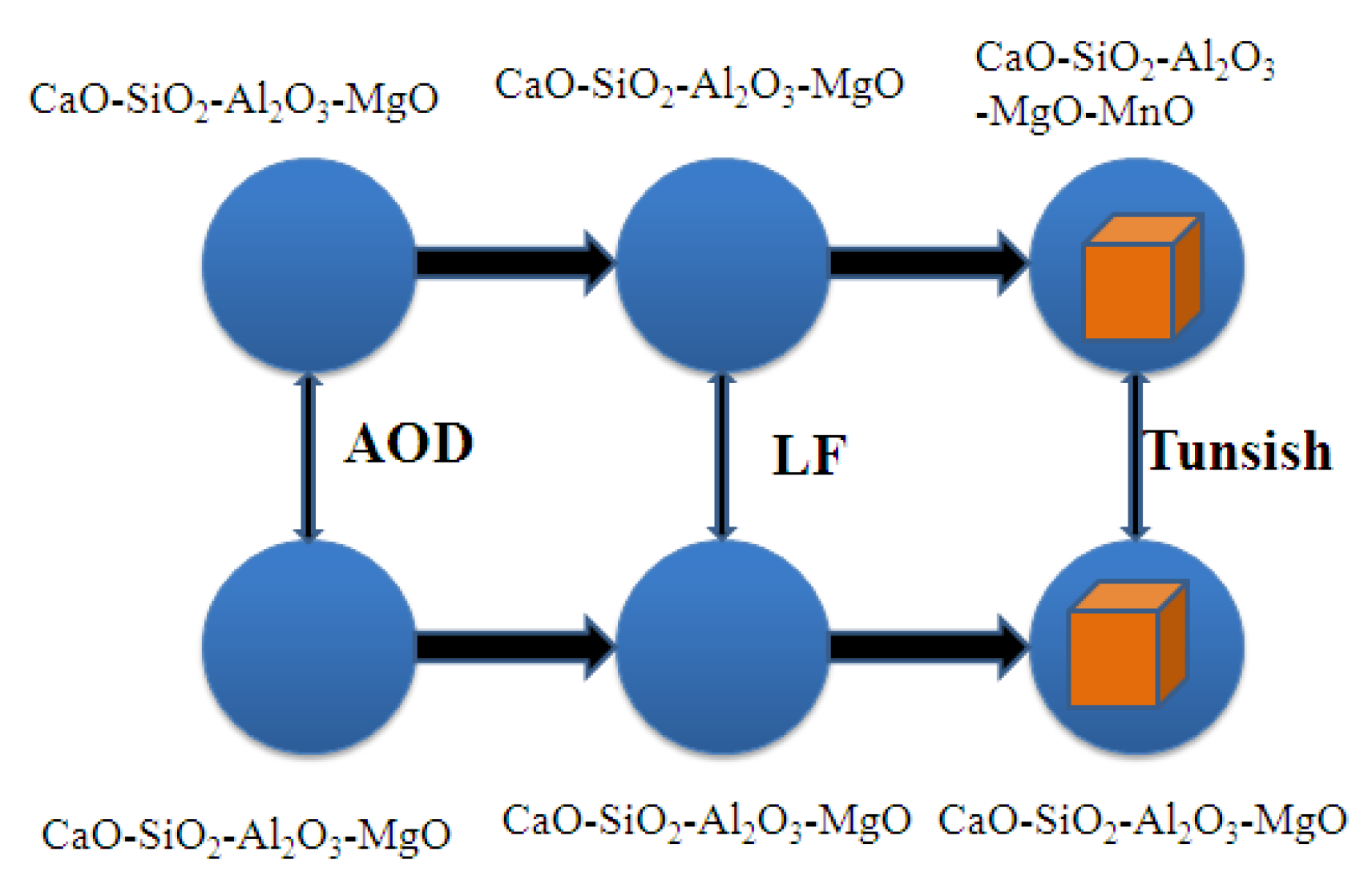

Figure 12. Schematic illustration of the formation mechanism of the inclusions containing spinel crystals during manufacturing of 304L stainless steel.
Figure 12. Schematic illustration of the formation mechanism of the inclusions containing spinel crystals during manufacturing of 304L stainless steel.
Metals 09 00257 g012
Table 1. Chemical composition of 304L at different stages (mass fraction %).
Table 1. Chemical composition of 304L at different stages (mass fraction %).
StageCSiMnNiCrAlMgCaT.O
After AOD0.0110.141.508.1217.990.0030.00060.00110.0152
After LF0.0150.371.598.2118.140.0040.00080.00060.0047
Tundish0.0150.381.588.2718.100.0040.00080.00060.0040
Table 2. Chemical composition of 304L slag at different stages (mass fraction %).
Table 2. Chemical composition of 304L slag at different stages (mass fraction %).
StageCaOSiO2MgOAl2O3Cr2O3FeO
After AOD55.9730.214.471.371.492.36
After LF58.6926.636.081.890.070.13
